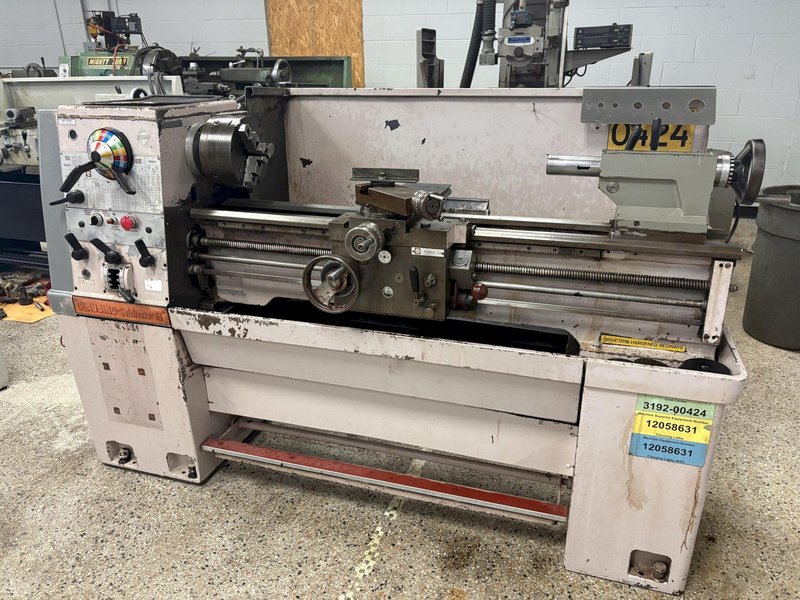

13" x 40" CLAUSING-COLCHESTER Geared Head Engine Lathe
Brand
Category
Type
Model
Not specified
Stock #
34995
Year
1977
Condition
Used
Location
Ohio
|
Specifications:

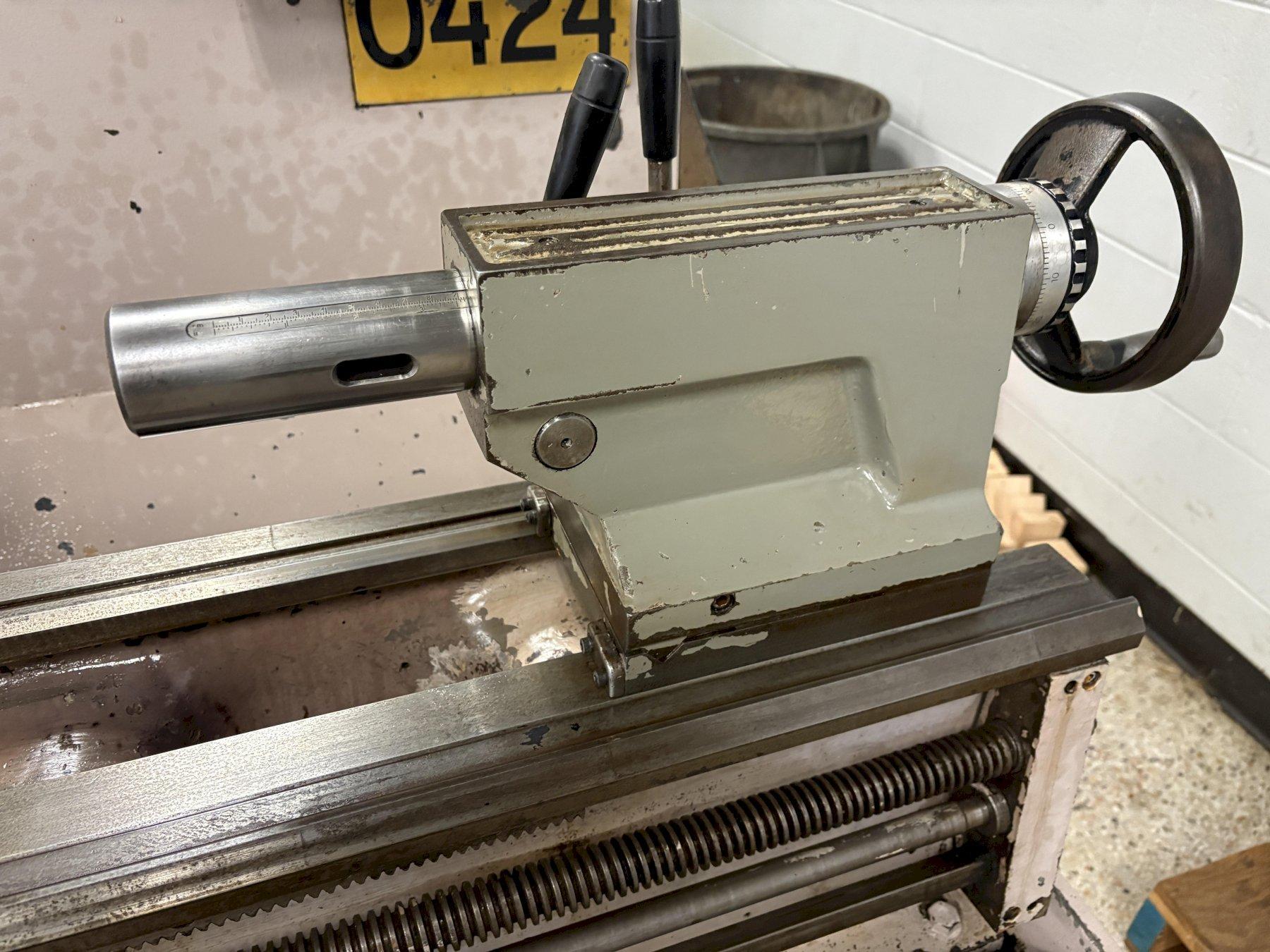

Swing over bed - 13" Swing over cross slide - 8¼" Bar capacity thru spindle - 1-5/8" Center distance - 40" Spindle nose - D1-4 Spindle speeds (16) - 30 to 2500 rpm Spindle motor - 5 hp / wired 3/60/220v U.S Standard Threads (45) - 2 to 72 tpi Mertic threads (39) - .2 to 14 mm Longitudinal carriage feeds (45) - .001" to .040" Cross feeds (45) - .00050: to .020" Tailstock center - 3 MT Tailstock spindle travel - 4¼" Dimensions - 78" LR x 37" FB x 47.5" H Weight, Approx - 2000 Lbs Equipped with: 3-Jaw Chuck Tailstock Machine reportedly was working when removed from service. Specifications subject to independent verification by the buyer. Seller can load by appointment. Condition & Terms: This machine is being sold strictly AS-IS, WHERE-IS, with any and all faults. It has not been run or tested under power in our facility. No warranties or guarantees of operational functionality, completeness, or accuracy are expressed or implied. |
