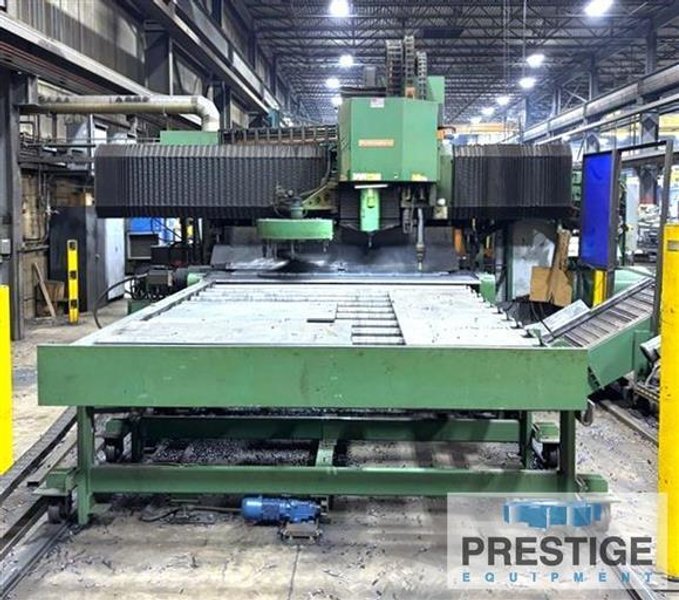

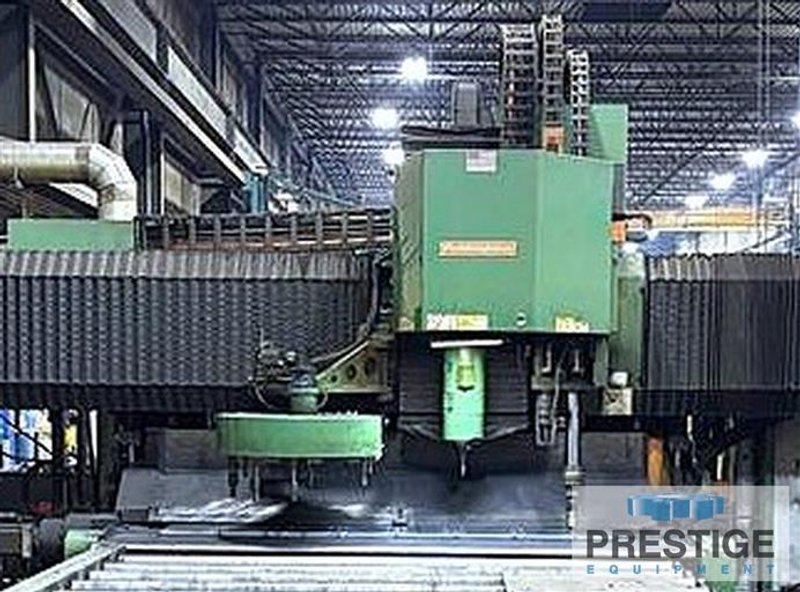

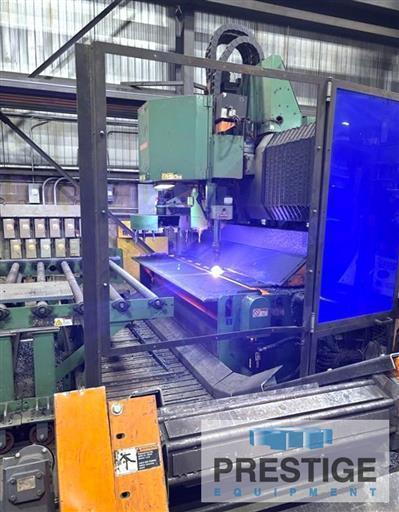

Punches Single Station Punch Plasma Combination

CAPACITIES:
Minimum to Maximum Material Width 6" to 96"
Minimum to Maximum Material Length 36" to 240"
Plate Process Thickness Range 1/4" to 4"
Maximum Material Weight 34,000 Lbs.
Spindle Power 48 HP
Spindle Speed 0-2250 RPM
Tool Changer Capacity 12 Tools
Spindle Taper CAT #50
Min-Max Plate Drilling Range 1/4" to 3"
Plasma, Edge Start Process Range 1/4" to 3-1/4"
Plasma, Piercing Process Range 1/4" to 2"
Approximate Weight 45,000 Lbs.



Equipped With:

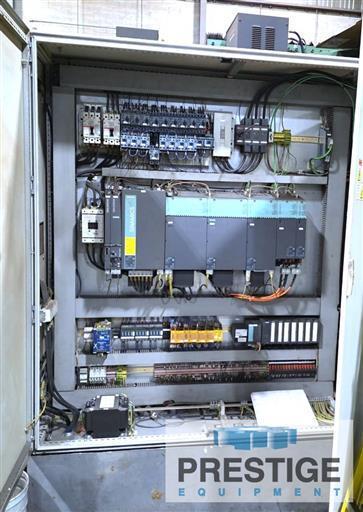

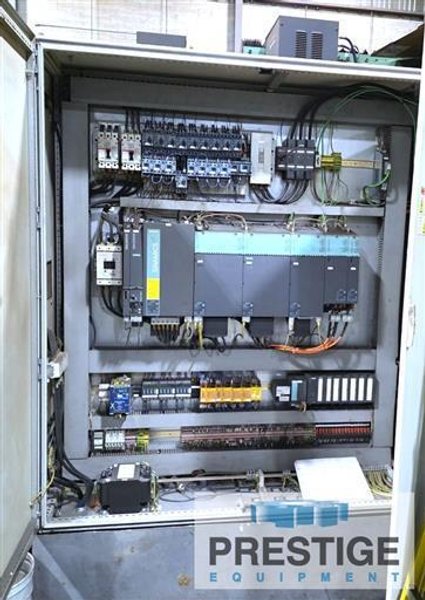

Siemens 840D CNC Control
12 Station Automatic Tool Changer

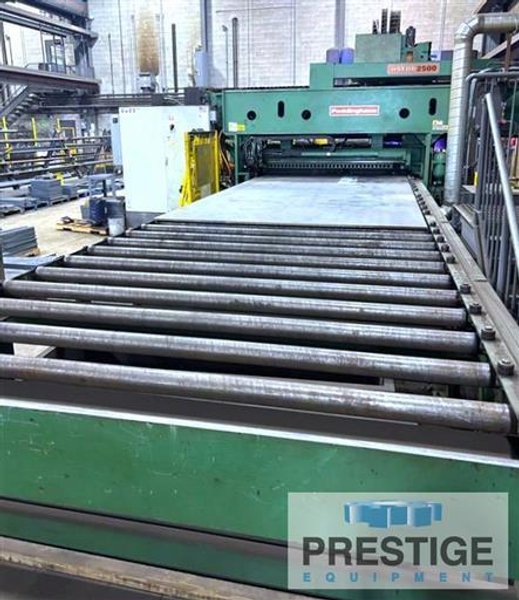

20' In-feed/Out-feed Conveyor
Signo-script Carbide Marking System
Automatic Tool Length Measurement
Copper Lined Plenum Chamber
Automatic Discharge Table
Heavy Duty Side Parts Unloading Conveyor
Thru Tool Lubrication System

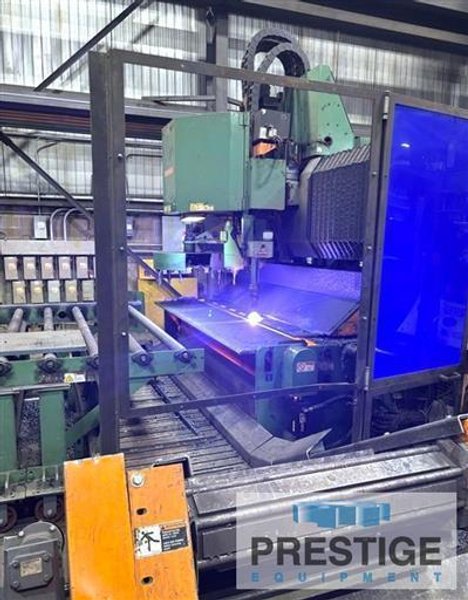

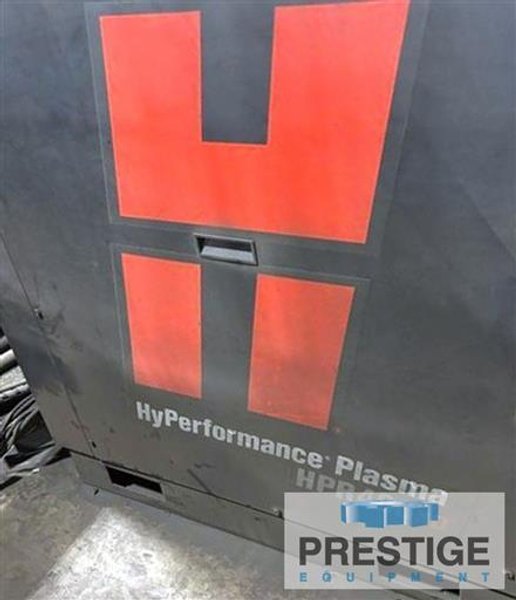

Hypertherm HPR400-XD High Speed Plasma System

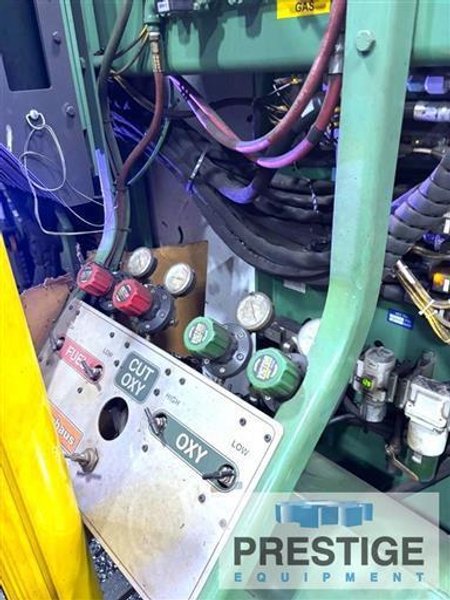

Oxy-Fuel Cutting Torch Station

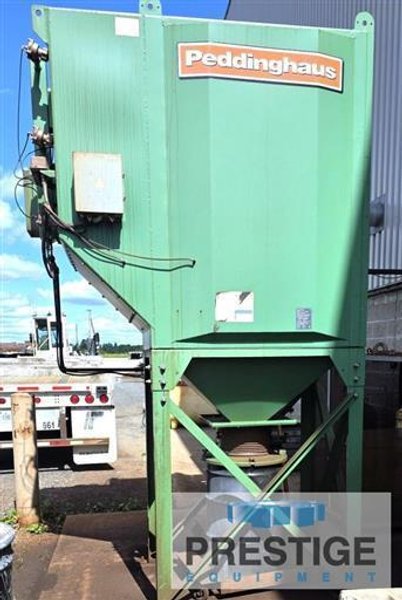

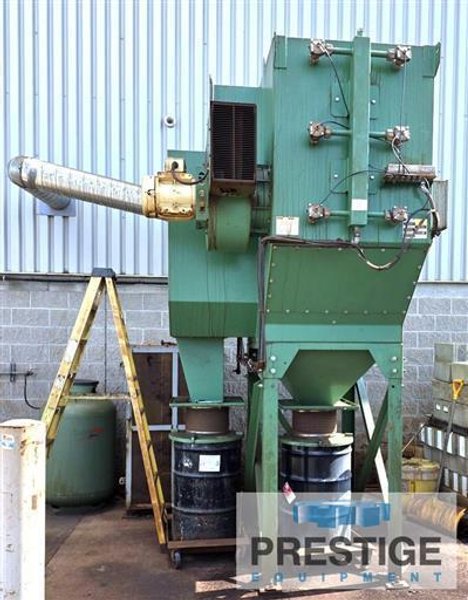

Dust Collector
Carbide Tool Package and Holders


NOTE: Machine Under Power in Plant
