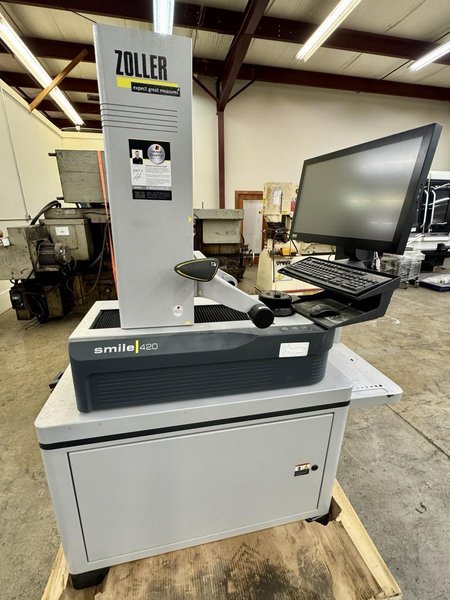

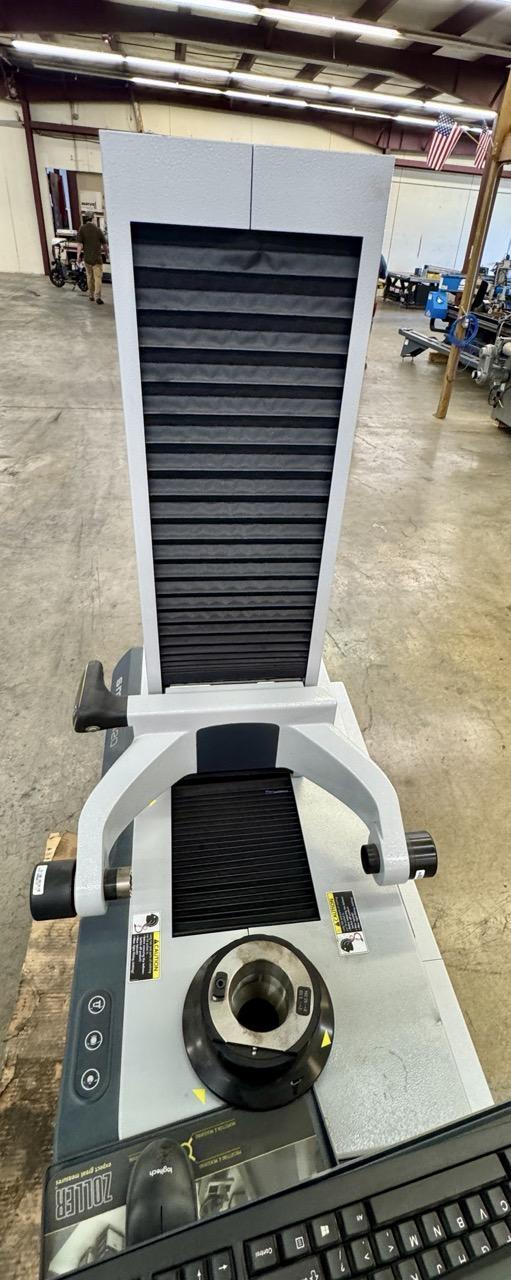

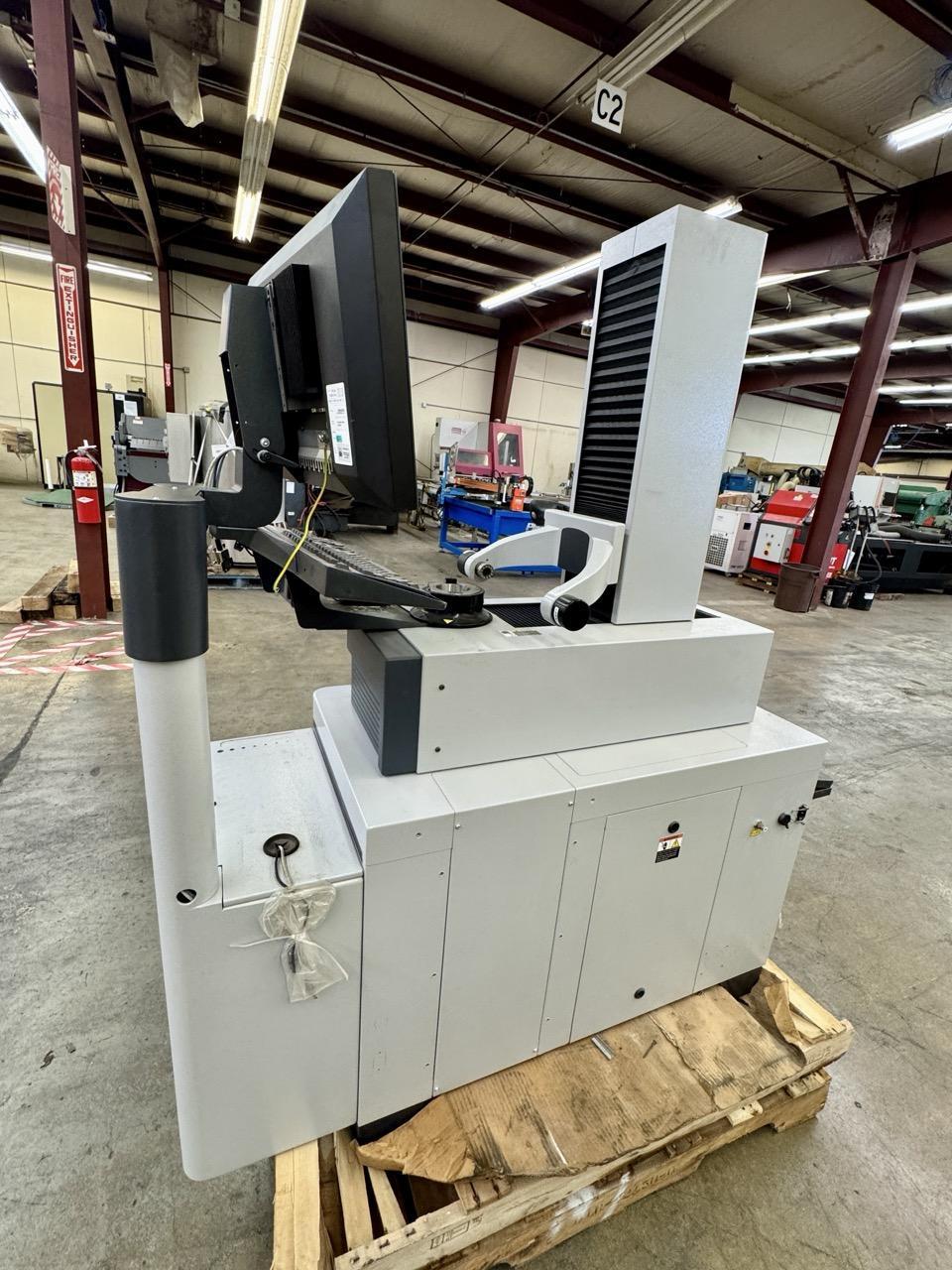

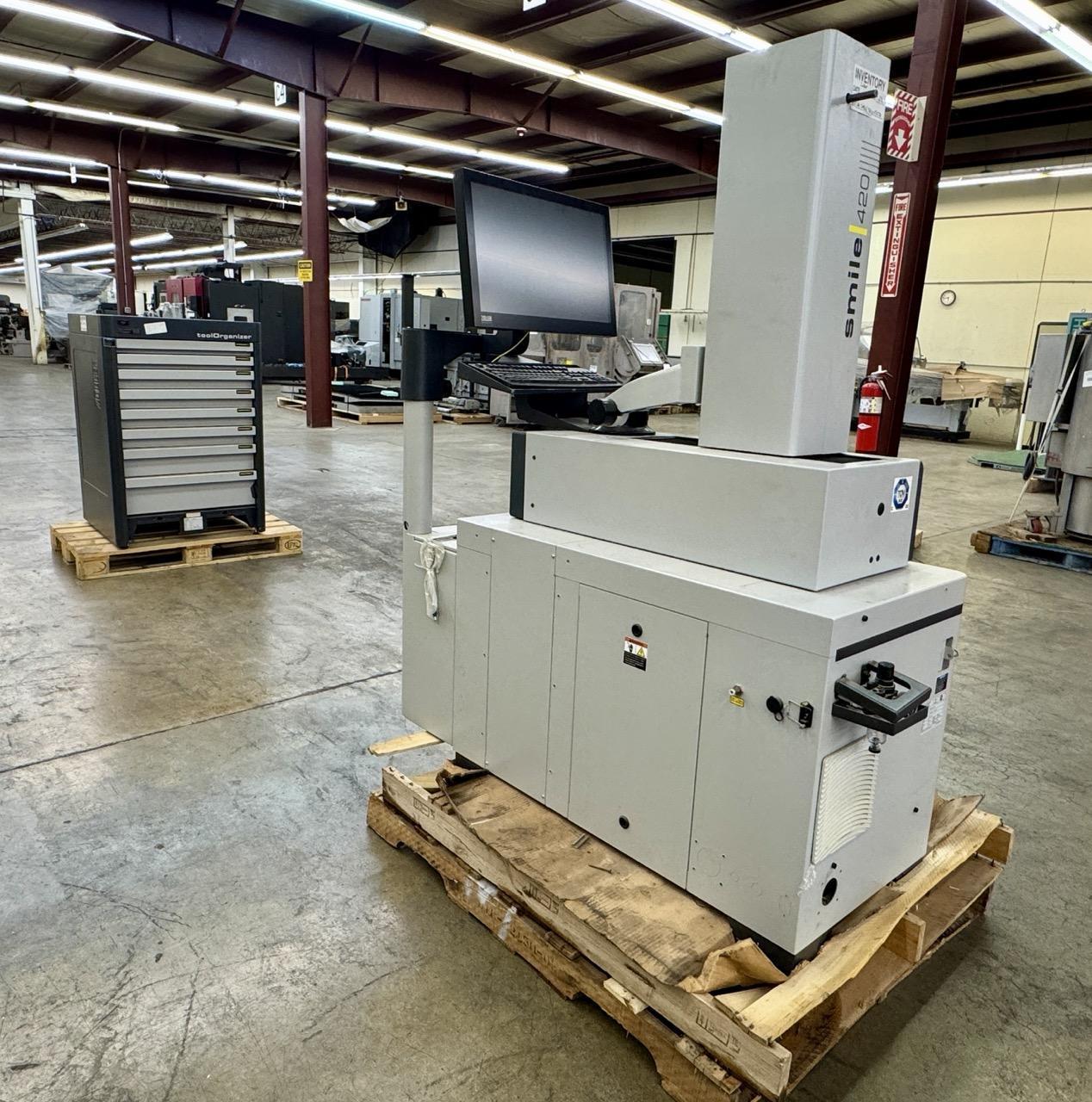

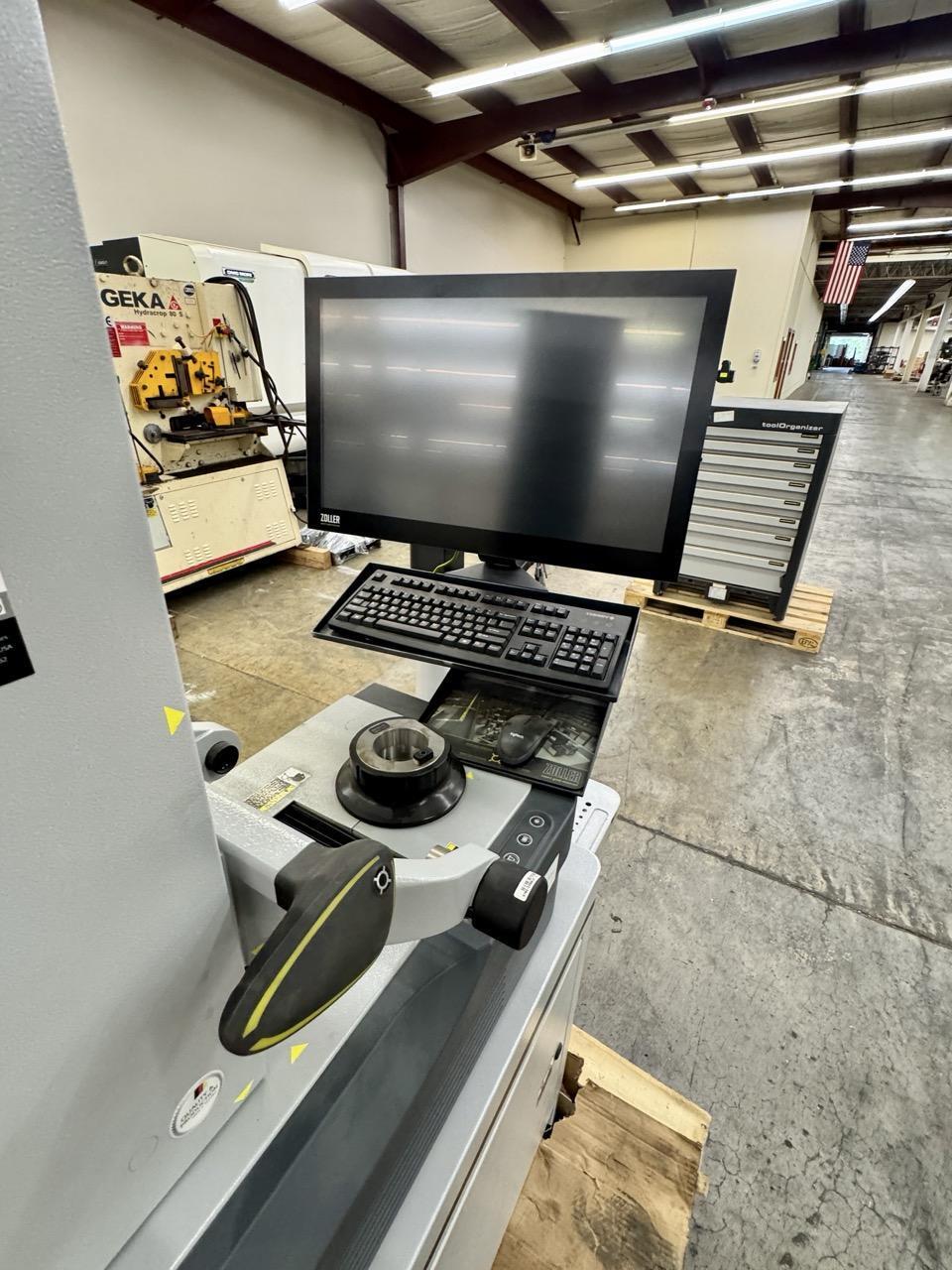

ZOLLER Smile 420X Tool Presetter & Measuring Machine – Pilot 4.0 – SMILE420X-03530, 2022

2022 ZOLLER Smile 420X high-precision tool presetting and measuring system featuring Pilot 4.0 control, optical tool measurement and a 420 mm measuring range for fast, accurate offline setup of CNC cutting tools.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer ZOLLER Model Smile 420X / Smile 420 Control / Software ZOLLER Pilot 4.0 Serial / Configuration SMILE420X-03530 WST Year 2022 Machine Type Tool Presetter / Tool Measuring Machine Measurement Method Optical / transmitted-light camera system Maximum Tool Diameter 420 mm / 16.54 in. Maximum Tool Radius / X Range 210 mm / 8.27 in. Maximum Tool Length – Z Typically 420 mm / 16.54 in.; configurations also available with 600 or 800 mm Z capacity Measurement Axes X / Z; C-axis depending on configuration Axis Capability Up to 3 axes: X, Z and C Camera High-accuracy monochrome CCD transmitted-light camera Operation ZOLLER single-hand/eQ operation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
