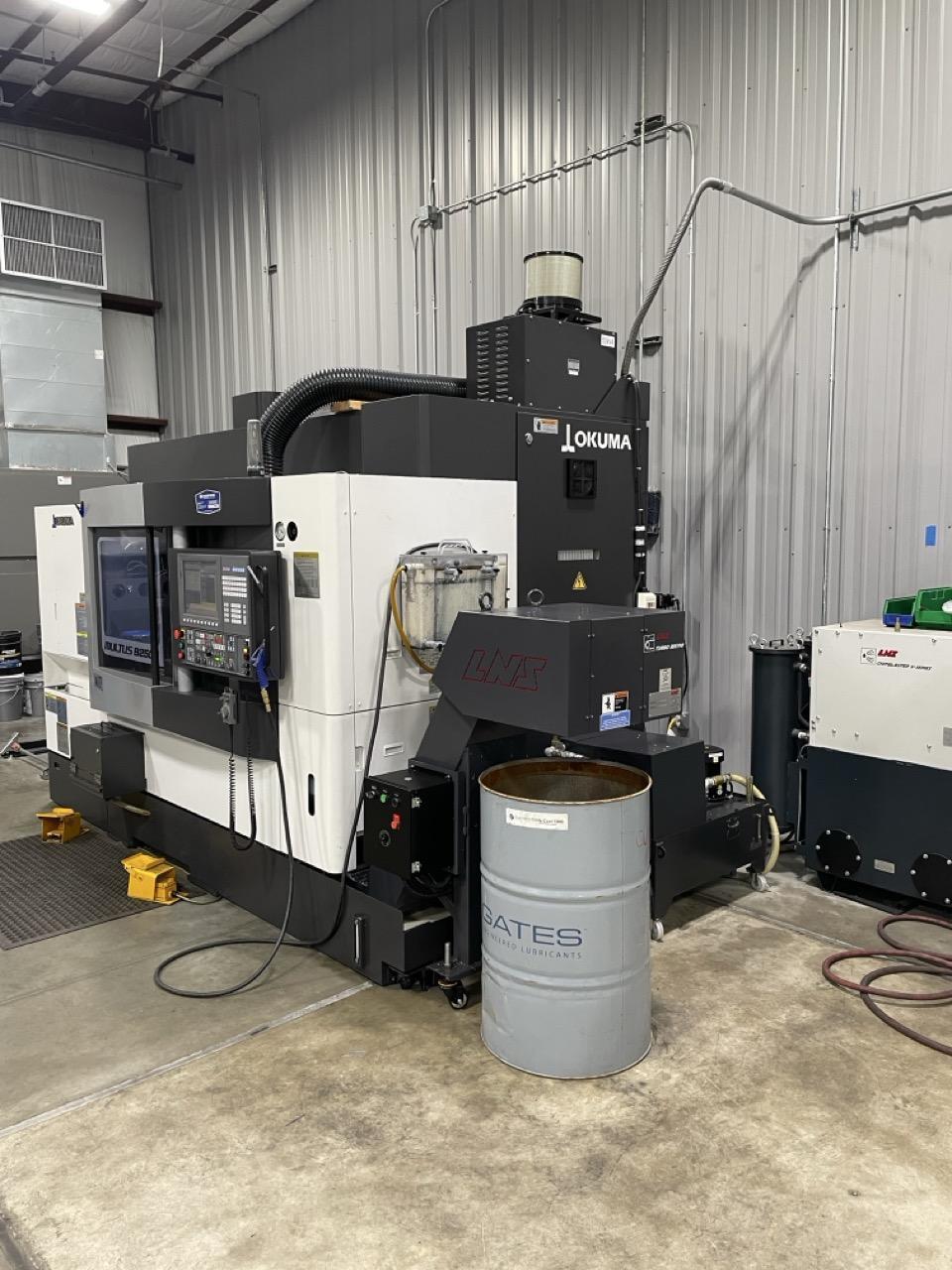

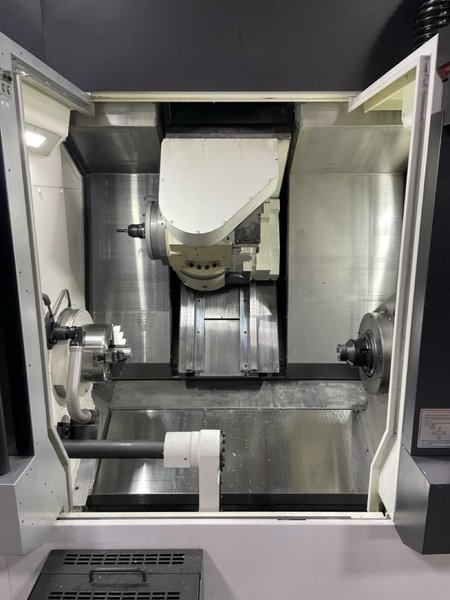

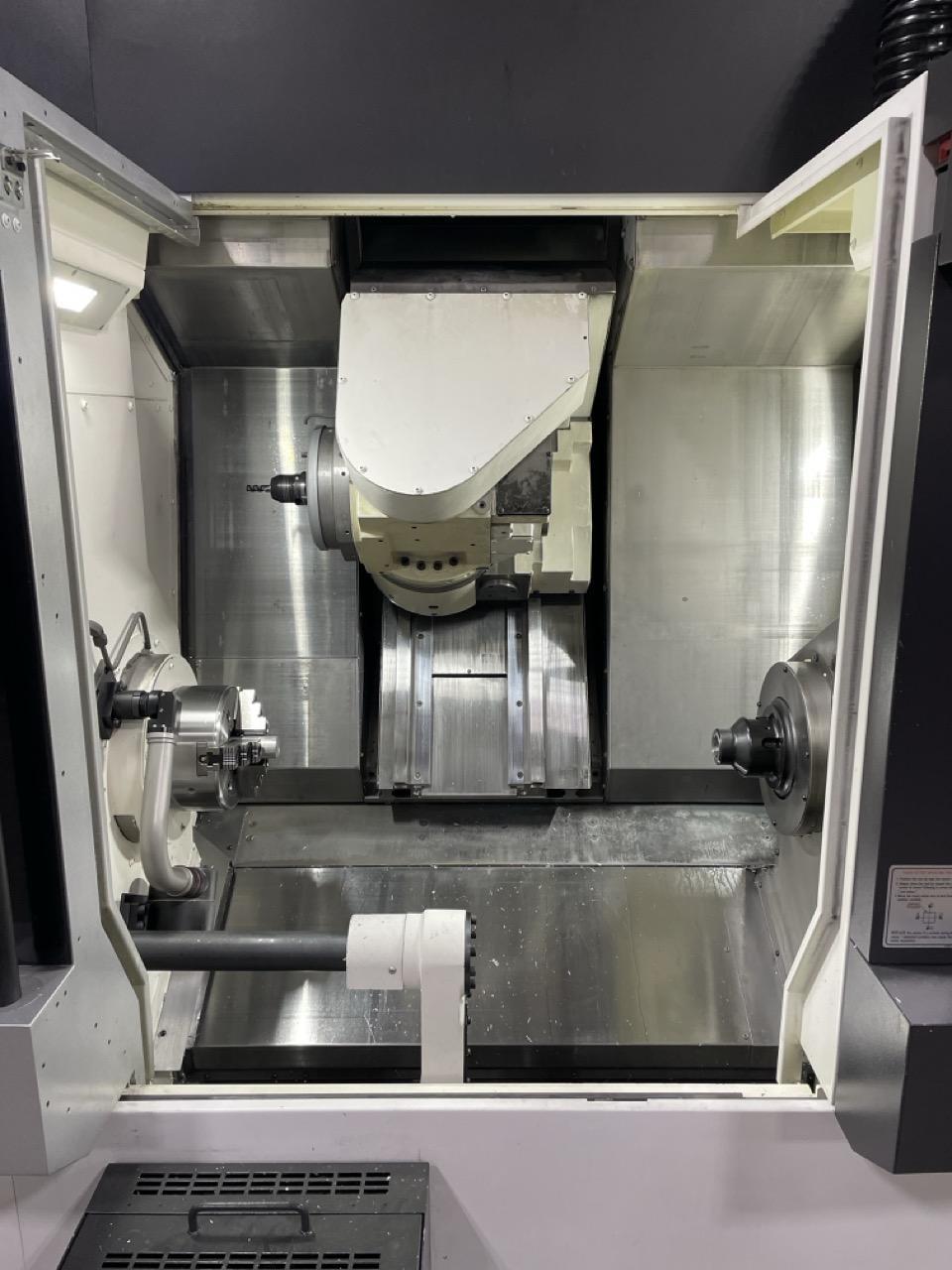

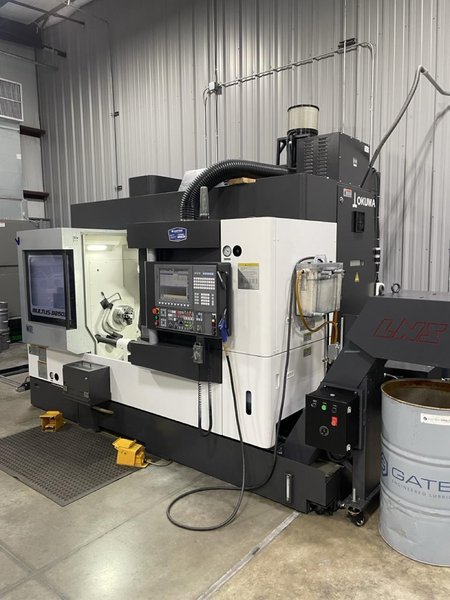

Okuma Multus B250II-W Mill Turn, 2022 – Sub Spindle, 40 Tool ATC, Parts Catcher

Distance Between Centers: 30″ Max Turning / Cutting Length: 29.53″ Max Cutting / Turning Diameter: 23.62″ X-Travel: 19.69″ Z-Travel: 31.50″ Rapid Traverse: 1,575 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Bar Capacity: 2.50″ Chuck Size: 8.0″ Spindle Bore: 2.60″ Spindle Speed: 5,000 RPM Spindle Motor: 30 HP Spindle Nose: A2-6

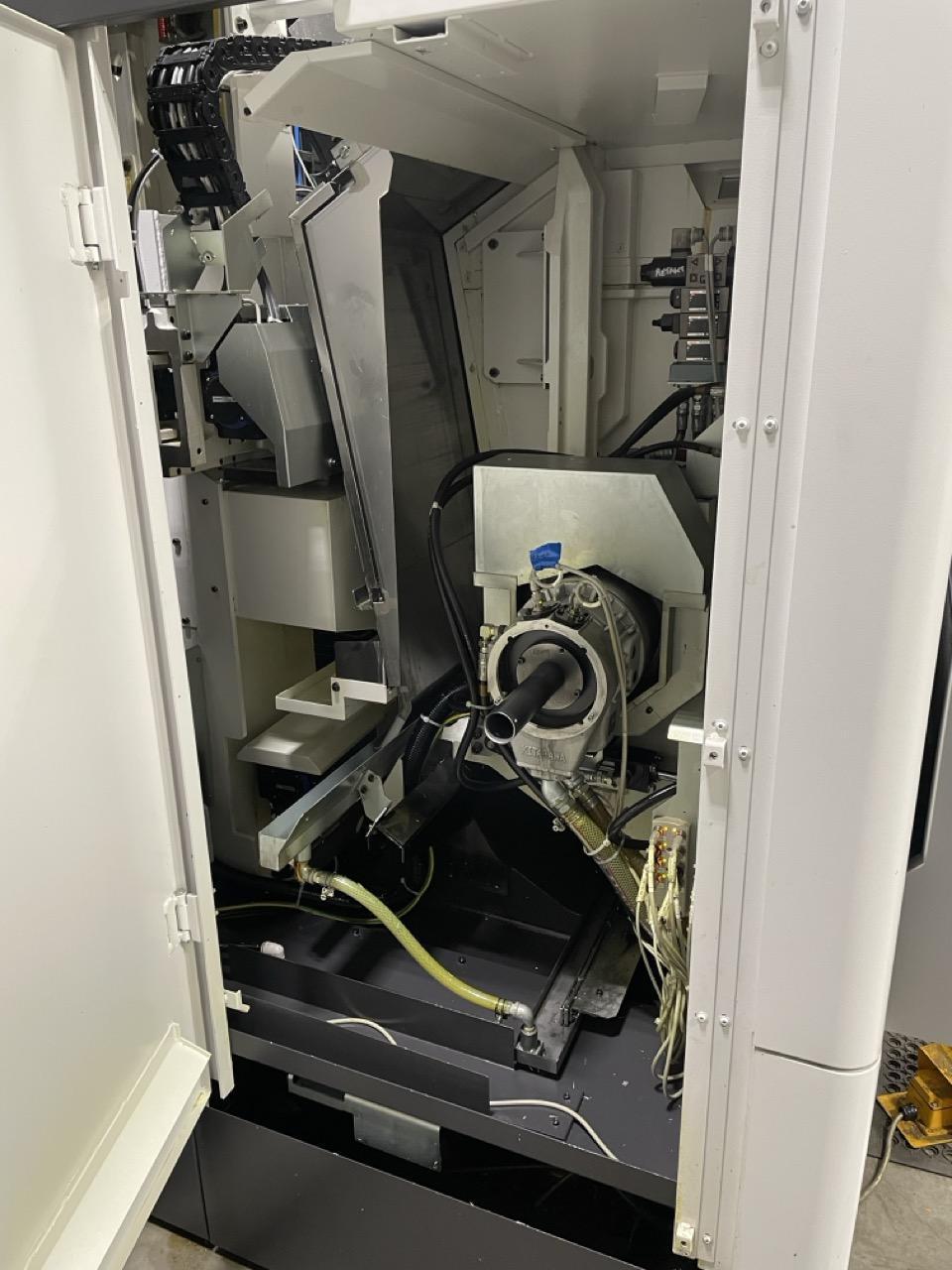

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Sub-Spindle: Second Chuck Size: 6.0″ Second Spindle Bore: 1.77″ Second Spindle Speed: 6000 RPM Second Spindle Motor: 15 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Turret Tool Positions: 40 Live Milling Max RPM: 12,000 RPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

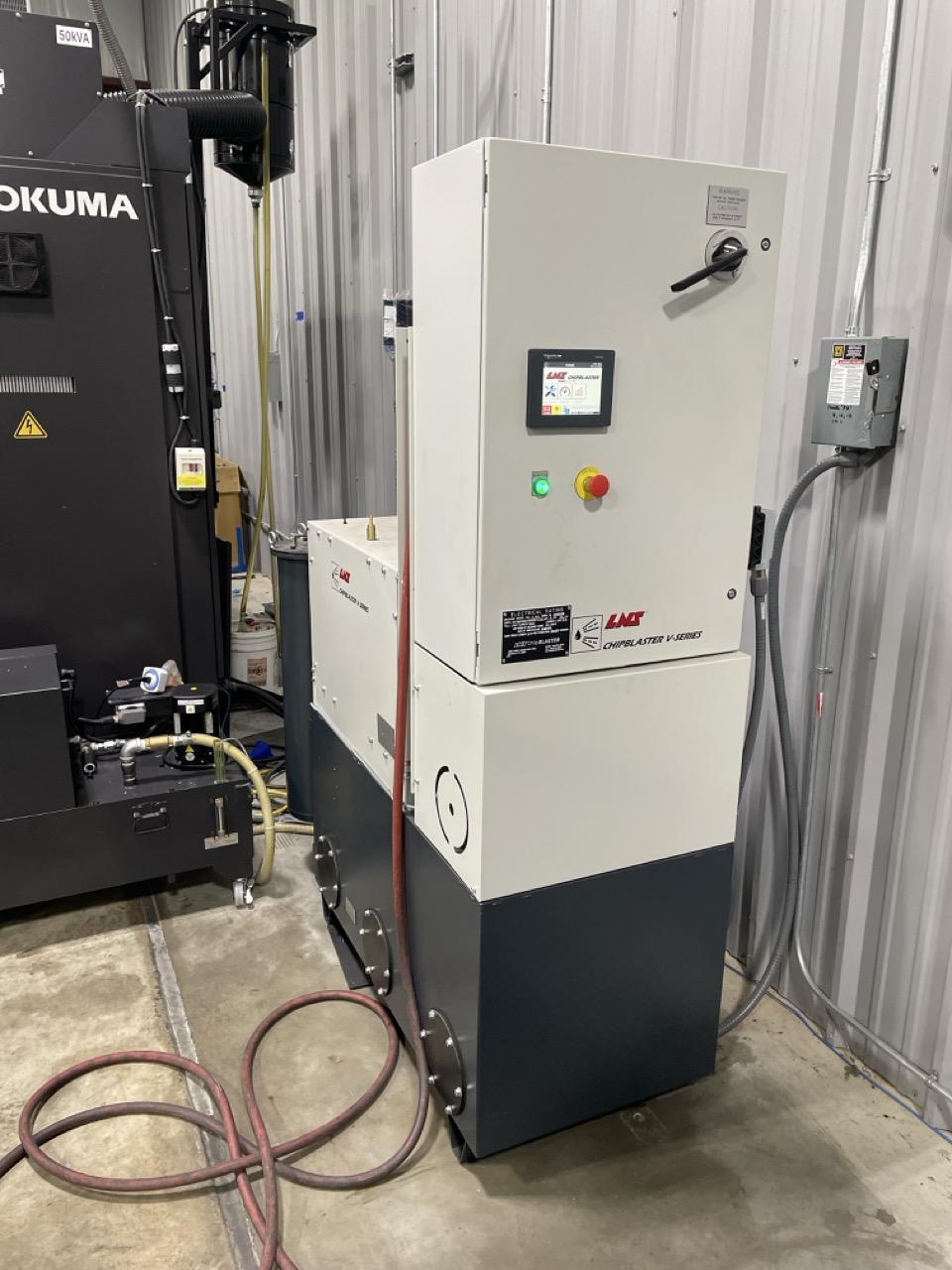

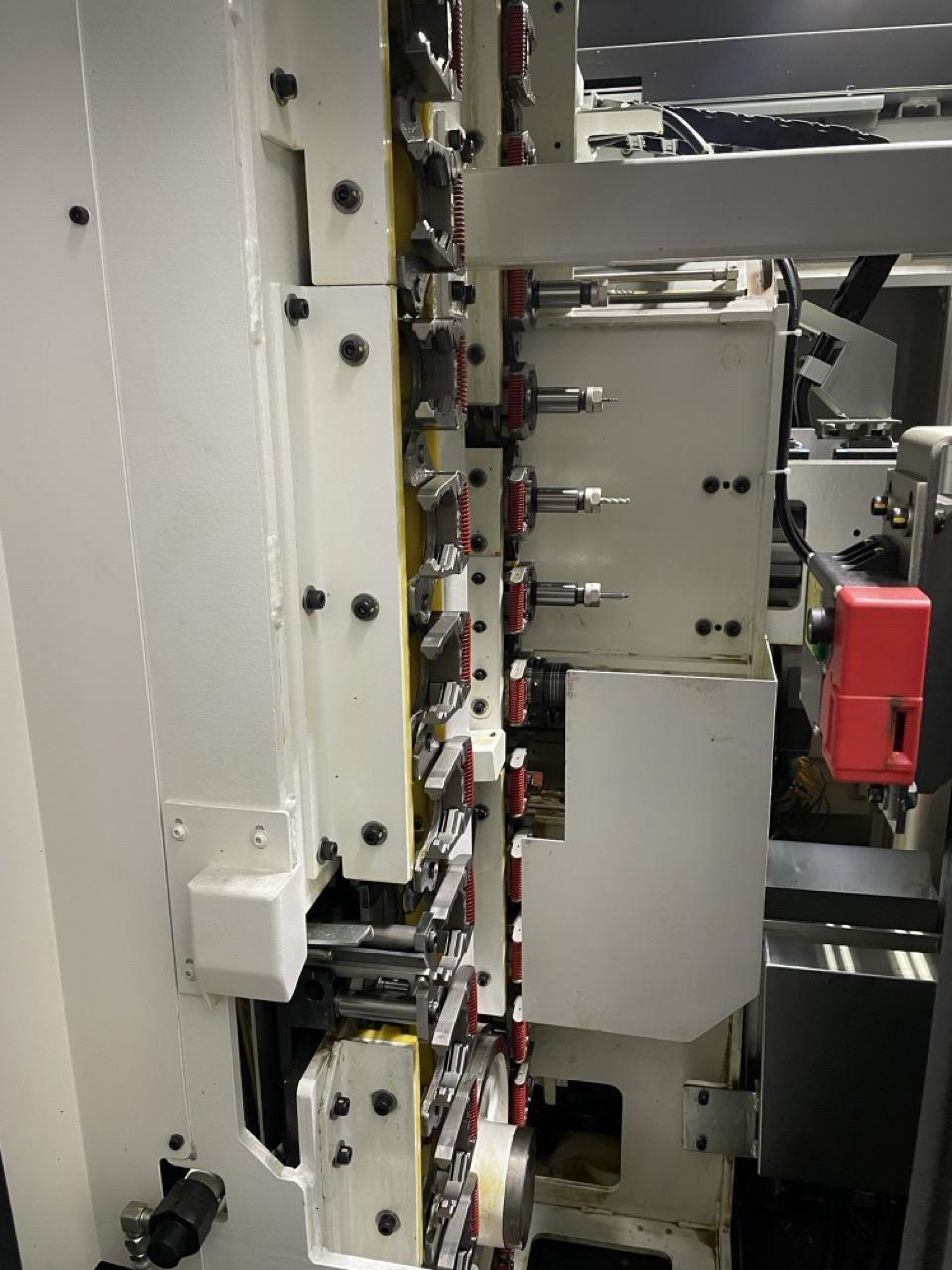

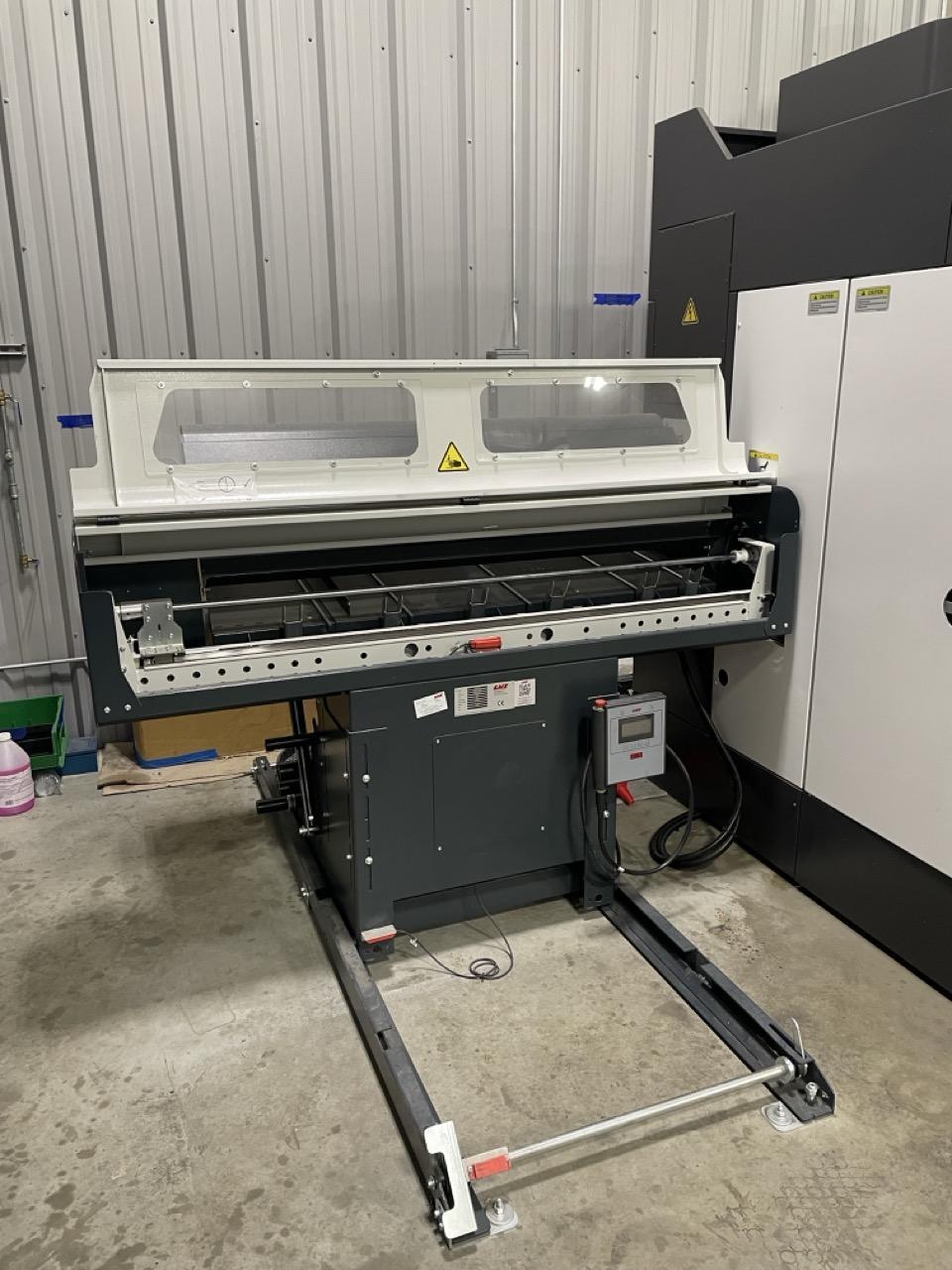

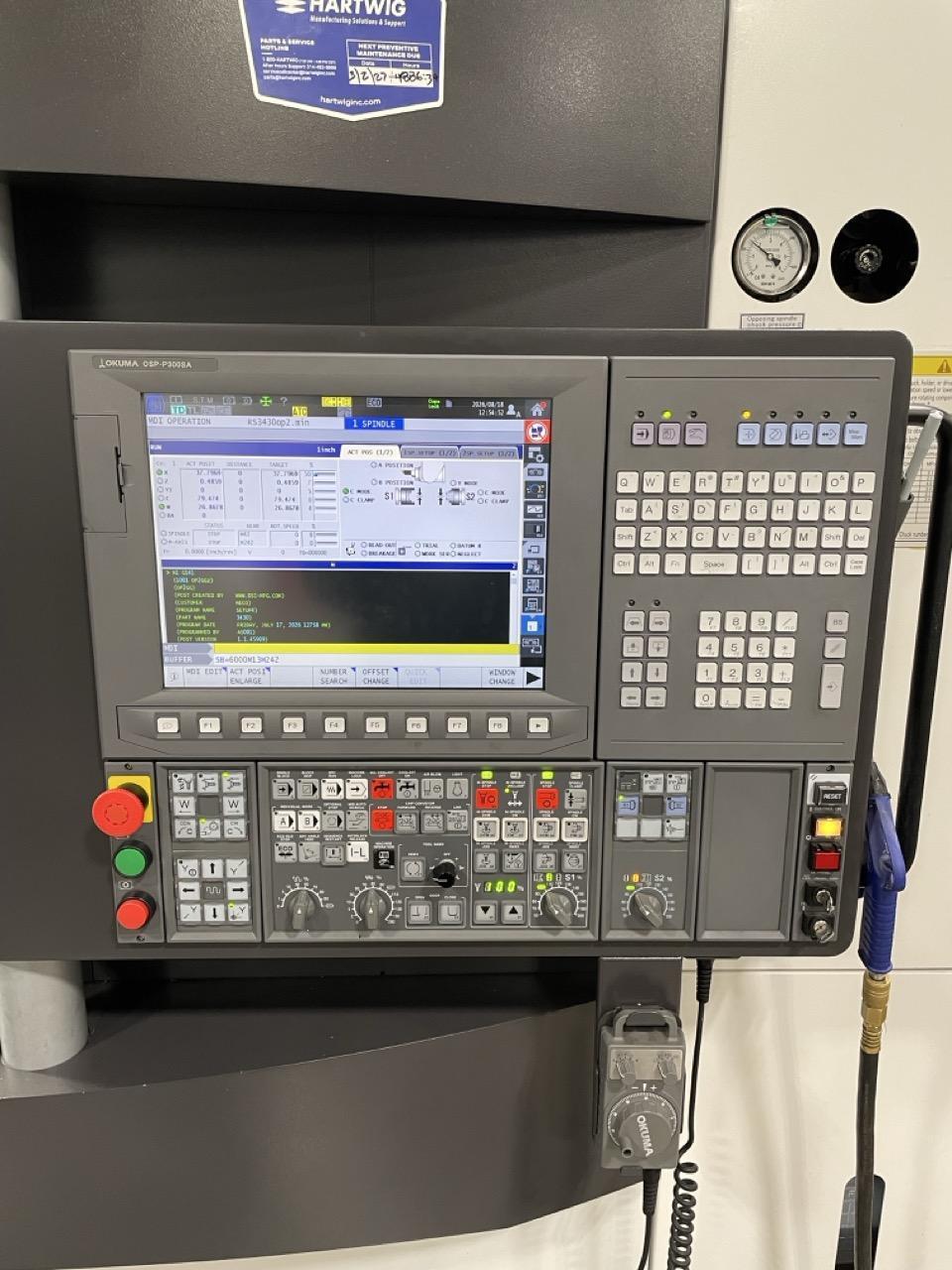

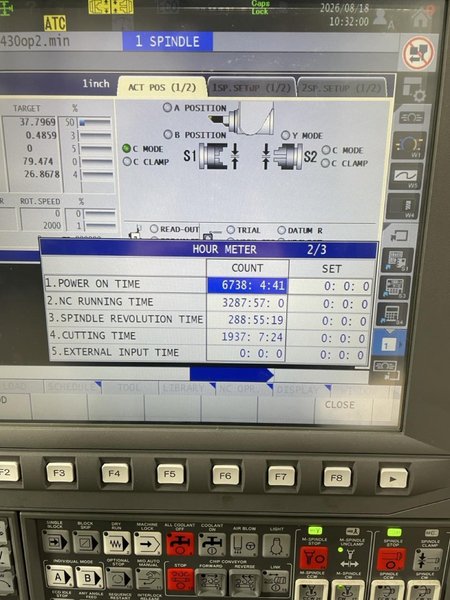

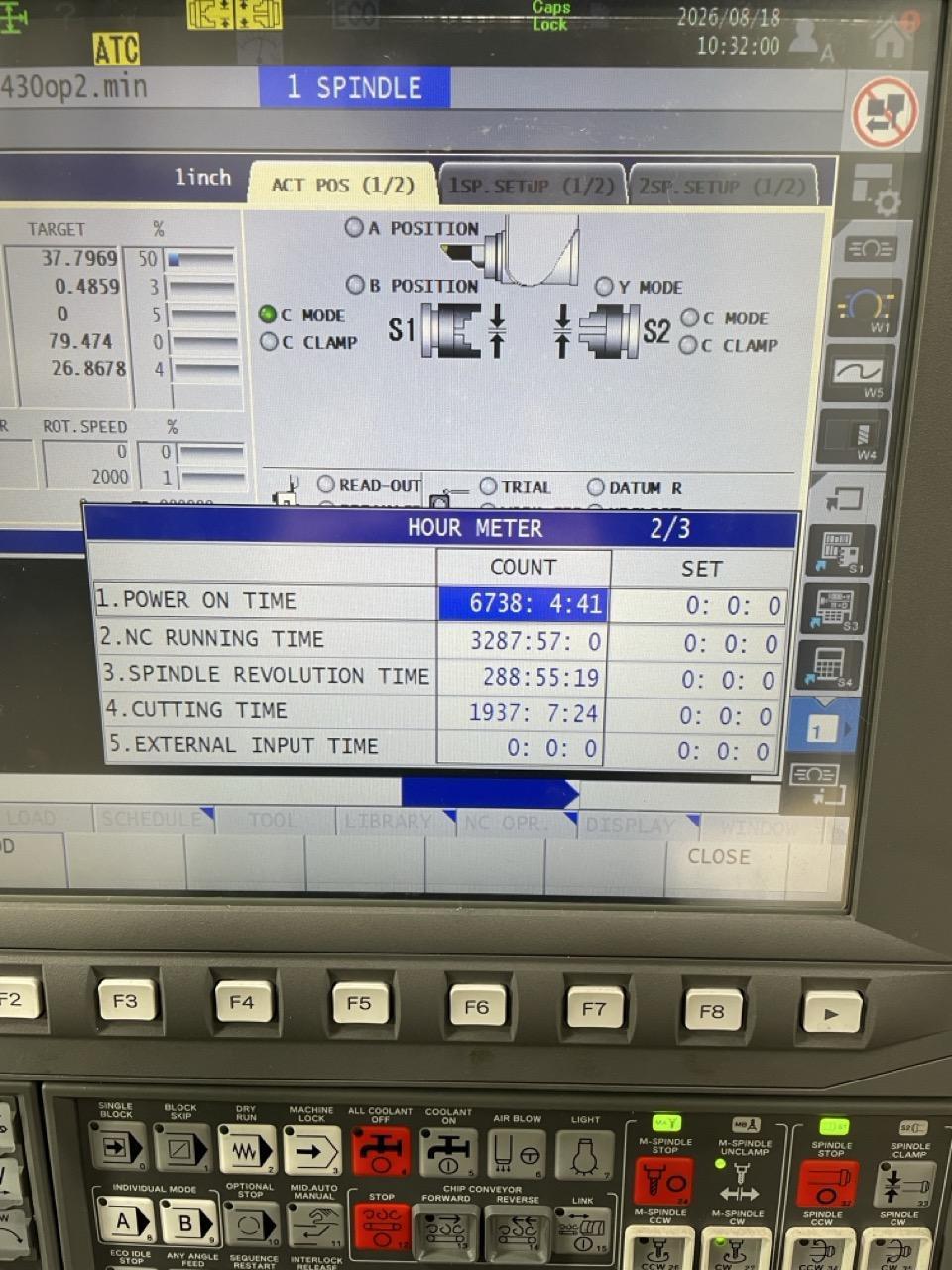

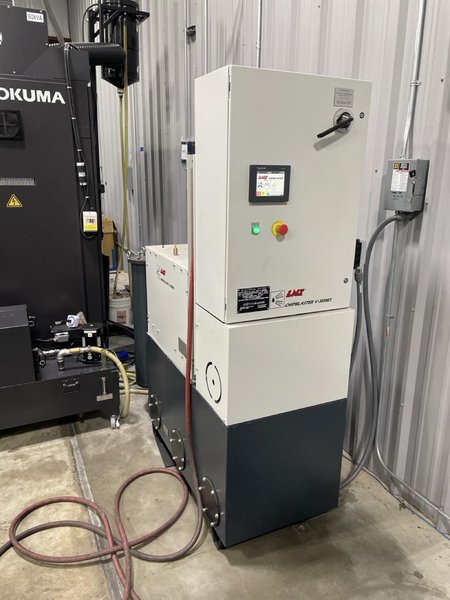

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Okuma OSP-P300 Control UPGRADED MAIN SPINDLE – 5000RPM, 30HP, 2.598″ THRU HOLE 8″, 3-JAW CHUCK FOR MAIN SPINDLE SUB SPINDLE – 6000RPM, 15HP, 1.771″ THRU HOLE 5C COLLET CHUCK FOR SUB-SPINDLE 6″, 3-JAW CHUCK FOR SUB-SPINDLE H1 TURRET – 12,000RPM, 16HP, 0.001° B-AXIS, 225° RANGE, +/- 3.94″ Y-AXIS 40 TOOL ATC MANUAL TOUCHSETTER PARTS CATCHER THERMAL ACTIVE STABILIZERS (TAS-S & TAS-C) BARFEEDER INTERFACE, UNIVERSAL TYPE, HARDWIRED SPARE M-CODES, 8 SETS INTERFACE FOR PART PROBE (RENISHAW RMI-Q) – PROBE NOT INCLUDED NEGATIVE TOOL RADIUS COMPENSATION HELICAL CUTTING COLLISION AVOIDANCE SYSTEM CHIP CONVEYOR, RIGHT DISCHARGE, HINGE, HIGH MULTI-TAP TRANSFORMER QLS 80 S2 AUTO MAG LOADER (0.25″ – 3.125″) W/ INSTALL & TRAINING 2 SPINDLE LINERS & COOLANT COLLECTOR EXTENSION V-40 HIGH PRESSURE COOLANT PUMP (1000PSI, 2-10GPM) W/ CASTERS FX-900 FILTERMIST W/ FLOOR STAND COOLANT / OIL SEPARATOR

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
