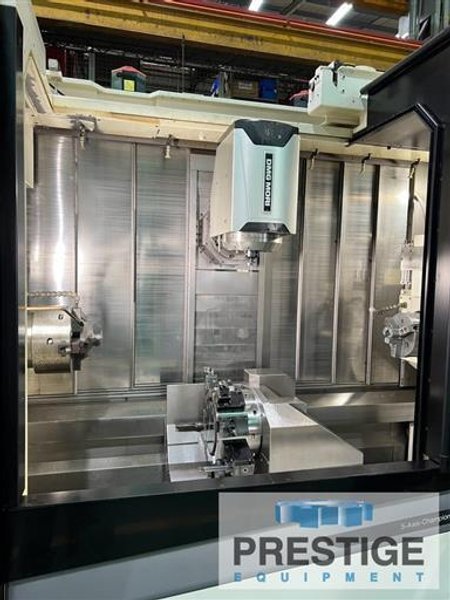

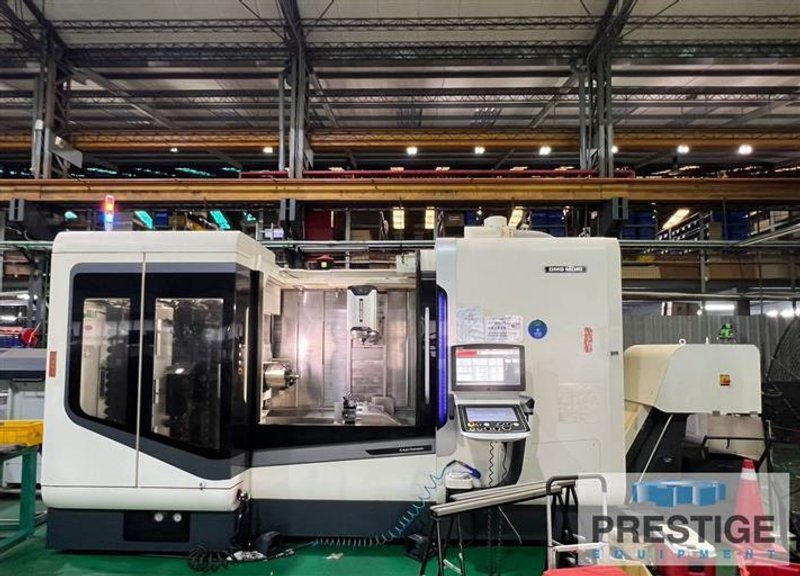

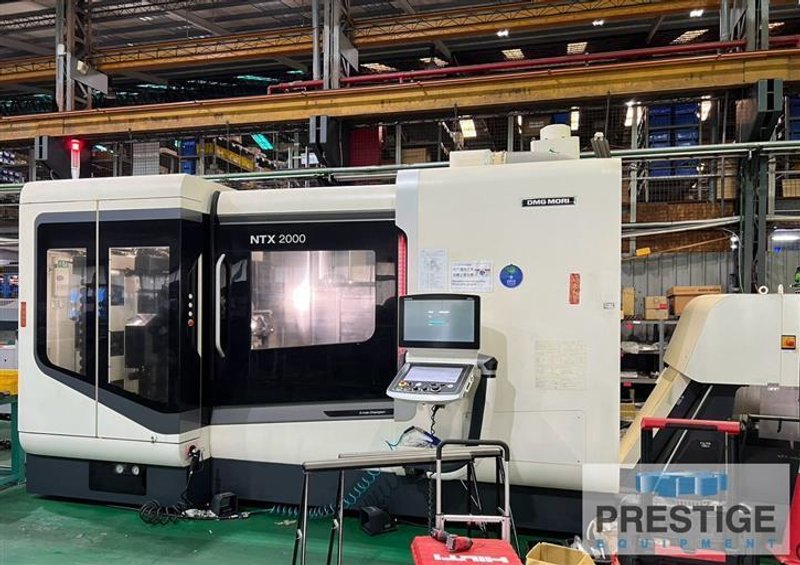

Lathes CNC

SPECIFICATIONS:
Maximum Workpiece Diameter 26.37"
Maximum Workpiece Length 60.55"
Bar Capacity Diameter 2.55"
X-Axis Travel (Tool Spindle) 26.6"
Y-Axis Travel (Tool Spindle) 11.8"
Z-Axis Travel (Tool Spindle) 61.5"
Max. Spindle Speed (Spindle 1&2) 5,000 RPM
Motor Spindle 1 & 2 29.3 HP/24.6 HP
Spindle Hole Diameter 3.58"
B-Axis Indexing 0.0001 Deg.

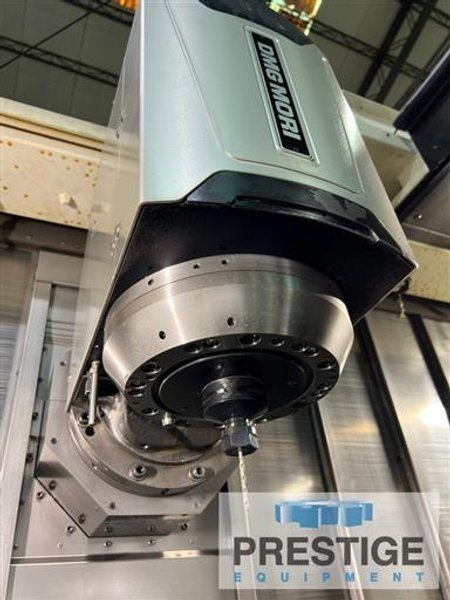

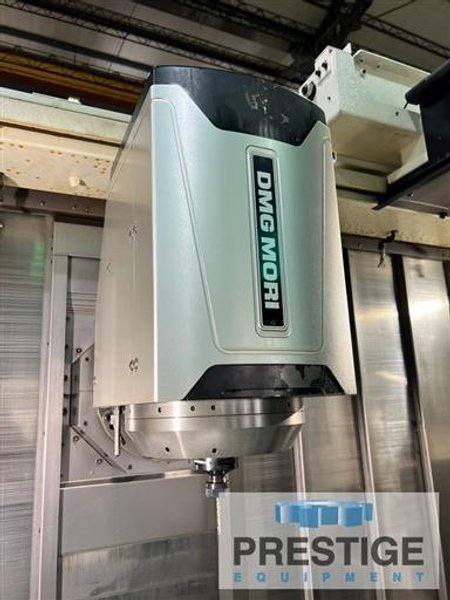

Maximum Tool Milling Spindle 12,000 RPM
Tool Shank Captco C6
Turret Size 10 Station
Turret Speed 10,000 RPM



Equipped With:

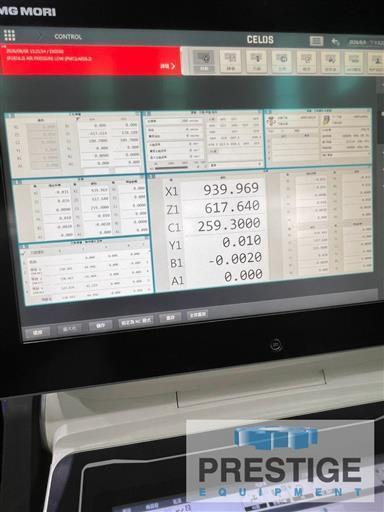

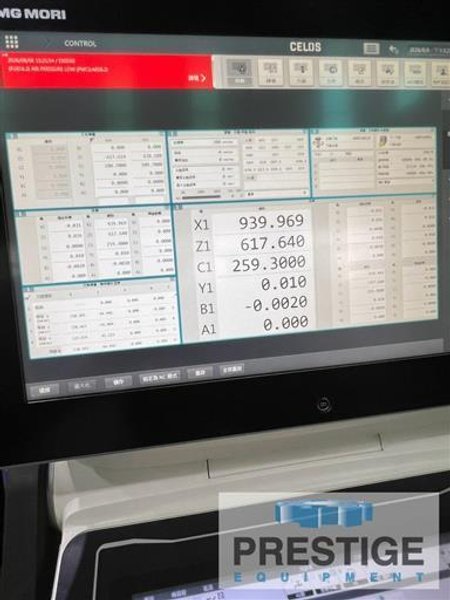

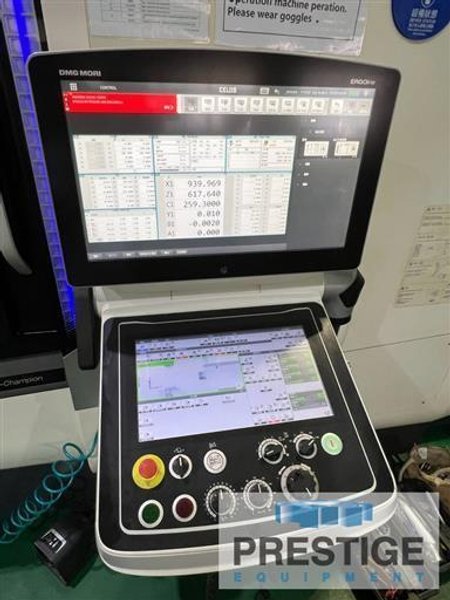

Fanuc 31iB5 CNC Control with CELOS (ERGOline Touch)

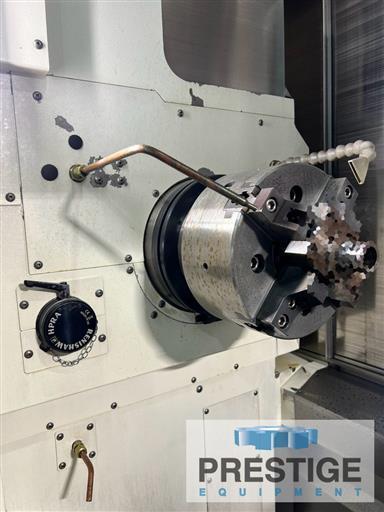

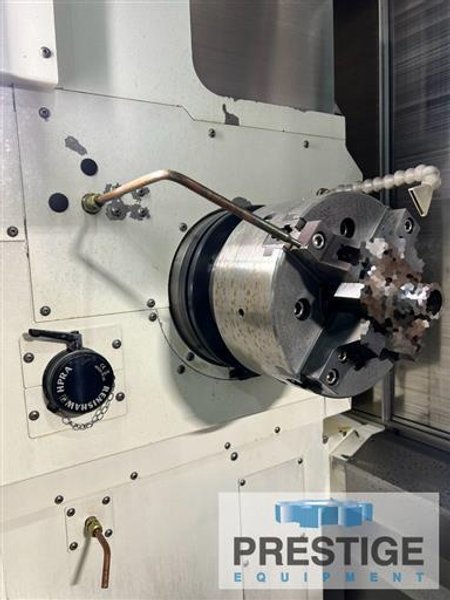

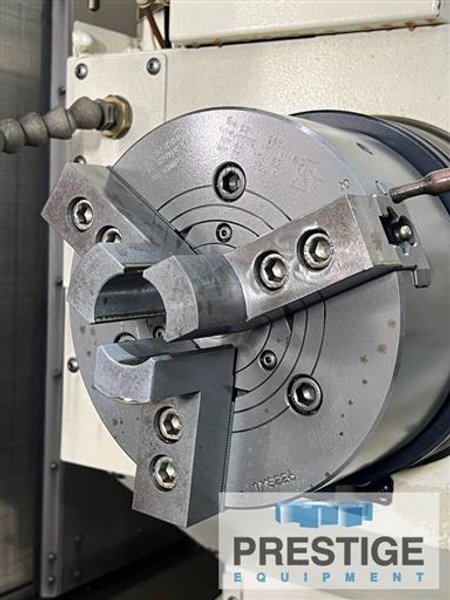

(1) 10" Kitagawa Chuck on Spindle 1

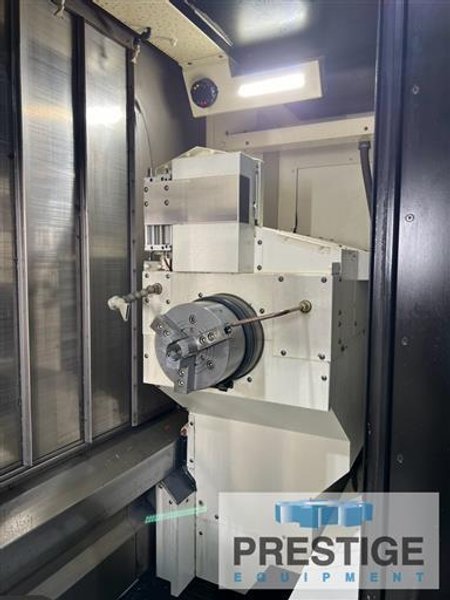

(1) 8" Kitagawa Chuck on Spindle 2

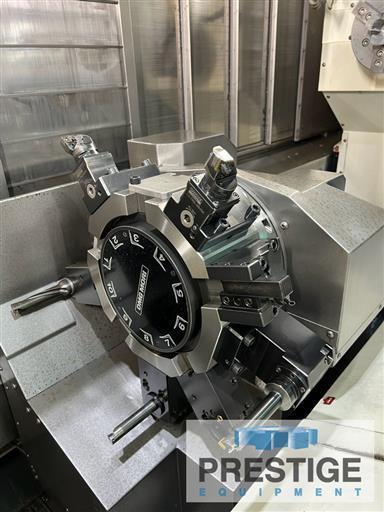

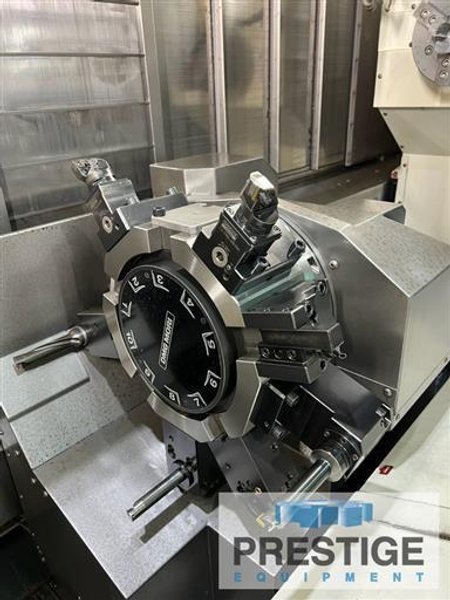

10 Station Lower Turret with Live Milling

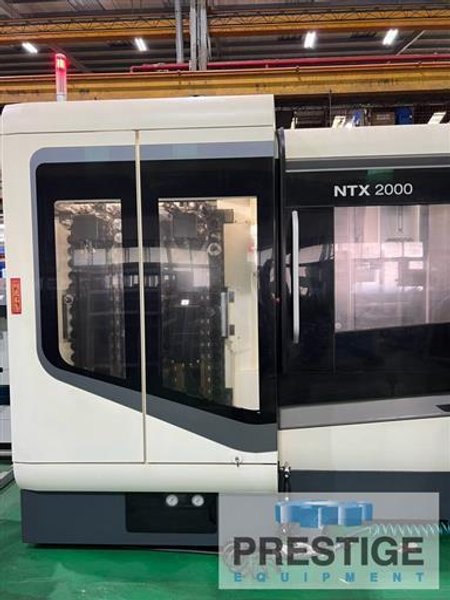

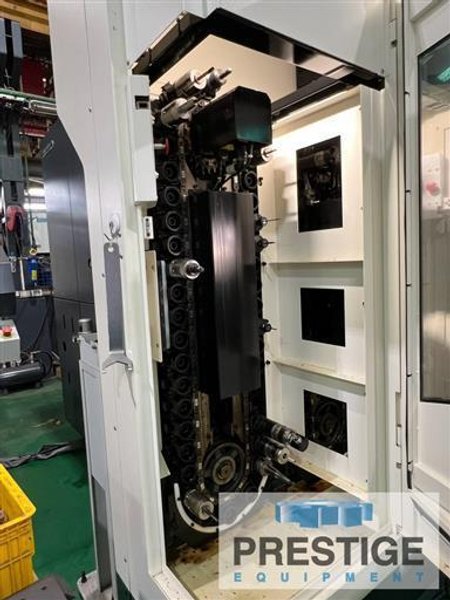

76 Station Automatic Tool Changer
Thru Spindle Coolant (70 Bar)
X/Y/Z Linear Scales

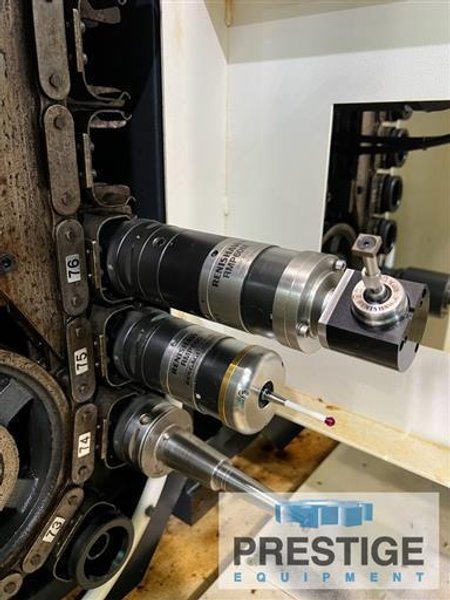

Renishaw RMP600 Workpiece Measuring System
PRO Mega 580 Bar Feeder
Oil Chiller
Mist Collector
Oil Skimmer
Multi Dry Filter
Chip Conveyor
