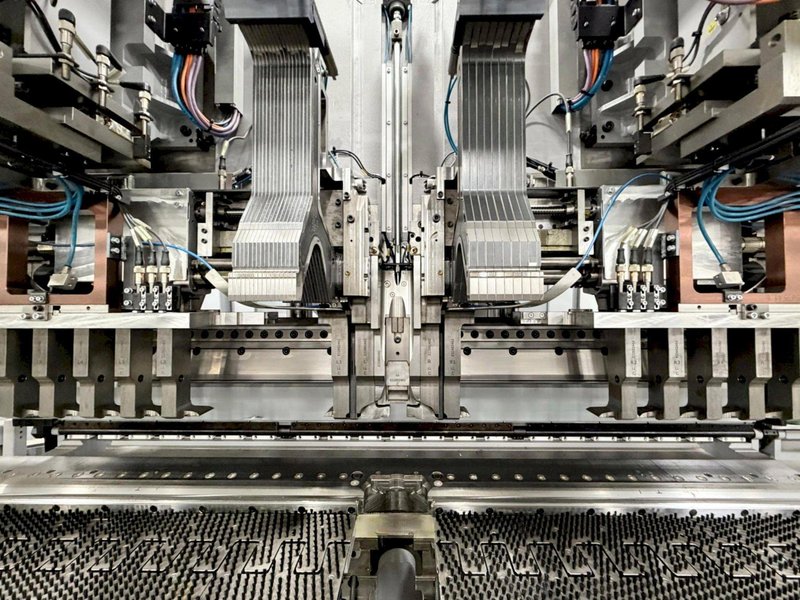

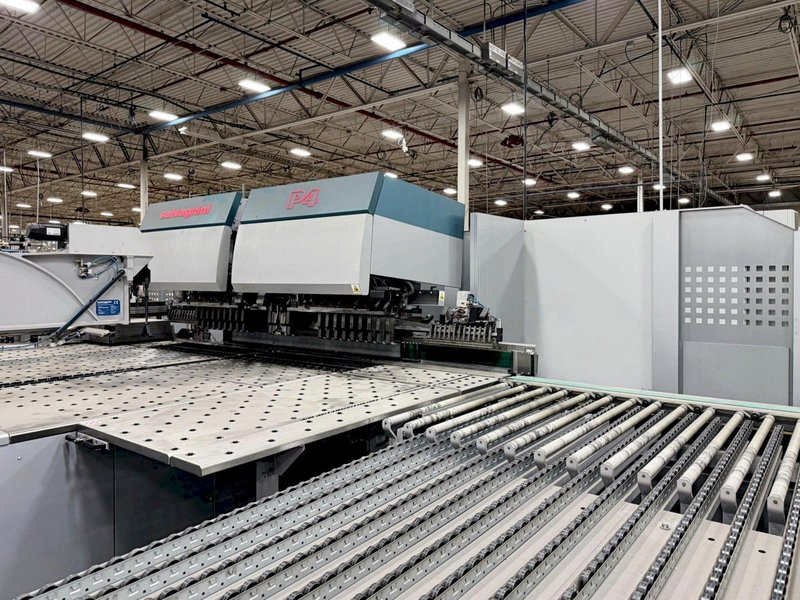

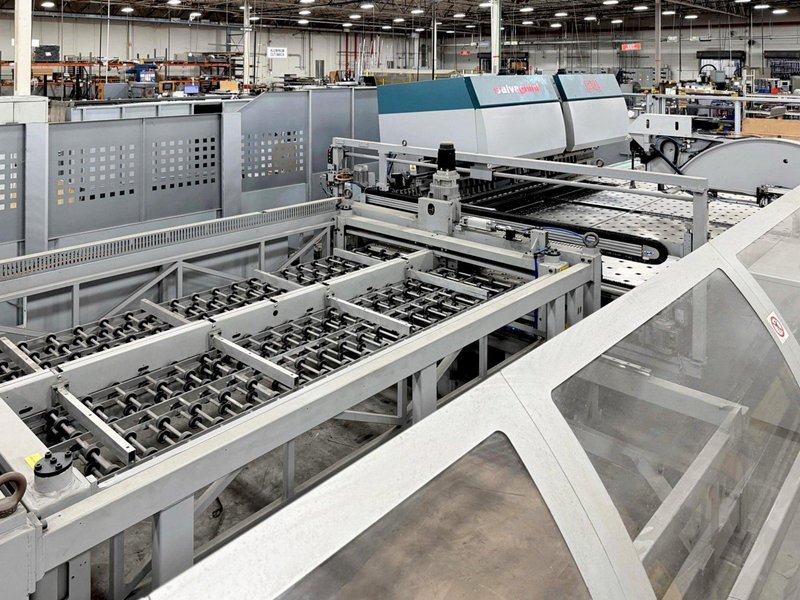

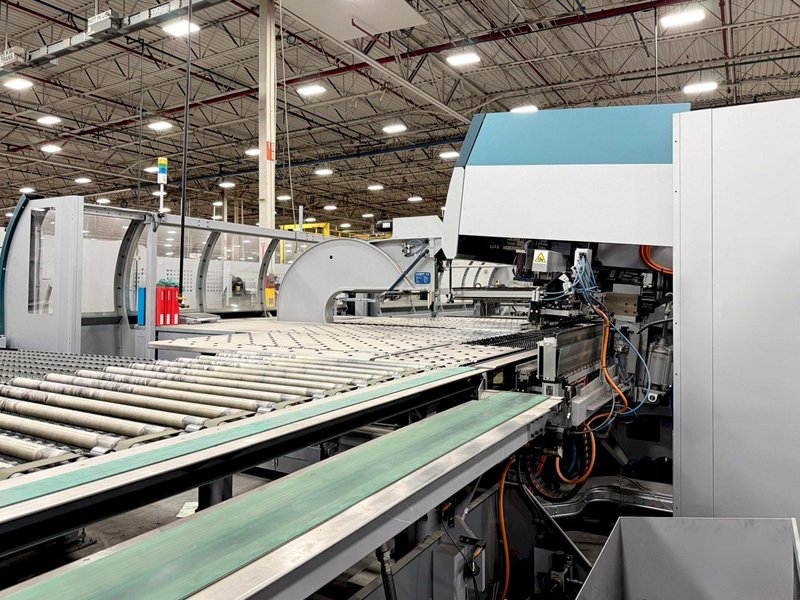

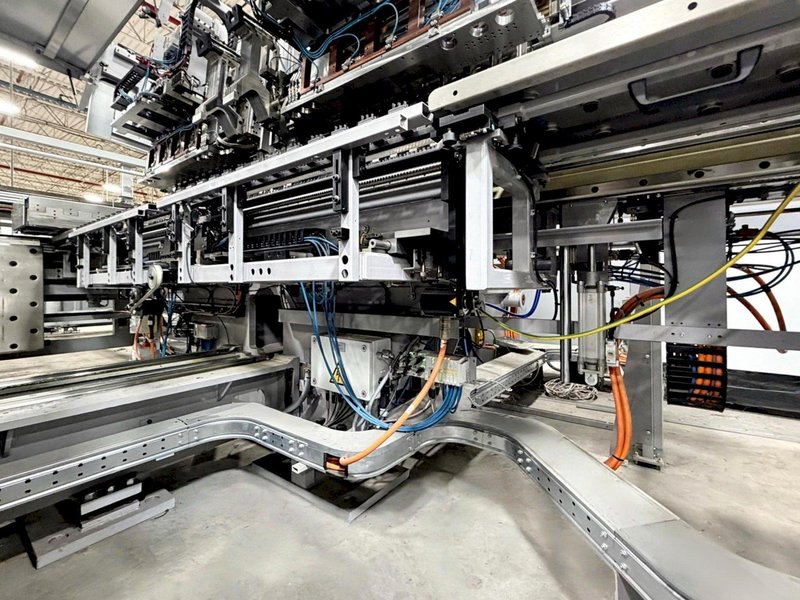

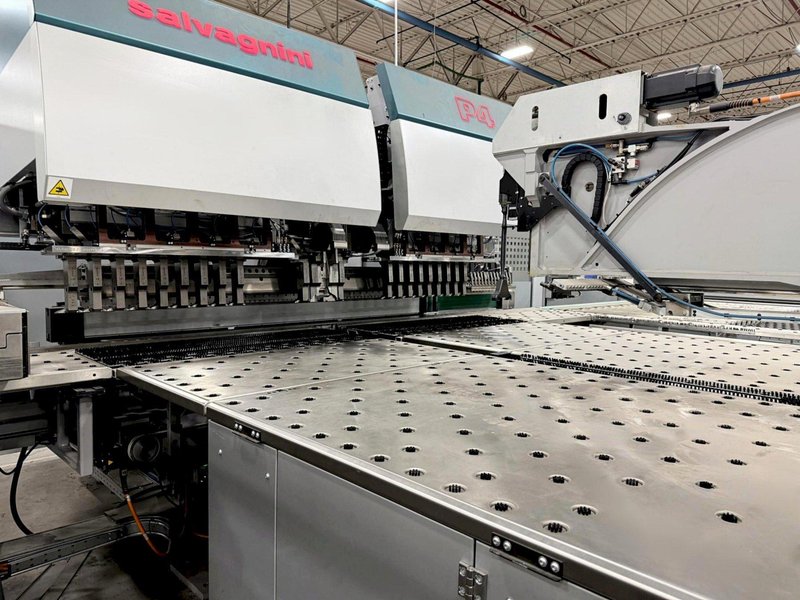

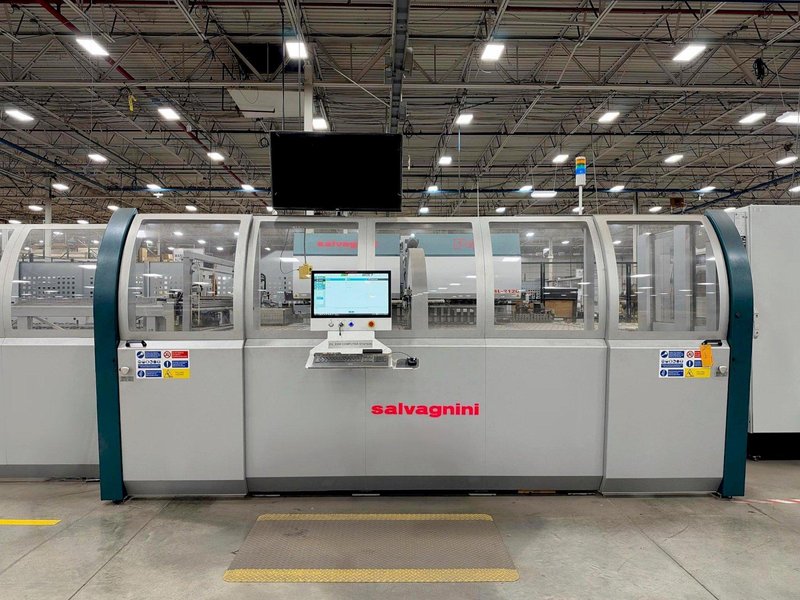

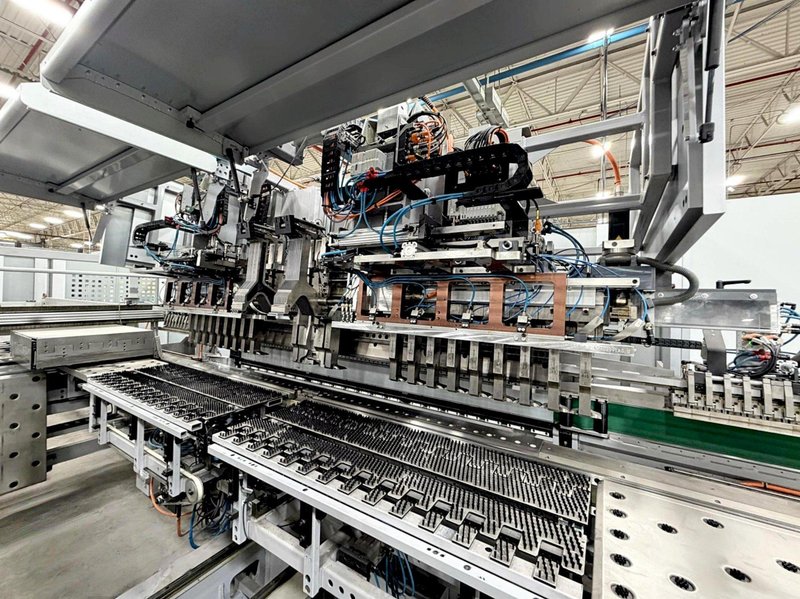

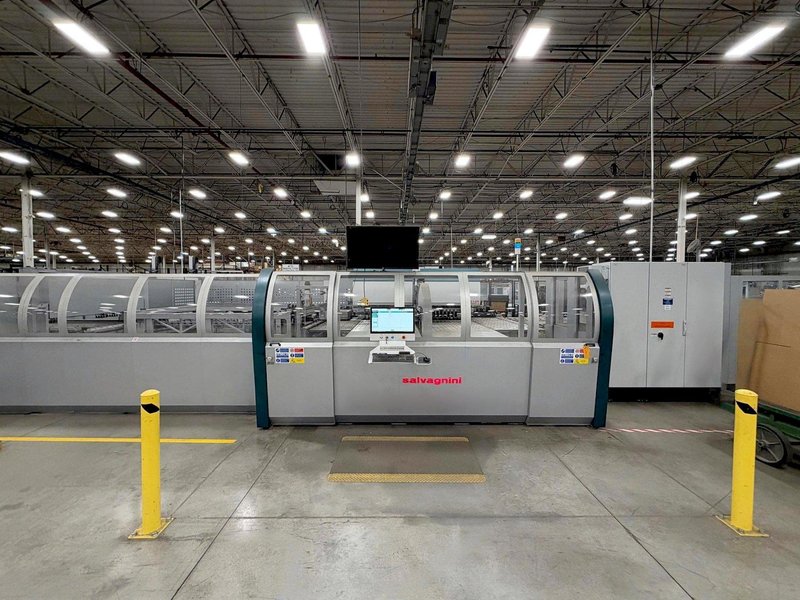

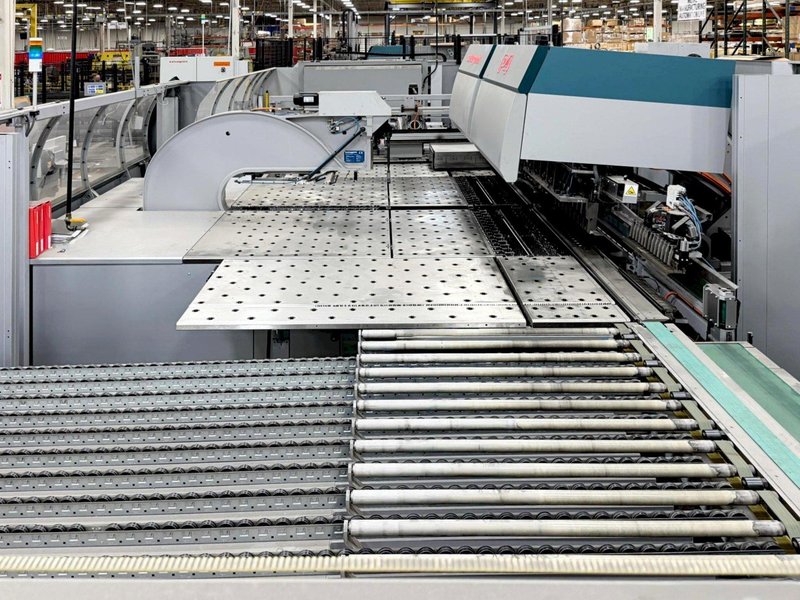

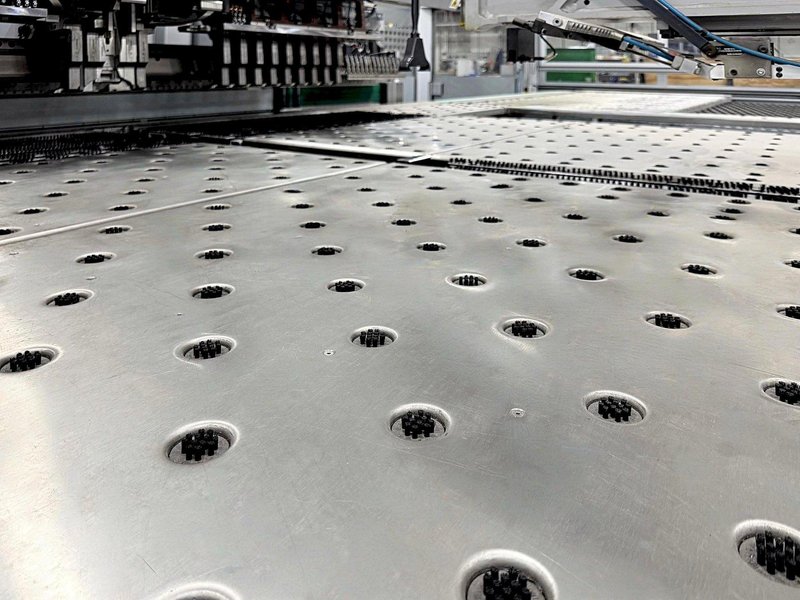

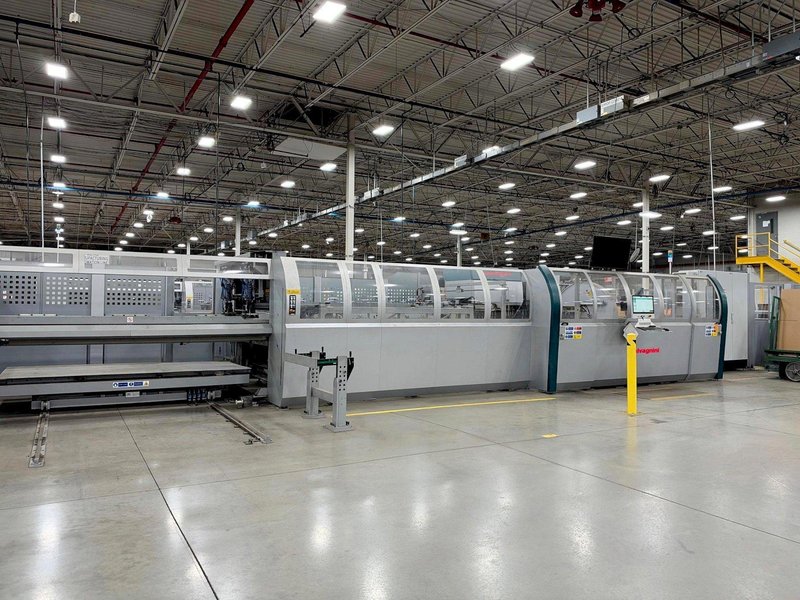

Salvagnini P4 Lean 2120 Automatic Panel Bender

Name: Salvagnini P4 Lean 2120 Automatic Panel Bender
Brand: SALVAGNINI
SKU: 100669
Availability: InStock

Brand

SALVAGNINI

Not specified

Max Dimensions Of Sheets	120" x 60"
Min Dimensions Of Sheet	21.65" x 19.69"
Max Diagonal That Can Be Rotated	134.17”
Max Bending Force	74187 lbf.
Max Clamping Force	119151 lbf.
Max Bending Length	85.83"
Max Bending Height	7.99"
Min Thickness	0.02"
Max Thickness & Bending Angle Steel (±90°)	0.126"
Max Thickness & Bending Angle Steel (±120°)	0.098"
Max Thickness & Bending Angle Steel (±135°)	0.083"
Max Thickness & Bending Angle Stainless (±90°)	0.098"
Max Thickness & Bending Angle Stainless (±120°)	0.083"
Max Thickness & Bending Angle Stainless (±130°)	0.063"
Max Thickness & Bending Angle Aluminum (±120°)	0.157"
Max Thickness & Bending Angle Aluminum (±130°)	0.138"

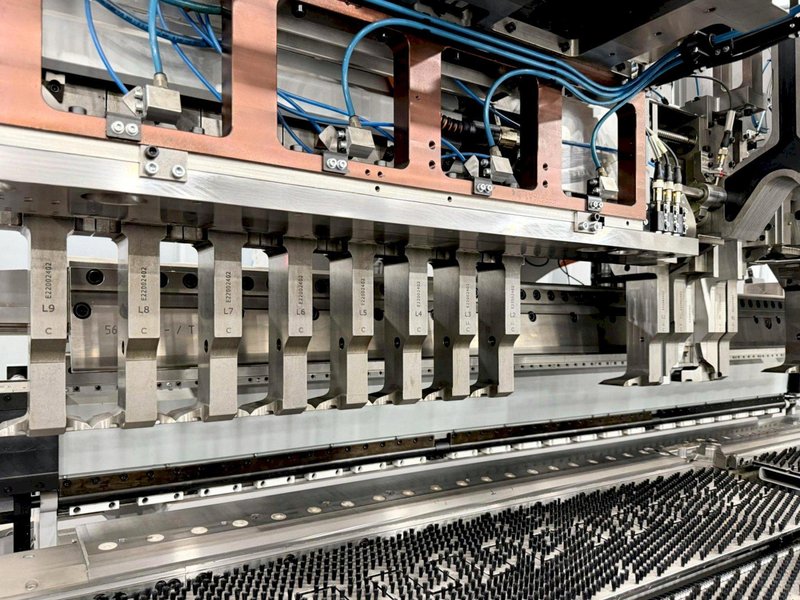

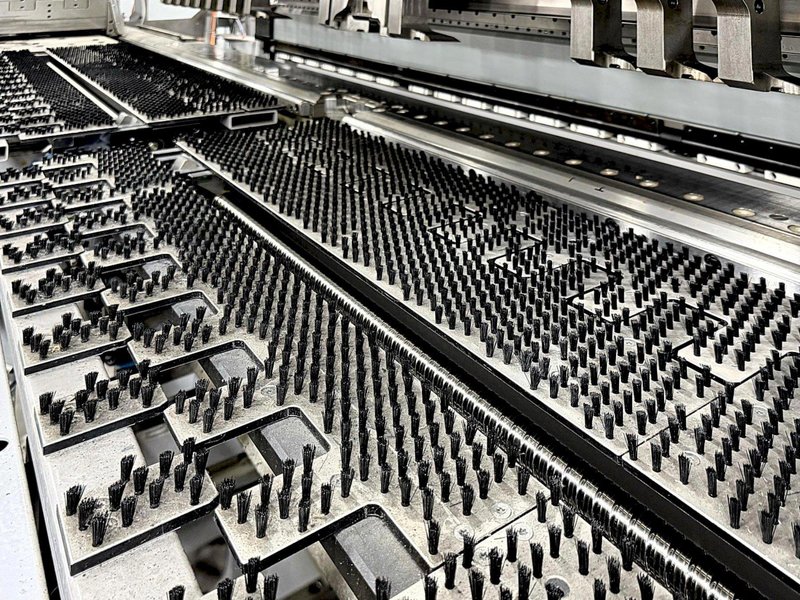

Equipped With: Auto Sheet Positioning & Rotation Auto Positive & Negative Bending Auto Blank Holder Adjustment Auto Tooling Setup Scissor Table Conveyor Destacker Data Part Reader Rotating Brushes for Cleaning Incoming Sheets Upper & Lower Bending Blade Manipulator For Narrow Profiles Auxiliary Bending Tool Asymmetric Command for Positive Bends Panel Unloader/Accumulator Turnover Device Auxiliary Bending Tool Asymmetric Command for Negative Bends Mover for Auxiliary Tool Set of “Goosenecked” CLA Tools For Negative Bends
