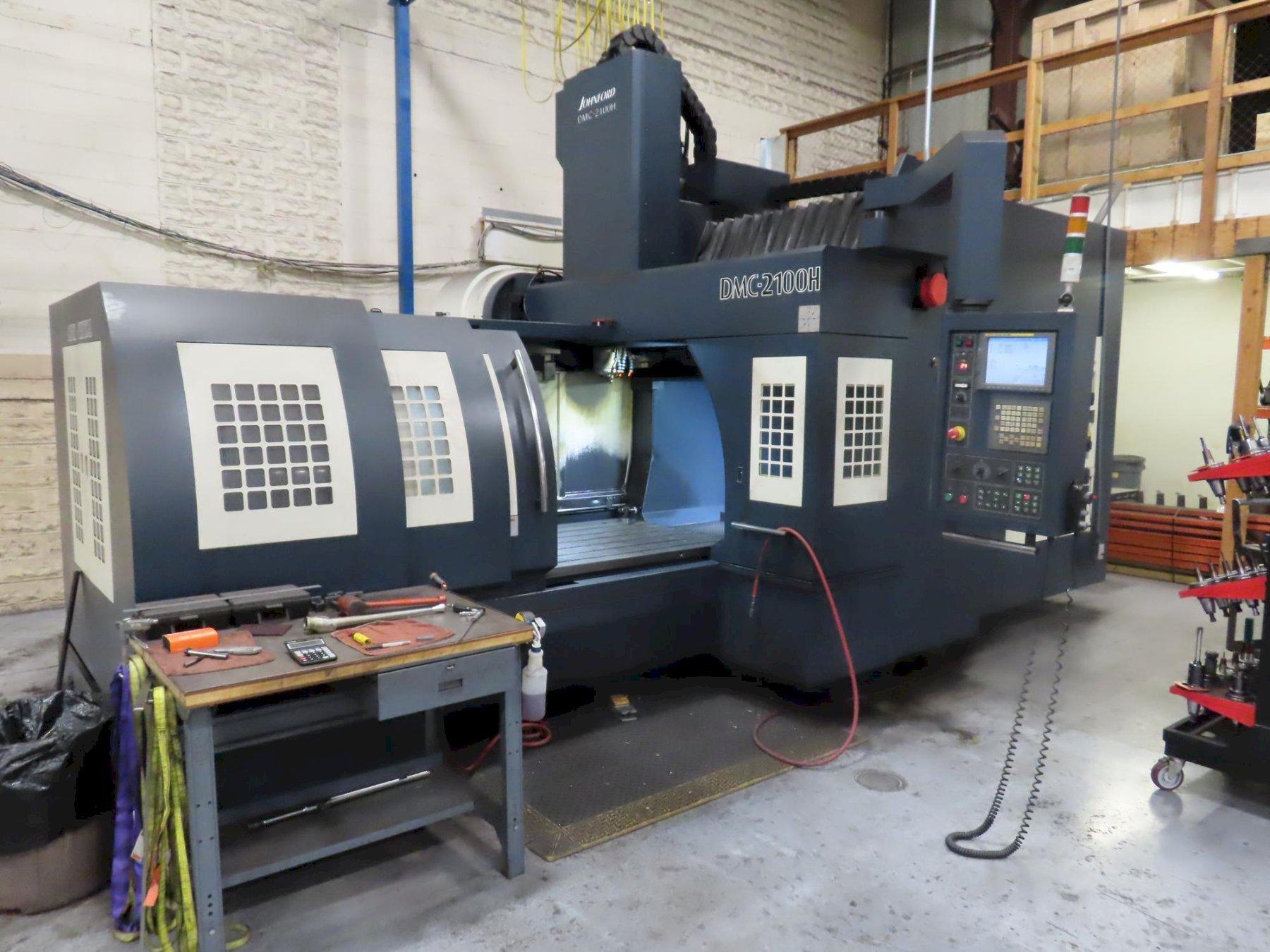

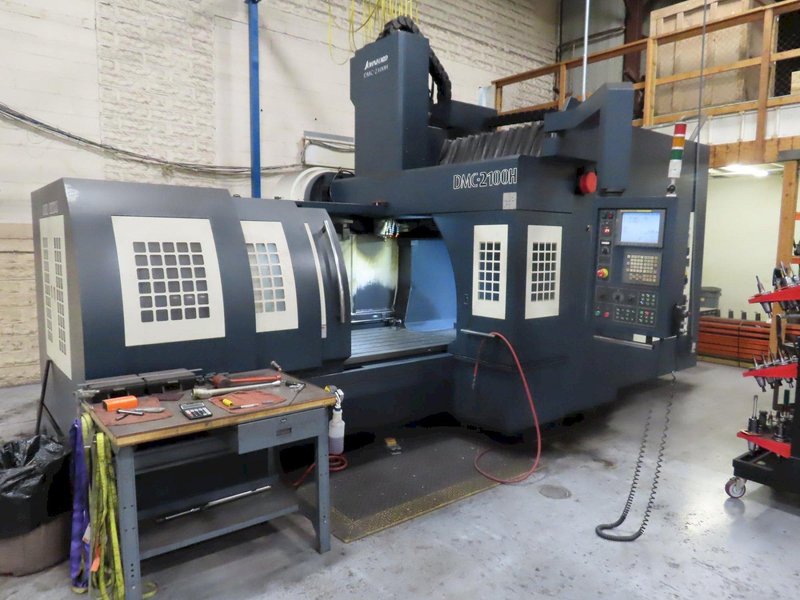

Johnford DMC-2100H Bridge Type CNC Vertical Machining Center with Fanuc 18i-MB, Renishaw Probing, 40 ATC, LESS THAN 8500 CUTTING HOURS

Johnford DMC-2100H Bridge Type CNC Vertical Machining Center with Fanuc 18i-MB, Renishaw Probing, 40 ATC, LESS THAN 8500 CUTTING HOURS

Name: Johnford DMC-2100H Bridge Type CNC Vertical Machining Center with Fanuc 18i-MB, Renishaw Probing, 40 ATC, LESS THAN 8500 CUTTING HOURS
Brand: JOHNFORD
Availability: InStock

Brand

JOHNFORD

Location

Not specified

Specifications
Files & Videos

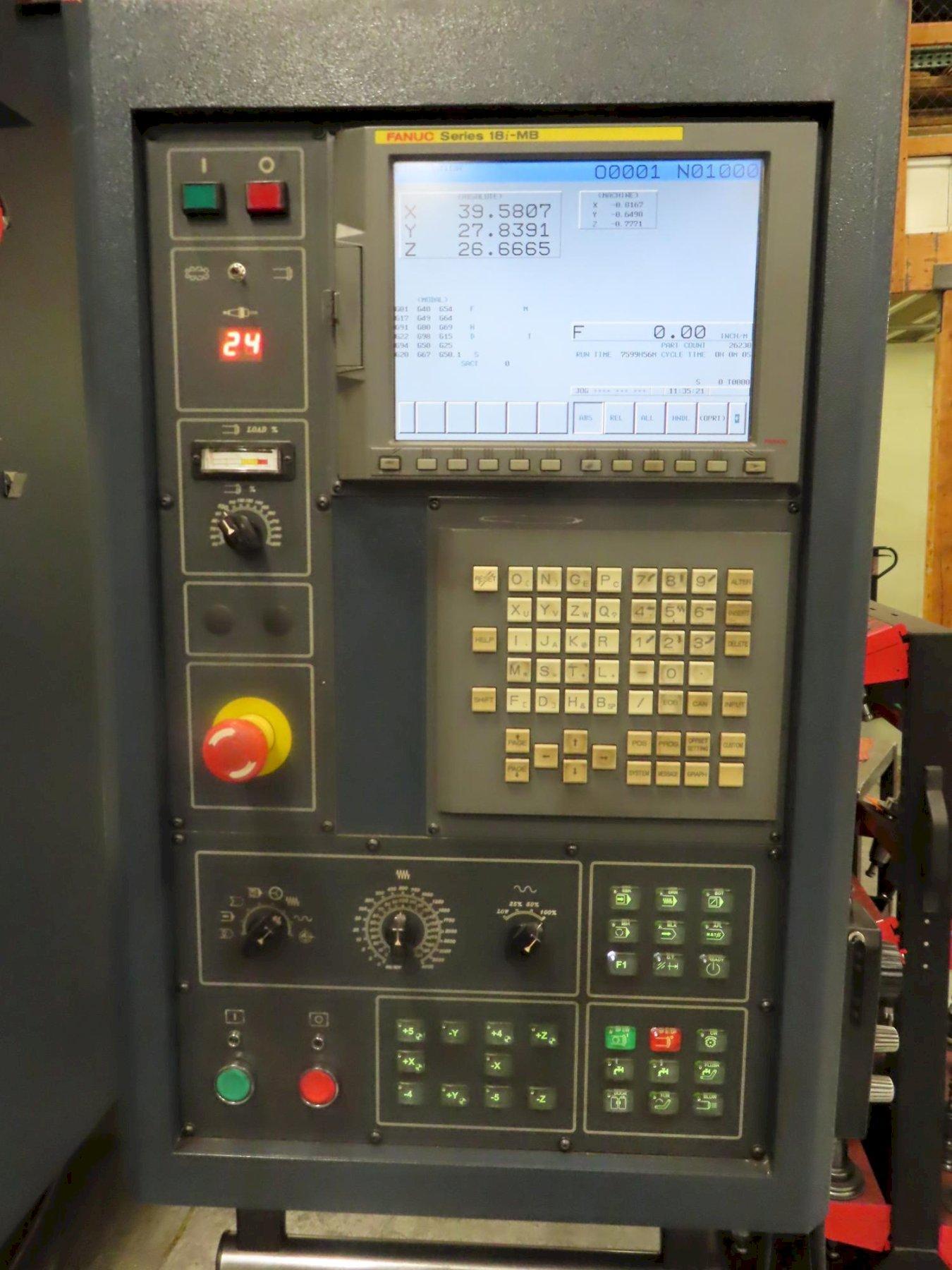

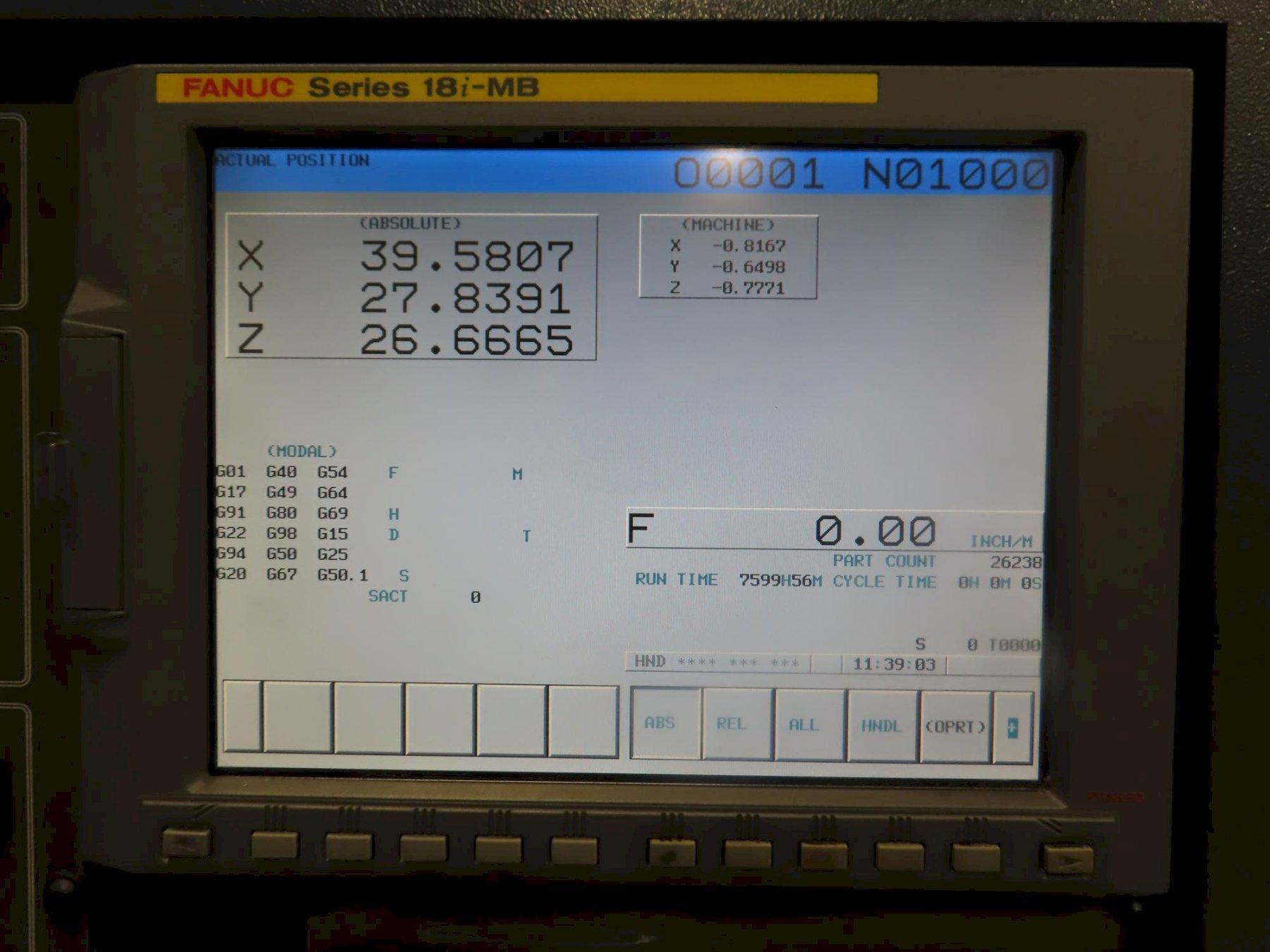

Control: Fanuc 18iMB CNC Control

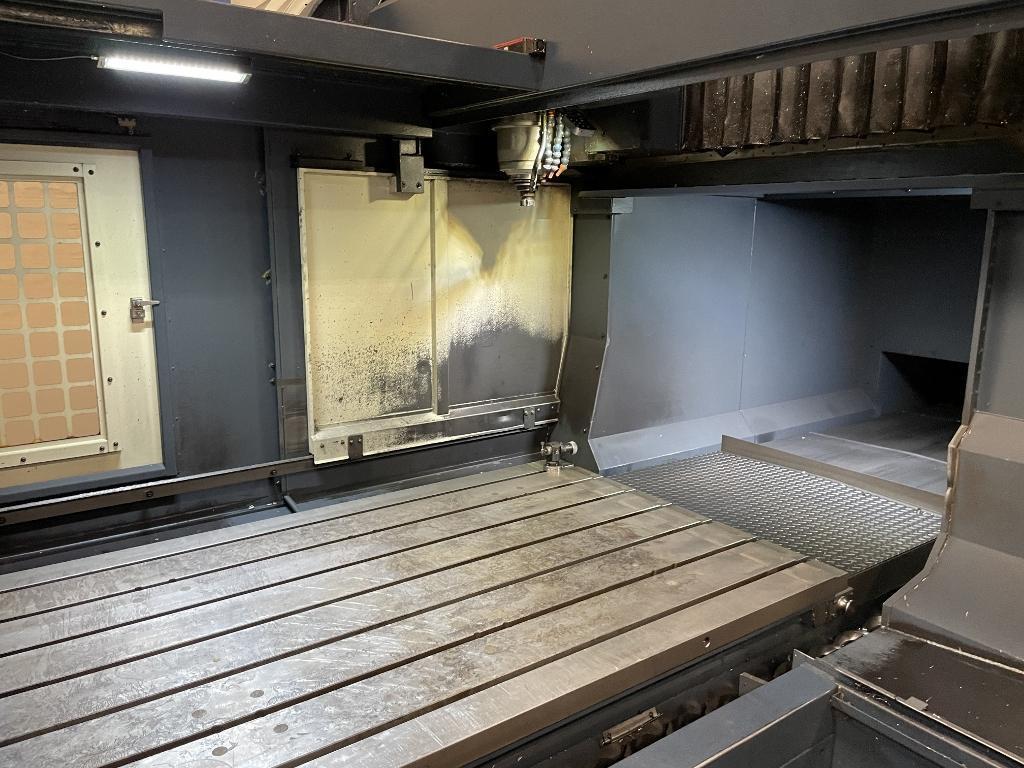

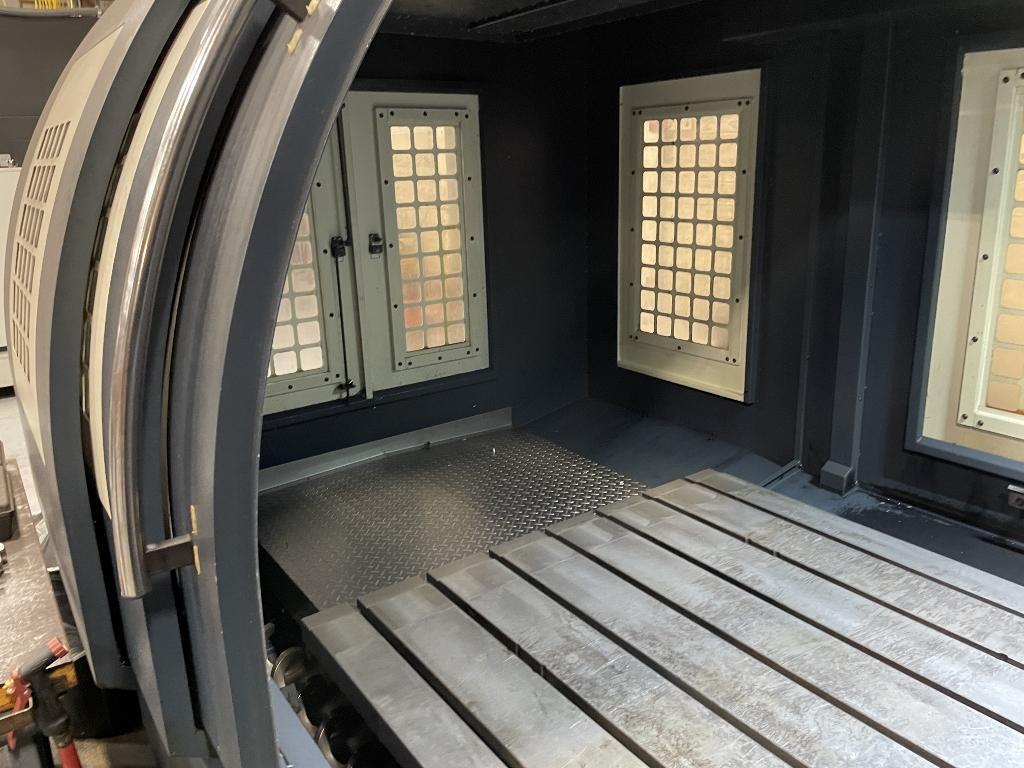

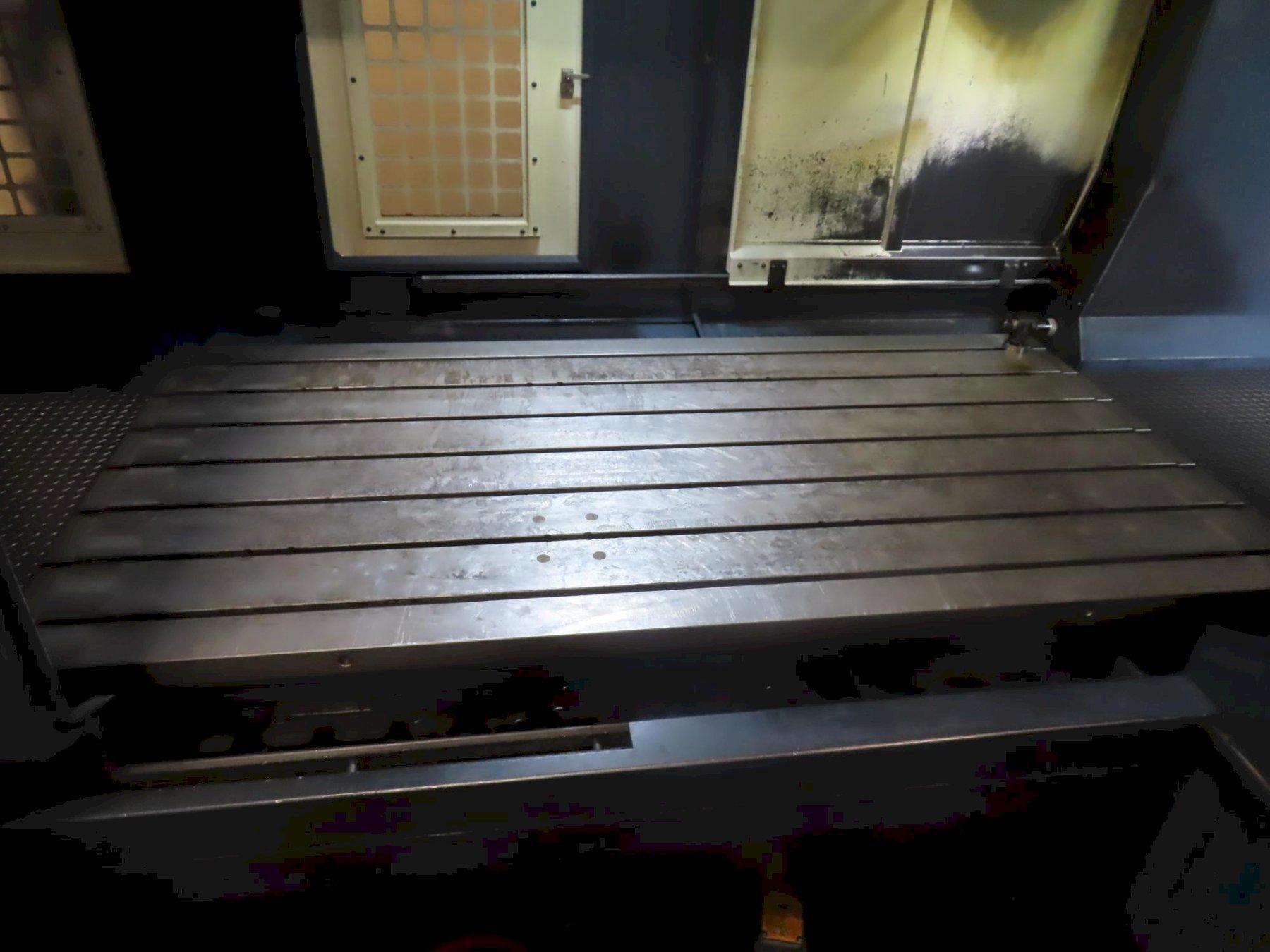

Table Size: 86.6" x 43.3"

Max Table Load: 13,200 LBS

Machine Travels: 80.7" / 51" / 31.5"

Distance Spindle to Table: 5.9" - 37.4"

Width Between Columns: 51.2"

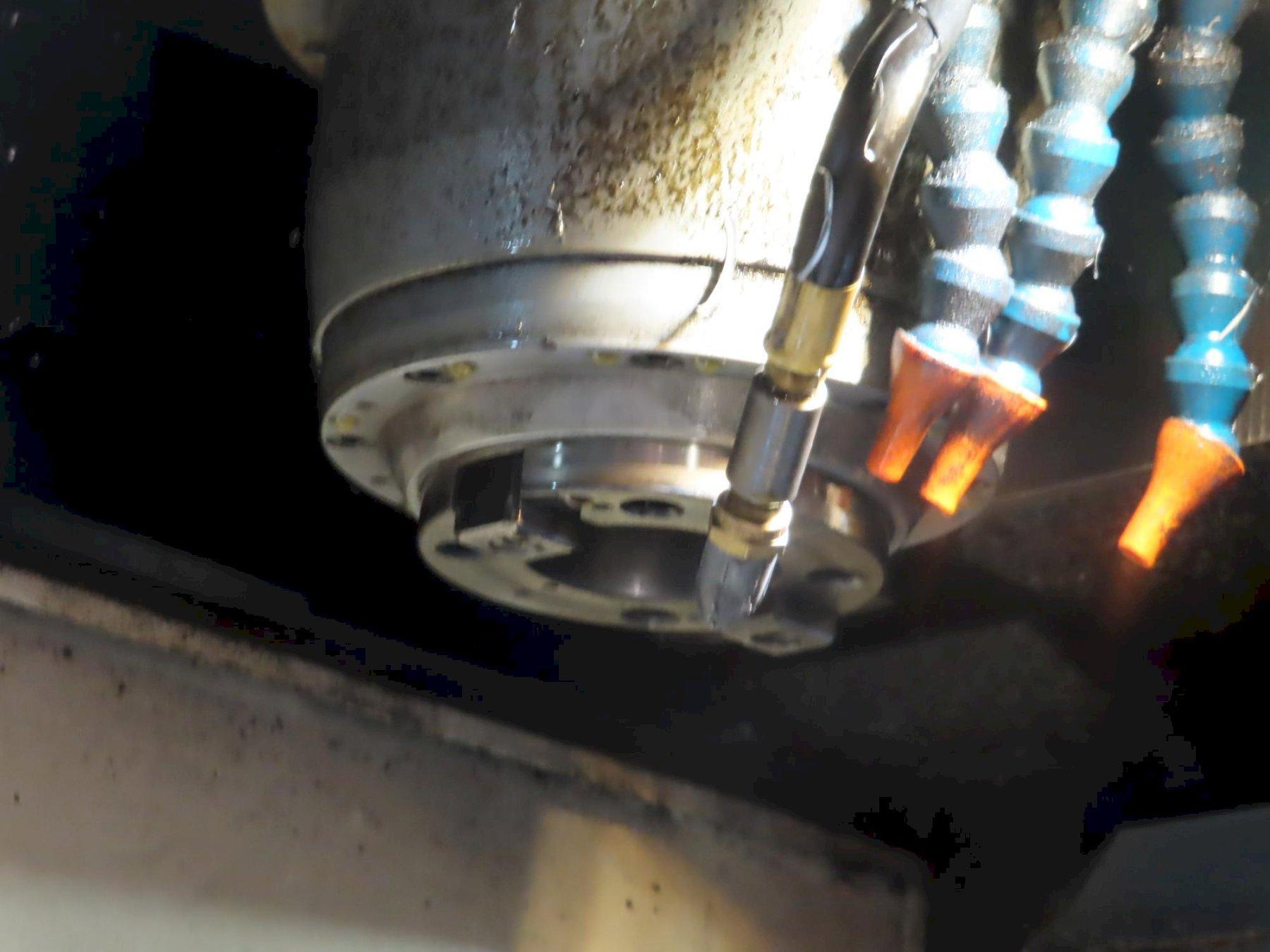

Spindle Taper: CAT 50

Spindle Speeds: 6,000 RPM

Cutting Feed Rate X/Y/Z: 393.7 IPM

Rapid Traverse Rate X/Y/Z: 590 / 590 / 472 IPM

Tool Changer Capacity: 40 Tools

Max Tool Weight: 33 LBS

Max Tool Diameter/Length: 7.8" / 15.7"

Spindle Drive Motor: 25 HP + Auto High Lo Gear

Description:

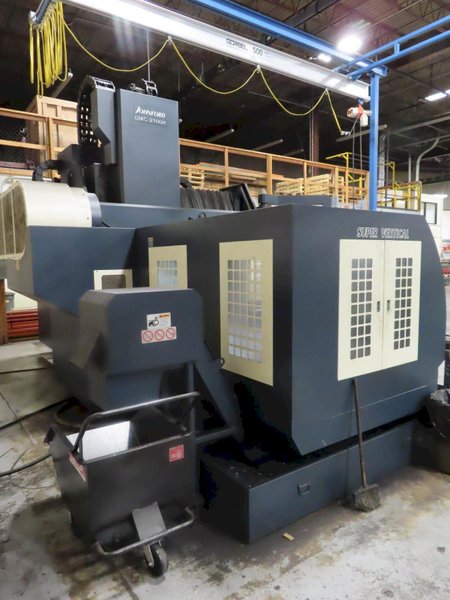

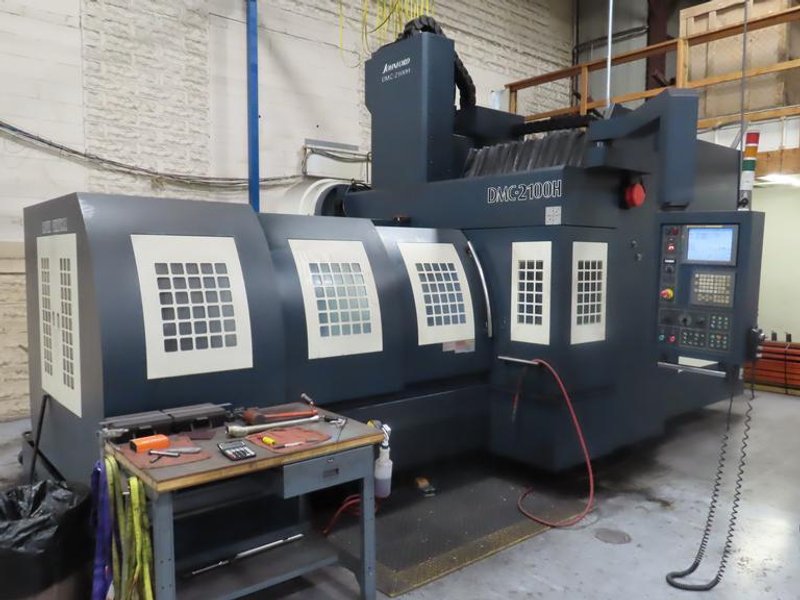

The Johnford DMC-2100H is a heavy-duty, bridge-type vertical machining center designed for precision machining of large and complex workpieces. Built with a rigid cast iron structure and a moving crossrail design, this machine delivers excellent stability, accuracy, and cutting performance for demanding applications in the aerospace, energy, mold & die, and heavy equipment industries.

Equipped With:

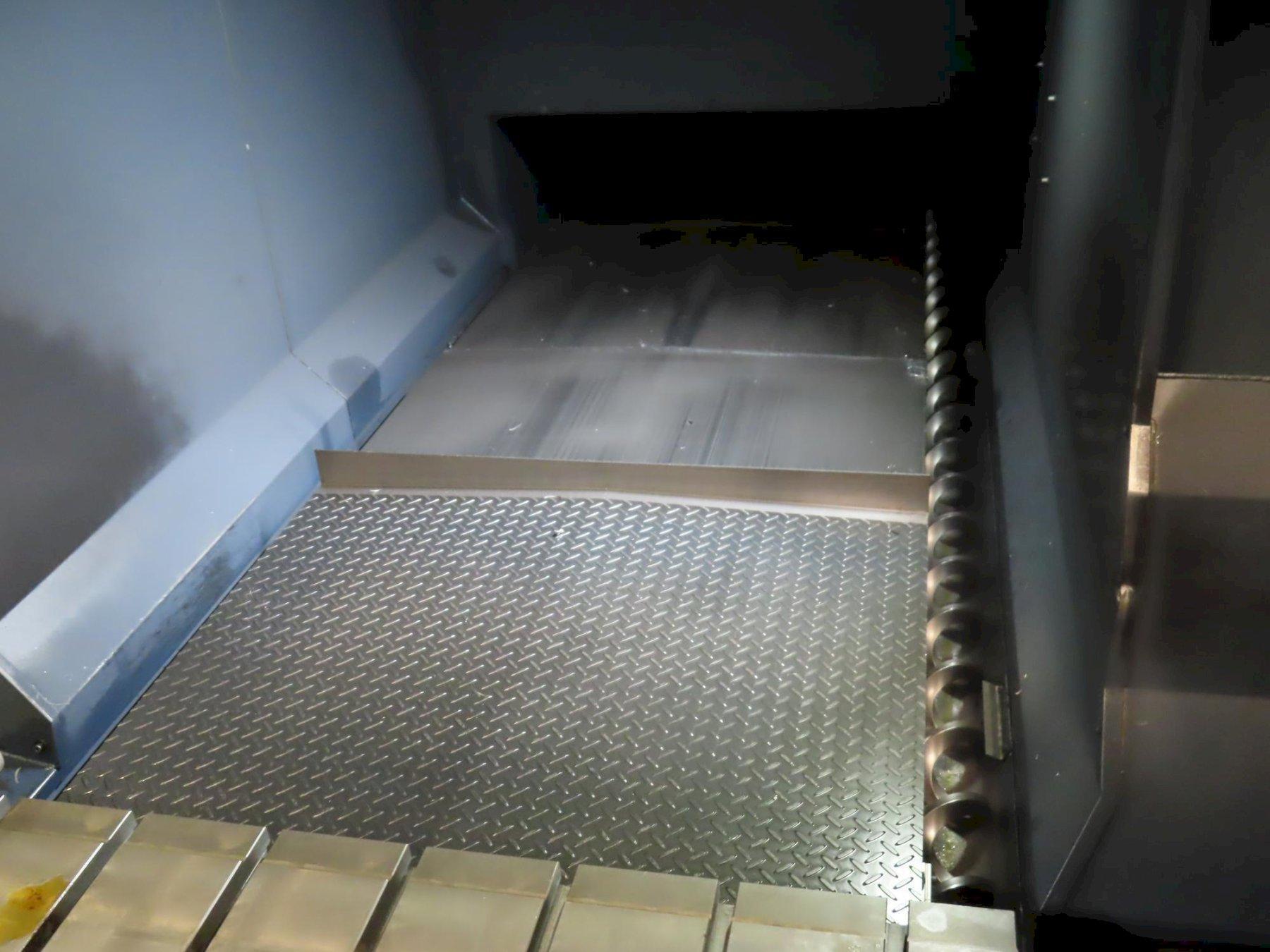

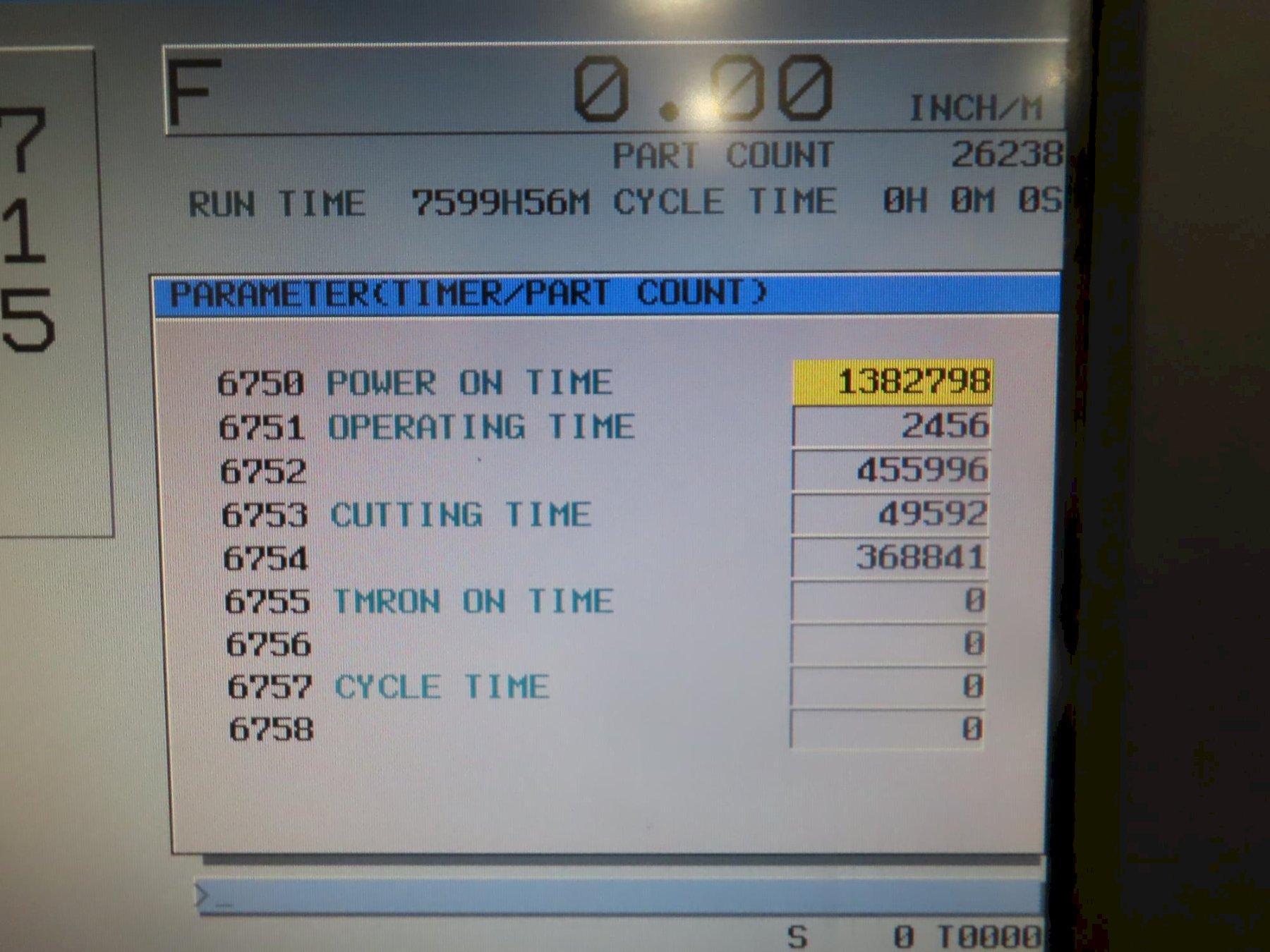

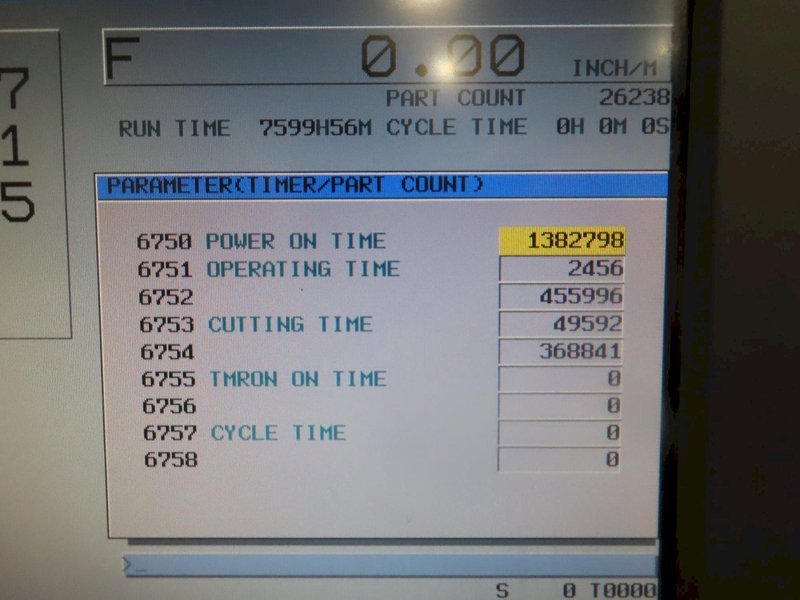

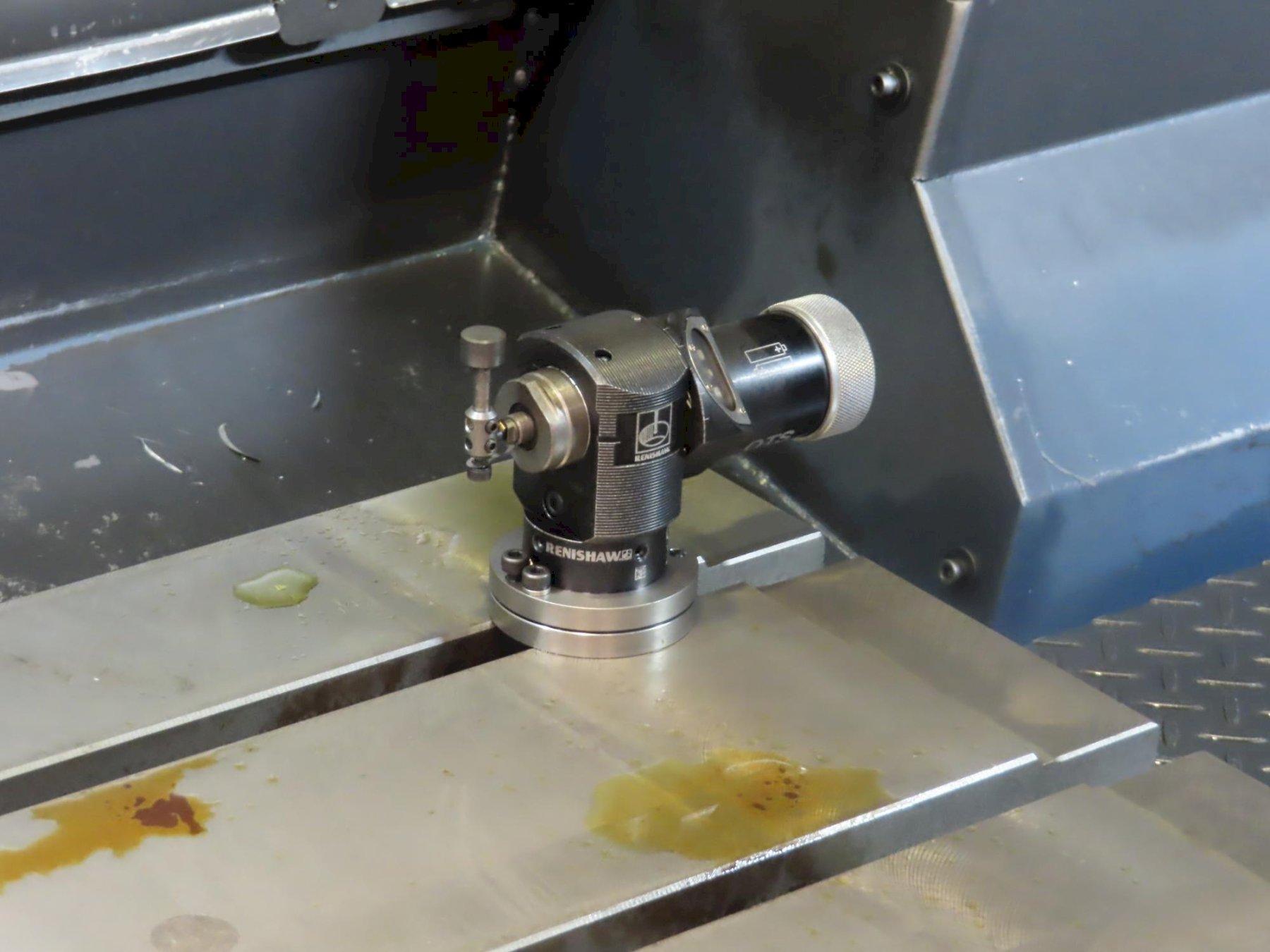

Fanuc 18i-MB CNC Control, Renishaw Wireless Probing System with Parts Probe and Tool Setter, CAT 50 Spindle Taper, 25HP + Auto High Low Gear Spindle Motor, 40 ATC, Dual Internal Chip Augers, Chip Conveyor, Coolant System with Tank and Pump, Habor Chiller, Keys, Assorted Manuals & Documentation. NOTE: Machine has less than 8,500 Cutting Hours!

Electrics:

220 Volt, 3 Phase
