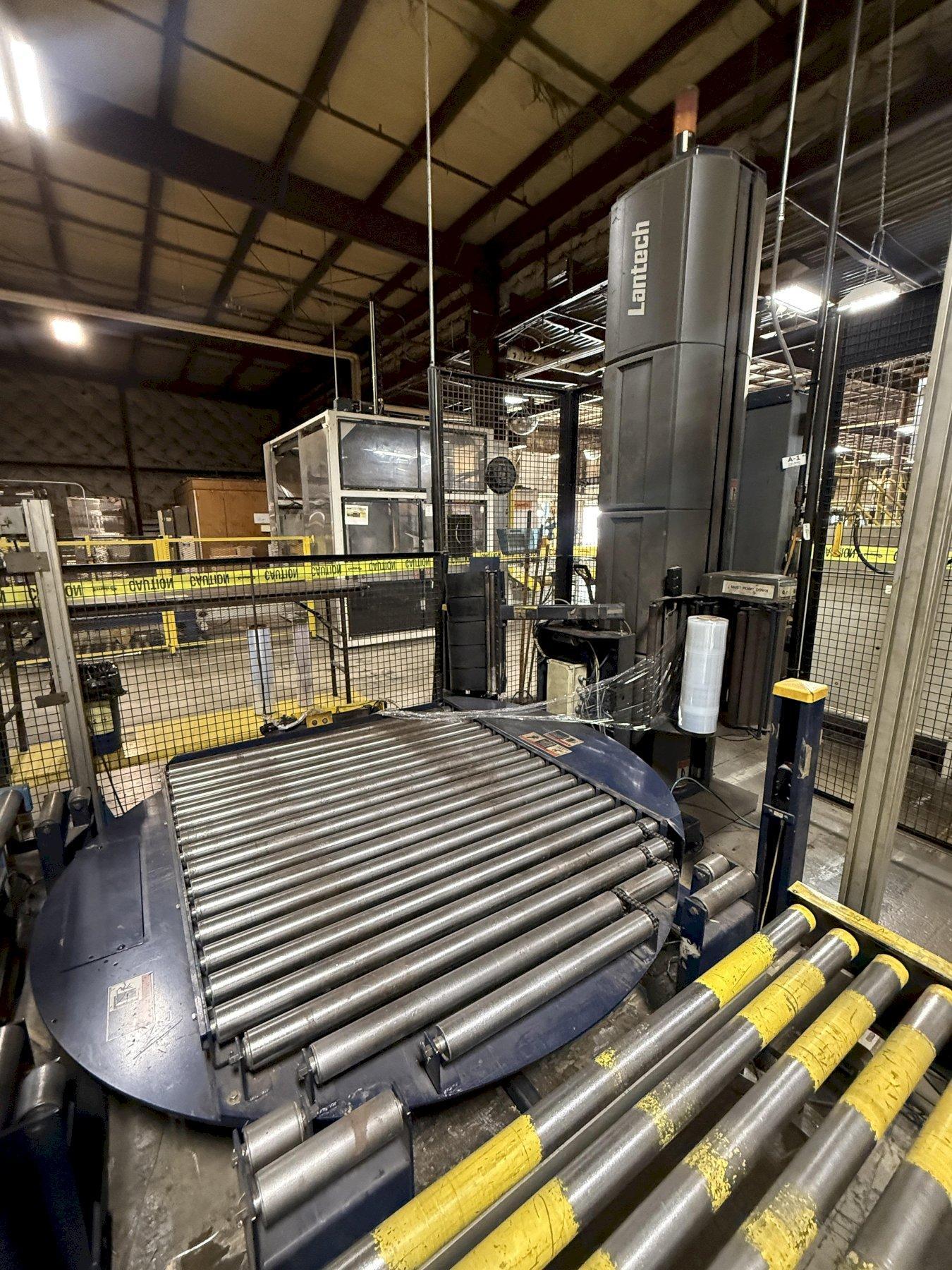

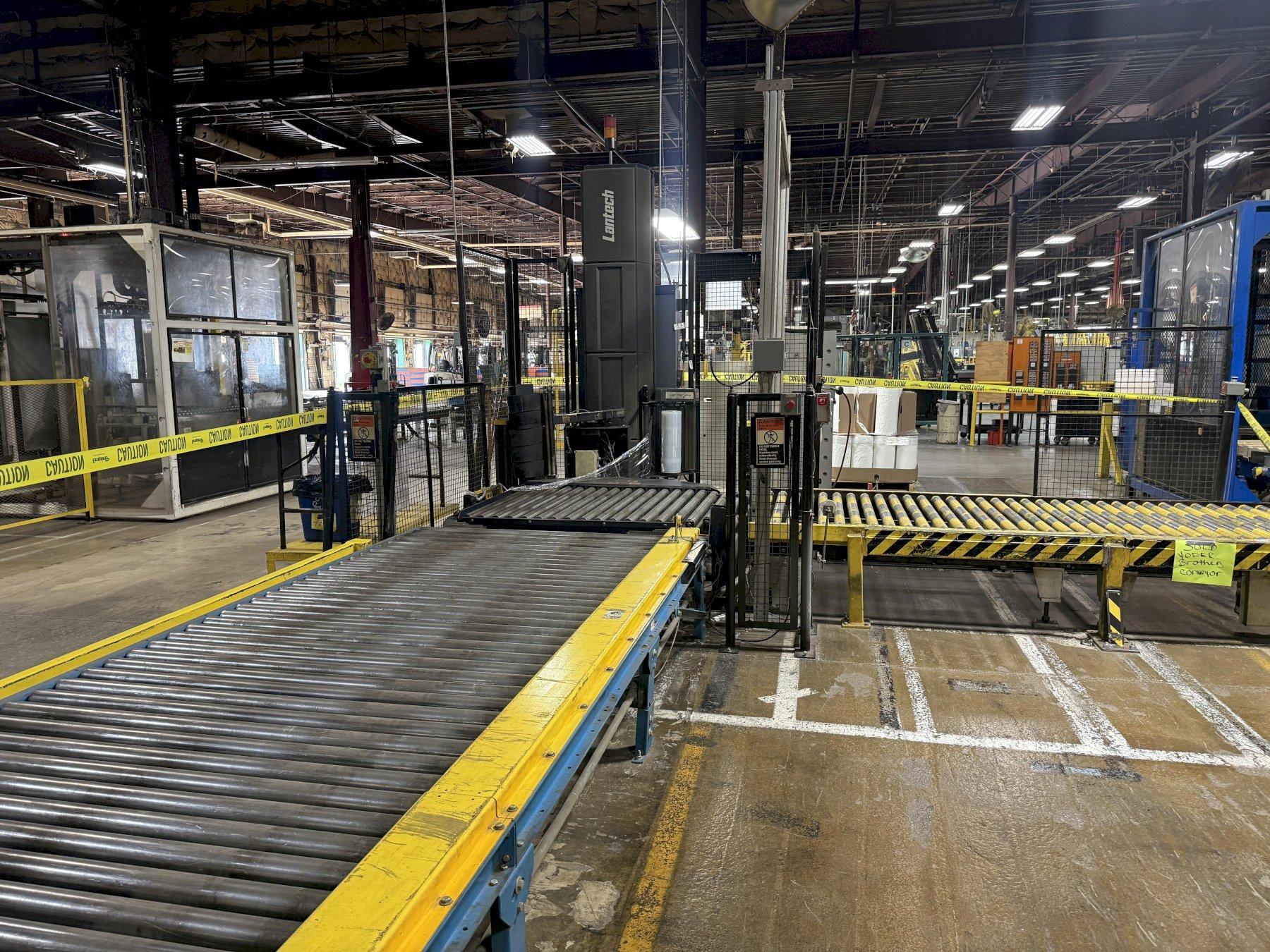

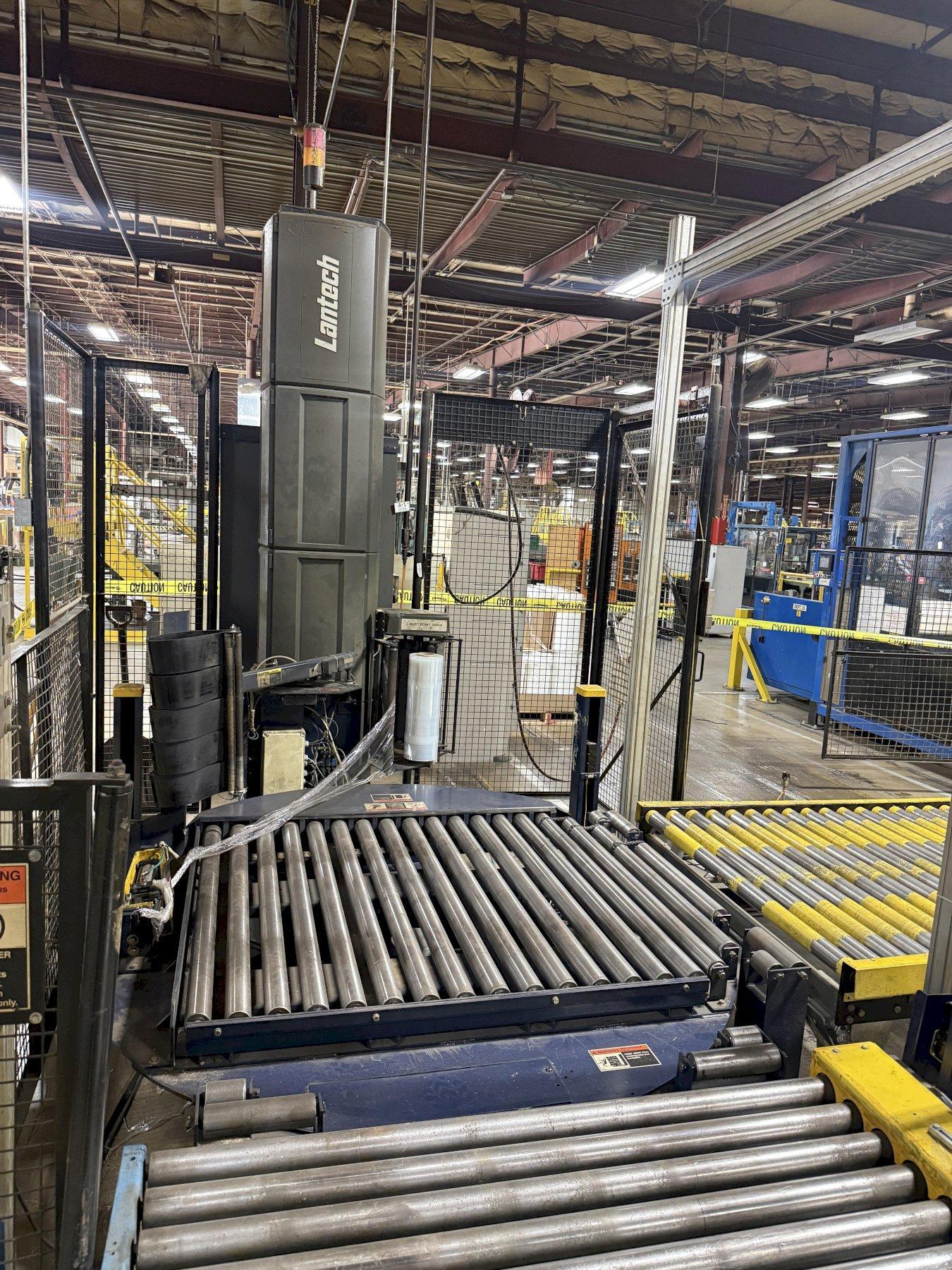

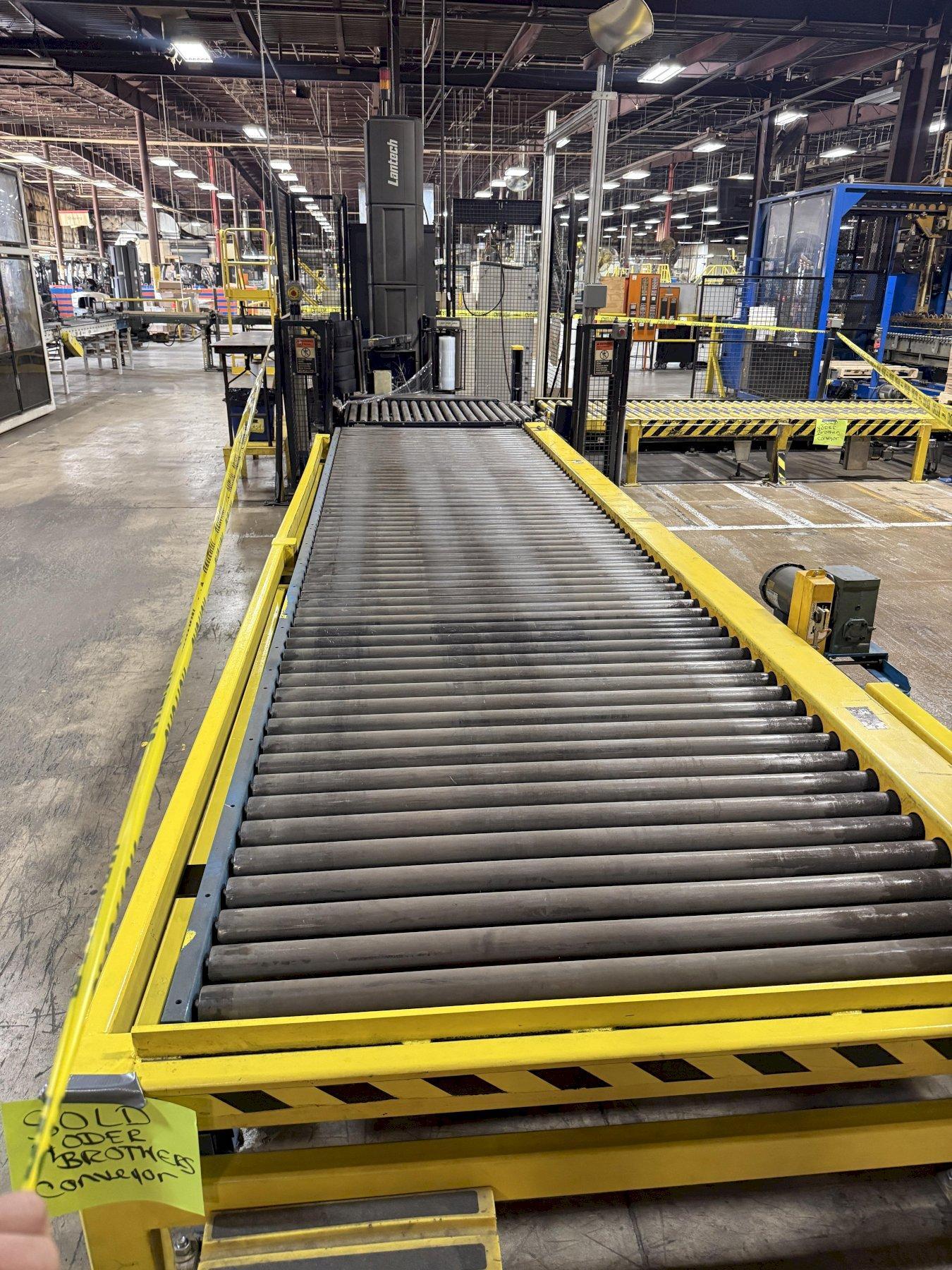

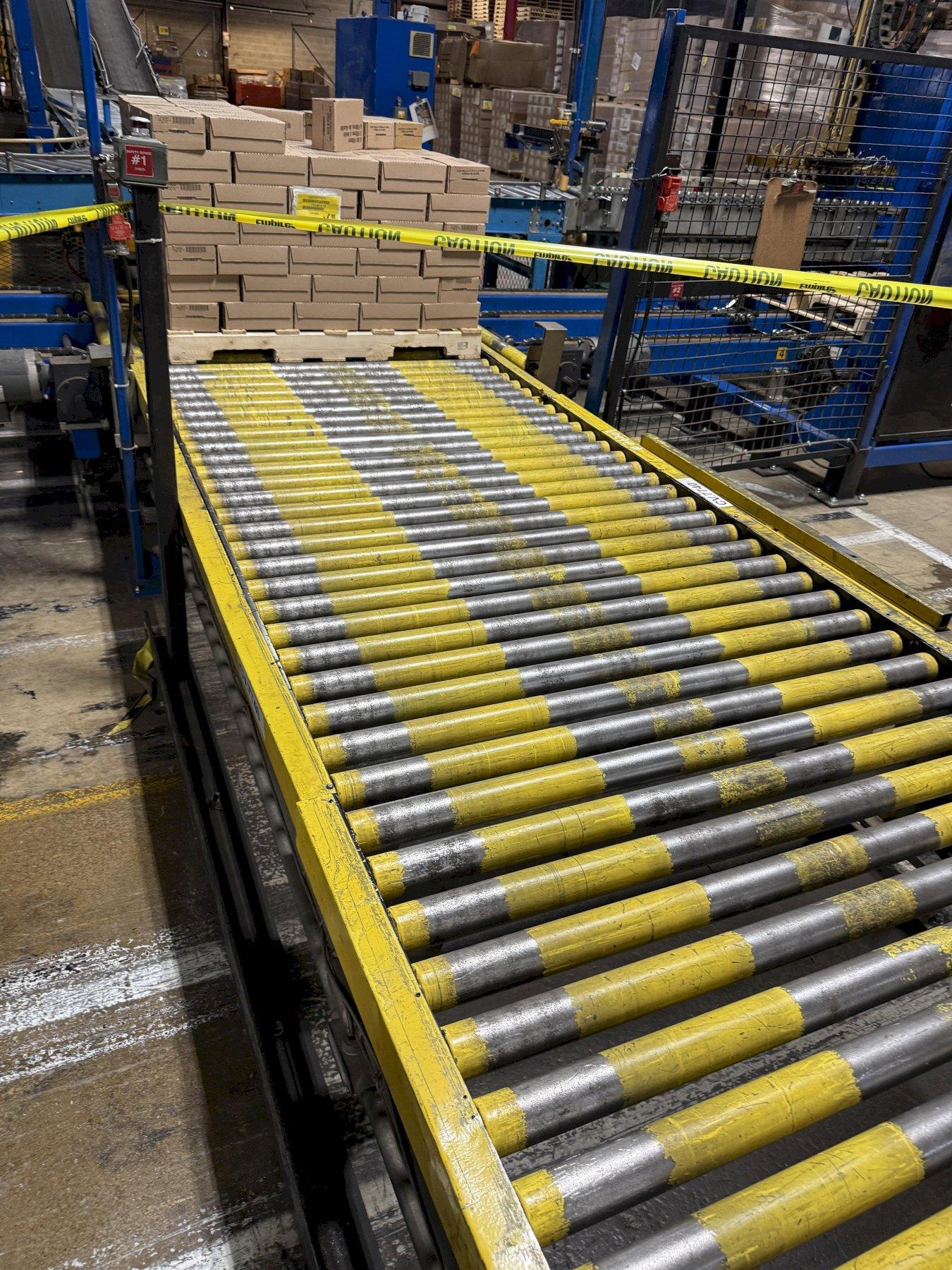

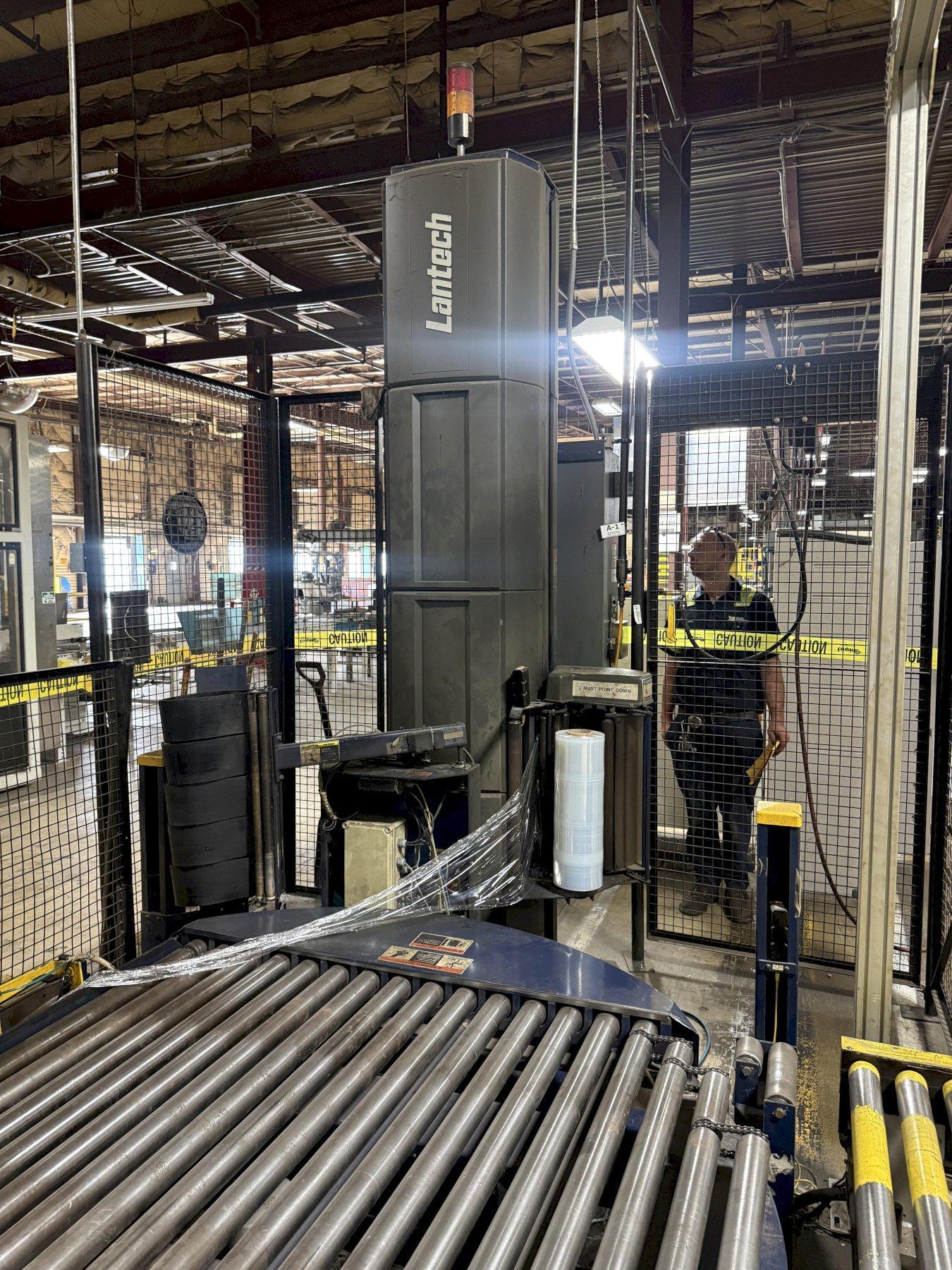

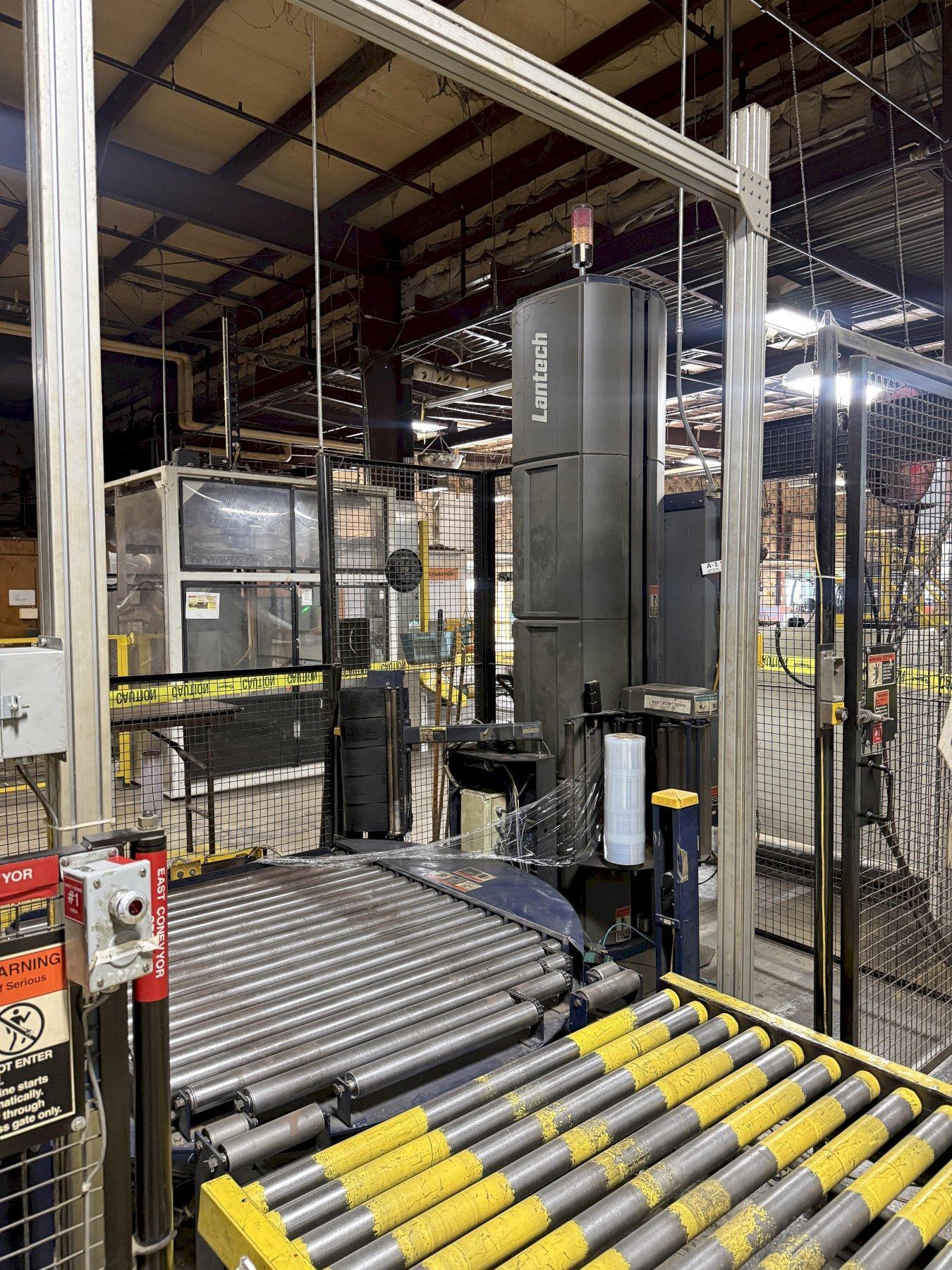

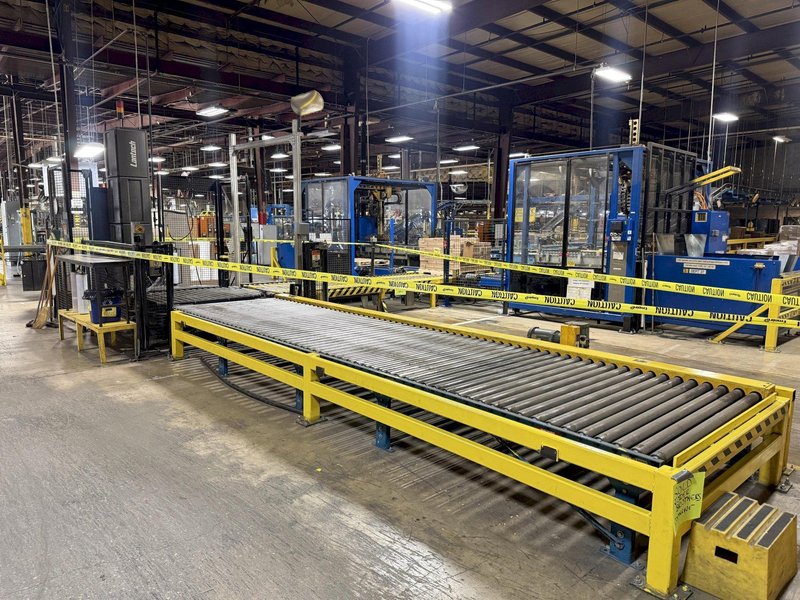

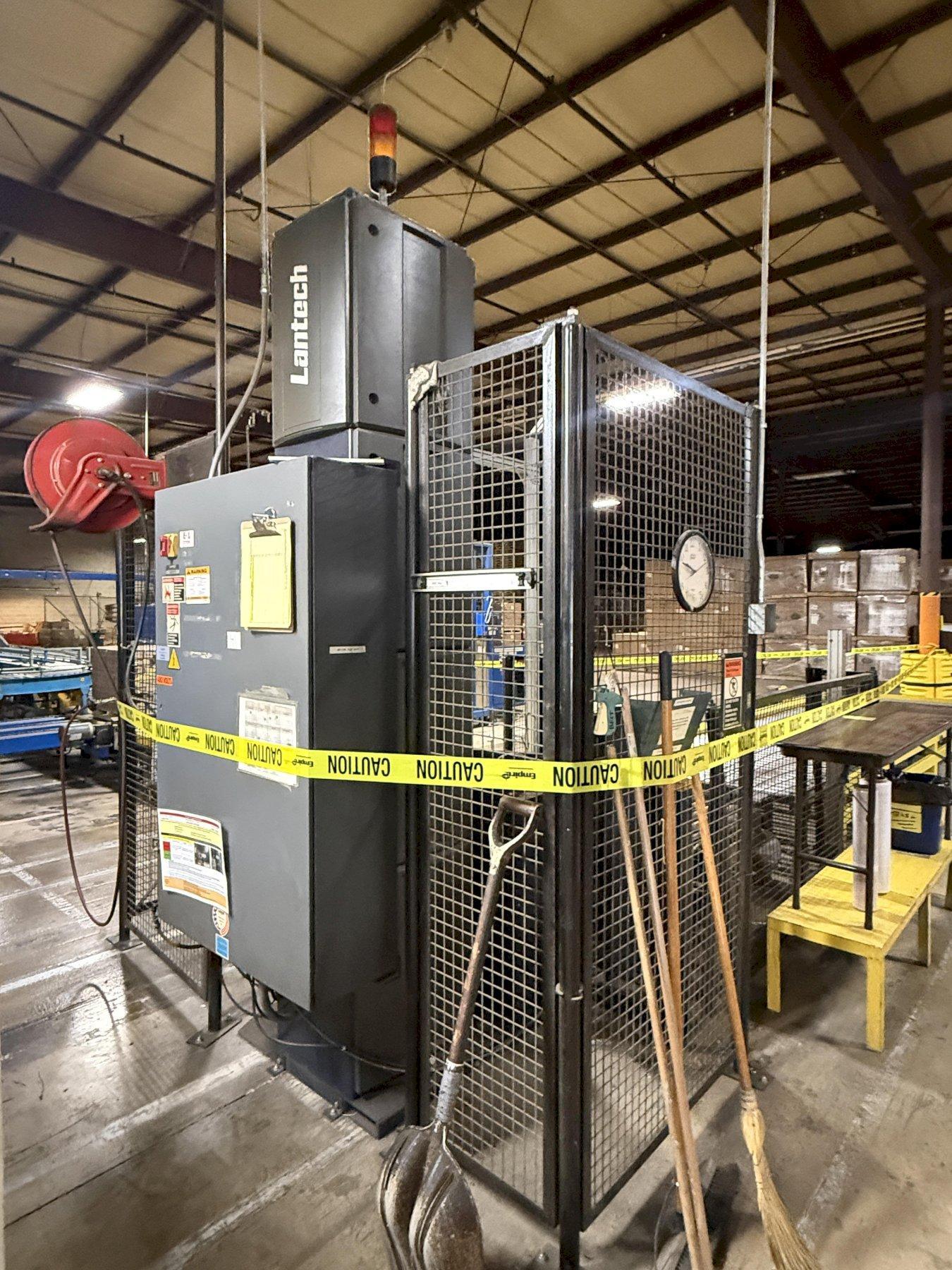

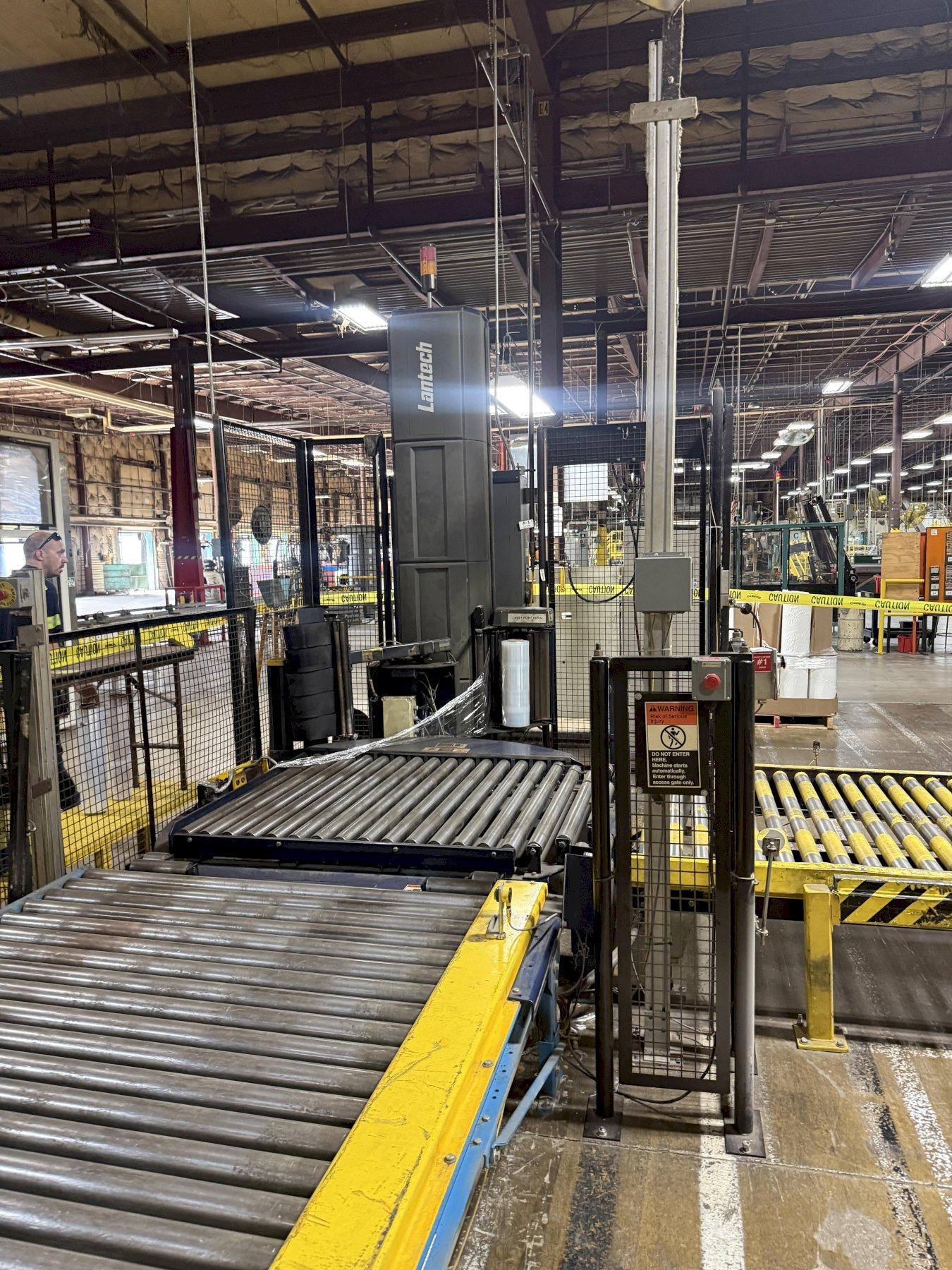

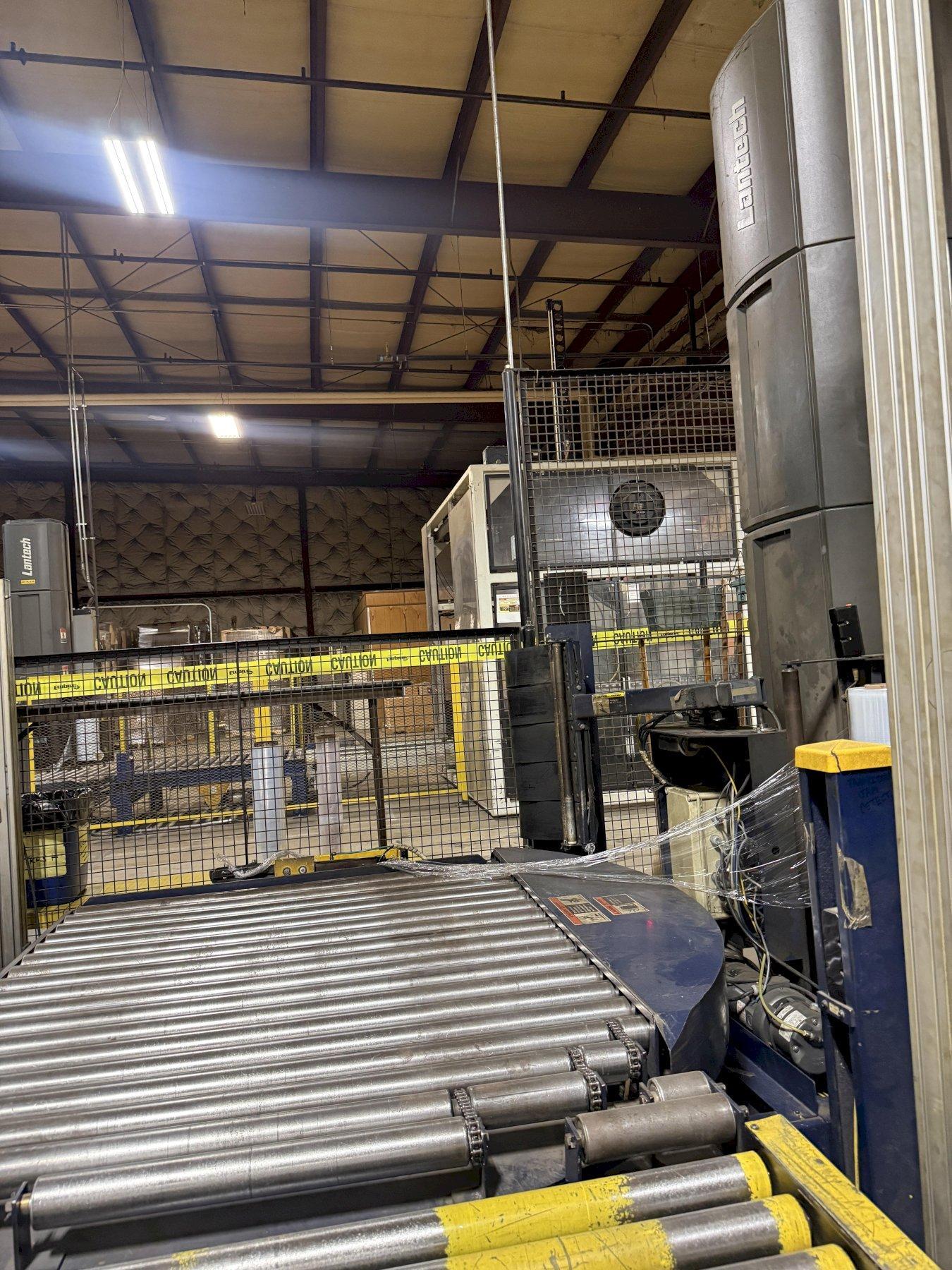

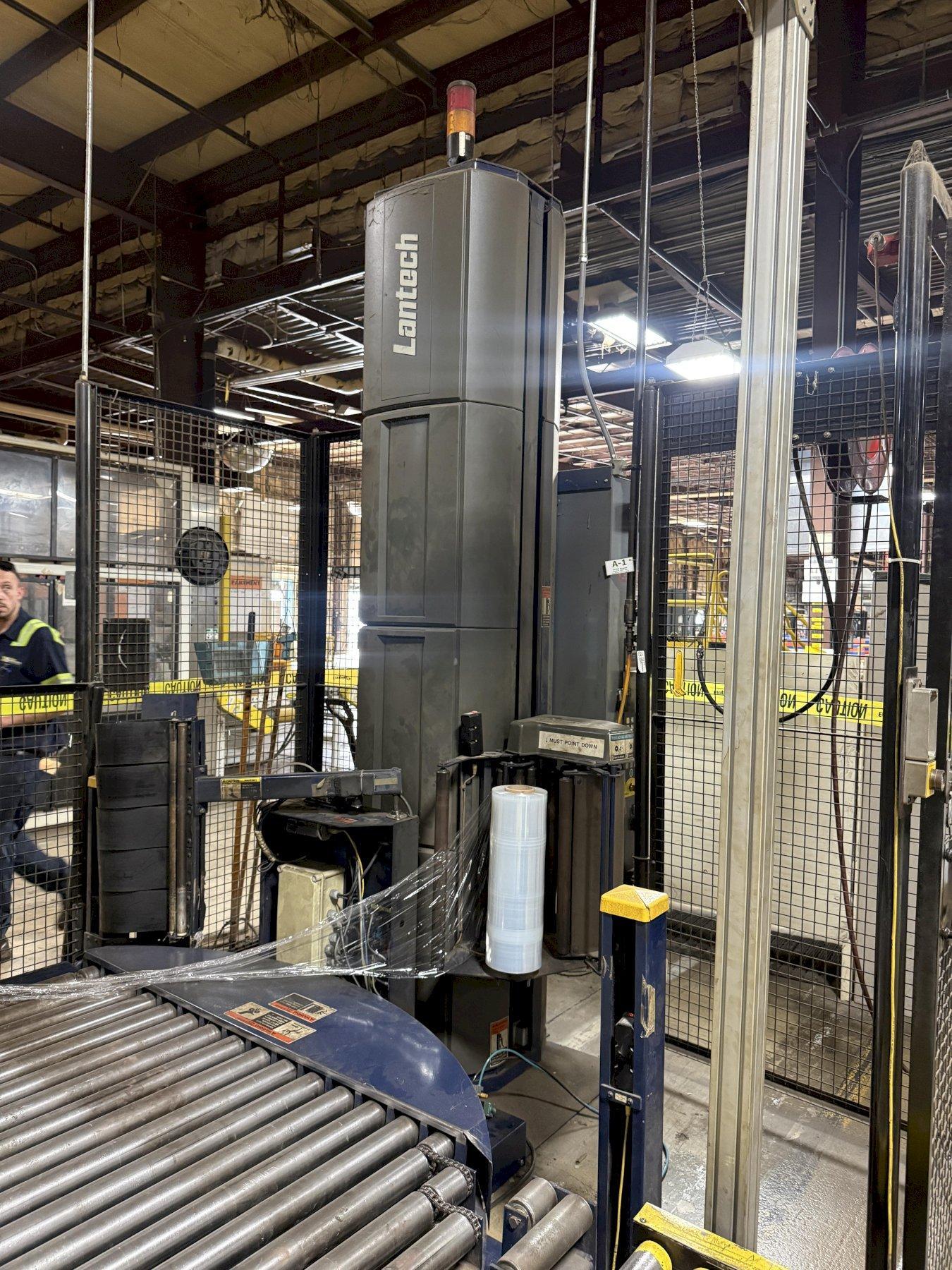

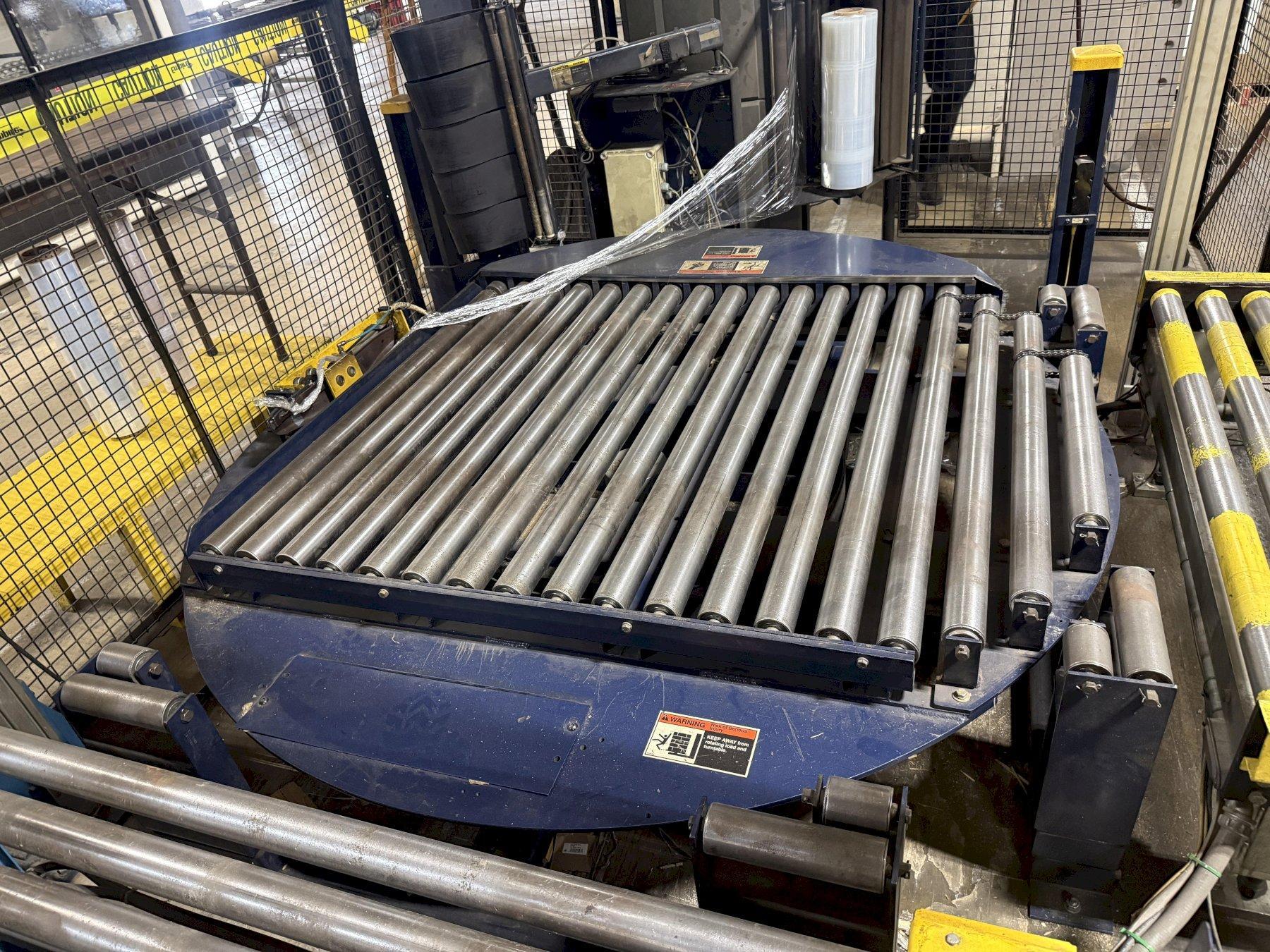

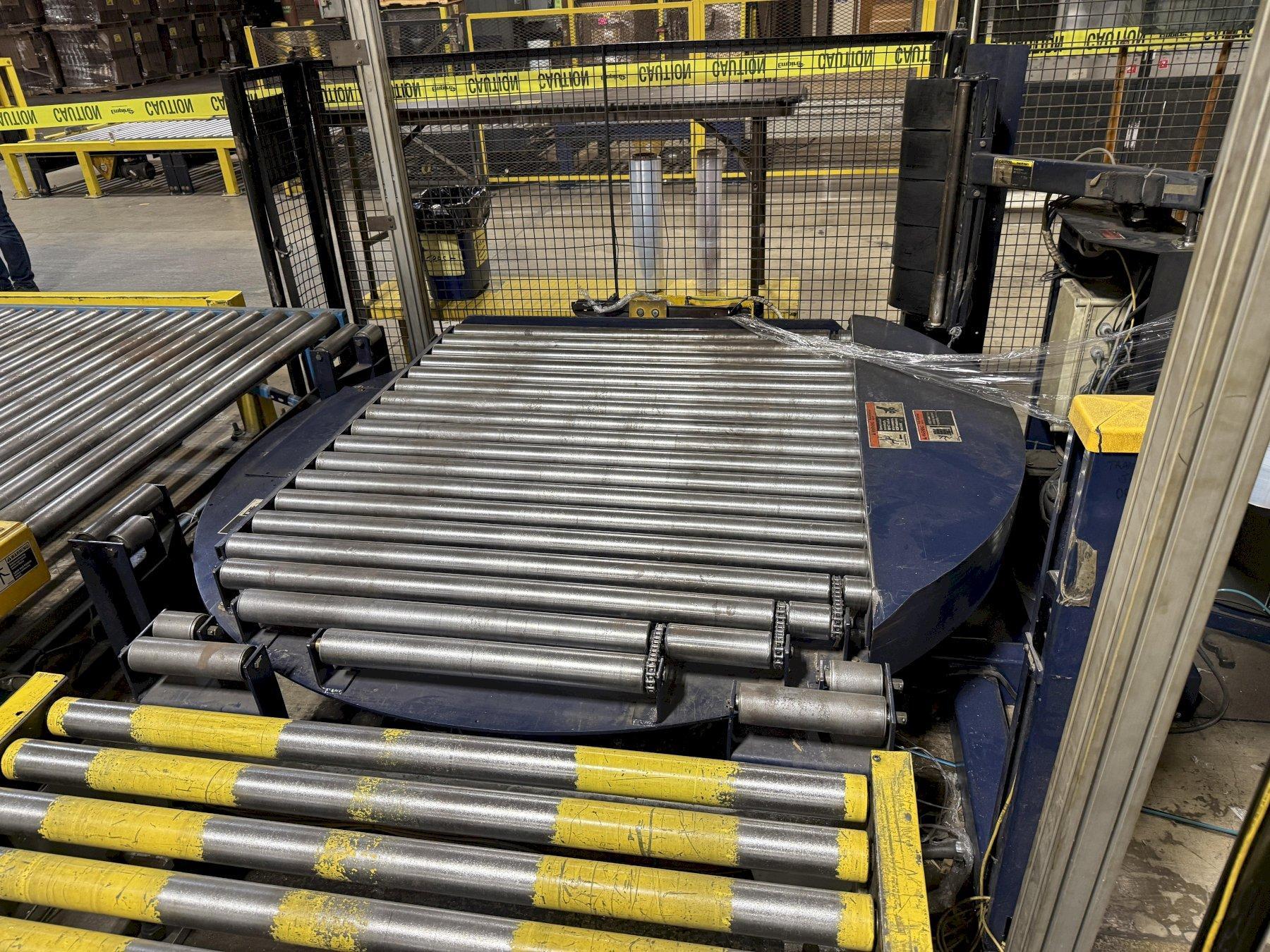

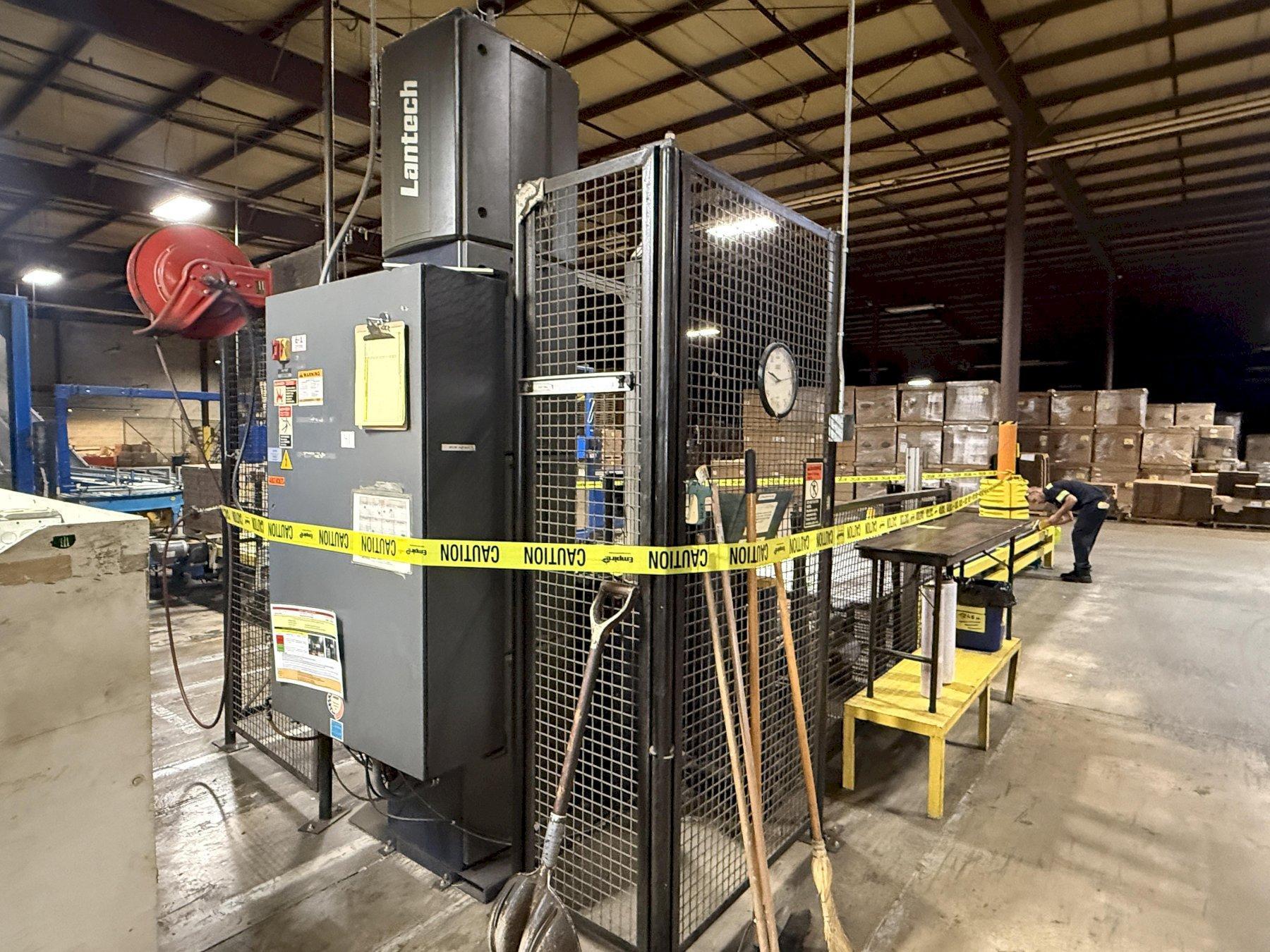

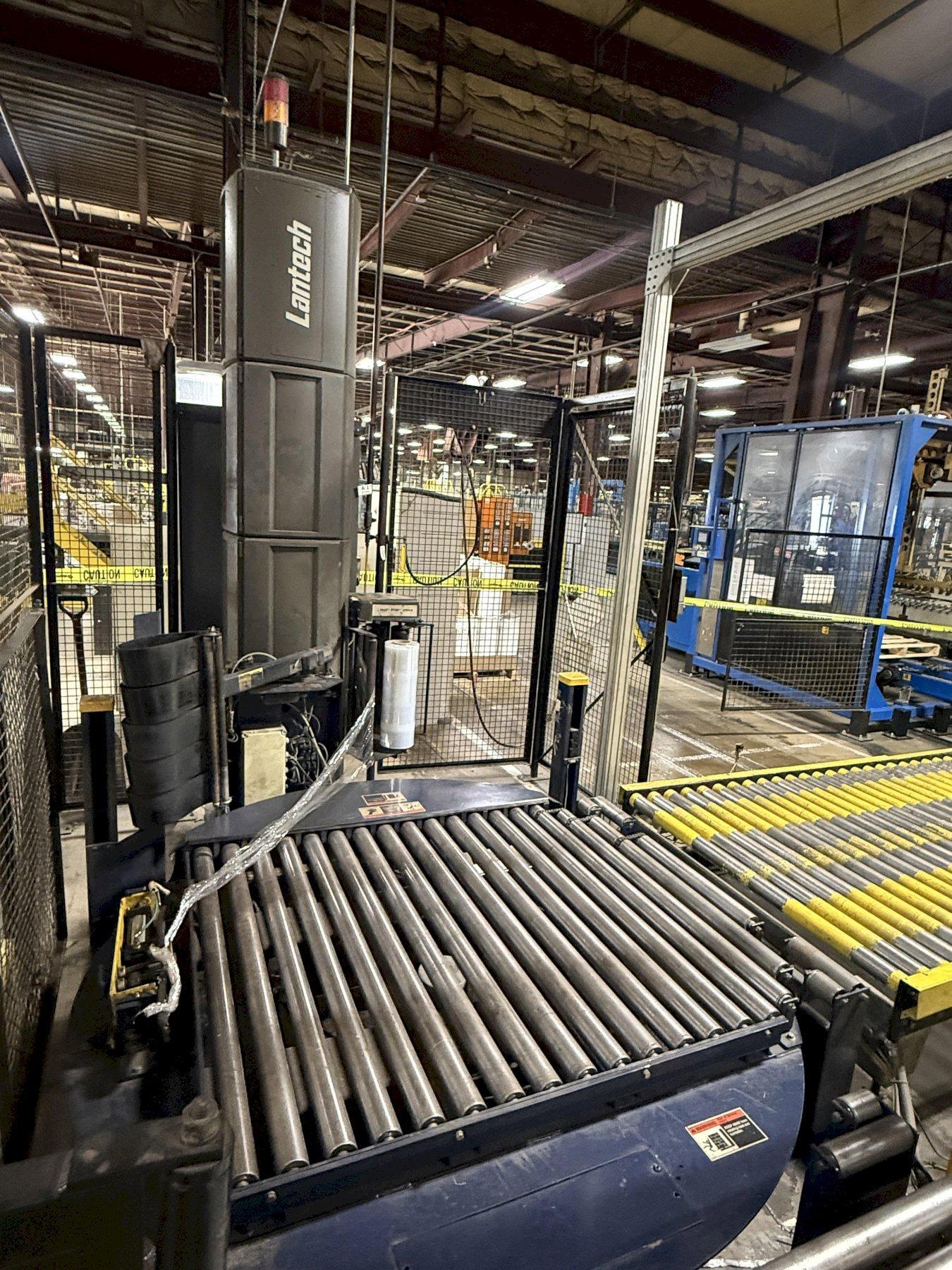

50" x 48" x 92" HIGH LANTECH QL AUTOMATIC SHRINK WRAPPER WITH IN-FEED & OUT-FEED CONEYOR. STOCK # 0980426

PERFORMANCE
Production Speed.................................: 1-45 LPH
Standard Maximum Load Size.......................: 1,371 mm L x 1,219 mm W x 2,337 mm H 54” L x 48” W x 92” H
Minimum Load Size................................: 914 mm L x 914 mm W x 610 mm H 36” L x 36” W x 24” H
Maximum Load Weight..............................: 1,814 kg 4,000 lbs

LOAD HANDLING AND FILM DELIVERY SYSTEM
Rotation Speed...................................: 1-15 RPM
Pre-stretch......................................: 225%
Film Capacity....................................: EU 508 mm Web with 254 mm Diameter US 20” Web with 10” Diameter
Film Cut and Clamp...............................: Jaw Clamp with Hot Wire
Film Delivery System.............................: Metered Film Delivery®
Load Guardian®...................................: Standard
Pallet Grip®.....................................:  Standard

ELECTRICAL
Power............................................: EU 400VAC/3/50Hz US 460VAC/3/60Hz
Control..........................................: EU PLC with Profinet Communications US PLC with Ethernet Communications
Motor Control....................................: AC Motors Safe-Torque Off (STO)

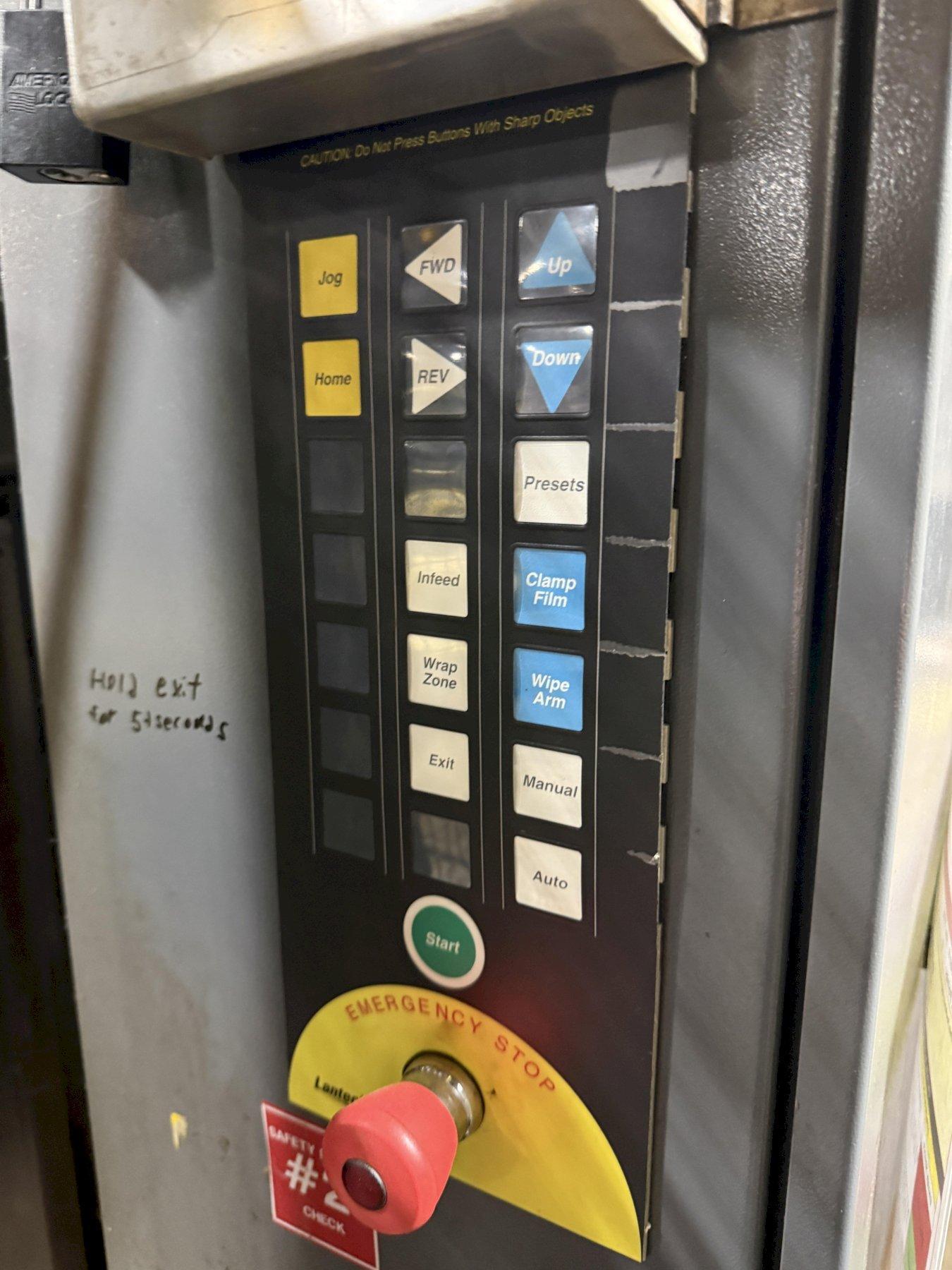

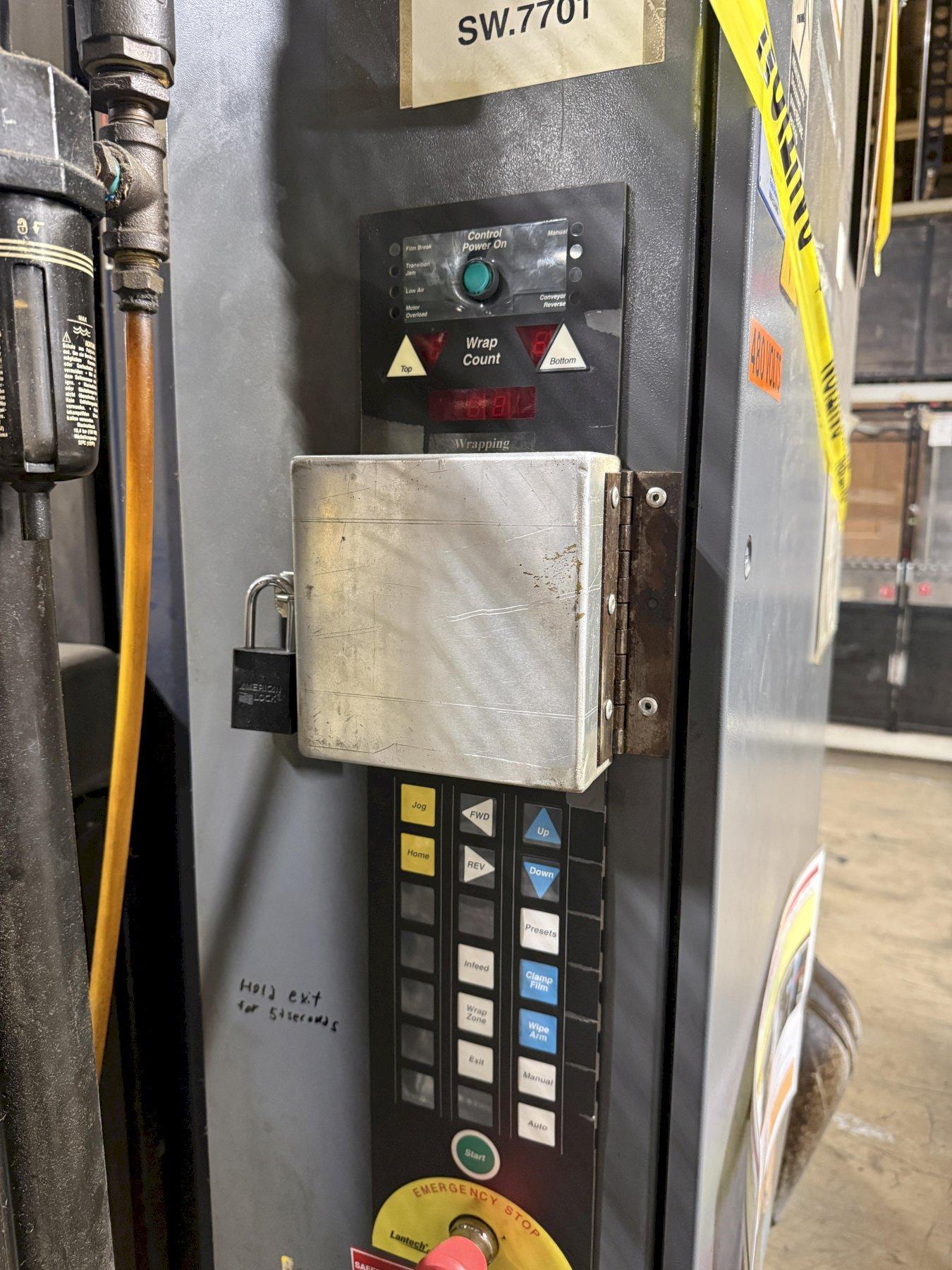

HMI..............................................: EU Siemens 7” Unified Panel US AB PanelView Plus 7
PLC..............................................: EU Siemens S7-1500 Series US AB CompactLogix 5380 Series
Wiring...........................................: Some pre-wired quick connect cables for easy assembly

PNEUMATIC
Pneumatic Data...................................: EU 85-150 l/min @ 6 bar US 3-5 cfm @ 80 PSI

SAFETY
Fencing..........................................: In accordance with BS EN ISO 13857 Standard
Performance Level................................: In accordance with ISO 13849-1 Standard
