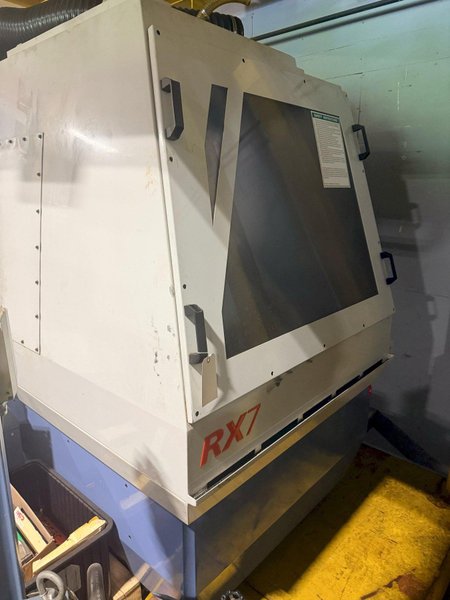

2011 ANCA RX-7 CNC Tool & Cutter Grinder - High Precision Performance
Brand
Category
Model
RX-7
Stock #
57789
Year
2011
Condition
Very Good
Location
Minnesota

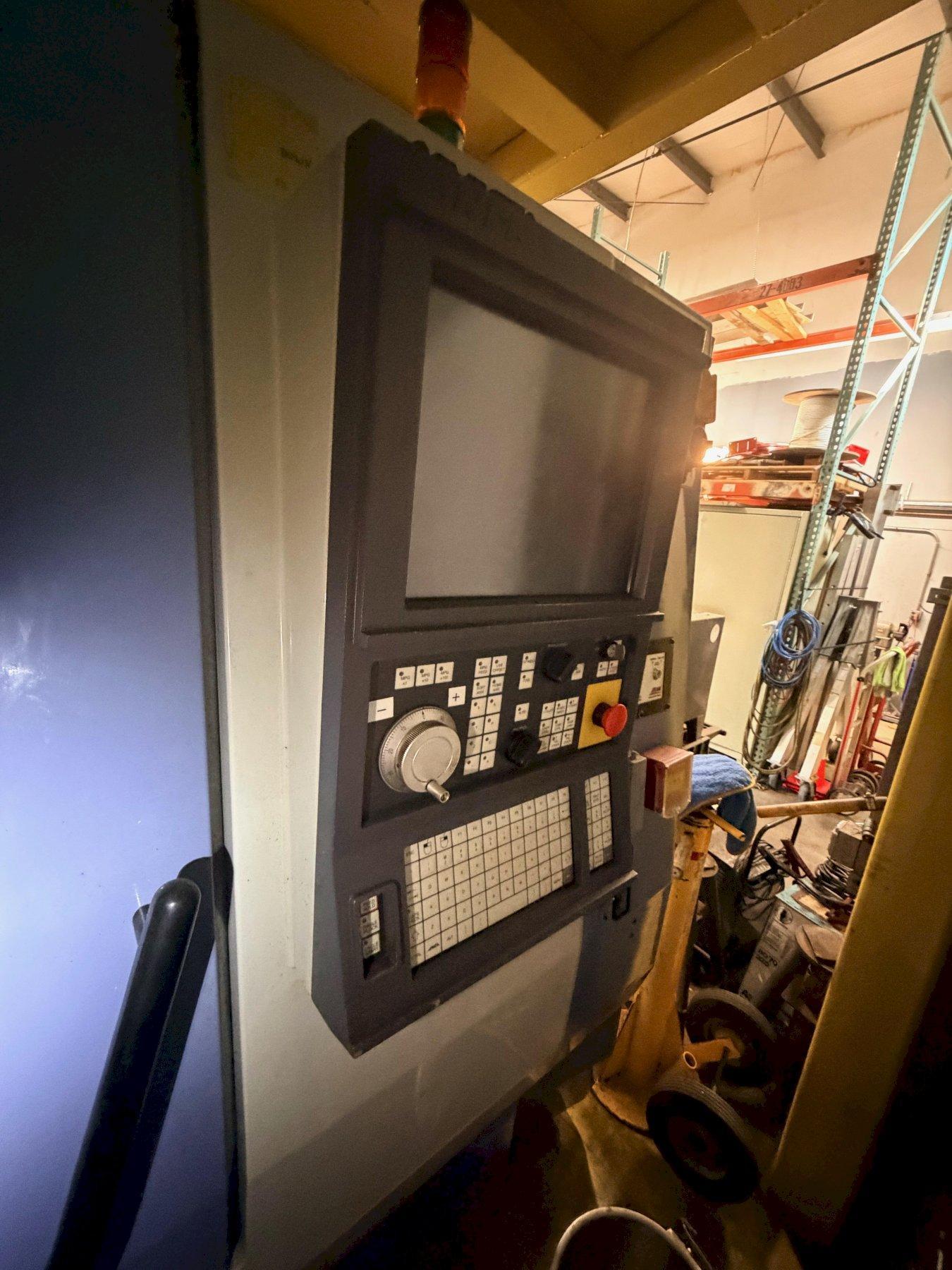

| Type Of CNC Control | ANCA CNC (typically 5DX) |
| Control | yes |
| Capacity And Axis Travel - See Below | See Below |
| X-axis Travel: | 9.8" or 250mm |
| Y-Axis Travel: | 5.9" or 150mm |
| Z-Axis Travel: | 8.7" or 220mm |
| Maximum Tool Diameter: | 9.4" or 220mm |
| Maximum Workpiece Weight: | 44 lbs or 20kg |
| Grinding Spindle & Wheels - See Below | See Below |
| Spindle Power: | 26HP or 19kw |
| Spindle Speed: | 10000-12000 RMPs |
| Spindle Type: | ANCA Bi-directional integral direct drive |
| Max Grinding Wheel Diameter: | 8" or 202mm |
| Wheel Configuration: | Tow wheel packs with up to four wheels each |
| Machine Data & Dimensions | See Below |
| Dimensions | 99" x 79" x 75" |
| Overall Weight: | 9920 lbs Approximately |
|
Equipped with :
Control System : ANCA CNC (typically 5DX ) Machine base : ANCACRETE polymer concrete |
|
