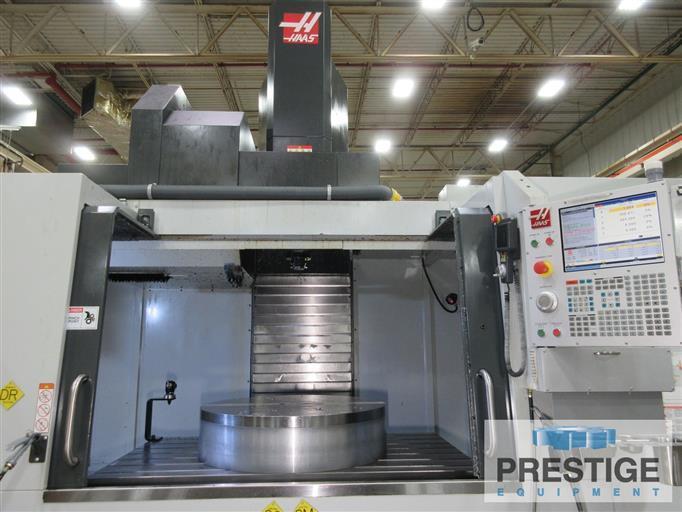

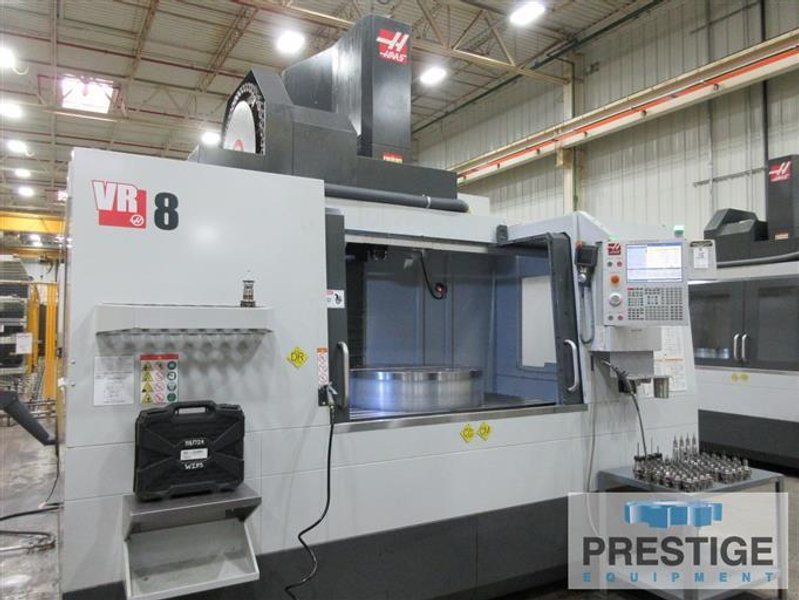

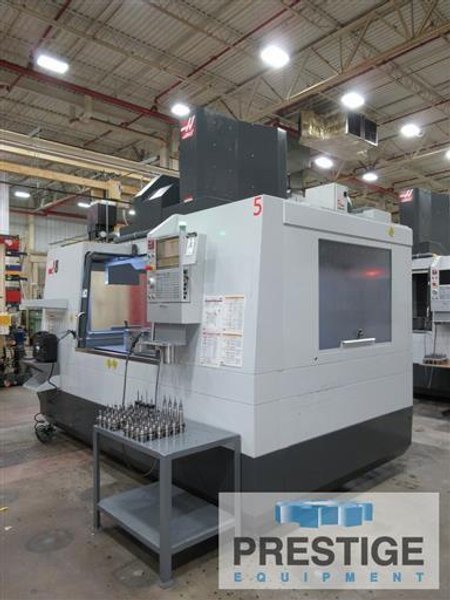

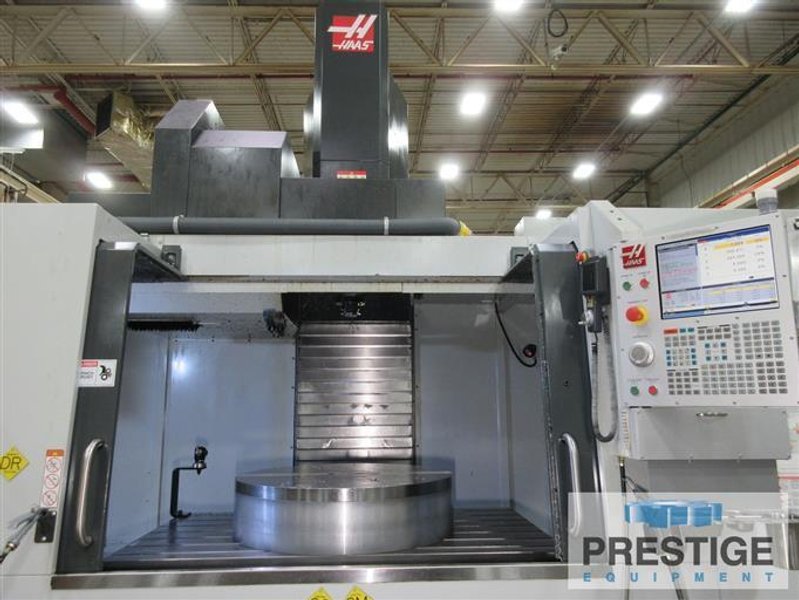

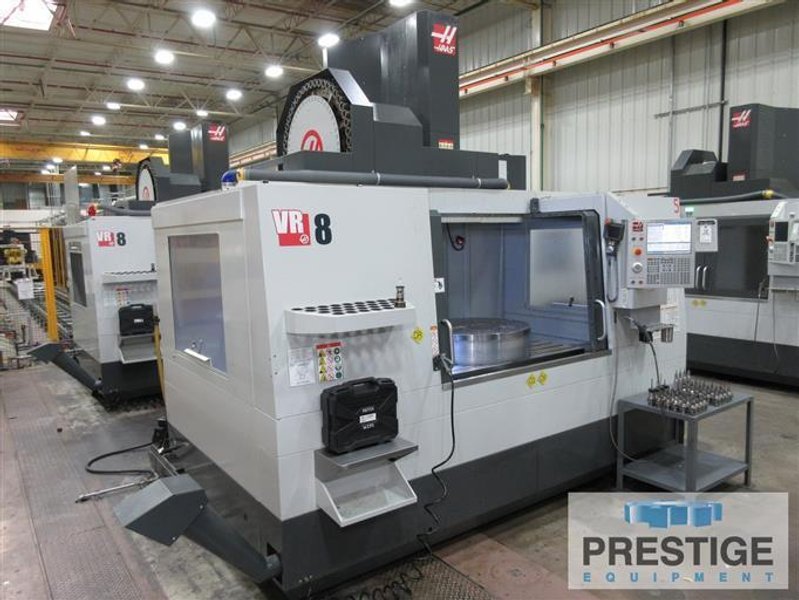

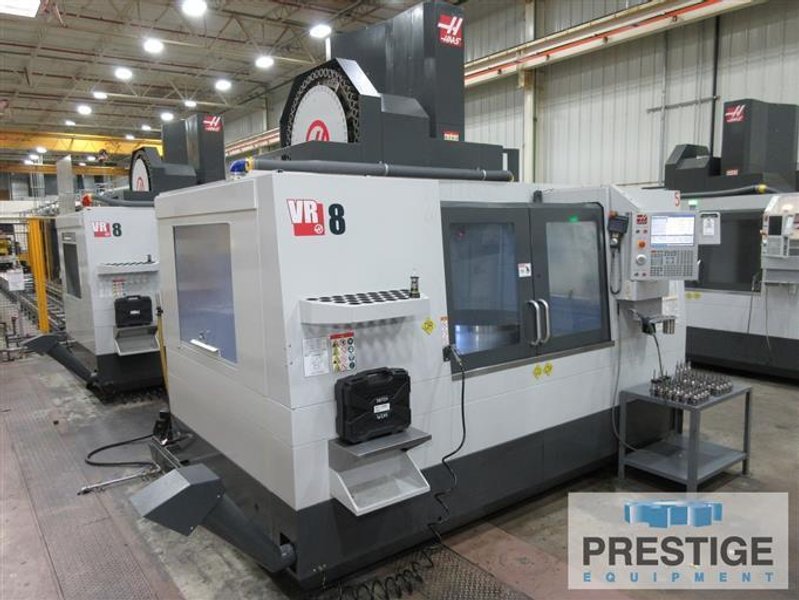

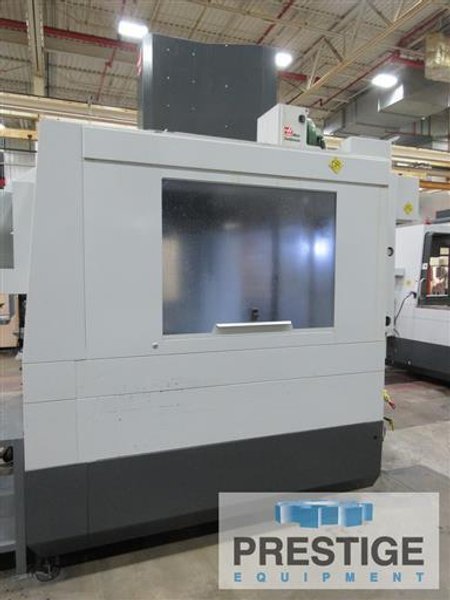

Machining Centers Vertical CNC

Serial Number1191932
SPECIFICATIONS:
X-Axis Travel 64"
Y-Axis Travel 40"
Z-Axis Travel 42"
SPINDLE HEAD:
Spindle Motor 29 HP
Max. Spindle Speed 20,000 RPM
Max Torque 20 ft-lbf @ 7500 RPM
Drive System Integral Spindle/Motor
Spindle Taper HSK-A63
B-AXIS SPINDLE TILT:
Travel +120/-120 Degrees
Max Tilt Speed 120 Degrees Per Second
Torque (Continuous) 470 ft-lbf
Brake Torque 454 ft-lbf
C-AXIS SPINDLE ROTATION:
Travel +/- +245/-245 Degrees
Max Rotational Speed 208 Degrees Per Second
Torque (Continuous) 285 ft-lbf
Brake Torque 442 ft-lbf

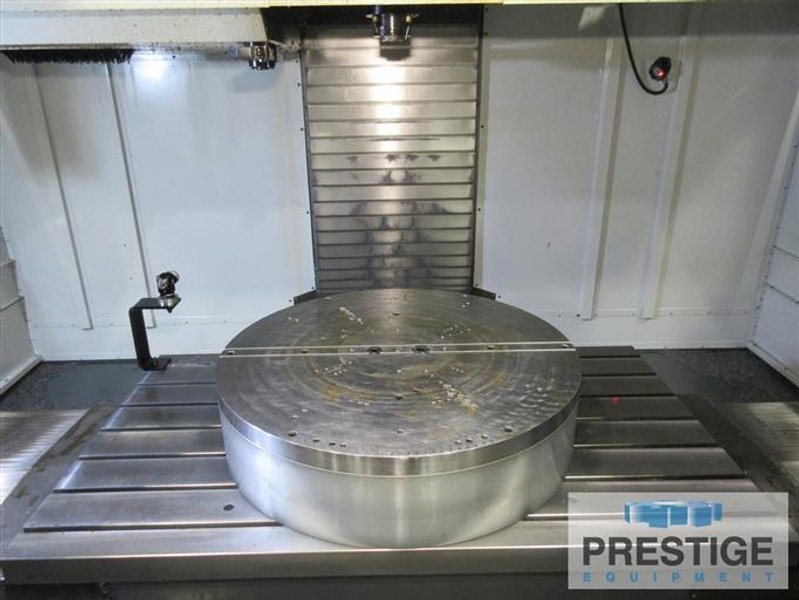

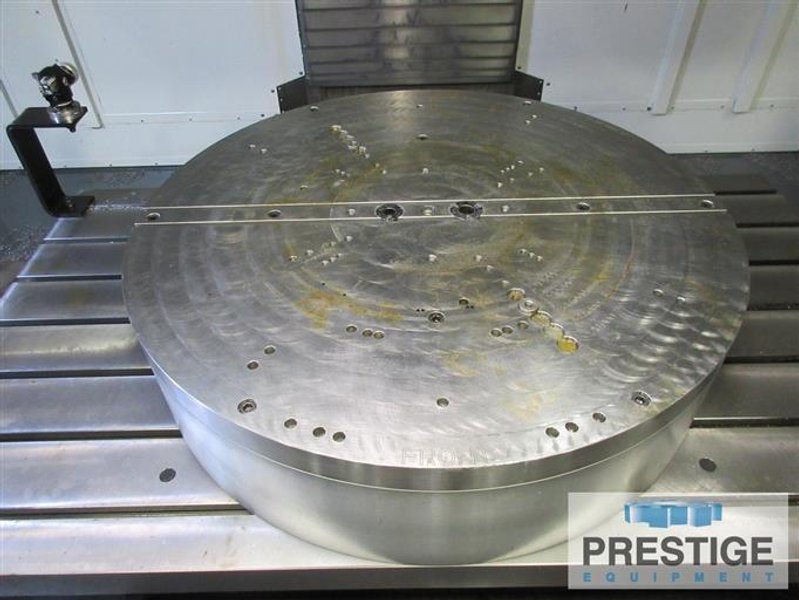

TABLE:
Table Size 64" x 36"
T-Slot Width 0.626"-0.630"
T-Slot Center Distance 4.92"
Number of Standard T-Slots 7
Max Weight on Table 4000 Lbs.
FEEDRATES:
Max Cutting 500 IPM
Rapids, X/Y/Z Axes
TOOL CHANGER:
Tool Changer Capacity 50+1
Max Tool Dia, Adjacent Full 2.5"
Max Tool Dia, Adjacent Empty 5"
Max Tool Length From Gage Line 12"
Max Tool Weight 12 Lbs.
DIMENSIONS & WEIGHTS:
Domestic Pallet 195" x 120" x 142"
Weight 24,800 Lbs.



Equipped With:

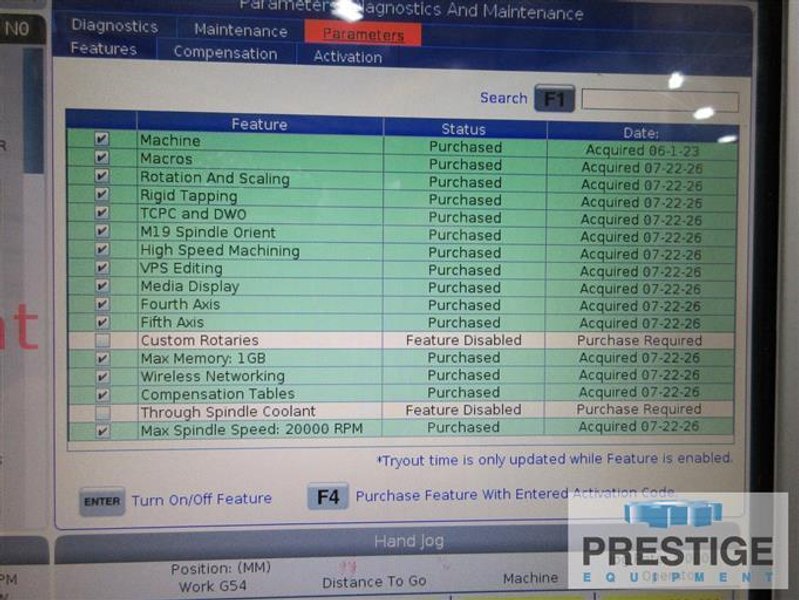

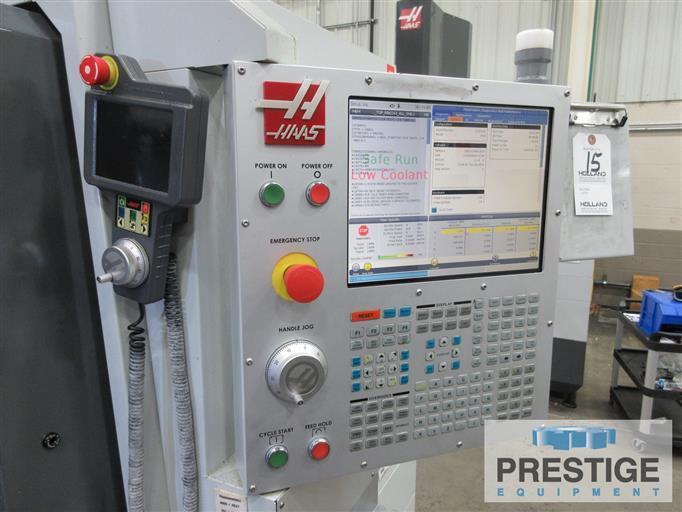

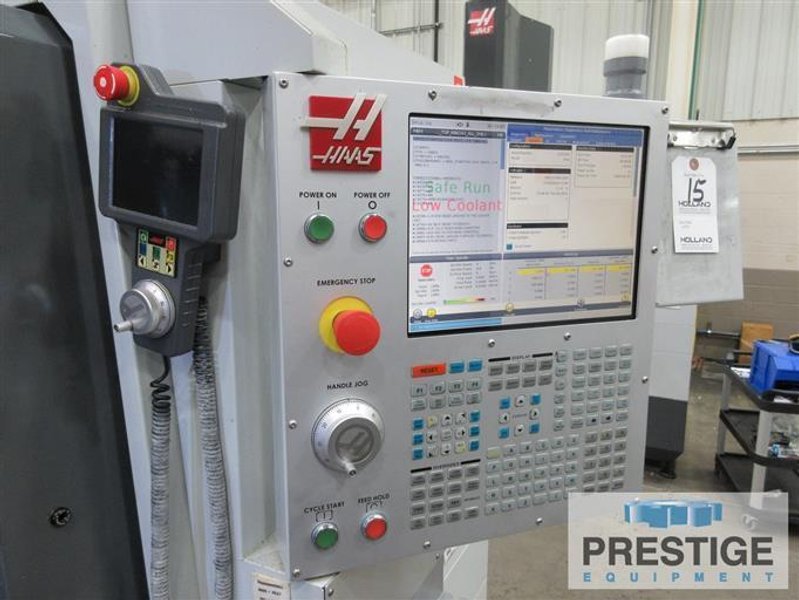

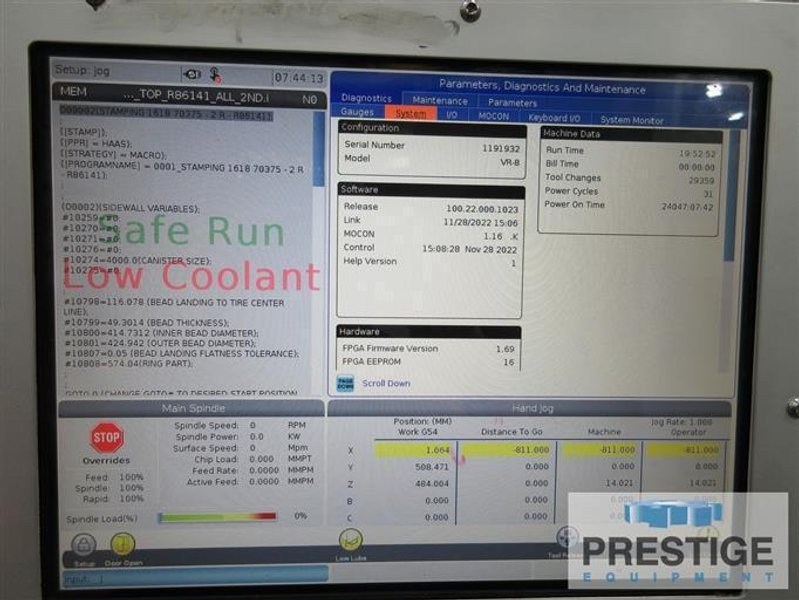

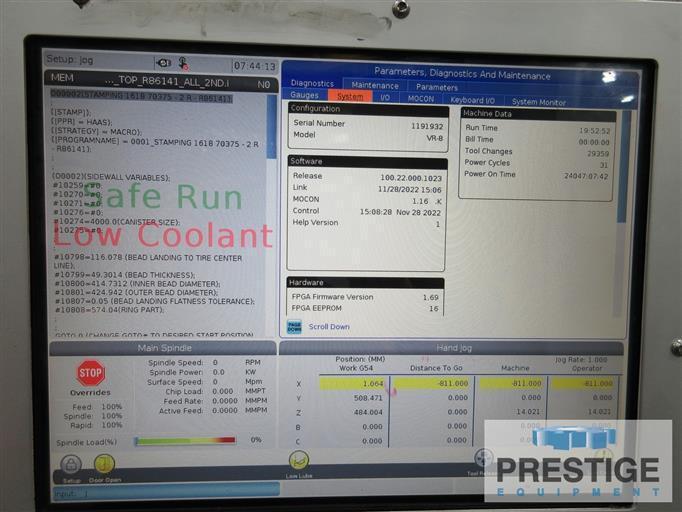

Haas 5-Axis CNC Control

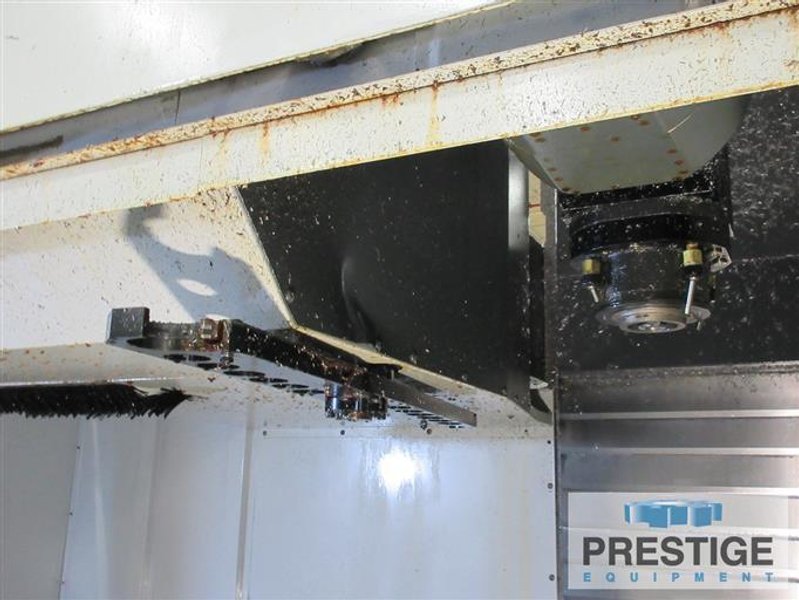

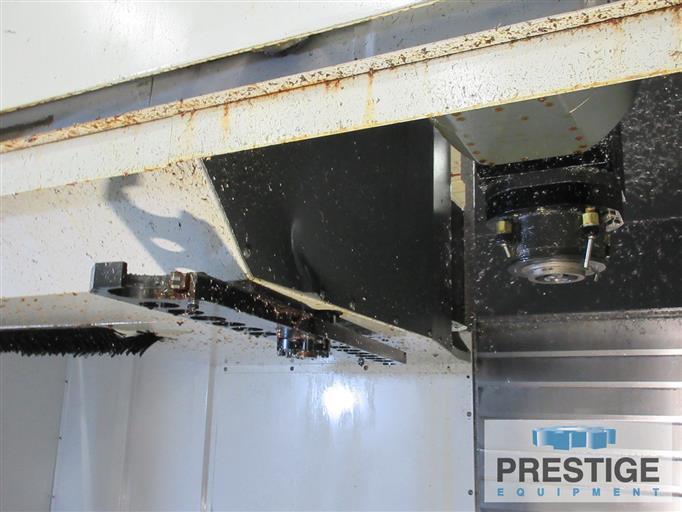

2-Axis Milling Head
20,000 RPM Max. Spindle Speed
50-Position Automatic Tool Changer

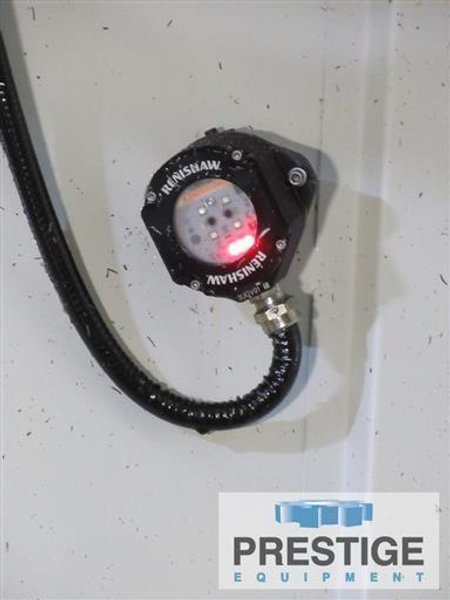

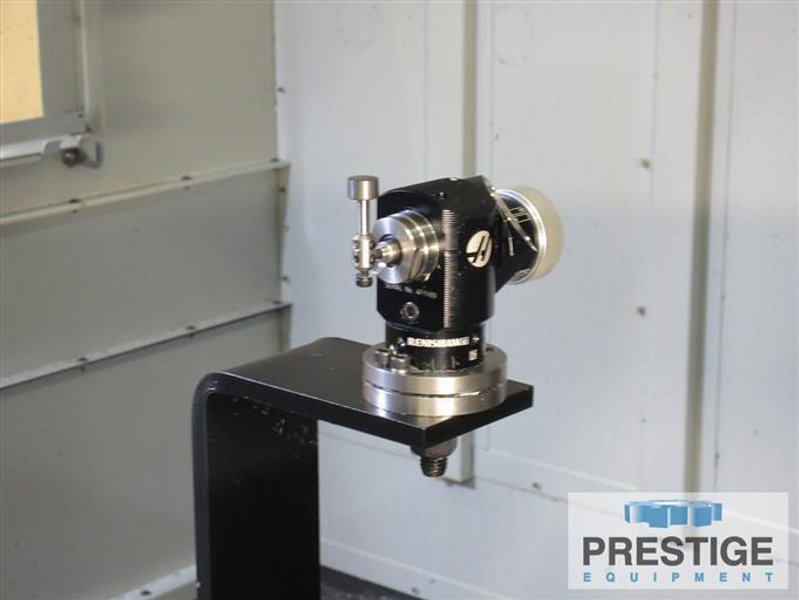

Renishaw Probe System
Chip Auger


LOCATION: Ohio CNC Mold Manufacturing Facility
