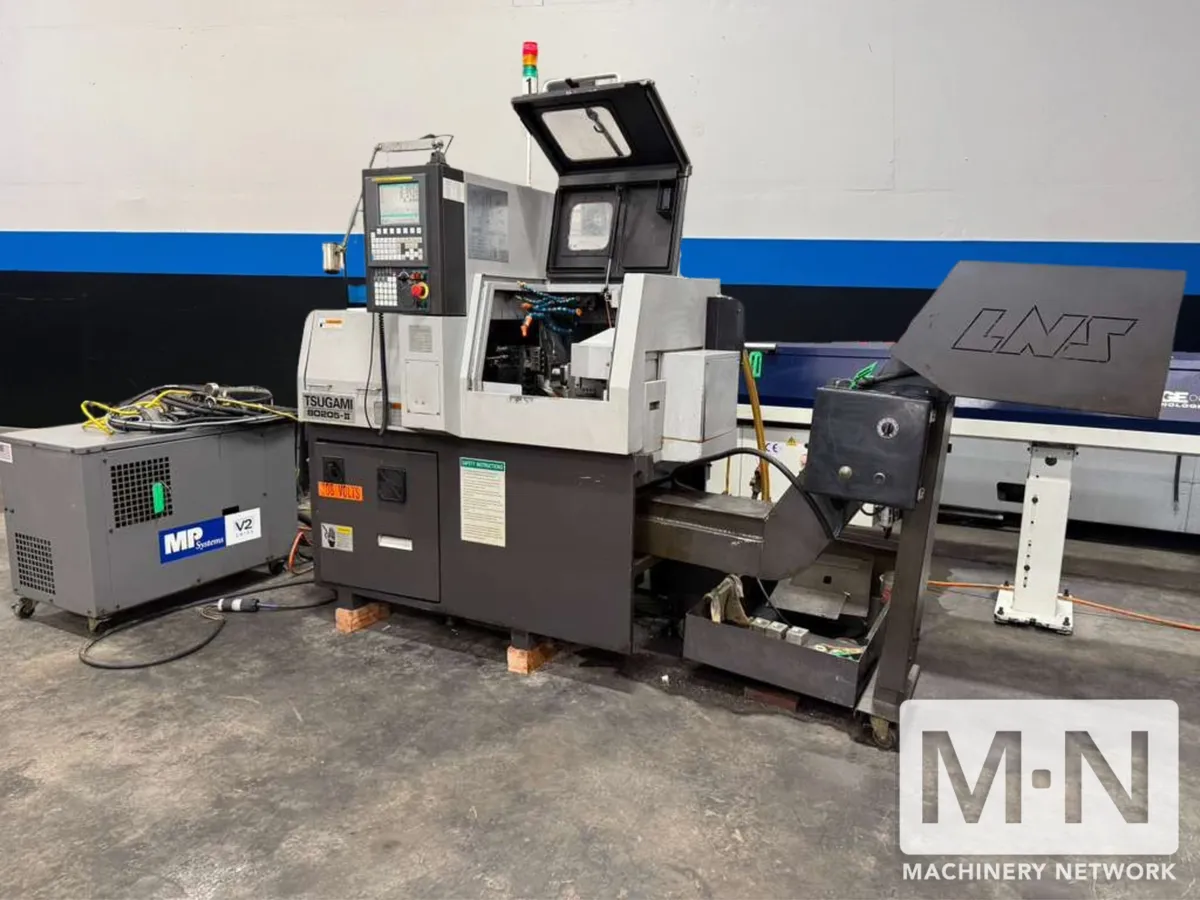

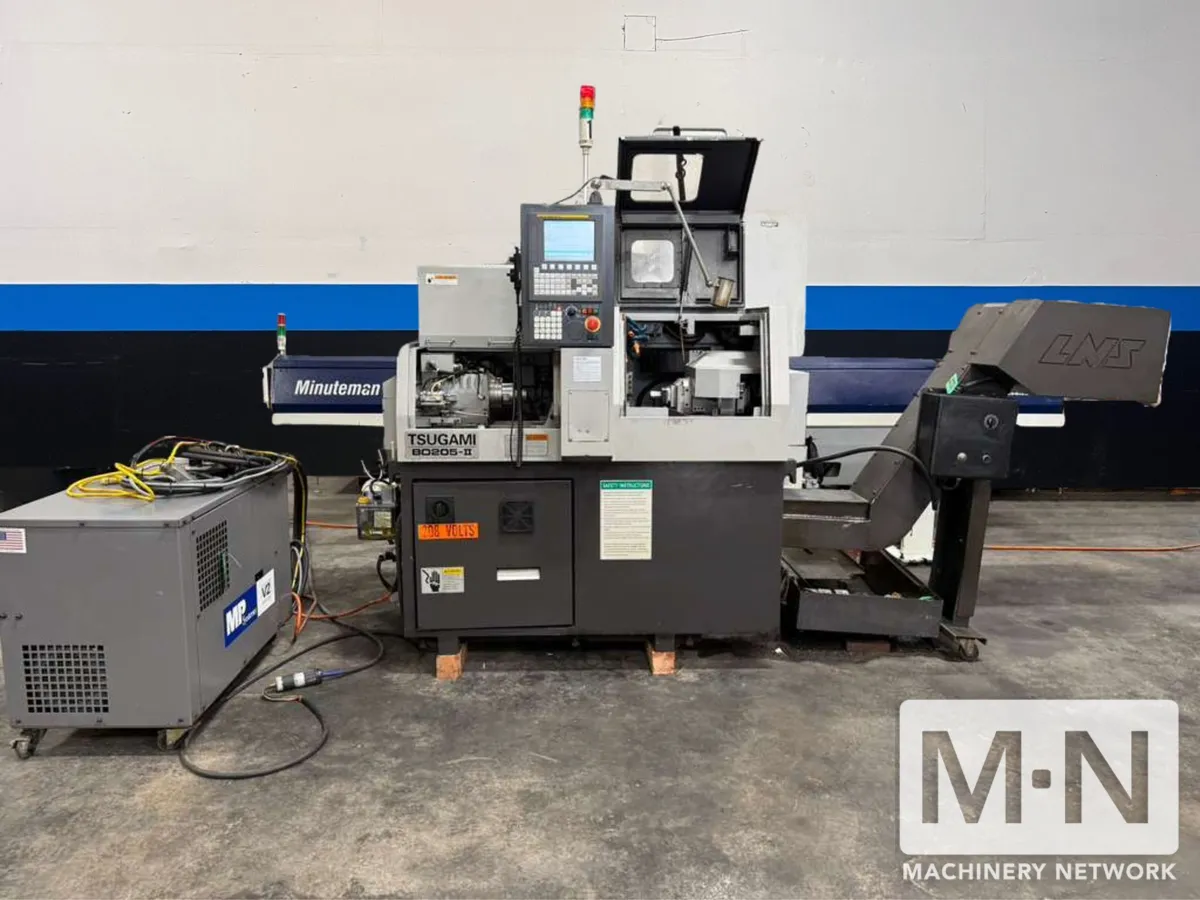

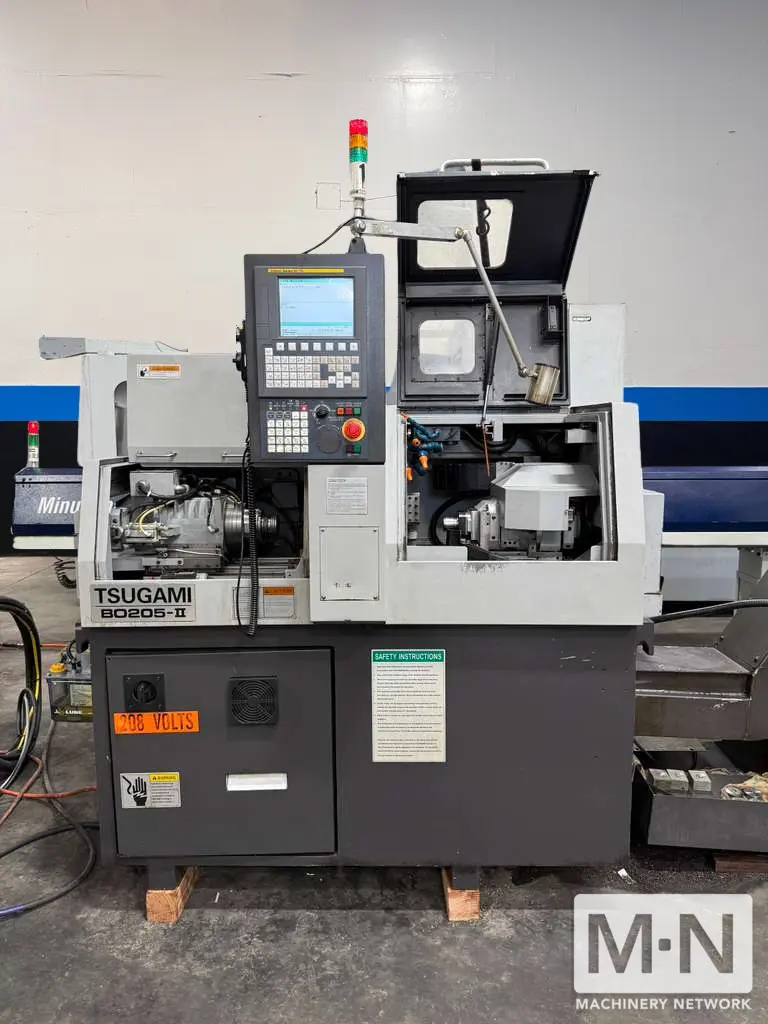

Tsugami BO205-II CNC Swiss Lathe, 2013

Name: Tsugami BO205-II CNC Swiss Lathe, 2013
Brand: TSUGAMI
SKU: 53029
Availability: InStock

Brand

TSUGAMI

Location

Not specified

Specifications
Files & Videos

Overview

Type:

CNC Swiss

Manufacturer:

TSUGAMI

Model:

BO205-II

Year:

2013

Stock #:

53029

Status:

For Sale

ImperialMetric

Spindle Hole Dia	0.79"	20.066 mm
Max. Turning Length	8.3 in
Max Chucking Dia.	0.79 in
Max Drilling Diameter	0.39 in
Max Tapping Diameter	0.39 in
Bar Capacity	0.79 in
C-Axis Contouring	360°	360°
# Axis	5	5
Main Spindle Motor	5 hp
Main Spindle Speed	10000 rpm	10,000 RPM
Back Spindle Motor	5 hp
Back Spindle Speed	12000 rpm	12,000 RPM
Dimensions	64.56″ x 42.51″ x 66.93″	64.56″ x 42.51″ x 66.93″
Weight	3,747 Lbs	3,747 Lbs

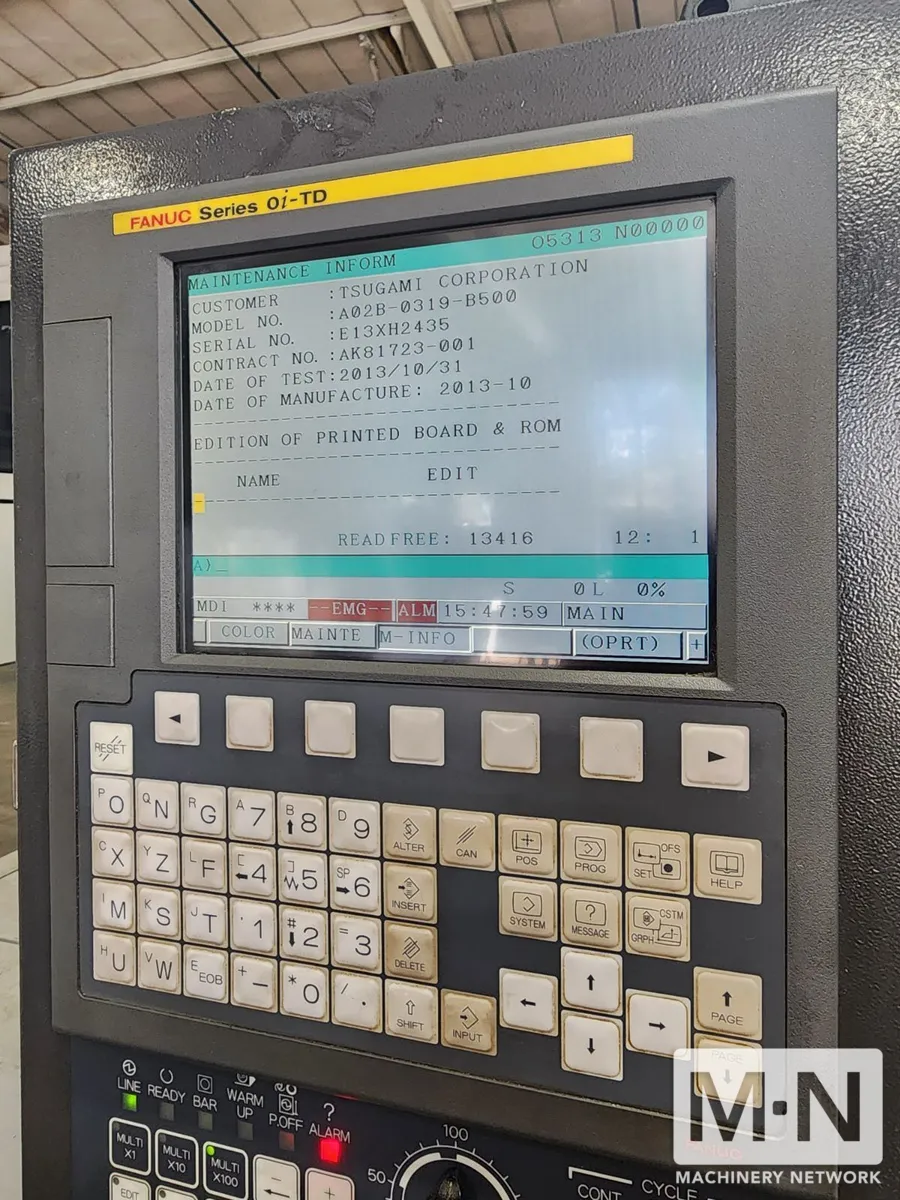

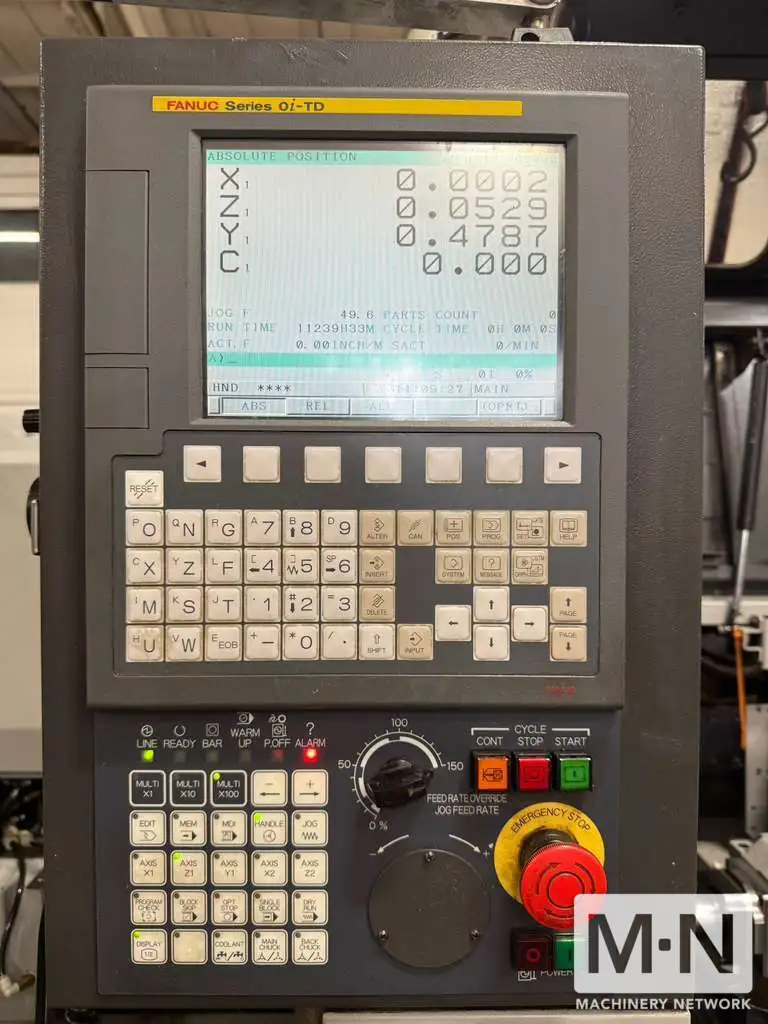

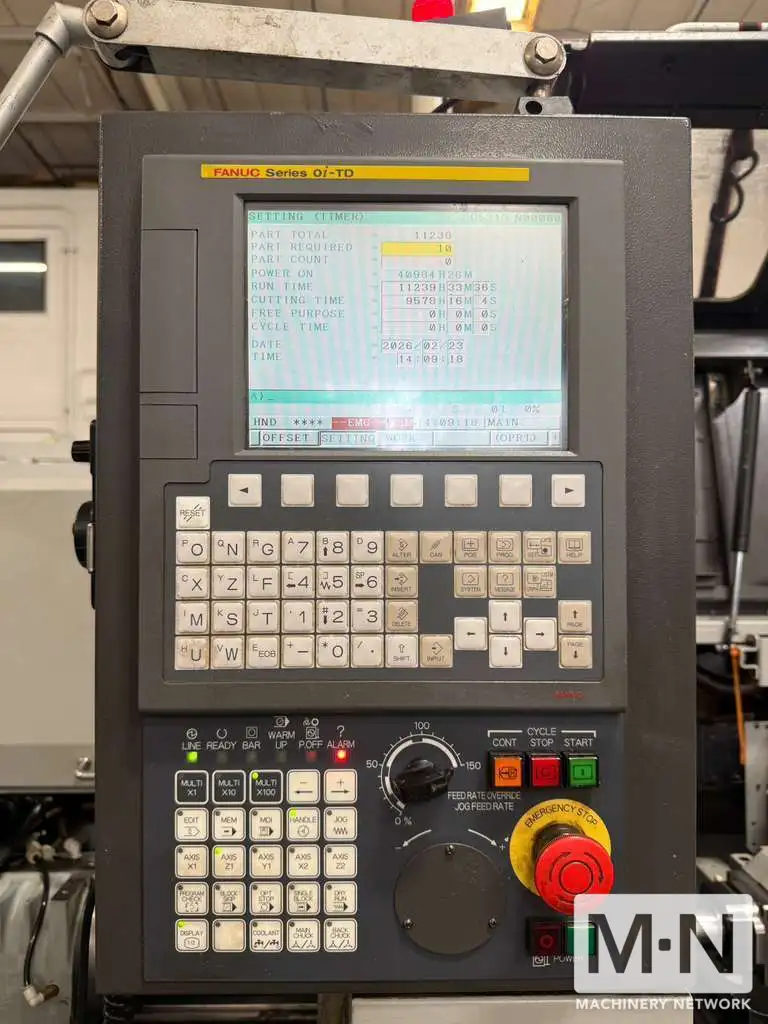

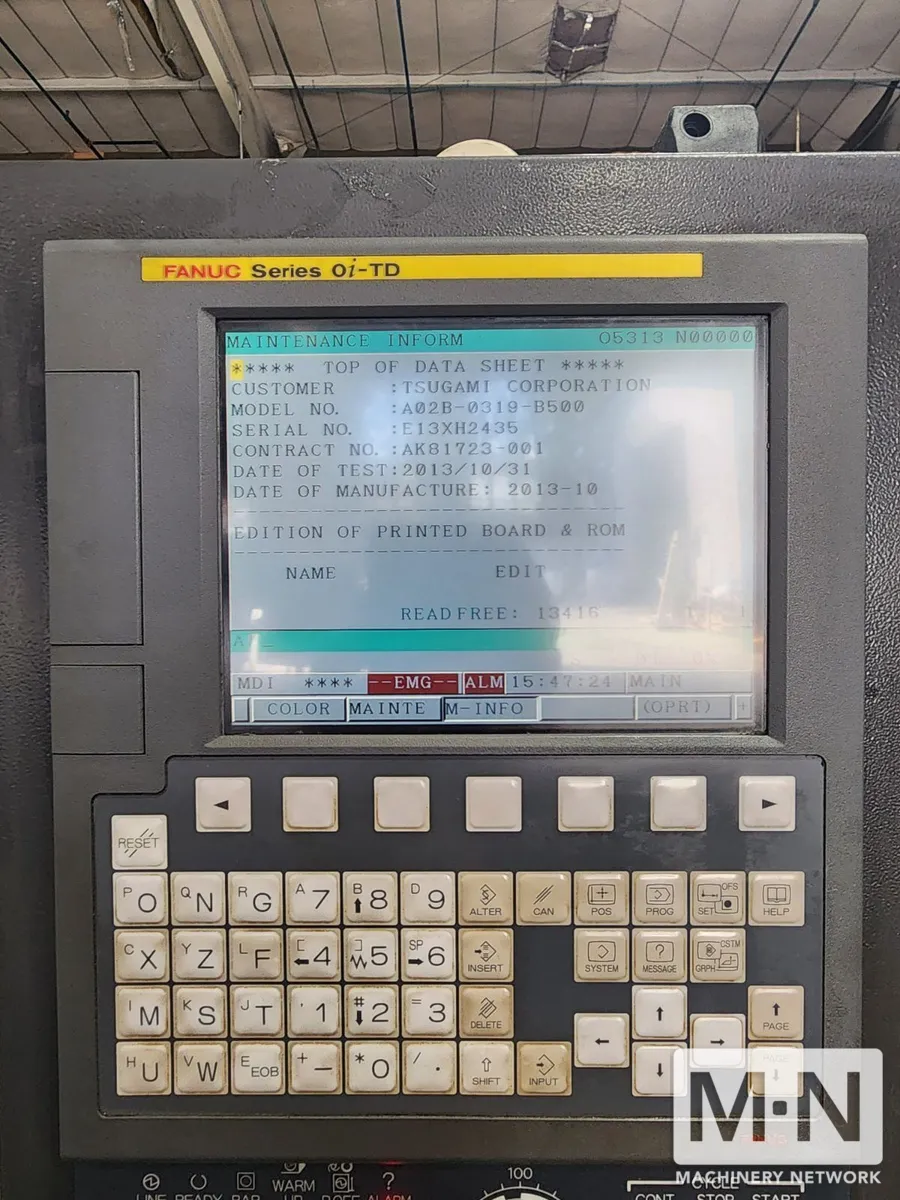

Fanuc Oi-TD CNC Control

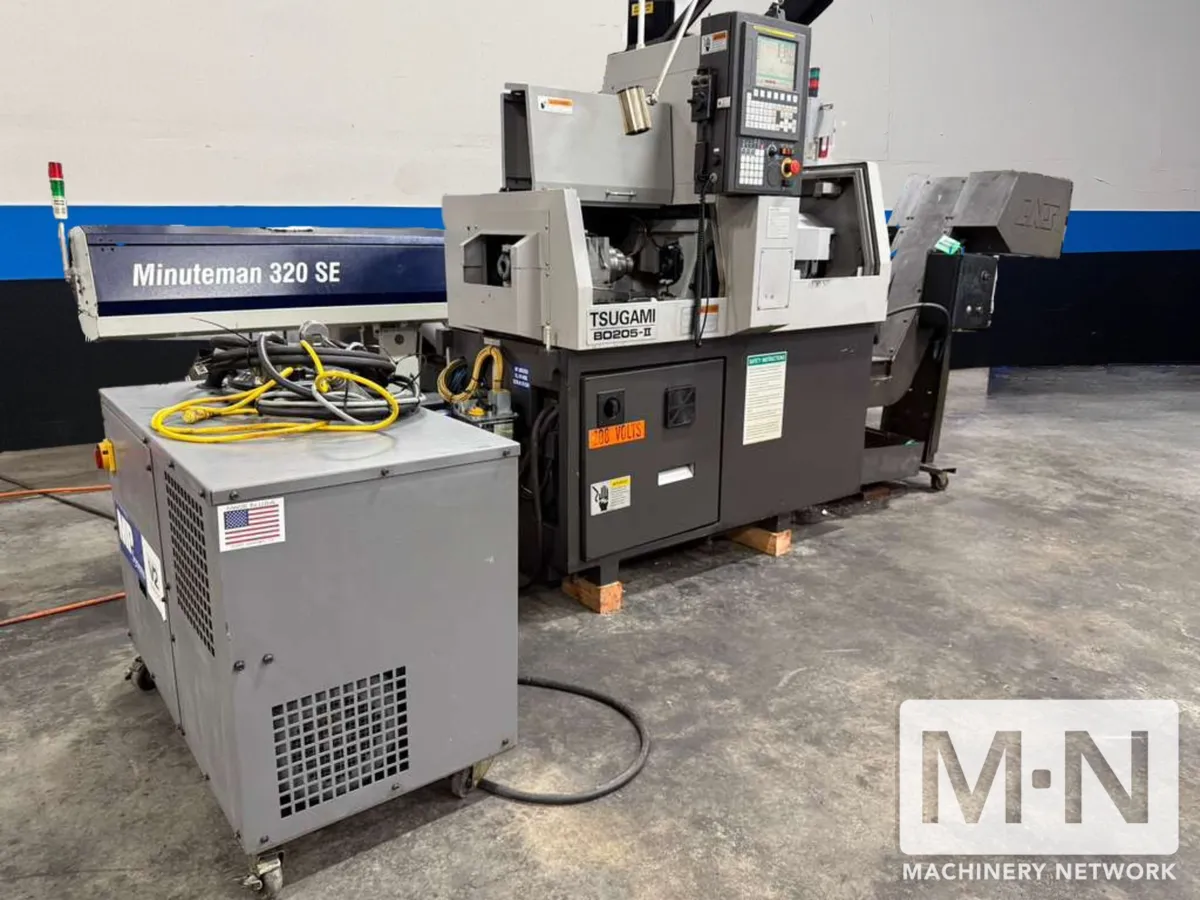

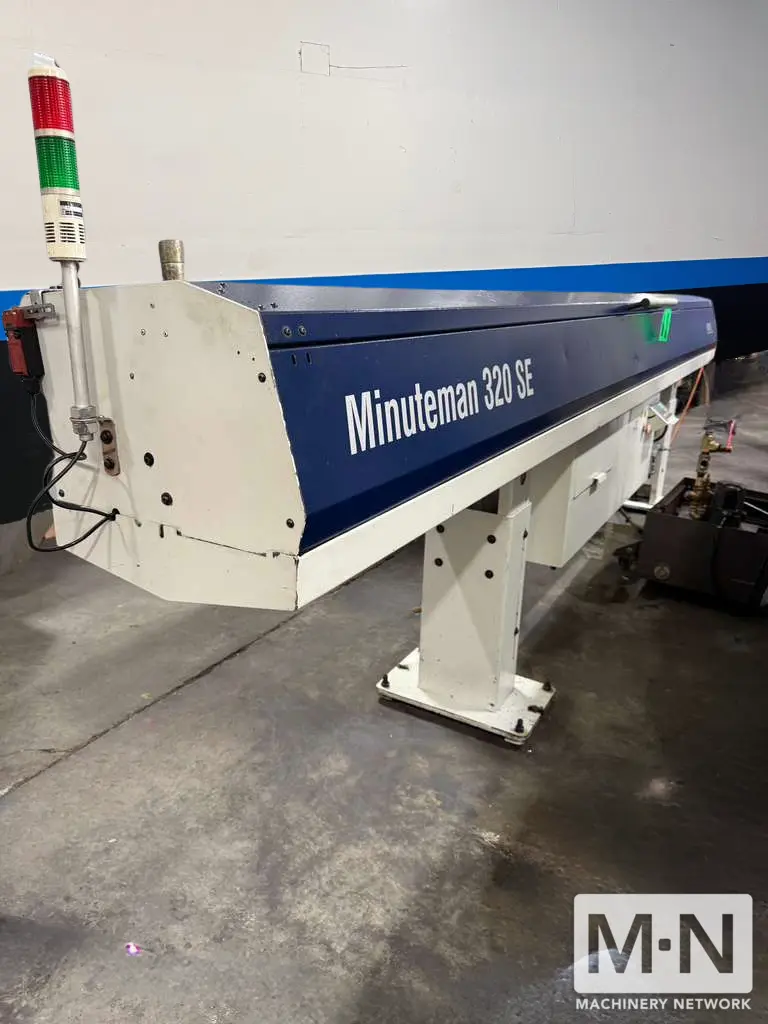

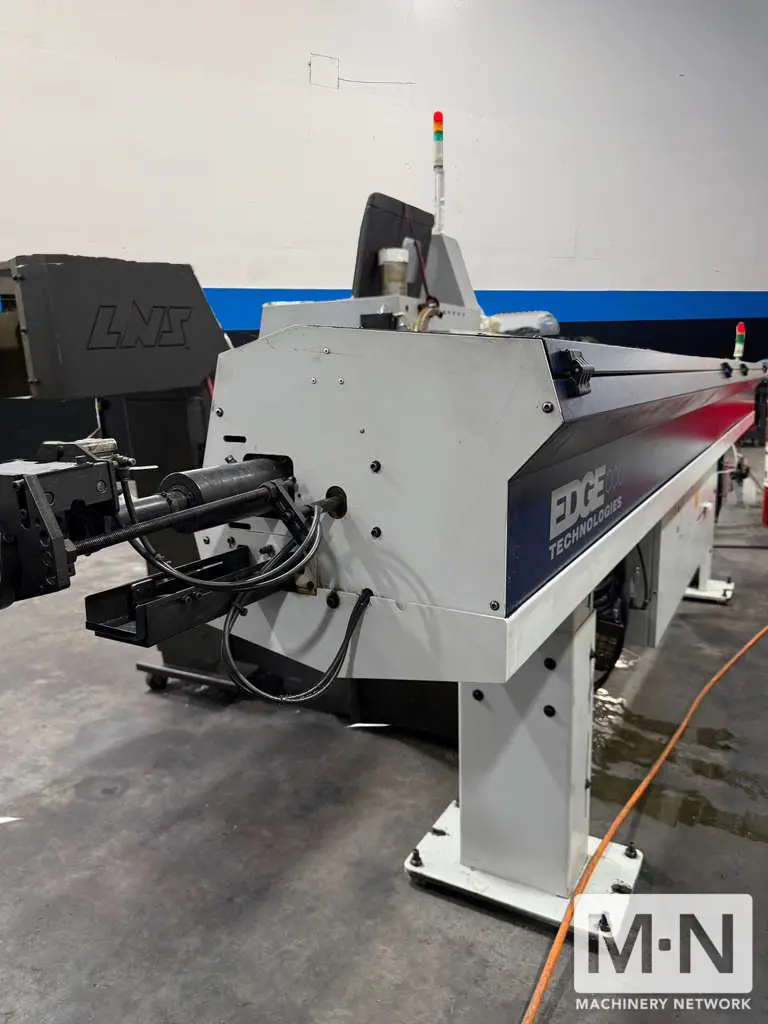

Edge Minuteman 320 SE Bar Feeder
Back Spindle
MPG Handwheel Control
Parts Catcher
Parts Conveyor

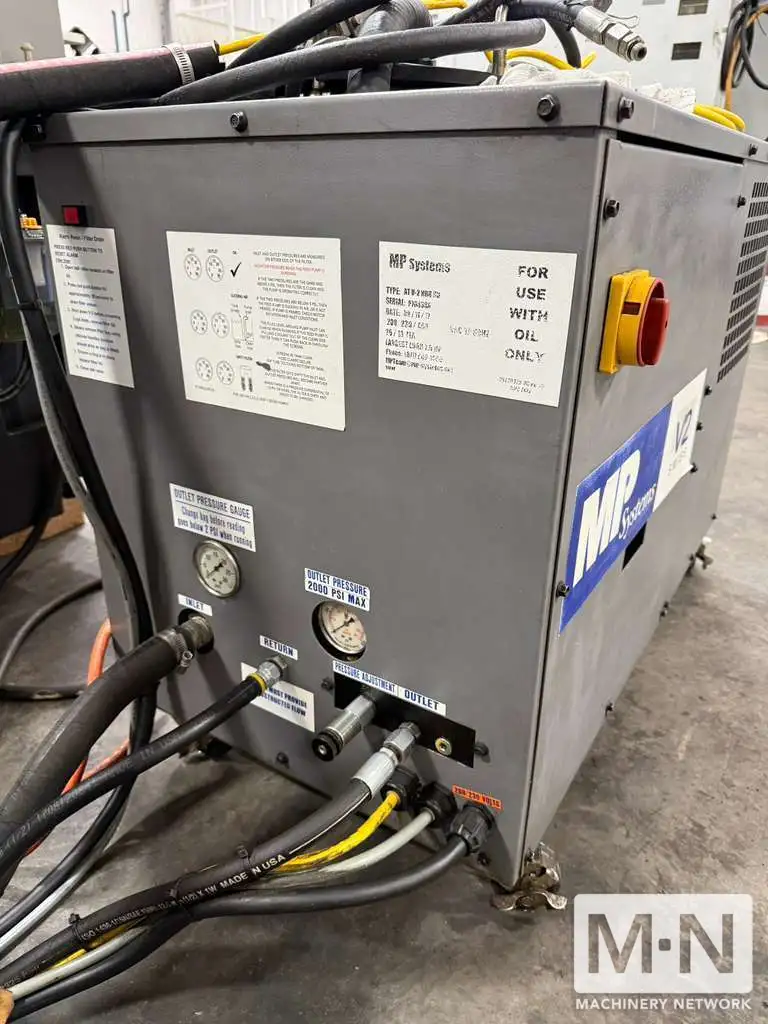

MP Systems V2 High Pressure Oil Coolant System
LNS Chip Conveyor
Levelling Pads

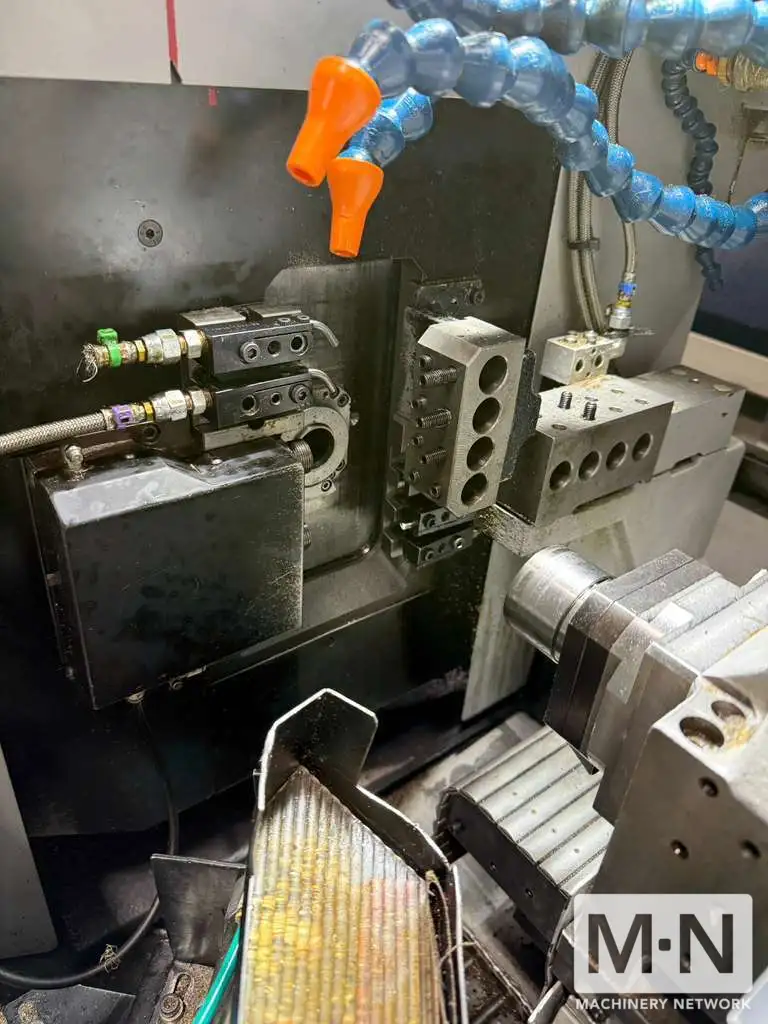

Tool Storage Capacity:
OD Tools: 9
ID Tools: 4
Cross Rotary Tools: 2, 3, 4 (Optional)
Front Tool Post: 4
Back Tool Post: 4

No files or videos to display
