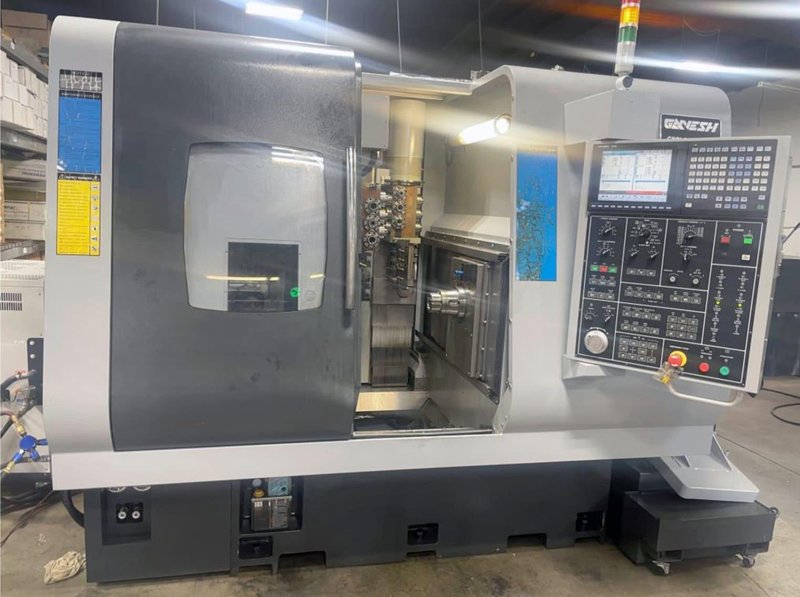

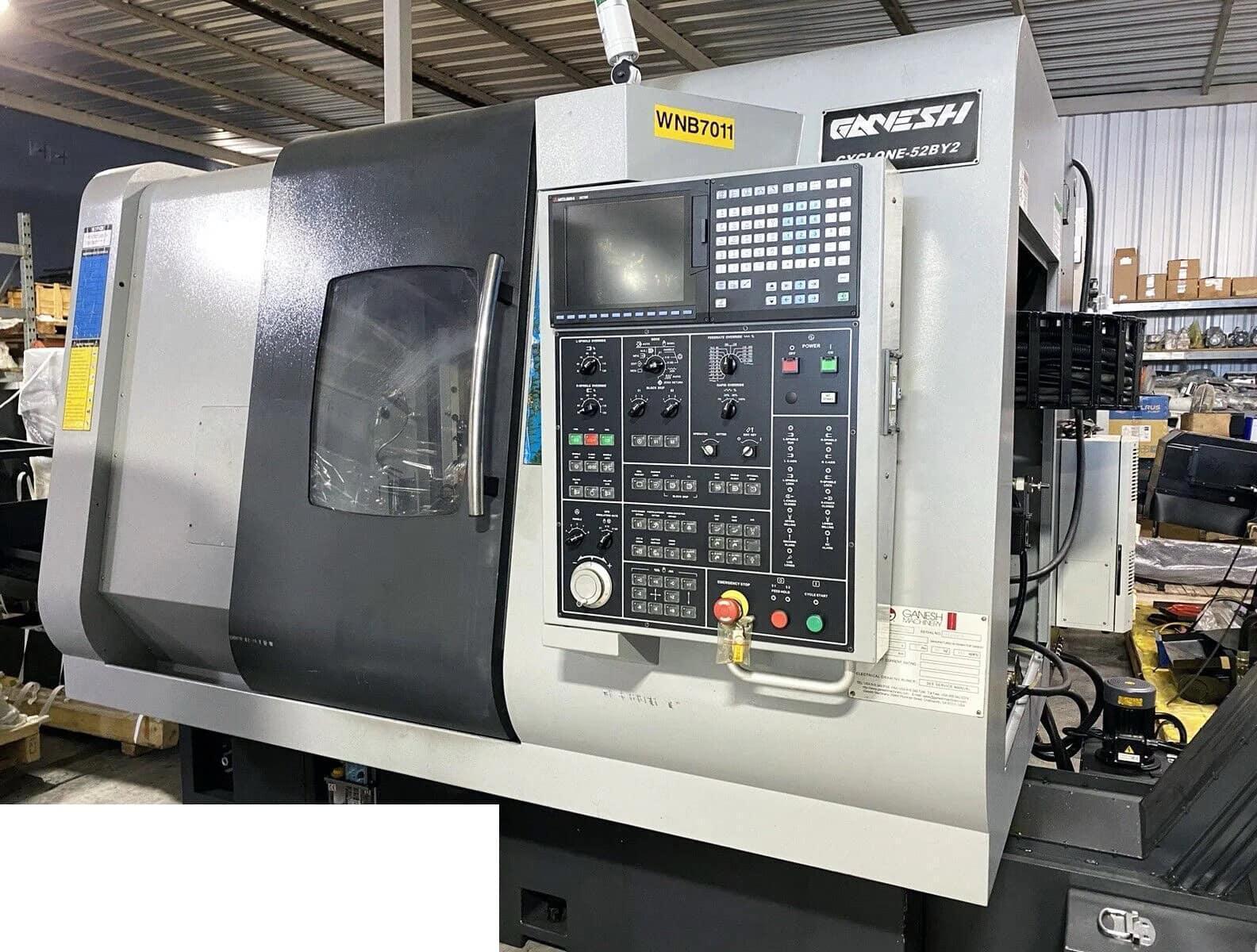

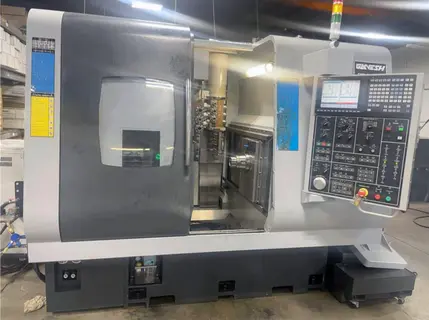

Ganesh Cyclone 52 BY2 9-Axis CNC Lathe, 2016 – 6″ Chuck, Dual Spindle, Live Tooling, Dual Y-Axis

Bar Capacity: 2″ Collet Size: Traub TRB-52

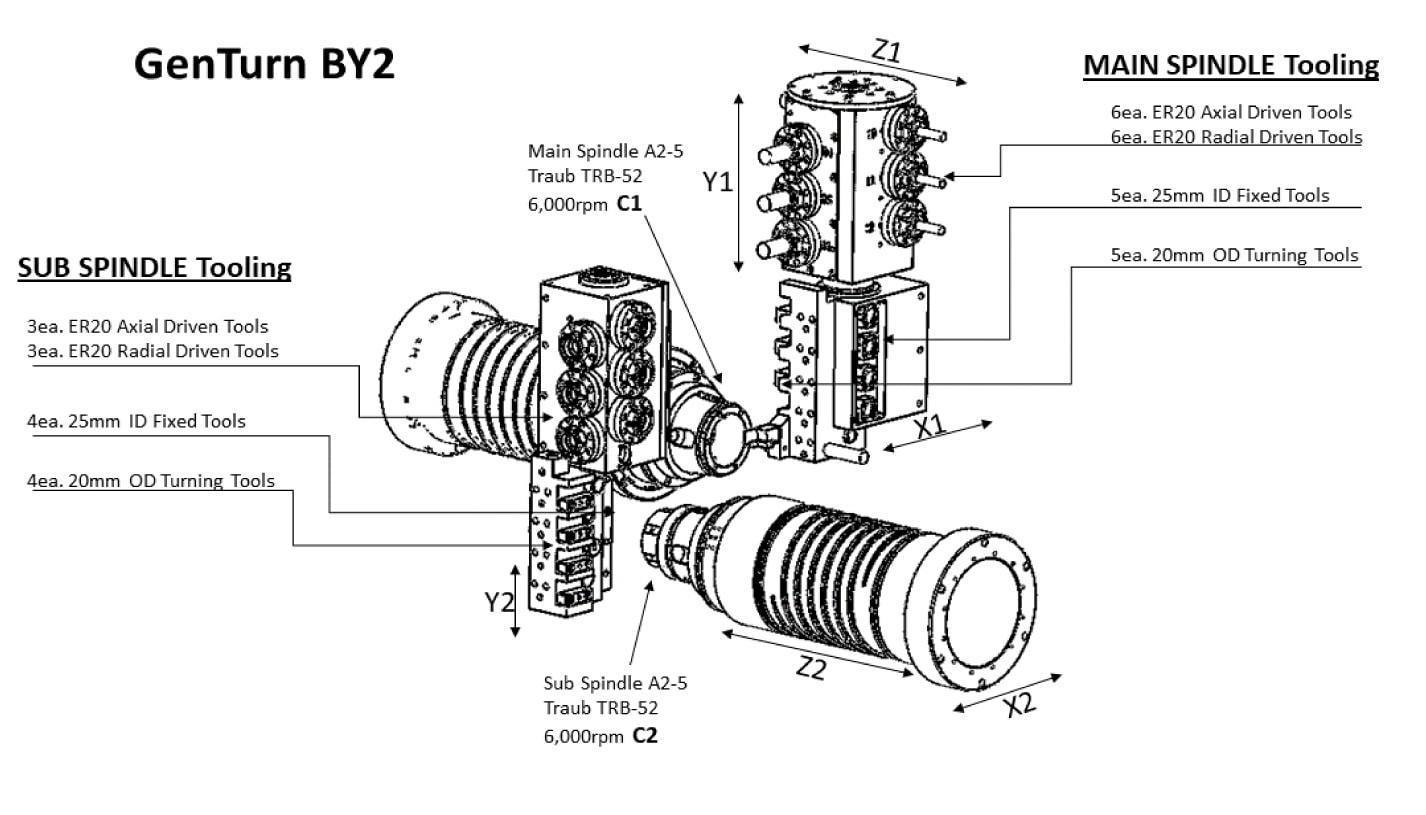

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spindle Max Speed: 6,000 RPM Main Spindle Motor: 15 HP Max Turning Length: 9.84″ Max Turning Diameter: 2.01″ X1-Axis Travel: 10.63″ Y1-Axis Travel: 18.11″ Z1-Axis Travels: 9.84″ X1/Y1/Z1-Axis Rapid Traverse Rates: 1, 181 IPM Driven Tools: 12 (6 Axial & 6 Radial) Driven Tool Motor: 5 HP OD Turning Tools: 5 ID Boring Tools: 5

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Sub Spindle Max Speed: 6,000 RPM Sub Spindle Motor: 15 HP Max Turning Length: 9.84″ Max Turning Diameter: 2.01″ X2-Axis Travel: 18.89” Y2-Axis Travel: 18.11″ Z2-Axis Travels: 10.63” X2/Y2/Z2-Axis Rapid Traverse Rates: 1, 181 IPM Driven Tools: 6 (3 Axial & 3 Radial) Driven Tool Motor: 2.7 HP OD Turning Tools: 4 ID Boring Tools: 4

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical: 220V, 3-Phase Approximate Machine Dimensions: 148″ x 85″ x 82″ Approximate Machine Weight: 12,345 lbs

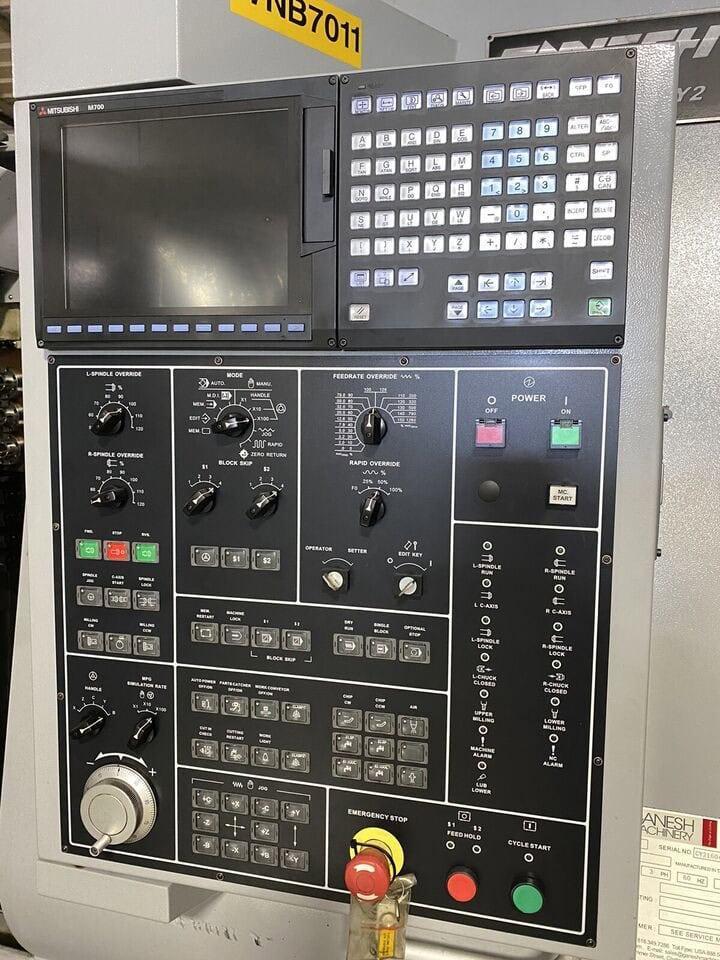

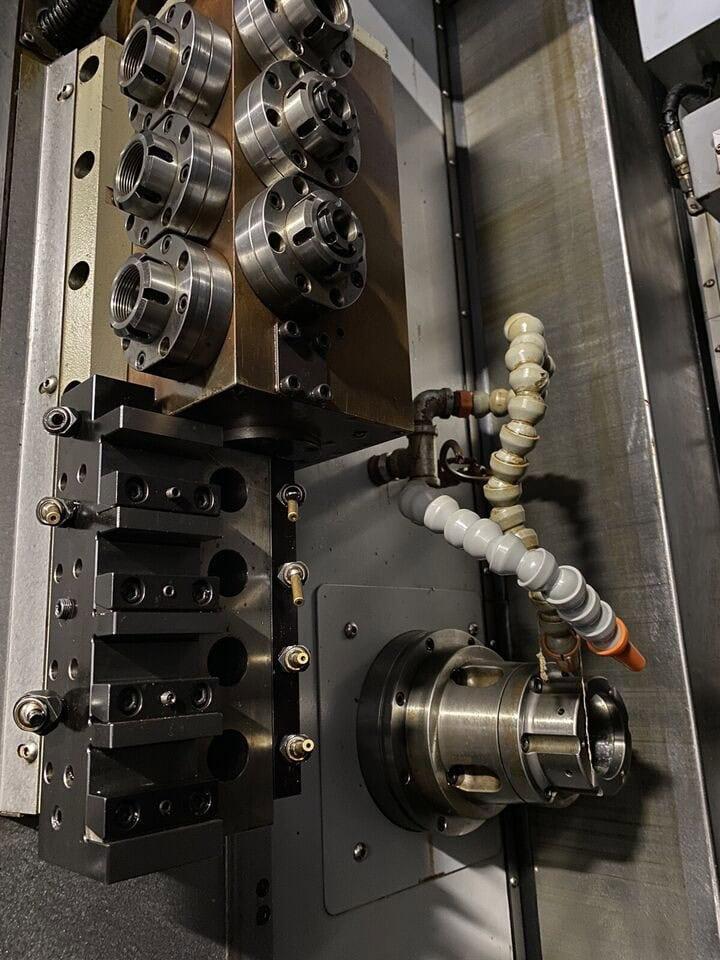

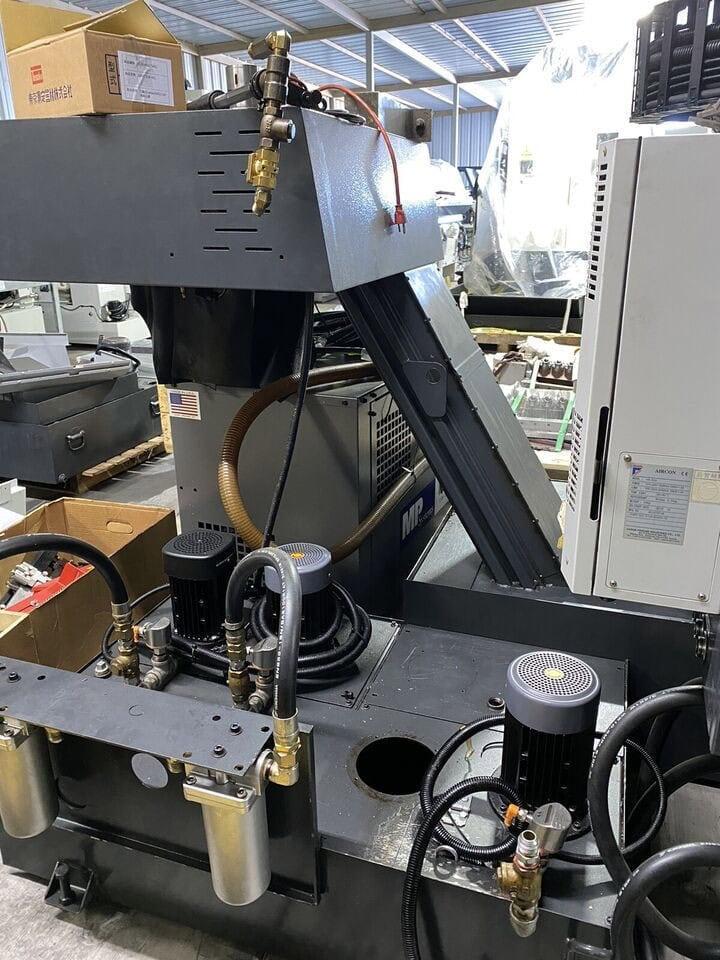

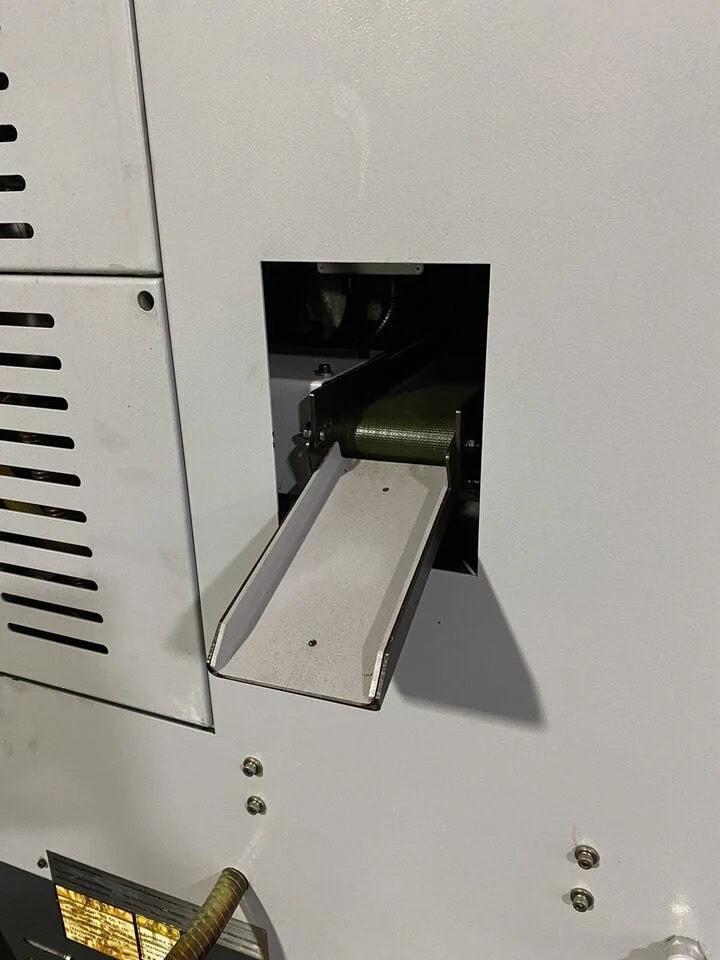

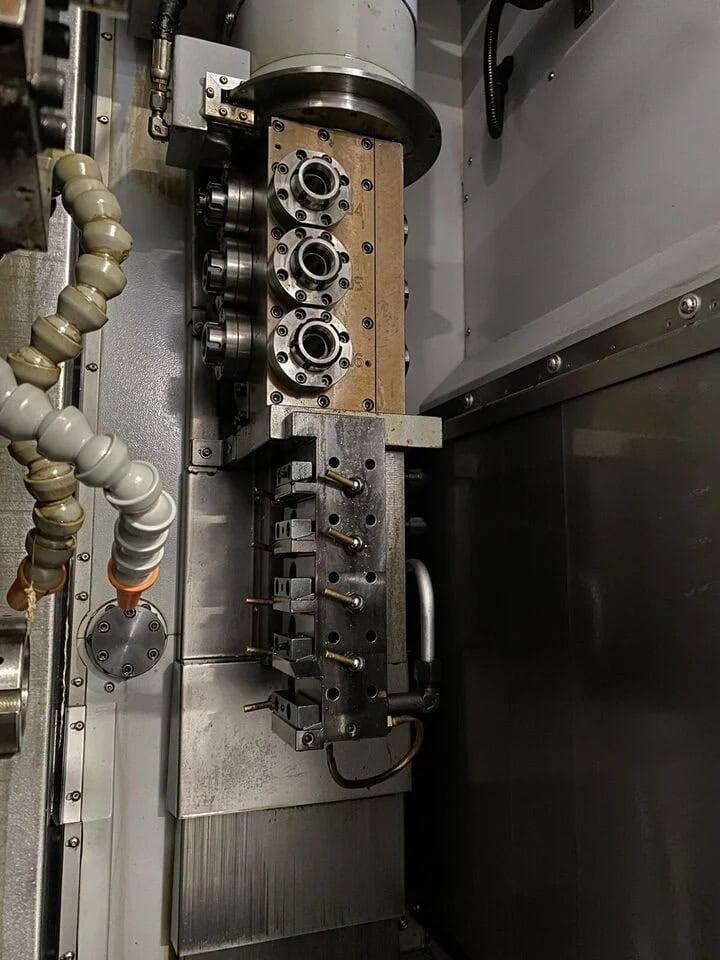

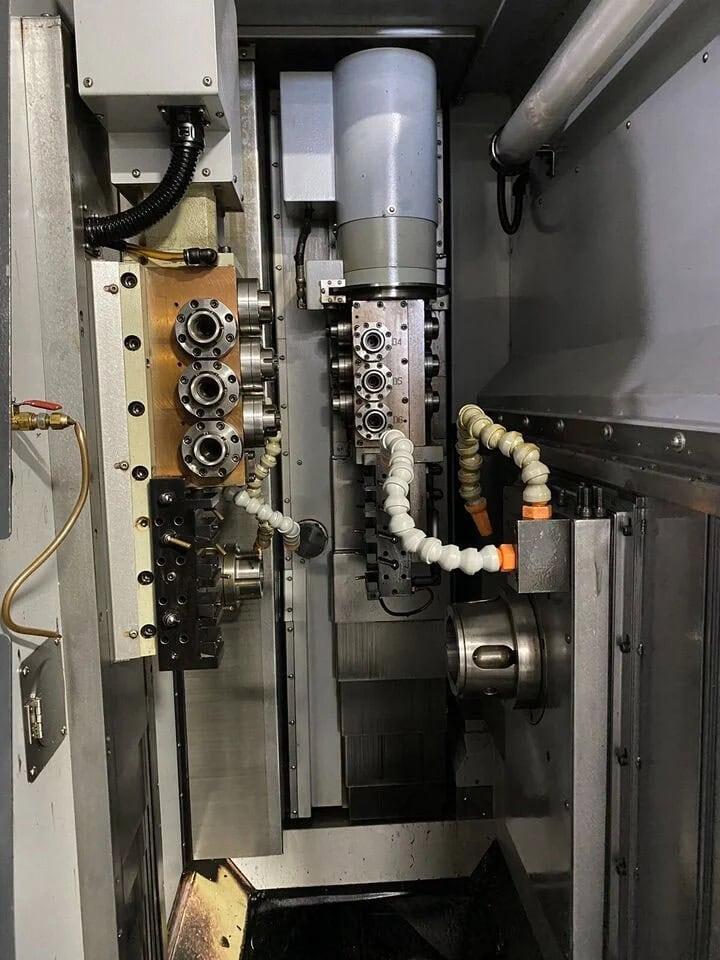

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Mitsubishi M700 Series CNC Controller Sub-Spindle Dual Y-Axis B-Axis- Simultaneous Main & Sub-Spindle Machining 36 Tool Positions 18 Live Tooling Stations Parts Catcher/Conveyor Chip Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
