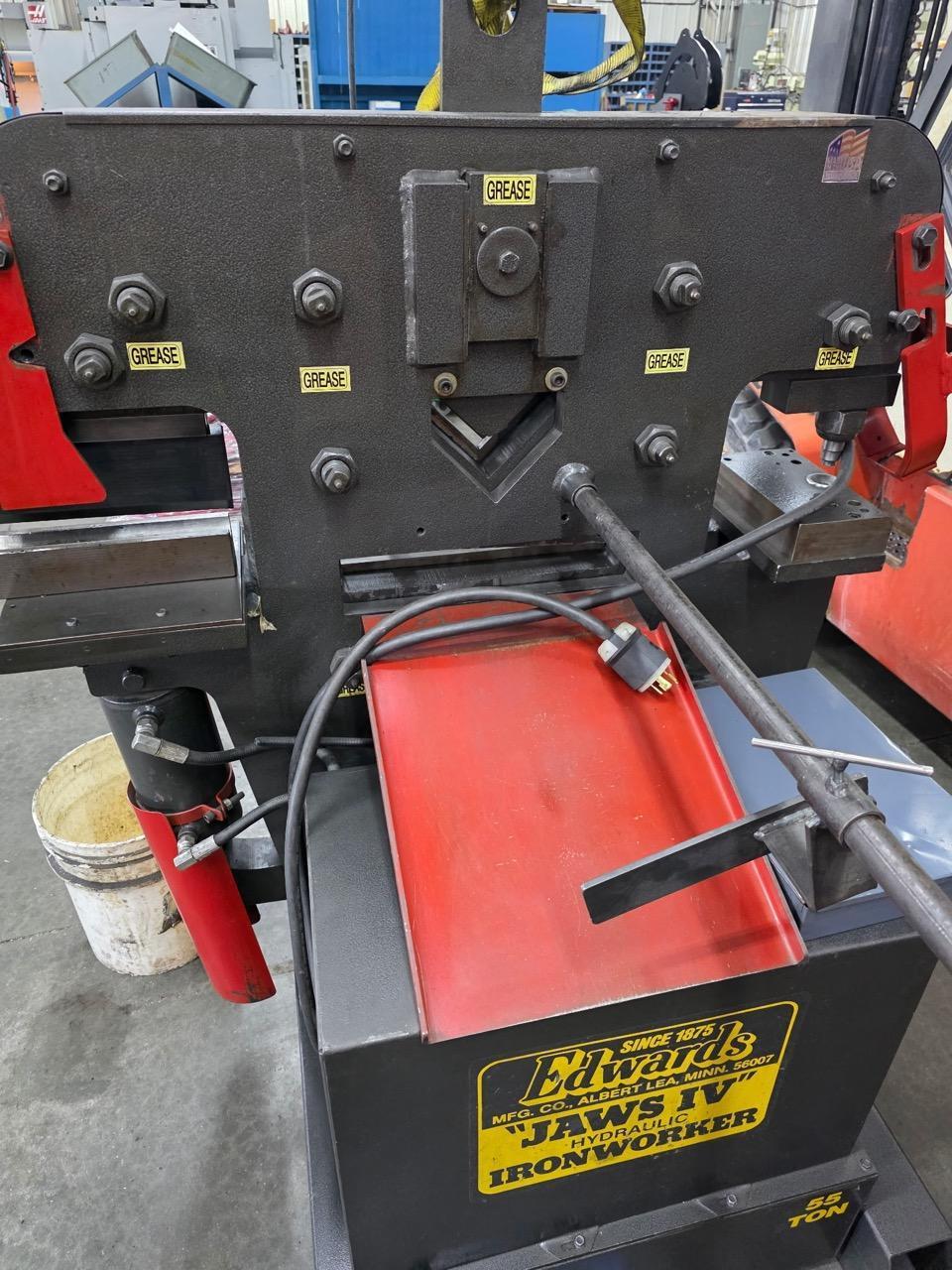

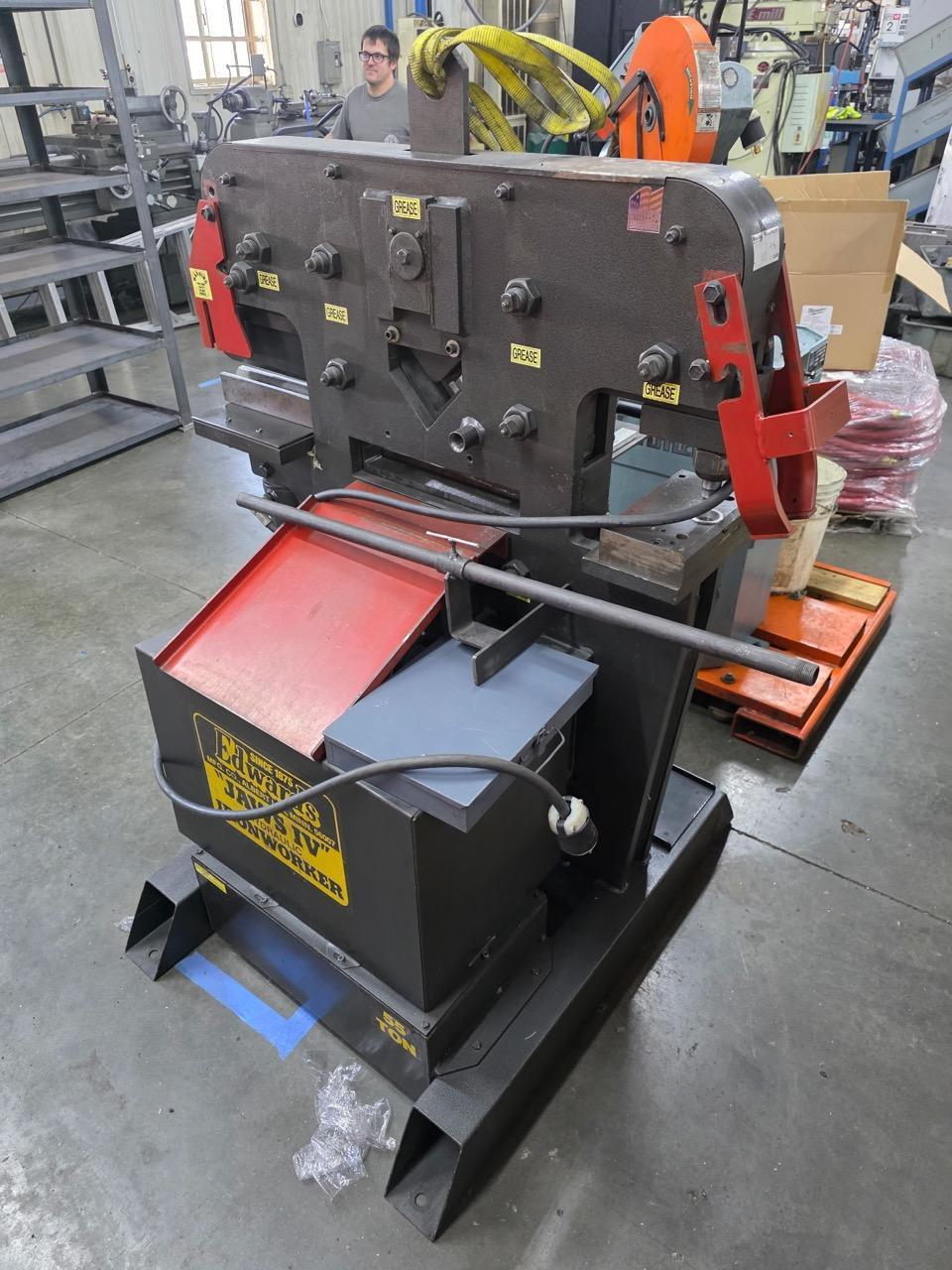

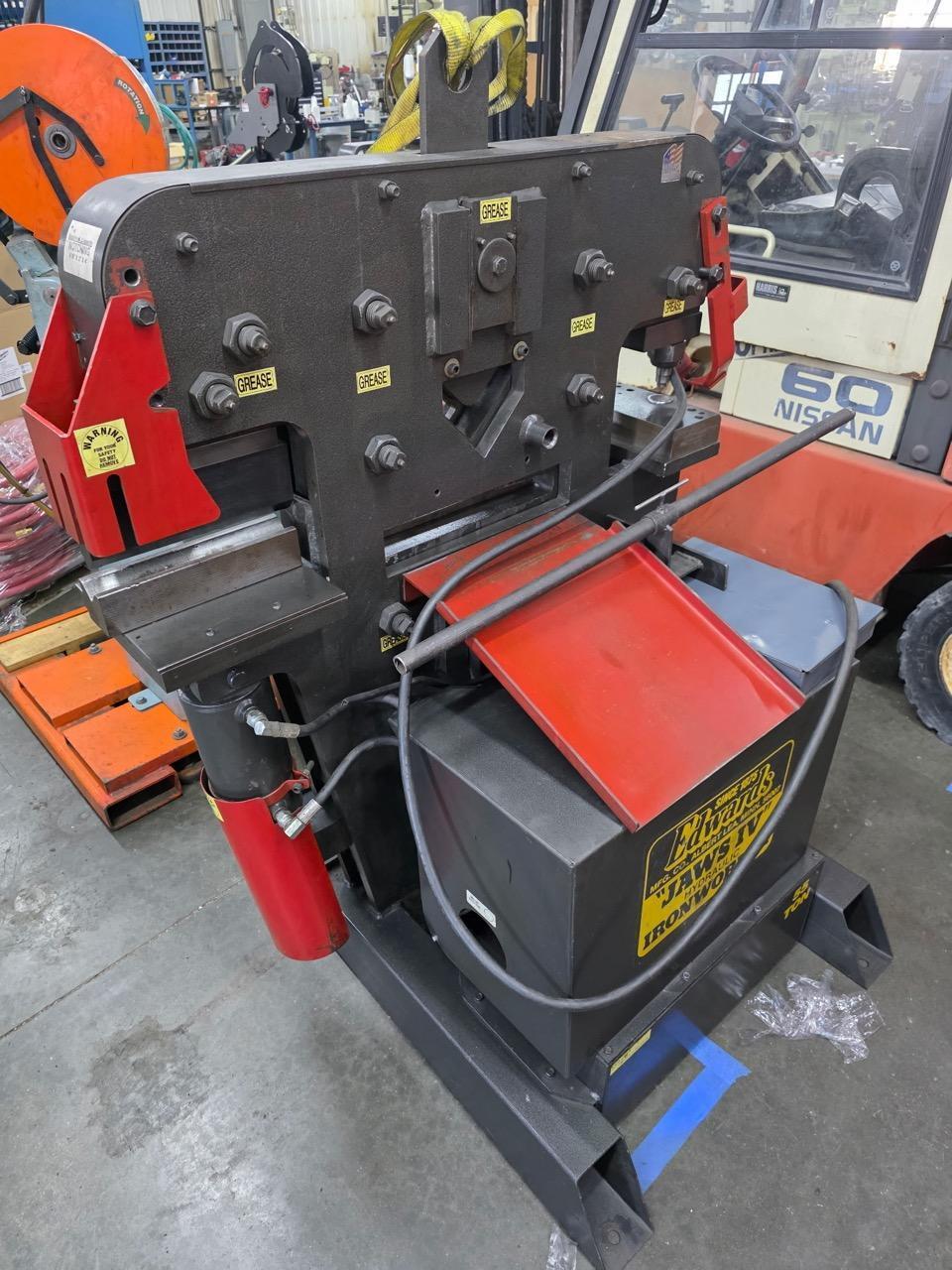

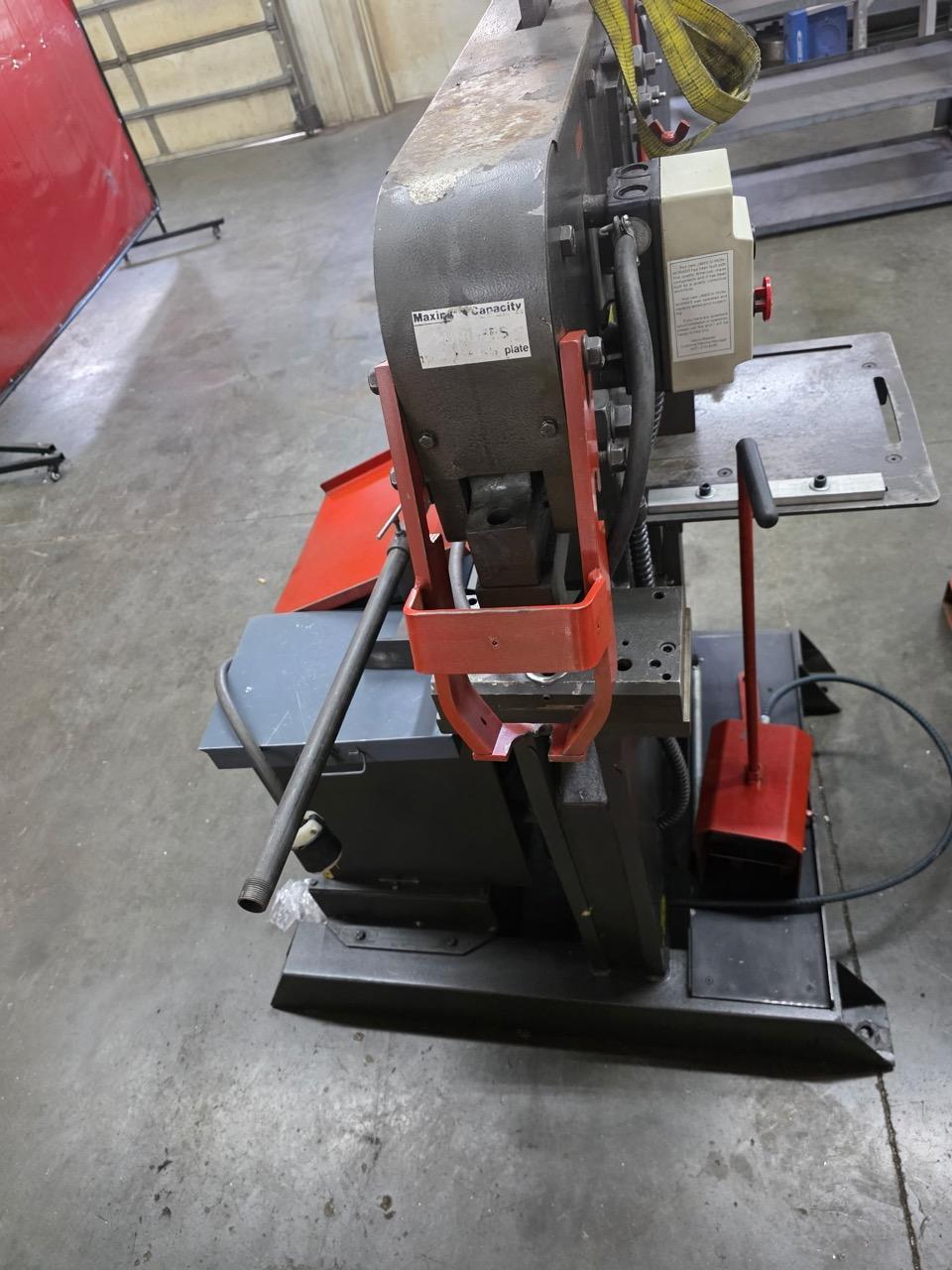

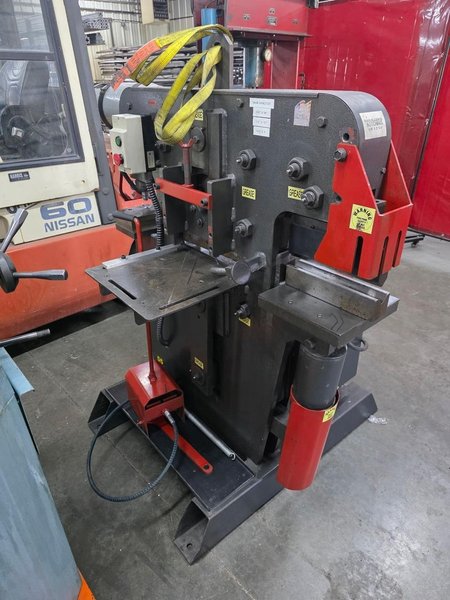

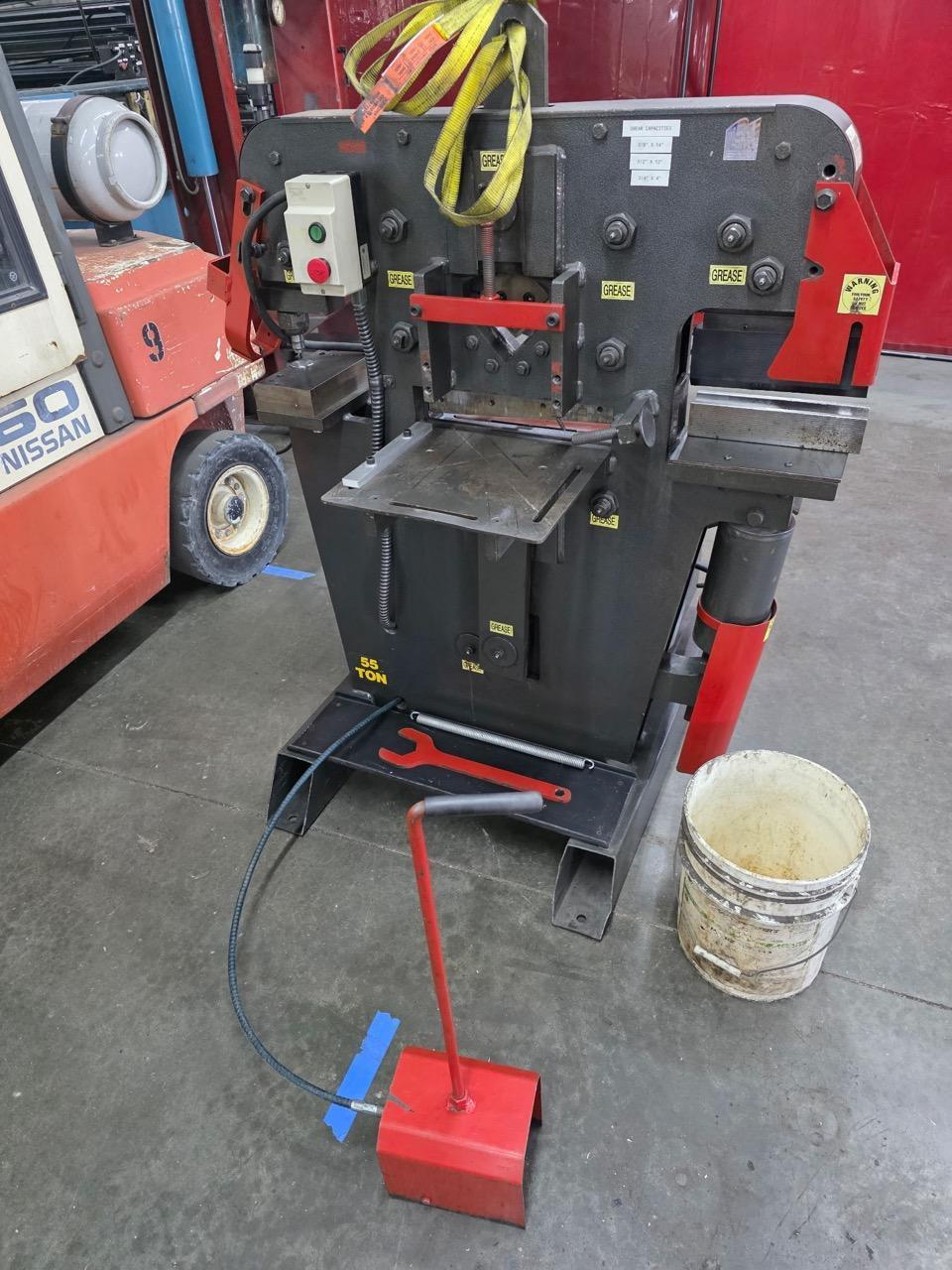

55 Ton Edwards Jaws IV Hydraulic Ironworker-Press Brake Attachment, Tooling Included

Punch Capacity: 55 Tons Maximum Punch Capacity: 1-1/16″ Diameter In 5/8″ Mild Steel Punch Throat Depth: 7-1/2″ Punch Stroke: 1-1/4″ Flat Bar Capacity: 3/8″ X 14″, 1/2″ X 12″, 3/4″ X 4″ Round Bar Capacity: 7/8″ Square Bar Capacity: 7/8″ Angle Capacity: 3″ X 3″ X 3/8″, 4″ X 4″ X 1/4″ Open Station Throat Depth: 11-3/16″ Open Station Height: 8-1/8″ Open Station Stroke: 1-1/4″ Motor: 5 HP Hydraulic Pump: 3-1/2 GPM Hydraulic Pressure: 2,500 PSI Hydraulic Reservoir: 7 Gal. Dimensions: 44-3/8″ X 36-1/8″ X 55-1/4″ Weight: 2,480 Lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

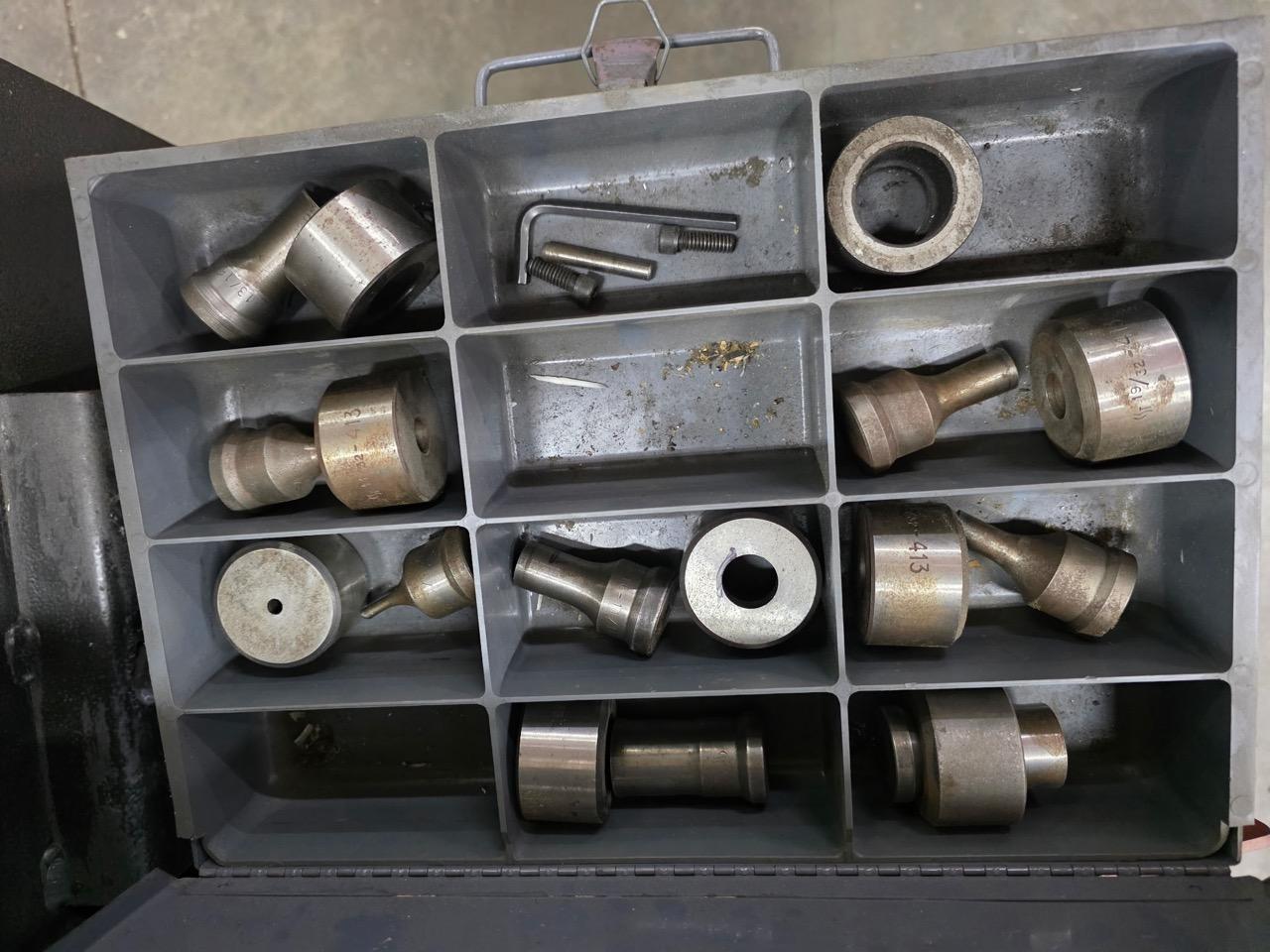

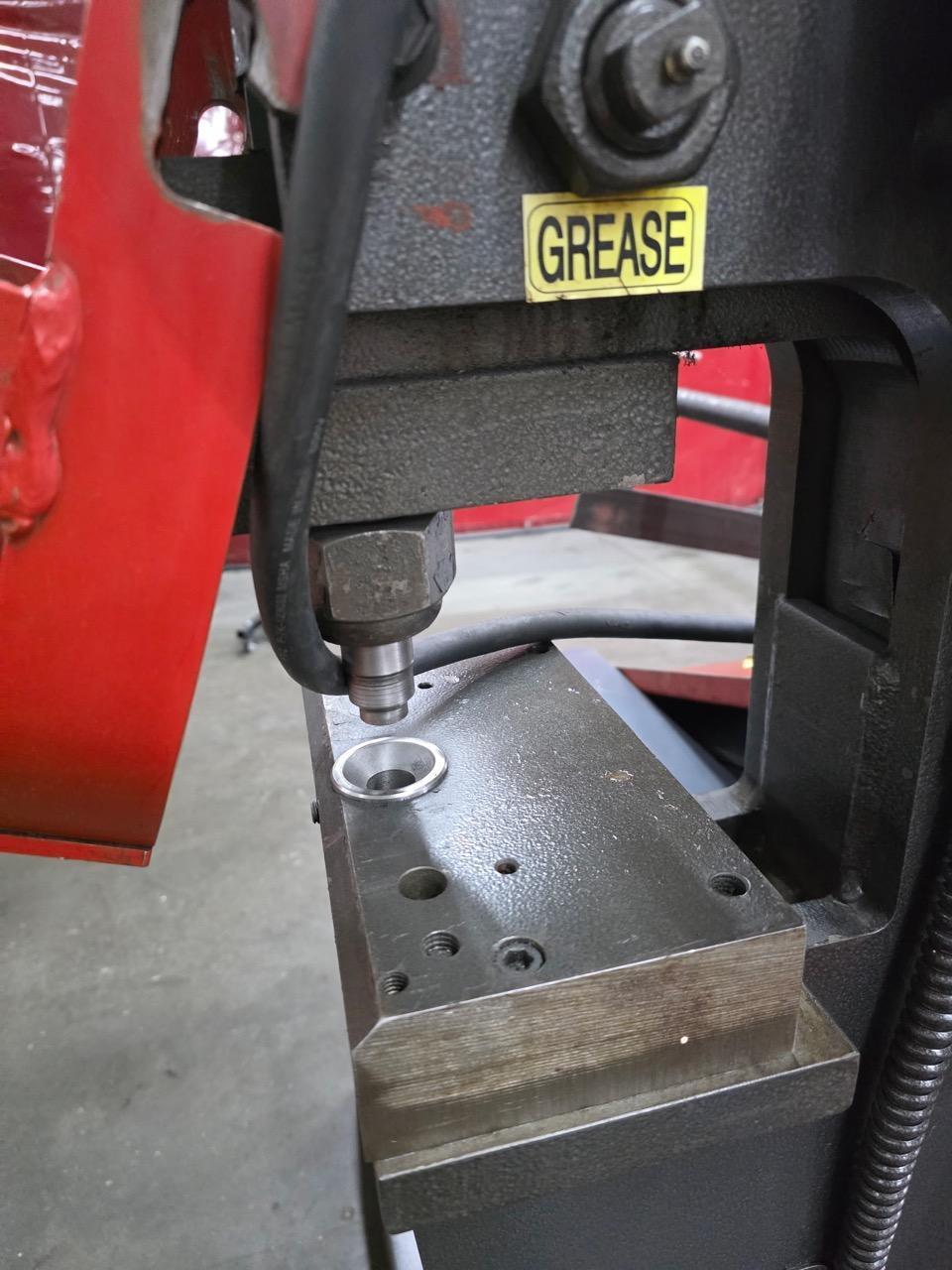

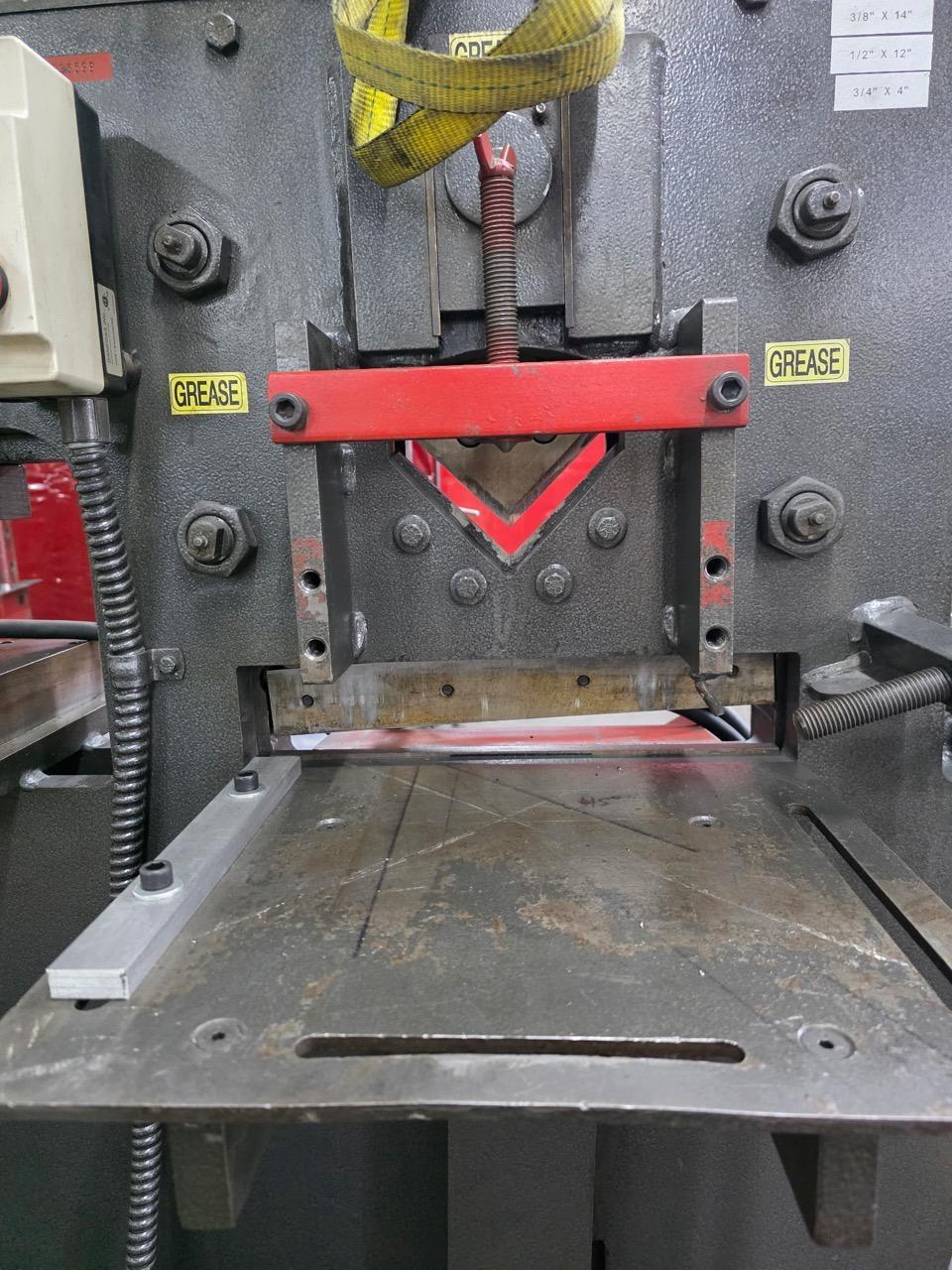

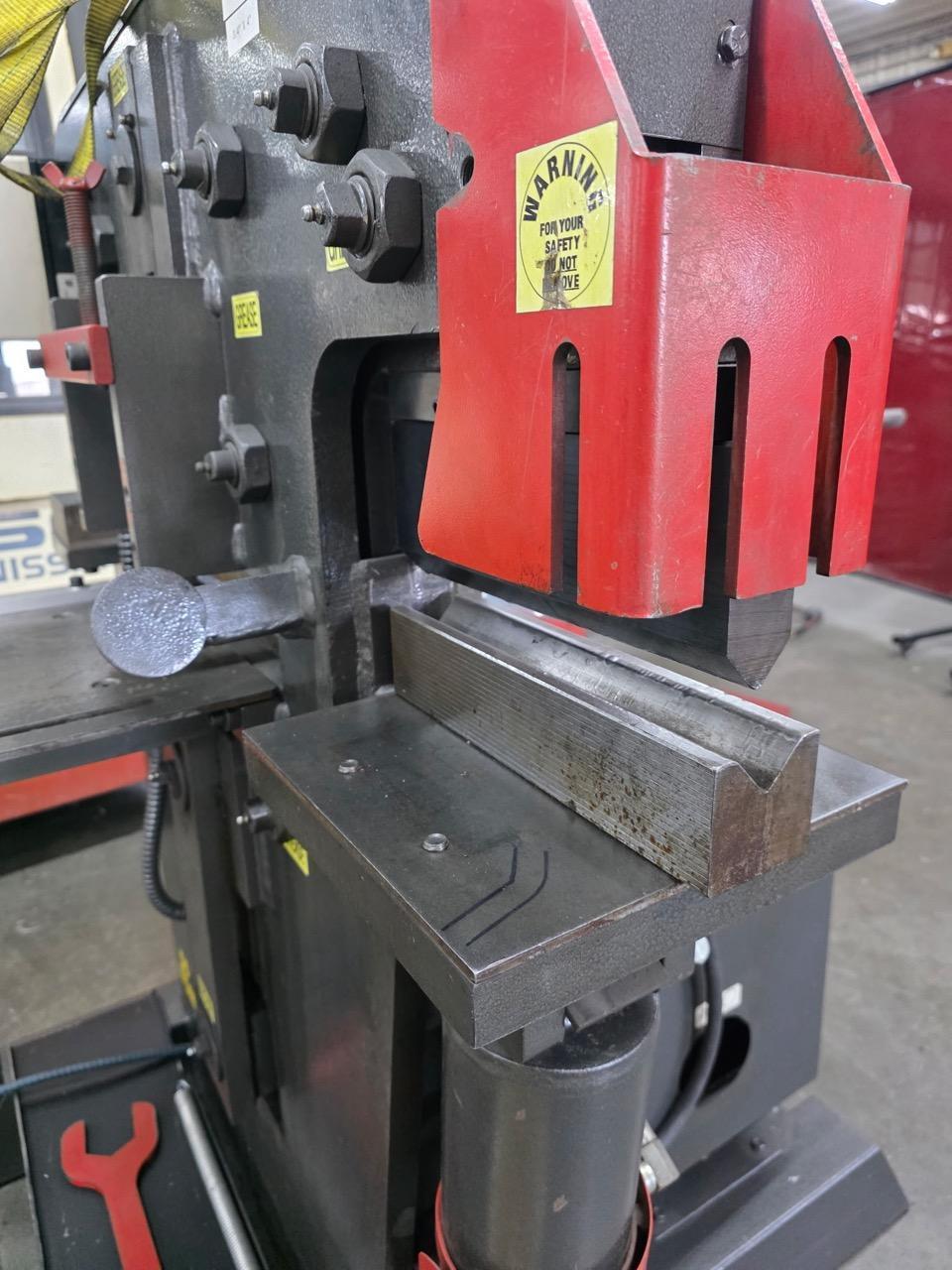

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Press Brake Attachment Flat Bar Shear Angle Shear Punch Station Electric Stroke Control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
