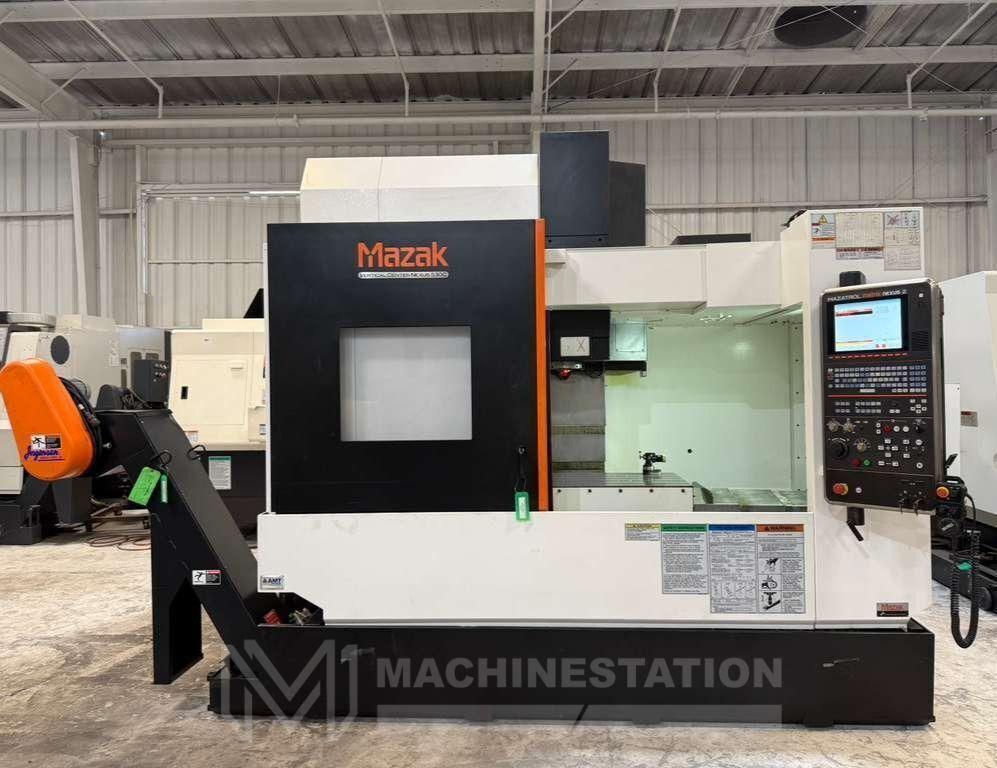

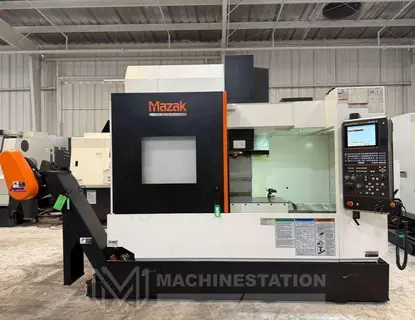

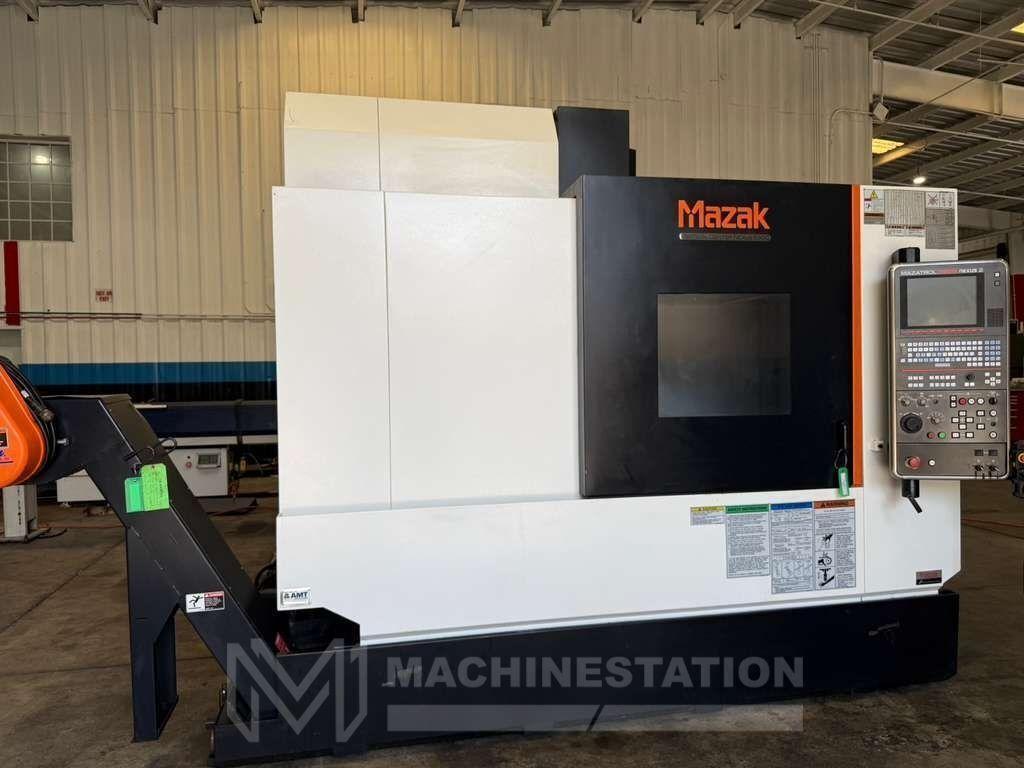

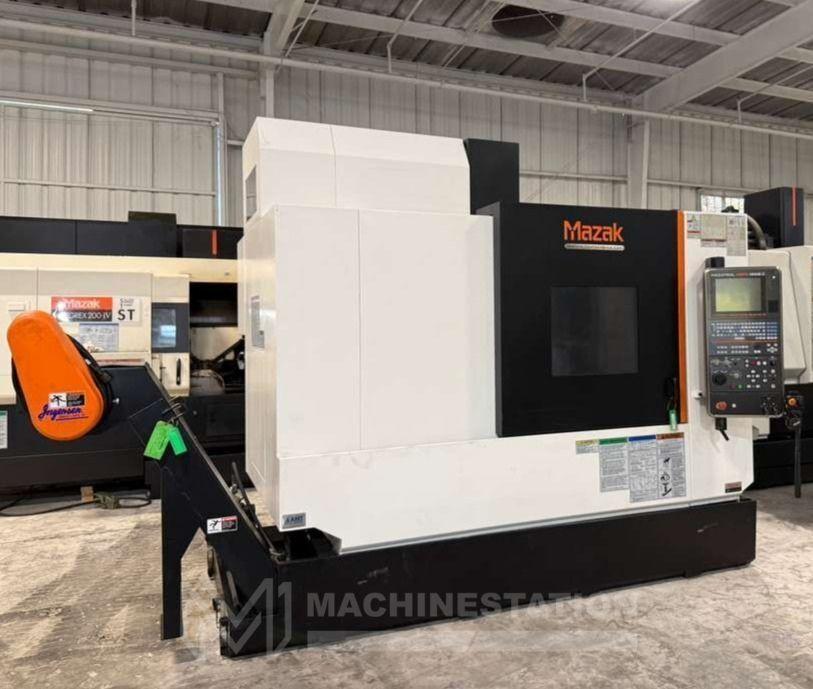

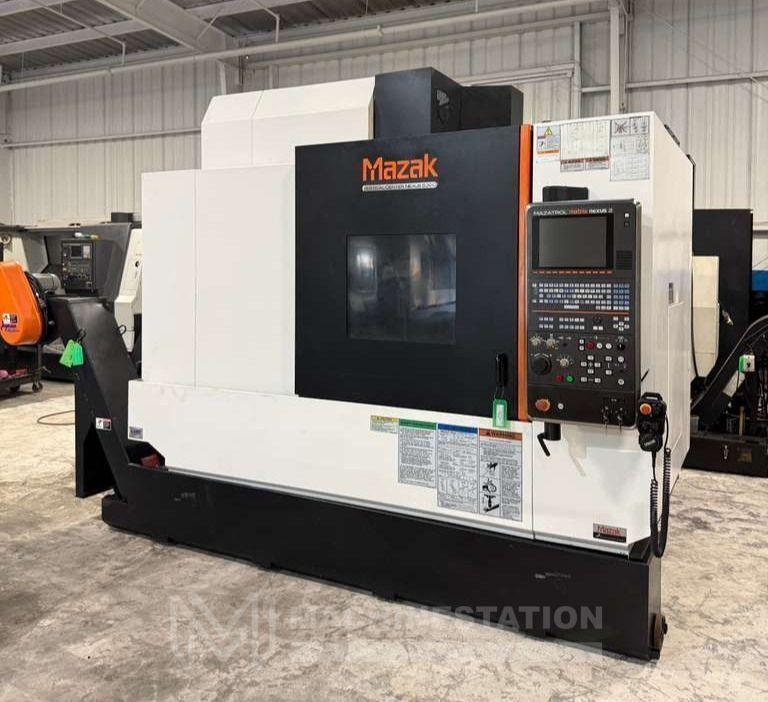

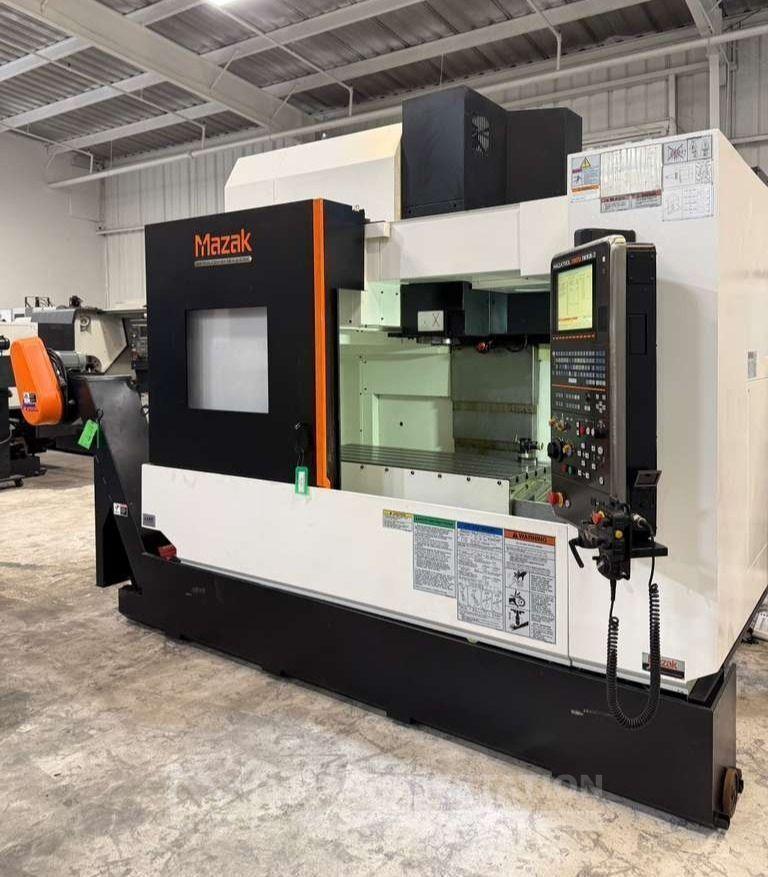

Mazak VCN 530C-II CNC Vertical Machining Center – TSC, 12,000 RPM Mill

Mazak VCN 530C-II CNC Vertical Machining Center – TSC, 12,000 RPM Mill

Name: Mazak VCN 530C-II CNC Vertical Machining Center – TSC, 12,000 RPM Mill
Brand: MAZAK
SKU: 113667
Availability: InStock

Brand

MAZAK

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	113667
Make:	Mazak
Model:	VCN 510C-II

Equipped With:

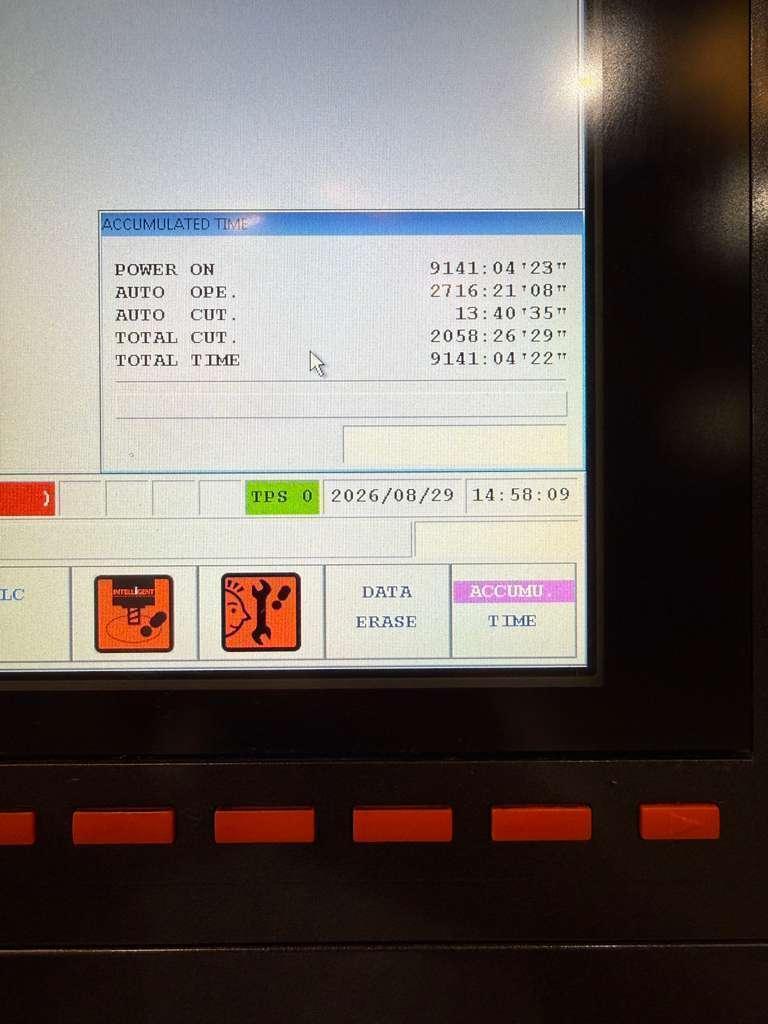

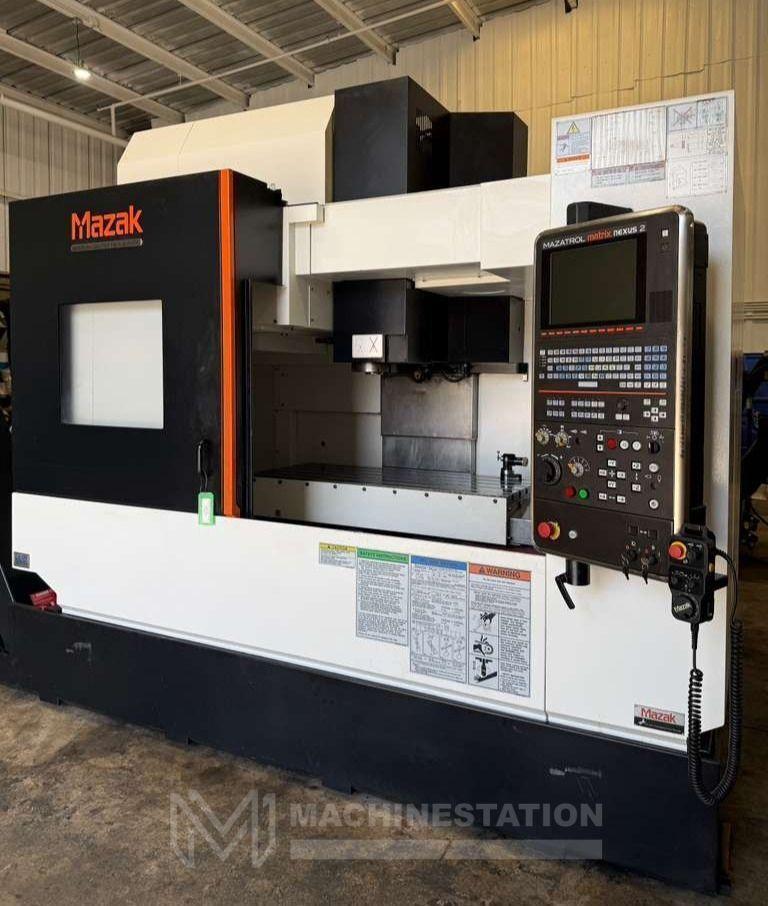

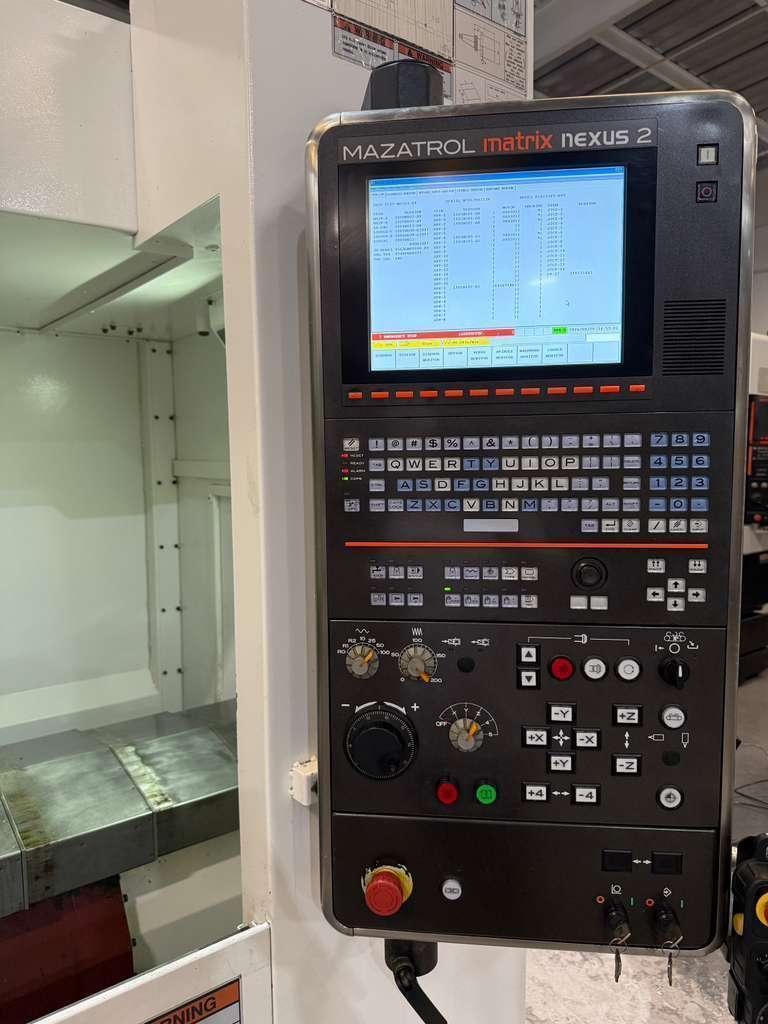

Mazatrol Matrix Nexus 2 CNC Control
12,000 RPM High-Speed Spindle
Through Spindle Coolant
30-Station Automatic Tool Changer
CAT-40 Taper Spindle
Renishaw Receiver Installed

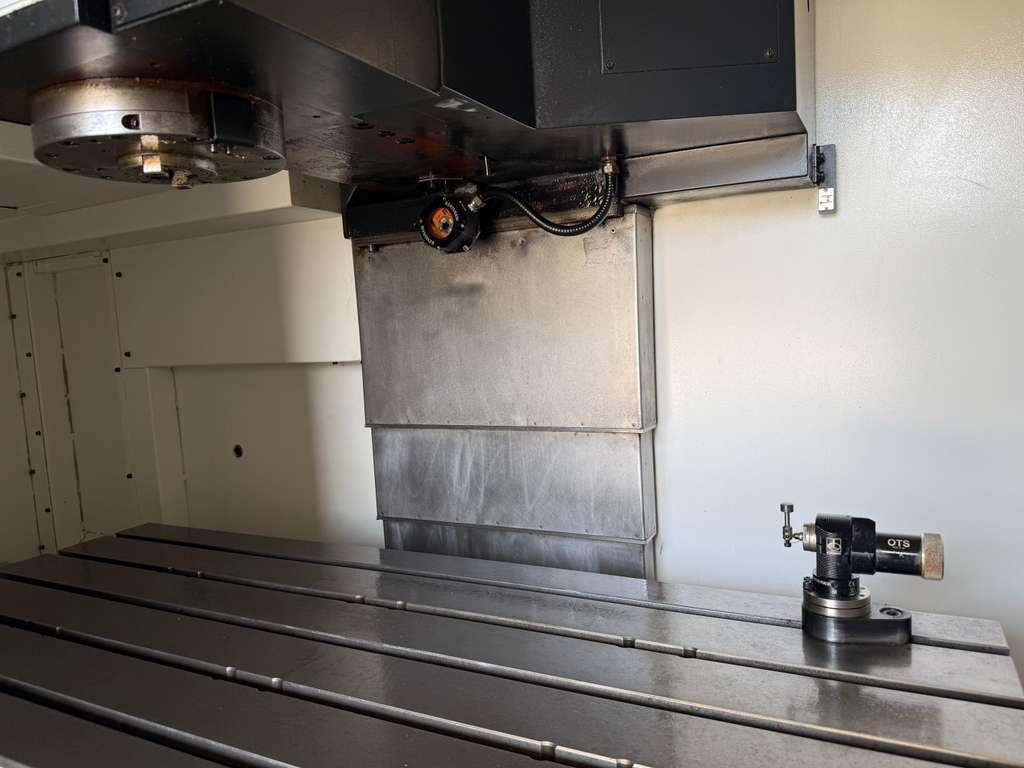

Tool Presetter
25 HP High-Torque Spindle
MPG Handwheel Control
USB Ports
Rigid Tapping
Spindle Chiller Unit
Automatic Lubrication Unit
Coolant Tank
Chip Augers

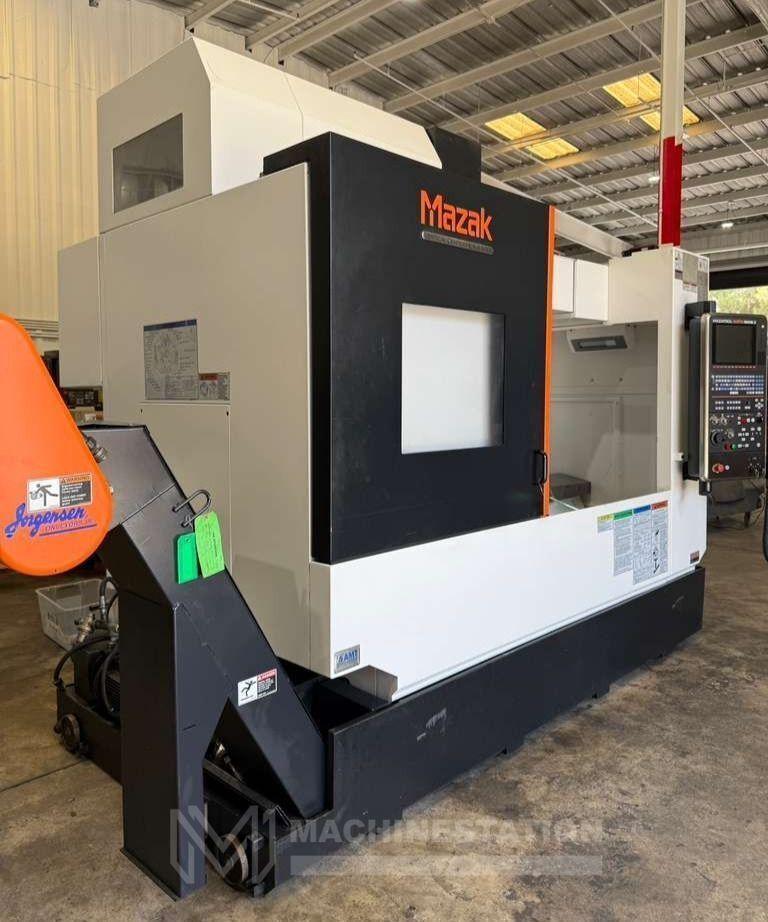

Chip Conveyor
Books & Manuals

Travels:
X-Axis Travel: 41.3 inch
Y-Axis Travel: 20.8 inch
Z-Axis Travel: 20.8 inch
Rapid Traverse Rates: 1,417 IPM
Cutting Feed Rates: 787 IPM
Spindle Nose to Table (Min.-Max.): 5.9 inch – 26 inch

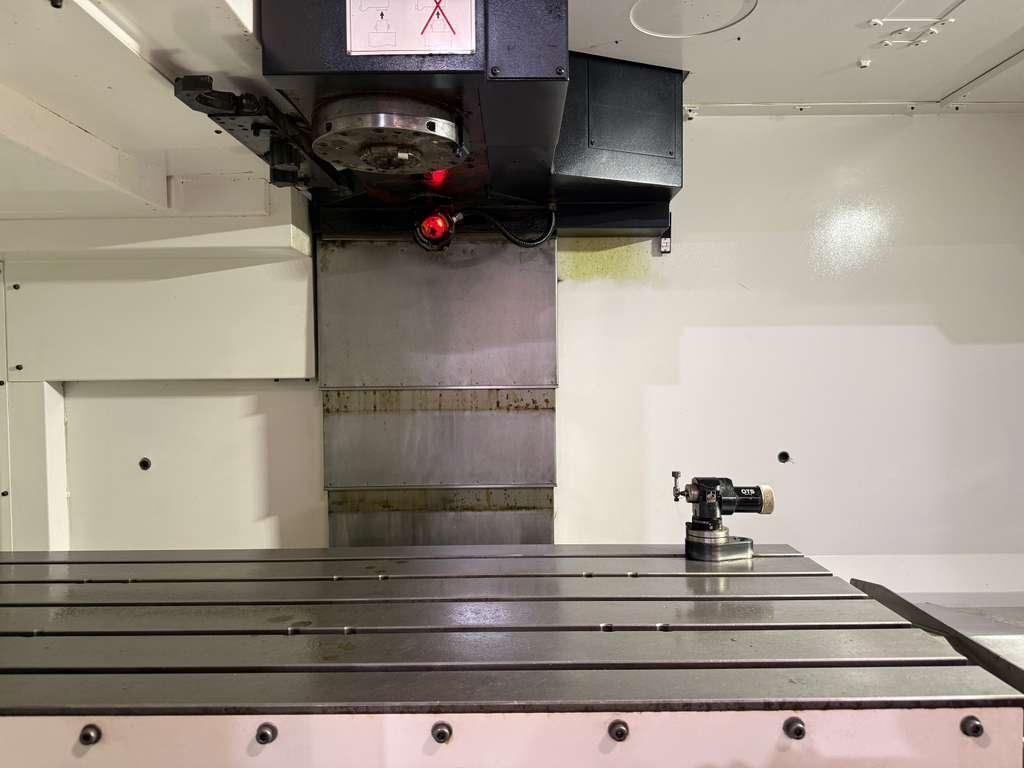

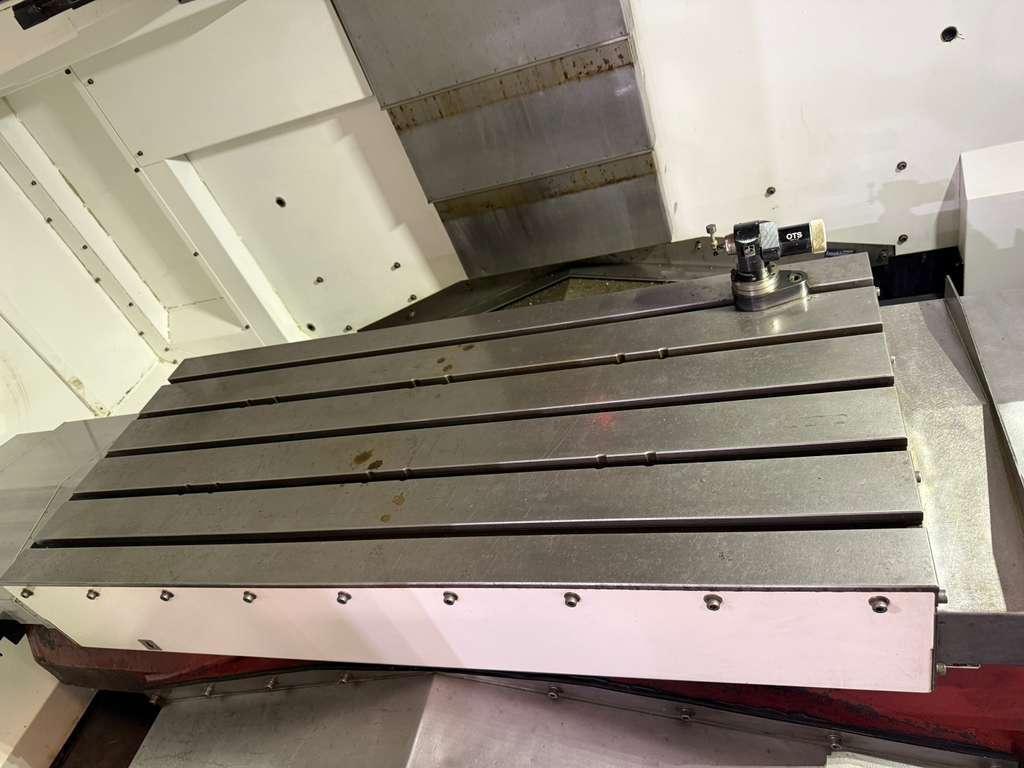

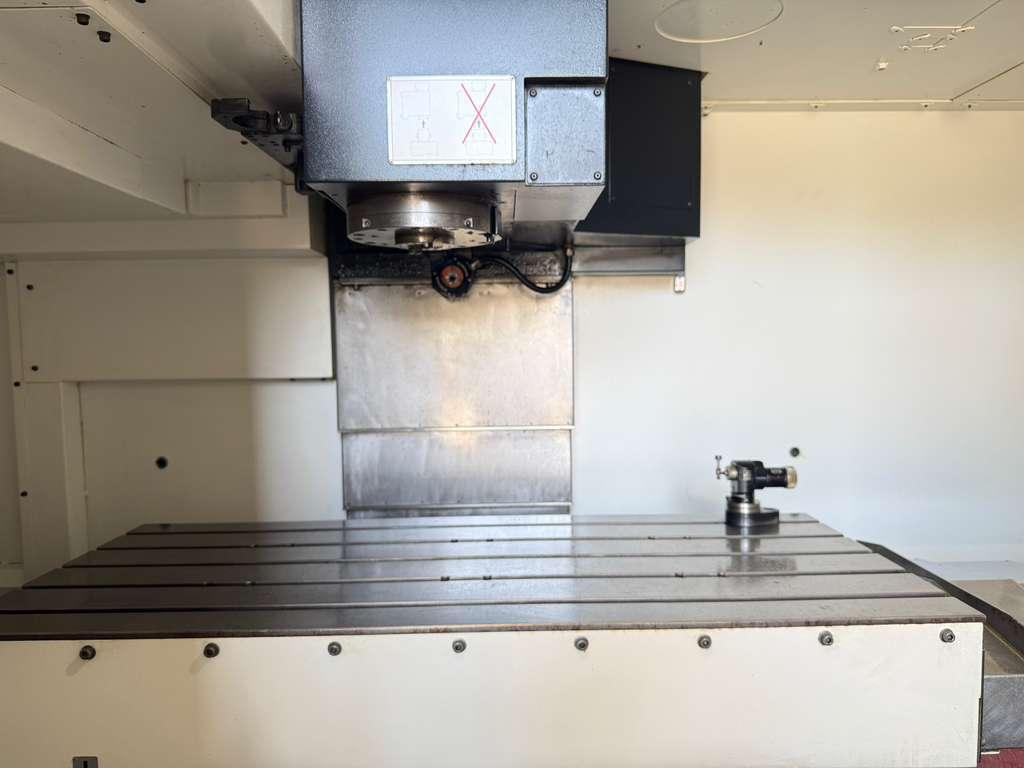

Table:
Length: 51.18 inch
Width: 21.65 inch
Number of Standard T-Slots: 5
T-Slot Width: 5/8 inch
Maximum Weight on Table: 2,646 lbs

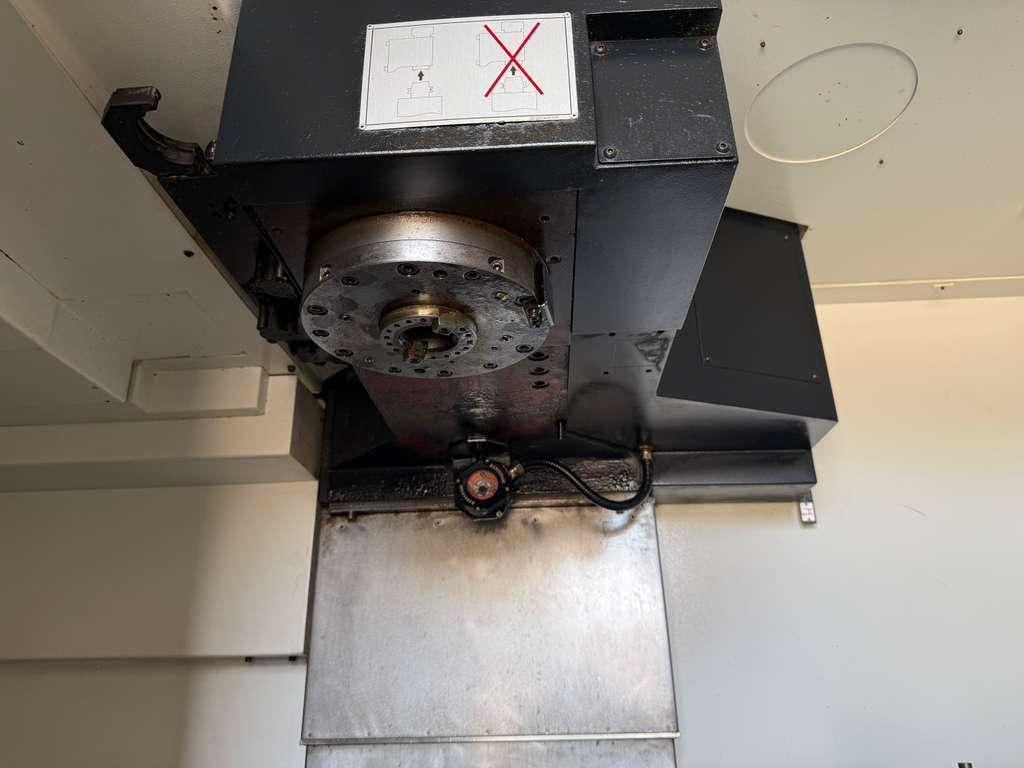

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Type: Direct Drive
Spindle Power: 25 HP

Automatic Tool Changer:
Capacity: 30-Station Side Mounted
Maximum Tool Weight: 17.63 lbs
Maximum Tool Diameter: 3.15 inch
Maximum Tool Length: 13.78 inch
Tool Changing Time: 1.3 Seconds
