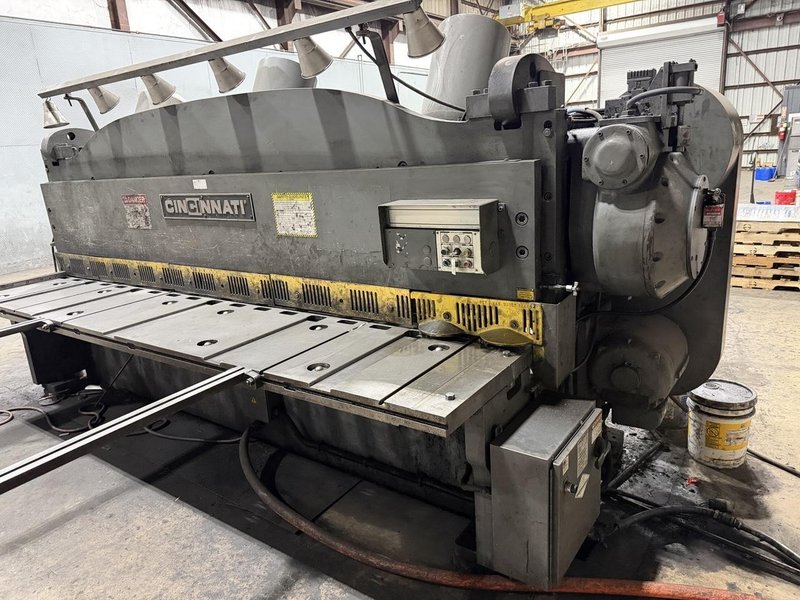

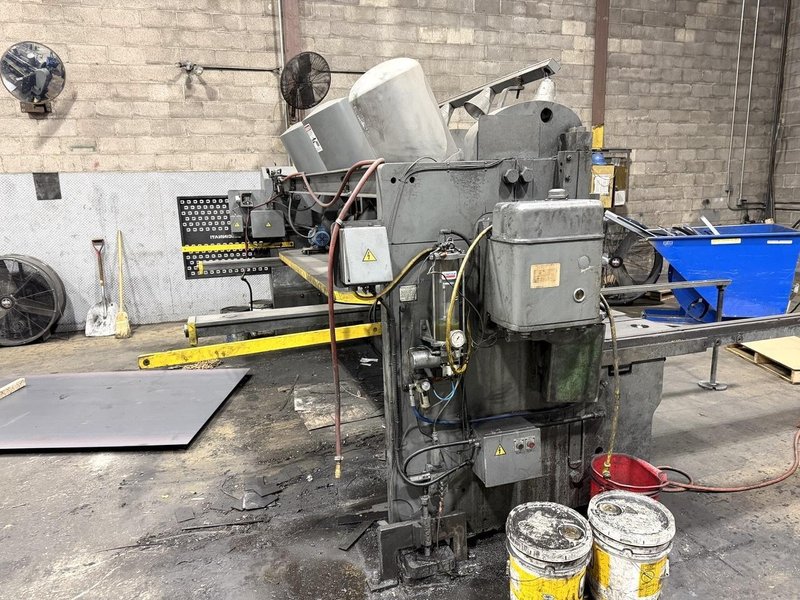

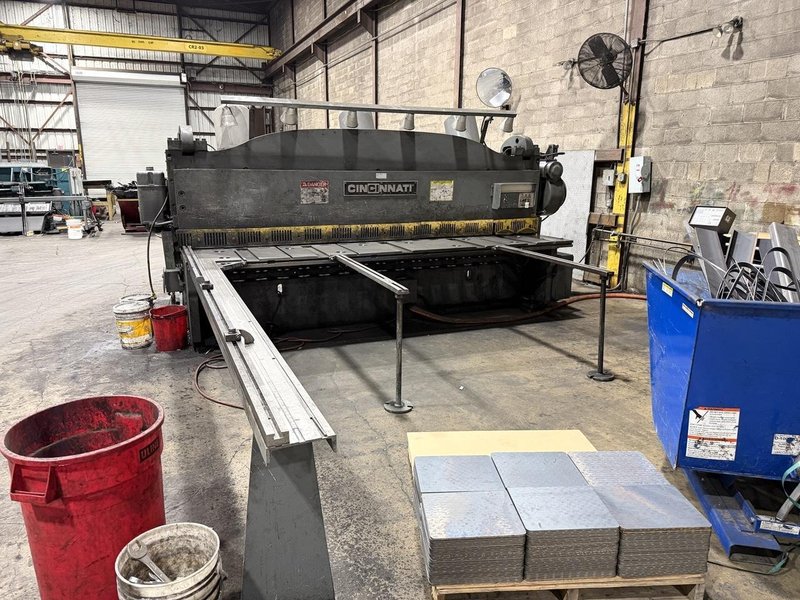

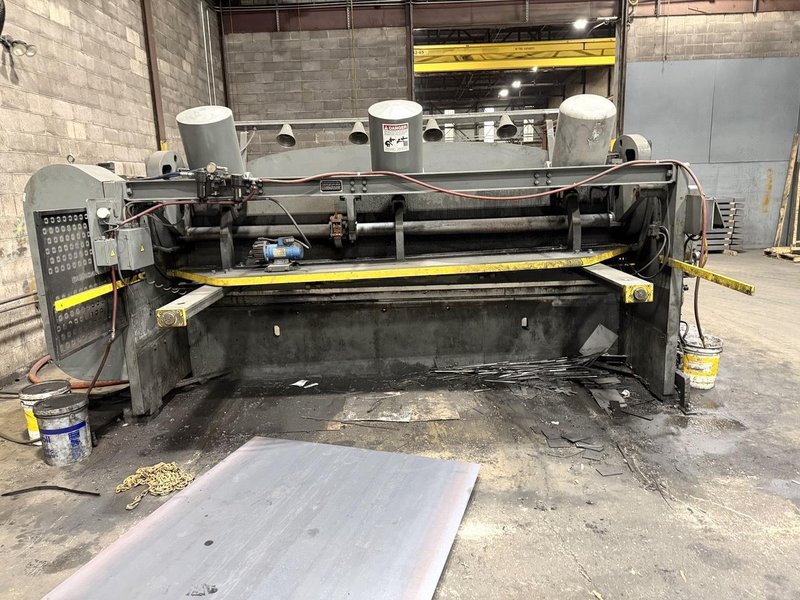

(2019) 12' X 3/8" CINCINNATI MODEL 2512 MECHANICAL SHEAR. STOCK # 0879726

Name: (2019) 12' X 3/8" CINCINNATI MODEL 2512 MECHANICAL SHEAR. STOCK # 0879726
Brand: CINCINNATI
SKU: 0879726
Availability: InStock

Brand

CINCINNATI

Iowa

Cutting Length	12 feet
Length Of Blades	148 inches
Number Of Hydraulic Hold Downs	13
Main Motor	20 horsepower
RPM	1675
Volts	230/460
Phase	3
Cycles	60
Amps	52 / 26
Main Control Panel	Type-12 Enclosure
Max Rating Of Overcurrent Device(s)	45
Full Load Current	37.06
Largest Motor Rating	27
Panel Short Circuit Current Rating	5000
Dimensions	188 x 82
Below Floor	12 inches
Height From Floor	86 inches
Shipping Height On Blocks	102 inches

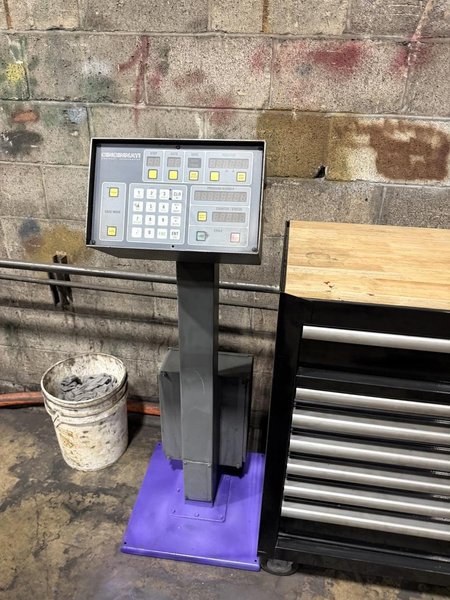

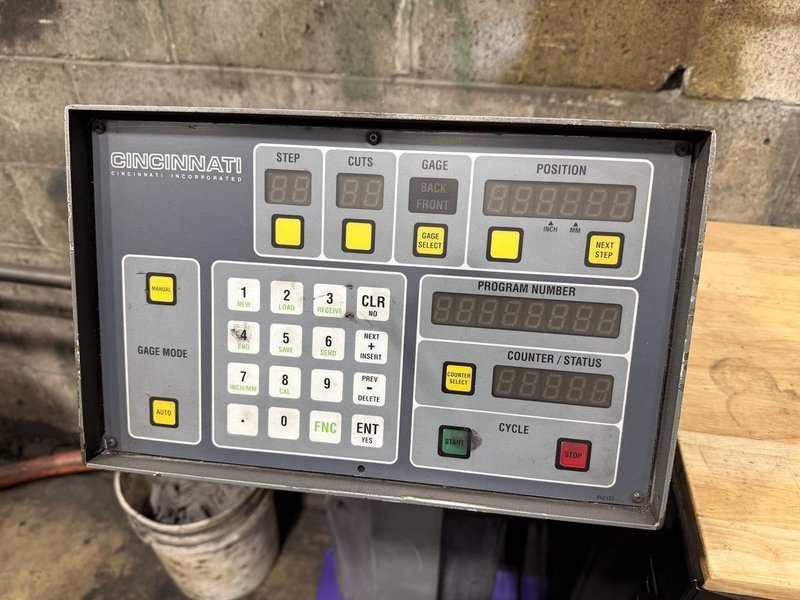

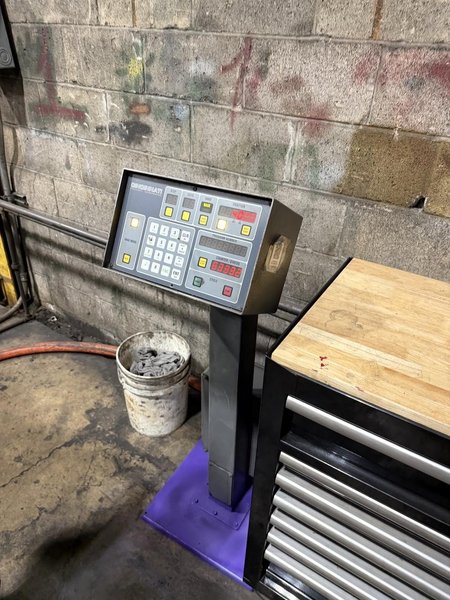

Manufacturer: Cincinnati Model Number: 2512G Serial Number: 56811 Year: 2019 Operator Control Stand: YES Foot Pedal Control: YES 36" power back gauge 13' Squaring Arm Ball Transfers in Table: YES Finger Guard: YES Cutting length: 12' Maximum Thickness Capacity: 3/8" Length of Blades: 148" Number of Hydraulic Hold Downs: 13 Back Gauge Motor: 1/2 HP Main Motor: 20 HP RPM: 1675 Volts: 230/460 Phase: 3 Cycles: 60 Hz Amps: 52 / 26 Main control panel: Type-12 Enclosure Volts: 460 Phase: 3 Cycles: 60 Hz Max. rating of overcurrent device(s): 45 A Full load current: 37.06 A Largest motor rating: 27 A Panel short circuit current rating: 5000 A Approximate dimensions (without back gauge): 188" LR x 82" FB Below floor: 12" Height from floor: 86" - Shipping height on blocks: 102" - Approximate Weight: 33,000 lbs.
