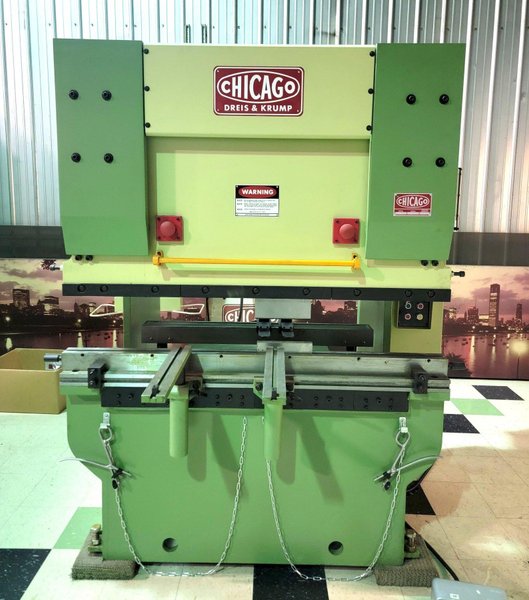

New Chicago Hydraulic Press Brake Model: HPB-4015 SPECIFICATIONS:
Capacity in Tons . . . . . . . . . . . . . . . . . 40
Bending capacity (mild steel) . . . . . . . . 4’ x 10 Ga.
Overall bed and ram length. . . . . . . . . . 5’
Distance between housings. . . . . . . . . . 3’ 9”
Depth of throat . . . . . . . . . . . . . . . . . . 12”
Stroke. . . . . . . . . . . . . . . . . . . . . . . . 6”
Open height (Bed to Ram). . . . . . . . . . 12”
Advance speed (IPM) . . . . . . . . . . . . . 240
Pressing speed (IPM) . . . . . . . . . . . . . 24
Return speed (IPM) . . . . . . . . . . . . . . 140
Back-gauge range . . . . . . . . . . . . . . . 24”
Main motor – H.P. . . . . . . . . . . . . . . . 3
220/440 volts, 3-phase Weight (Approx) . . . . . . . . . . . . 6,000 Lbs
Equipped with: Numeric Control 320TS 10" Touch Screen (Dual Axis) Tonnage indicator with adjustable load control
Adjustable deflection compensator built into bed top
Full length dove tail slot in bed top (Front & Rear)
Adjustable, slow down switch/top of stroke switch
Sectional ram clamping bars
Operator hand-rail
Die holder
FOB: Illinois |
60/90 Ton Chicago Dreis & Krump Press Brake, 1980
90 Ton x 10′ Cincinnati 90BX 10 CNC Hydraulic Press Brake, 2015 – X axis with Wilson tooling
135 Ton X 12′ Cincinnati CB135 CNC Press Brake, 1976
90 Ton x 8′ Pacific J 135-8 Hydraulic Press Brake, 1988
165 Ton x 13′ Promecam RG 154 Hydraulic Press Brake, 1970 – Backgauge, Wilson Tooling, Support Arms
44 Ton x 5′ Dener DDM 4015 CNC Press Brake, 2021
12′ x 120 Ton Accurpress 412012 CNC Hydraulic Press Brake, 2009 – ETS 3000 Control
88 Ton x 8′ Amada HFB 8025 Hydraulic Press Brake, 1997
