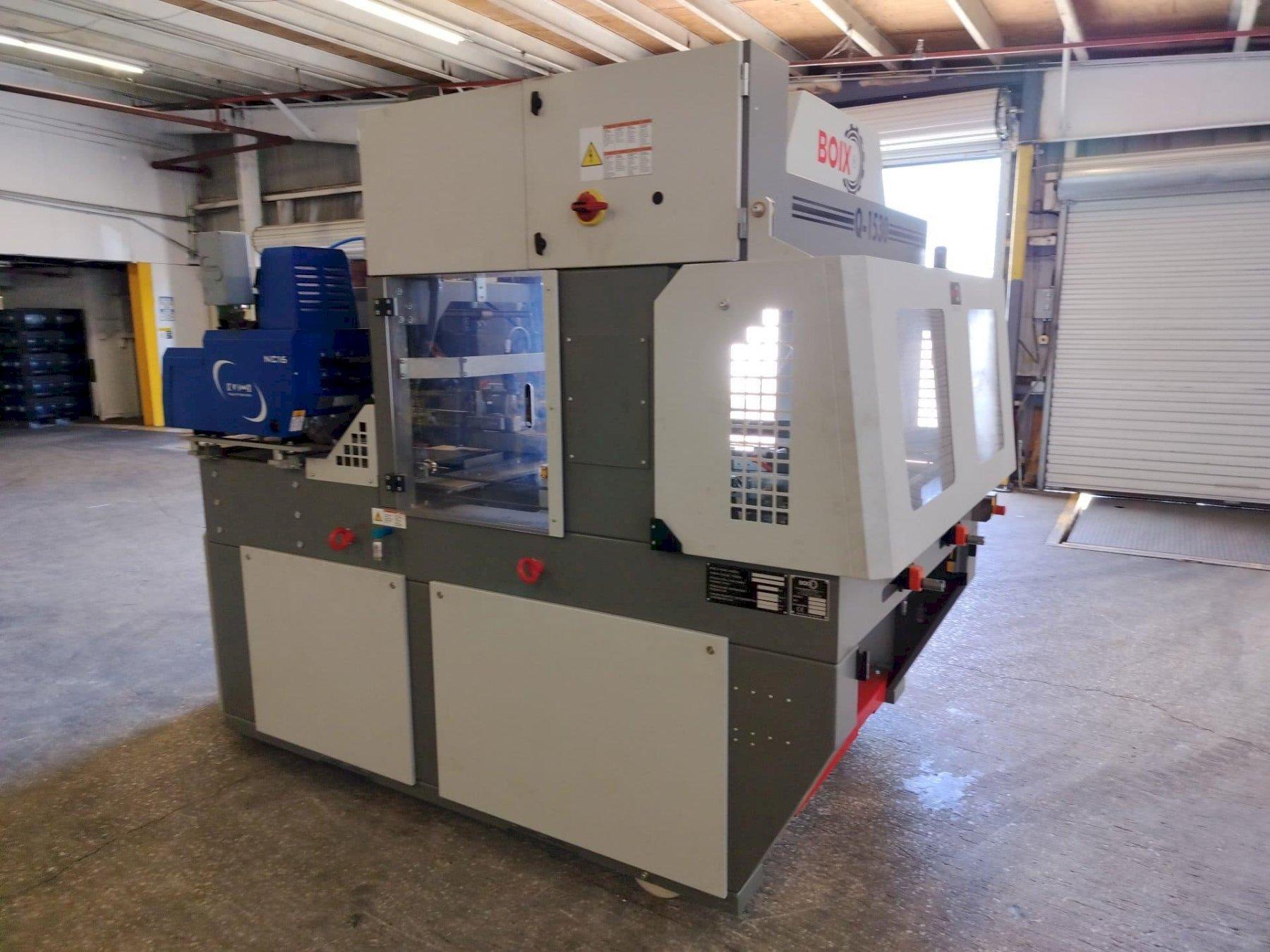

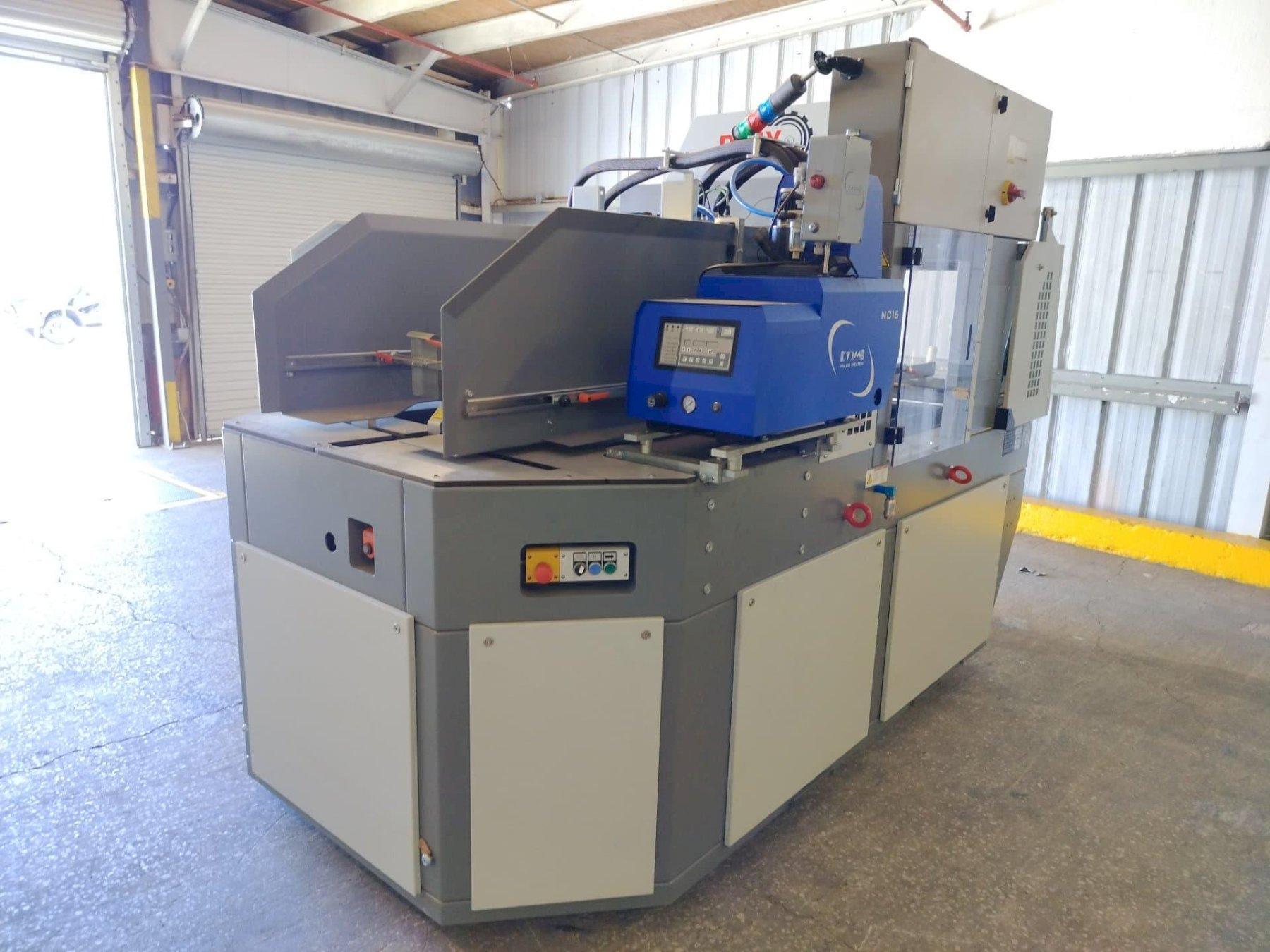

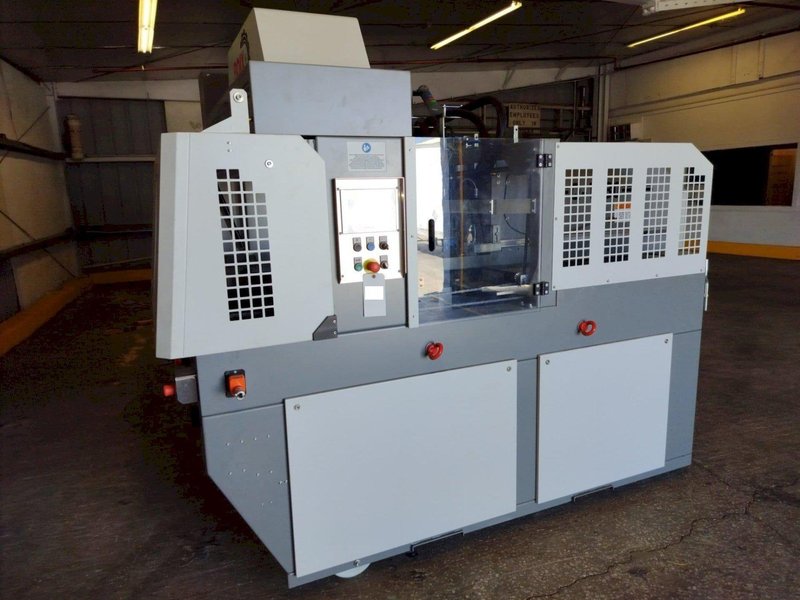

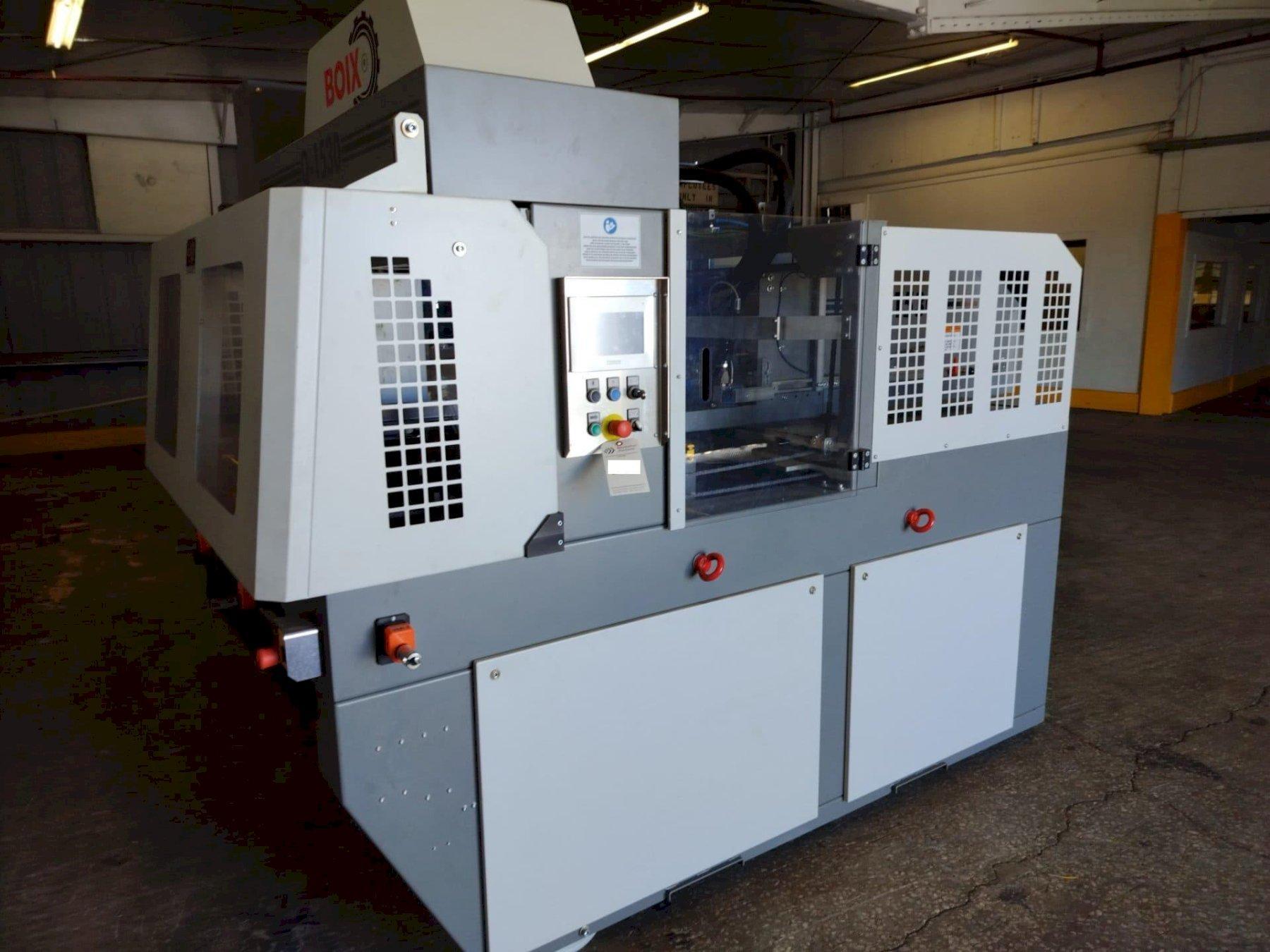

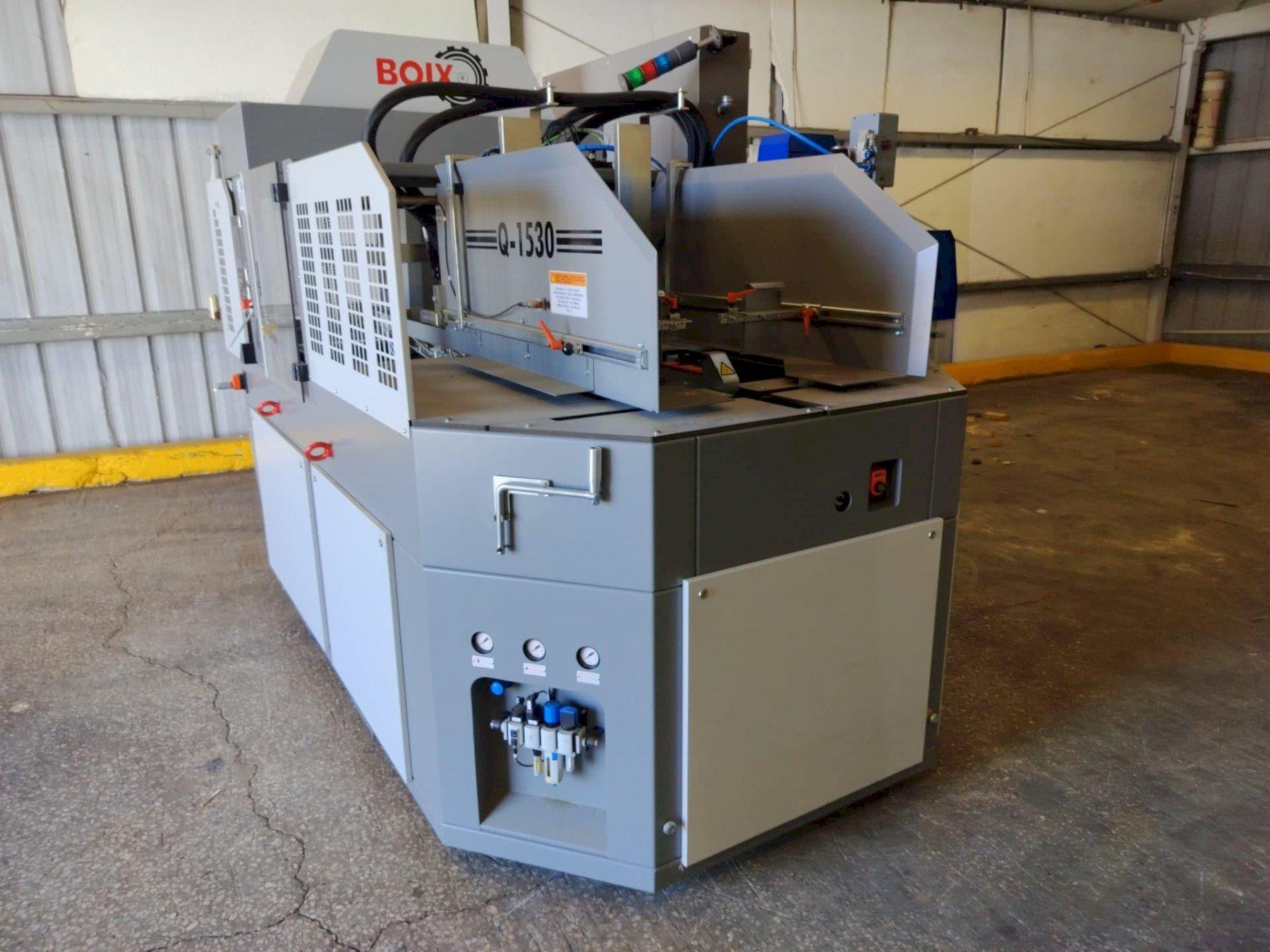

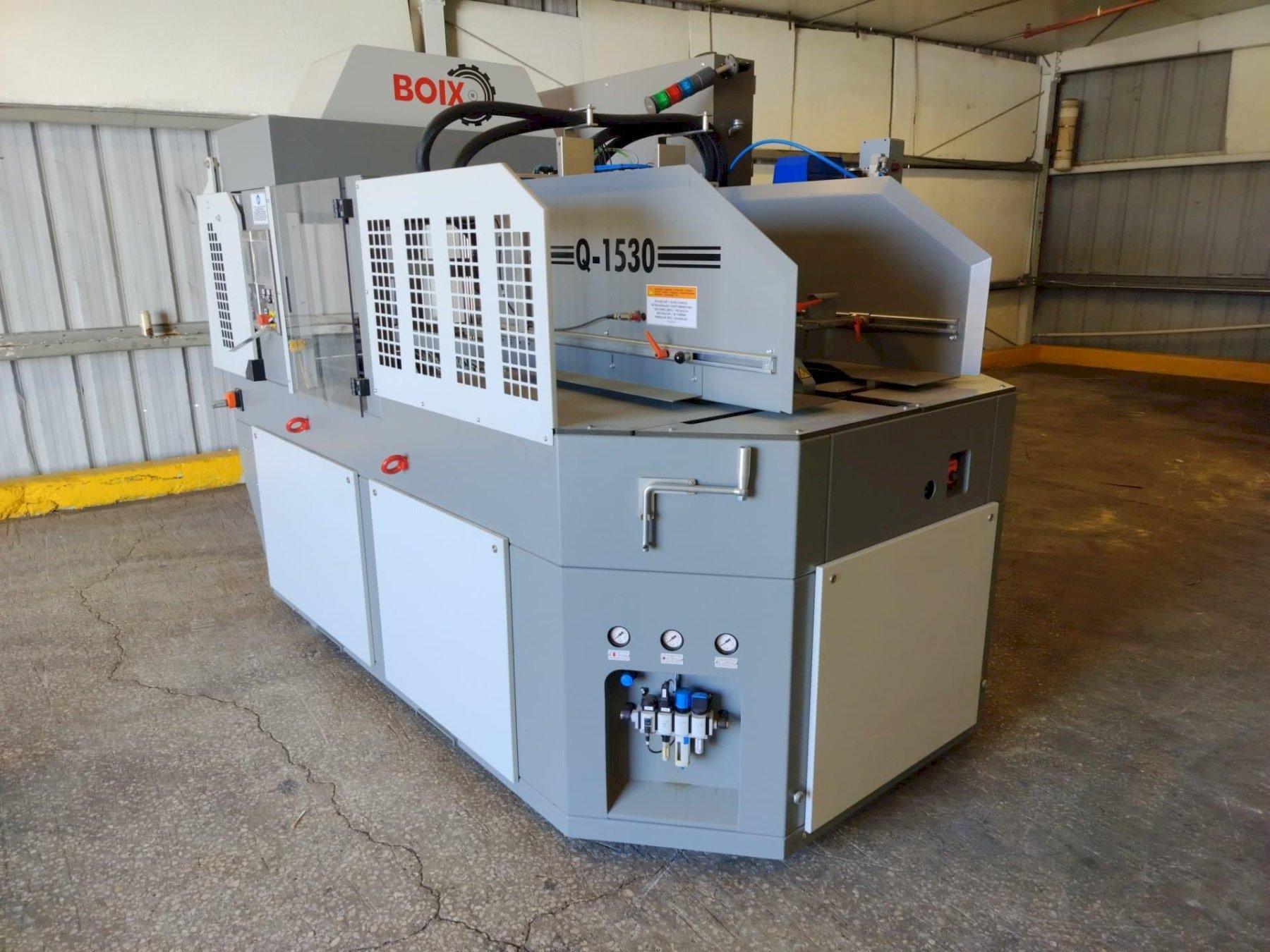

Boix Q-1530 Platform Automatic Tray & Case Forming Machine, 2023 – Melton NC-16 Hot Melt Glue System

Machine Type: Automatic Tray / Box Former & Gluer Production Speed: 400–1,800 Boxes per Hour Number of Speeds: 6 Glue System: Hot-Melt Injection Glue Unit: Melton NC-16 Operation: Mechanical, Electrical & Pneumatic Control: 7″ Touchscreen HMI Blank Introduction: Vacuum Size Change: Manual, Threaded-Rod Adjustment Approx. Changeover Time: 20–40 Minutes Minimum Formed Box: 11.8″ × 7.8″ × 2.75″ Maximum Formed Box: 23.6″ × 23.6″ × 9.84″ Installed Power: 6.6 kW, excluding compressor Electrical: 380/220V, 3-Phase + N + Ground, 50/60 Hz Working Air Pressure: 7 Bar Air Consumption: Approx. 400 L/min Net Weight: Approx. 3,307 lbs (1,500 kg) Machine Dimensions: Approx. 134.8″ L × 72.4″ W × 85.6″ H Frame: 4 mm Steel Plate

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Box / Tray Styles Plaform P-84 Citrus Box C-1 Big Ear Open Column

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With; Melton NC-16 Hot-Melt Glue System Automatic Glue Feeder Kit 4,000 mm Conveyor Belt with Guides (~13.1′) Boix Connect Remote Access / VNC Capability Inline Work Kit Adjustable Mandrels

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
