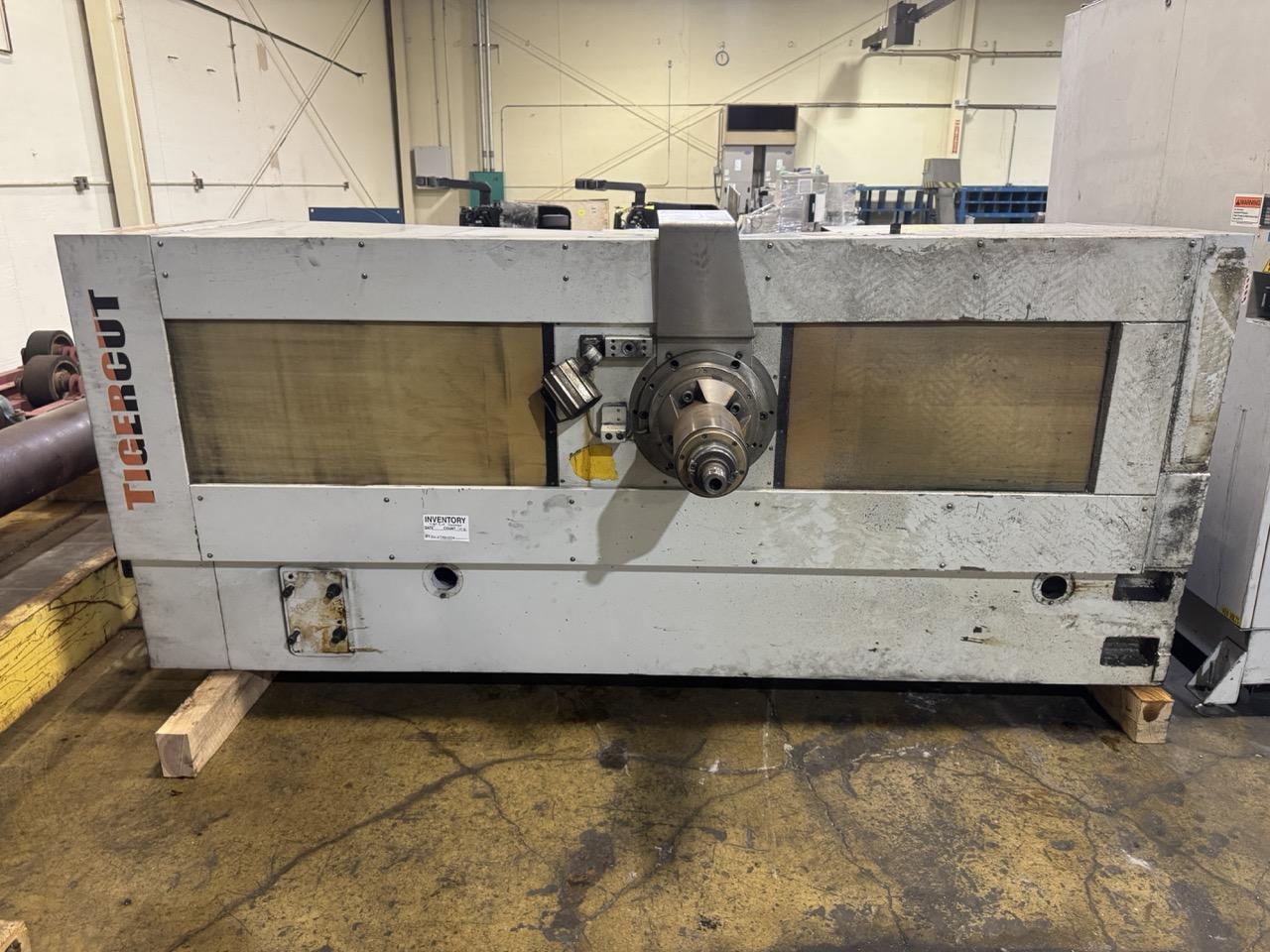

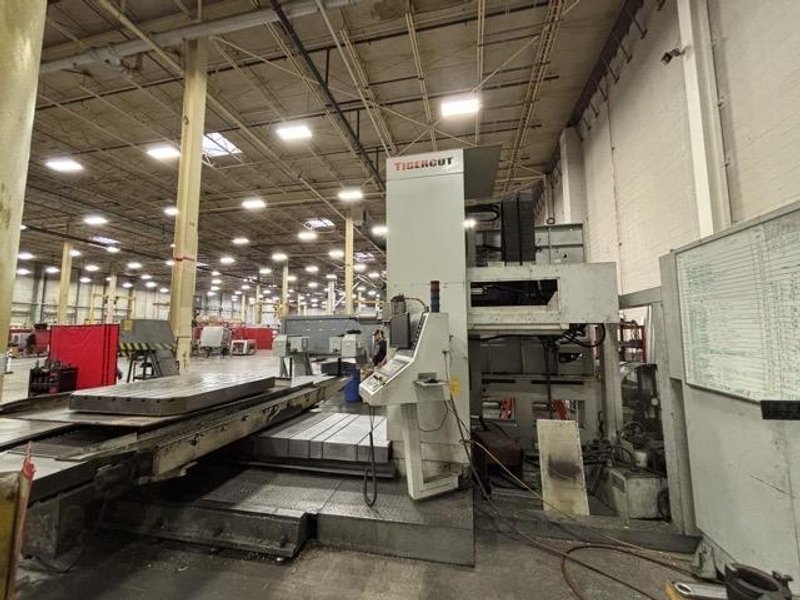

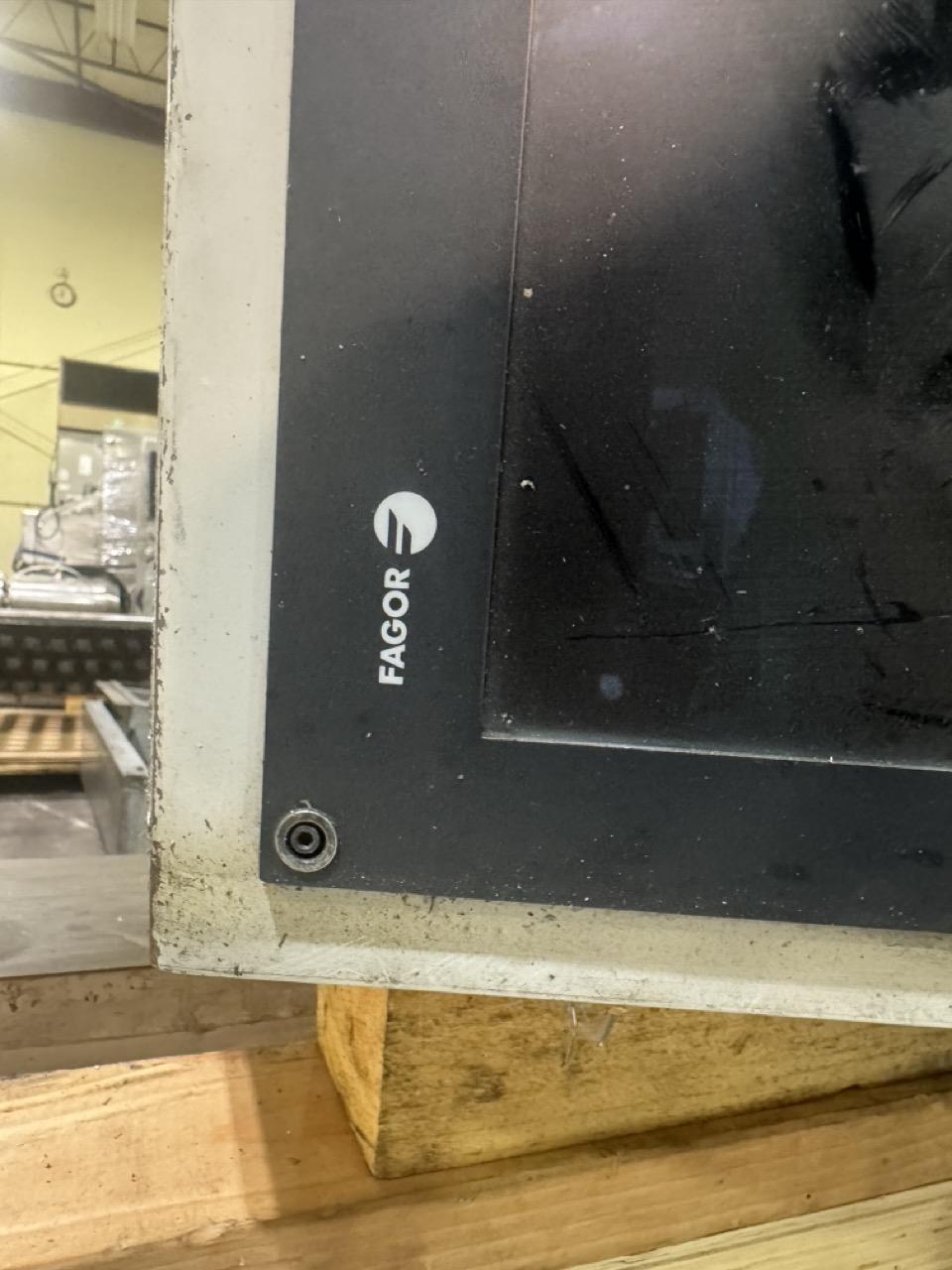

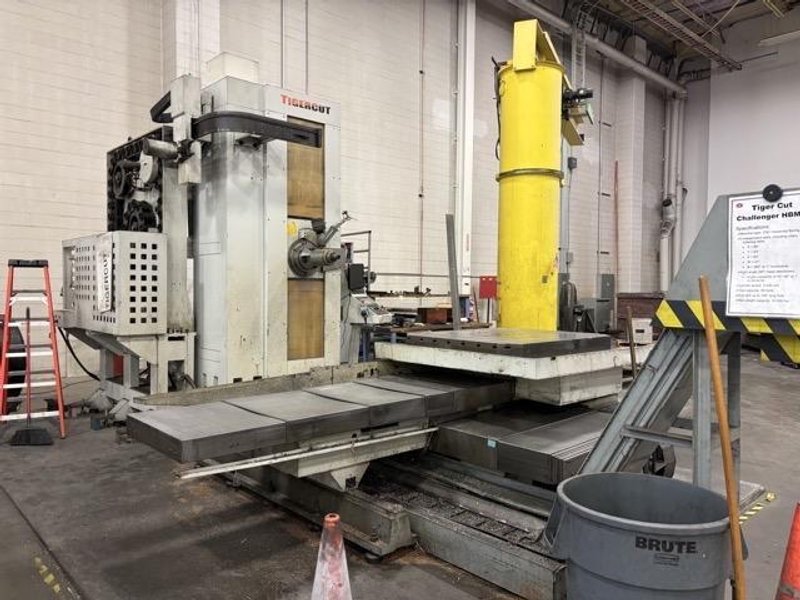

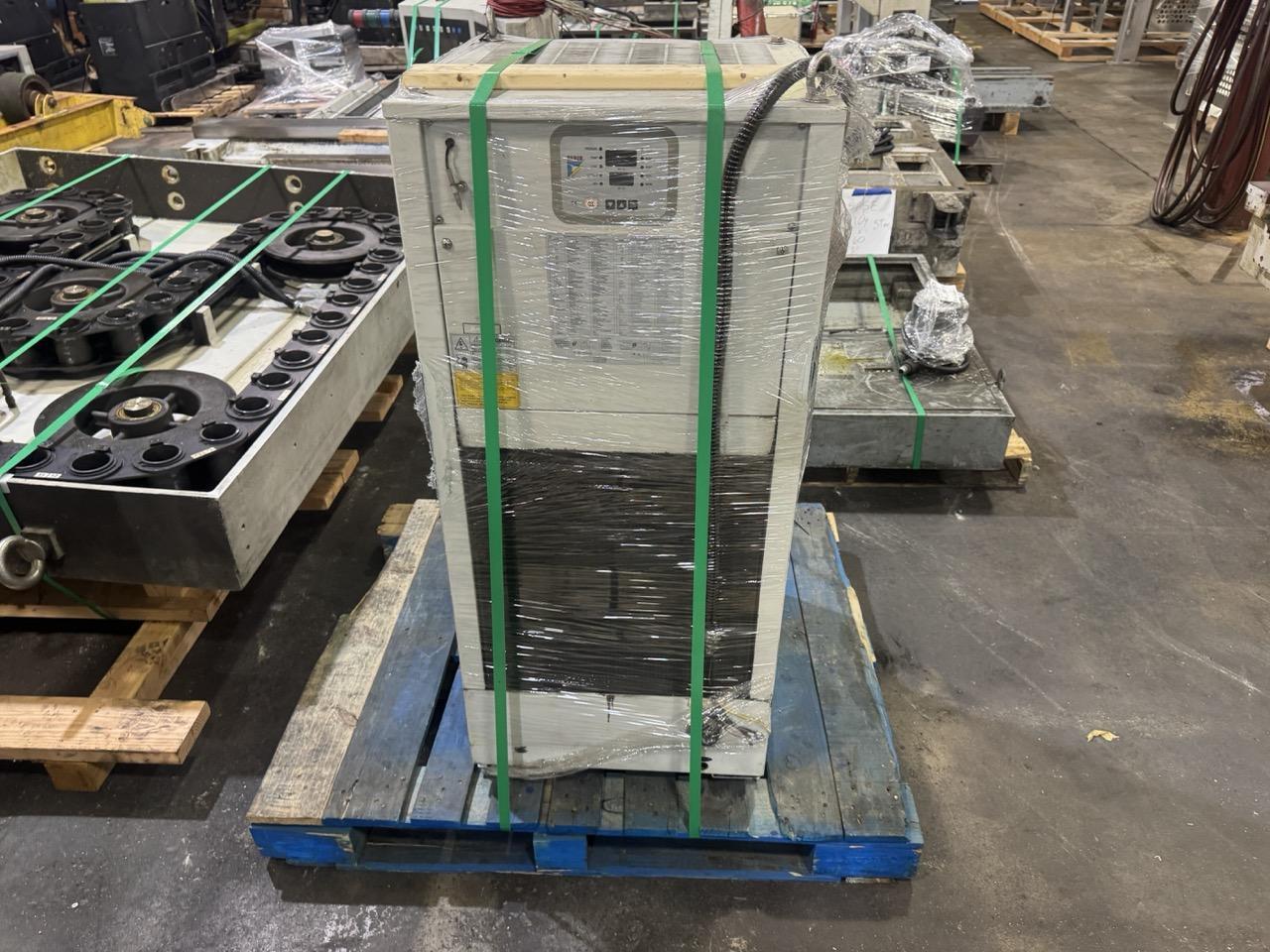

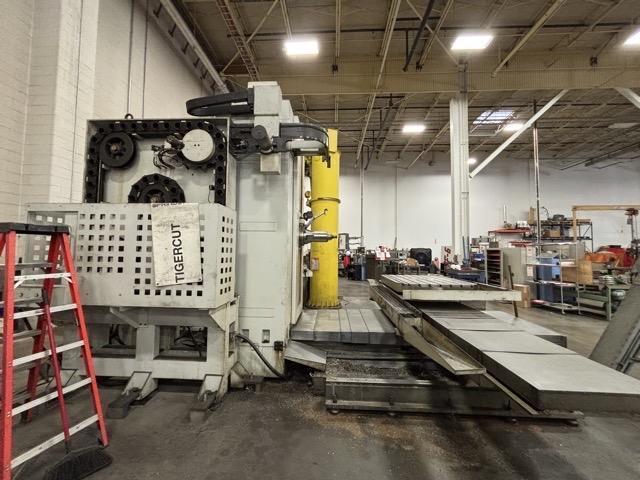

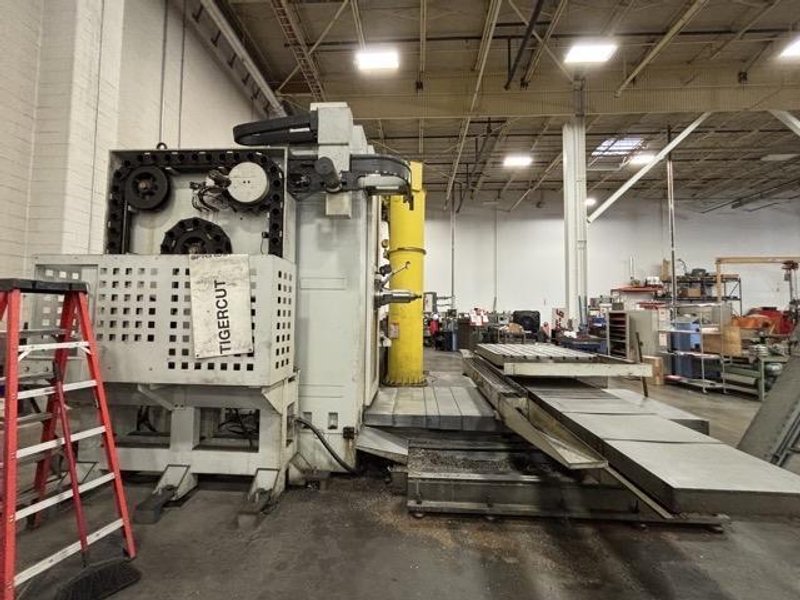

Microcut Challenger Tigercut HBM-4, 2007 – Right Angle Head, New Spindle Chiller, Fagor CNC Control, New Spindle Chiller.
Brand
Category
Model
HBM-4
Stock #
436273
Year
2007
Condition
Not specified
Location
Not specified
|
X axis travel 86.61”
Y axis travel 62.99”
Z axis travel 62.99”
W axis travel 21.65”
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table: 47.54”×59.05” Table max loading weight: 1100 lbs. Table index: 1° Spindle taper: ISO No.50 Spindle speed: 35~3000rpm Spindle step 2 steps(auto.) Quill diameter (W axis) Ø4.3” FEED X axis rapid feed 472.44”/min Y axis rapid feed 472.44”/min Z axis rapid feed 472.44”/min 3 axes cutting feed 39.37” ~ 196.85”/min B axis cutting speed: 11rpm ATC: 60 PC Max. tool diameter 4.92”/9.84” Max. tool length 11.81”300mm Max. tool weight 55.11 Lbs. Spindle motor: 25 hp All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Floor space: 185.63” x 296.96” x 145.90” Total weight: 49604.00 Lbs. All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
