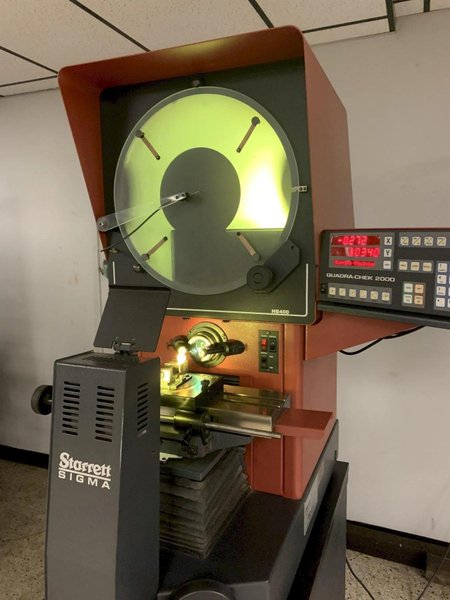

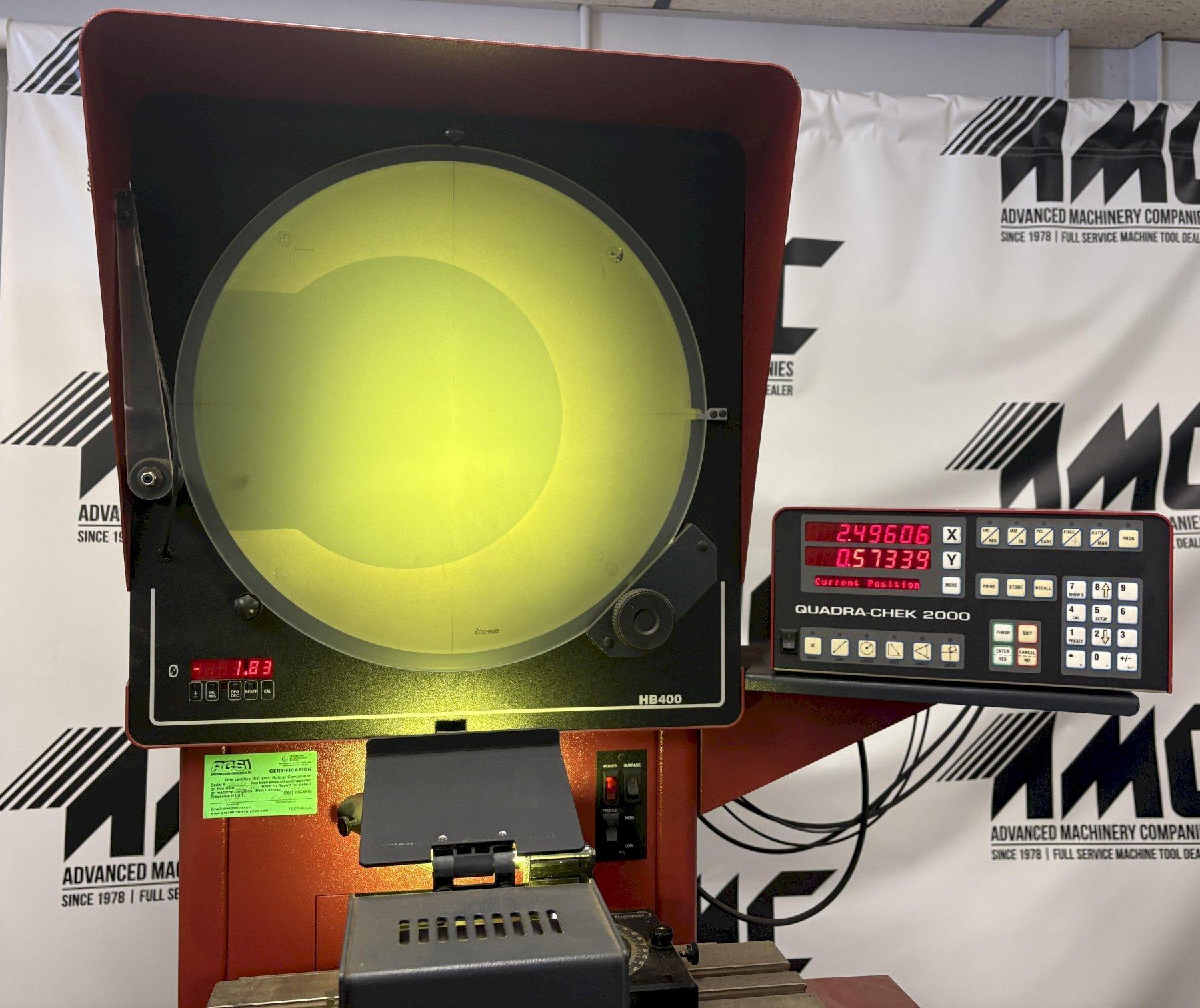

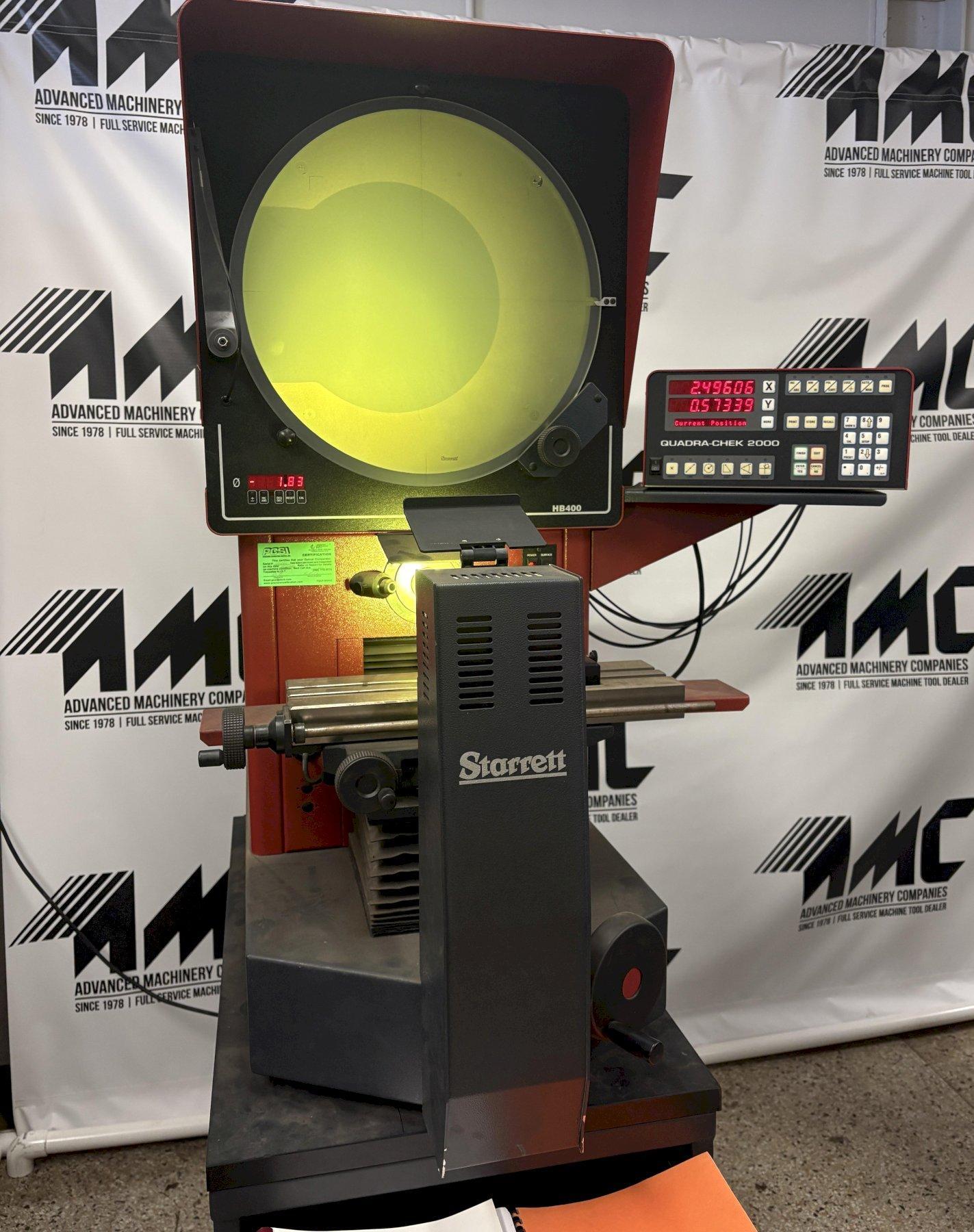

16" STARRETT Model HB400 Bench Top Optical Comparator with DRO, Edge
Brand
Category
Type
Model
HB400
Stock #
34993
Year
1999
Condition
Used
Location
Ohio
|
Specifications:

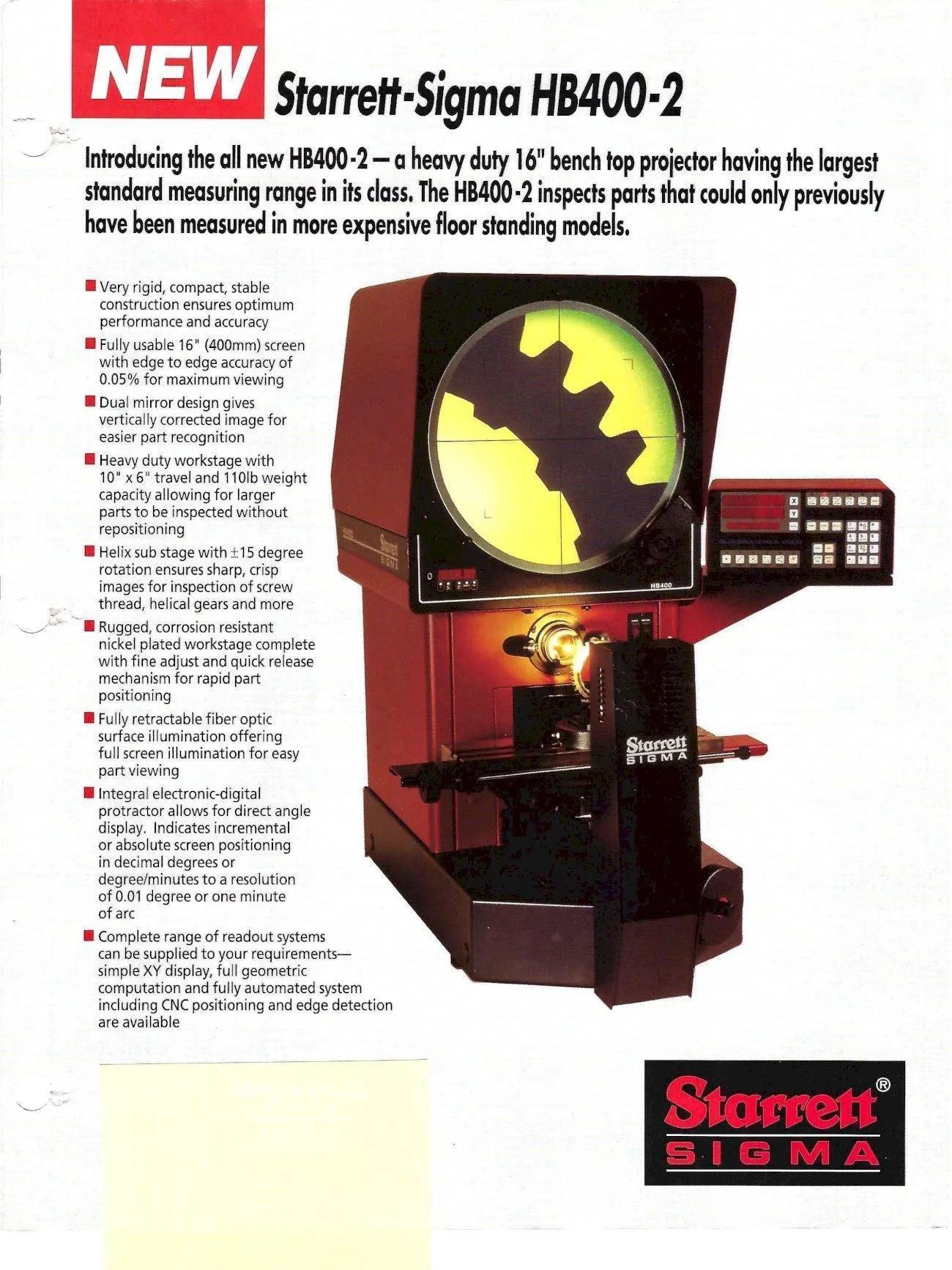

Screen Diameter Viewing Area - 16" Workstage Size - 17.75" x 4.75" Measuring Travels - 10" x 6" Focus Travel - 3" Table Load Capacity - 110 Lbs. Table Helix Adjustment - ± 15º Electrics - 1/60/115 V Dimensions - 22" x 44" x 37.2" Net Weight - 275 Lbs. Crated Shipping Weight, Approx - 540 Lbs. Equipped with: Quadra Chek 2000 Digital Readout Fiber Optical Auto Edge Detection Electronic Digital Protractor Display Fiber Optic Surface Reflection Quick Release Table for Fast Positioning (X-Axis) (1) 10x or 20x Mag Lens, customer preference Vertically Corrected Image New Glass Crosshair Chart with Chart Clips (install pending) Factory Stand Necessary Manuals included Notes: - Availability pending to allow for clean, service calibration. - Recommend buyer recalibrate after transport. - Specifications subject to independent verification by the buyer. - Factory Literature is for reference only. There may be discrepancies. - Buyer responsible for shipping. We can assist with quotes on request. - Advanced Machinery past sales of Starrett HB400 currently totals 37 machines. * The Starrett HB400 is one of our top selling units, known for it's exceptional 16" screen, precise measurement capabilities, robust work stage and reliable performance in demanding inspection applications. |
