USED SHARP 10" X 54" HEAVY-DUTY KNEE MILL MODEL TMV-K-N WITH 3-AXIS READOUT

USED SHARP 10" X 54" HEAVY-DUTY KNEE MILL MODEL TMV-K-N WITH 3-AXIS READOUT

Name: USED SHARP 10" X 54" HEAVY-DUTY KNEE MILL MODEL TMV-K-N WITH 3-AXIS READOUT
Brand: SHARP
SKU: 11285
Availability: InStock

Brand

SHARP

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Knee Mills

Manufacturer:

SHARP

Model:

TMV-K-N

Year:

2020

Stock #:

11285

Status:

For Sale

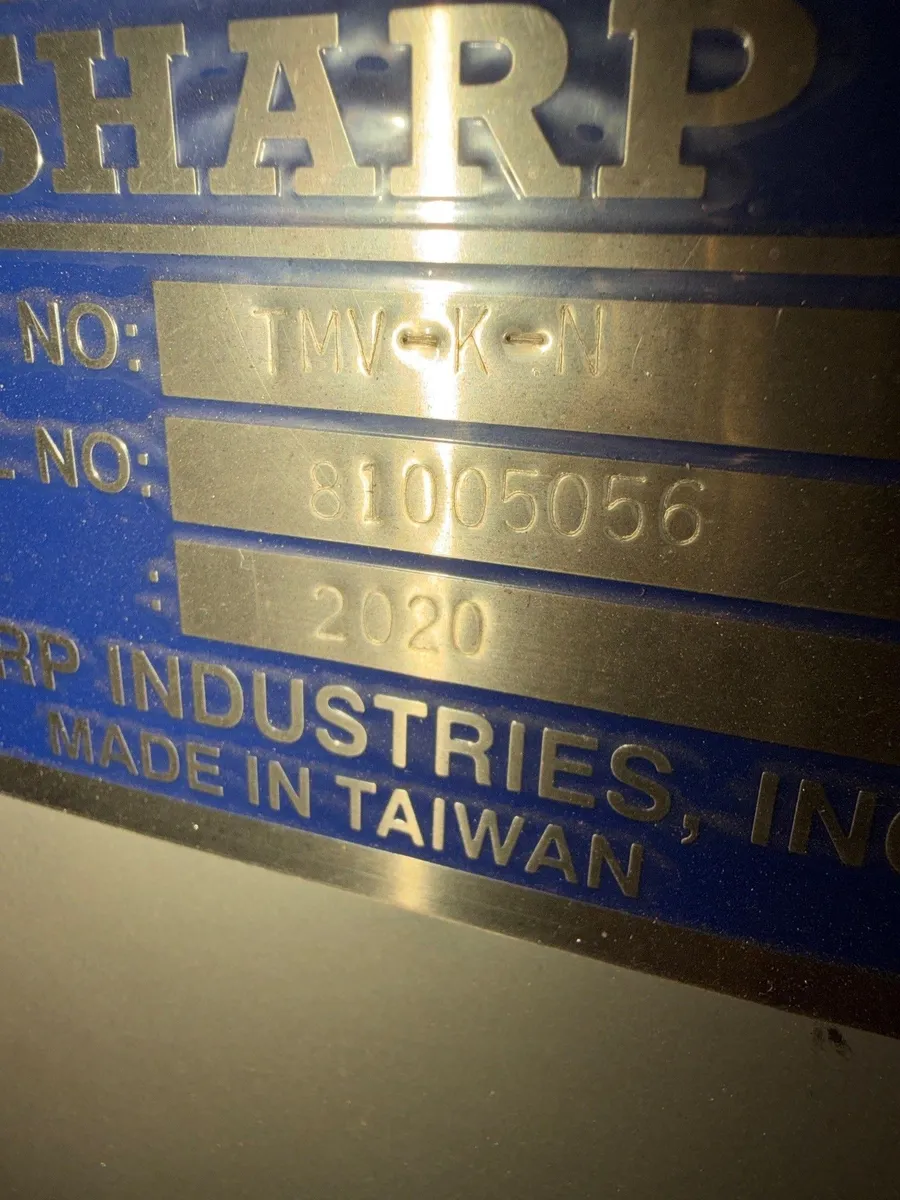

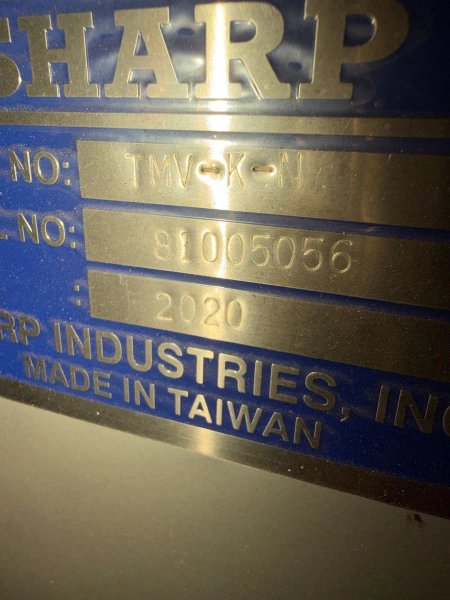

Serial #:

81005056

Description

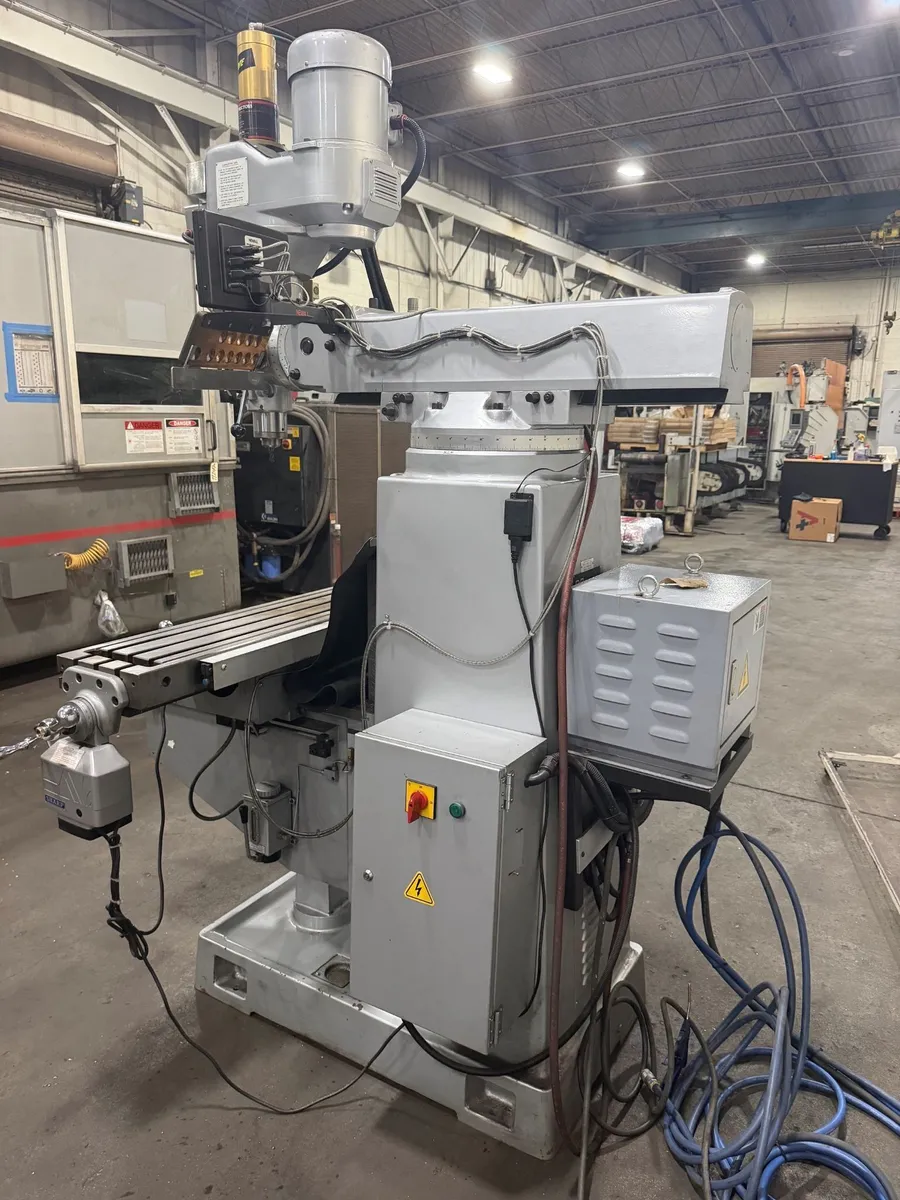

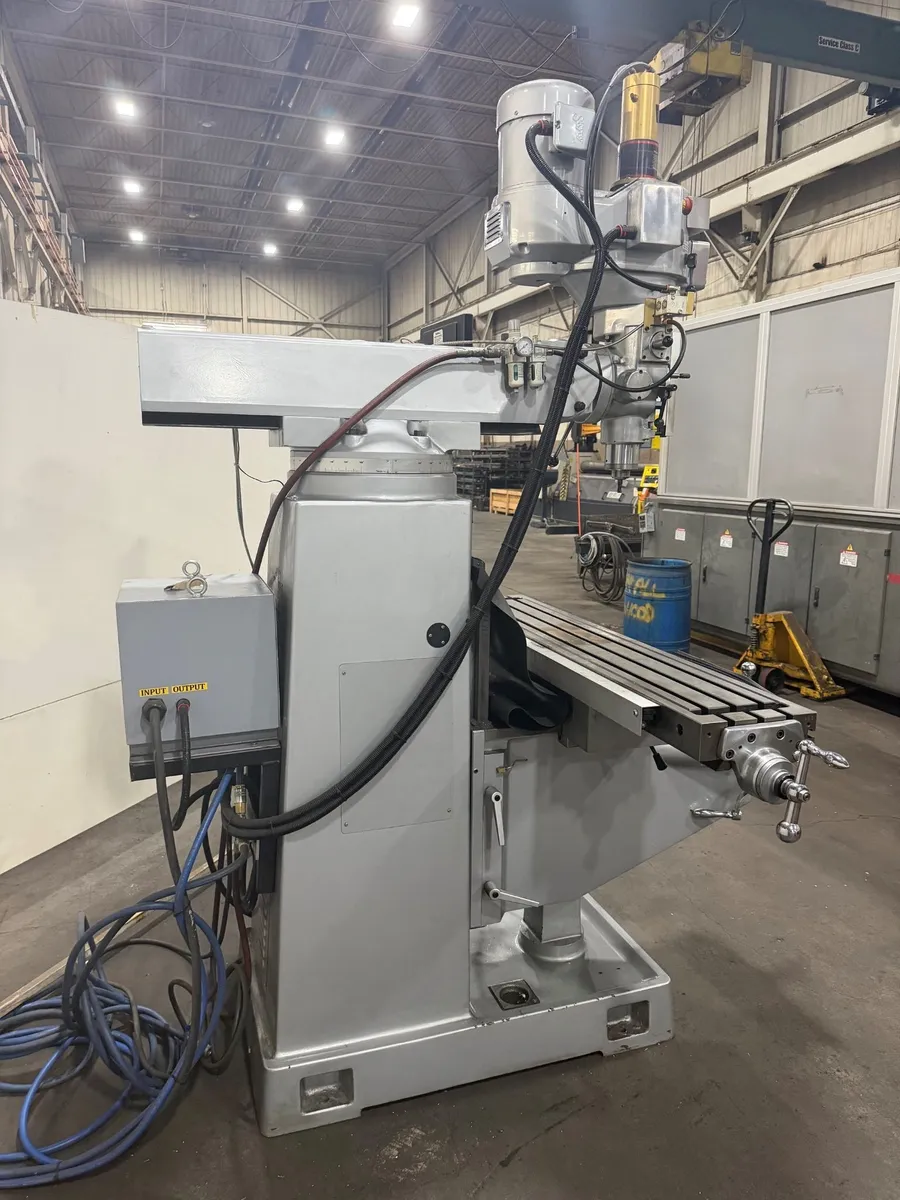

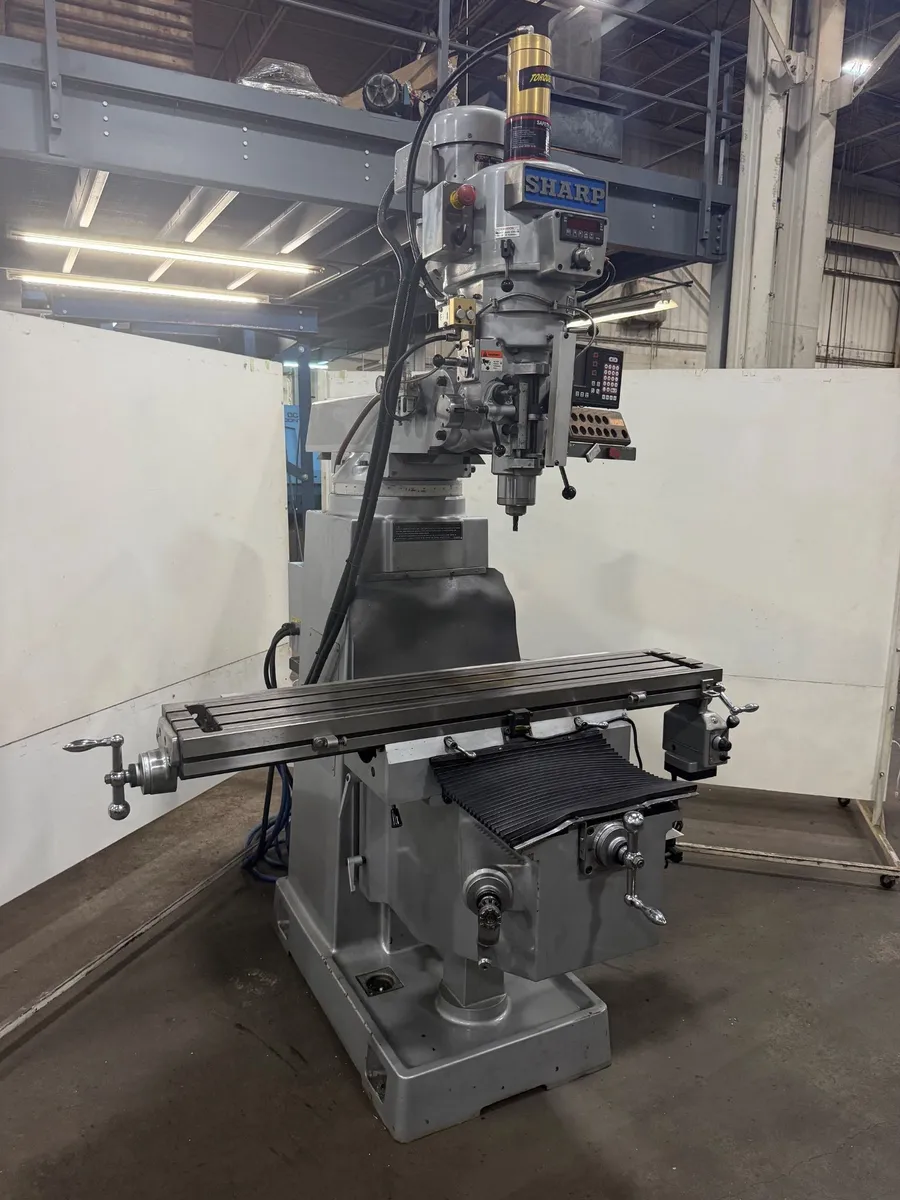

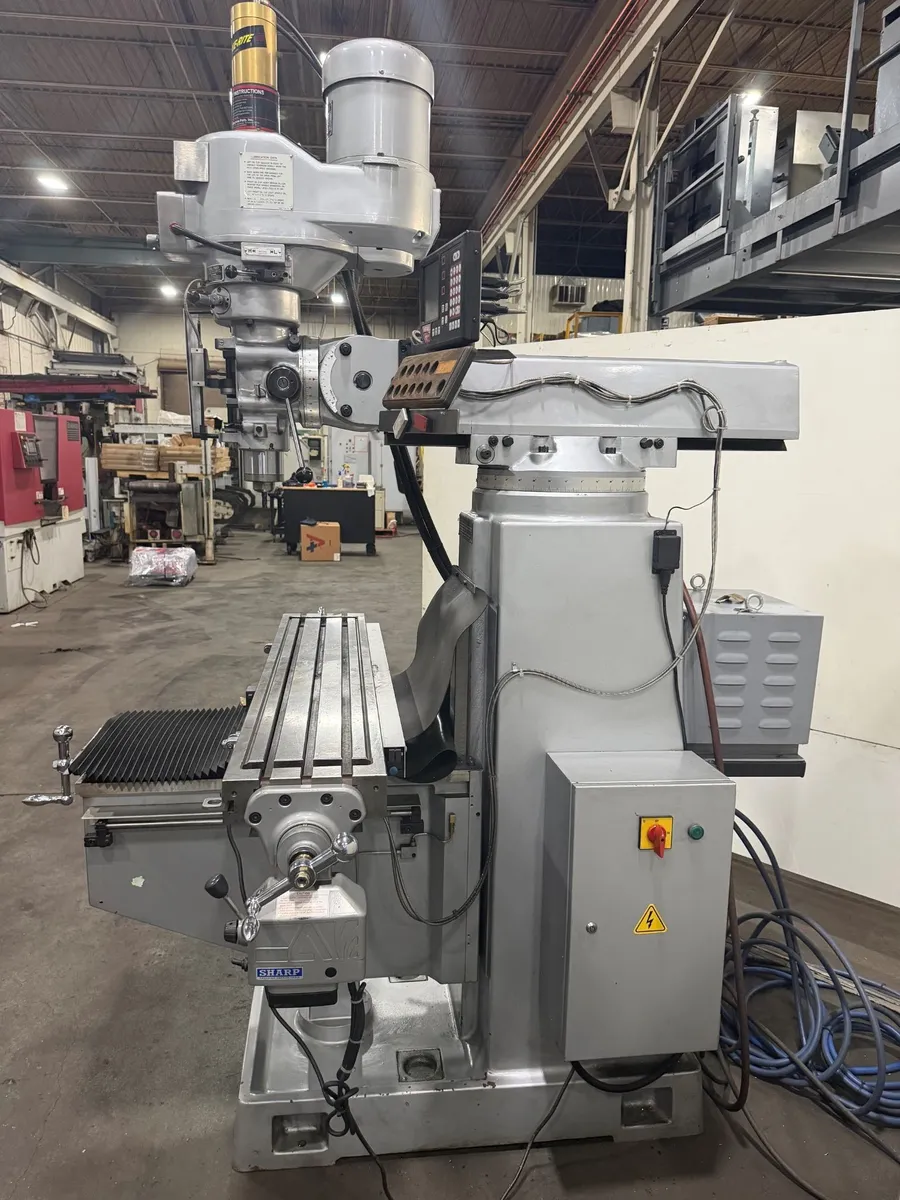

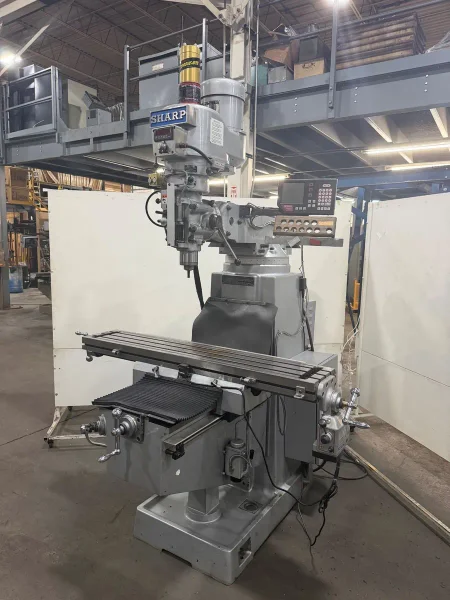

Used 2020 Sharp TMV-K-N Knee Mill featuring a 10" x 54" table, 3.375" quill diameter, 3-axis Newall NMS 300 digital readout, Maxi Torque-Rite power draw bar, variable speed, and powerfeed on X-axis. Enhanced with dual cooling fans and precision bearings.

ImperialMetric

Table-W	10"	254 mm
Table-L	54"	1,371.6 mm
Travel-Long	39"	990.6 mm
Travel-Cross	16.3"	414.02 mm
Power	3 hp	2.2 kW
RPM	0 RPM	0 RPM
Taper	R-8	R-8
Dimensions	70" x 71" x 94"	70" x 71" x 94"
Weight	3,000 Lbs.	3,000 Lbs.

Brand: Sharp
Model: TMV-K-N

Specifications:

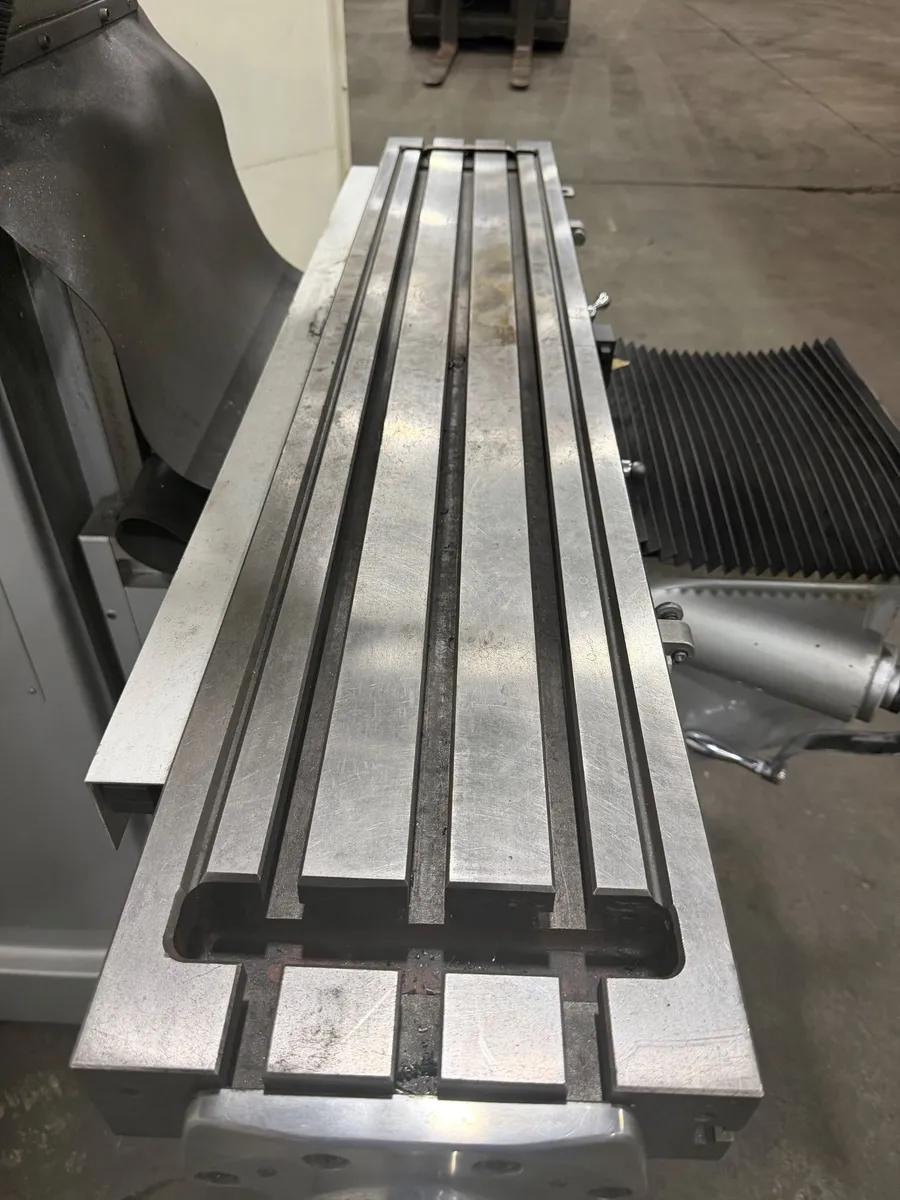

Table Size: 10 x 54 in.
T-Slots (No., Size, Pitch): 3, 5/8, 2.5 in
Table Travel X: 39 in.
Tabe Travel Y: 16.3
Quill Travel Z: 5 in.
Ram Travel: 18.5 in.
Knee Travel: 15.3 in.
Spindle Center to Column: 9.8 – 28.3 in.
Spindle Nose to Table Top: 5.375 x 16.9 in.
Spindle Nose Taper: R-8
Spindle Variable Speed Range: 60-4500 rpm
Quill Feed (Inch/Min) (3 speeds): .0015, .003, .006 in.

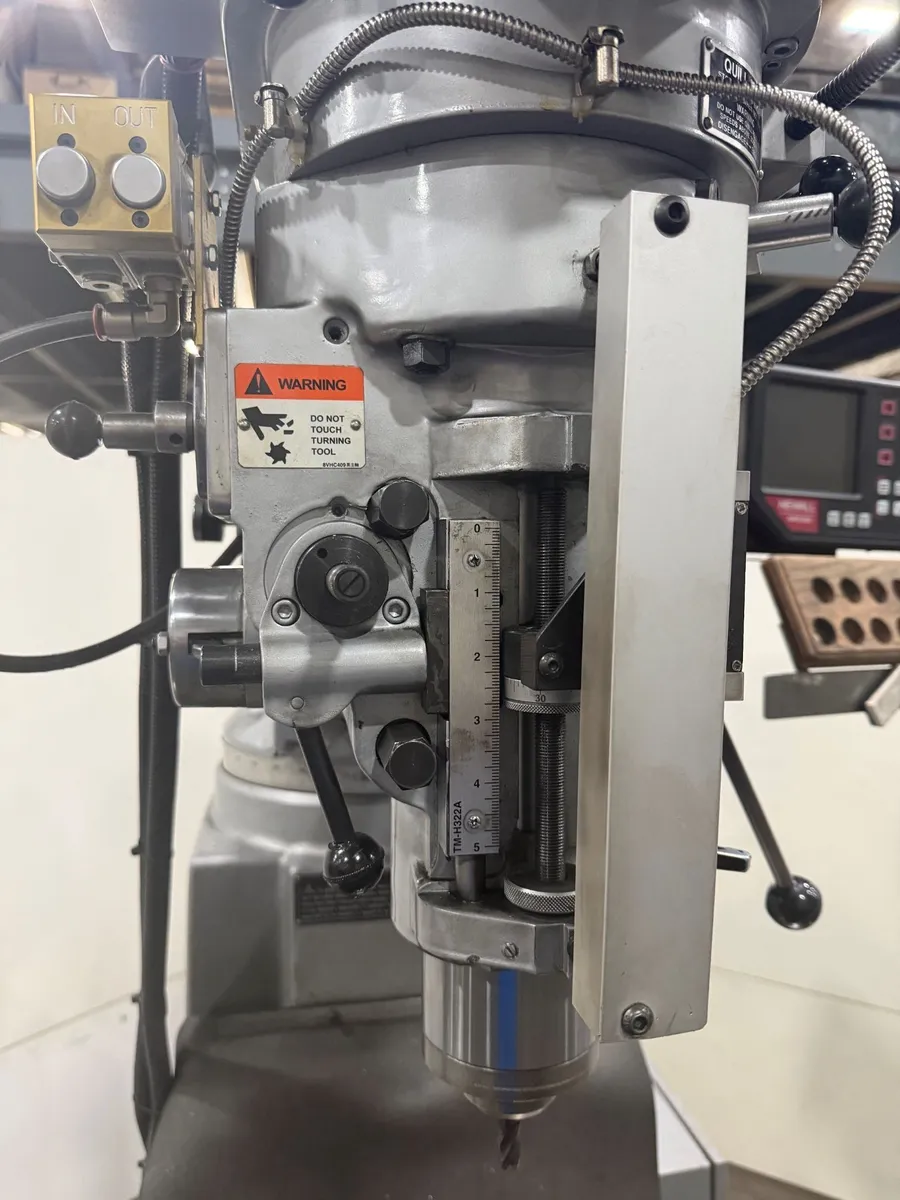

Quill Diameter: 3.375 in.
Head Tilt Angle (L/R): 90°
Head Tilt Angle (Up/Down): 45°
Spindle motor: 3 H.P.
Voltage: 220 / 440 volt 3-phase
Dimensions: 70" x 71" x 94"
Weight: 3,000 Lbs.

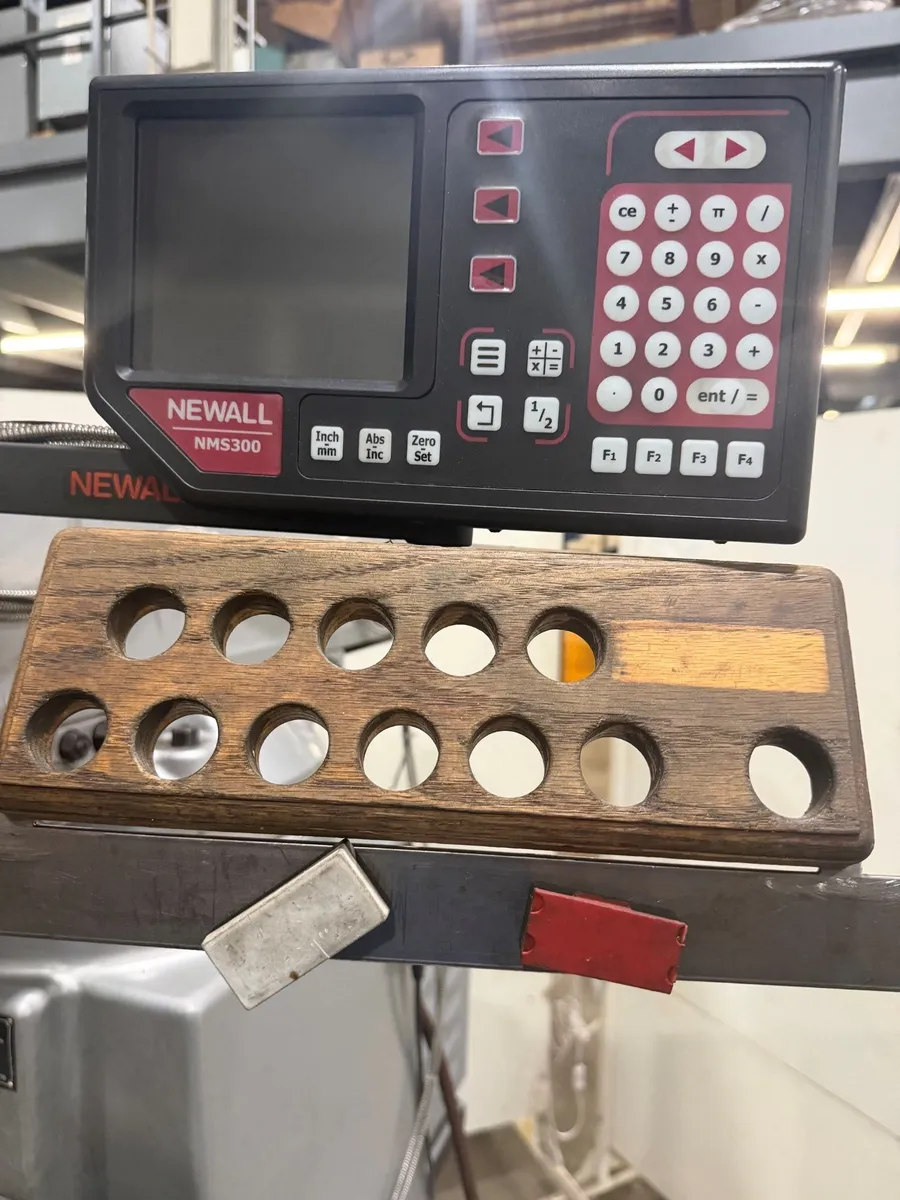

Newall NMS 300 3-axis digital readout
Maxi Torque-Rite power draw bar

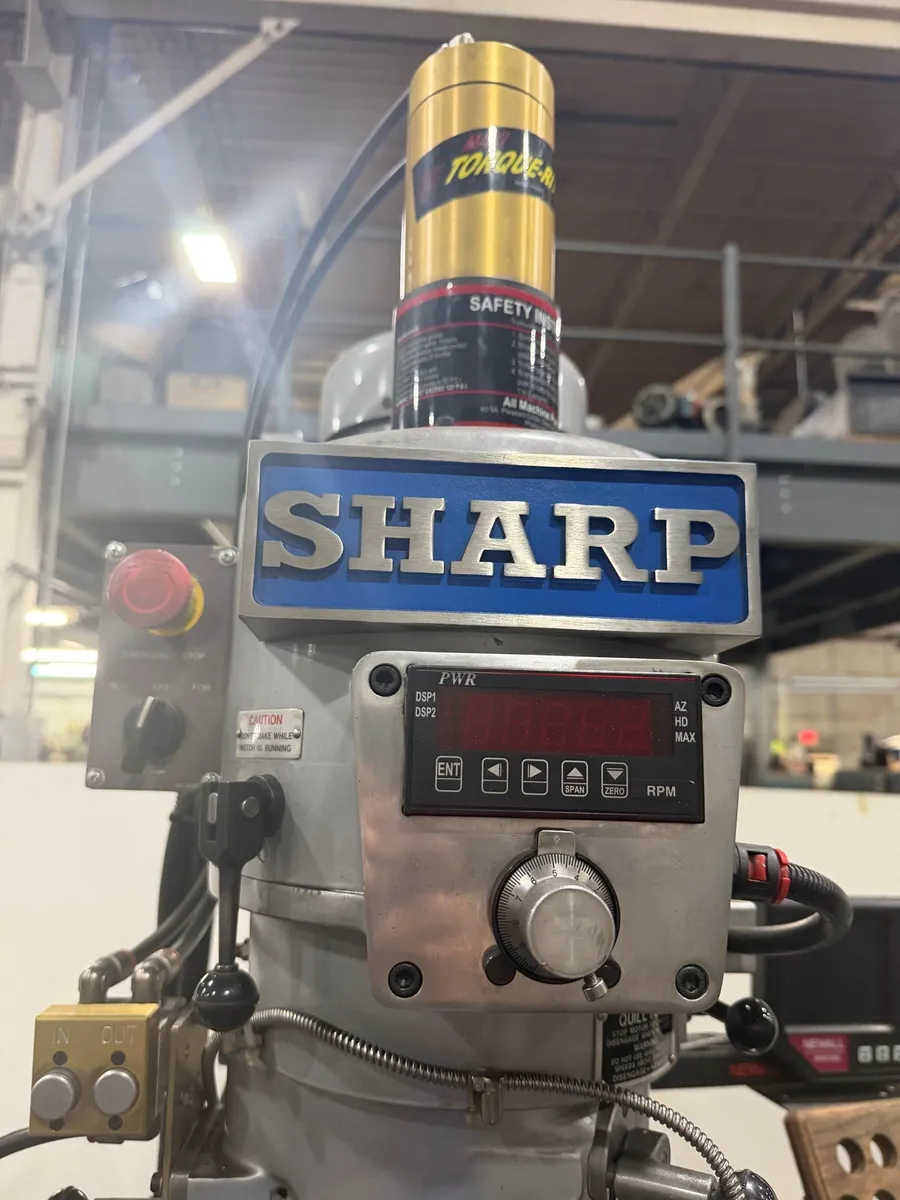

Variable speeds with knob adjustment and digital RPM readout

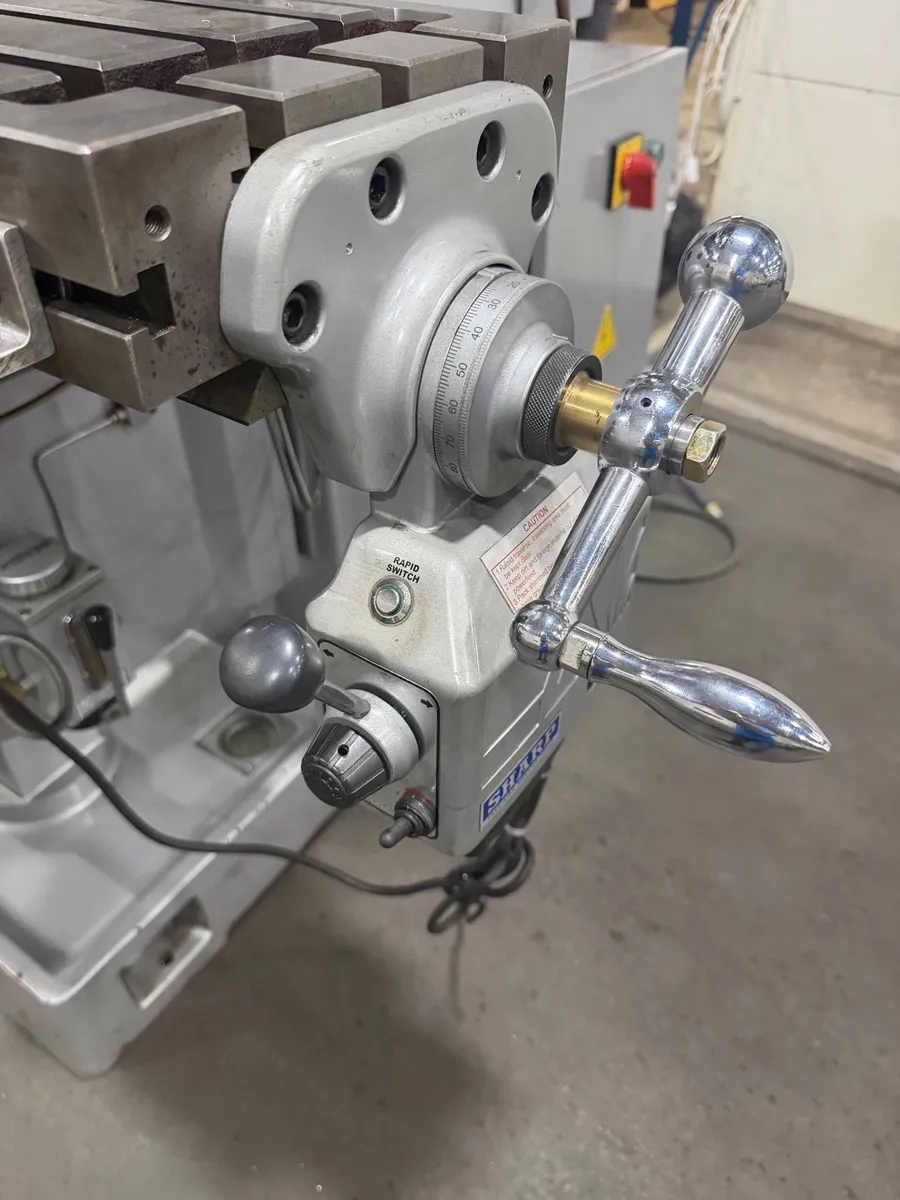

Powerfeed on X-axis

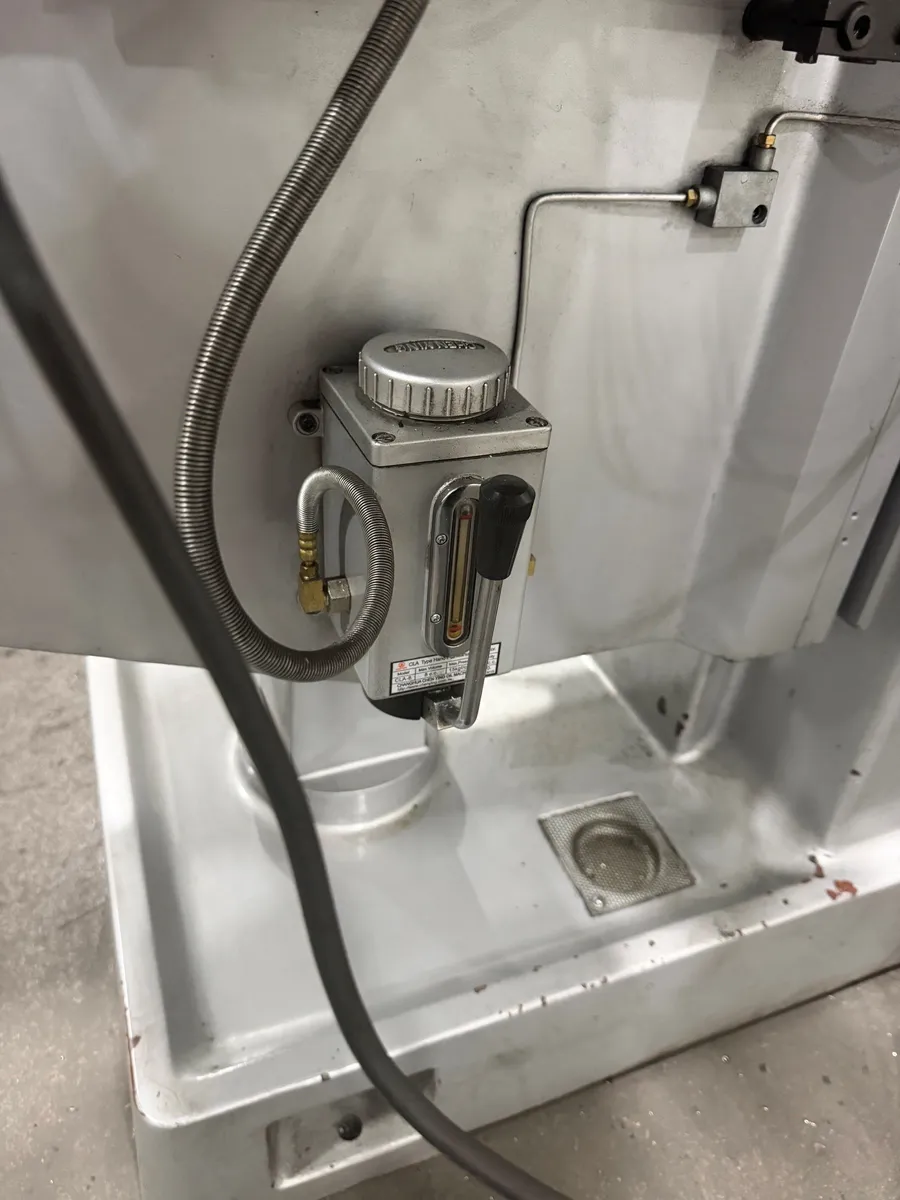

One shot lubrication system
Front and Rear Rubber Way Covers
Hardened & ground box ways on column and saddle
Dual cooling fans
Meehanite castings
Self-lube motor shaft
Super precision spindle bearings
Turcite Coated saddle ways
External transformer

No files or videos to display
