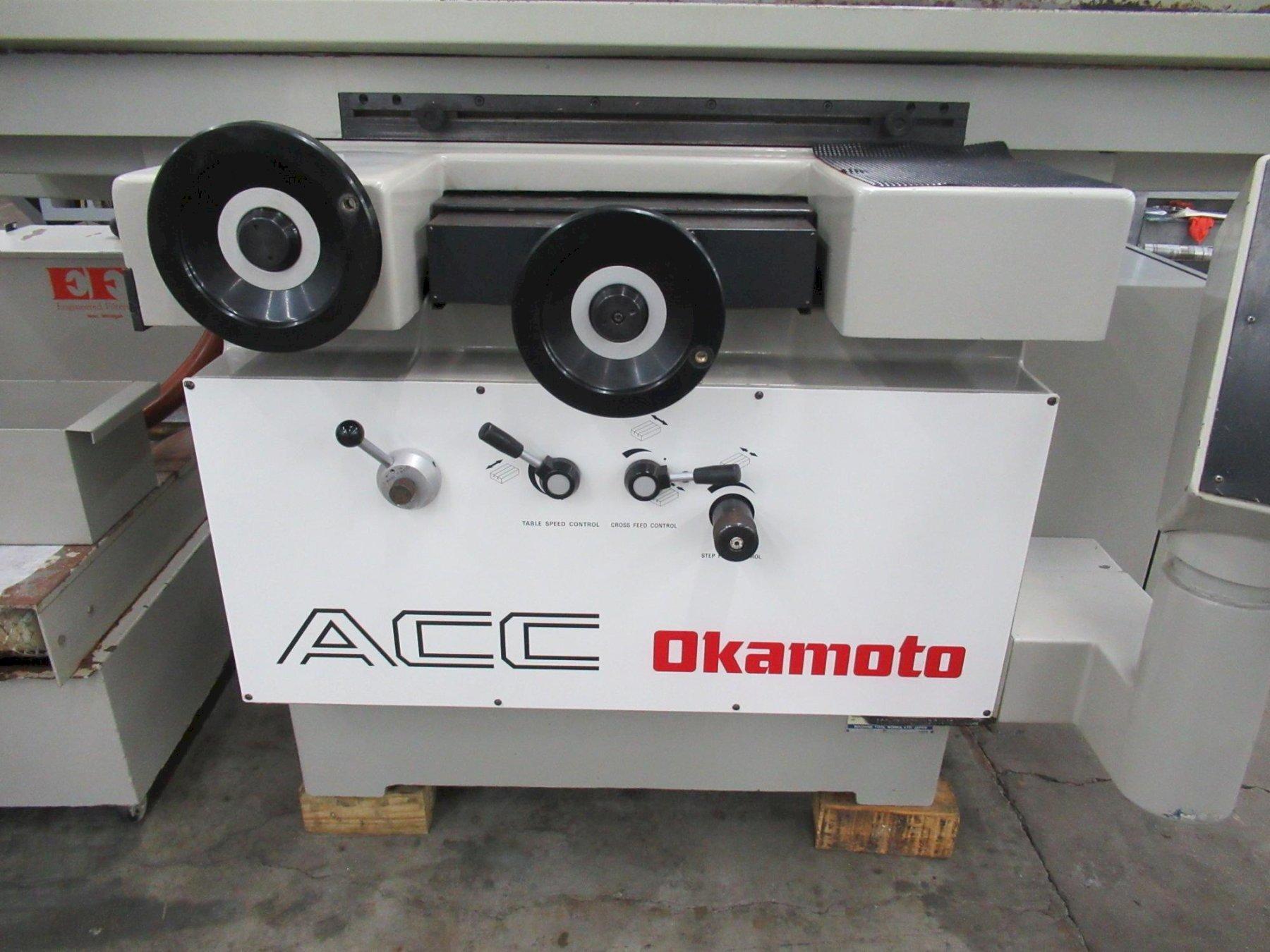

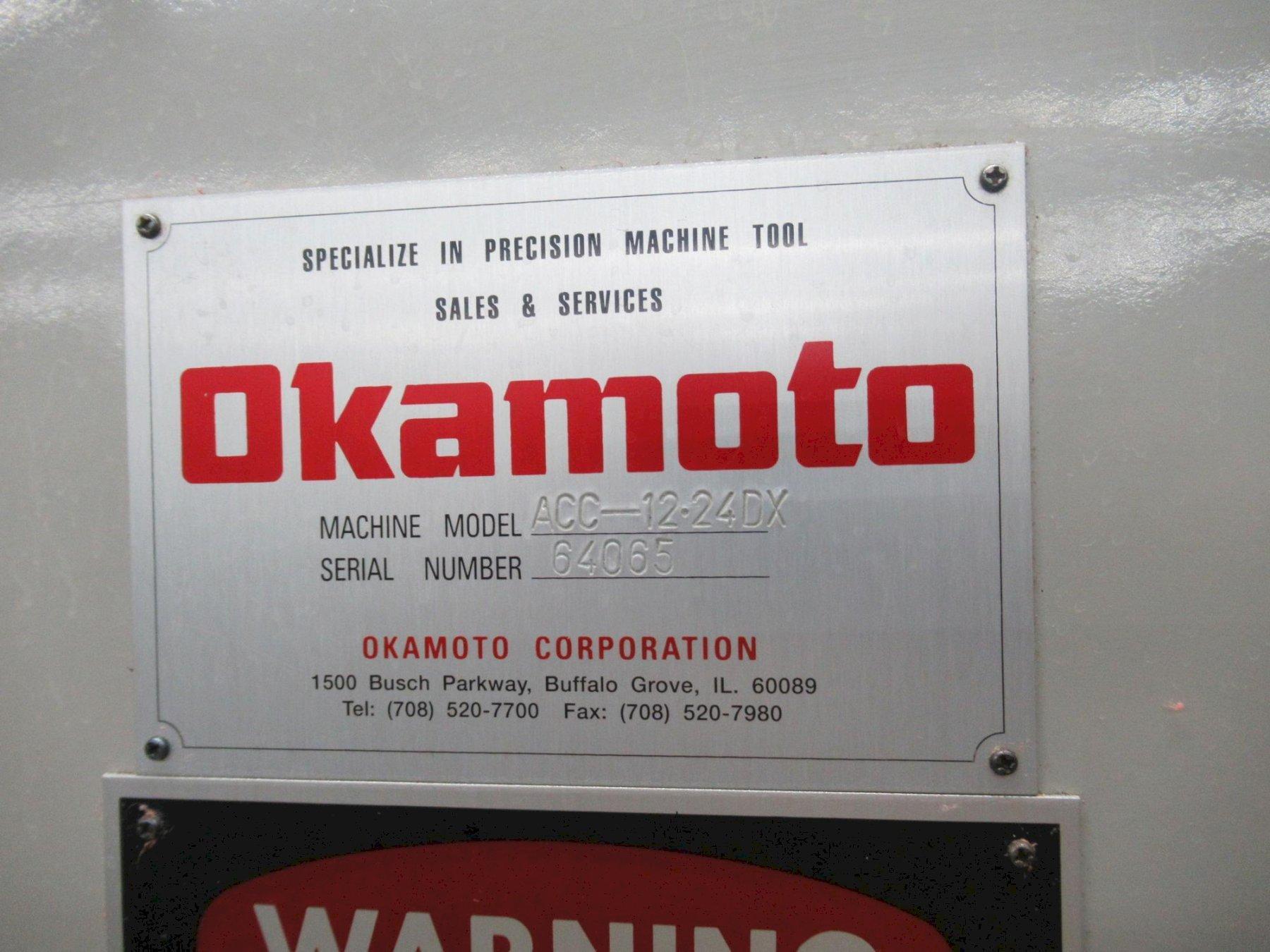

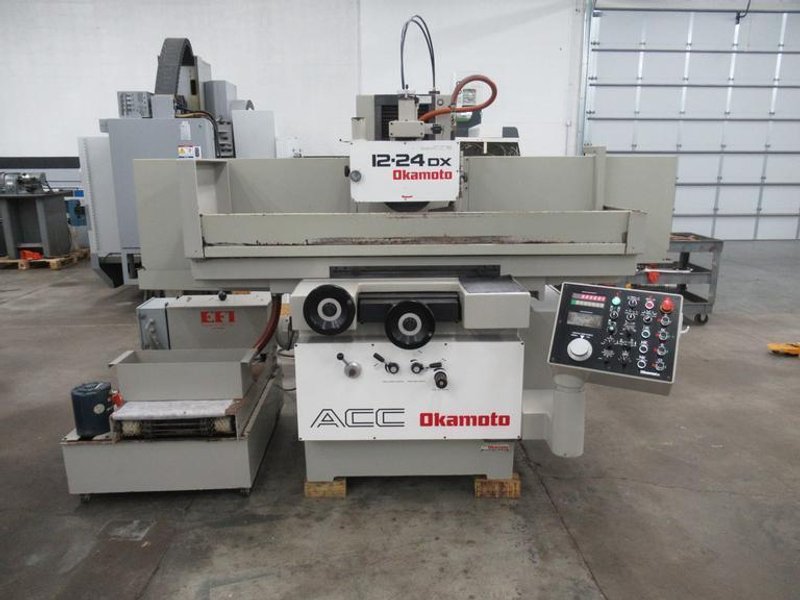

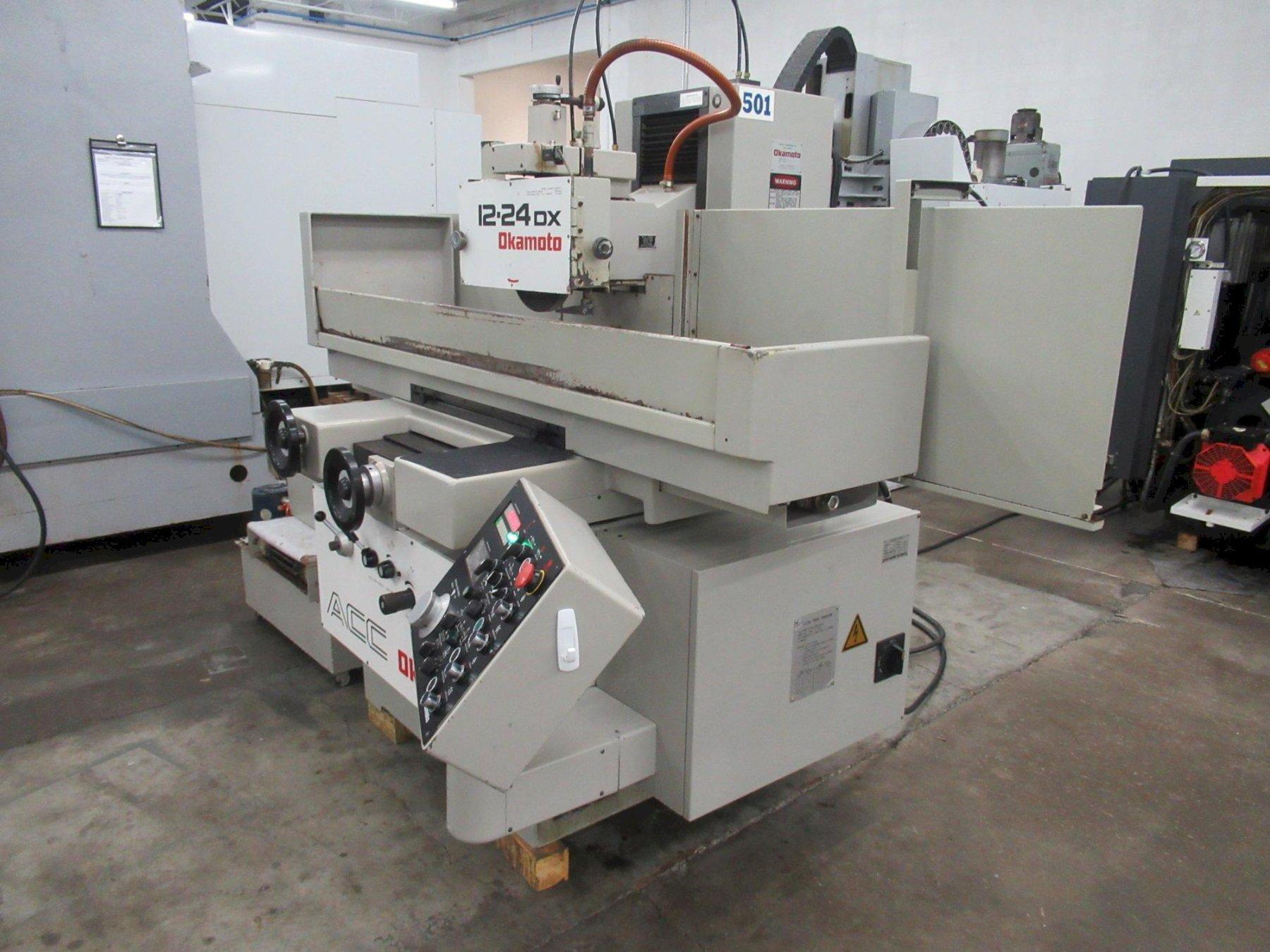

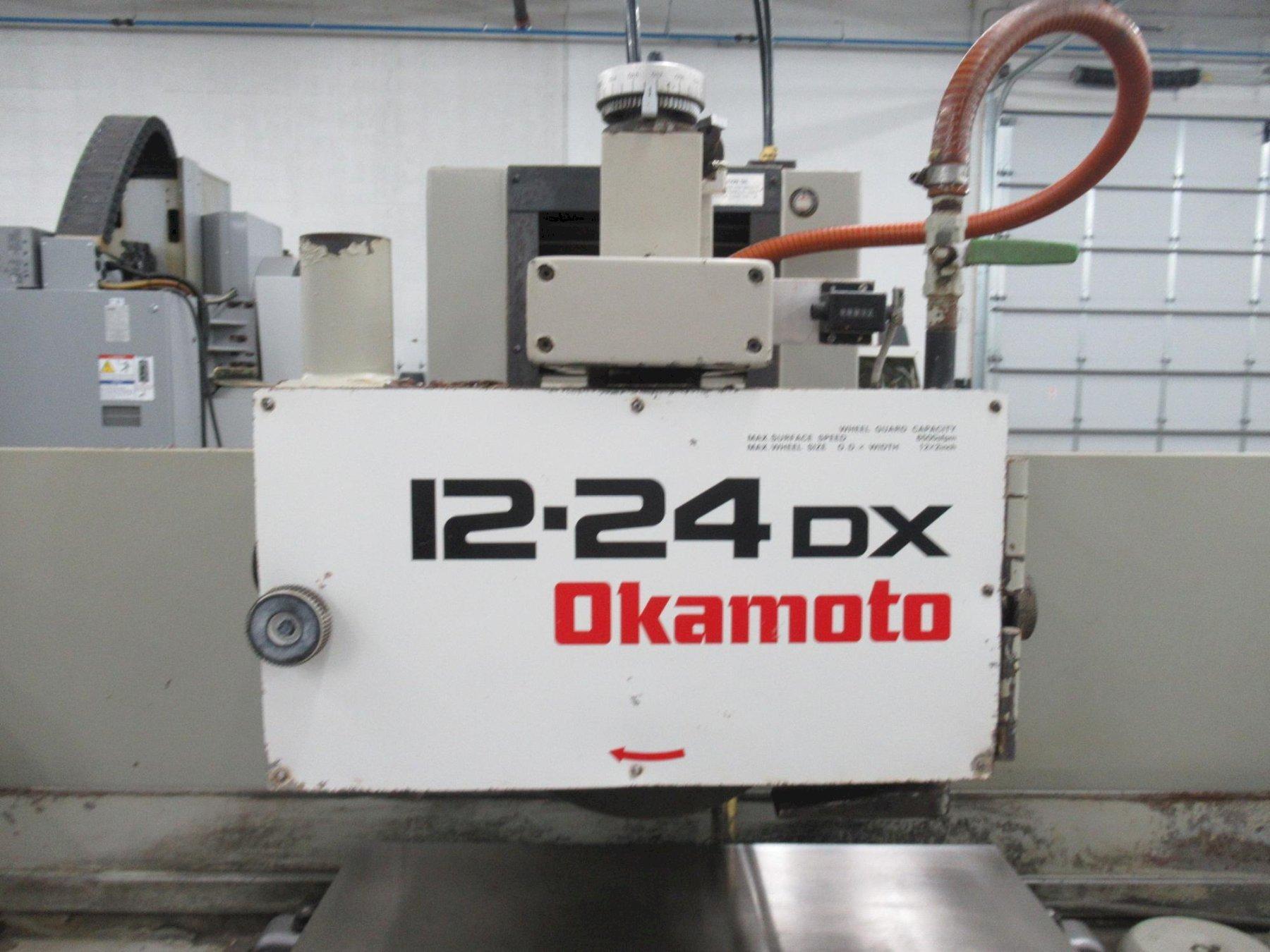

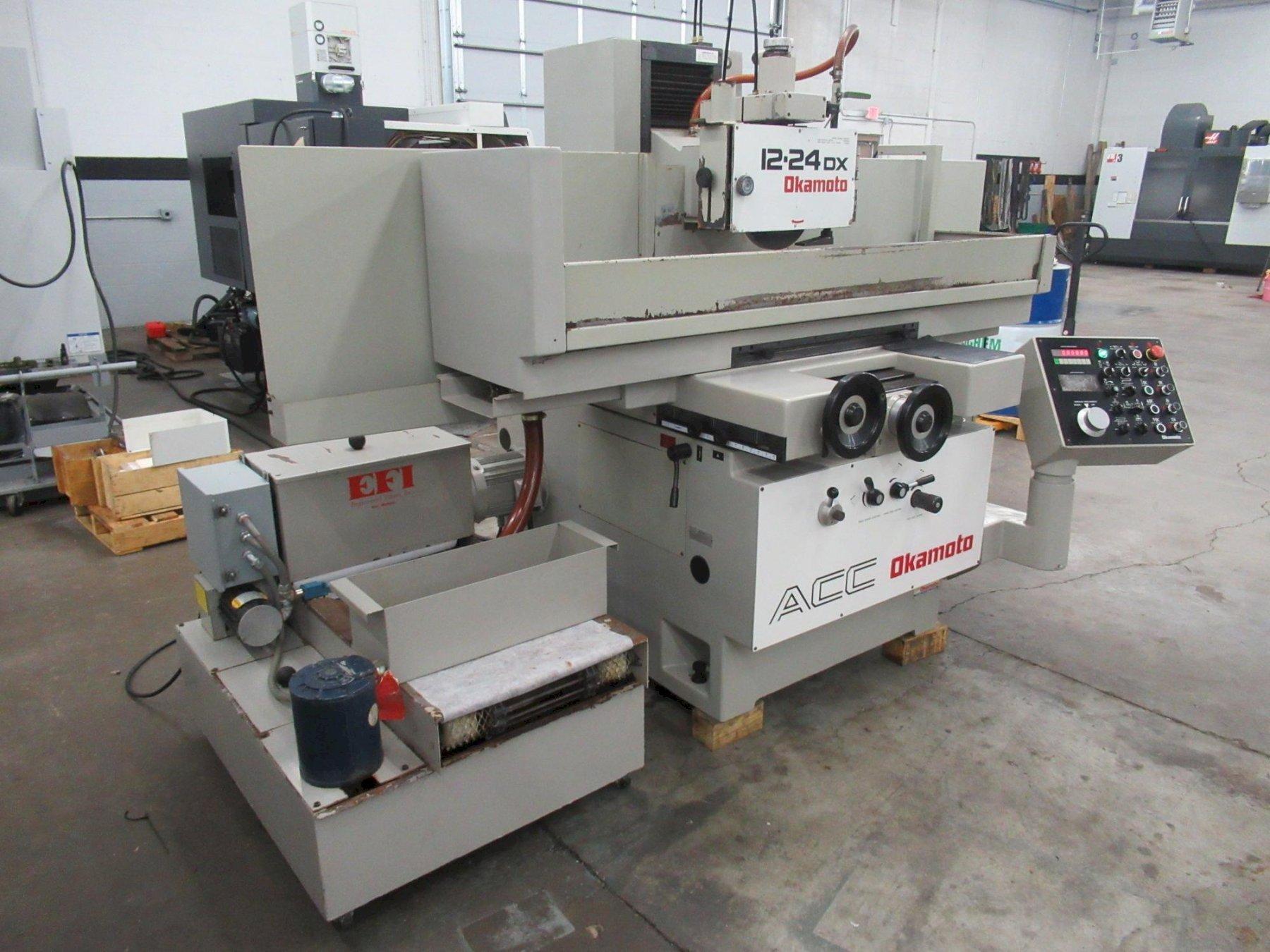

Okamoto ACC-12.24 DX Automatic Surface Grinder, 12"x 24", Incremental Downfeed, Over Wheel Dresser, Coolant
Brand
Category
Model
ACC 12.24DX
Stock #
7403
Year
1996
Condition
Not specified
Location
Not specified
|

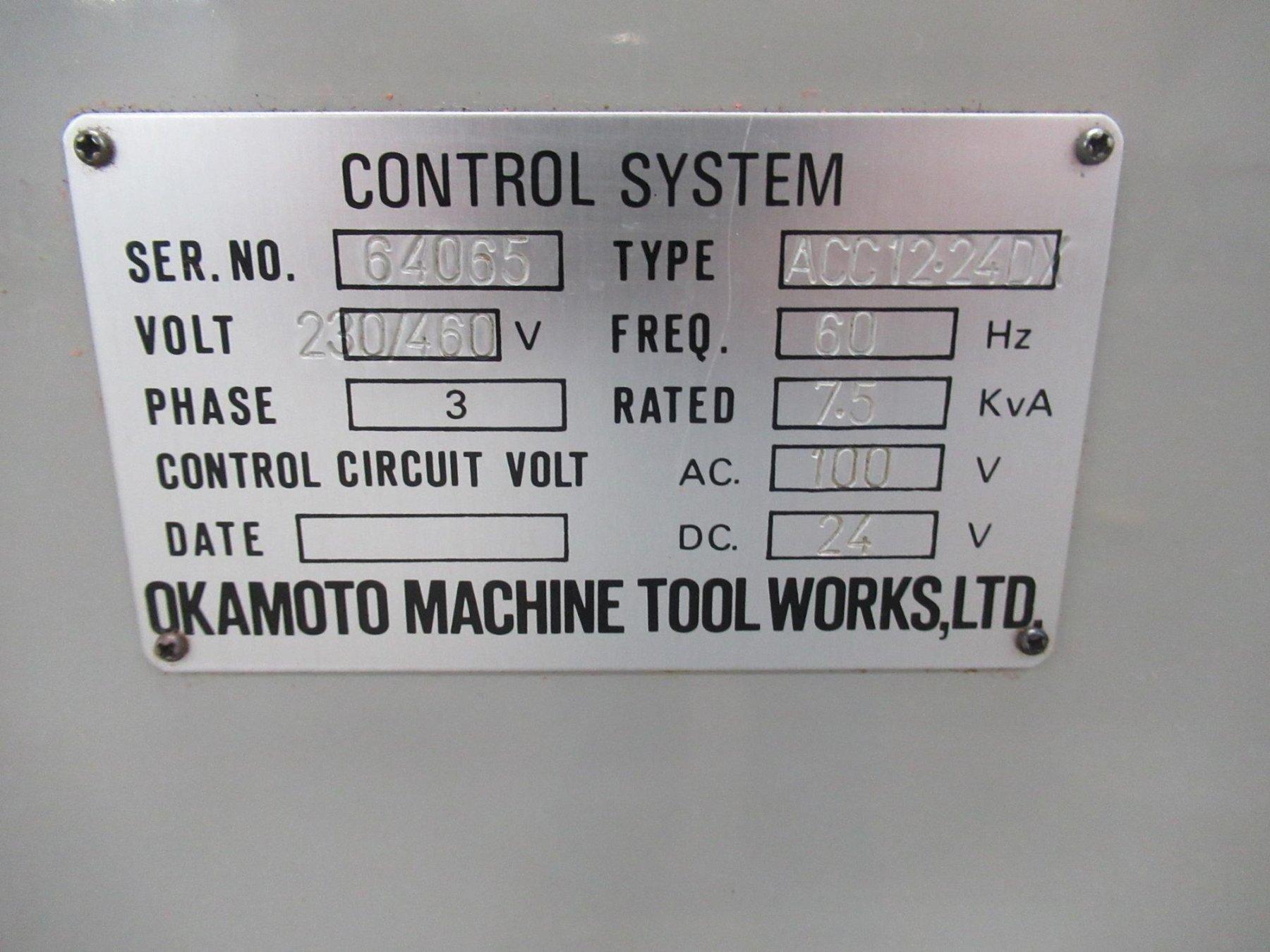

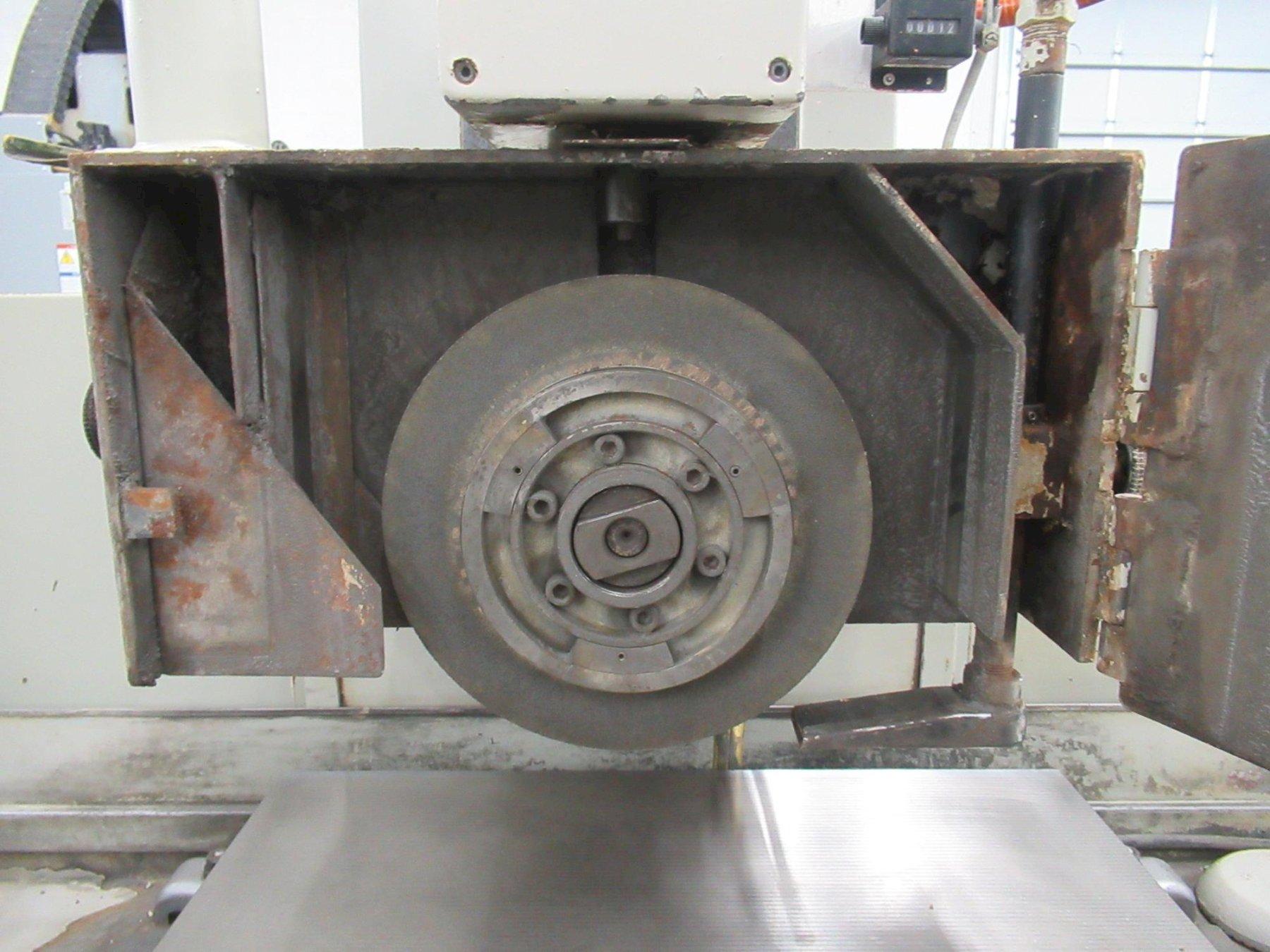

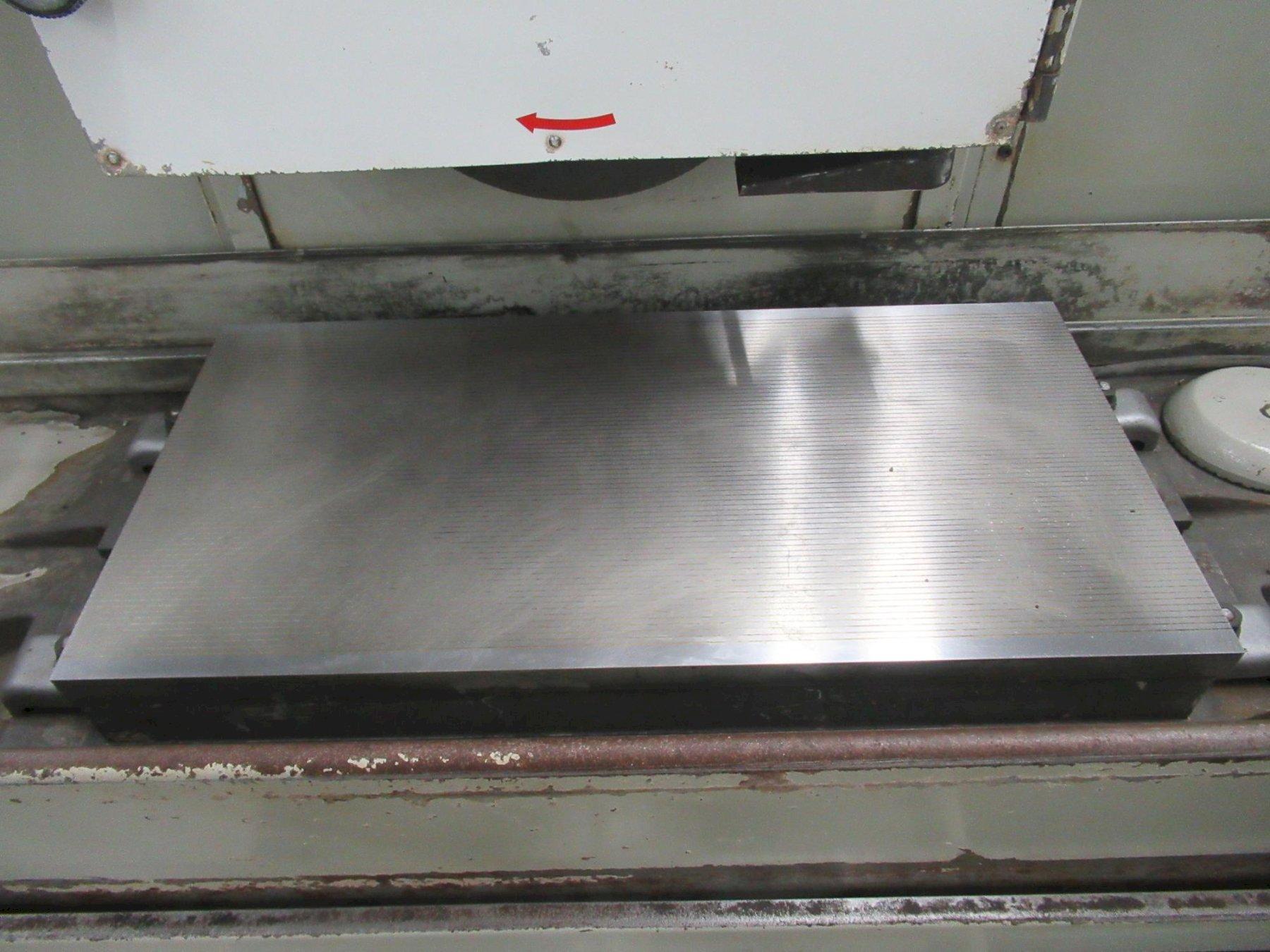

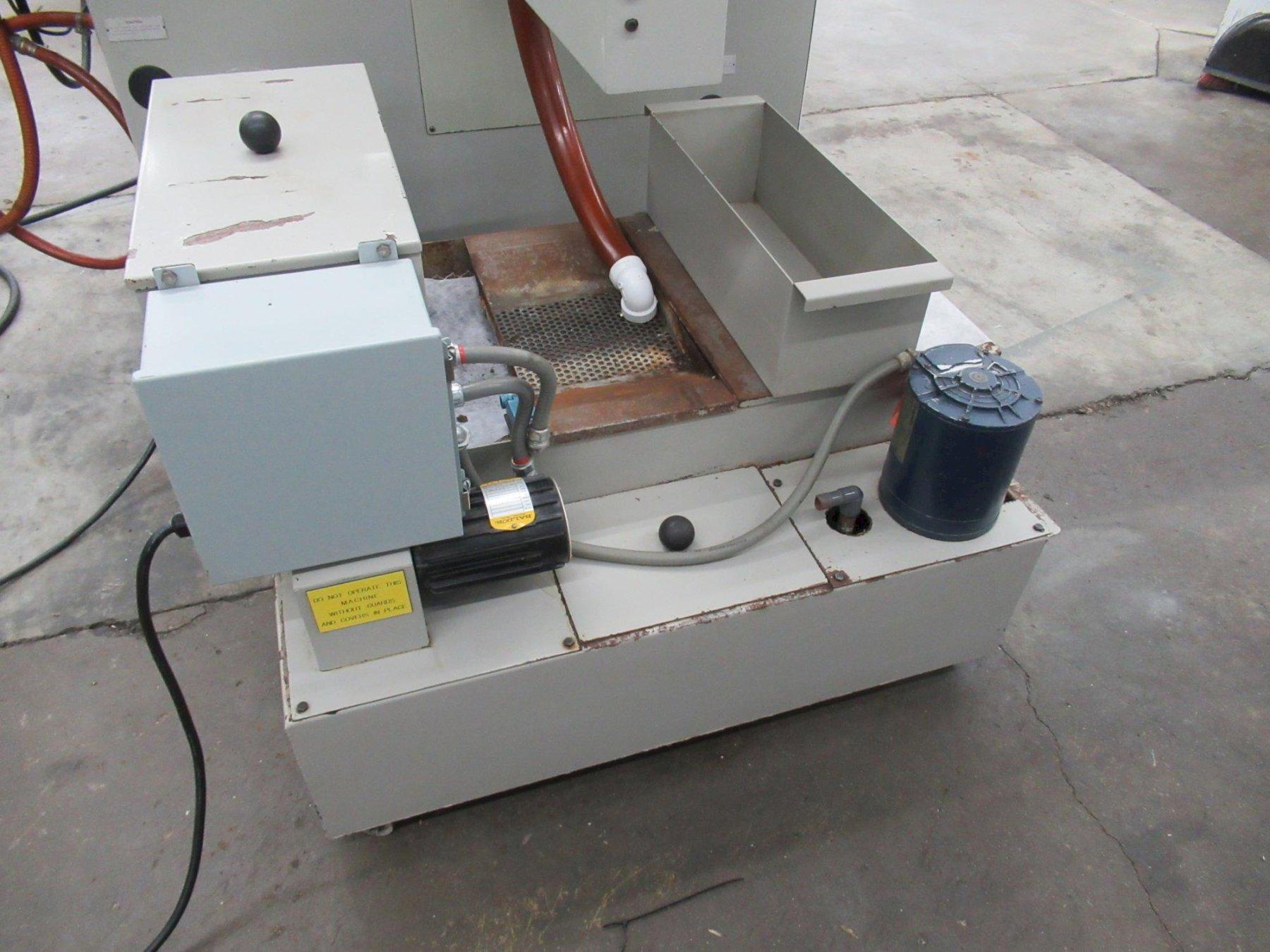

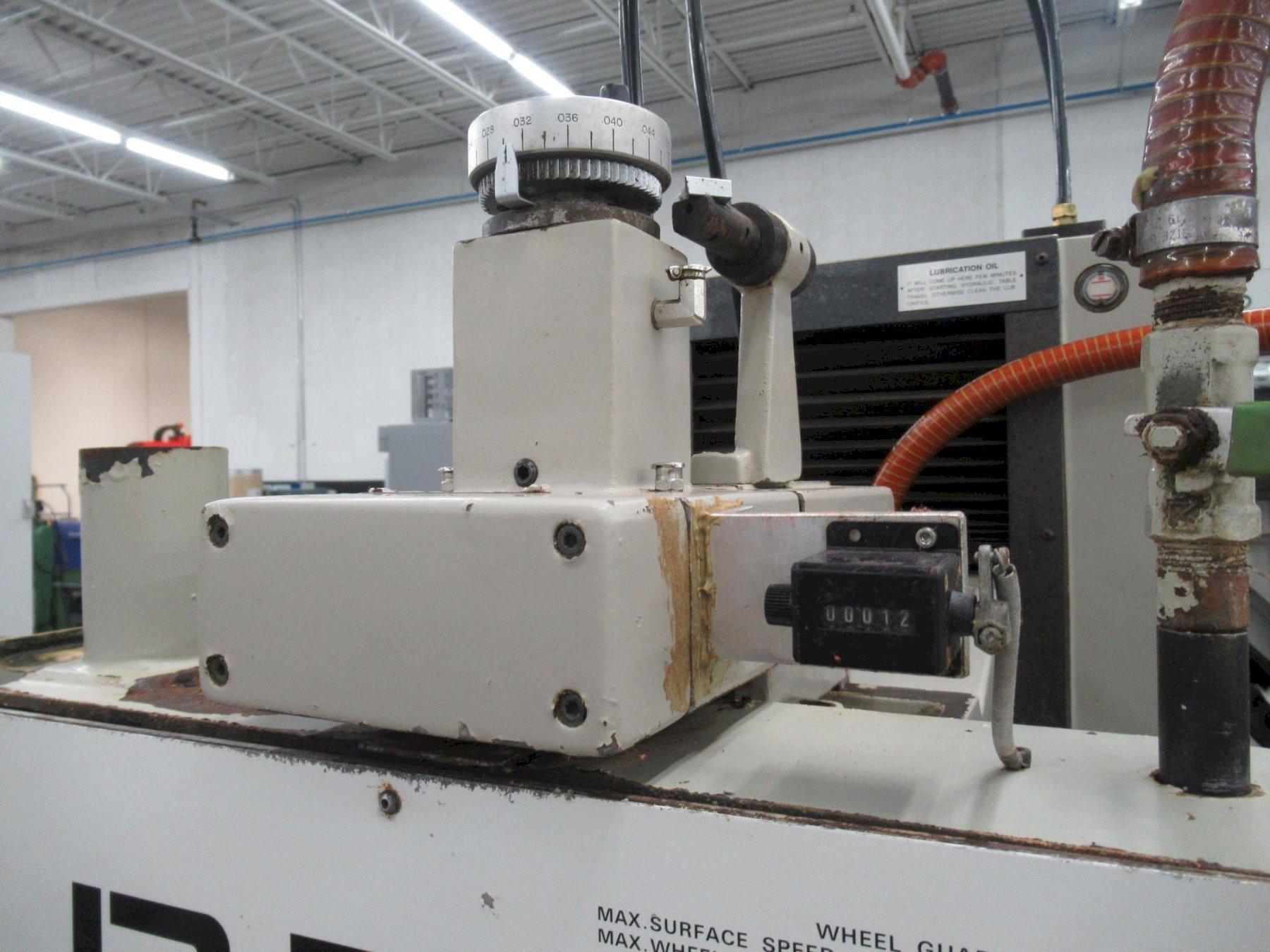

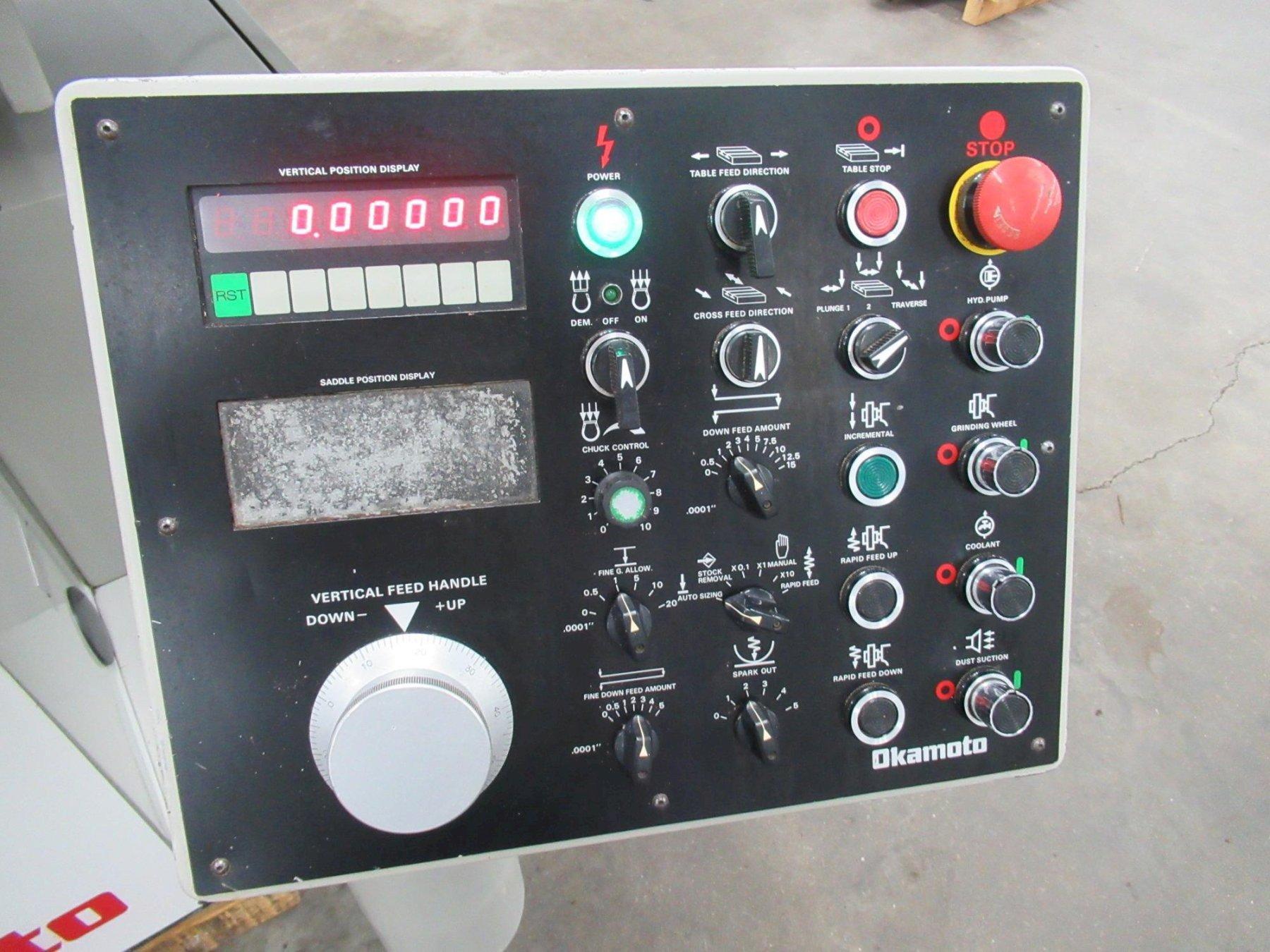

Table Working Surface: 12" x 24" Max Chuck Size: 12" X 24" Max Table Movement (Manual): 29.5" Max Distance Spindle / Wheel to Table: 13.6" Max Table Load (Including Chuck): 925 Lbs. Wheel Speed: 1,800 RPM Auto Longitudinal Feed Rate: 3 - 82 FPM Max Wheel Size : 14" Diameter (12" x 1.5" x 1" STD) Hydraulic Motor: .010 - 40 Feet Per Minute Auto Wheelhead Downfeed Increments: .0005" - .0015" Spindle Drive: 5 HP Rapid Wheelhead Feed Rate: 40 IPM Description: The Okamoto ACC-122.24DX is a high-precision surface grinder known for its large capacity, heavy-duty construction, and exceptional accuracy. Ideal for toolrooms and production environments, this model features double column support and digital controls for reliable performance. Available now at Machinesused.com Equipped With: 3-Axis Automatic with Servo Incremental Downfeed, 12" x 24" Fine-Pole Long-Pole Electromagnetic Chuck, LED Readout for Vertical Feed, Wheel Hub and Nut, Coolant System with Paper Filtration, Instruction Manual, Tool Box and Leveling Pads Electrics: 230/460 Volt, 3 Phase |
