Custom Metalcraft TranStore 720 Gallon 304 Stainless Steel Jacketed Process Tank, 2014- 6 Total

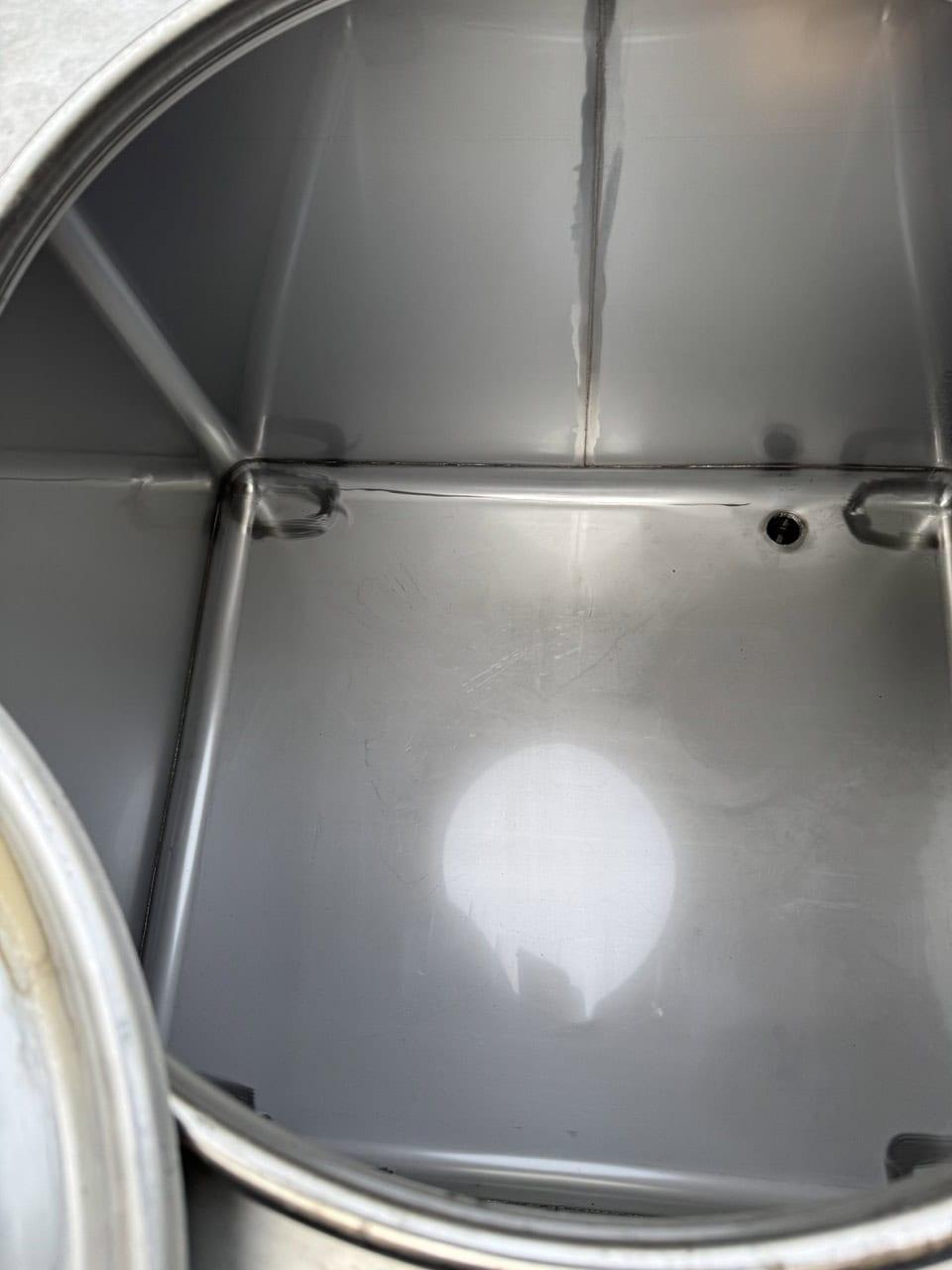

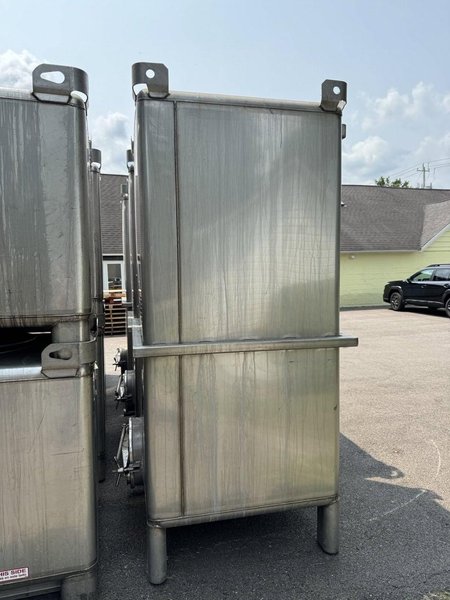

Manufacturer: Custom Metalcraft, Inc. Product Line: TranStore Year: 2014 Capacity: 720 Gallons Tank Type: Stainless Steel Process / Storage Tank Material of Construction: 304 Stainless Steel Interior Finish: 2B Exterior Finish: 2B Configuration: Rectangular Tank with Sloped Bottom Bottom: Slopes 2° Toward Outlet Support: (4) High-Contour Stainless Steel Legs Approx. Overall Height: 95″ Tank Width: 48″ Tank Length: 42″ Leg Height: 11″ Construction: Welded 304 Stainless Steel

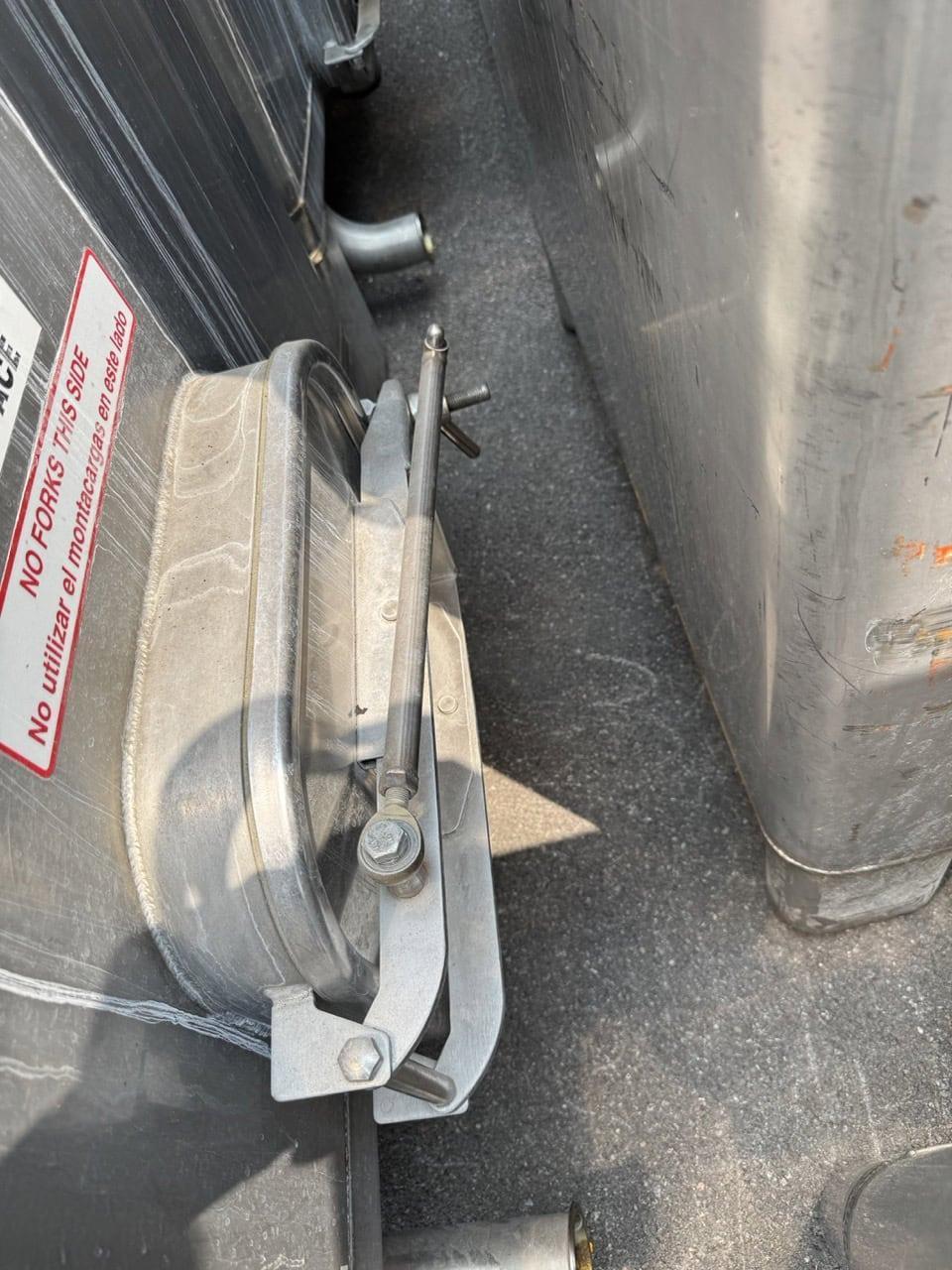

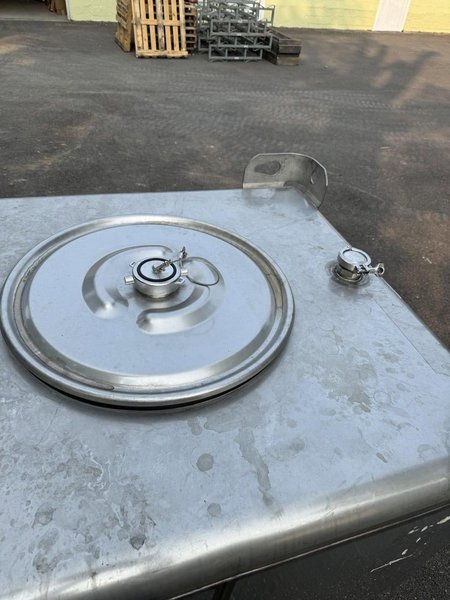

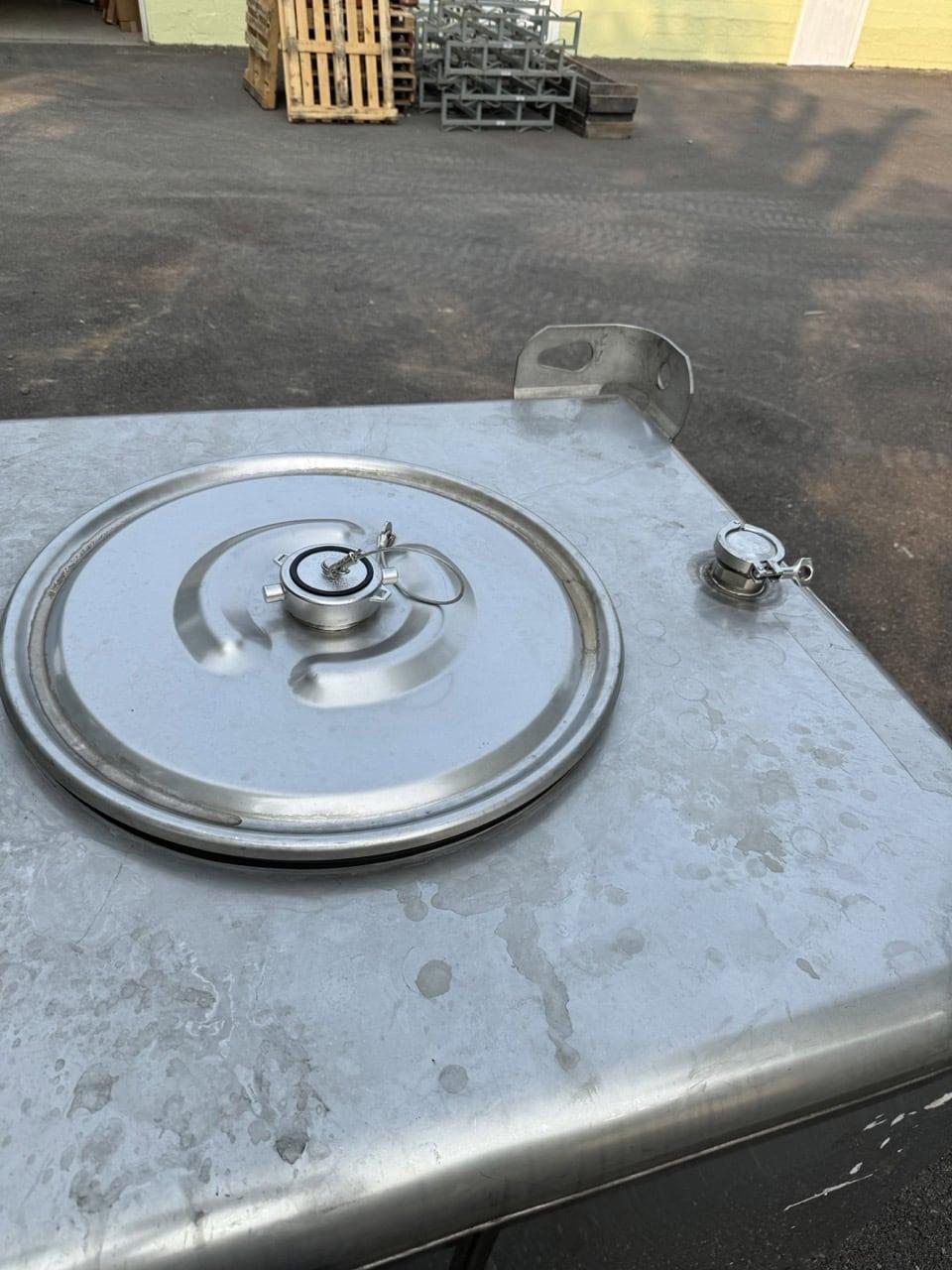

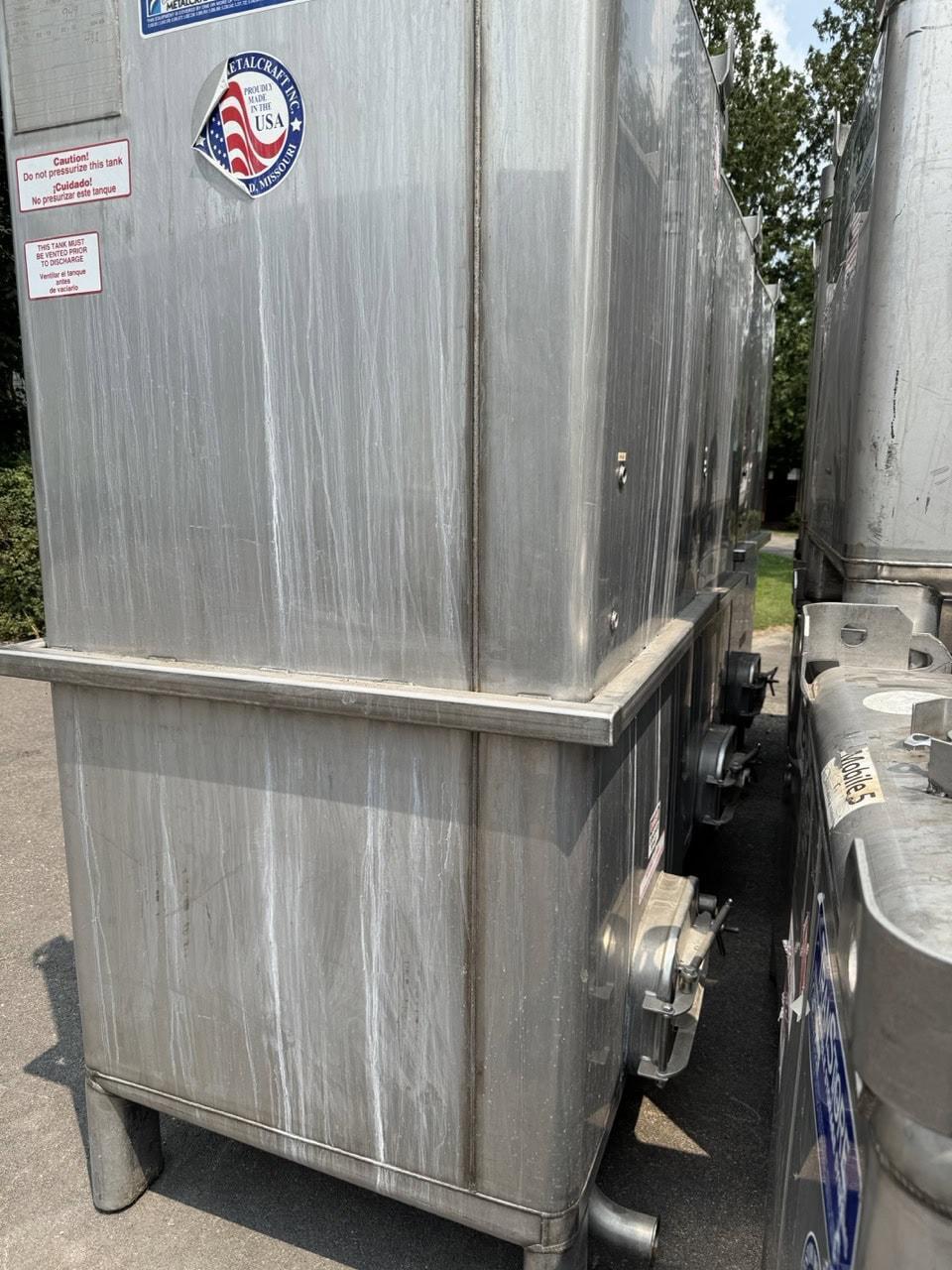

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tank Connections & Features Top Manway: 13″ × 17-5/16″ rectangular opening with FDA gray EPDM gasket Top Drum Neck: 22-1/2″ diameter nominal with EPDM multi-seal gasket Outlet: 3″ sanitary ferrule Additional Connections: Multiple 2″ sanitary ferrule connections Thermowell: 1/2″ NPT, 7.5″ insertion Thermometer: 3″ dial, 1/2″ NPT, 0–150°F Liquid Level Gauge: 1/2″ NPT Lifting Lugs: (4), welded to tank corners Tank must be vented prior to discharge Atmospheric Tank — Not Designed to be Pressurized Jacket

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The drawing shows a dimple jacket assembly constructed of 14-gauge 304 stainless steel. The jacket is shown approximately 79″ × 44″ and includes an NPT connection
