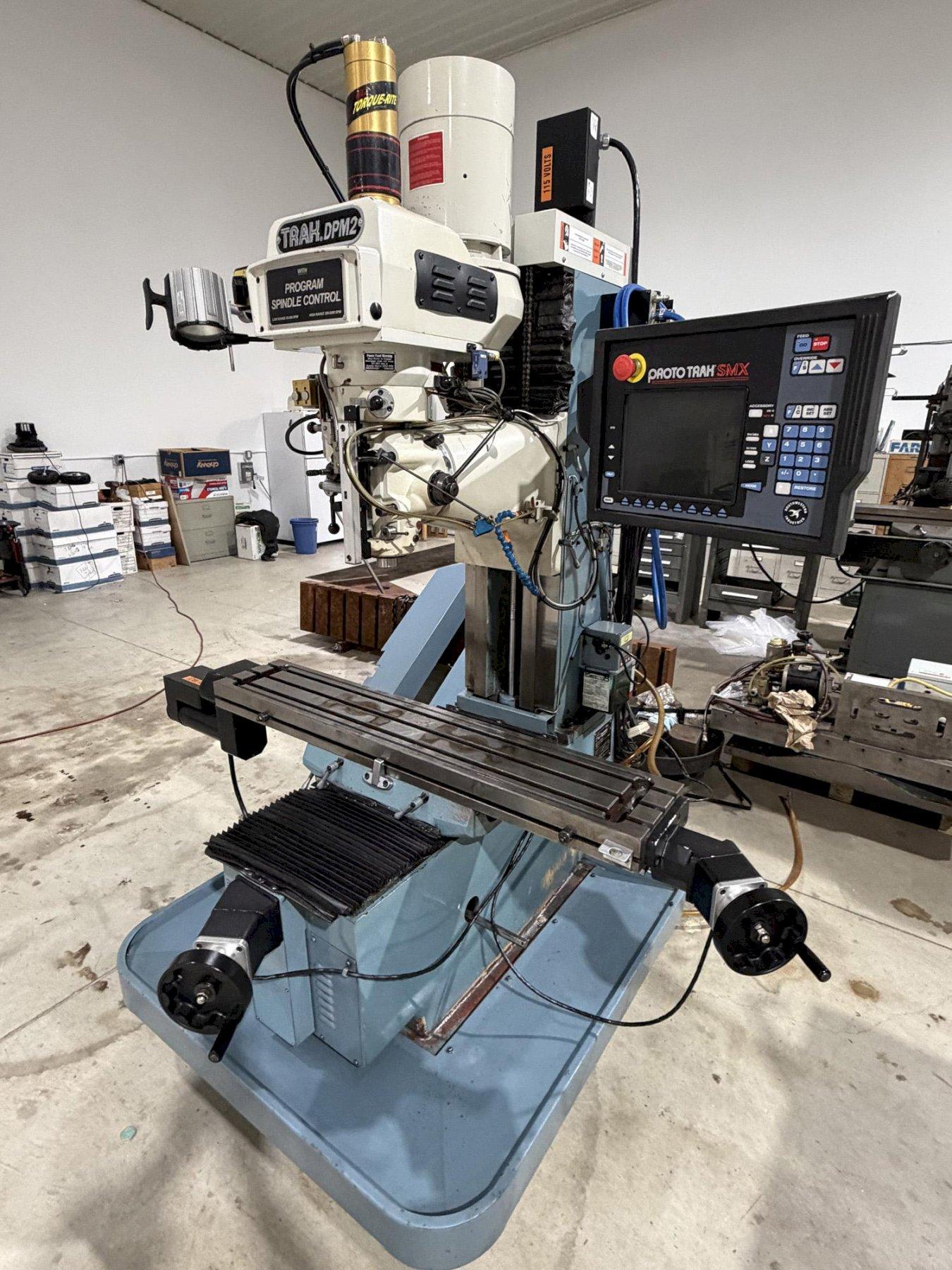

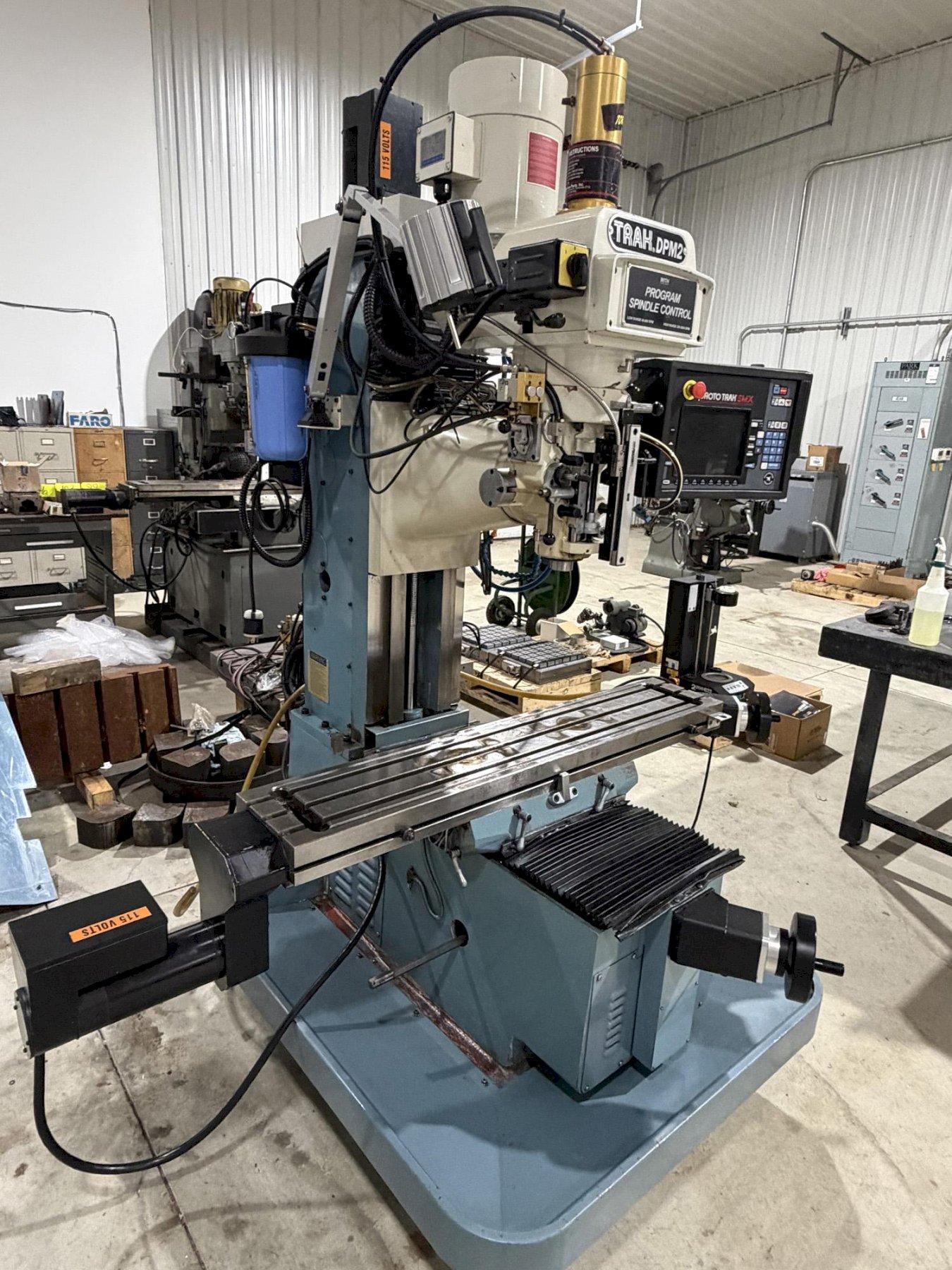

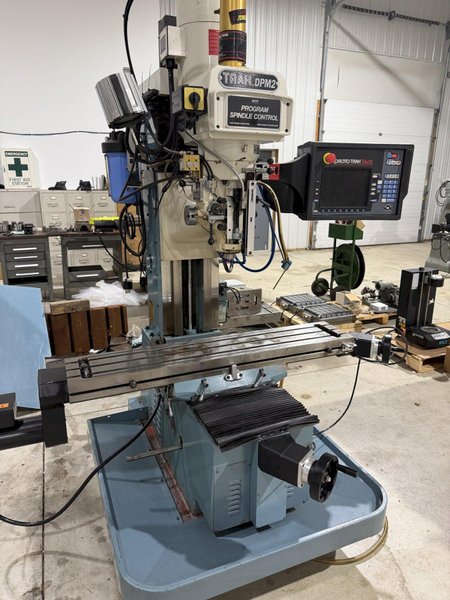

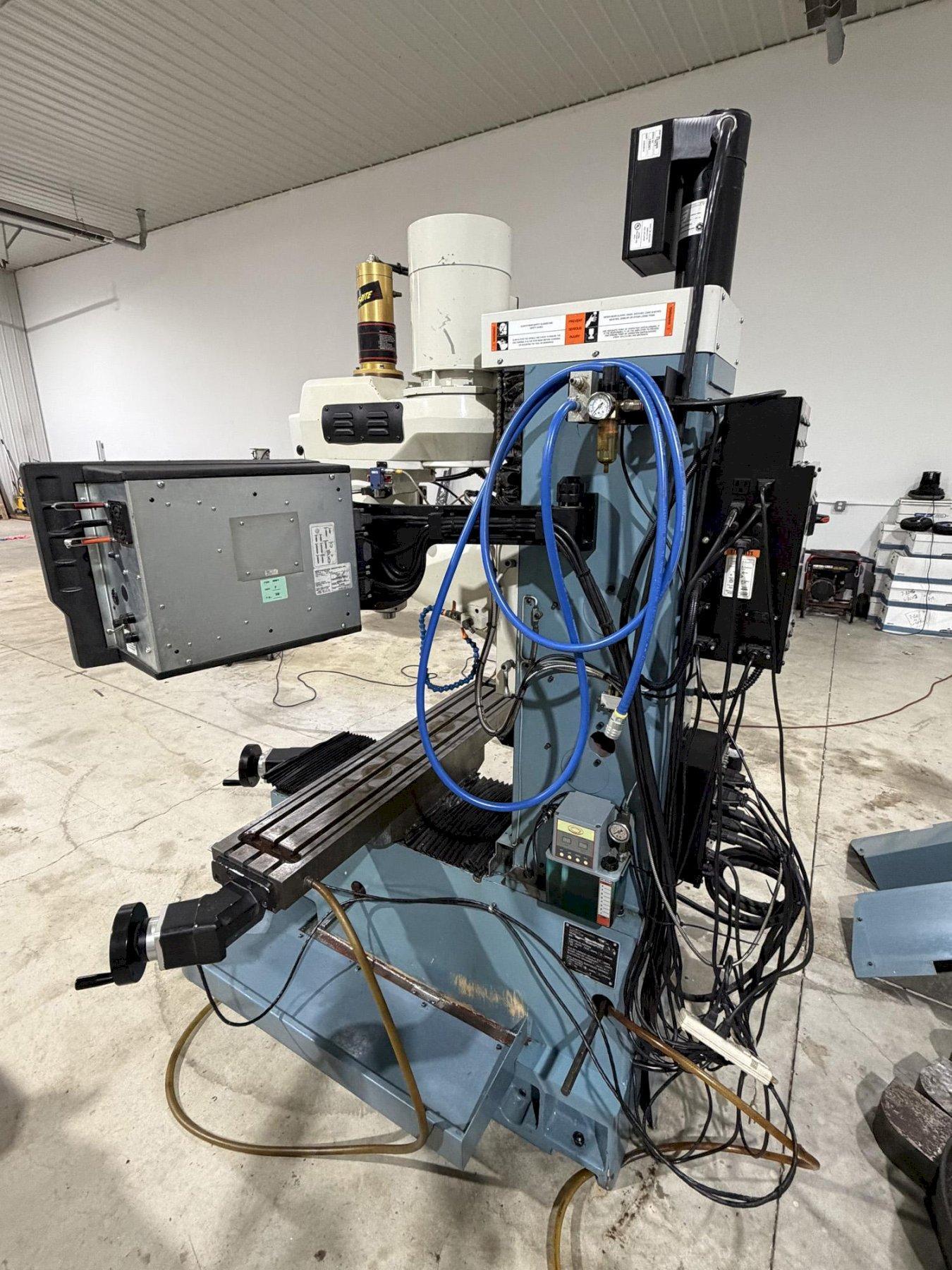

SWI TRAK DPMSX 2P, 3 Axis CNC Bed Mill

• Control System: ProtoTRAK SMX 3-Axis CNC
• Table Size: 9" x 49"
• Table Weight Capacity: 1,320 lbs
• X-Axis Travel: 31"
• Y-Axis Travel: 16"
• Z-Axis Travel (Head): 27"
• Quill Travel: 5"
• Quill Diameter: 3.937"
• Spindle Taper: R8
• Spindle Motor: 3 HP
• Spindle Speed: 40 – 5,000 RPM (Programmable Electronic Variable Speed)
• Spindle Center to Column Face: 18"
• Rapid Traverse Rate: 150 IPM

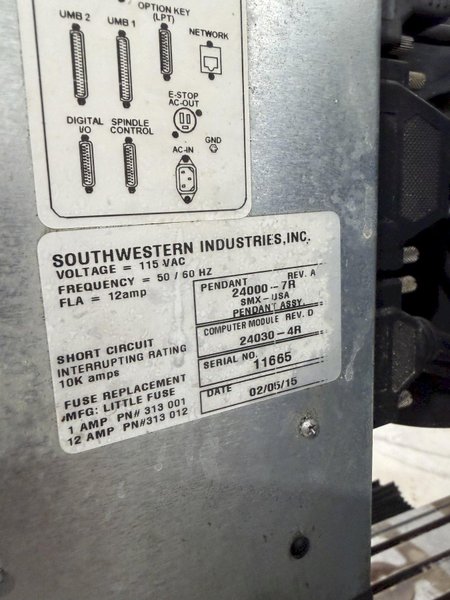

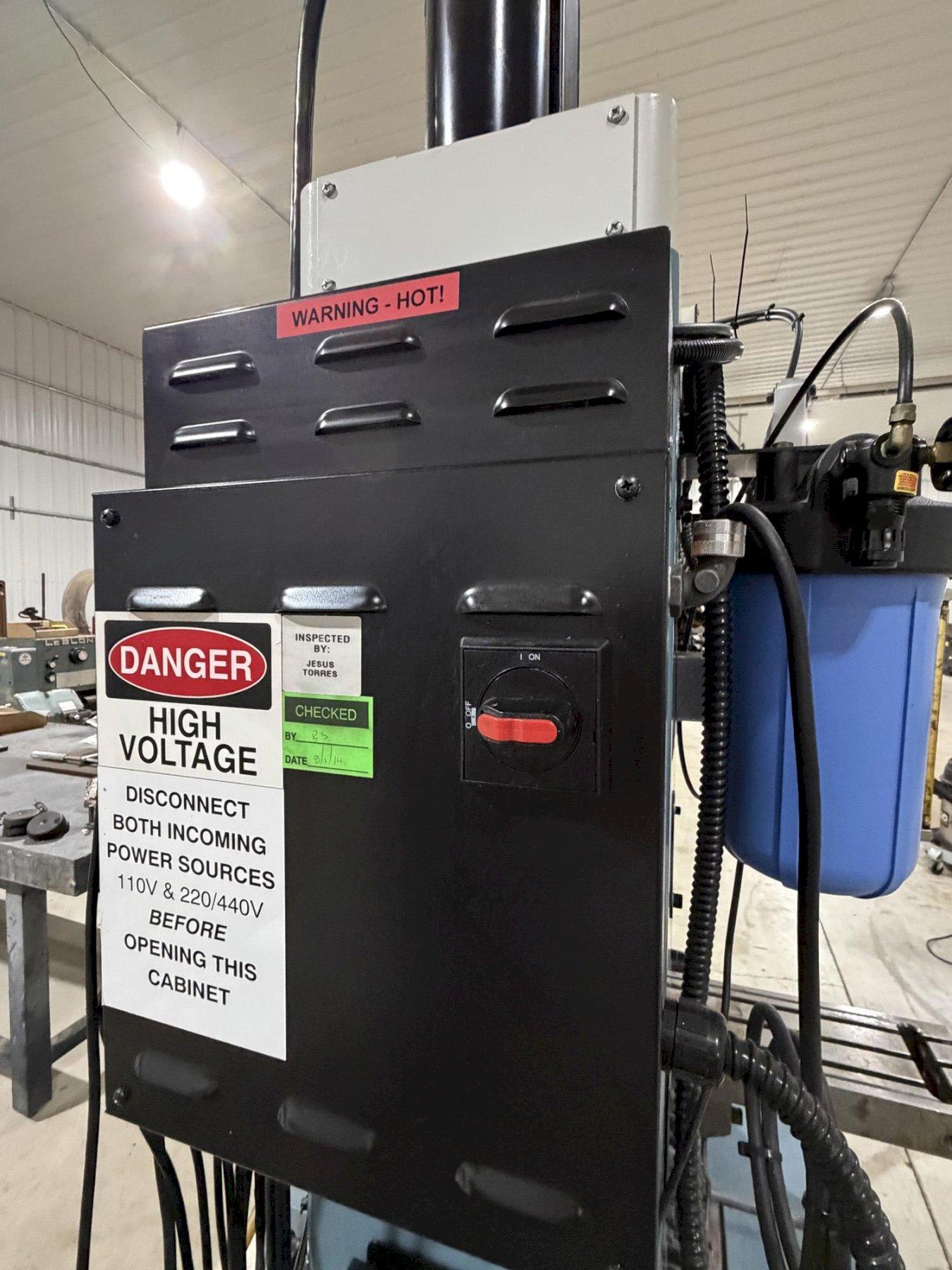

• Power Requirement: 220V / 3-Phase / 60 Hz (110V 1-Phase for Control)
• Approximate Dimensions (L x W x H): 72" x 64" x 86"
• Approximate Weight: 4,000 lbs

Key Features & Highlights

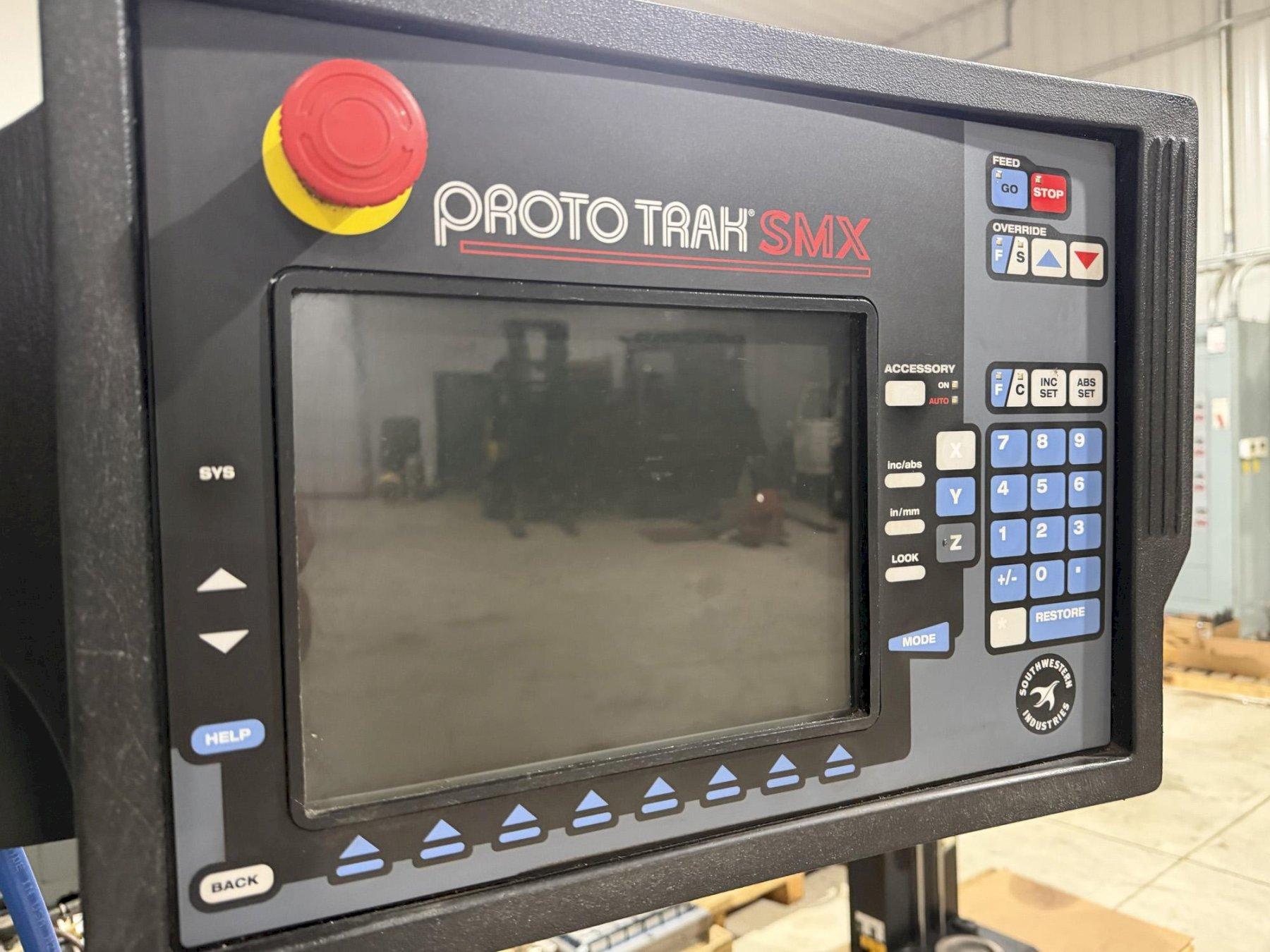

• ProtoTRAK SMX 3-Axis CNC Control: Conversational programming for fast shop-floor operation, plus full DRO capability for manual use.

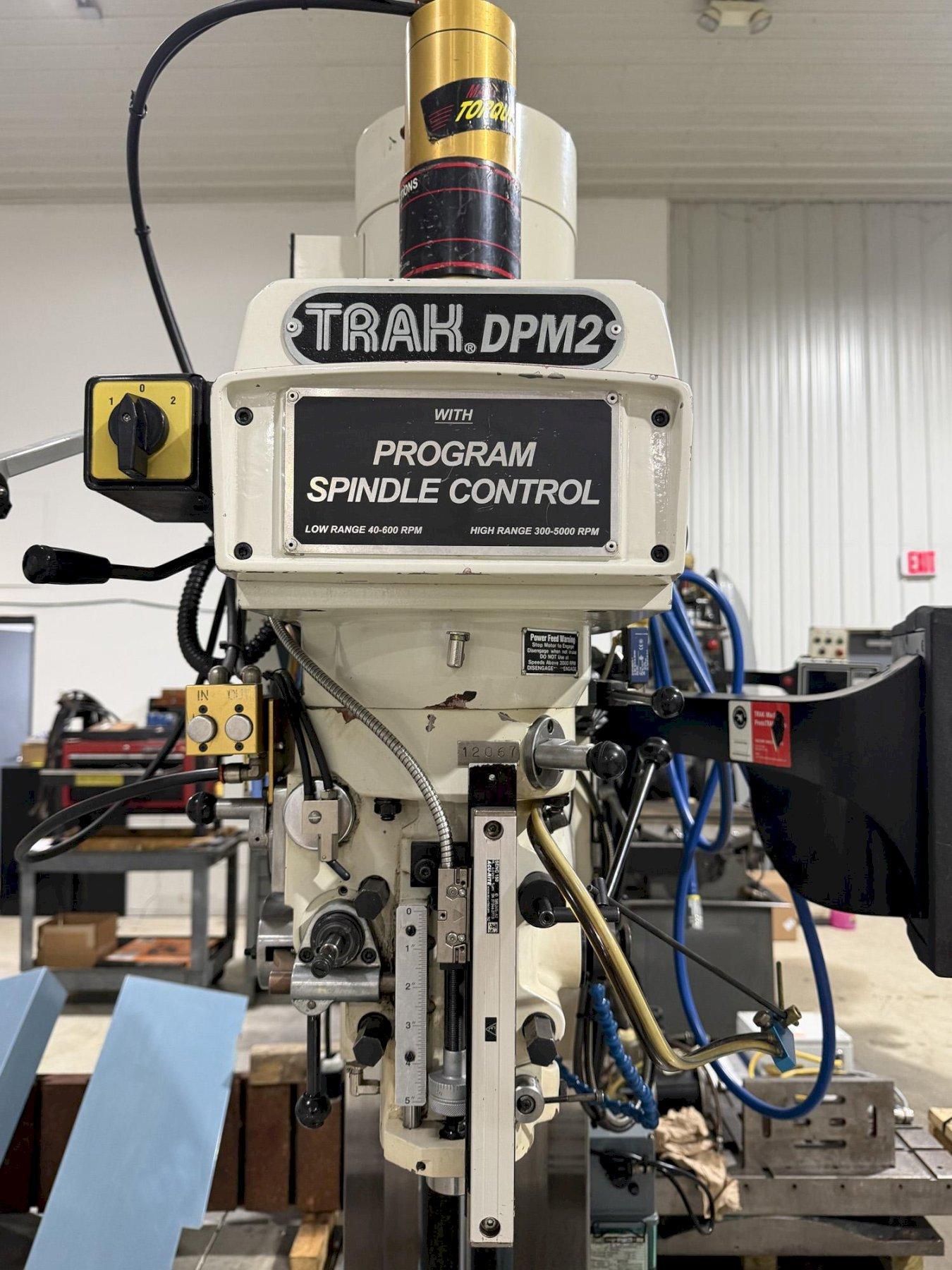

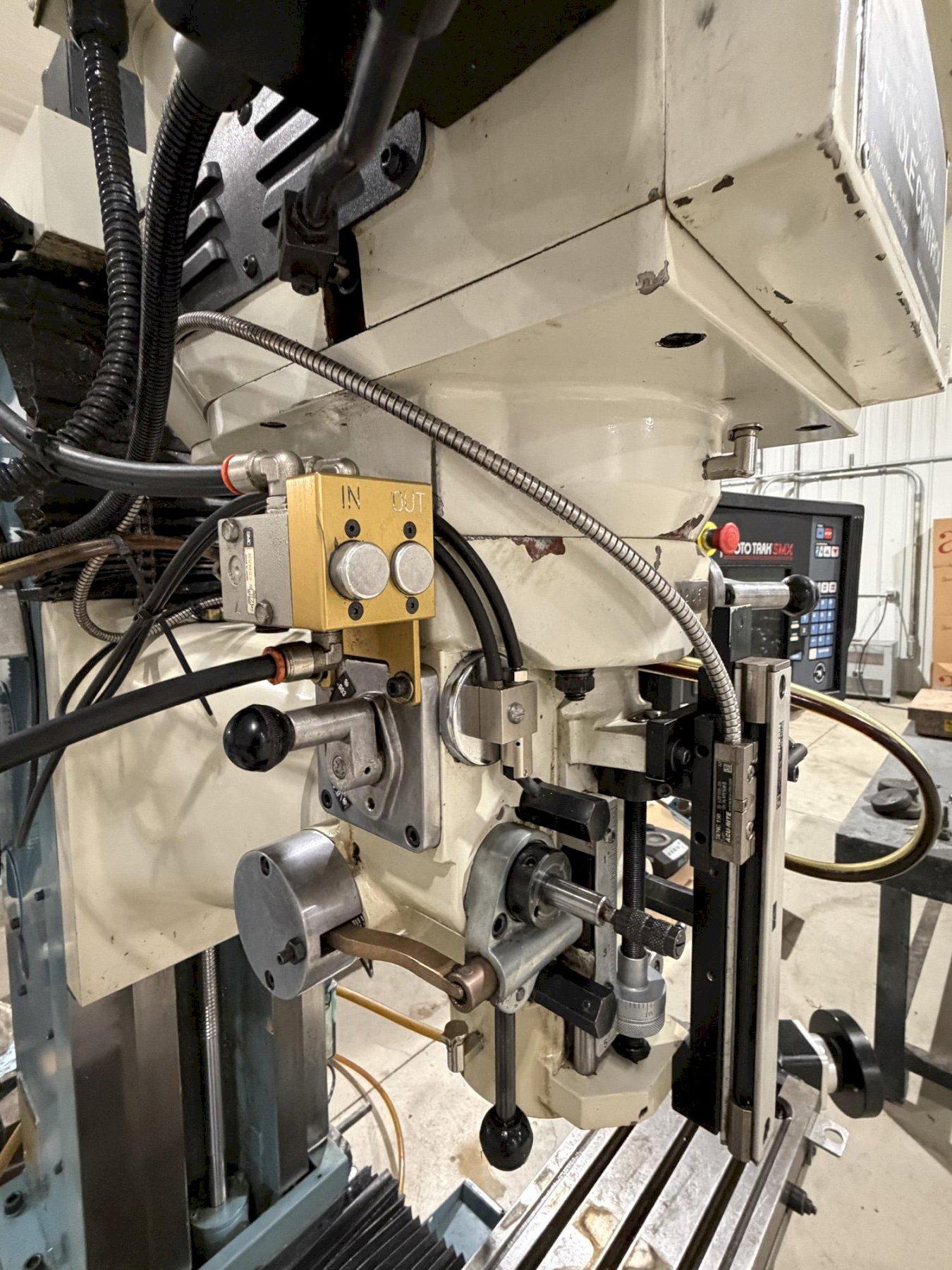

• Programmable Spindle Head (P-Option): Electronic variable speed control directly integrated into the CNC program.

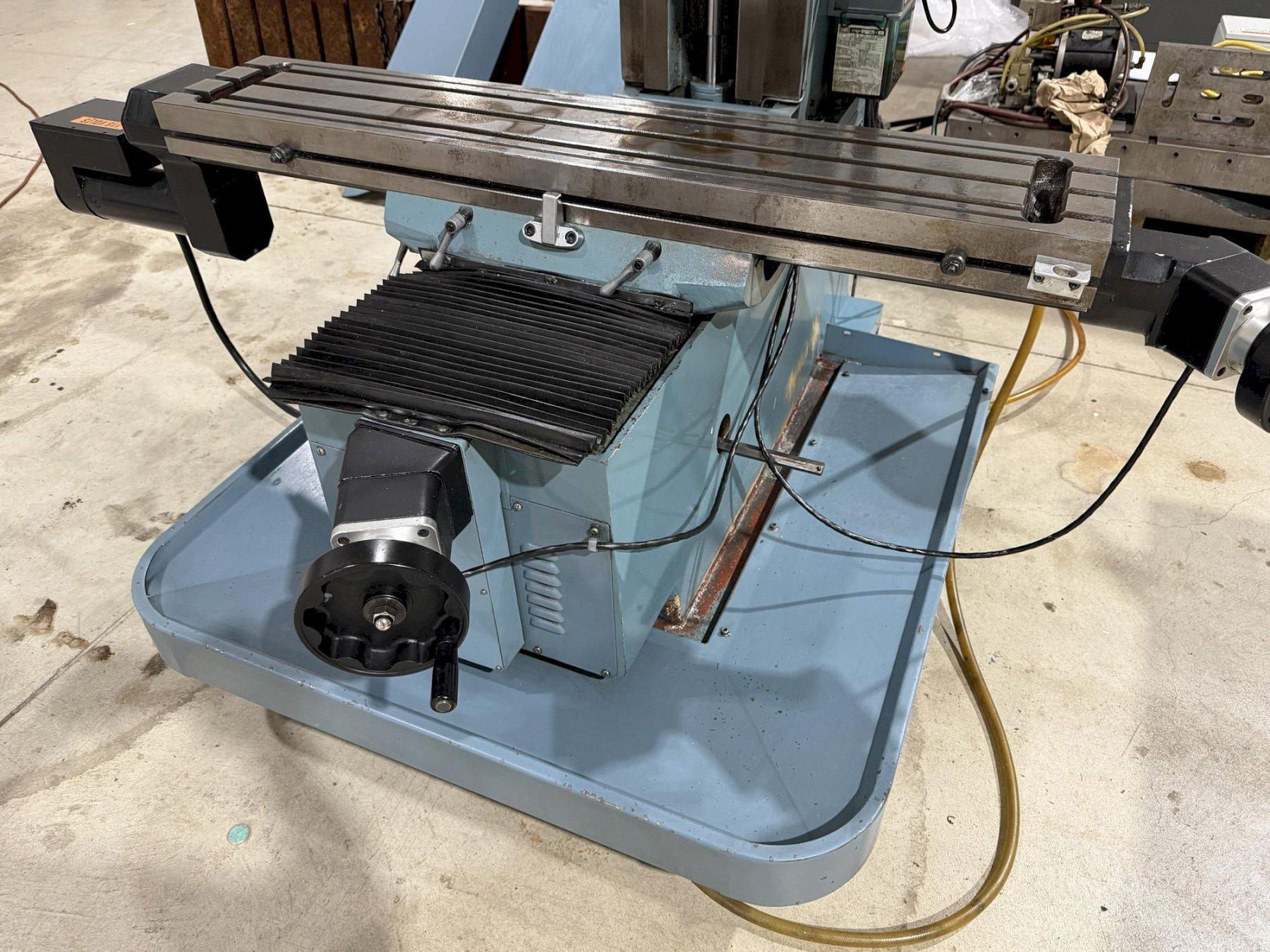

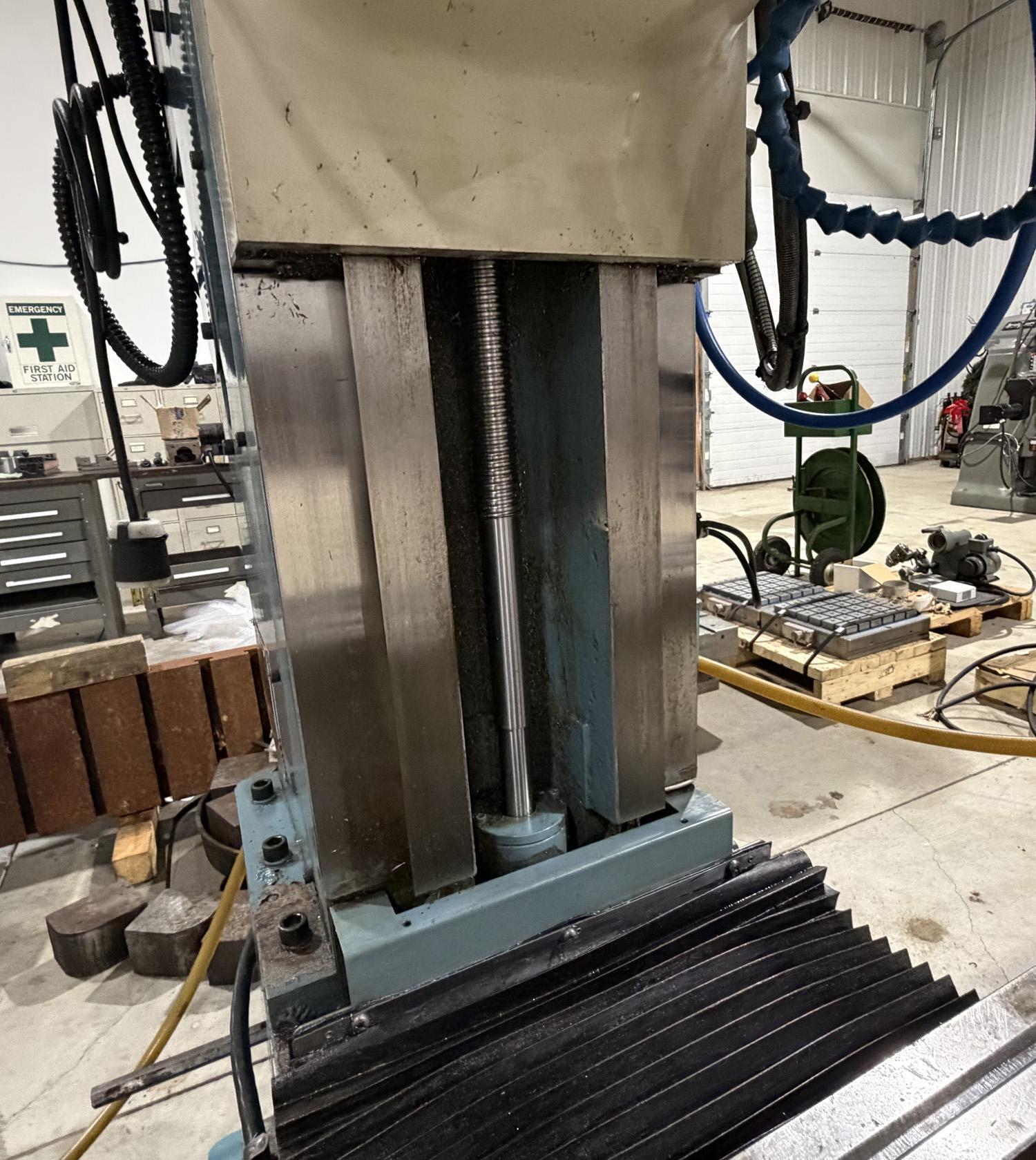

• Rigid Bed-Mill Design: Fixed-table design with Z-axis head travel provides maximum stability and support for heavy workpieces.

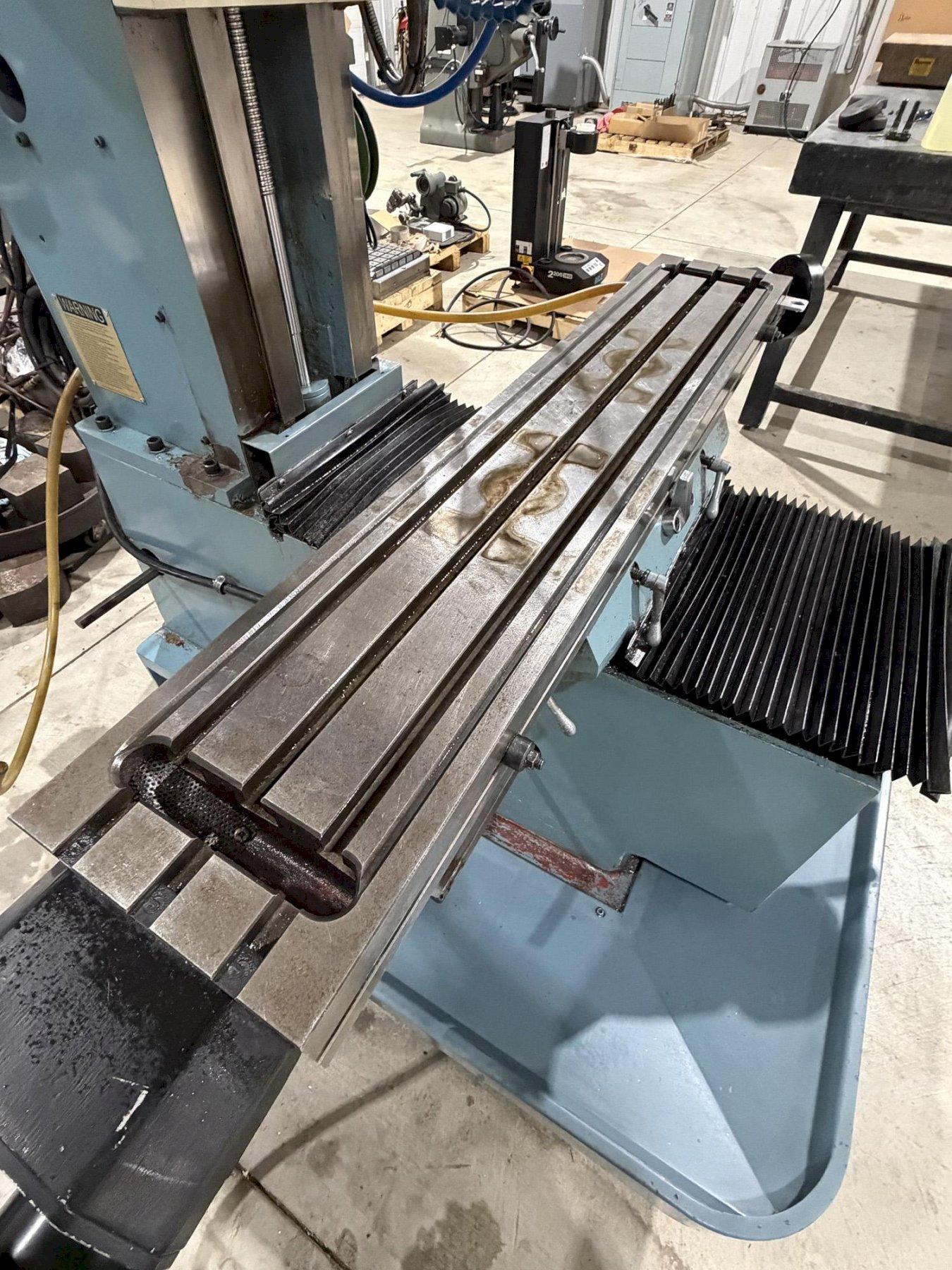

• Precision Ground Table & Ways: Hardened and ground box ways with Turcite-B lining for long-term accuracy and vibration damping.

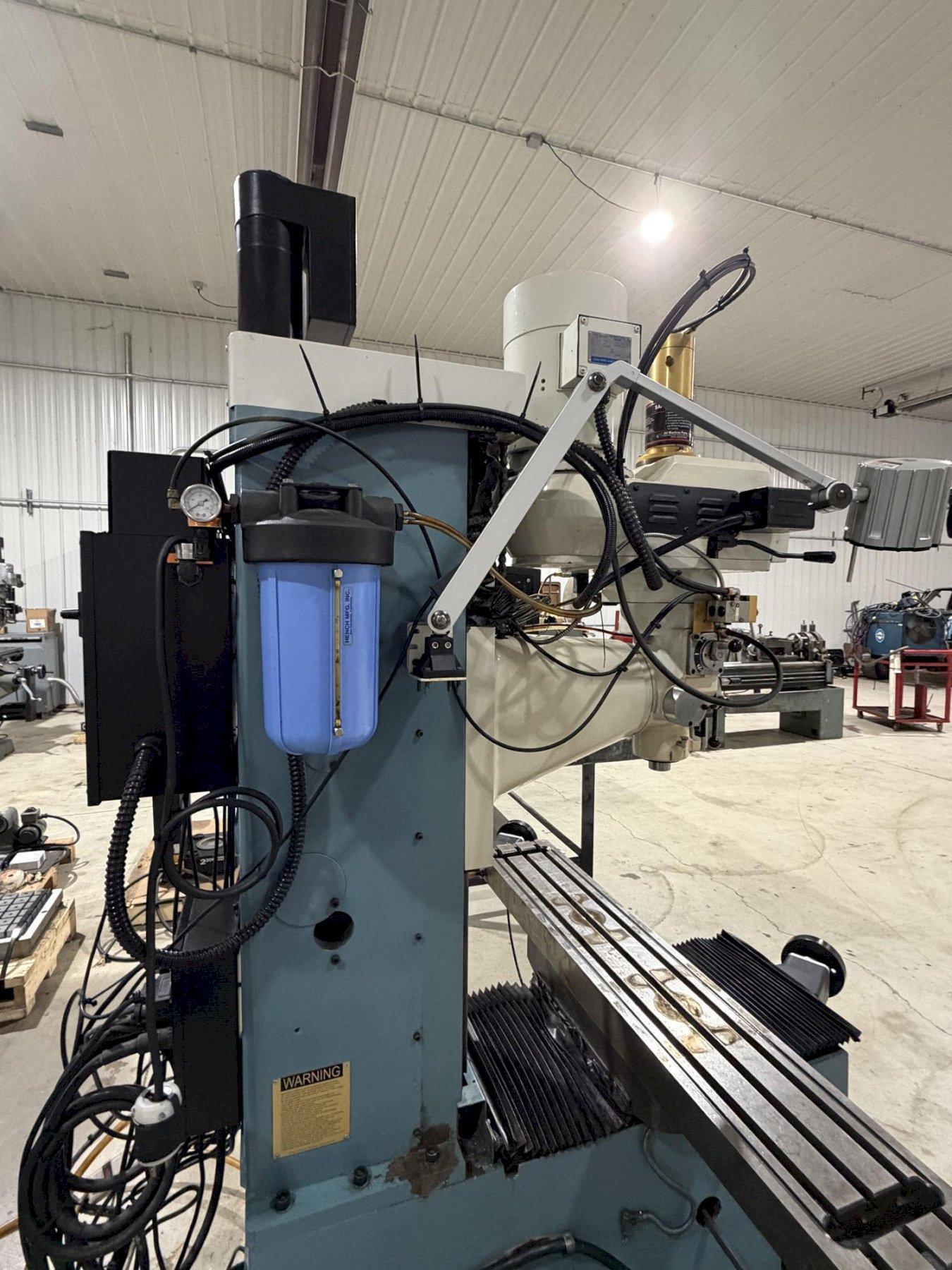

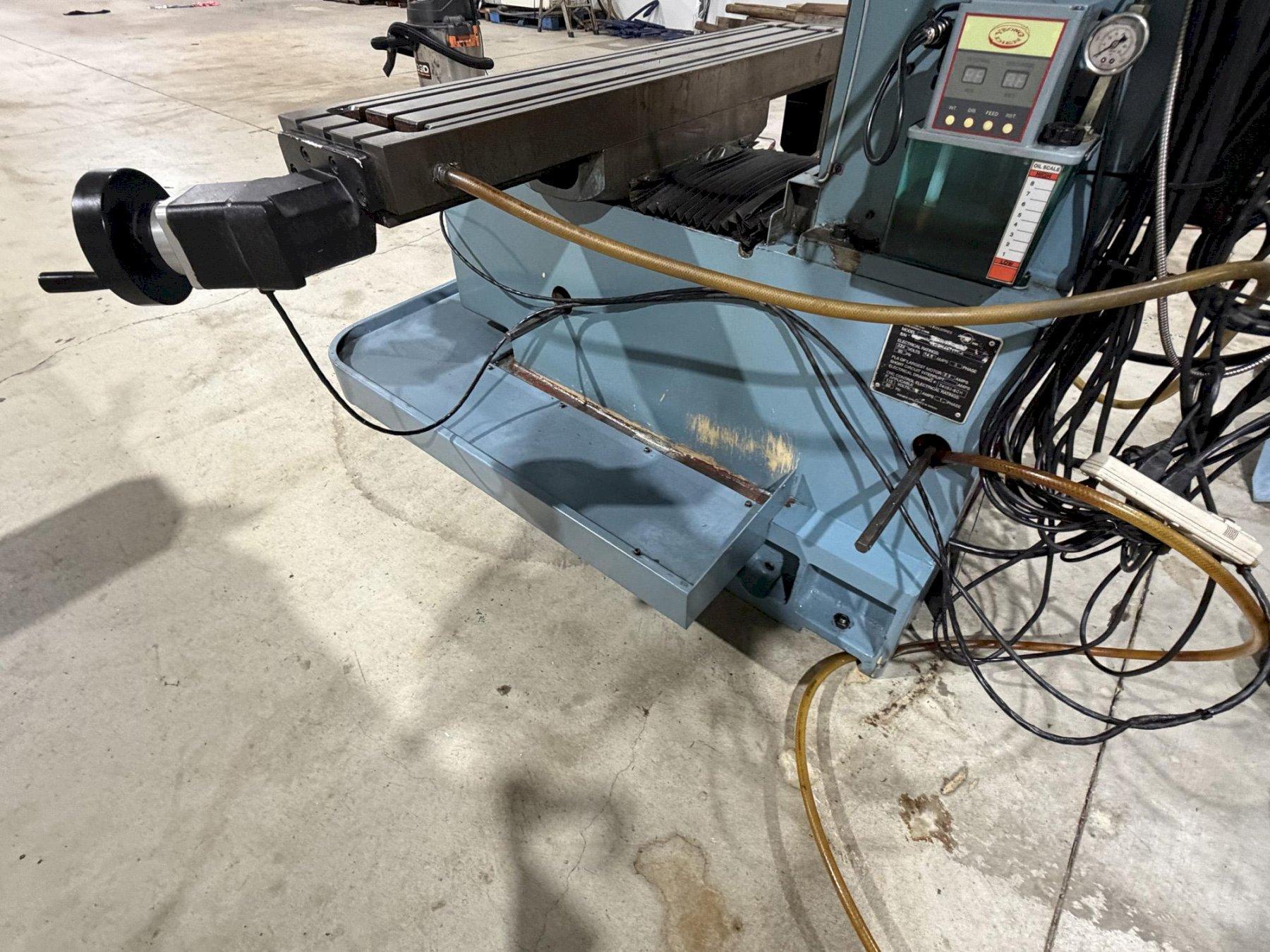

• Auto Lubrication System: Keeps slides and ballscrews continuously lubricated during operation.
