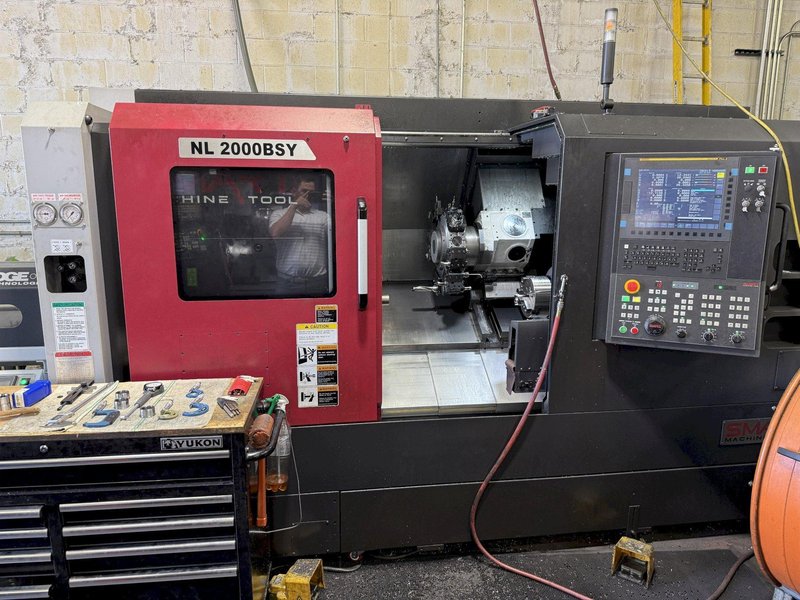

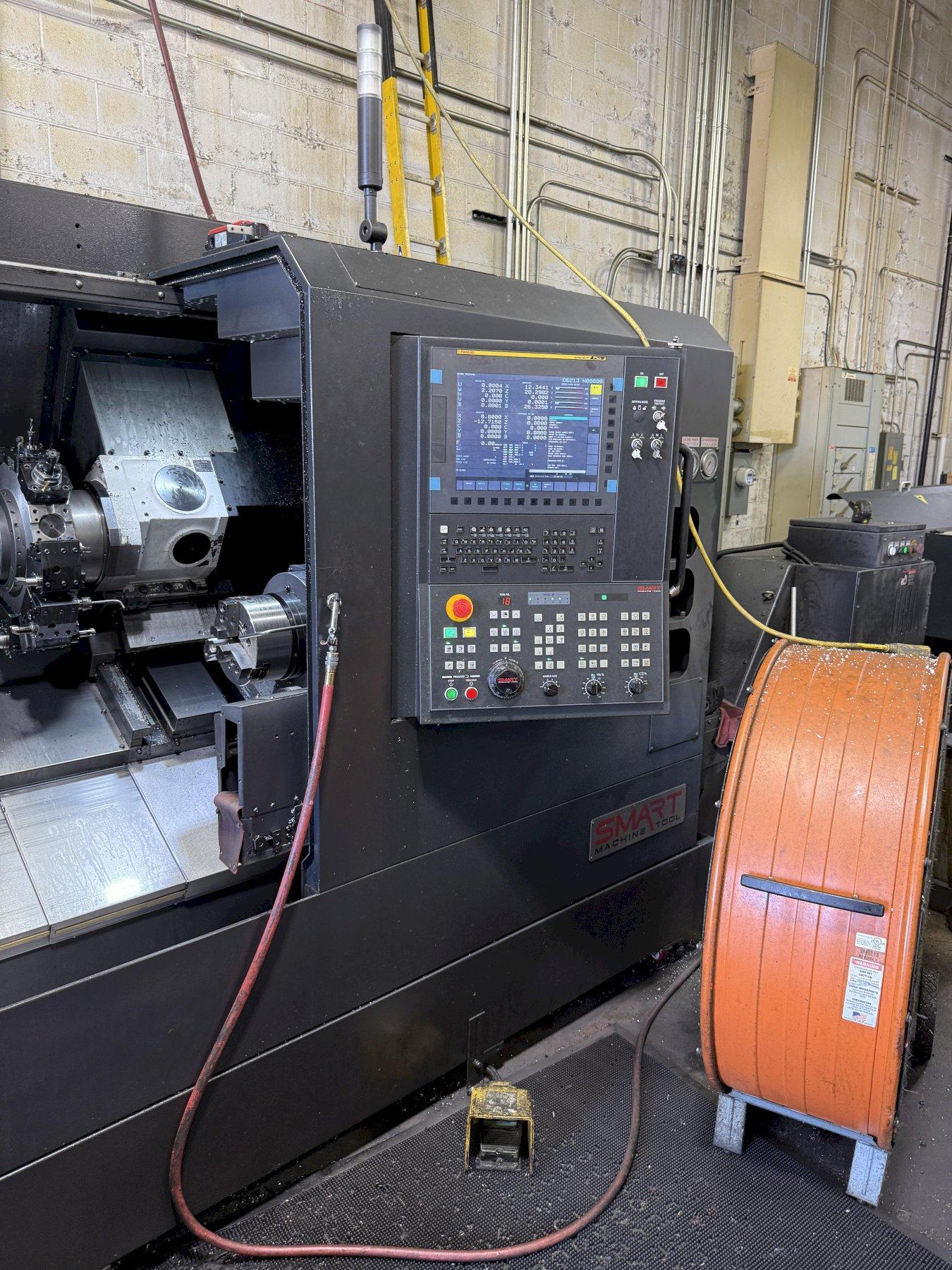

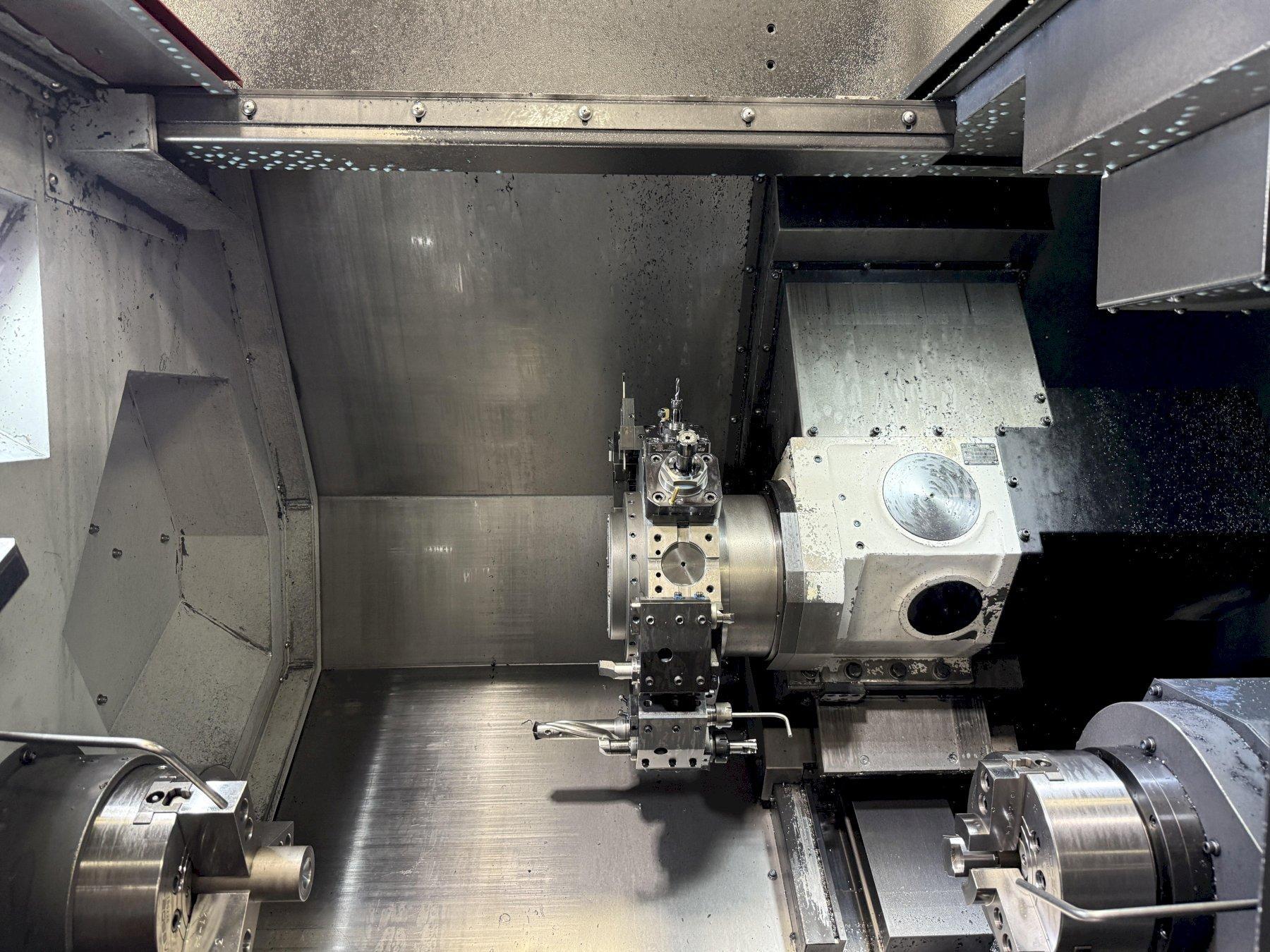

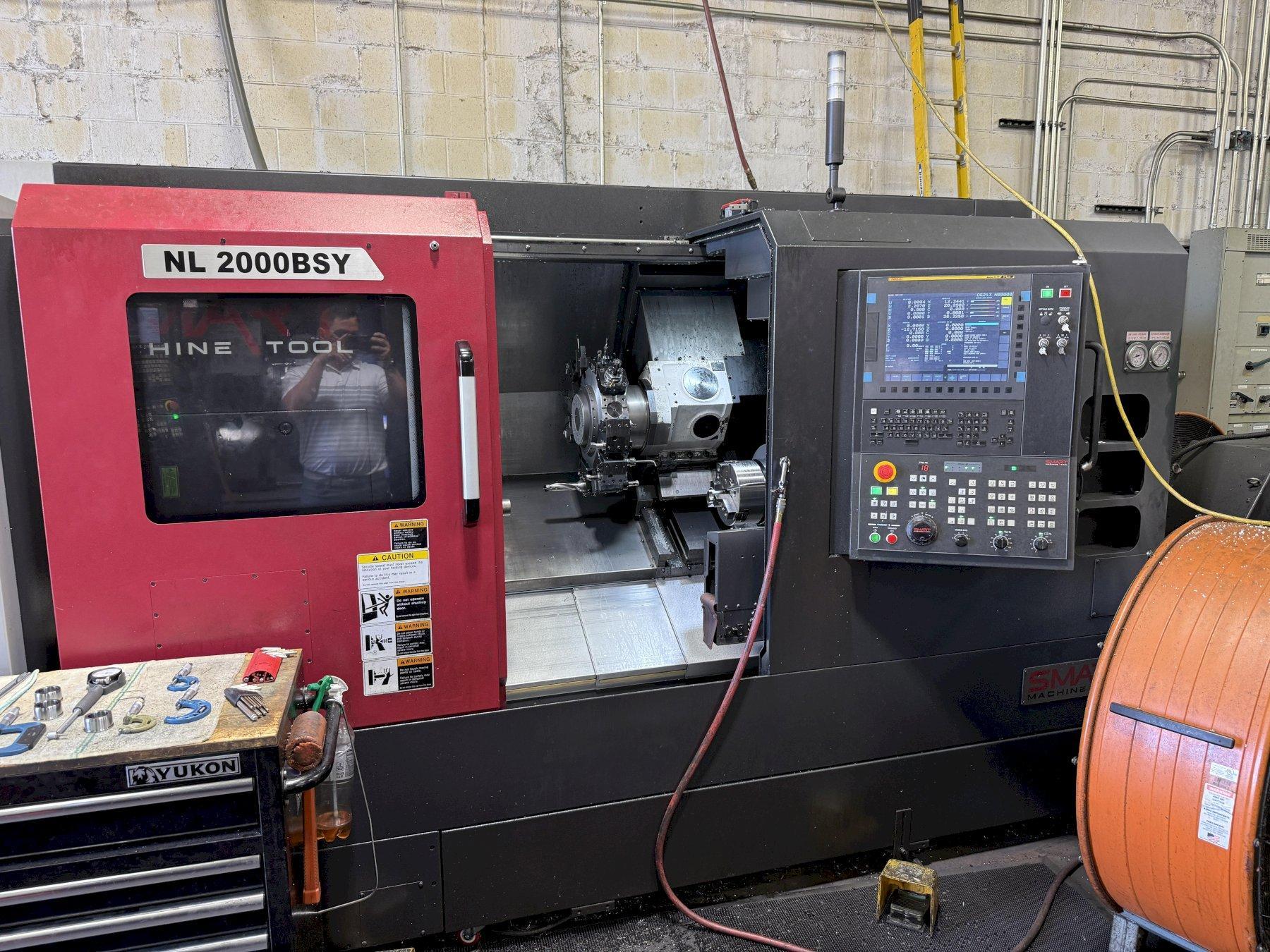

Used 2018 Smart NL2000BSY CNC Lathe For Sale

Name: Used 2018 Smart NL2000BSY CNC Lathe For Sale
Brand: SMART
Availability: InStock

Brand

SMART

Michigan

CNC Control	yes

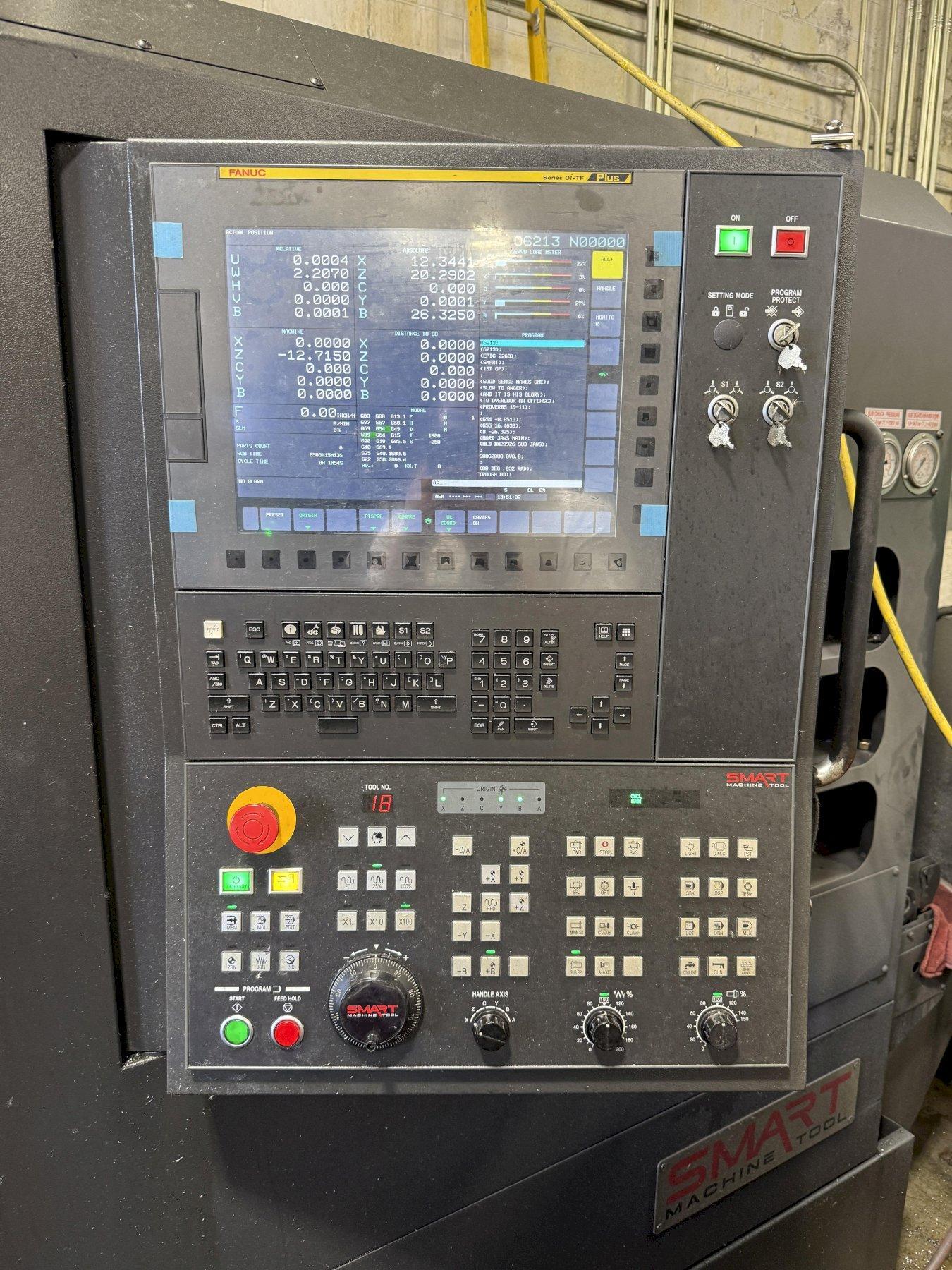

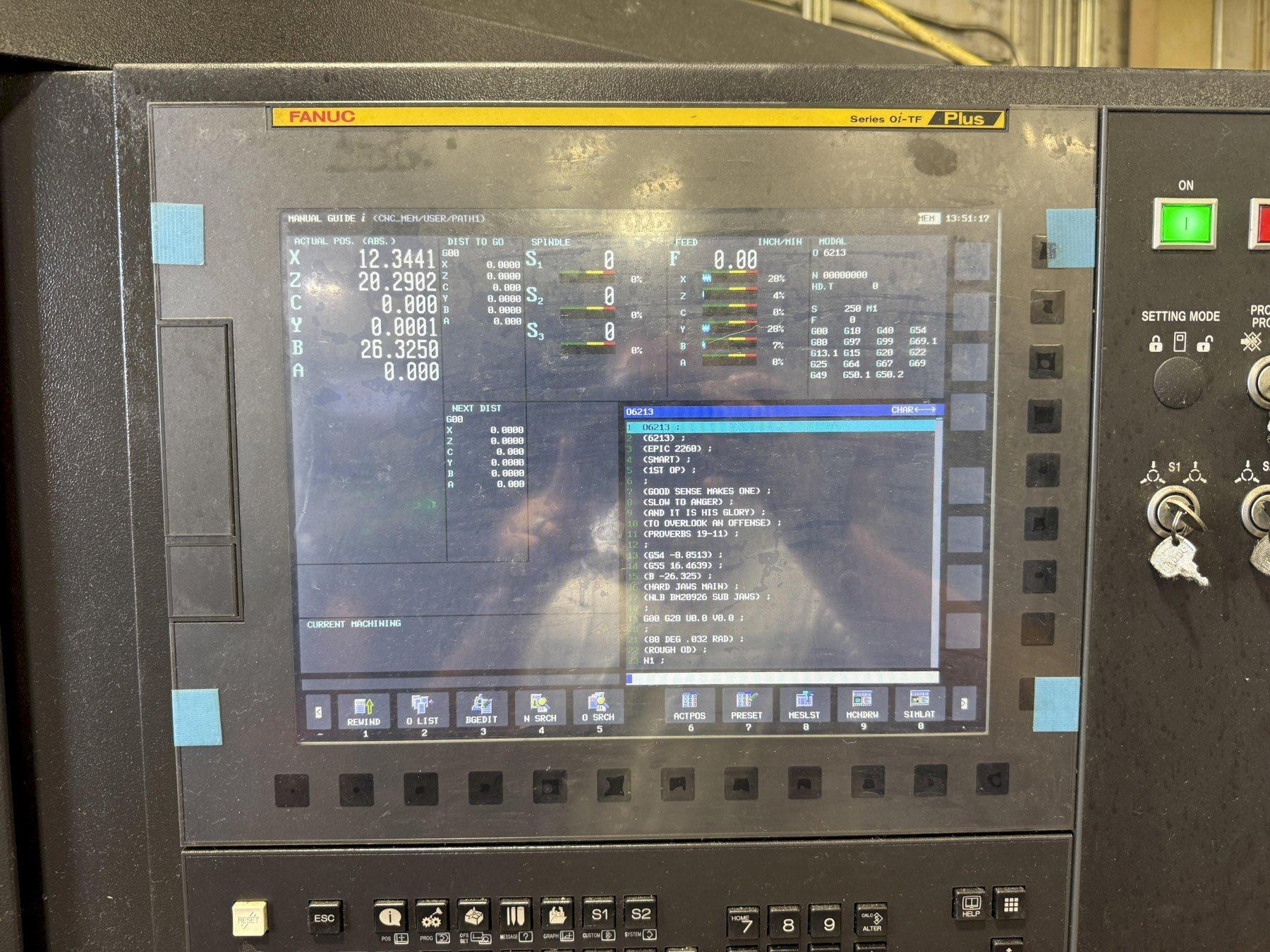

Type Of CNC Control	Fanuc Series 0i-TF
Swing	31.89 inches
Turning Diameter	16.18 inches
Center Distance	28.94 inches

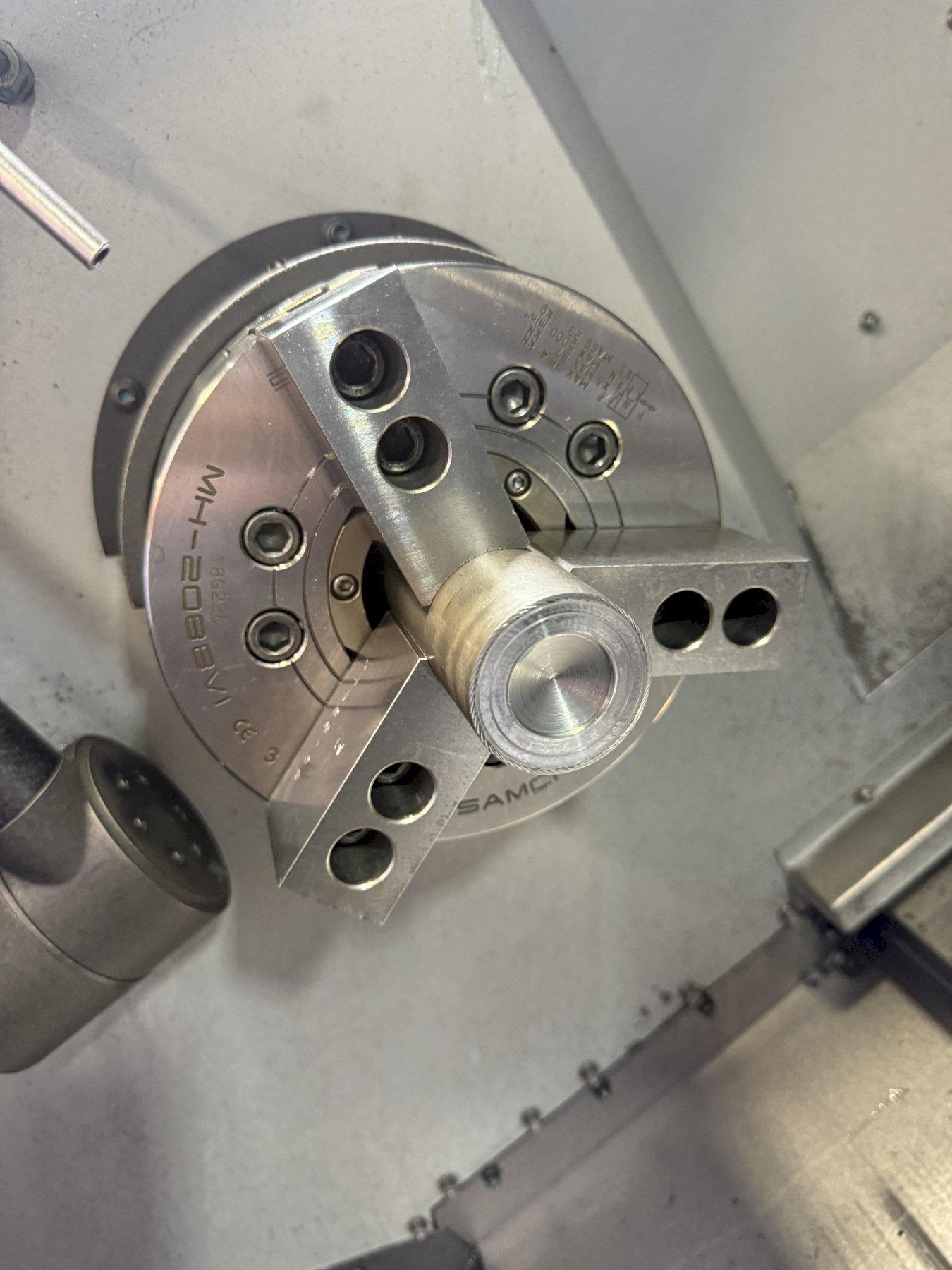

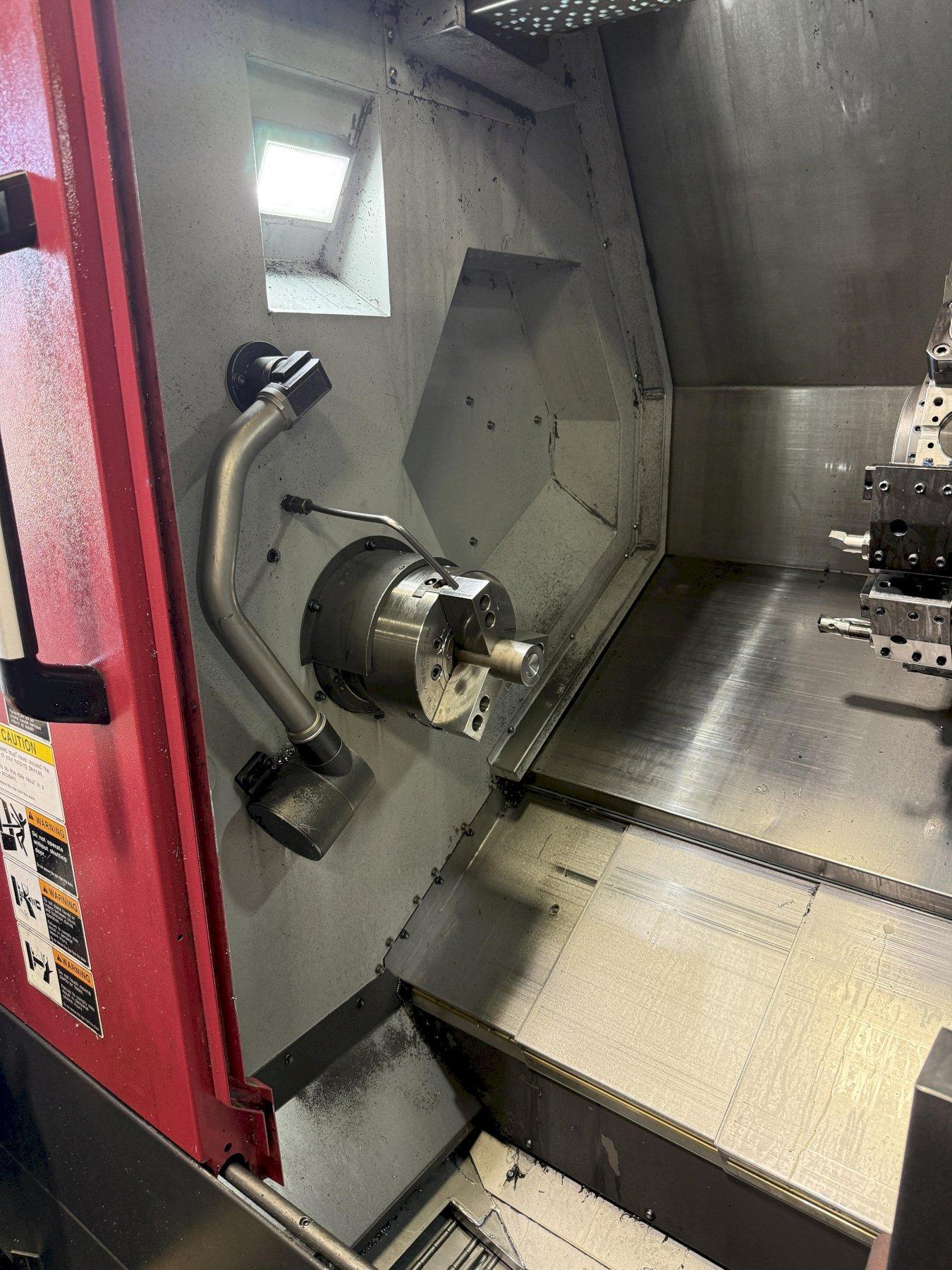

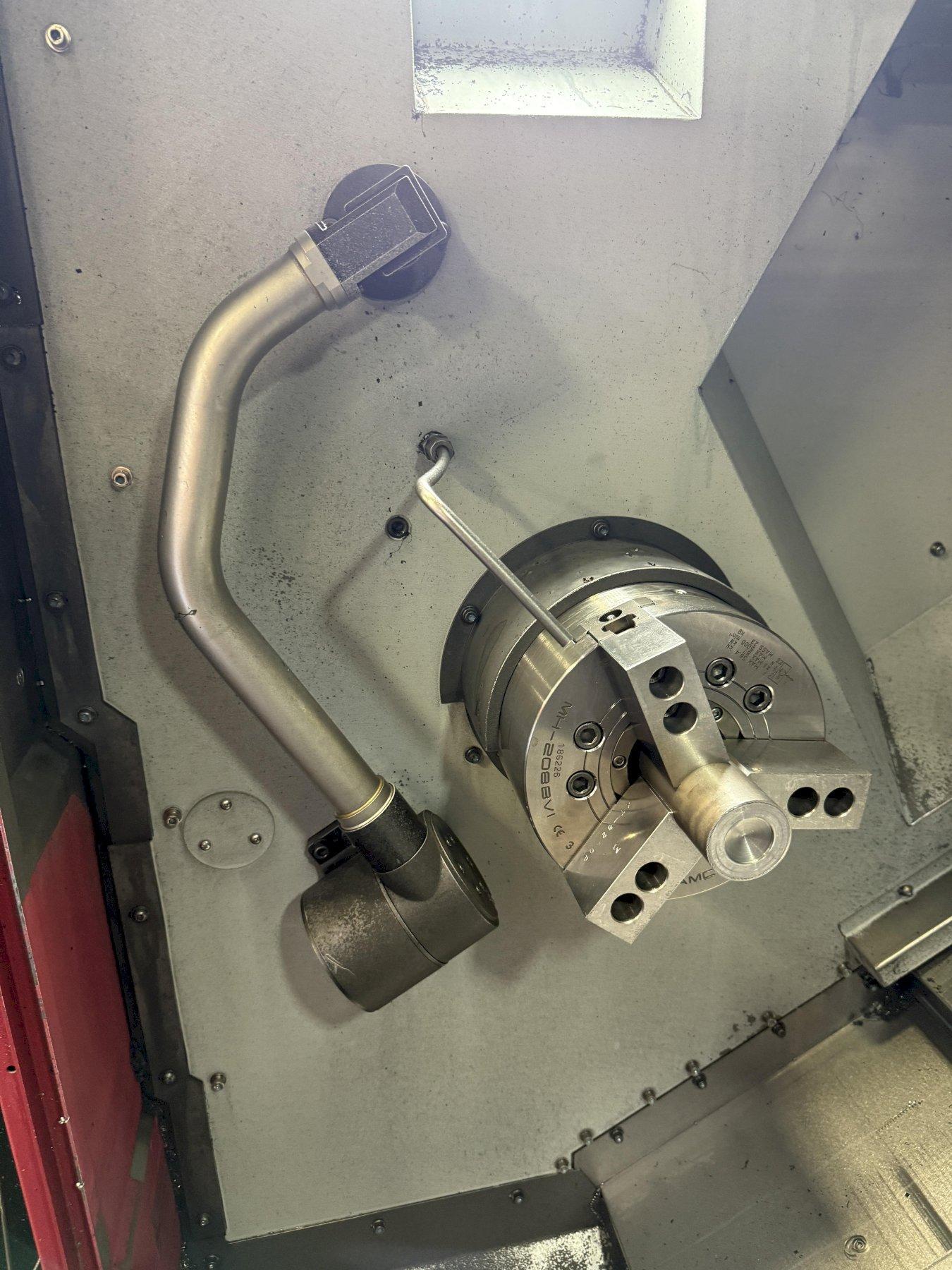

Chuck Size	8 inches
Bar Capacity	2.64 inches
X Axis Travel	9.41 inches
Y Axis Travel	4.33 inches
Z Axis Travel	32.68 inches
B Axis Travel (Sub Spindle)	32.68 inches
C Axis Index	0.001°
Spindle Nose	A2-6
Spindle Speed	4,500 rpm
Main Motor	20 hp
Tailstock	no
Y Axis	yes
Live Tooling	yes
Live Tooling Speed	5,000 rpm
Live Tooling Motor	5 hp

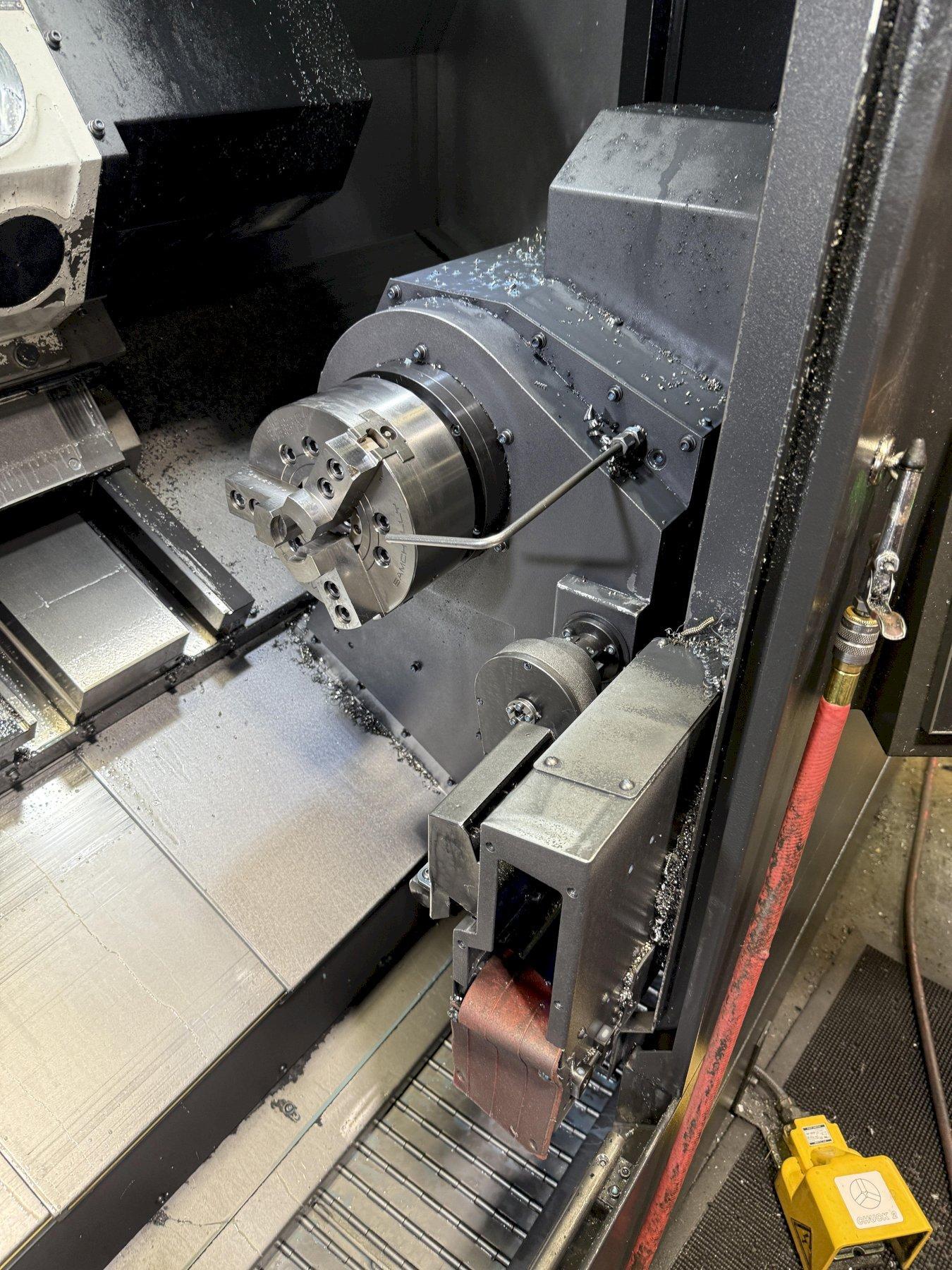

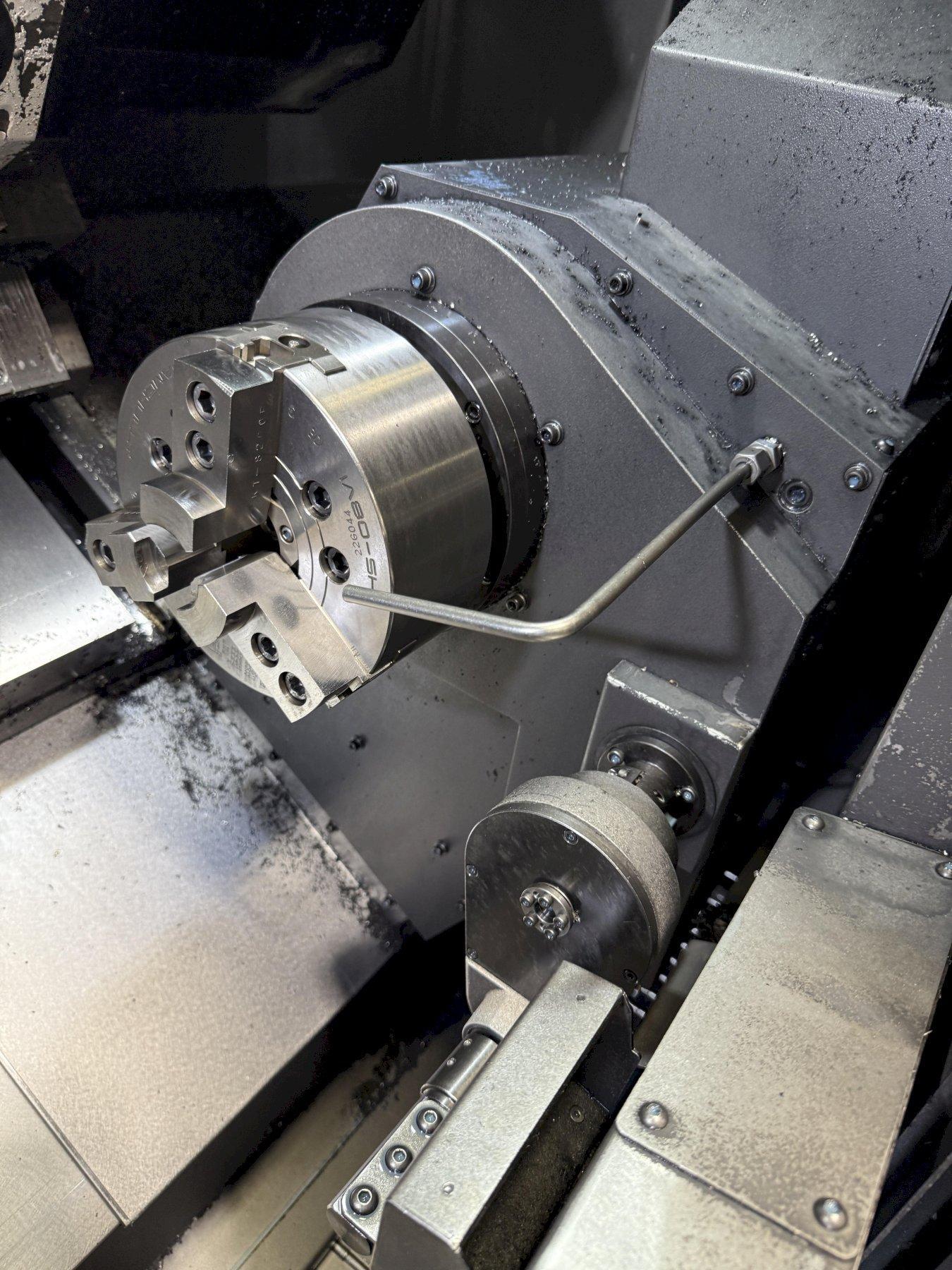

Sub Spindle	yes

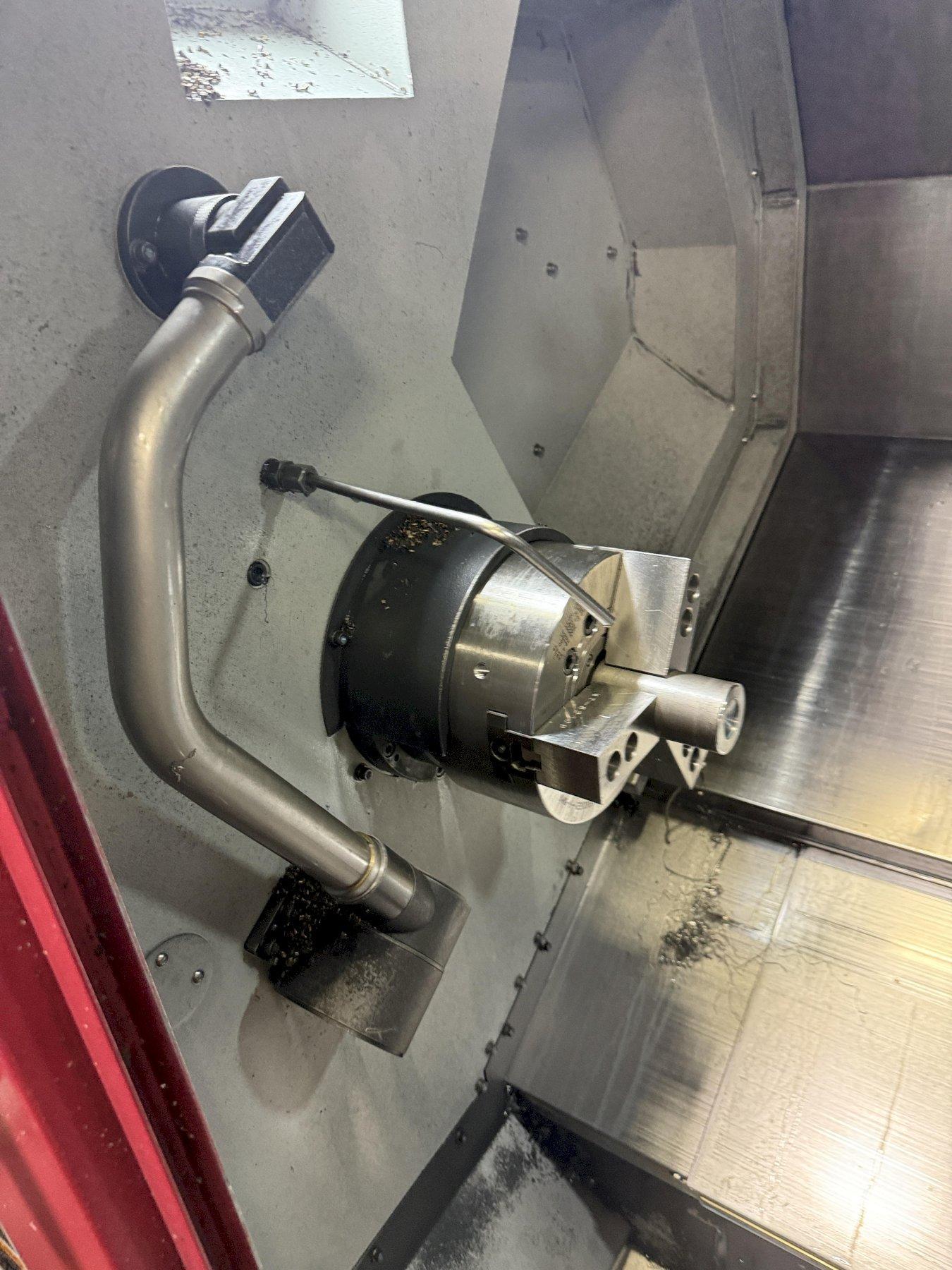

Sub Spindle Chuck	8 inches
Sub Spindle Bar Capacity	2.44 inches
Sub Spindle Nose	A2-6
Sub Spindle Speed	5,000 rpm
Sub Spindle Motor (HP)	15 hp

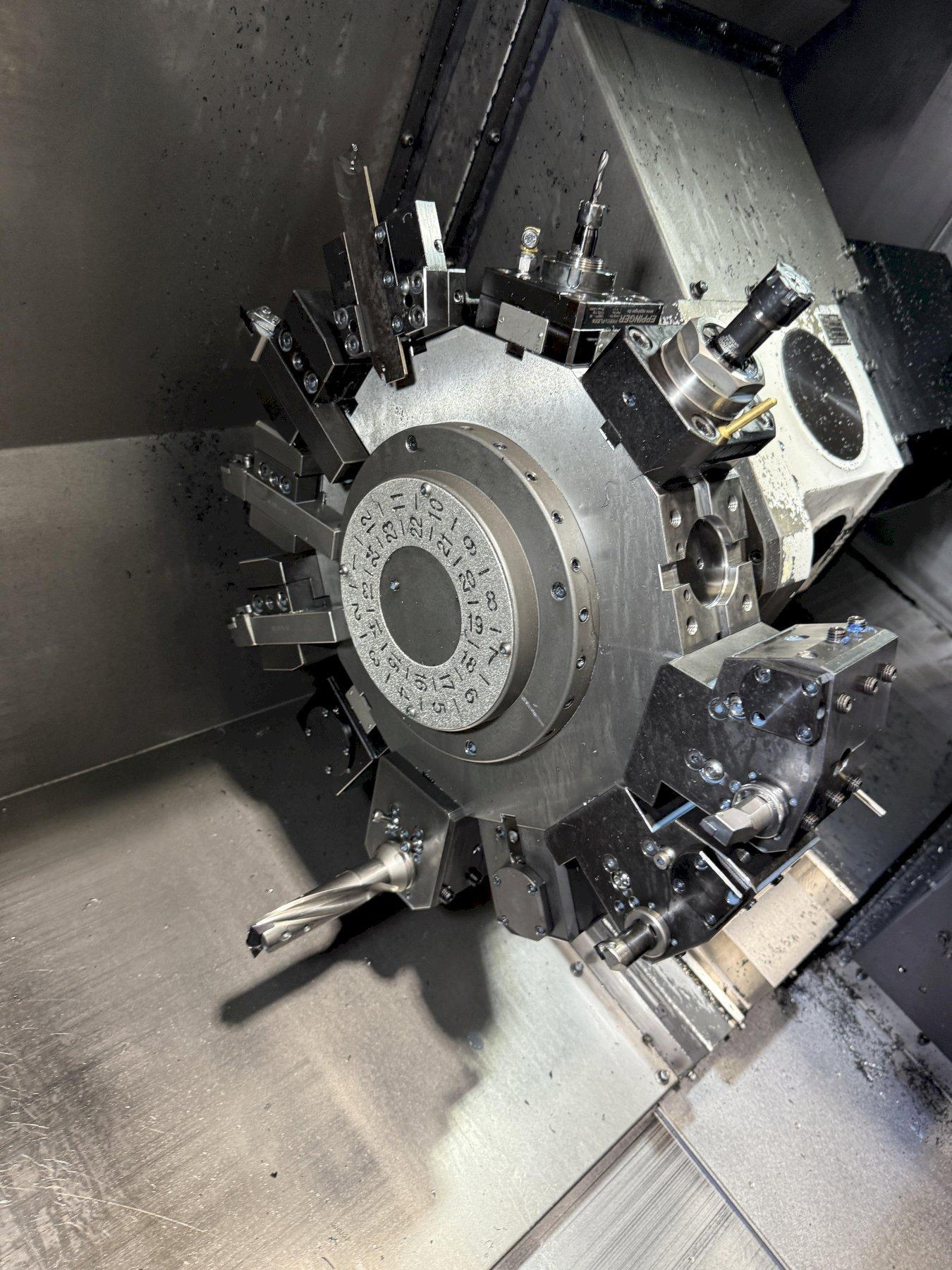

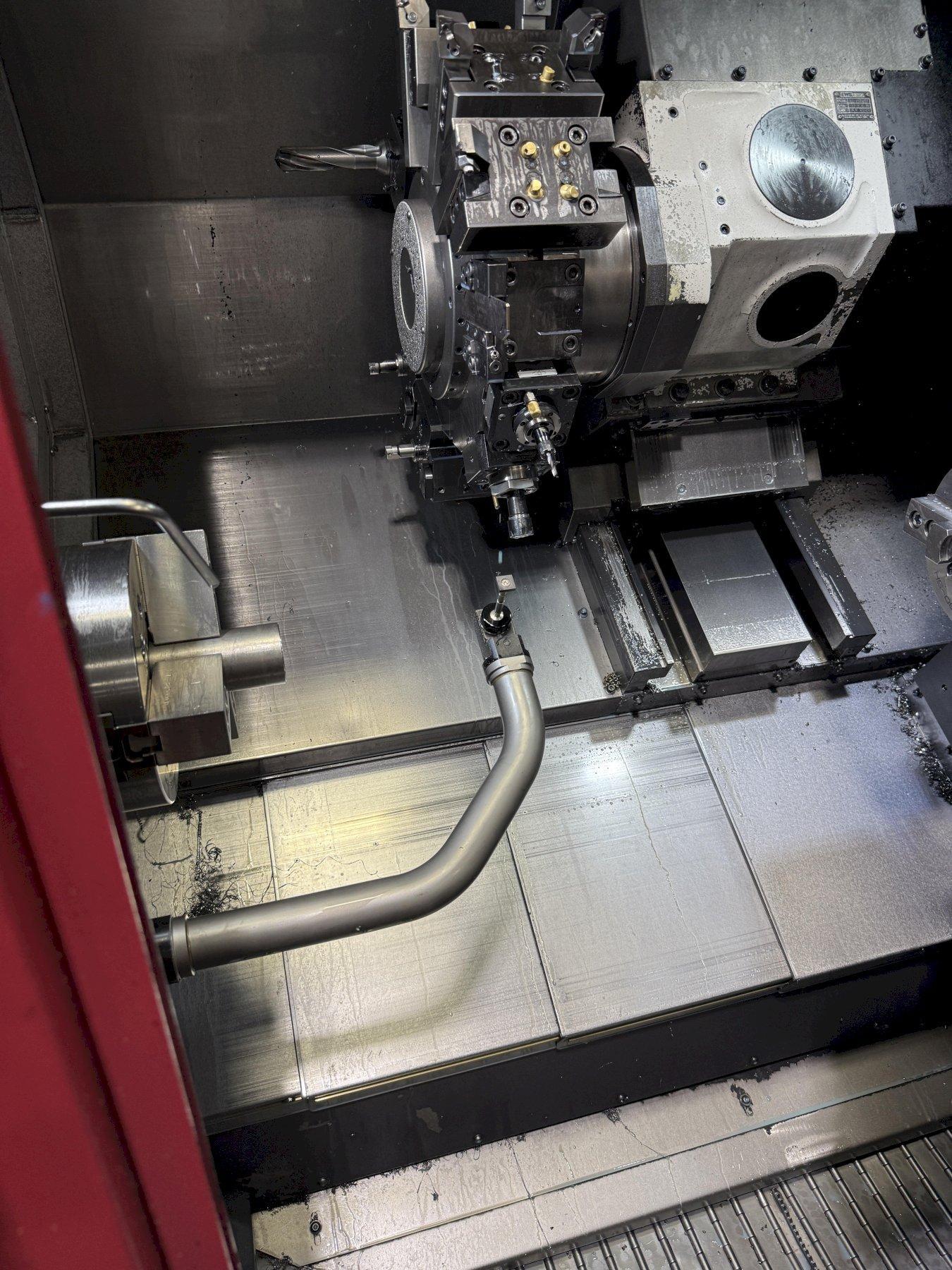

Turret Capacity	24
Machine Dimensions	141" x 60" x 73"
Machine Weight	13000 pounds

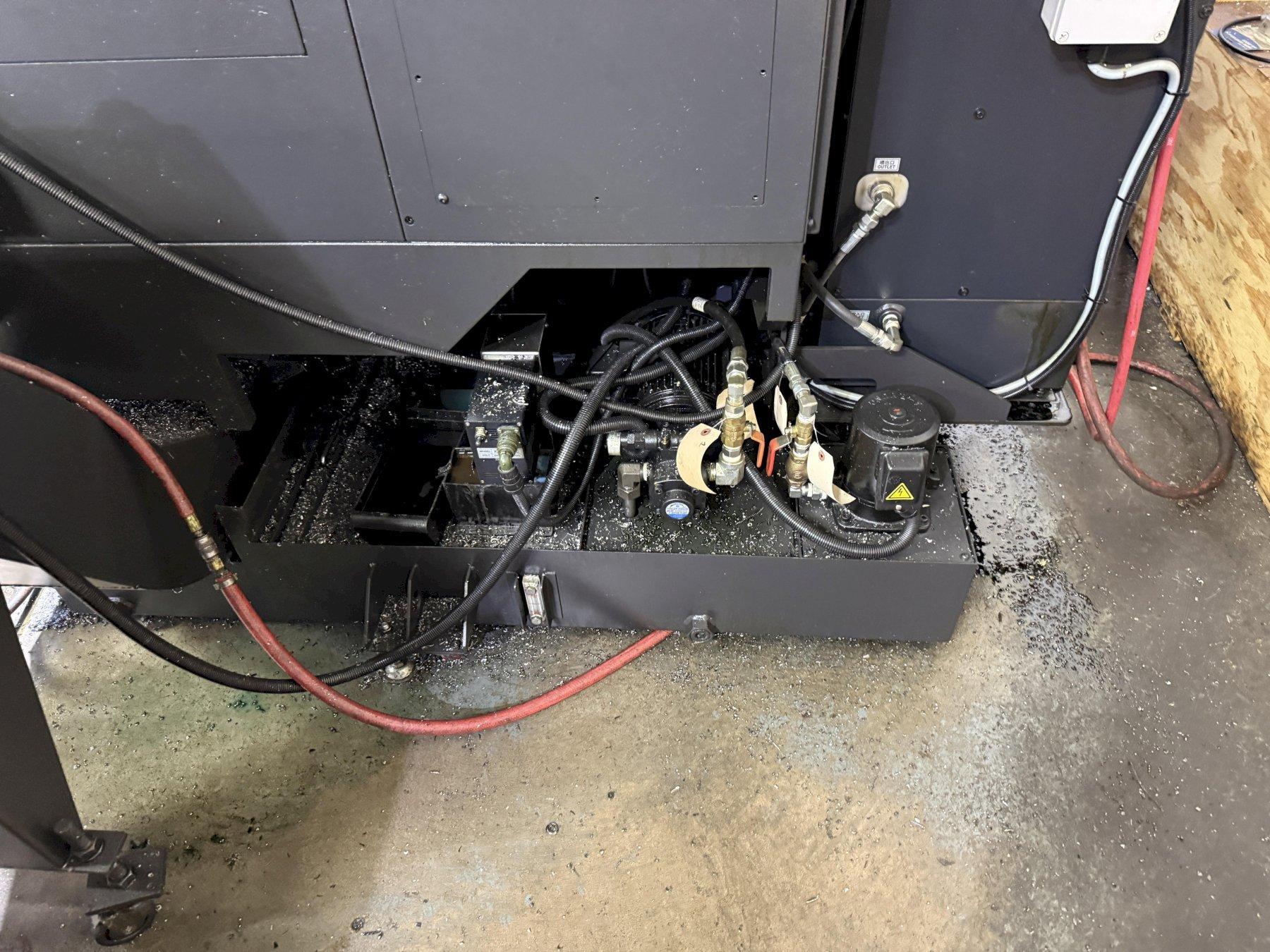

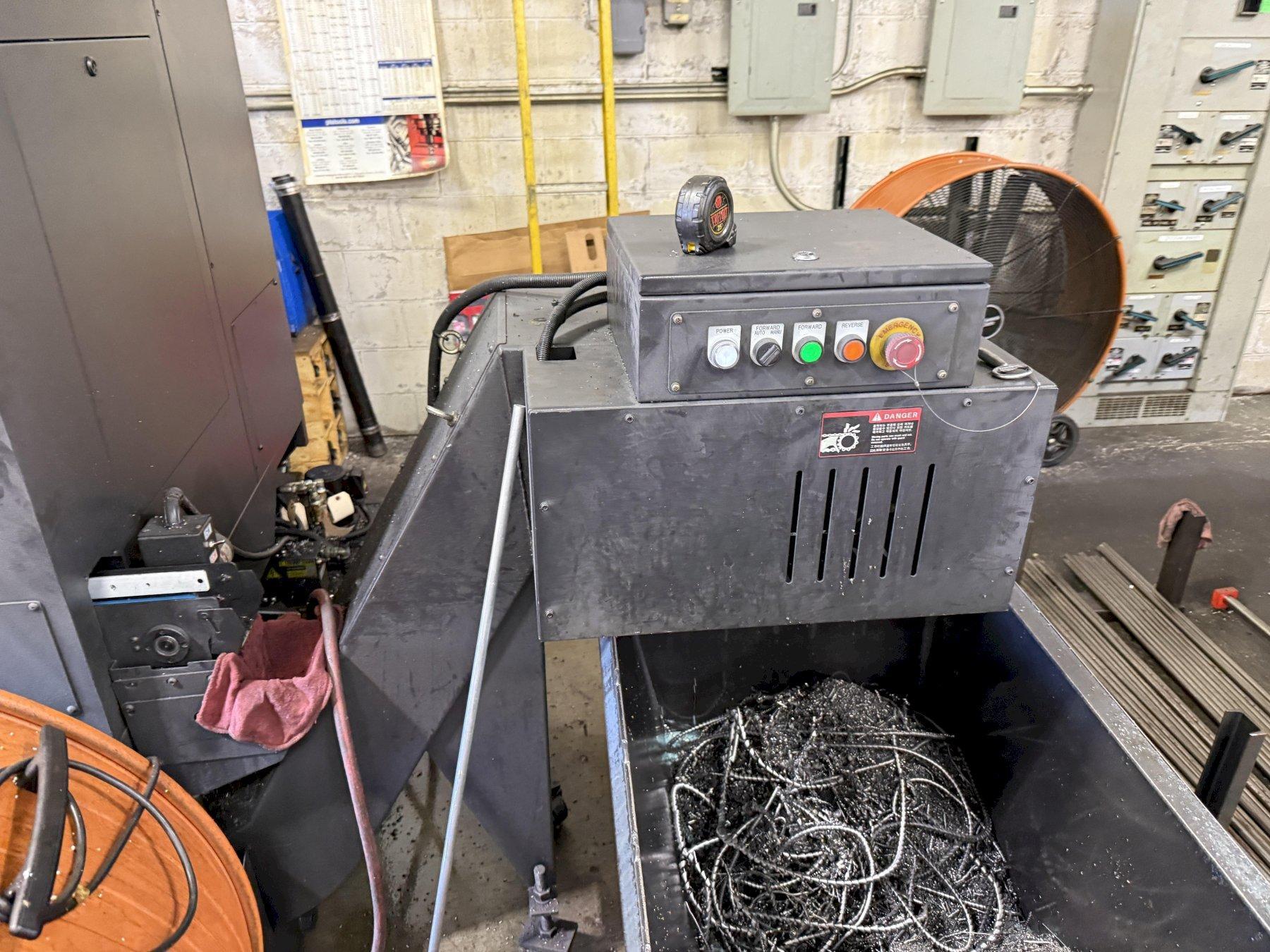

- Fanuc Series 0i-TF CNc control - Chip Conveyor - Coolant Tank & Pump - Live Tooling - Y Axis - Sub Spindle - Tool Presetter - Parts Conveyor - Parts Catcher
