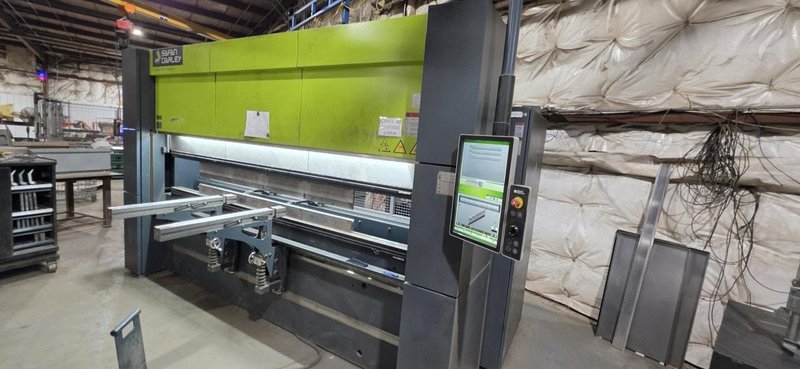

110 Ton x 10′ Safan Darley E-Brake 100-3100 Premium Press Brake, 2022 – Low Hours, Great Condition

Tonnage 110 T Type HYD Overall Length 10′ Between Housings 10′ Stroke 12″ Control CNC (EC10 press brake control) Dimensions 171 inches x 106 inches

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pressure force in US Ton 110 Bending length in inches 120 Maximum stroke in inches 12 Q size in inches 23 Closing speed in inch/min 177 Bending speed max. in inch/min 48 Return speed in inch/min 177 Motor power in kW 11 Machine weight in lb 16.5 Machine length in inches 171 Machine height in inches 106

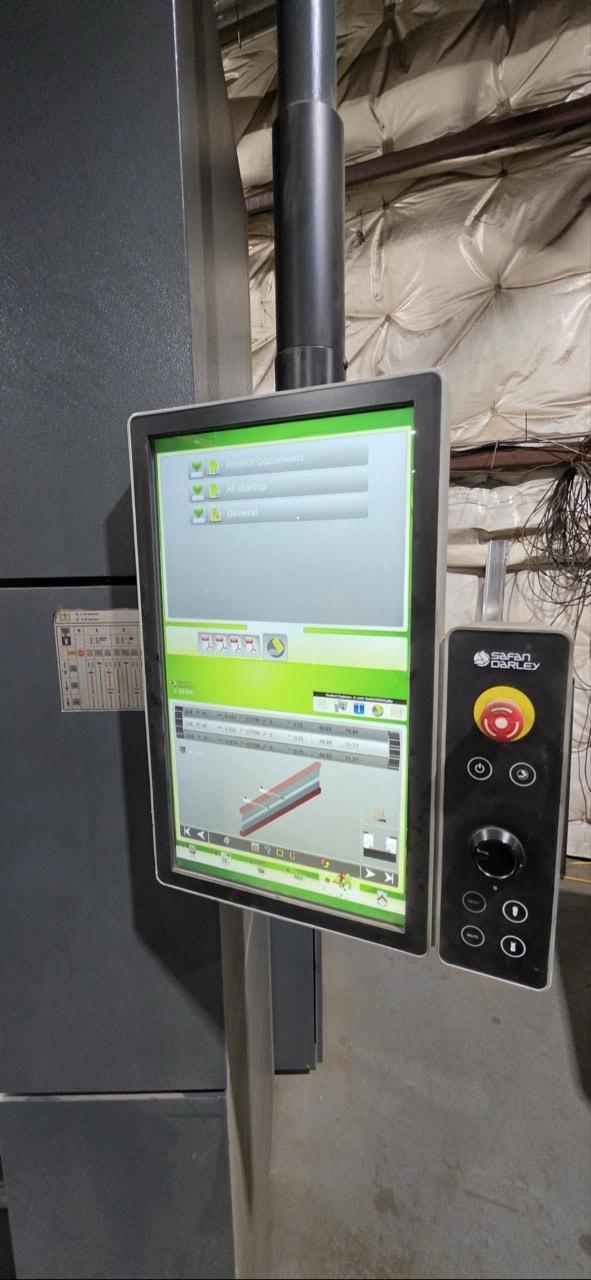

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– EC20 control, – Split screen – CNC X-axis, Y1/Y2 axis, R-axis, CNC – Manual Z-axis. – SafanDarley light guard – NSCL I MC Pro – OB/S-3

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Z1+Z2 axis, type G, CNC programmable movement of the back gauge fingers,

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,independently adjustable, parallel on the tools.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Back gauge finger dX adjustment on the right finger, Stroke 100 mm (+/- 50 mm.)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,NSCL-II-HC-Premium. Top tool adapter with hydraulic upper tool clamping, with hardened tool surface, with hydraulic unit. Working height = 80 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table type OB-C-3-HC Premium, incl. V-Lock, central adjustment key, hardened tool adaptation, hydraulic tool clamping and manual ty adjusting; dimensions:

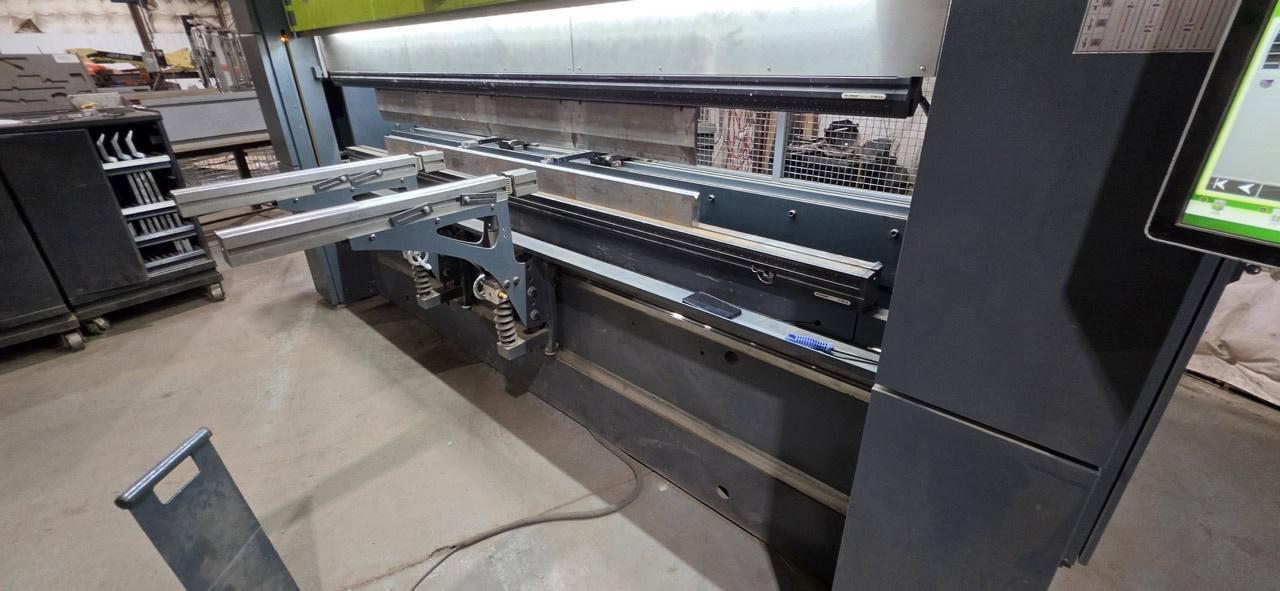

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Set of movable front sheet support arms (INOX) with hand wheel adjustment in height,

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,incl. T-slots. Stroke 100 mm. Length arm L=930 mm, max. load per arm:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
