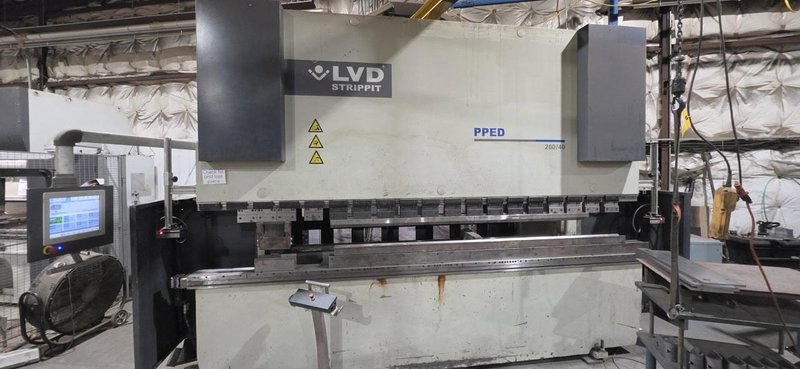

220 Ton x 13′ LVD PPED 200/40 CNC Press Brake, 2019 – Great Condition

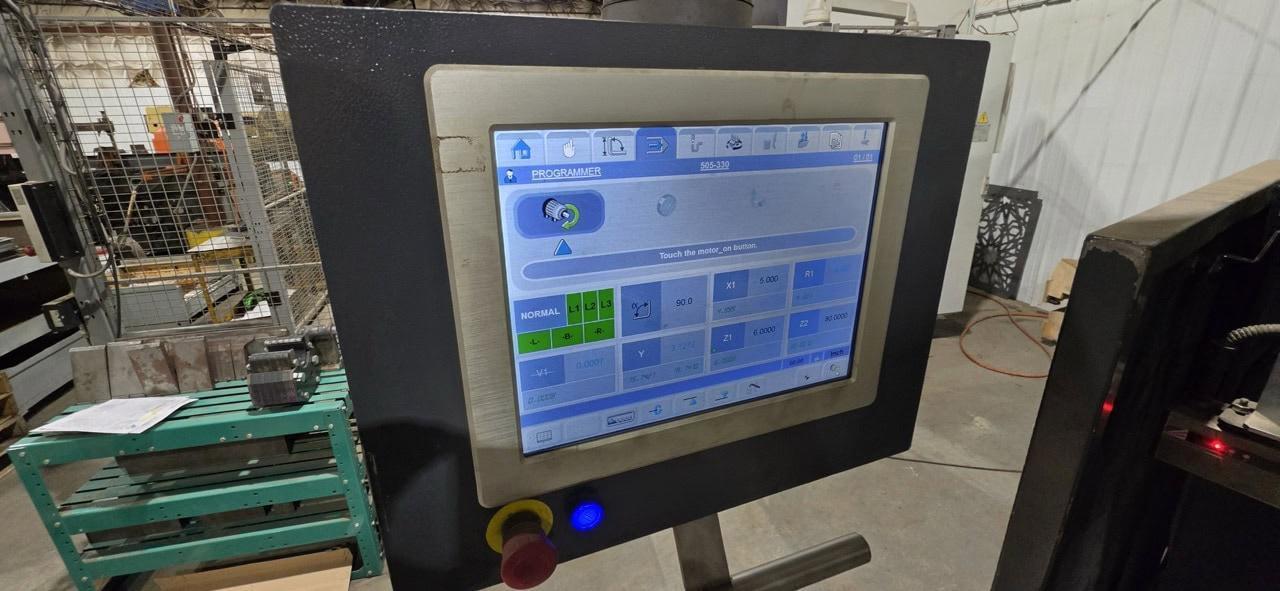

Pressing Force: 220 US tons (2000 kN / approx. 199.6 metric tons) Working Length (Overall Bending Length): 157 inches (4000 mm) Distance Between Uprights (Housings): 124 inches (3150 mm) Stroke: 7.8 inches (200 mm) Distance Table to Ram: 19.6 inches (500 mm) Throat Gap: 11.8 inches (300 mm) Table Width: 7.0 inches (180 mm) Approach Speed: 236 inch/min Working Speed: 21 inch/min Return Speed: 212 inch/min Main Motor Power: 18 kWOil Capacity: 92 gallons (350 liters) Control Unit: Touch-B touch screen graphical control Backgauge: 4-axis CNC backgauge (X, R, Z1, Z2 configuration options) Safety System: Lazer Safe guarding laser system Crowning: CNC crowning table configuration for deflection compensation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
