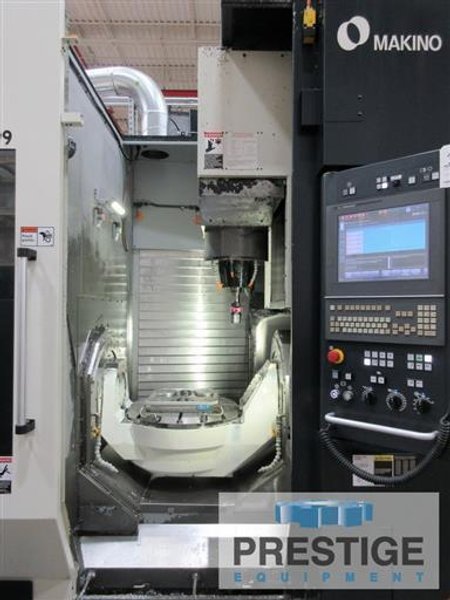

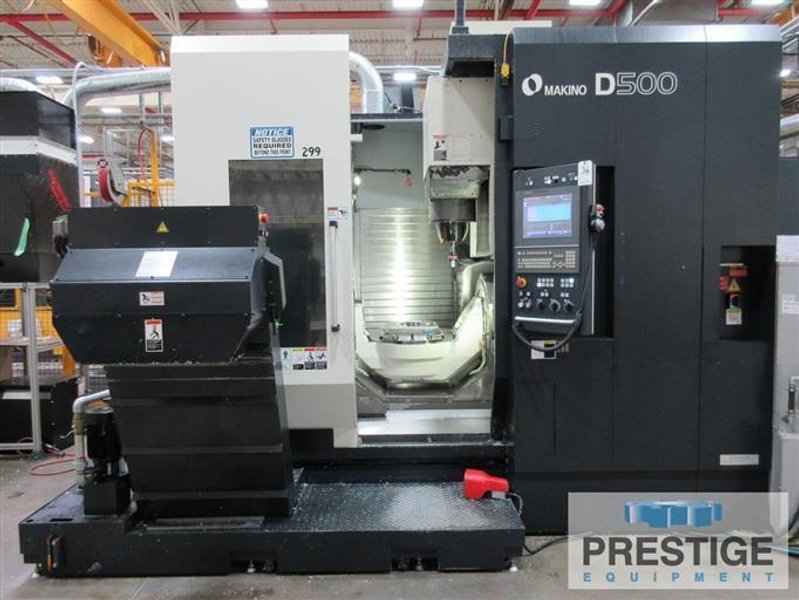

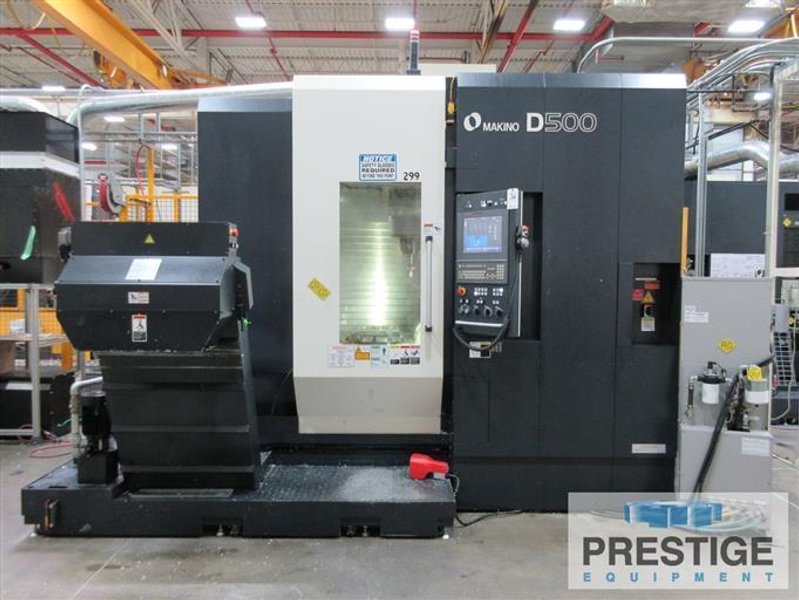

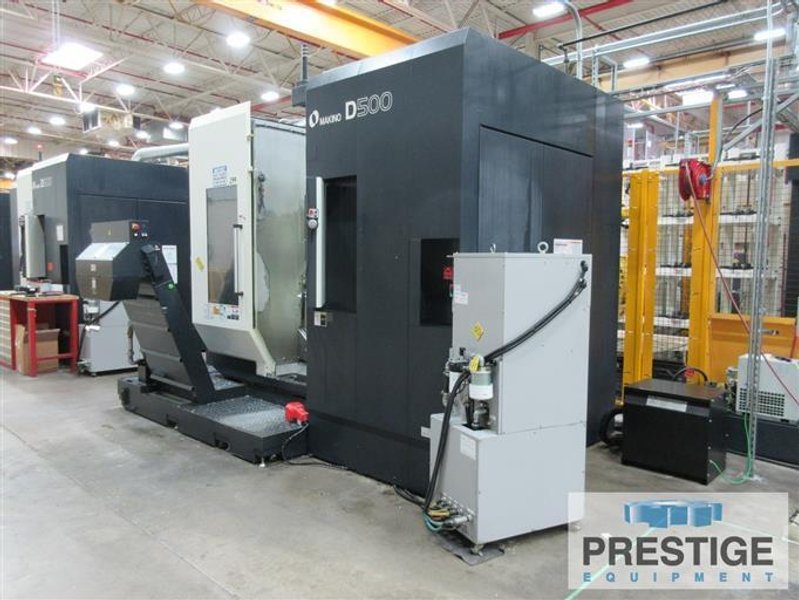

Machining Centers Vertical CNC

CAPACITIES:
X-Axis Travel 21.6"
Y-Axis Travel 39.4"
Z-Axis Travel 19.7"
A-Axis Table Tilt Travel +30/-120 Degrees
C-Axis Table Rotation 360 Degrees
Table Size 19.7" Diameter
Maximum Workpiece 25.6" x 19.6"
Maximum Work Weight on Table 770 Lbs.
Spindle Speeds 30,000
Spindel Taper HSK-63F
Rapid Traverse, X-Axis 1890 IPM
Rapid Traverse, Y/Z Axes 1970 IPM
Cutting Feedrate, X-Axis 1260 IPM
Cutting Feedrate, Y/Z Axes 1575 IPM
Tool Changer Capacity 60 ATC
Maximum Tool Dia., Adjacent Full 5.5"
Maximum Tool Weight 17.6 Lbs



Equipped With:

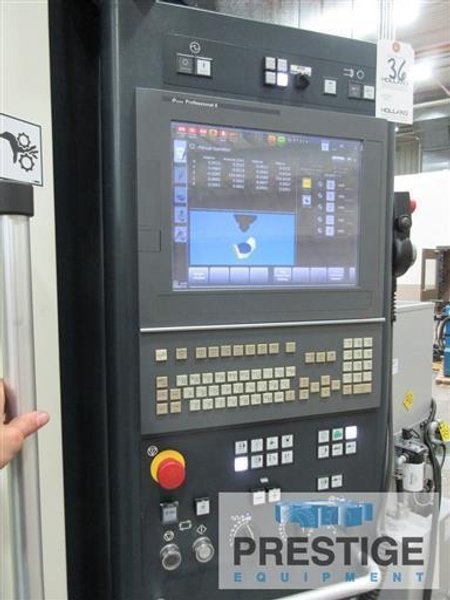

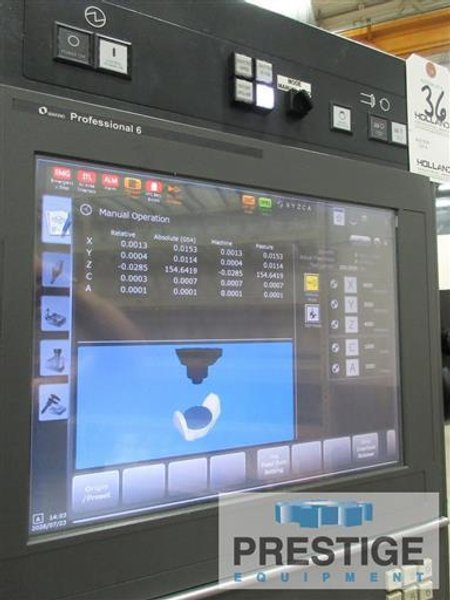

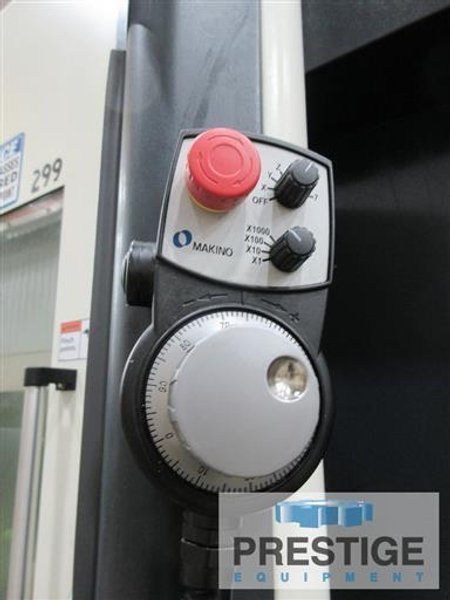

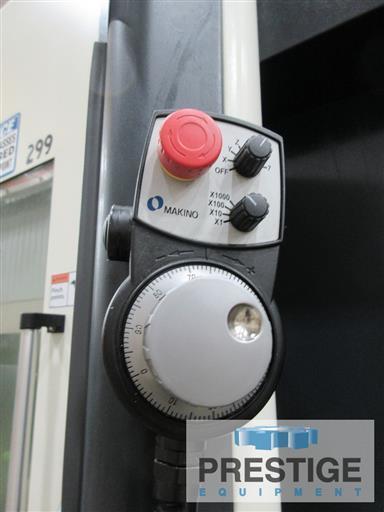

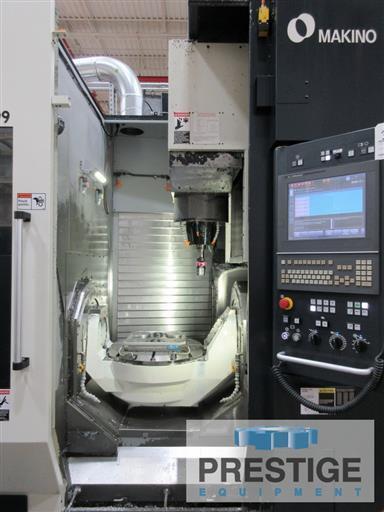

Makino Pro-6 (Fanuc 31i-B) 5-Axis CNC Control w/Hand Pendant

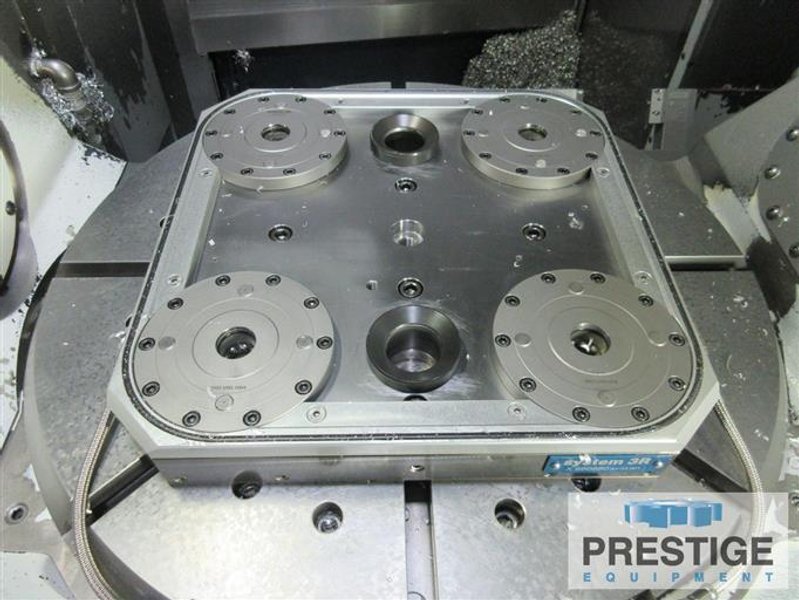

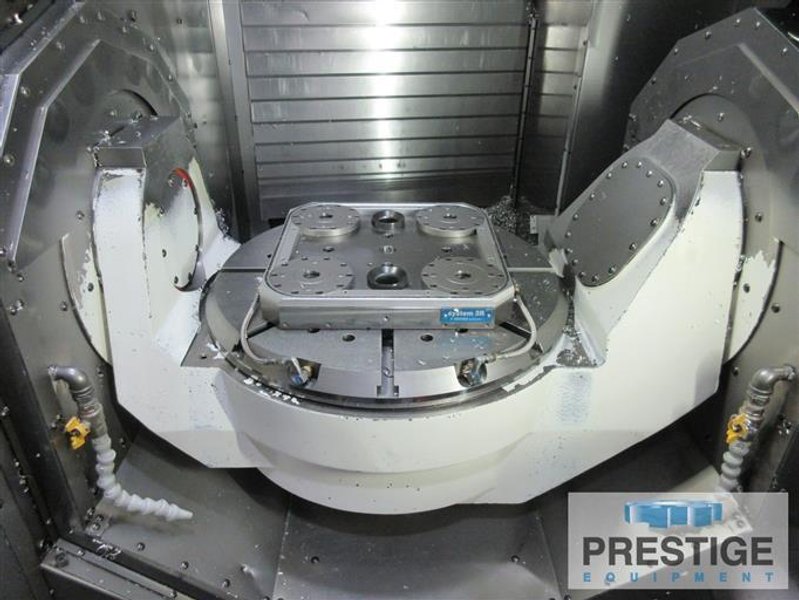

19.6" Diameter 2-Axis Tilt/Trunnion Rotary Table

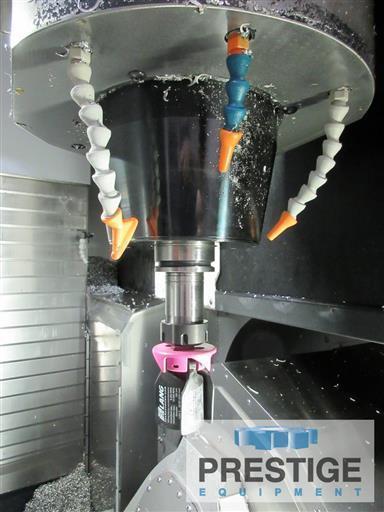

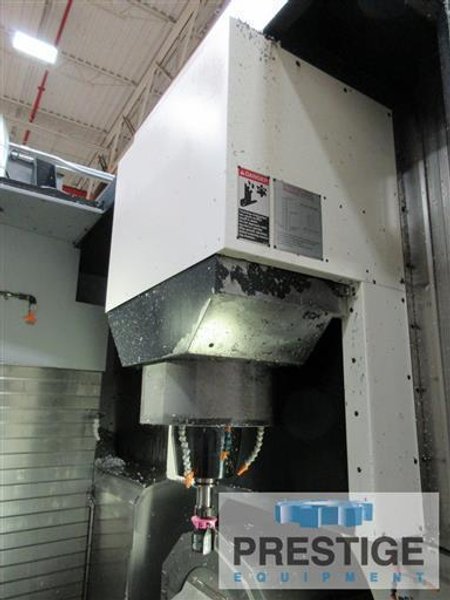

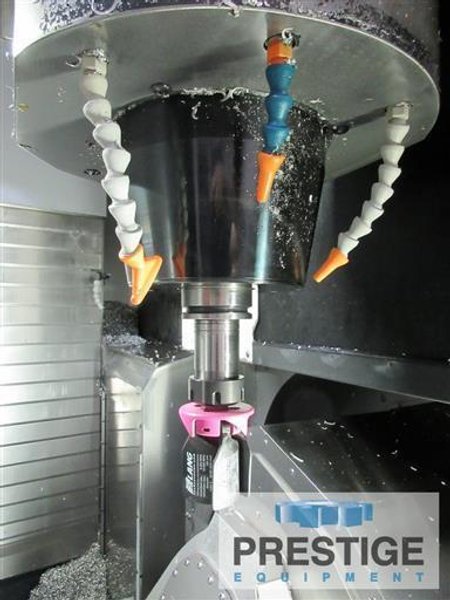

30,000 RPM Spindle
HSK-63F Taper
60-Position Automatic Tool Changer
High Pressure Coolant
Kanto Seiki Spindle Chiller
Oil-Air Lubrication

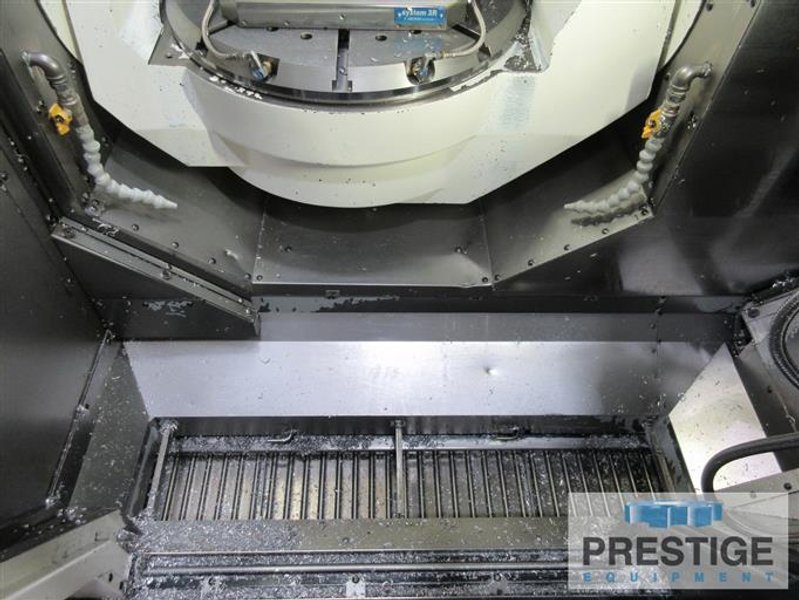

LNS Chip Conveyor


LOCATION: Ohio Manufacturing Facility


Auction Message:
This Machine is Being Offered at Our Upcoming August 25th Auction Sale - Complete Late Model CNC Mold Facility. Pre-Auction Offers Will Be Considered. Please Click This Link To See The Entire Offering.




View The Auction
