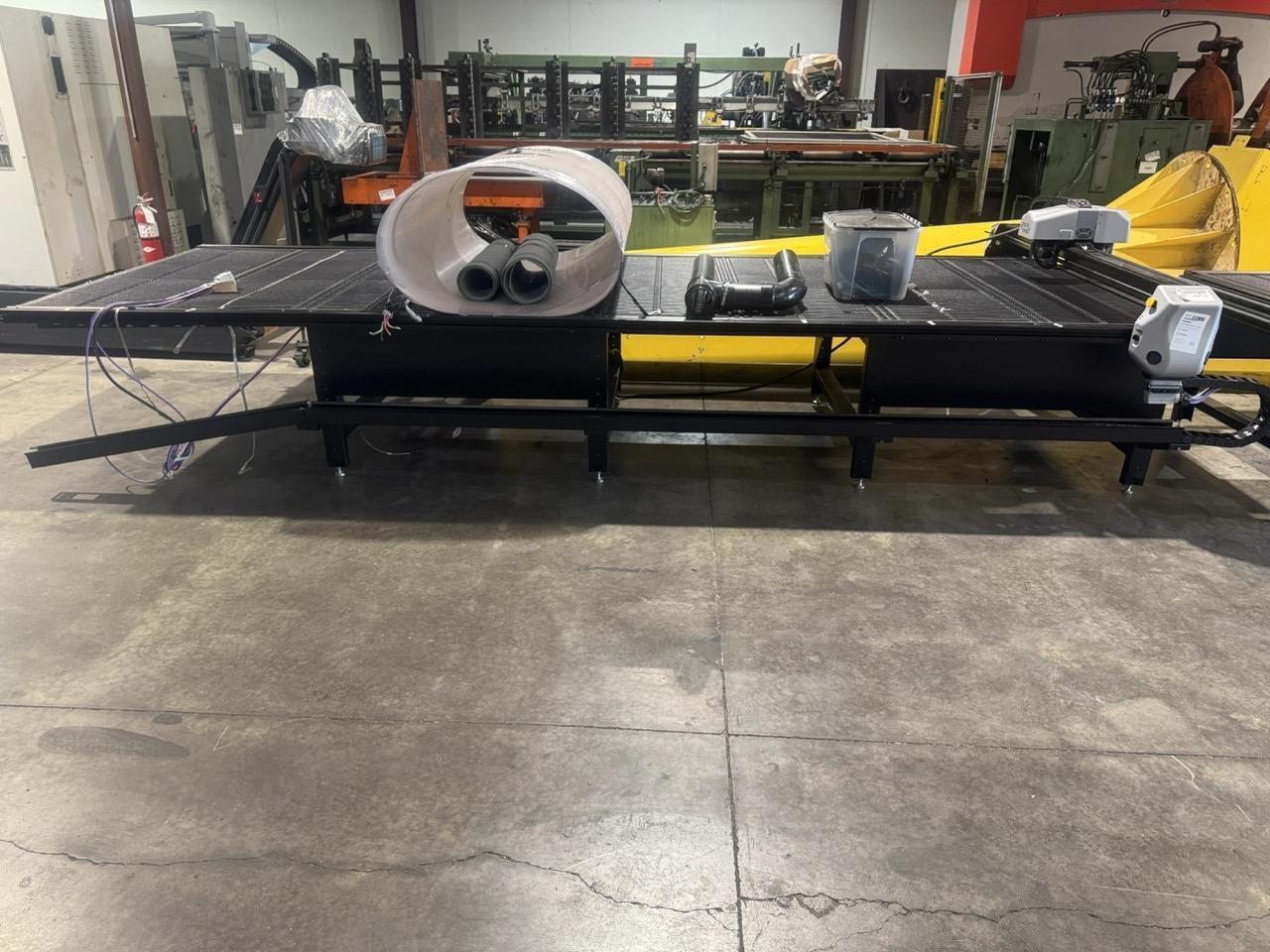

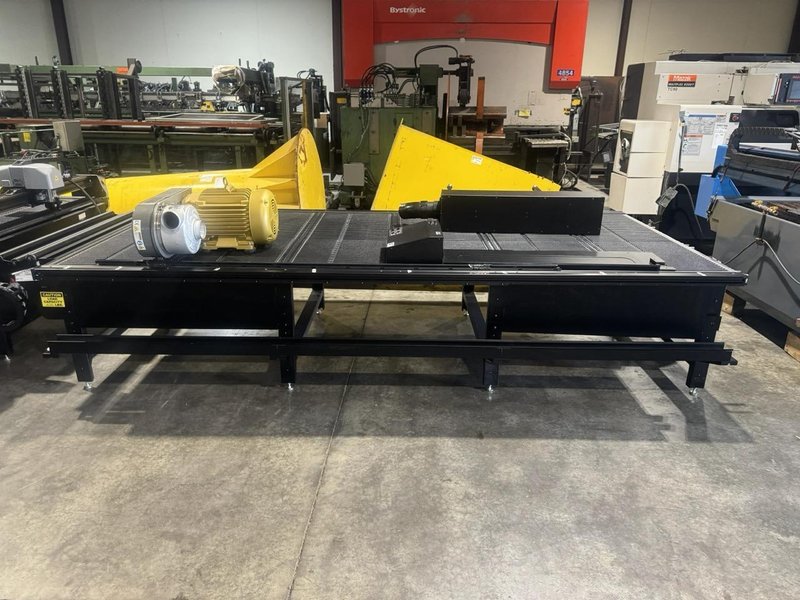

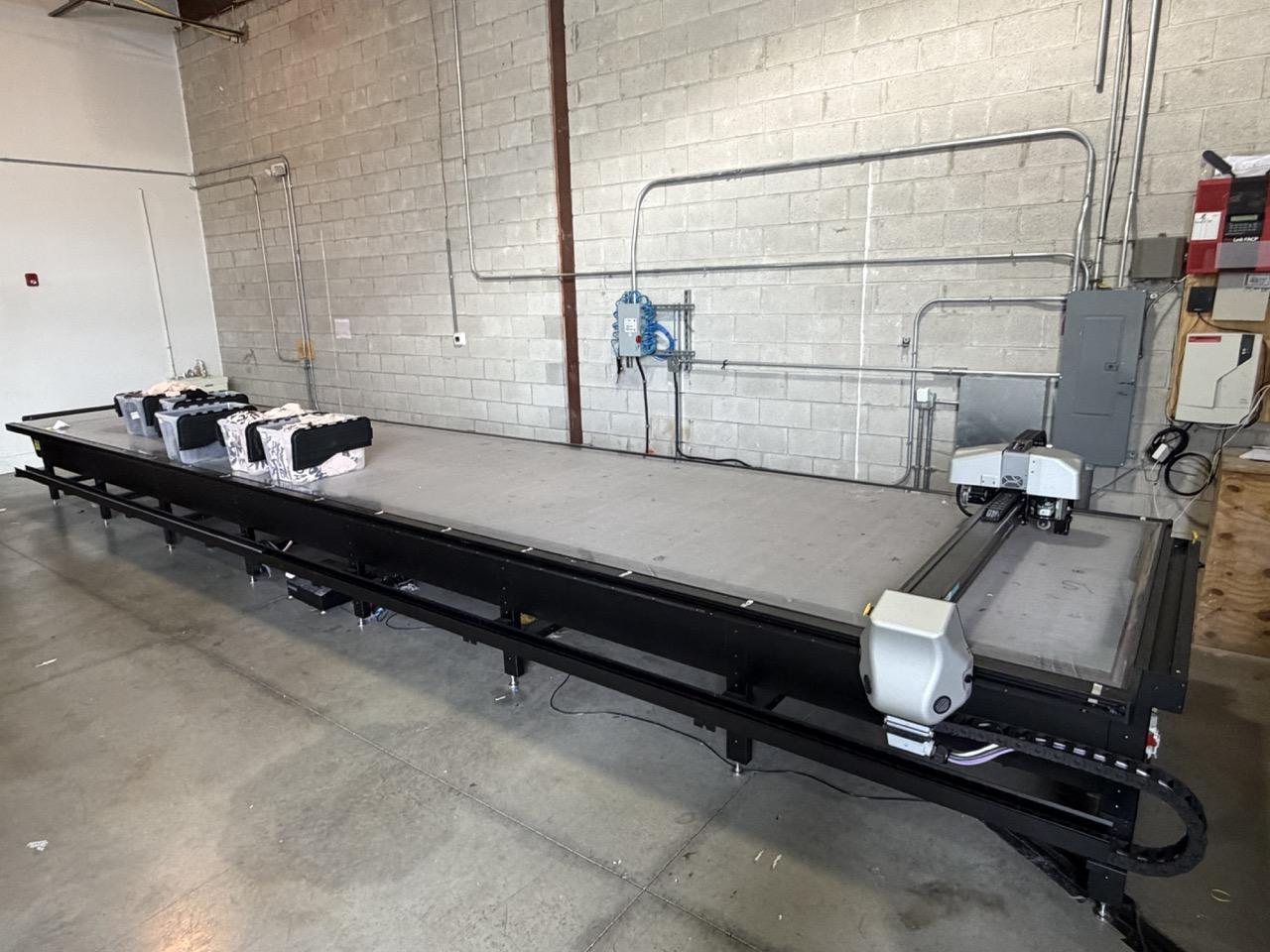

26′ x 63 Autometrix Radium Precision Cutting/Plotting System, 2024 – Automated Fabric Cutting Table

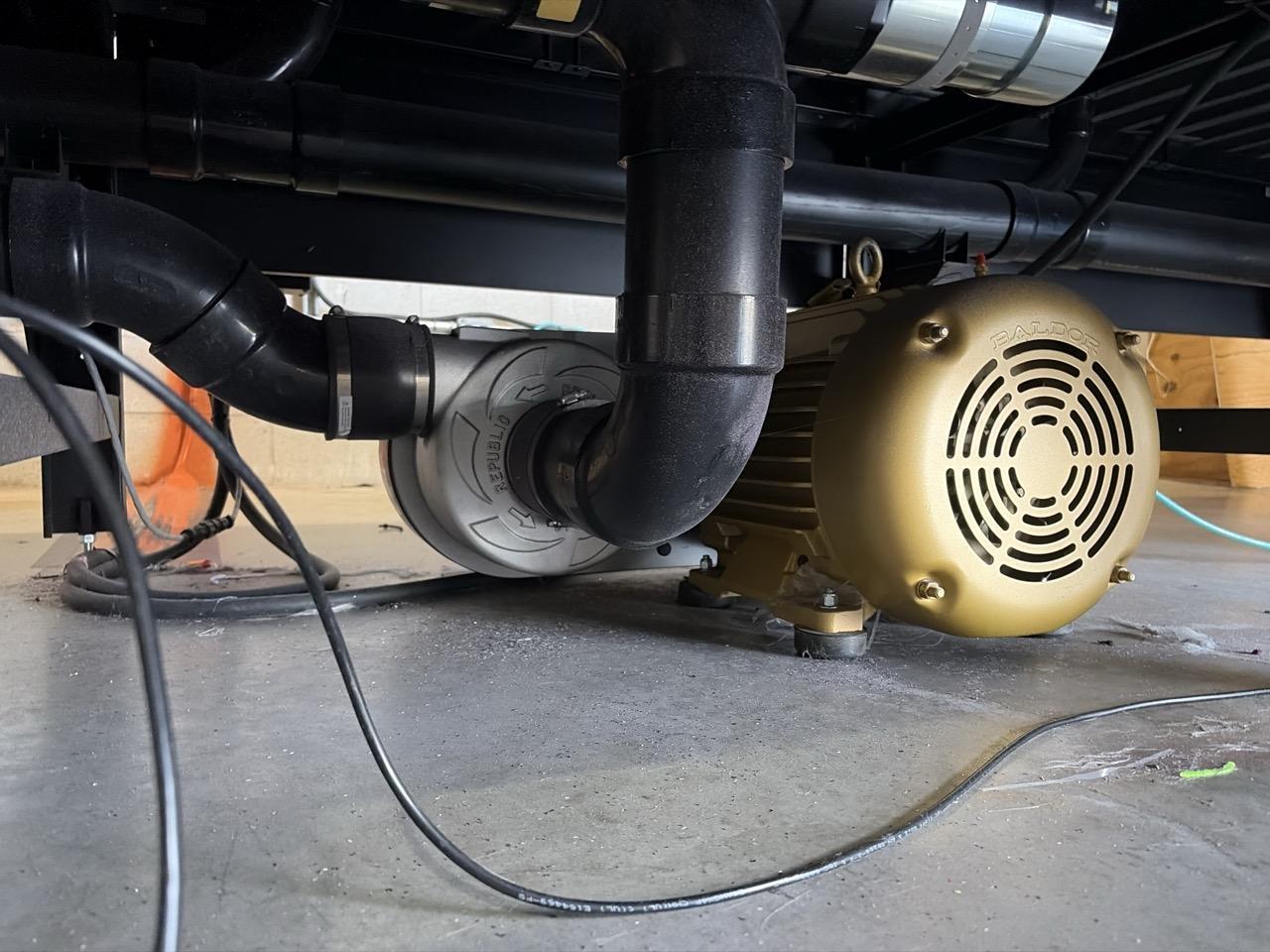

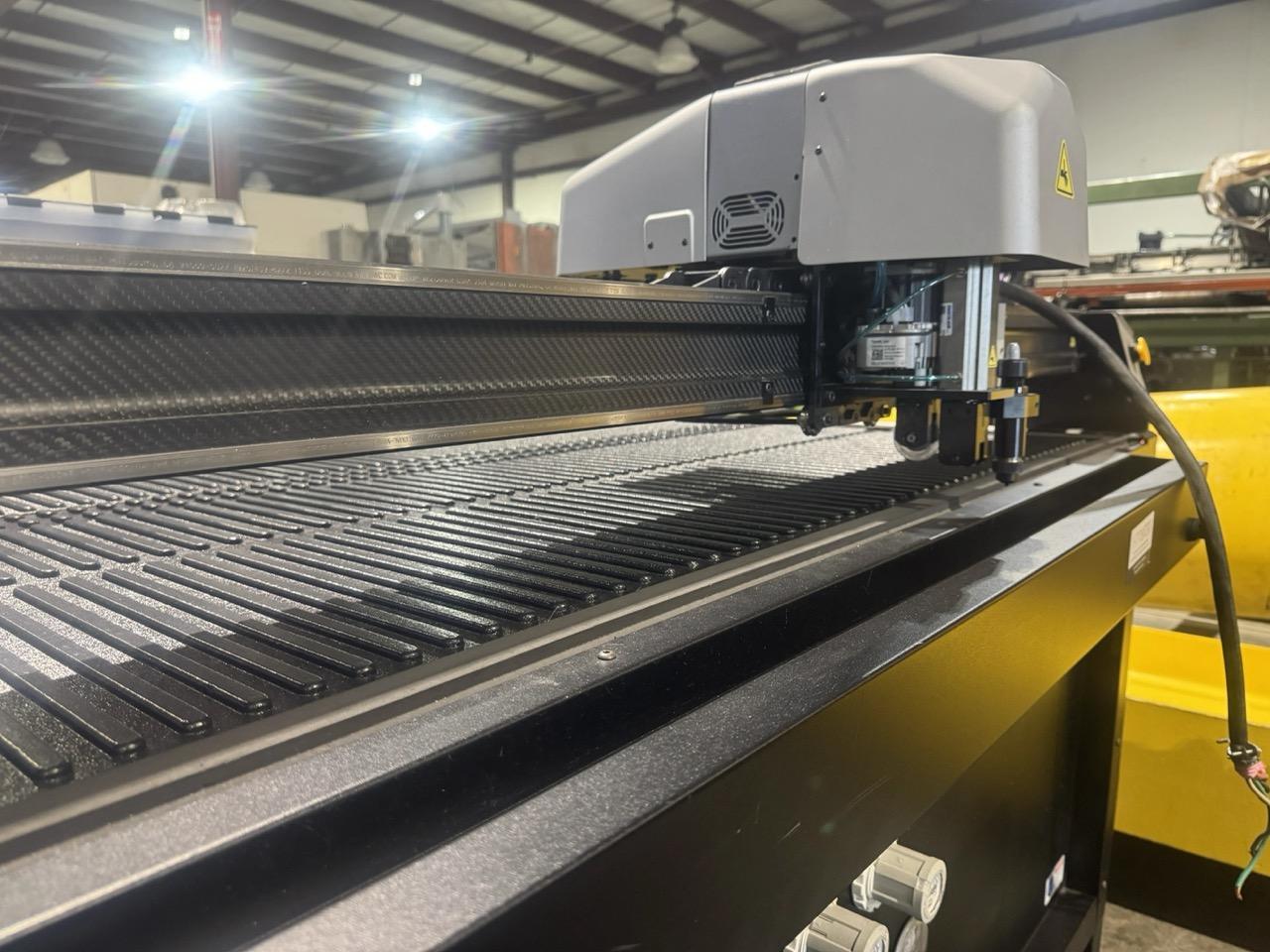

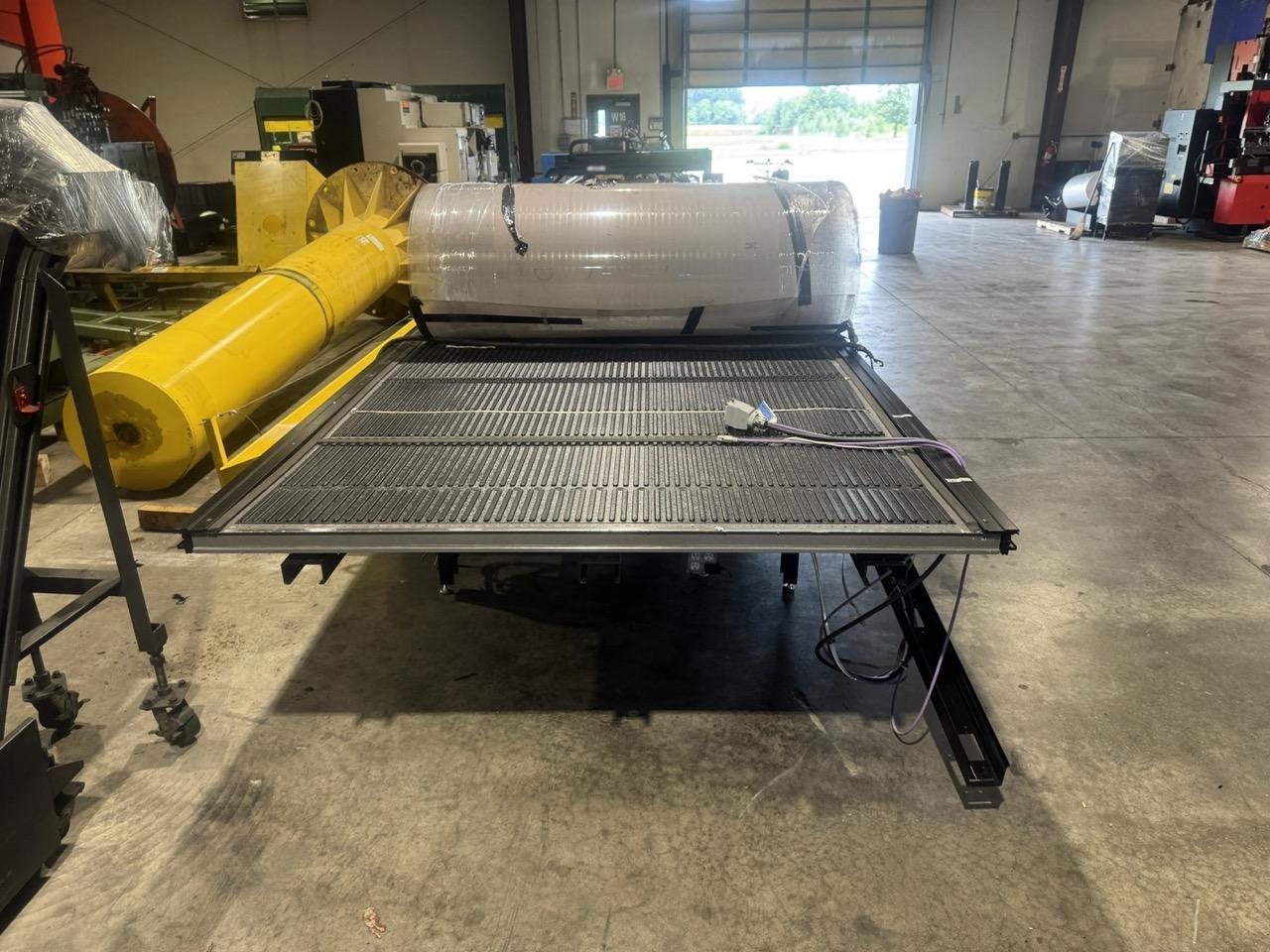

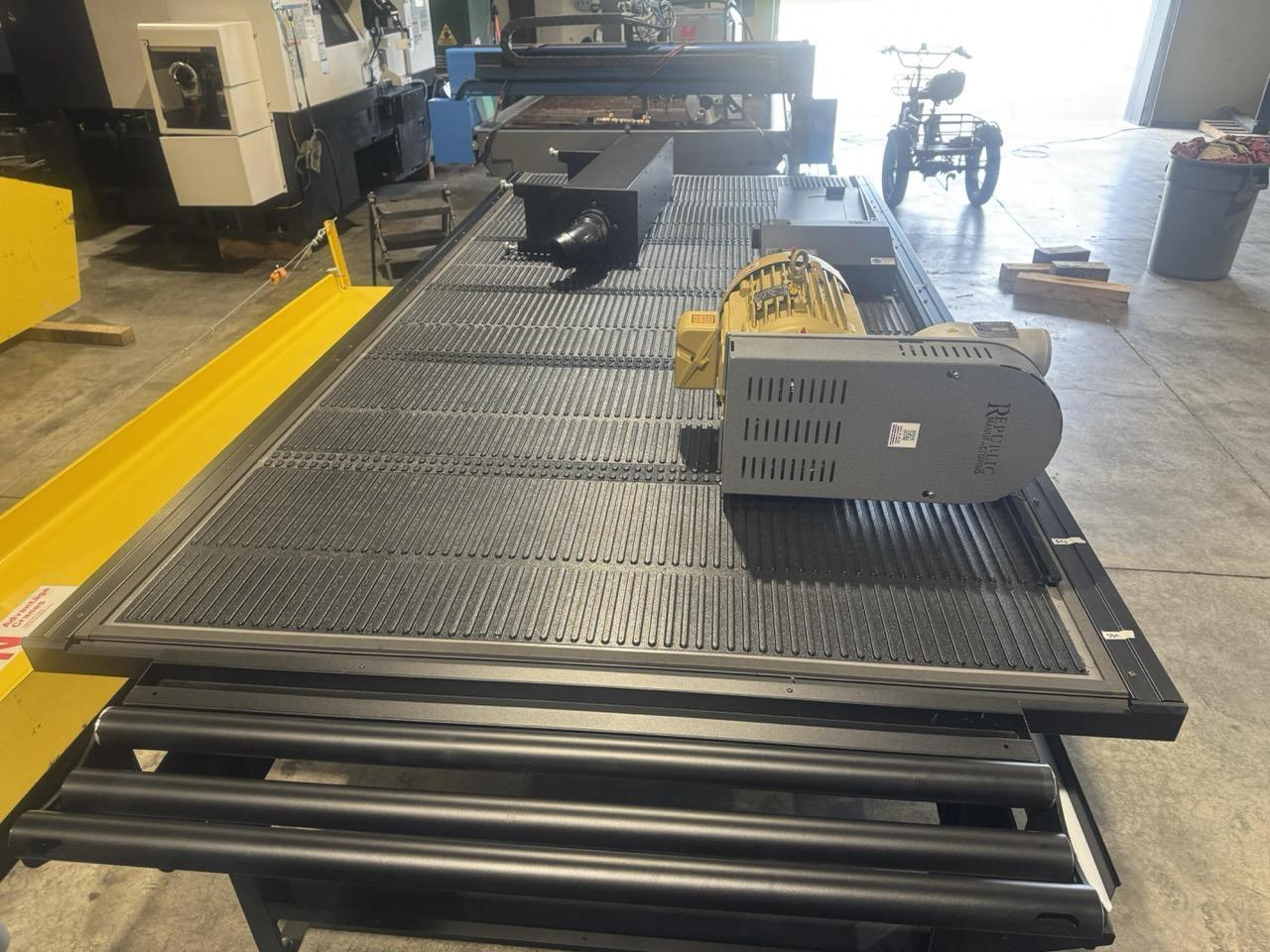

2024 Autometrix Radium automated CNC precision cutting and plotting system featuring a large 63″ x 26′ cutting area, integrated vacuum table, servo-driven rack-and-pinion motion, modular cutting head and high-speed precision cutting capability for fabric, textiles, composites, vinyl, canvas, leather and other flexible materials.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer Autometrix, Inc. Model Radium Year 2024 Machine Type Automated CNC Precision Cutting / Plotting System Cutting Table Type Static-Bed Vacuum Cutting Table Cutting Width 63 in. Cutting Length 26 ft. / 312 in. Approx. Cutting Area 136.5 sq. ft. Maximum Cutting Speed 45 in./sec. (1.14 m/sec.) Maximum Acceleration 0 to maximum speed in 0.32 sec. Cutting Accuracy ±0.020 in. / 0.51 mm Repeatability 0.005 in. / 0.13 mm Motors Servo Motors Drive System Rack & Pinion Cutting Tool Mounts 2 Plotting Tool Mounts 1 Maximum Material Thickness Up to 2 in. / 50 mm, lofted

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
