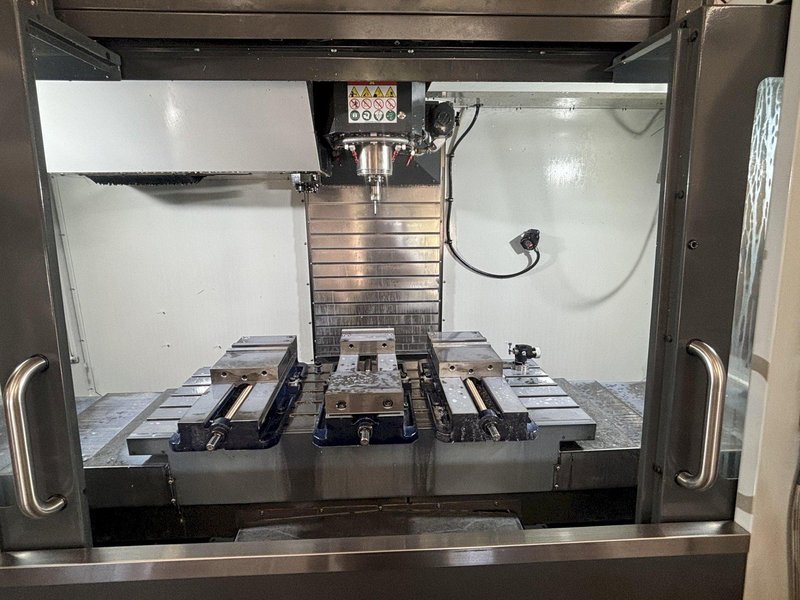

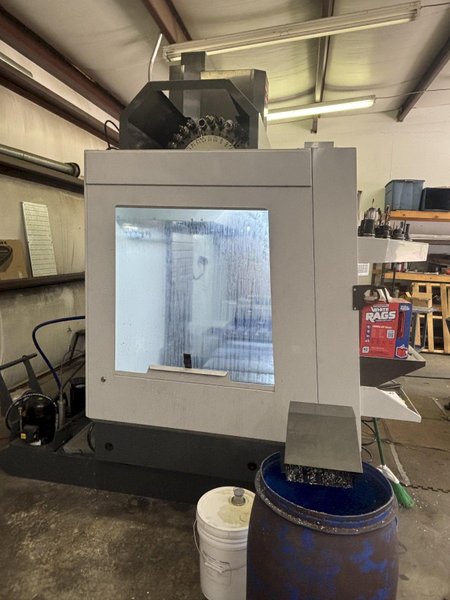

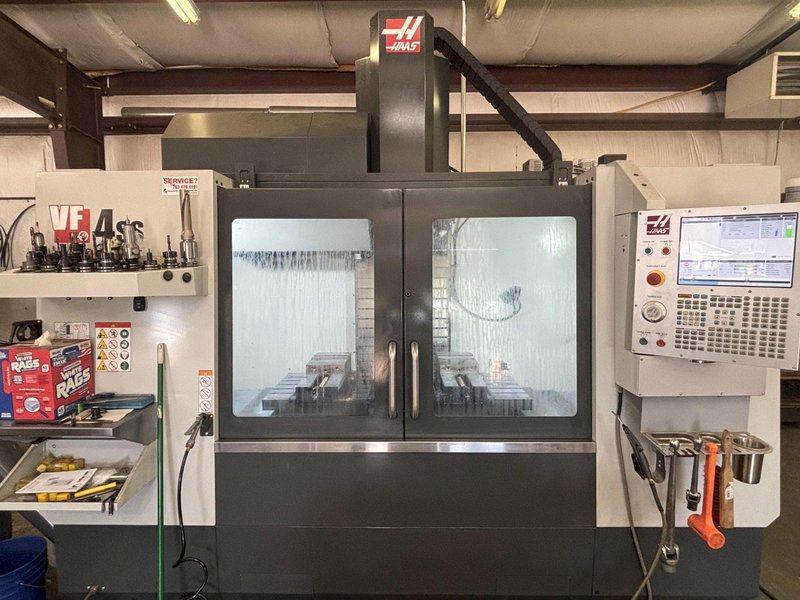

2023 HAAS VF4SS Vertical Machining Center - High-Speed 15000 RPM Spindle

Name: 2023 HAAS VF4SS Vertical Machining Center - High-Speed 15000 RPM Spindle
Brand: HAAS
SKU: 57784
Availability: InStock

Brand

HAAS

Minnesota

CNC Control	yes
Type Of CNC Control	Haas Control
# Axis	3
High Speed Feature	15000 RPM High Speed Machining
Table Size	52" × 18"
Table Capacity	1750 pounds
X-Axis Travel	50 inches
Y-Axis Travel	20 inches
Z-Axis Travel	25 inches
Spindle Speed	15,000 RPM inline direct-drive
Spindle Taper	CAT 40 taper
Tool Changer Capacity	30
X-Axis Feedrate	Max Cutting Feedrate: 833 IPM
Y-Axis Feedrate	Max Cutting Feedrate: 833 IPM
Z-Axis Feedrate	Max Cutting Feedrate: 833 IPM
X-Axis Rapid Traverse Rate	1,400 inches per minute (IPM)
Y-Axis Rapid Traverse Rate	1,400 inches per minute (IPM)
Z-Axis Rapid Traverse Rate	1,400 inches per minute (IPM)
Coolant Thru Spindle	yes
Main Motor	30 hp vector drive vector motor
Machine Hours	1401
Floor Space	152 in x 99 in x 106 in
Weight	11720 pounds
Haas CNC Control Touch Screen Interface for the Haas Control High-Speed Machining Rigid Tapping Through-Spindle Coolant, 1000psi Wireless Intuitive Probing System Chip Auger Programmable Coolant Nozzle Chip Tray 55-Gallon Coolant Tank with ¼ hp Pump Ethernet Interface and Wifi Connection for the Haas Control 1GB of Onboard Memory for Program Storage and Backup HaasConnect: Remote Monitoring HaasDrop Wireless File Transfer Media Display M-Code Haas Window Blast
