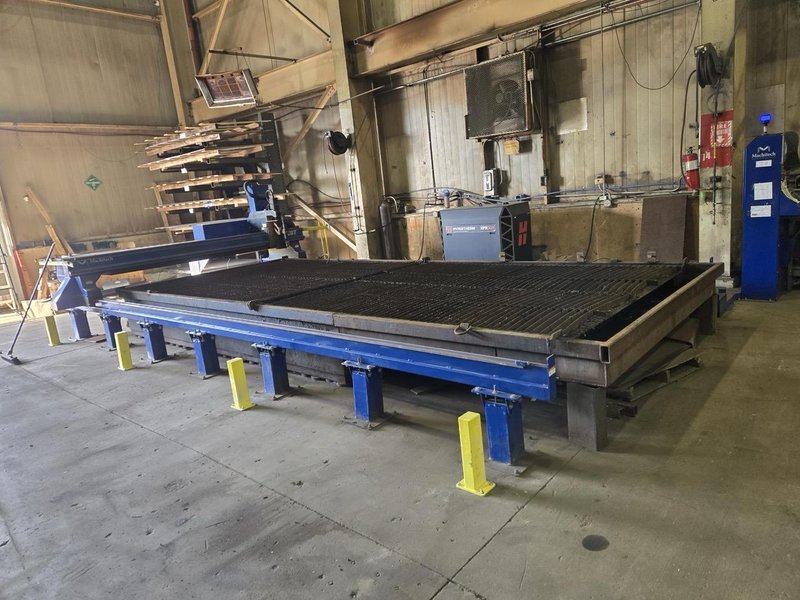

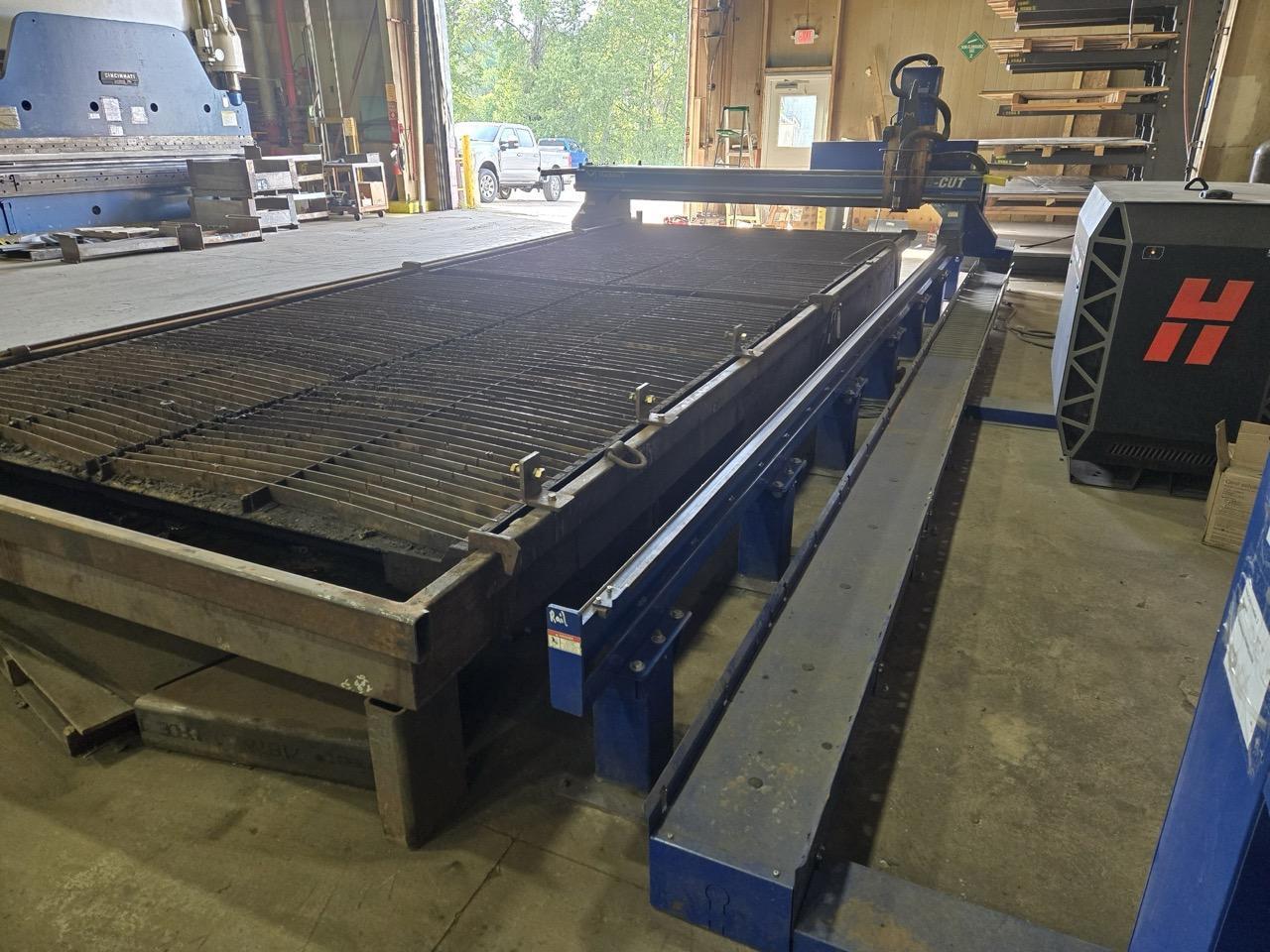

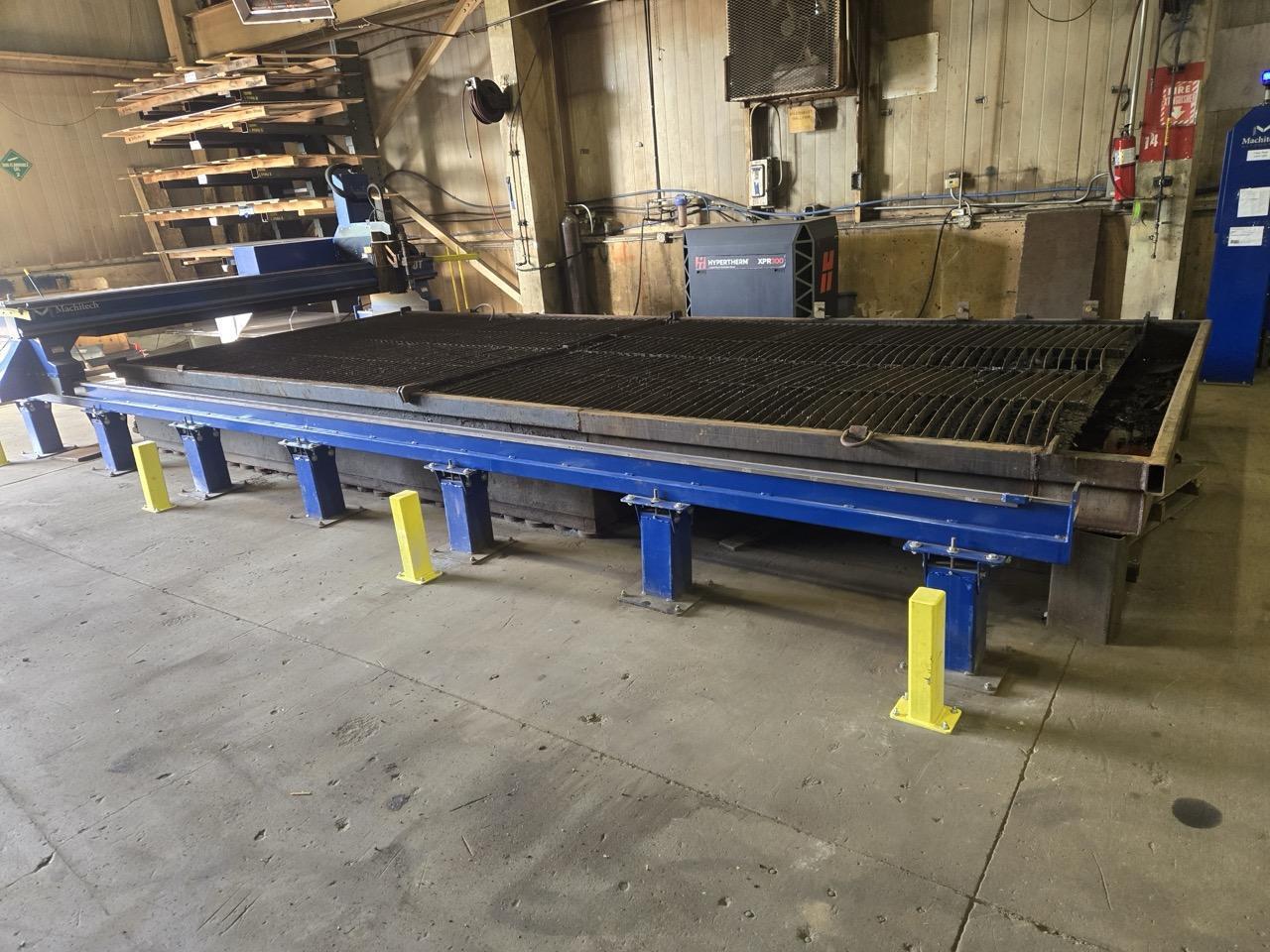

8′ x 20′ Machitech Hypertherm XPR300 CNC Plasma, 2024

Cutting Dimensions: 8′ x 20′ Max Traverse Speed: 1000 IPM Max Cutting Speed: 0 to 500 IPM Positional Accuracy: 0.003′ Repeatability: 0.002″ Max Table Capacity: 4″ Space Under Gantry: 8.5″ Cutting Capacity: Up to 3″ Steel Amps: 300

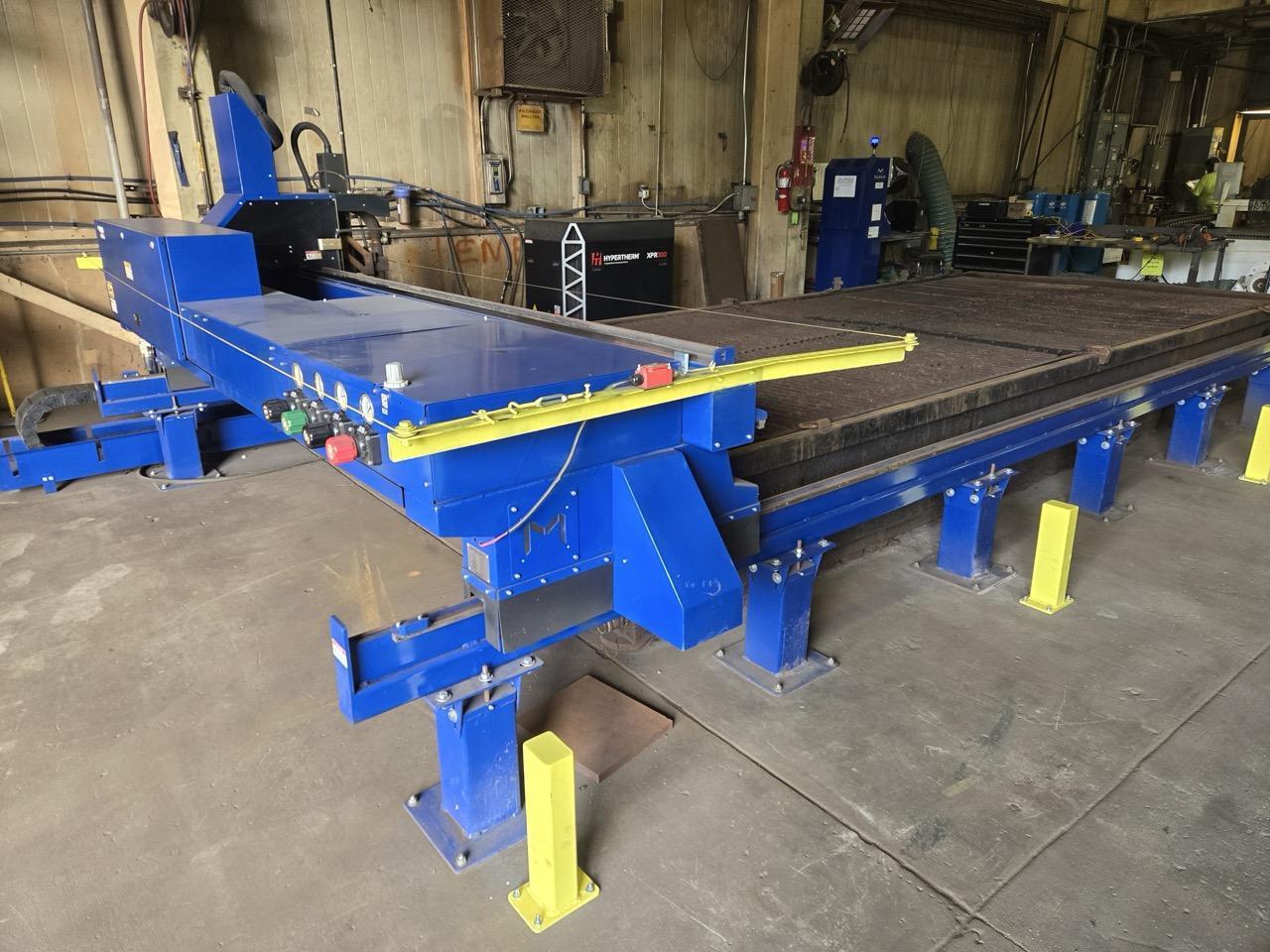

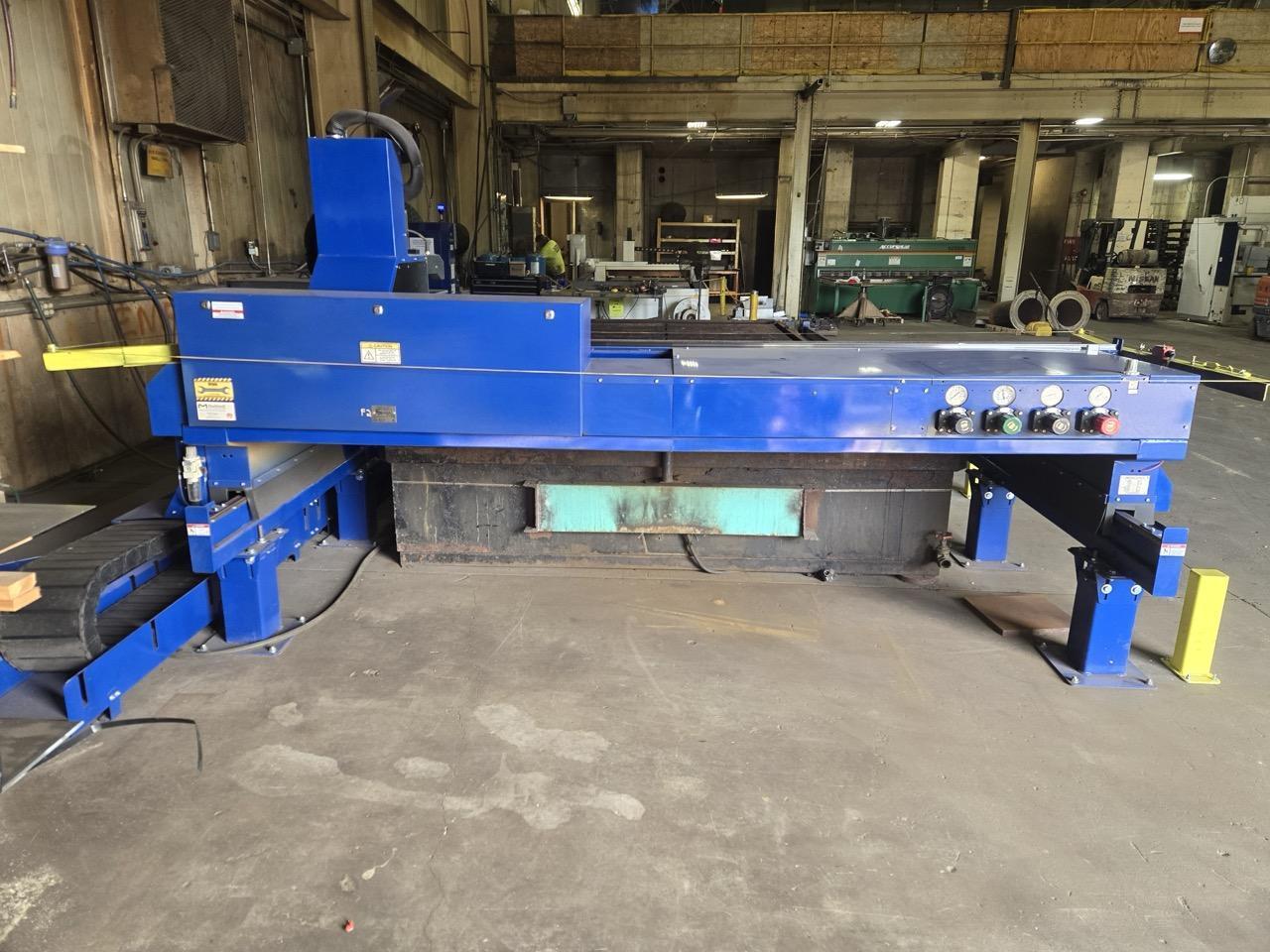

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Gantry: 6″ x 8″ Steel Gantry Inverted linear rails with Bosch linear bearings Dual side drive Bosch Rexroth Digital Servo Motors Ultra precise helical planetary gearboxes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rails: 3/4″ Agma10 rack and 2.5″ pinion gears Self-cleaning V-bearing rails on pedestal

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motors: Pneumatic pinion engagement with linear bearings Fully integrated w/ Bosch Rexroth AC Servo motors and Ehercat drive controller

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Gearboxes: Ultra precise helical planetary gearboxes <3 arcminutes precision

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical Requirements: 480V

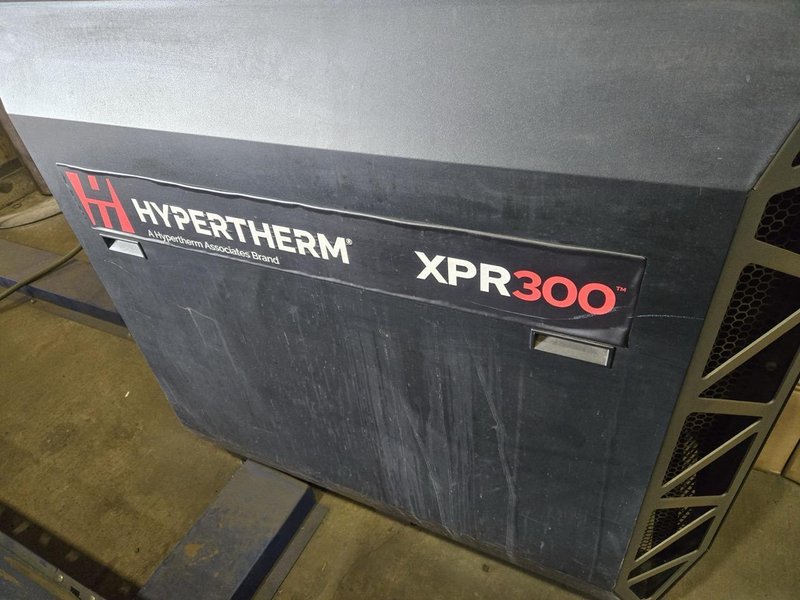

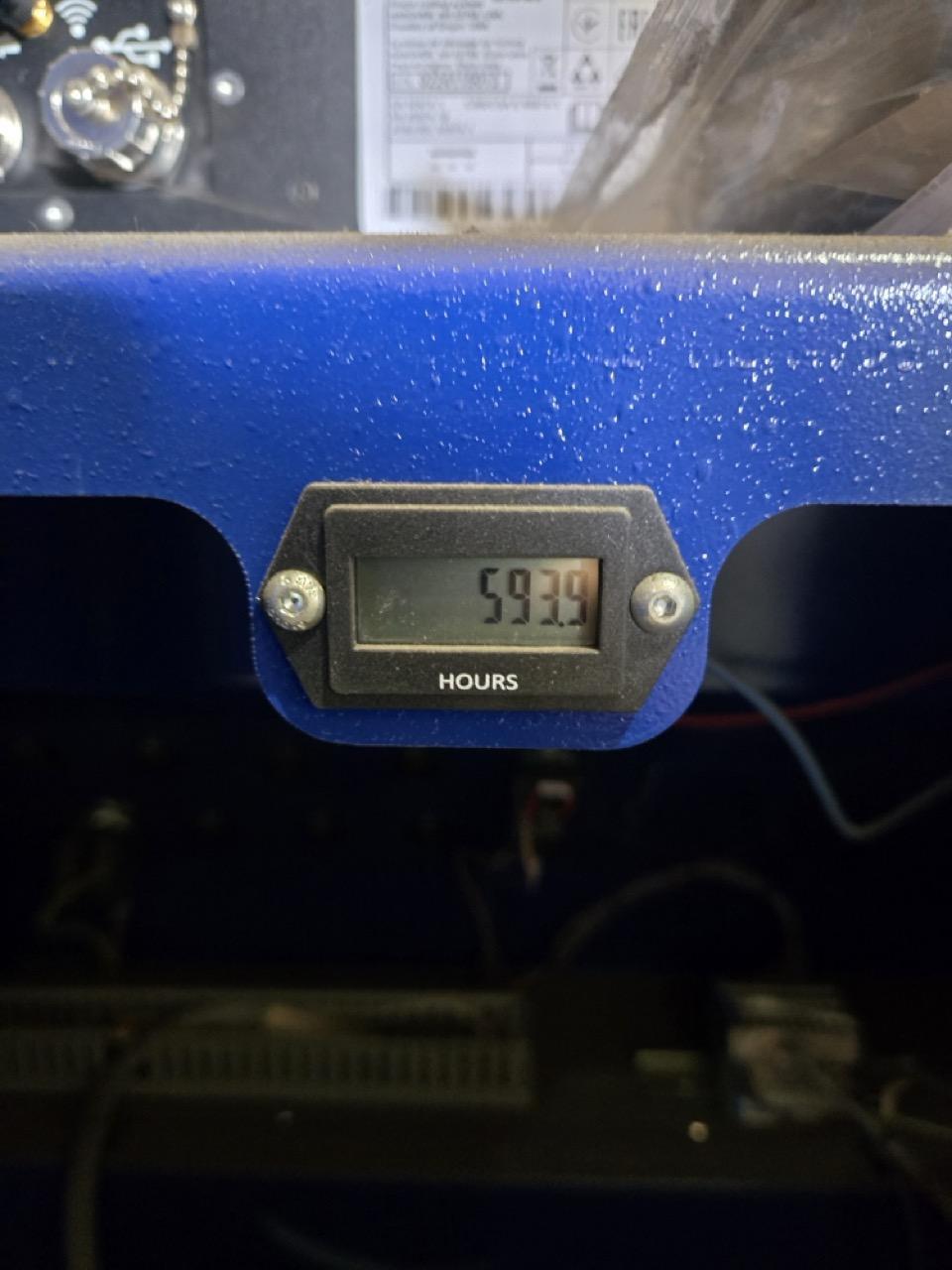

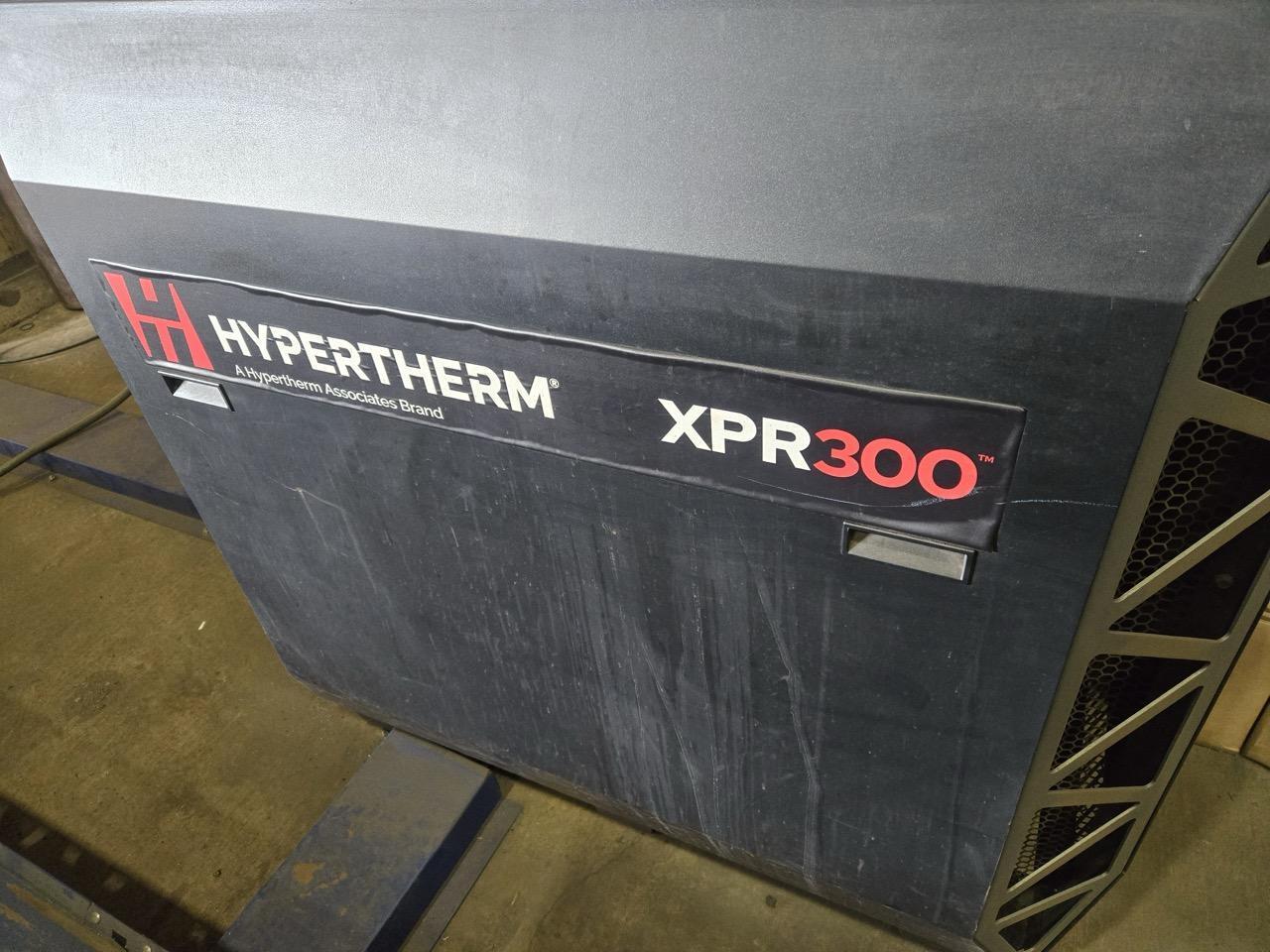

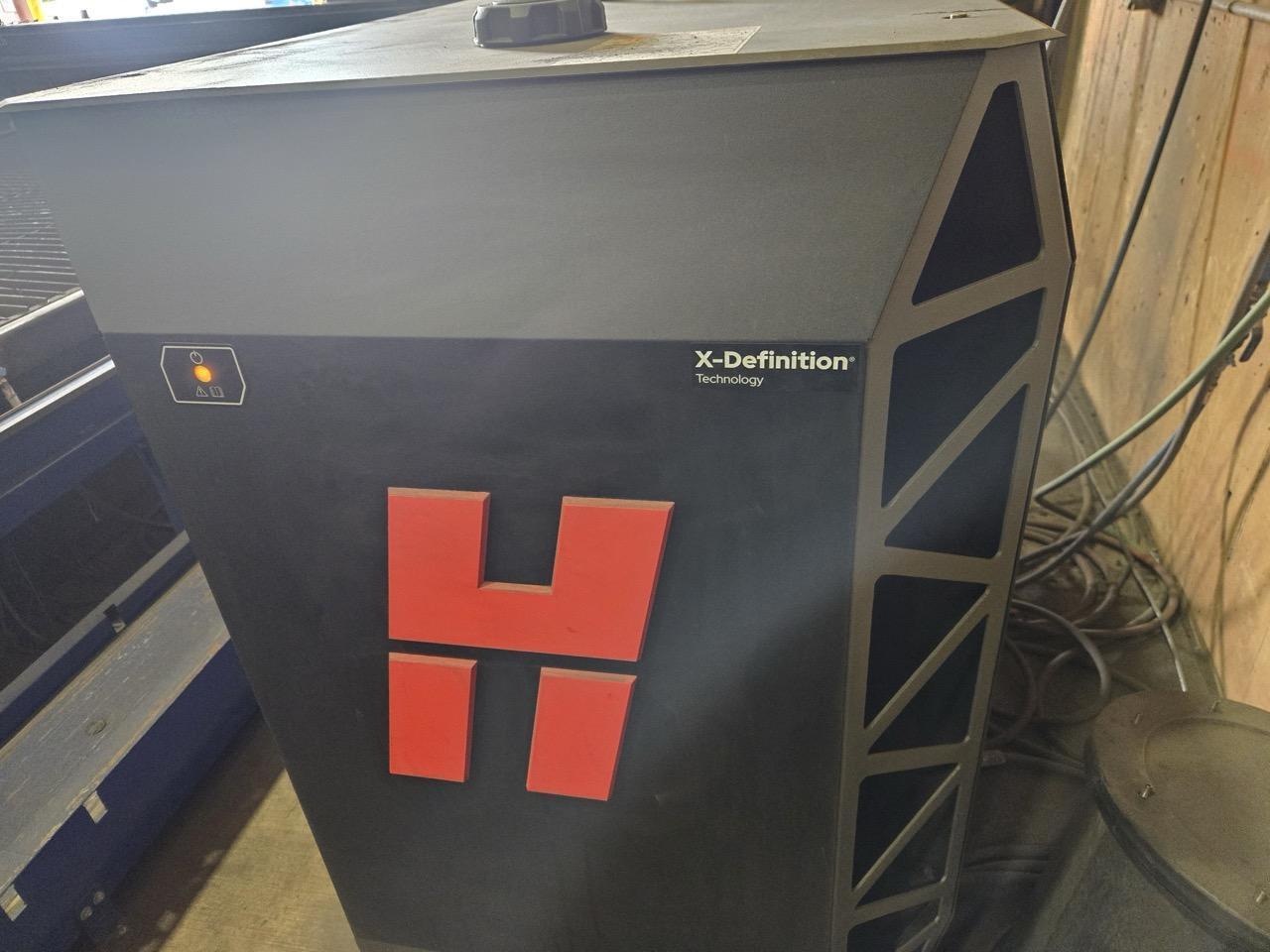

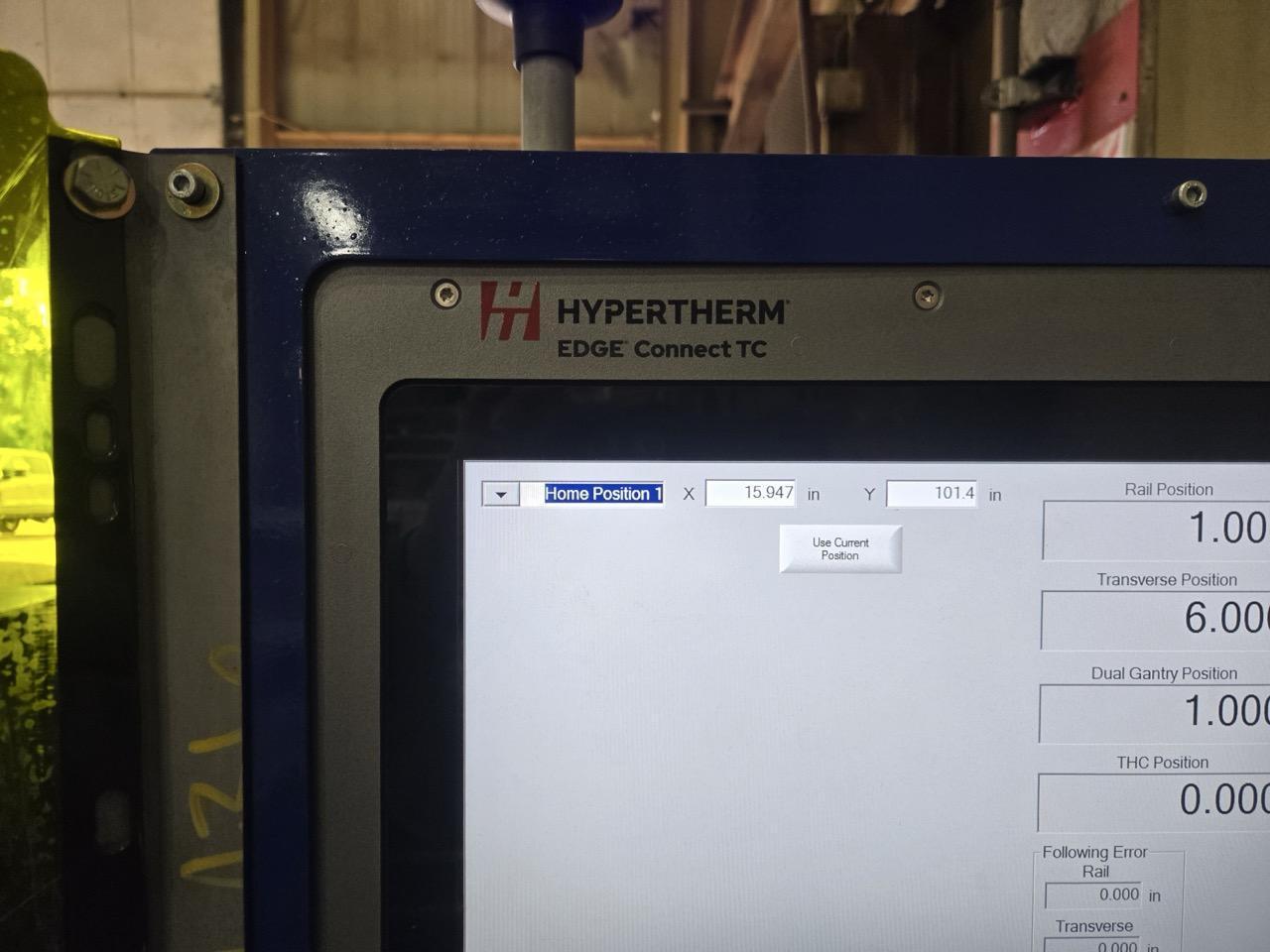

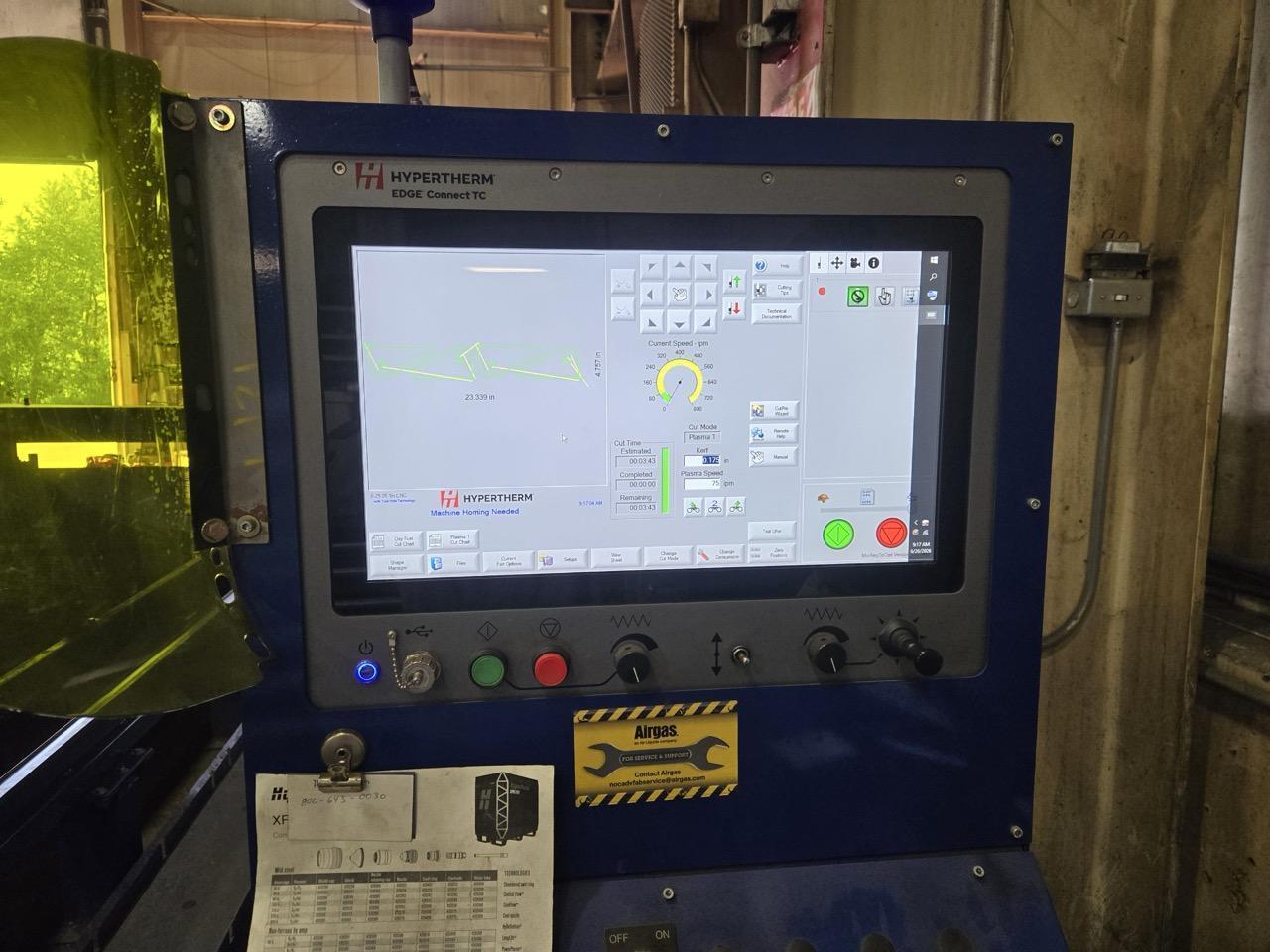

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Automatic Torch Height Control Hypertherm XPR300 (VWI gas console) Hypertherm EDGE Connect CNC Control ProNest 2023 CAD/CAM Software 594 Hours

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
