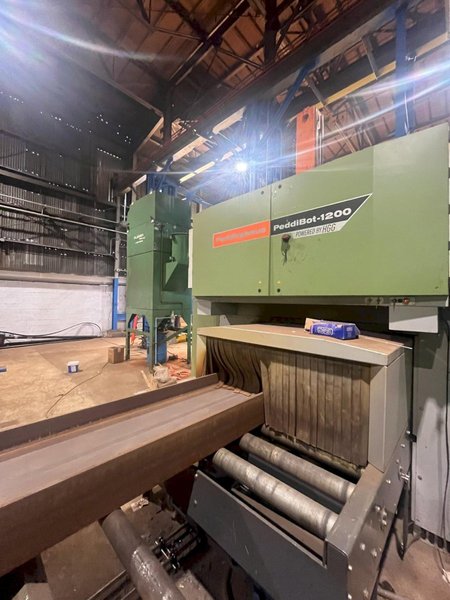

Peddinghaus Pedibot-1200 6-Axis Robotic CNC Thermal Cutting Machine, 2022

Max Profile Dimensions: 48″ x 16.5″ Min Profile Dimensions: 3″ x 3″ Max Profile Thickness: 2″ Min Profile Thickness: 0.1875″ Max Profile Weight: 26,455 lbs Max Bevel Angle: 45º Material Processing: 4 Sides

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Plasma Edge Start Thickness: 2″ Max Plasma Piercing Thickness: 2″ Plasma Processing Speed: 20″/min @ 2″; 70″/min @ 1/4″ Torch Amps: 440

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Plate Width: 7-7/8″ x 48″ Plate Thickness: 5/16″ x 1-5/8″ Plate Length: 11-13/16″ x 120″ Effective Cutting Zone: 48″ x 59″

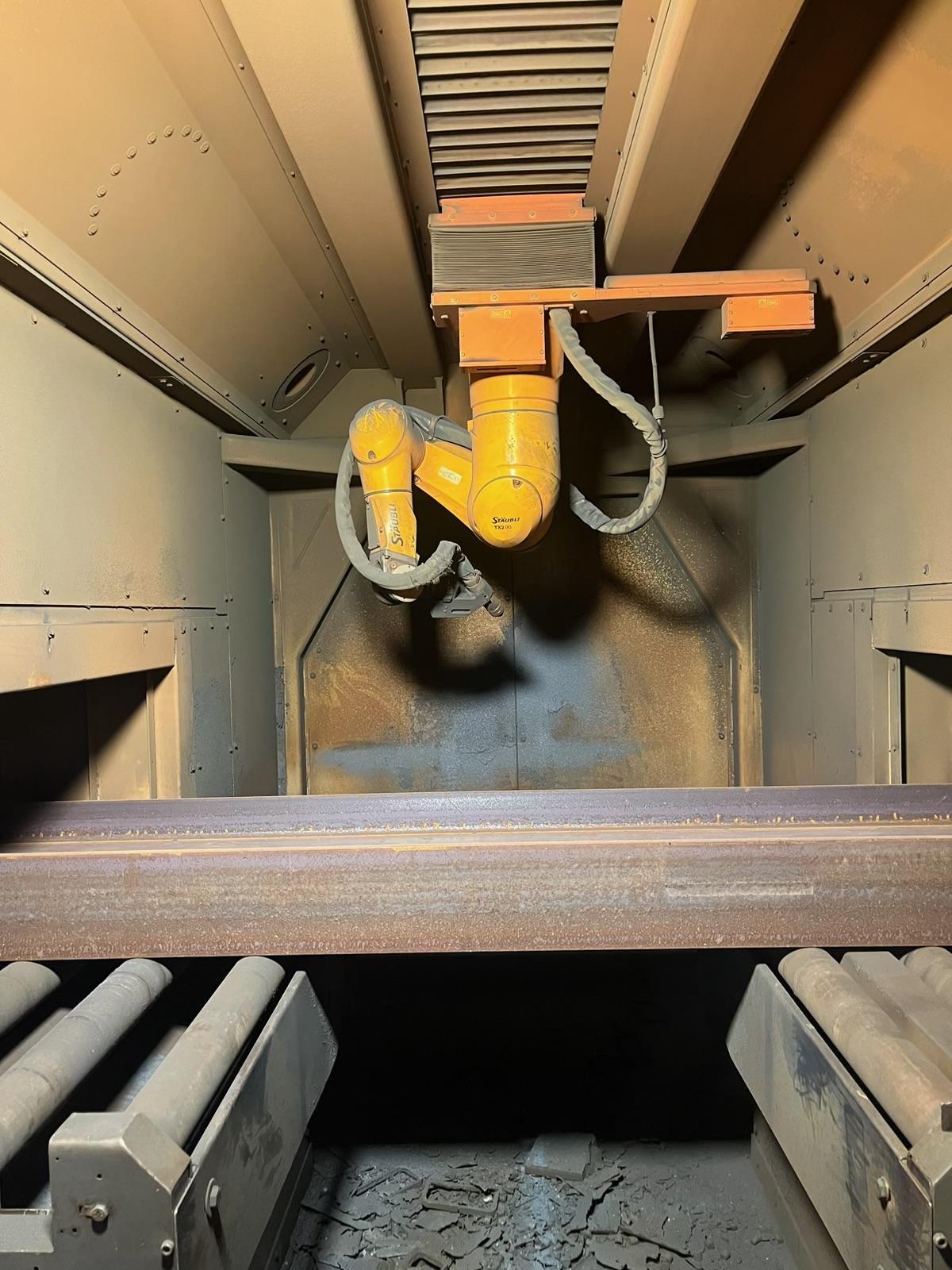

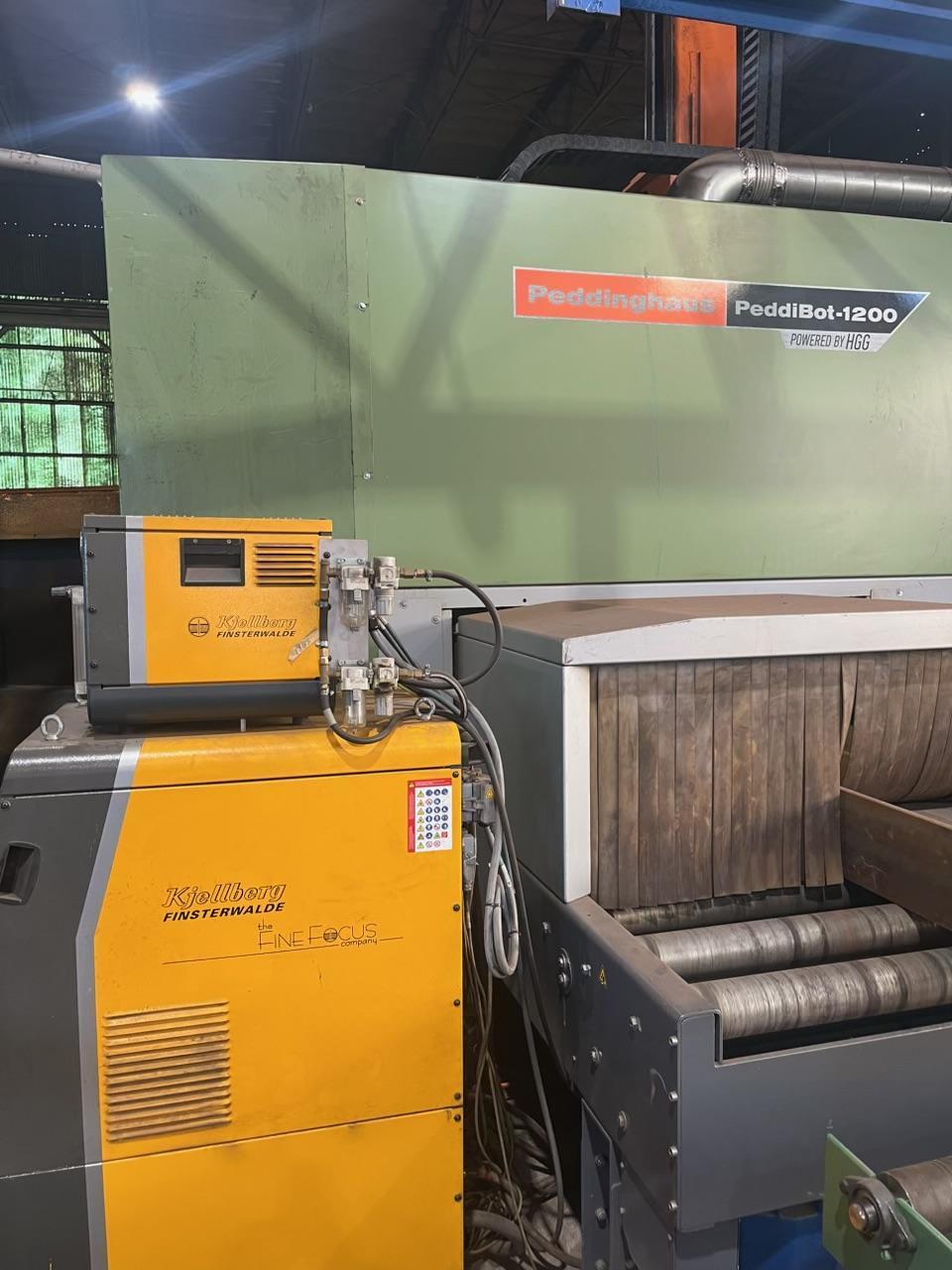

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With 6-Axis Stäubli Robot Arm Kjellberg HiFocus 440i Plasma Torch Raptor 3D CAD/CAM Software Integration Trailing Edge Detection Machine Housing Profile Scanning System 4-Sided Layout Marking

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
