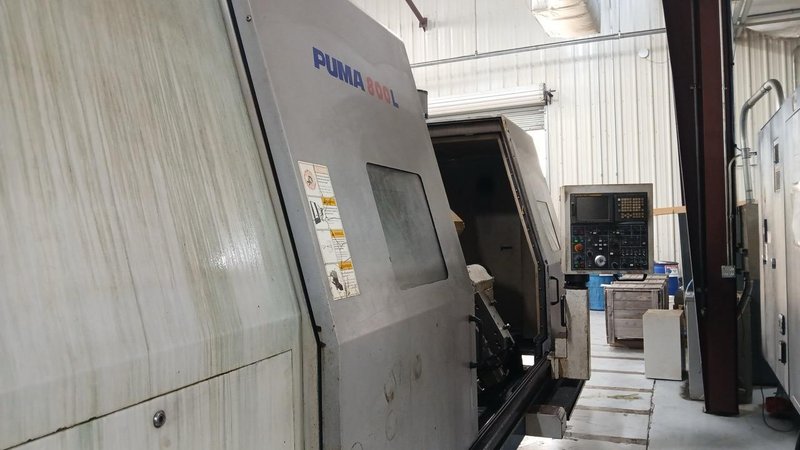

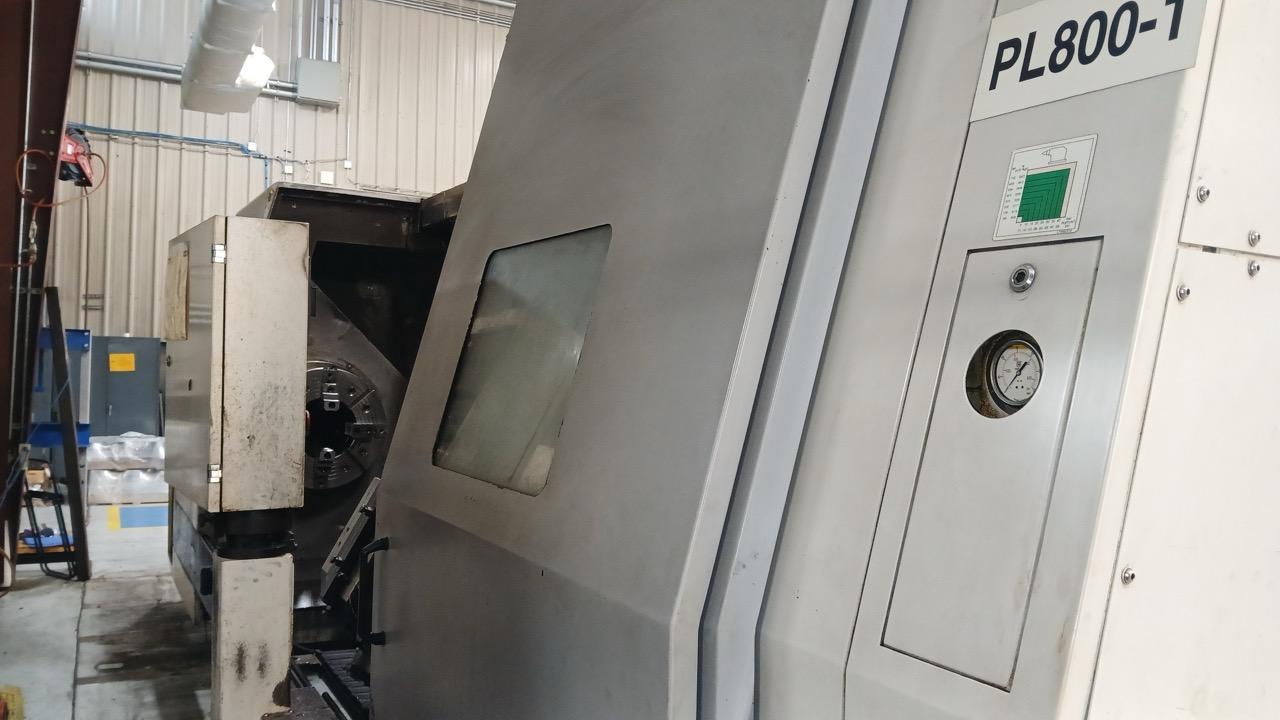

Doosan Puma 800L, 2007 – SMW Hyd Steady, 12″ Big Bore, Chip Conveyor
Brand
Category
Type
Model
800L
Stock #
11781
Year
2007
Condition
Not specified
Location
Not specified
|
Swing Over Bed: 40.5″
Swing over Carriage: 31.5
Max. Turning Dia.: 35.4″
Distance Between Centers: 126″
Spindle Nose: A1-20
Spindle Bore Dia.” 12.6″
Gear Ranges: 2
Max RPM: 750
Main Spindle Motor: 60 HP
X-Axis Travel: 18.5″
Z-Axis Travel: 127.3″

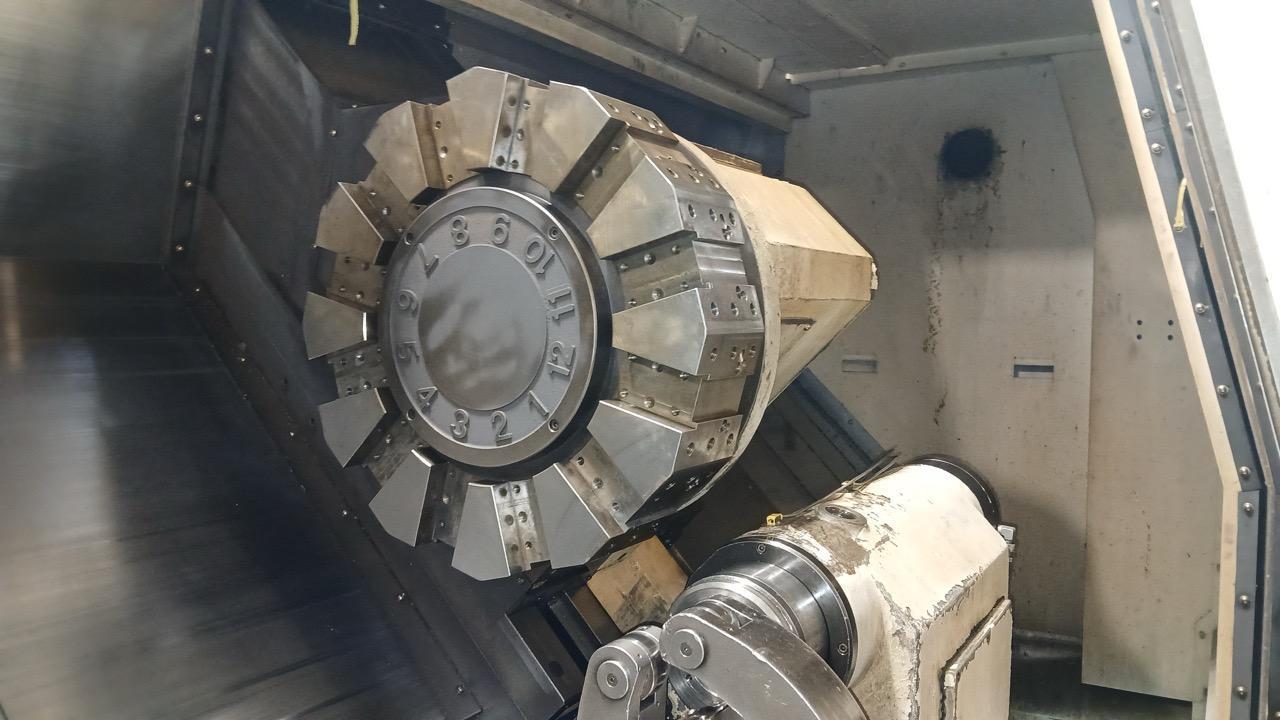

Turret Capacity: 12
Tailstock Quill Dia.: 6.3″
Tailstock Quill Stroke: 5.9″

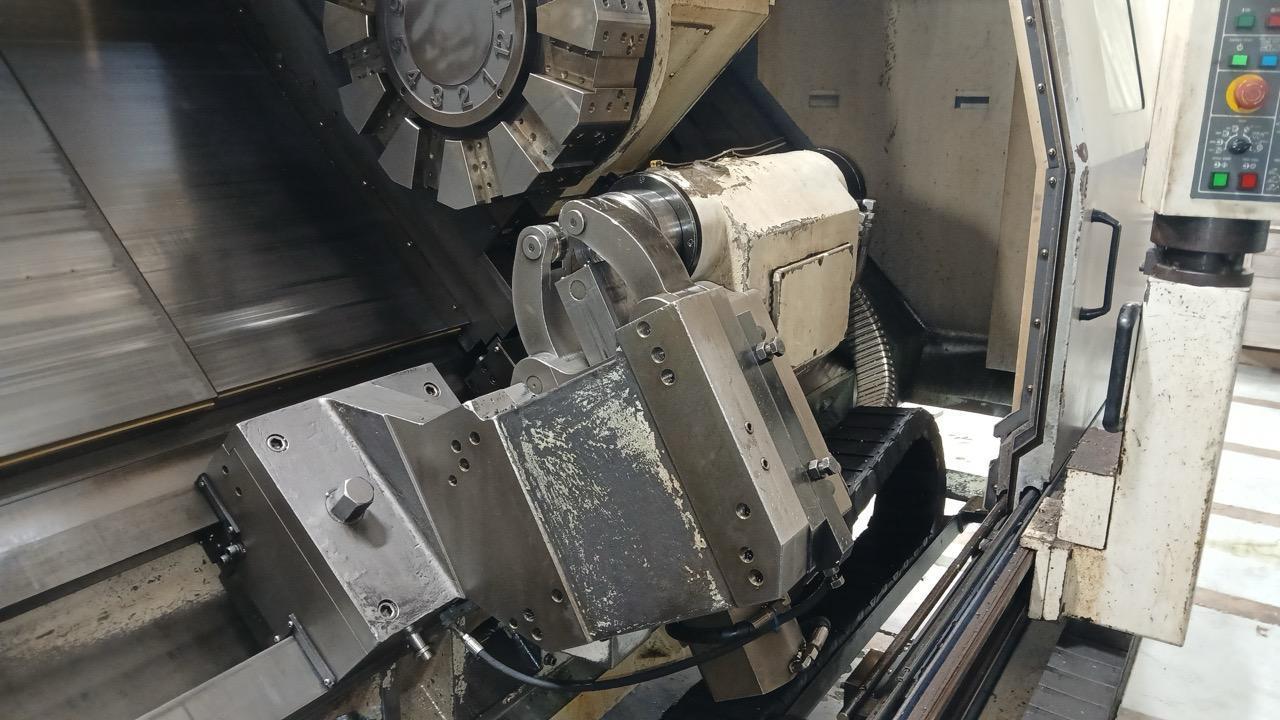

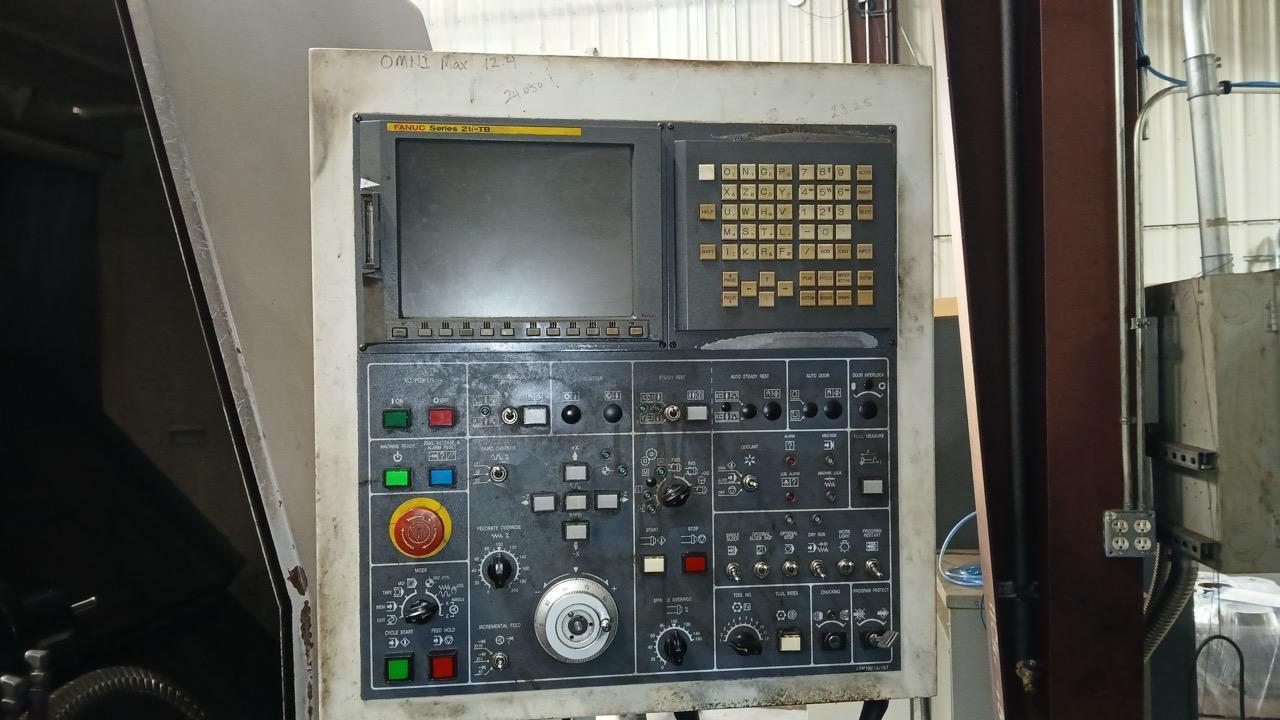

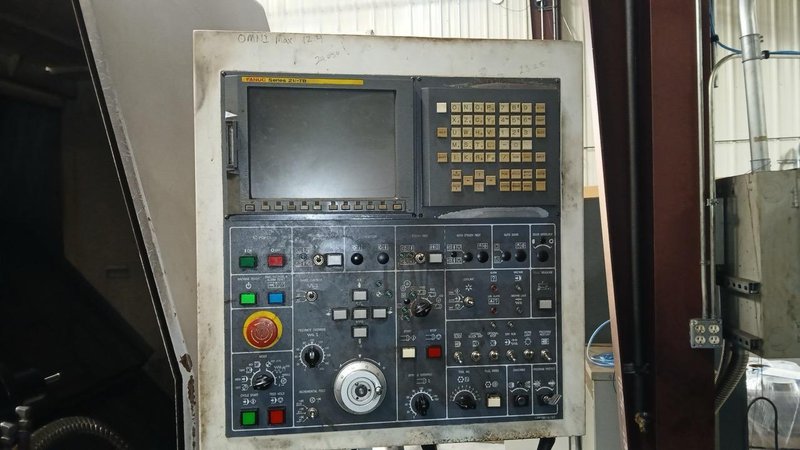

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc 21i-TB CNC Control SMW Hyd Steady Rest Chip Conveyor Cut Hours 25178 All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
