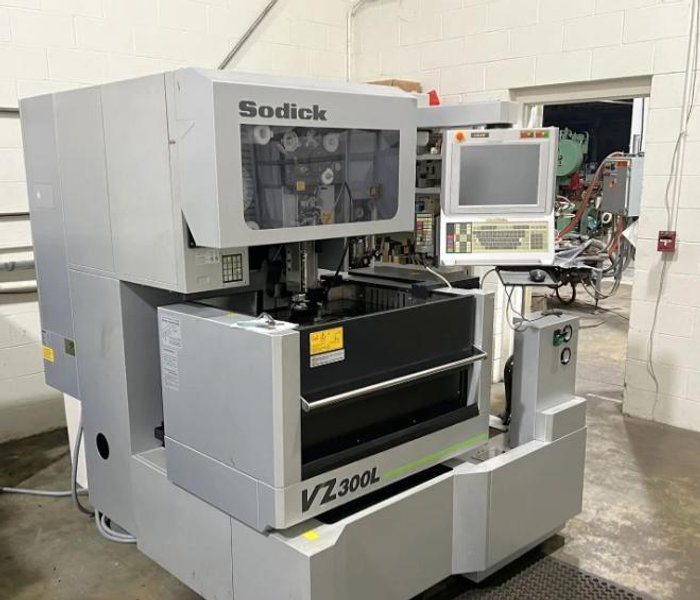

13.77” X 9.84” X 8.66” Wire EDM with Linear Motors (X / Y/ Z Axes), Absolute Linear Scale (X / Y / Z), Ceramic Components, Linear Motor Cooling Unit, LN2W Generator, Sodick Fine Corner Control, FTII (Fine Pick - Up Function), Super Jet Automatic Wire Threader, Lan Interface and USB Port.

GENERAL SPECIFICATIONS
Tank Size:                            31.88” X 25.59”
Max. Part Weight:                        1,200 Lbs
X - Axis Travel:                        13.77”
Y - Axis Travel:                        9.84”
Z - Axis Travel:                        8.66”
U & V Axis Travels:                        3.14
Max. Taper Angle:                        ±15°
Wire Diameter:                        .0059” - .011”
Dimensions:                            27.95” X 81.49” X 70.86”
Weight:                            5,280 Lbs


INCLUDES: Linear Motors (X / Y/ Z Axes), Absolute Linear Scale (X / Y / Z), Ceramic Components, Linear Motor Cooling Unit, LN2W Generator, Sodick Fine Corner Control, FTII (Fine Pick - Up Function), Super Jet Automatic Wire Threader, Lan Interface and USB Port.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
