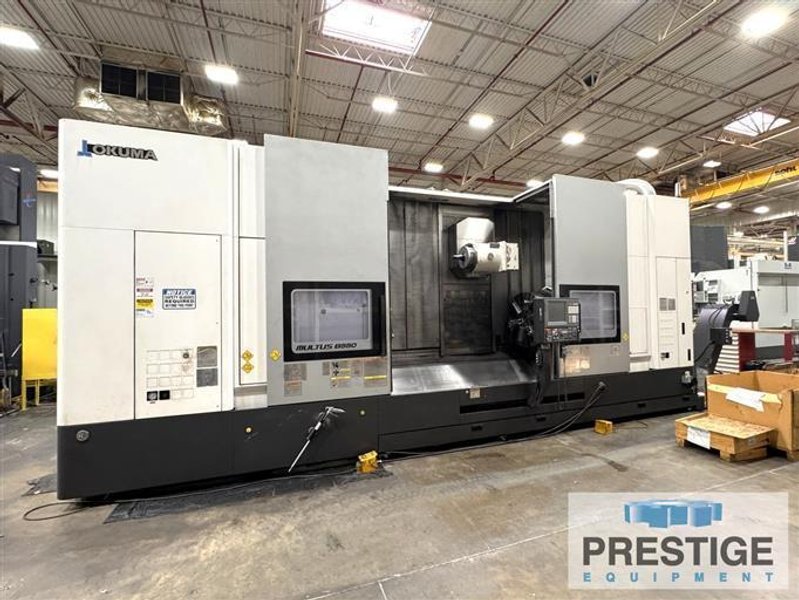

Lathes CNC Three Axis Or More

SPECIFICATIONS:
Swing Over Saddle 32.68"
Max. Machining Diameter 32.68"
Distance Between Spindles 100.16"
Max. Machining Length 78.74"
X-Axis Travel 36.42"
Z-Axis Travel 87.20"
Y-Axis Travel +/-10.24"
W-Axis Travel 82.68"
C-Axis Rotation 0.001
B-Axis Indexing Angle -30/+210 Degrees
MAIN SPINDLE & SUB SPINDLES:
Spindle Speed 30-3000 RPM
Spindle Motor 50 HP/40 HP
Spindle Nose JIS A2-11
Tapered Bore/Bearing Diameter 4.41"/6.3"
MILLING TOOL SPINDLE:
Speed Range 40-10,000 RPM
Milling Tool Speed Range 2 Ranges
Spindle Taper CAPTO C8
Spindle Motor 50/40/30 HP
AUTOMATIC TOOL CHANGER:
Tool Capacity 80 ATC
Max. Tool Diameter, No Adjacent 10.24"
Max. Tool Diameter, w/ Adjacent 5.12"
Max. Tool Length 23.62"
Max. Tool Weight 66 Lbs.
DIMENSIONS & WEIGHT:
Machine Floor Space w/ Tank 359.45" x 138.07"
Machine Height 137.68"
Machine Weight 72,600 Lbs.



Equipped With:

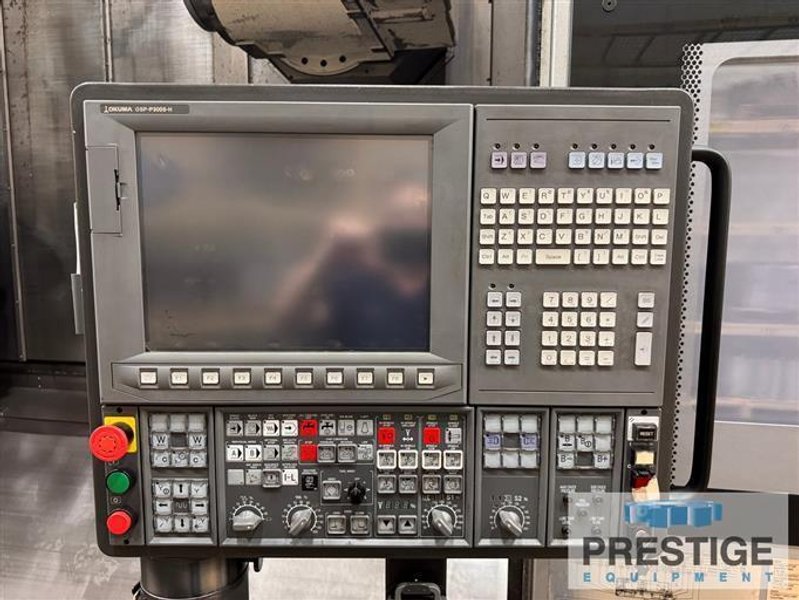

OSP-P300S-H CNC Control

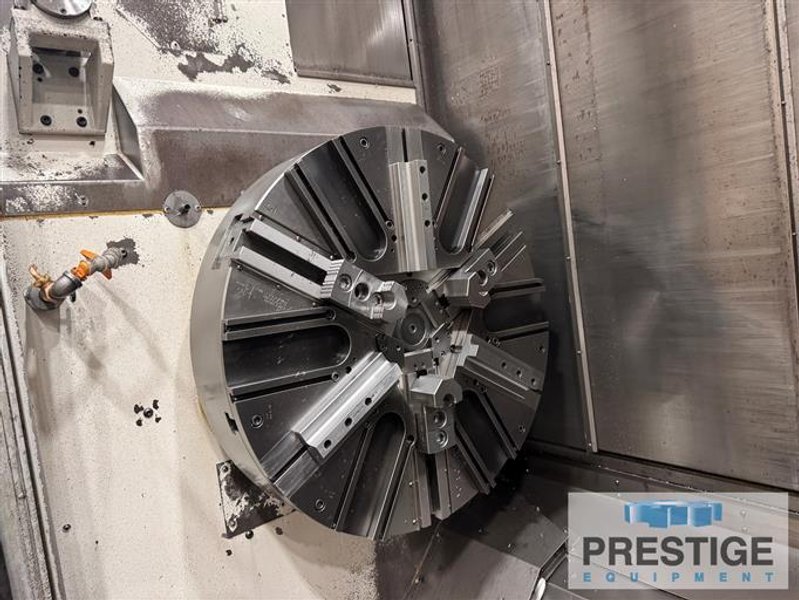

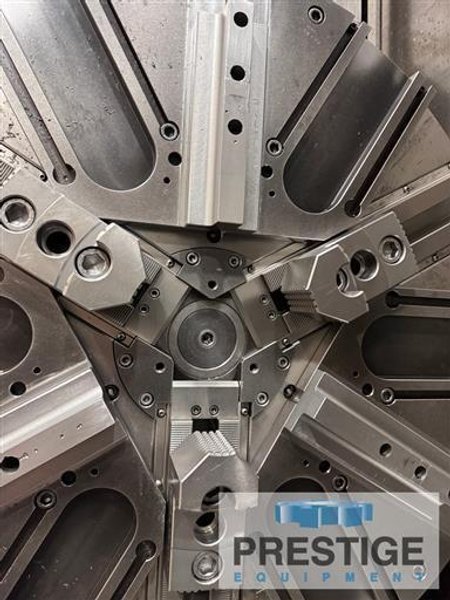

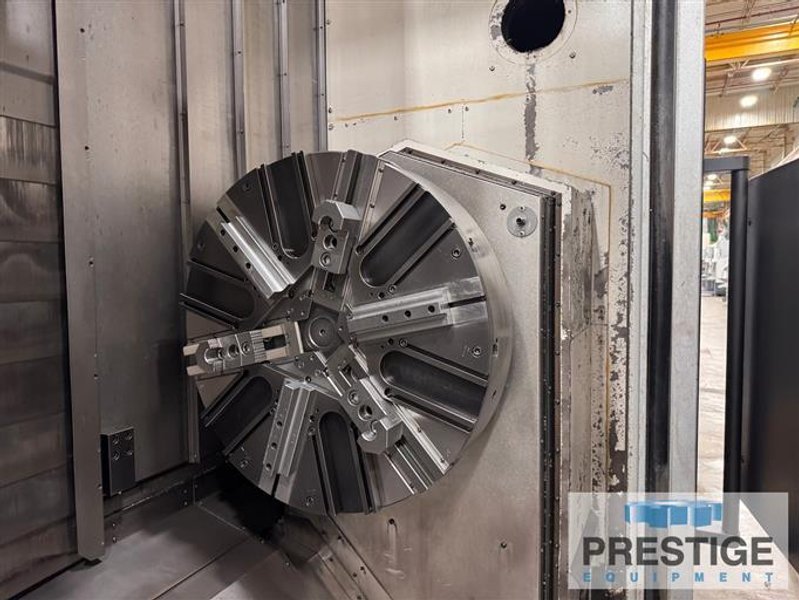

31” SMW Autoblok 3-Jaw Chucks on Left & Right Spindles

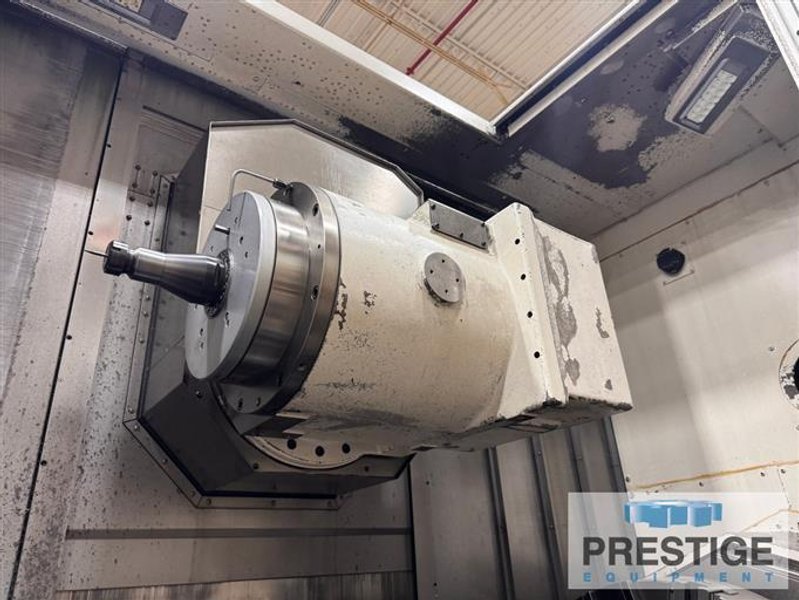

10,000 RPM B-Axis Milling Head
80-Position Automatic Tool Changer

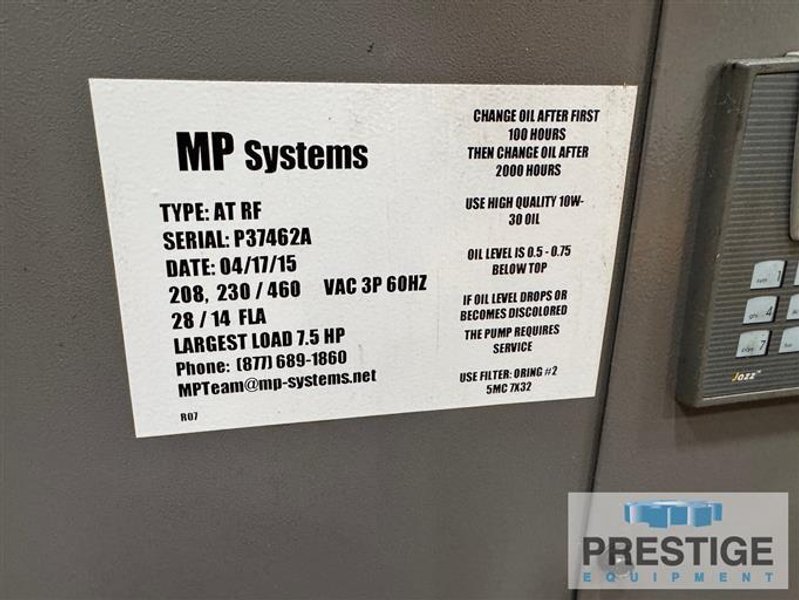

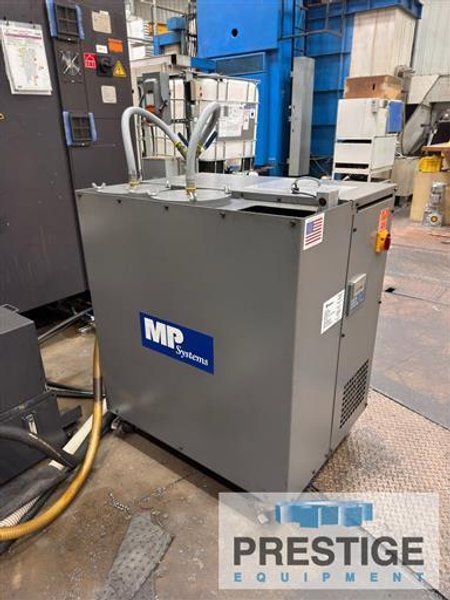

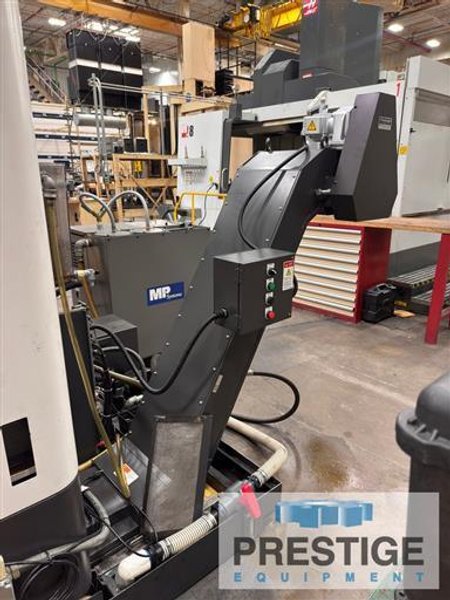

MP Systems AT-RF High Pressure Coolant Unit
Through-Spindle Coolant


LOCATION: Ohio CNC Manufacturing Facility
Chip Conveyor


Auction Message:
Offered At Our Upcoming August 25th Auction Sale: "Complete Late Model CNC Mold Facility." Pre-Auction Offers Will Be Considered. Please Click The Link Below To See The Entire Offering.
