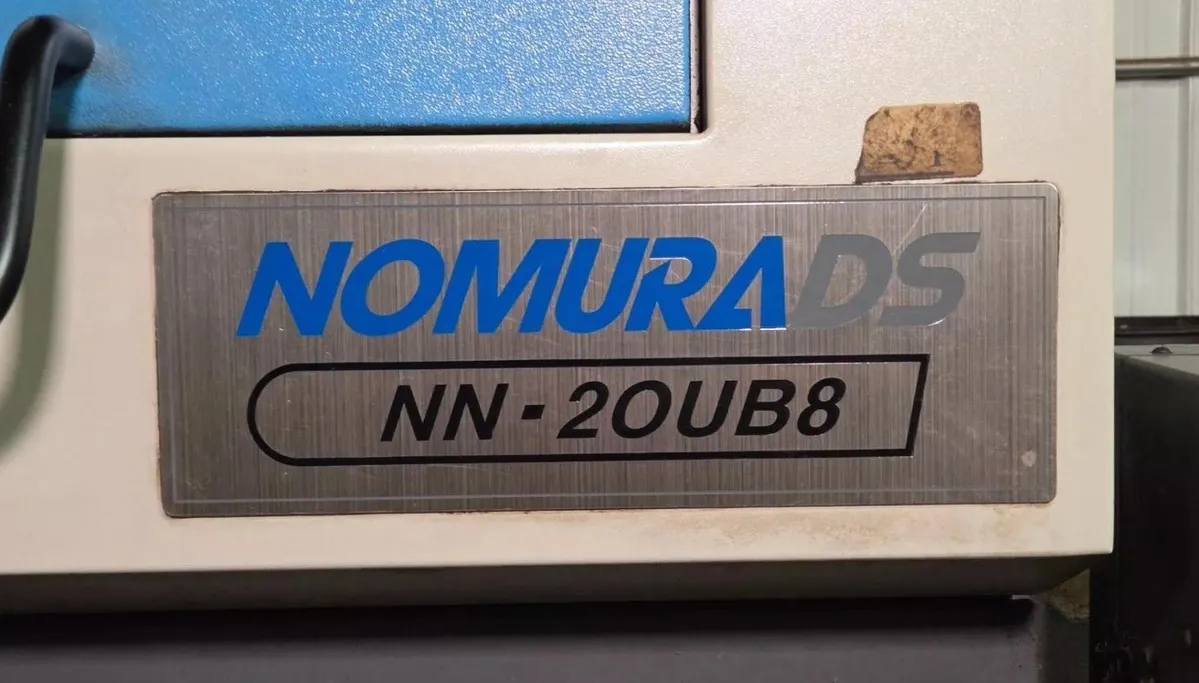

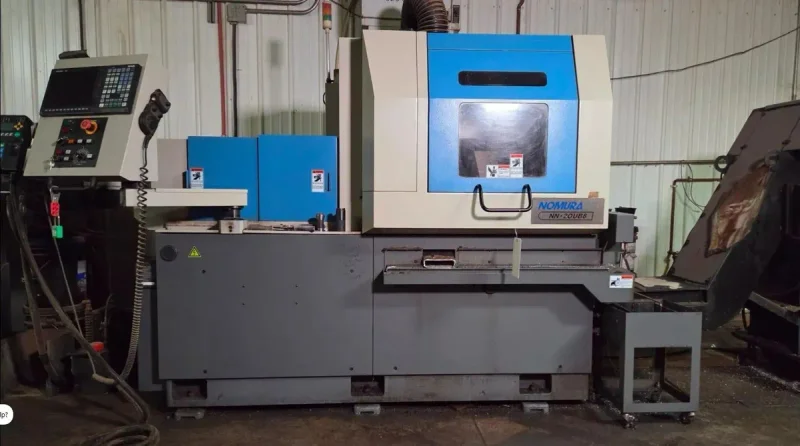

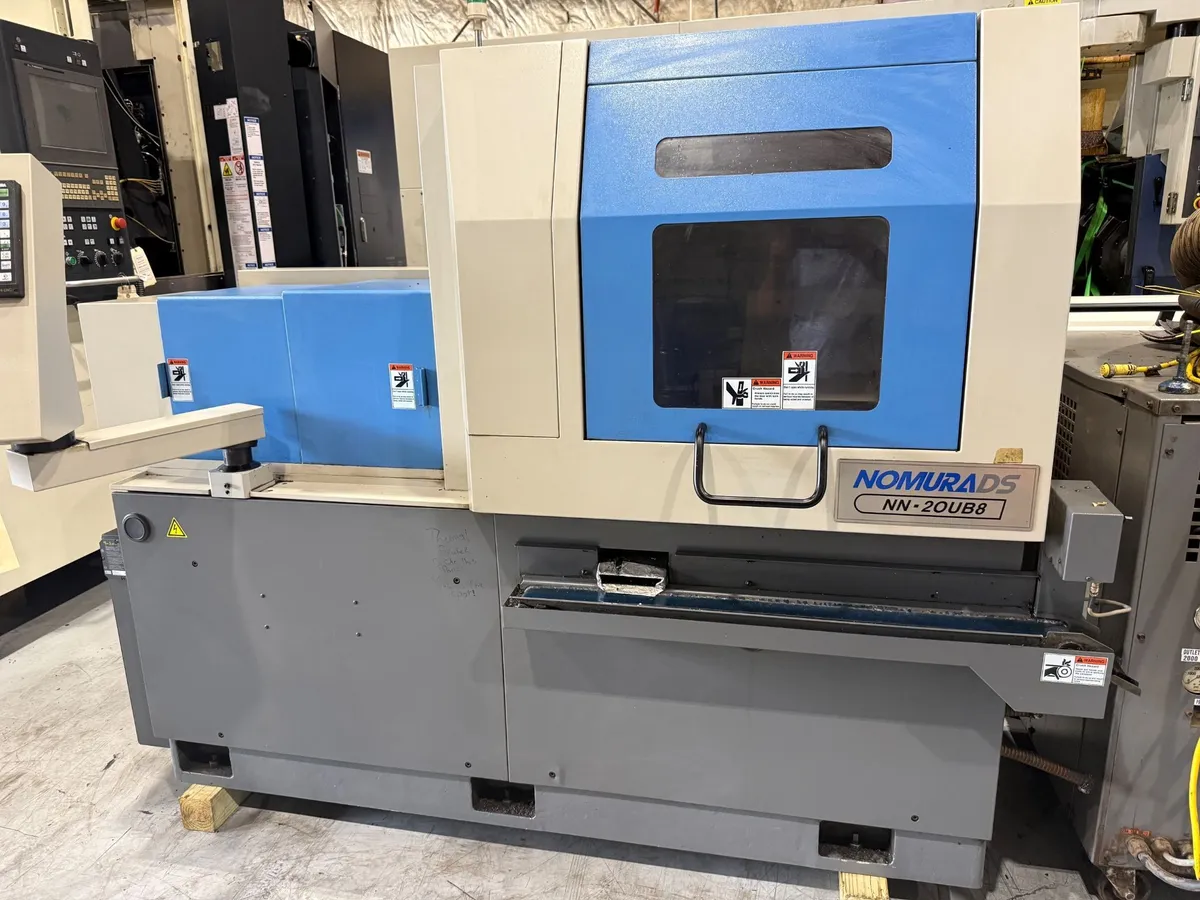

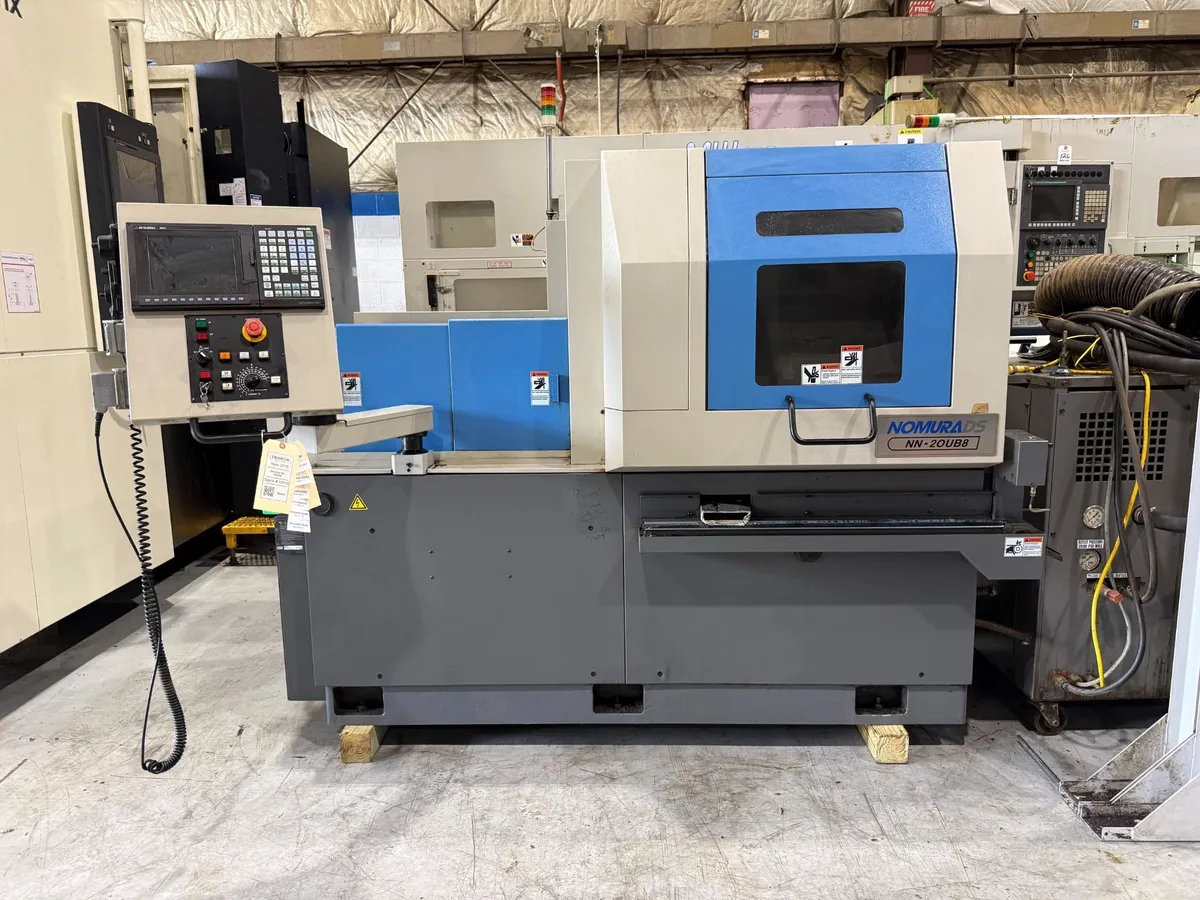

USED NOMURA .787" X 7.87" AUTOMATIC SWISS TYPE CNC LATHE MODEL NN-20UBB

USED NOMURA .787" X 7.87" AUTOMATIC SWISS TYPE CNC LATHE MODEL NN-20UBB

Name: USED NOMURA .787" X 7.87" AUTOMATIC SWISS TYPE CNC LATHE MODEL NN-20UBB
Brand: NOMURA
SKU: 11282
Availability: InStock

Brand

NOMURA

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Lathes, CNC

Manufacturer:

NOMURA DS

Model:

NN-20UB8

Year:

2015

Stock #:

11282

Status:

For Sale

Serial #:

201081507

Description

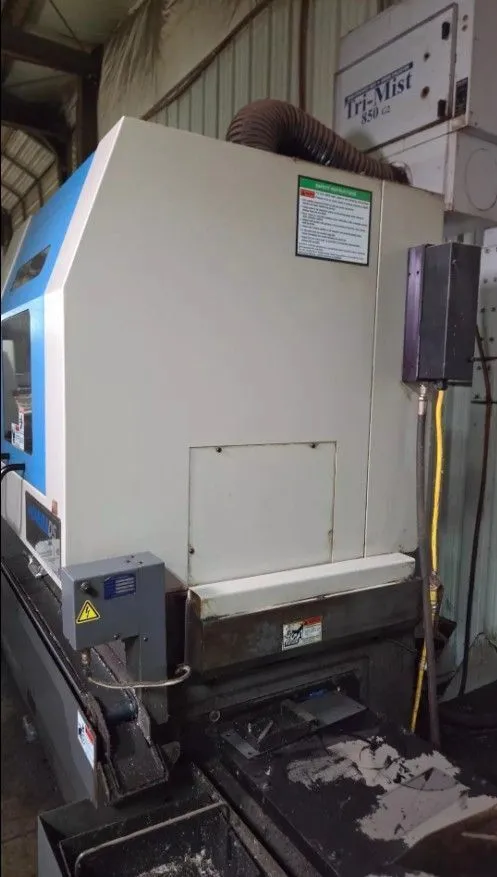

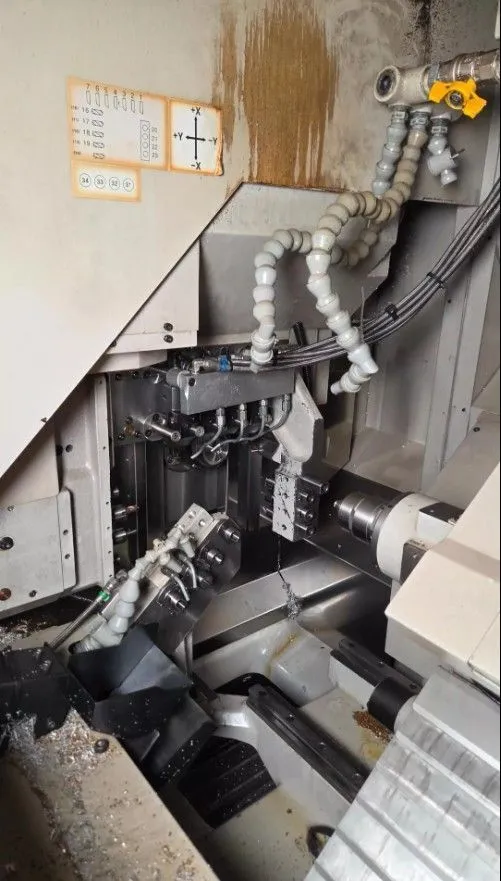

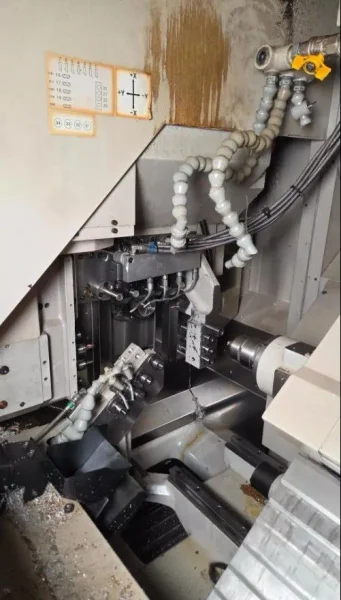

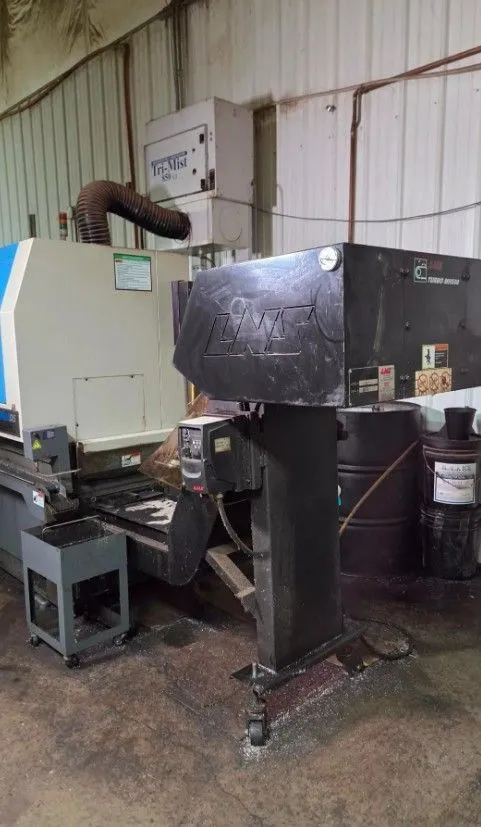

Explore precision with the used 2015 Nomura NN-20UB8 automatic Swiss-type CNC lathe. Featuring a 0.787" turning diameter, 7-axis control, live tooling, sub spindle, and 10,000 RPM max speed. Includes Mitsubishi CNC control and LNS bar feeder.

ImperialMetric

Machining Length	7.87"	199.9 mm
Bar Capacity	0.787"	19.99 mm
Power	3 hp	2.2 kW
Max RPM	10,000 RPM	10,000 RPM
Turning Dia	0.787"	19.99 mm
Tailstock	Yes	Yes

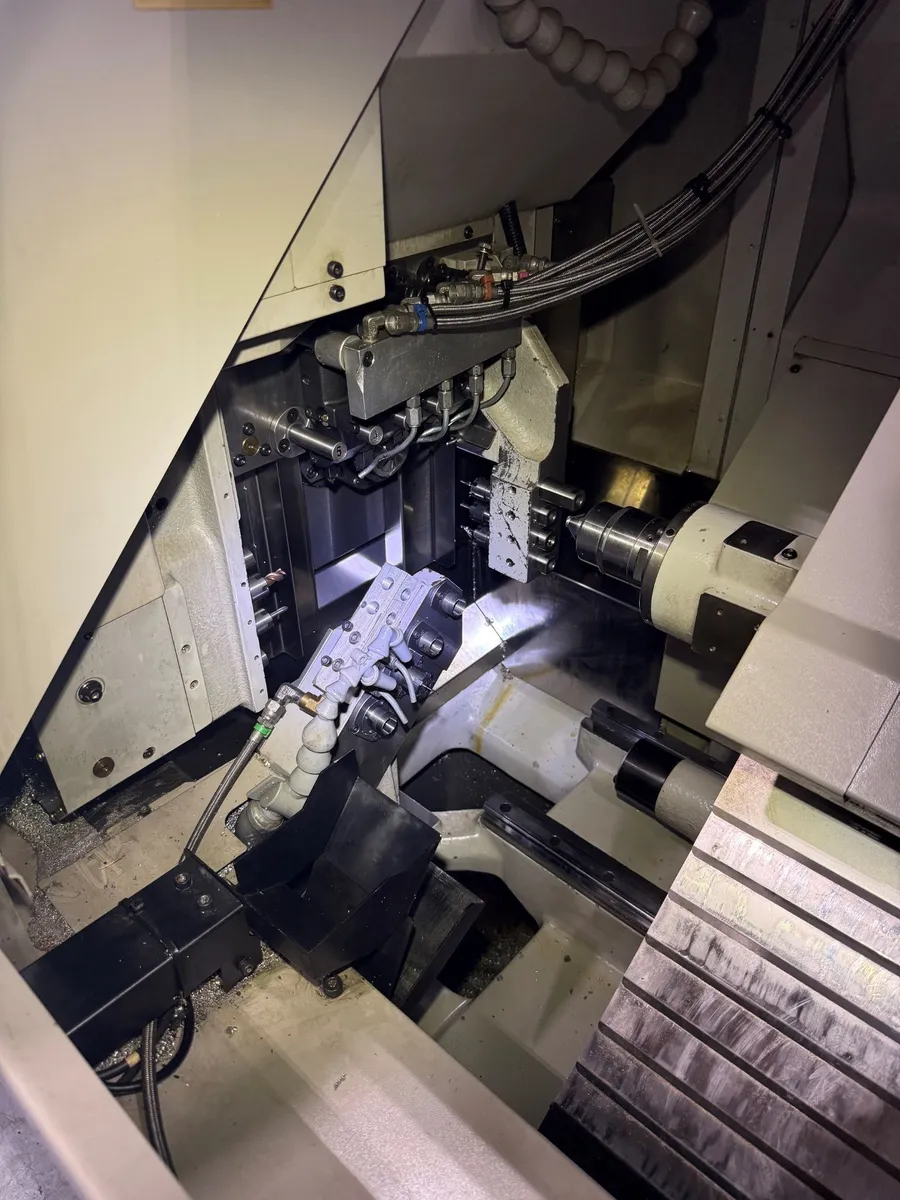

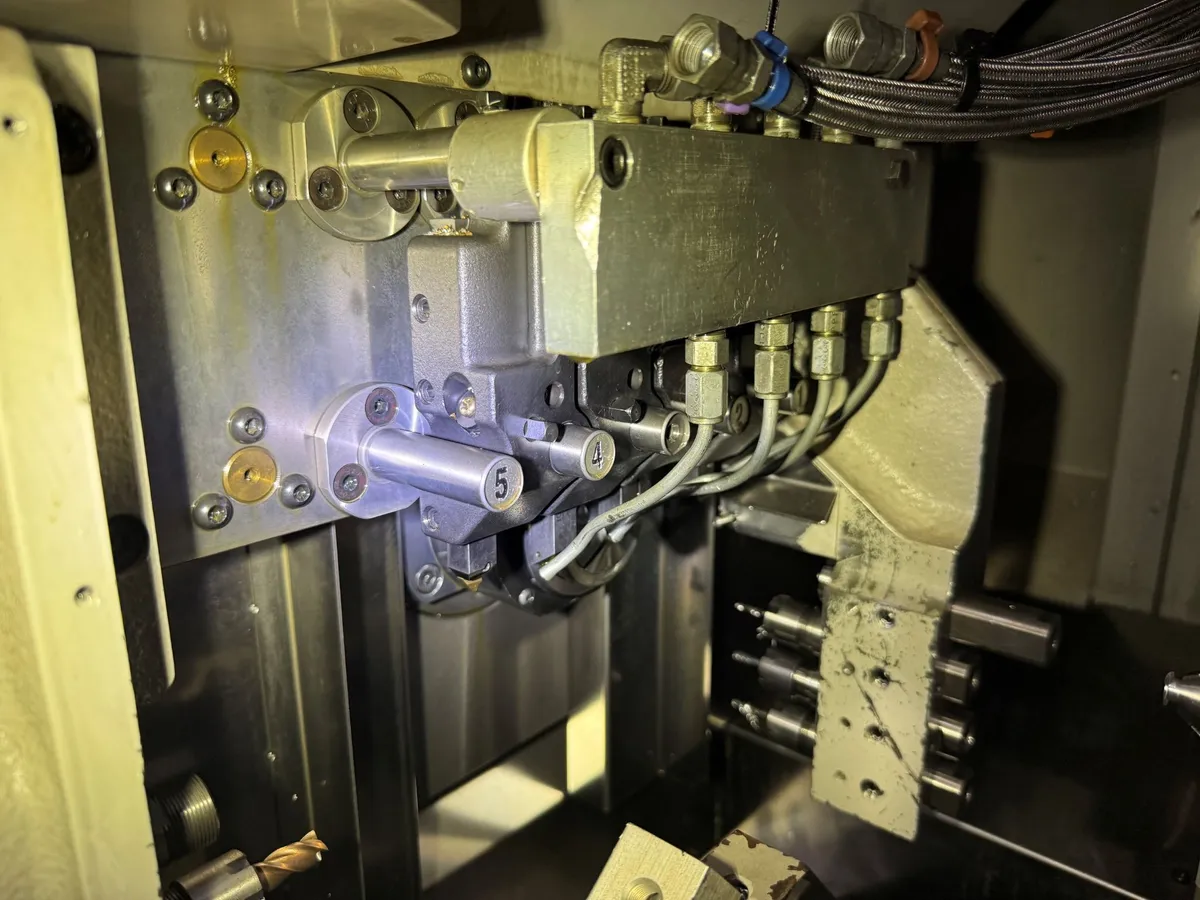

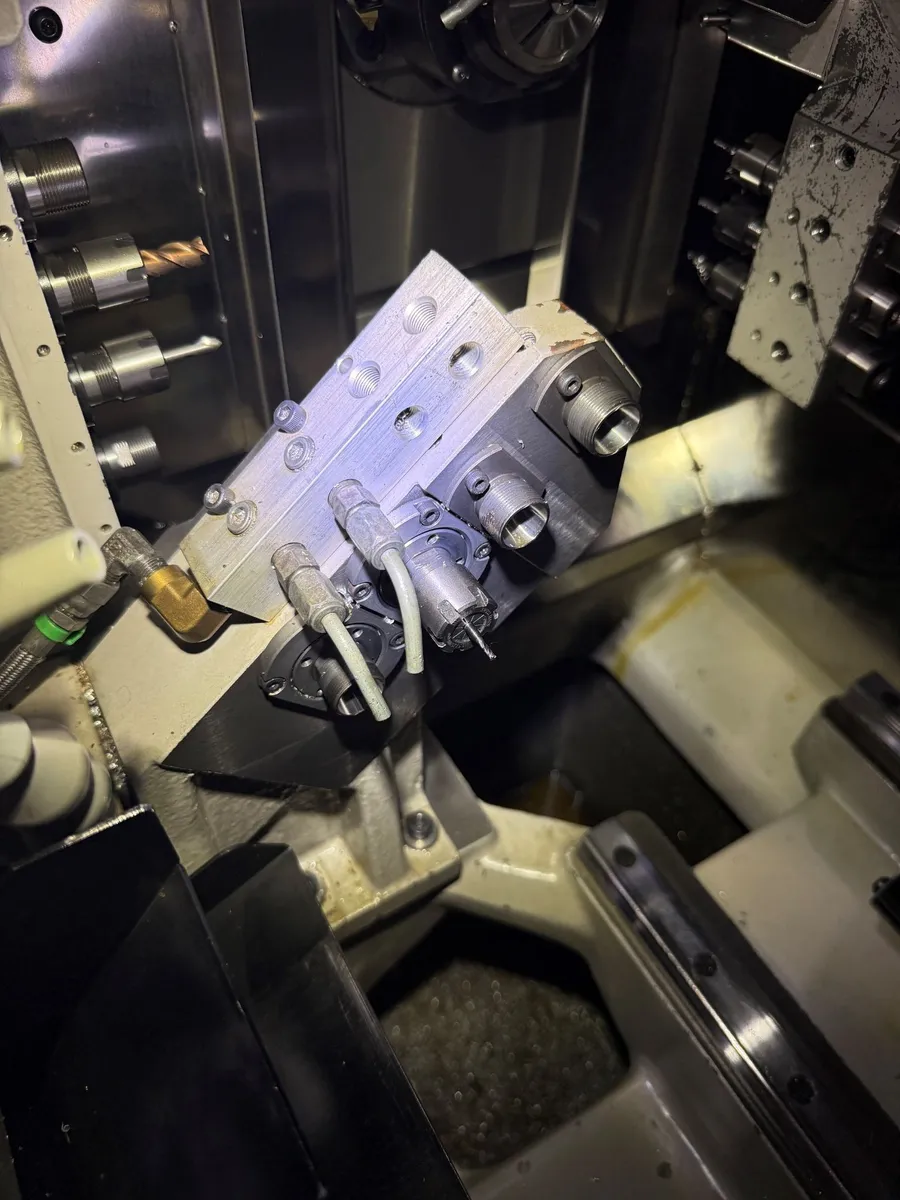

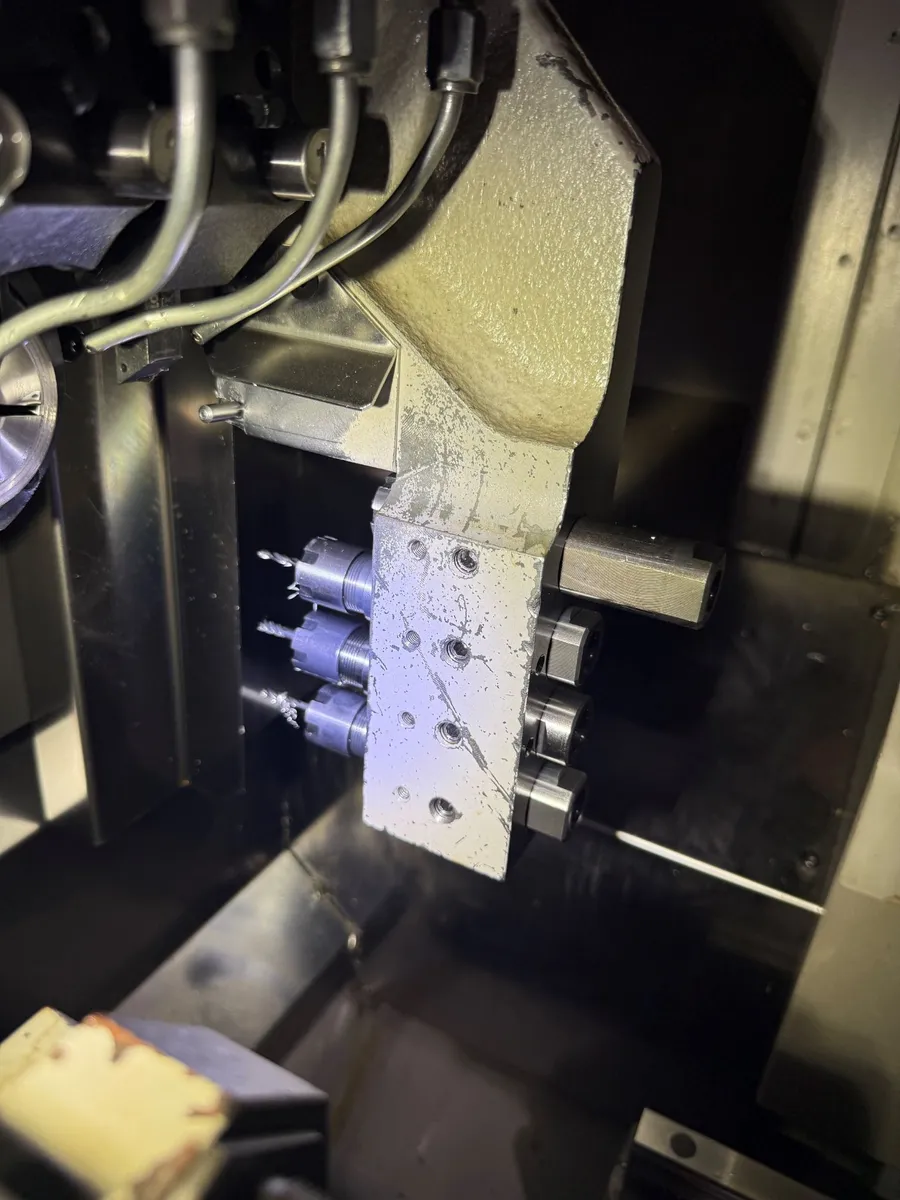

Live Tooling	Yes	Yes

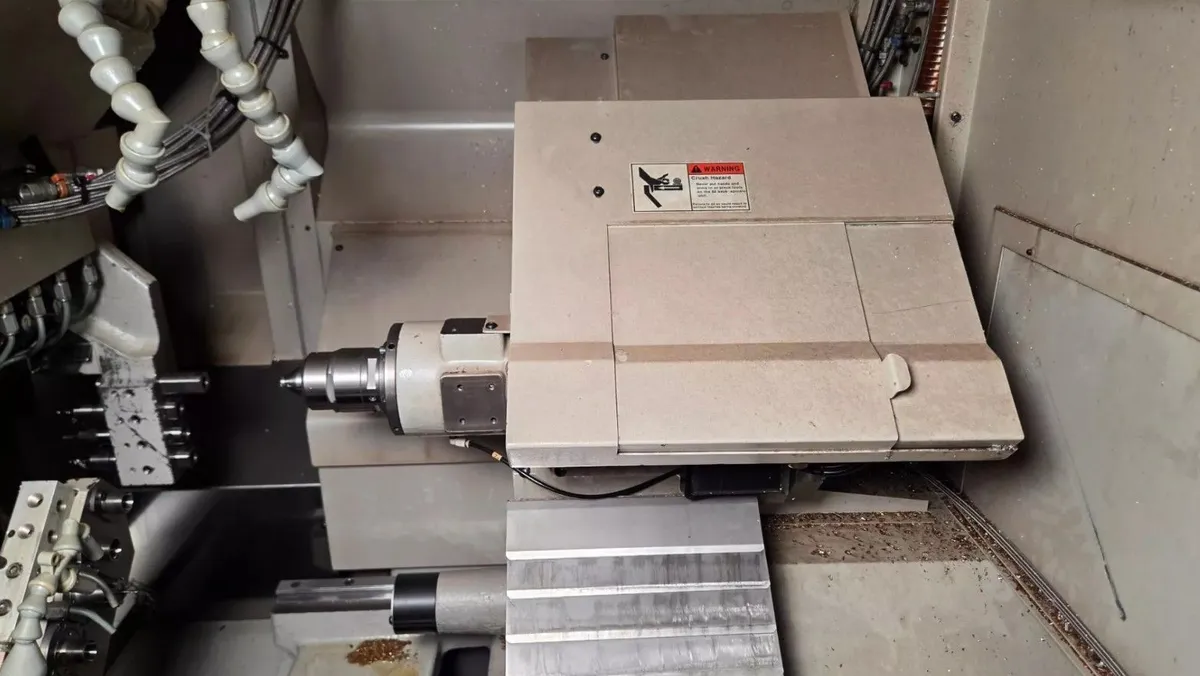

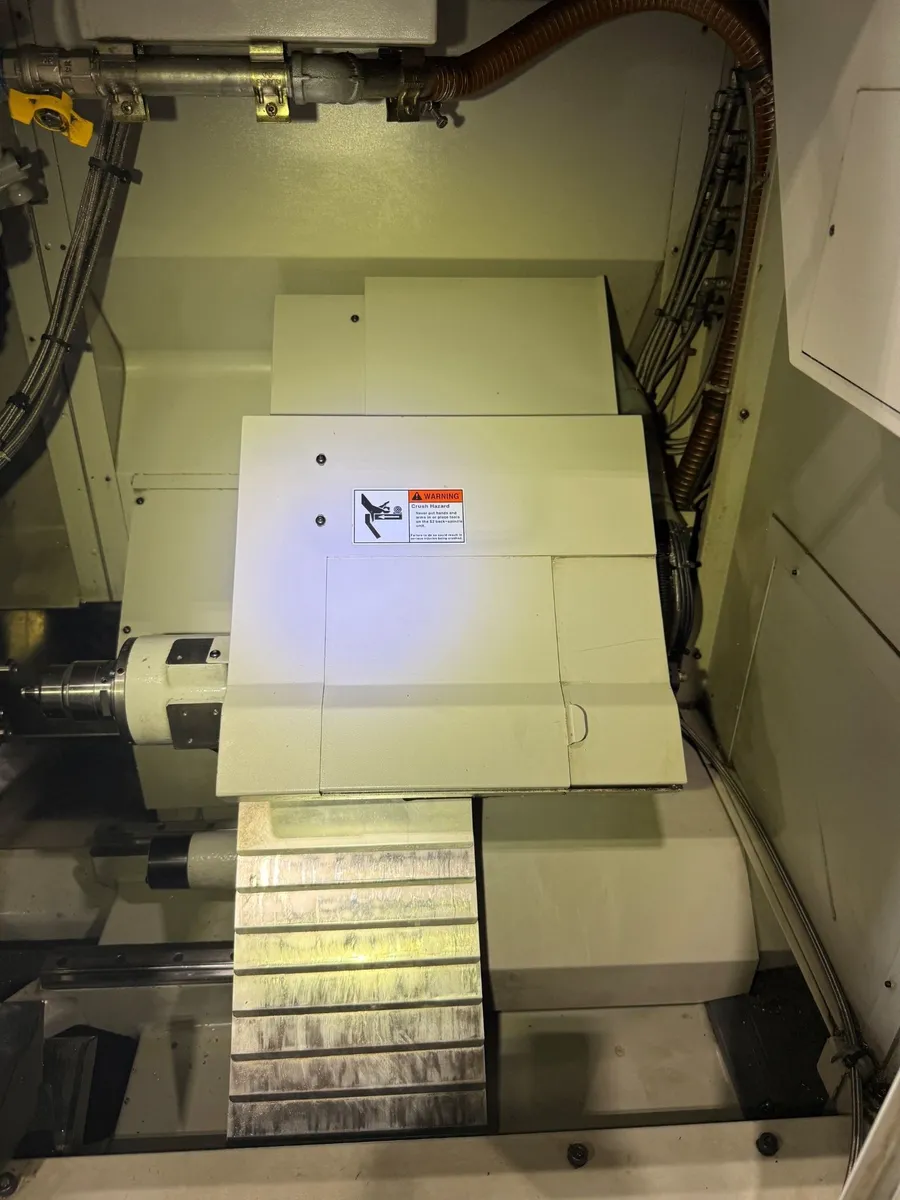

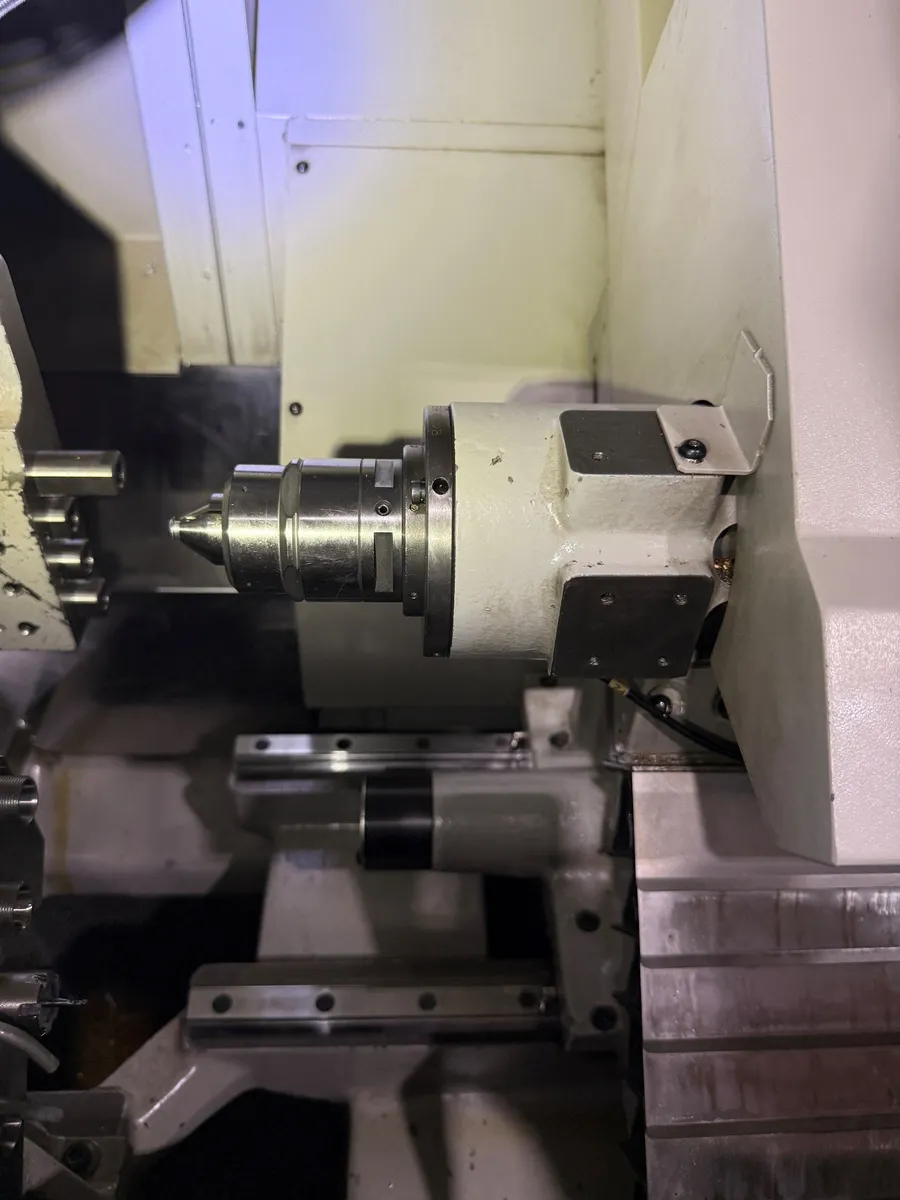

Sub Spindle	Yes	Yes

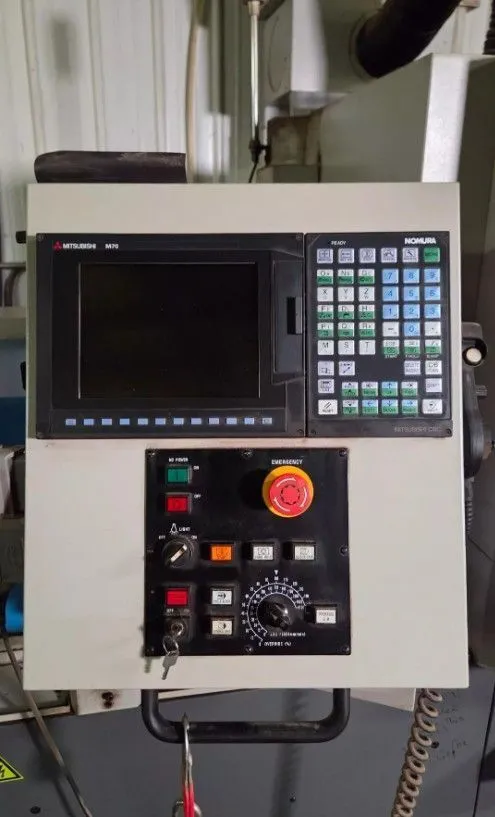

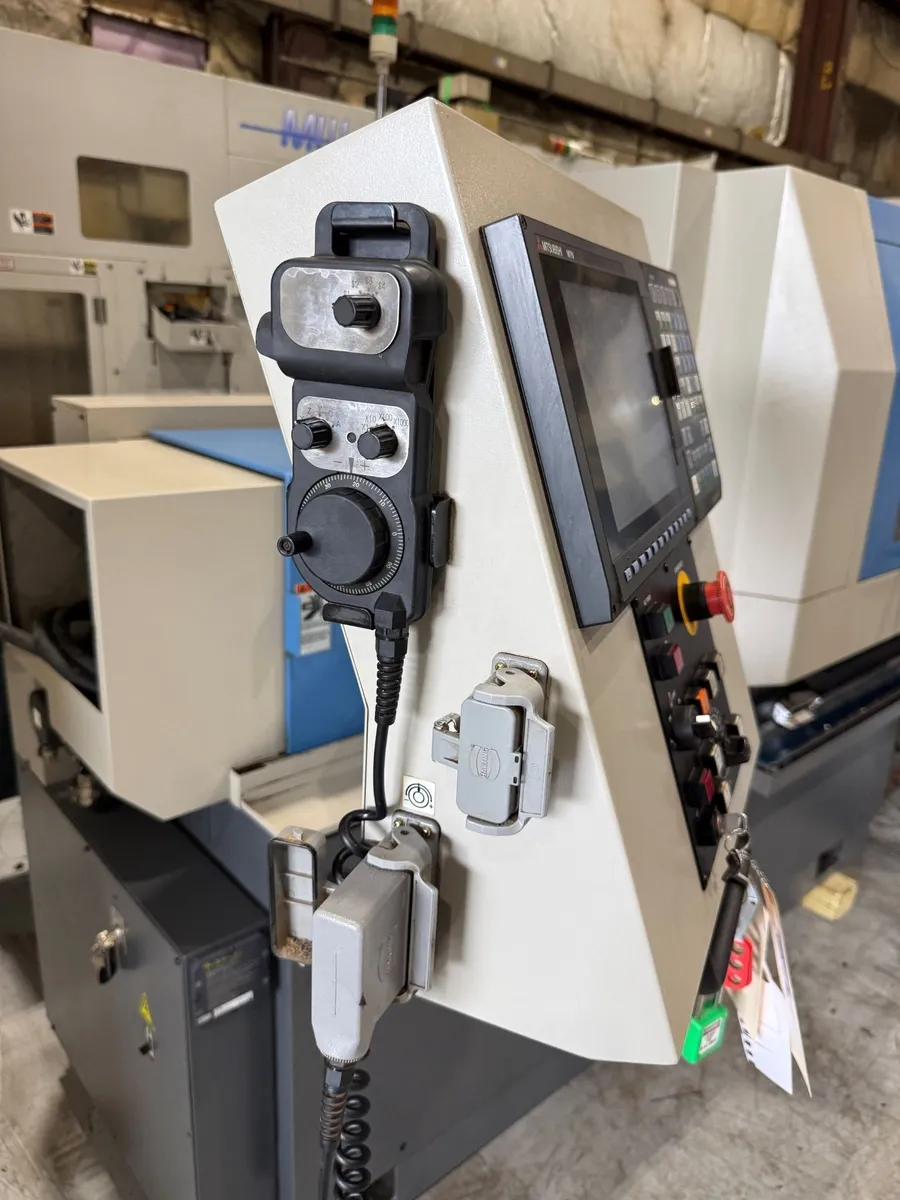

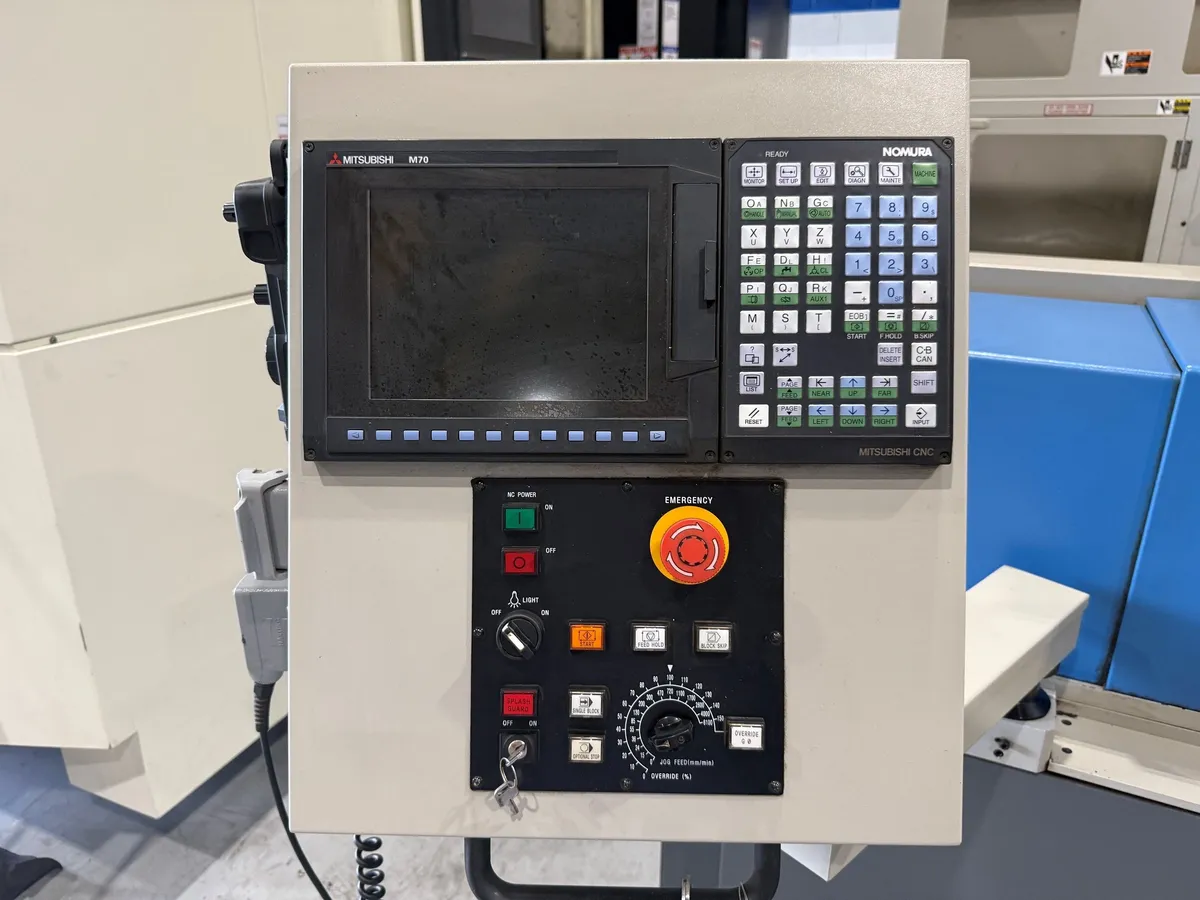

Control	CNC (Mitsubishi M70)	CNC (Mitsubishi M70)
Dimensions	85" x 41" x 67"	85" x 41" x 67"
Weight	4,600 lbs.	4,600 lbs.

Brand: Nomura
Model: NN-20UB8

Specifications:
# of axis: 7
Max. turning length: 7.87" (200mm)
Turning diameter: 0.79" (20mm)
Bar capacity: 0.79" (20mm)
Main spindle through hole: 0.79" (20mm)
Back spindle chucking diameter: 0.79" (20mm)
Max. frontal drill diameter: 0.39" (10mm)
Max. frontal drill length: 1.57" (40mm)
Max. parts unloading length: 4.13" (105mm)
Spindle speed: 10,000 RPM
Main motor: 3 H.P.
Live tooling speed: 6,000 RPM
Live tooling motor: 1.20 H.P. (1 KW)
Sub spindle speed: 6,000 RPM
Sub spindle motor: 1 H.P.
Dimensions: 85" x 41" x 67"
Weight: 4,600 Lbs.
