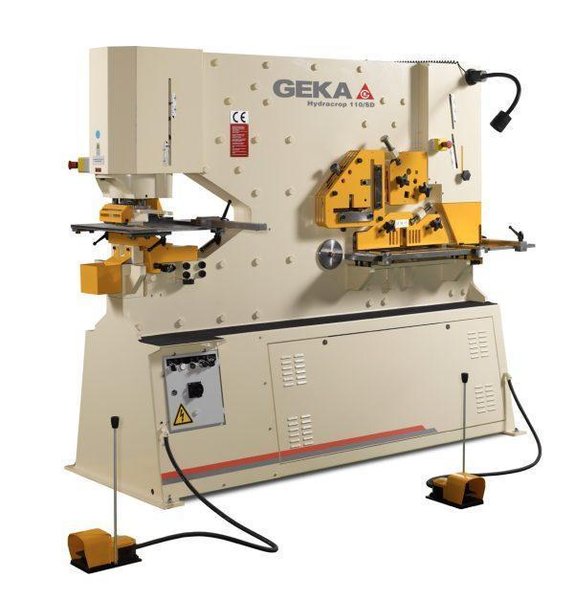

GEKA Ironworker Hydracrop 110SD

TONNAGE: 120 TON
SHEARING POWER: 180 TON

SHEARS:
FLAT BAR (WITH SLIGHT DEFORMATION): 24″ X 5/8″ OR 16″ X 3/4″
LENGTH OF BLADE: 24″
WORK HEIGHT: 37-13/16″

C-SHEARS
L AT 90 DEGREES WITHOUT DEFORMATION: 6″ X 6″ X 1/2″
L AT 45 DEGREES: 2-3/4″ X 2-3/4″ X 1/4″

SOLID BAR
ROUND BAR: 2″
SQUARE BAR: 2″

NOTCHING
PLATE THICKNESS: 1/2″
L OF: 4″
DEPTH: 3-1/2″
WIDTH: 2″
PUNCHING
.
PUNCHING POWER: 120 TON
MAXIMUM CAPACITY WITH QUICK CHANGE: 1-1/2″ X 3/4″
DIE WITH GOOSENECK DIE HOLDER: 1-1/8″ X 1-1/8″
STROKE: 3-1/8″
WORK HEIGHT: 45-7/8″
DIMENSIONS (WX D X H): 106″ X 55″ X 87″

Equipped With :
RECTANGULAR COPER NOTCHER
MAGNETIC WORK LIGHT
OFFSET PUNCH & DIE HOLDER
DEEPER THROAT FOR LARGER PLATE & SHEET METAL APPLICATIONS
ROUND PUNCH & DIE STARTER SET
PRECISION NOTCHING & PUNCHING TABLES WITH X & Y MEASURING STOPS
FLAT BAR SHEARING TABLE WITH ADJUSTABLE GUIDES
POWERFUL HYDRAULIC UNIT
FLAT BAR BLADES
2 SIMULTANEOUS WORK STATIONS
5 WORK STATIONS
MACHINE DRIVEN BY 2 CYLINDERS
(2) FOOT PEDALS
40″ CALIBRATED ELECTRIC LENGTH GAUGE
