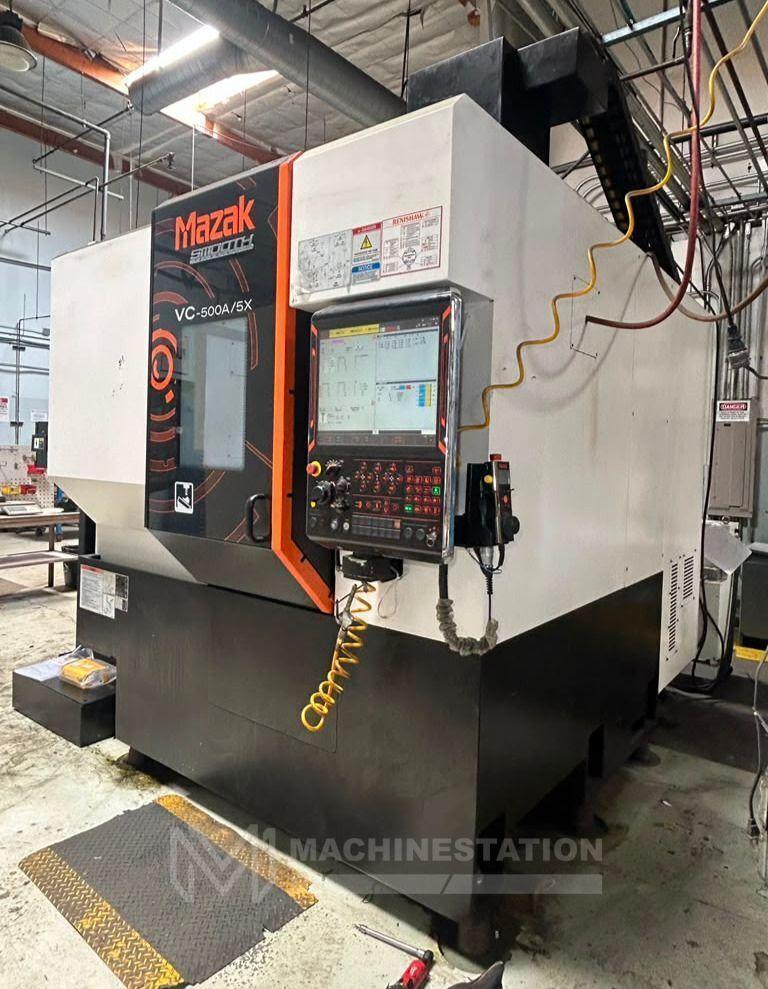

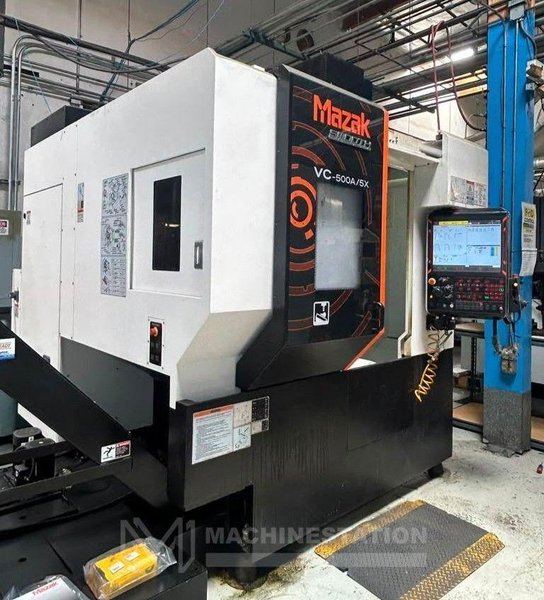

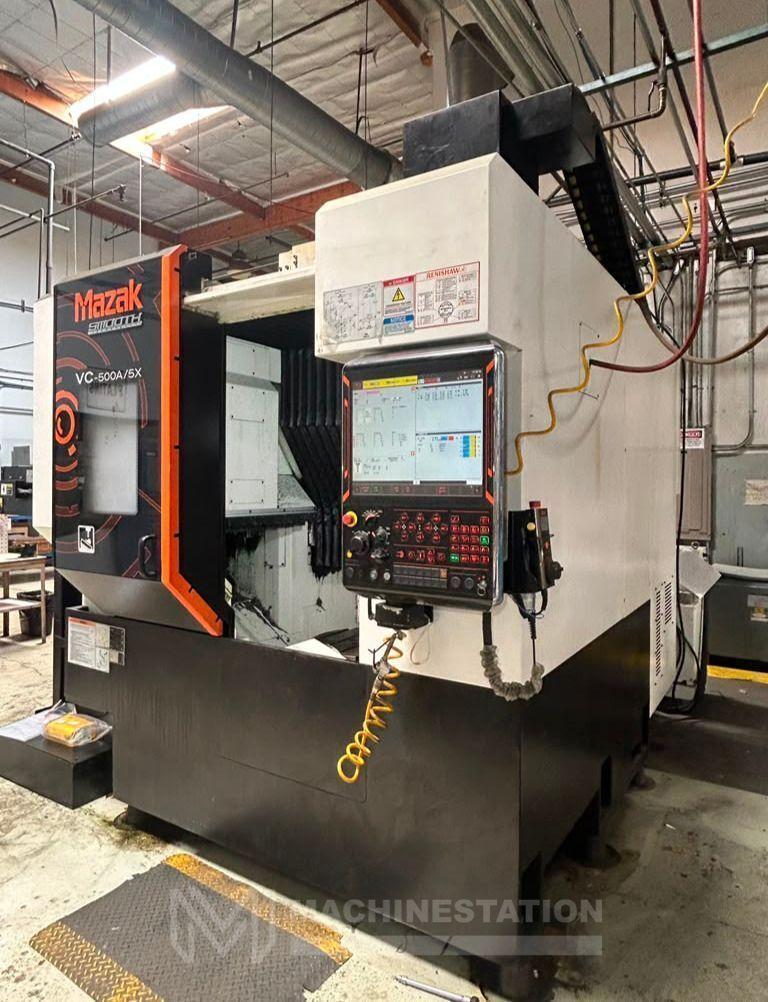

Mazak VC-500A/5X 5-Axis CNC Vertical Machining Center – TSC, 12,000 RPM Mill

Brand
MAZAK
Category
Machining Centers
Type
Vertical Machining Centers
Model
VC-500A/5X
Stock #
113661
Year
2017
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU: 113661
Make: Mazak
Model: VC-500A/5X
Year: 2017
Equipped With:

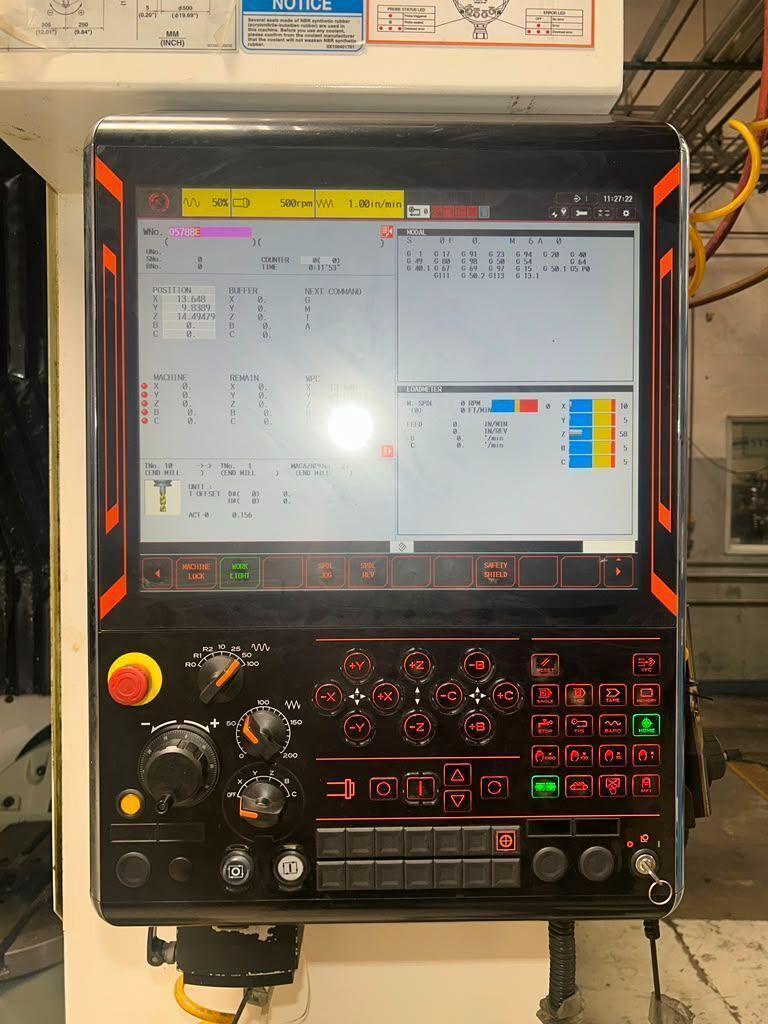

Mazatrol SmoothX CNC Control
5-Axis Simultaneous Machining
12,000 RPM High-Speed Spindle

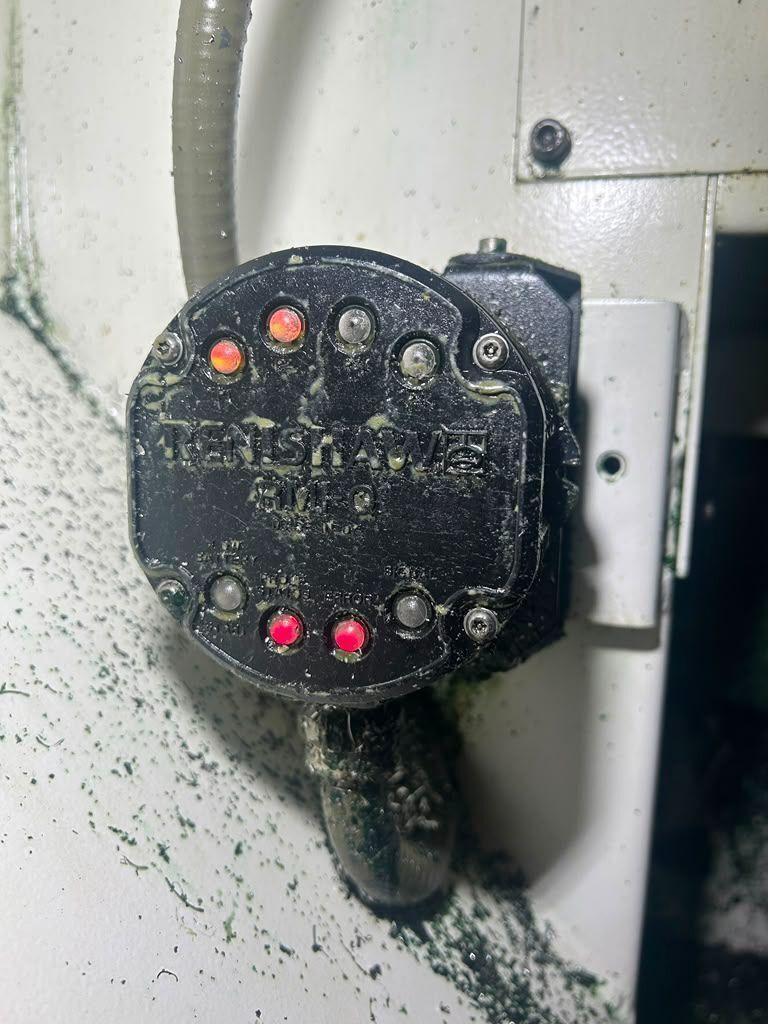

Renishaw Receiver Installed
Tool Presetter

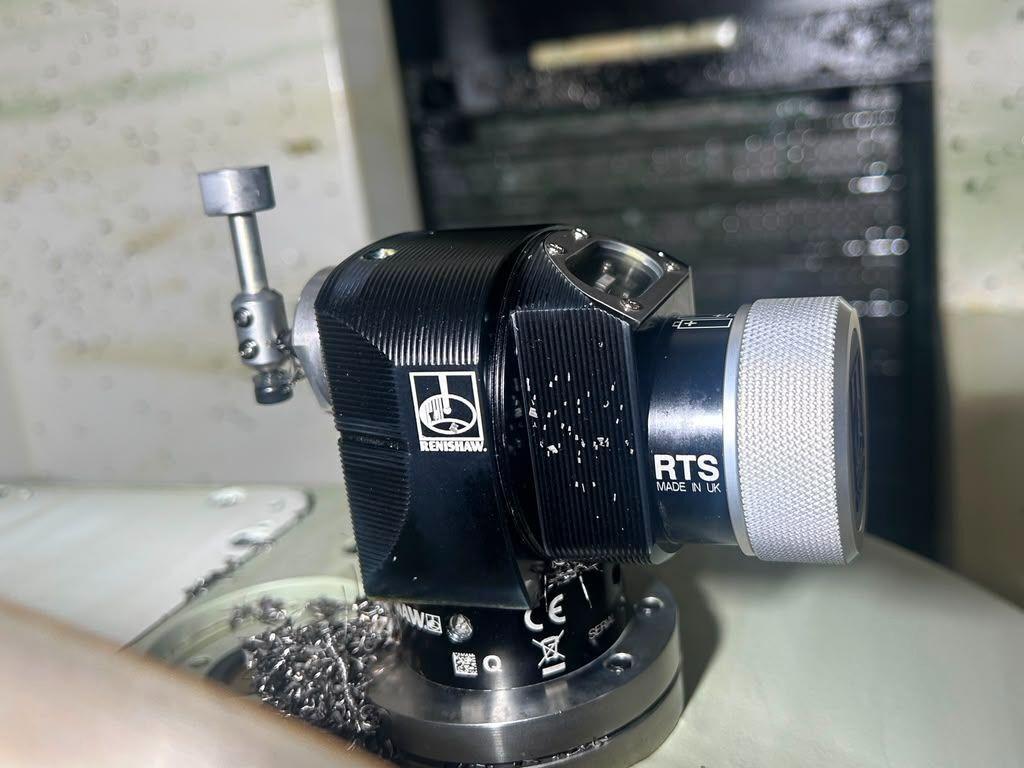

Tool Probe

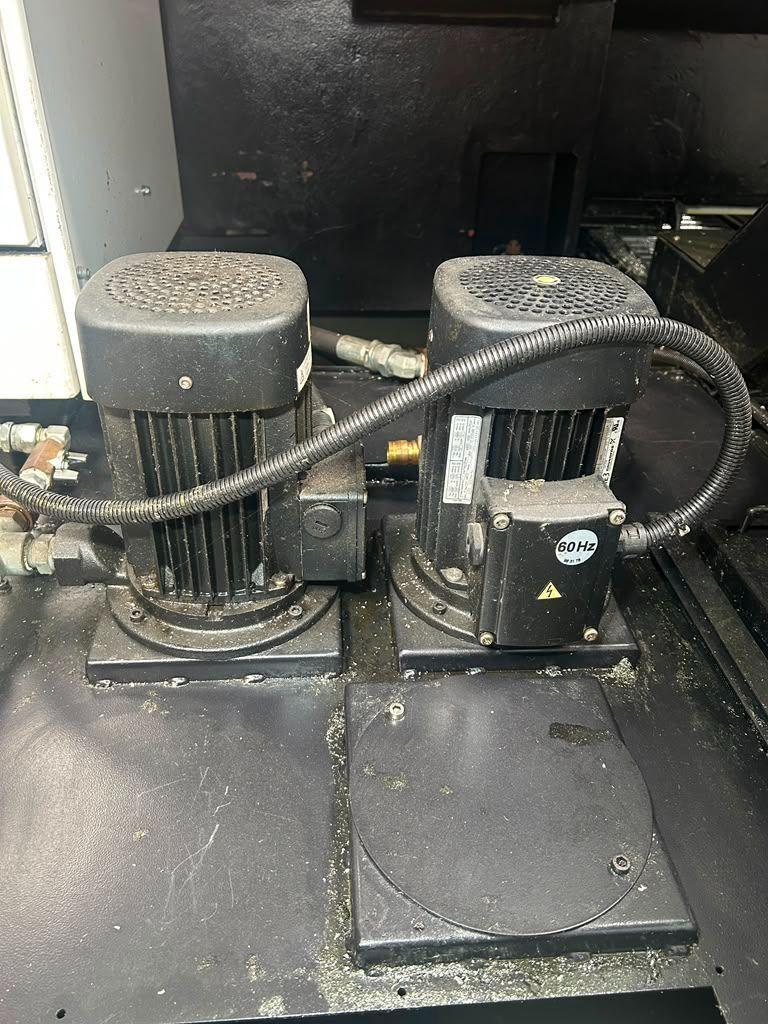

Through-Spindle Coolant
30-Station Automatic Tool Changer
25 HP High-Torque Spindle
CAT-40 Taper Spindle

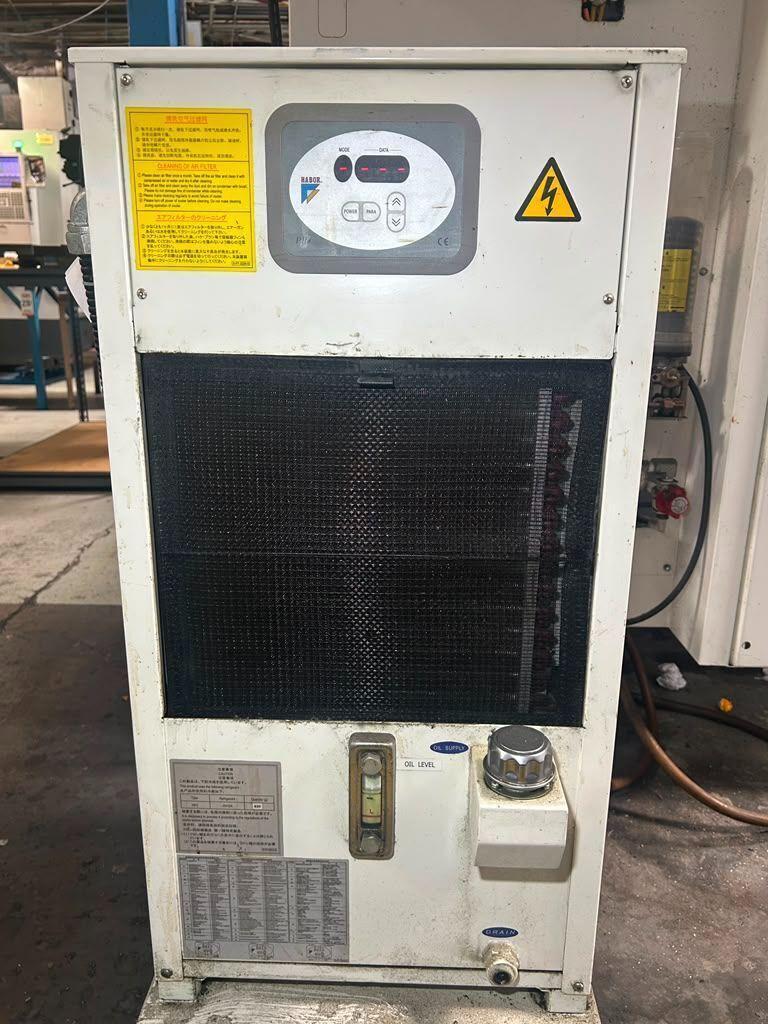

Spindle Chiller Unit
MPG Handwheel Control
Rigid Tapping
Coolant Tank

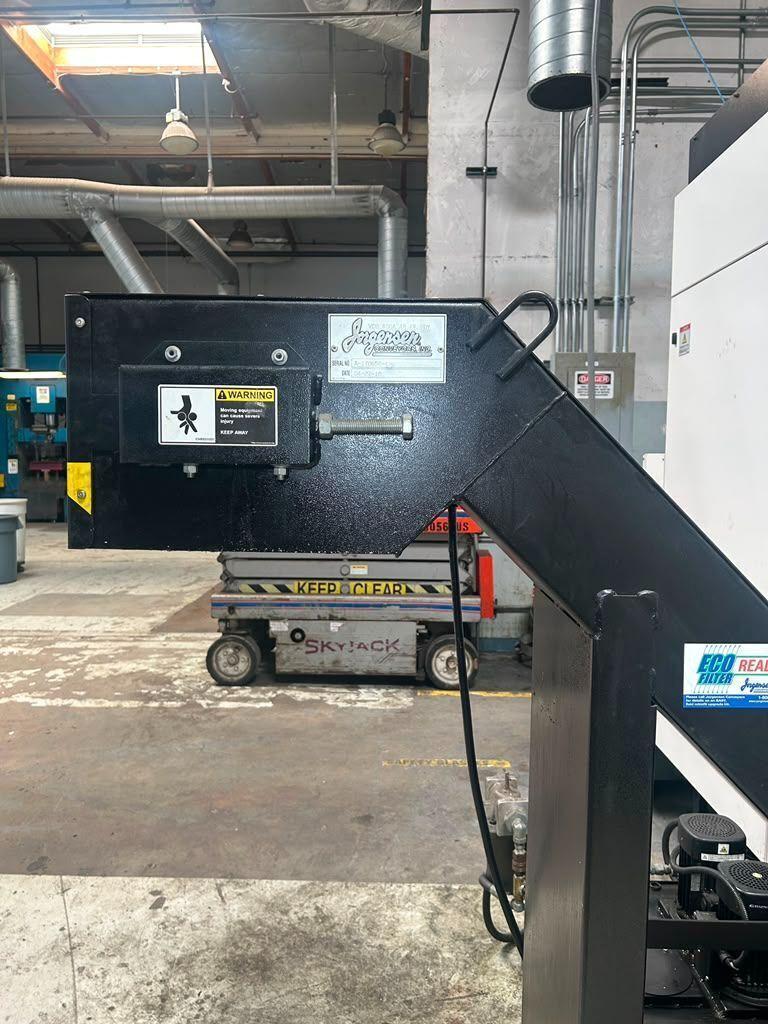

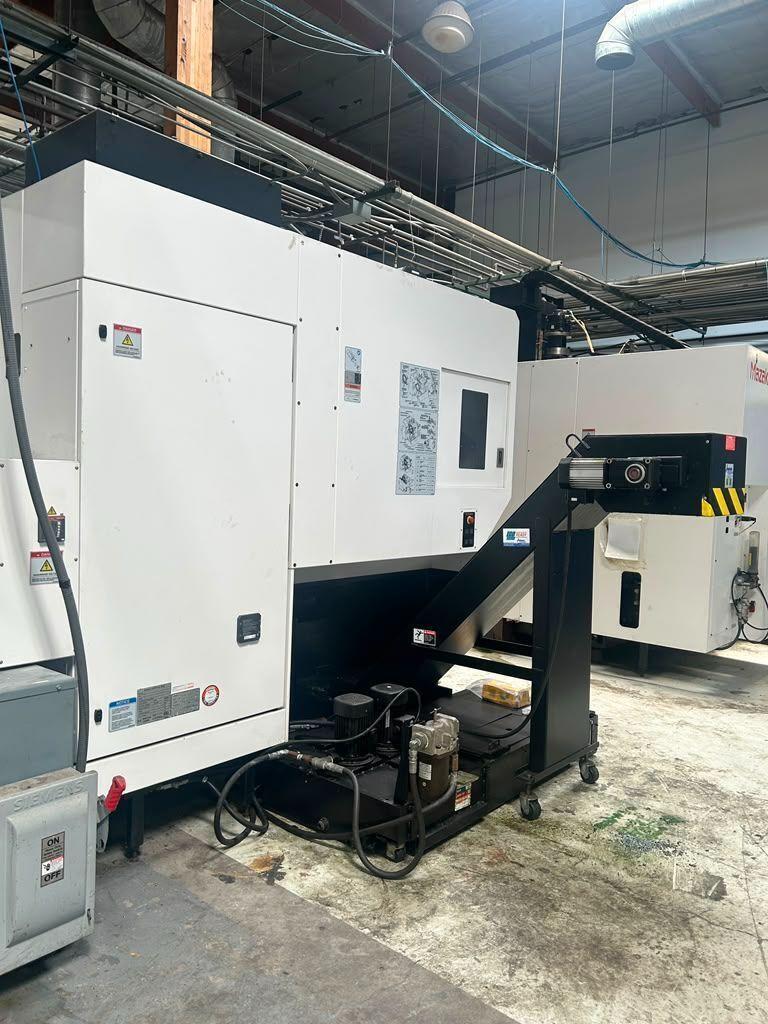

Chip Conveyor

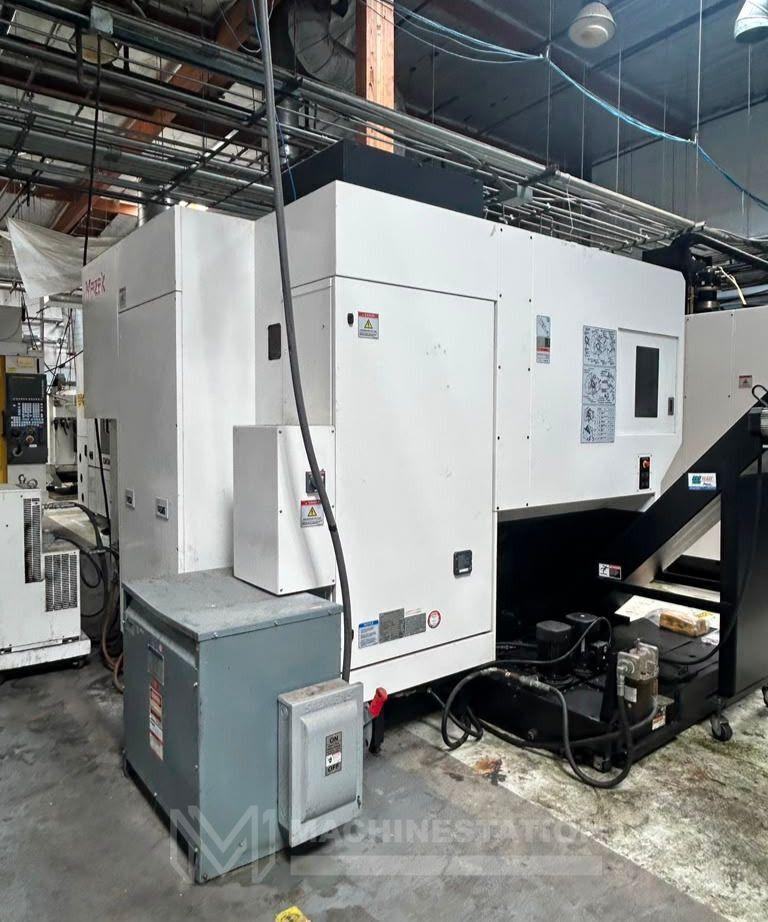

Transformer

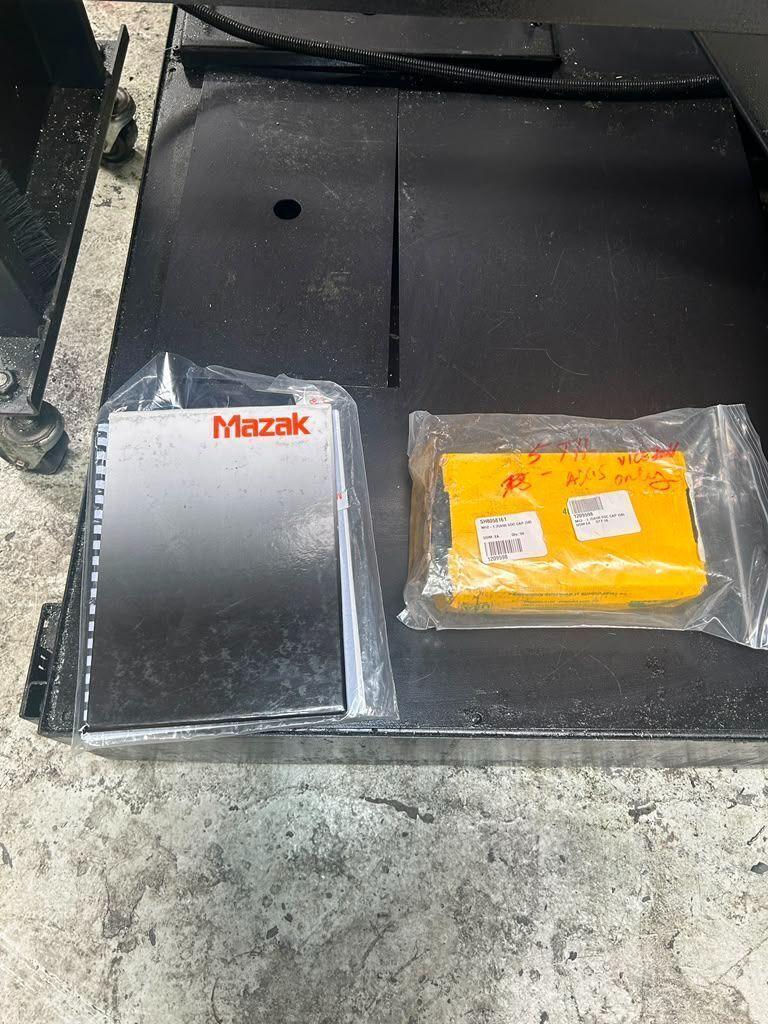

Books & Manuals
Travels:
X-Axis Travel: 21.85″
Y-Axis Travel: 19.88″
Z-Axis Travel: 20.07″
B-Axis Table Tilt: ±110°
C-Axis Table Rotation: 360°
Rapid Traverse Rate: 1,181 IPM
Spindle Nose to Table (Min.-Max.): 4.53″ – 24.61″

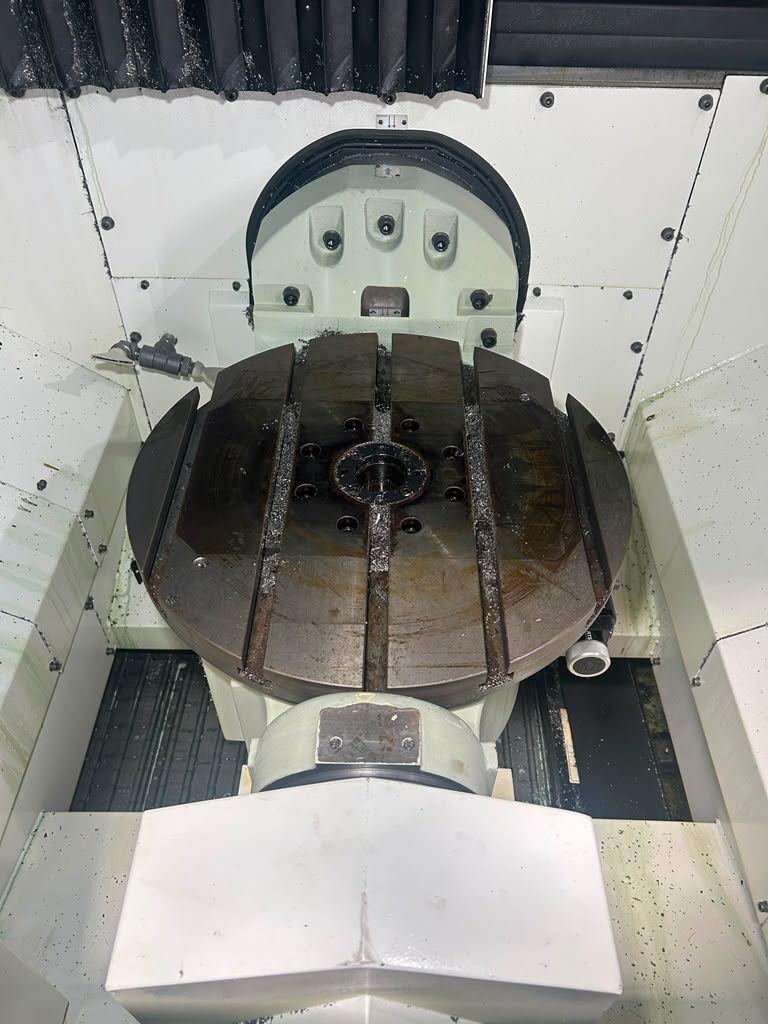

Table:
Table Diameter: Ø19.69″
Maximum Workpiece Size: Ø19.69″ × 12″
Maximum Workpiece Weight: 441 lbs

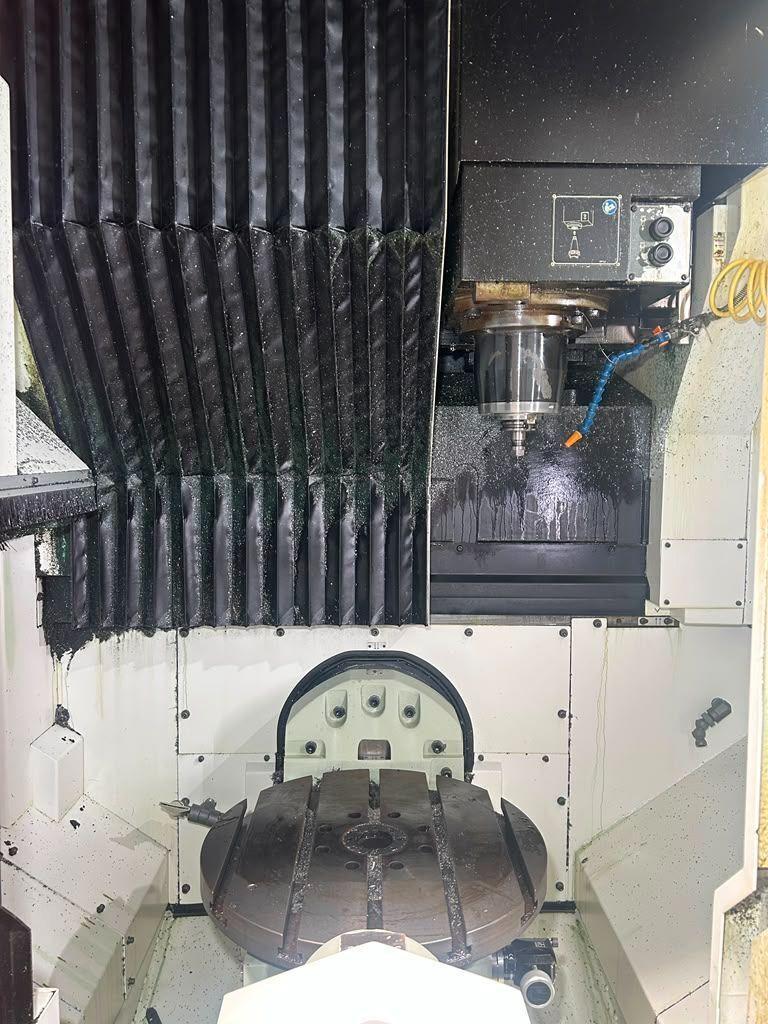

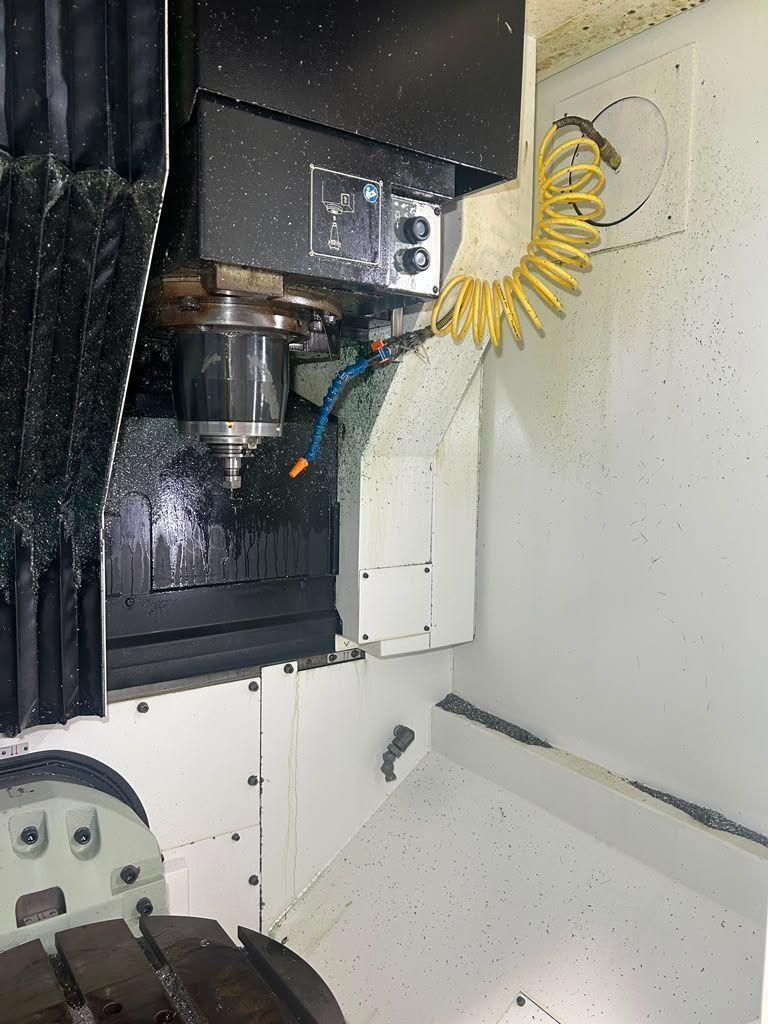

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 25 HP
Automatic Tool Changer:
Capacity: 30 Tools
Maximum Tool Diameter: 3.15″ – 4.92″
Maximum Tool Length: 10.23″
Maximum Tool Weight: 17.63 lbs
General:
Air Required: 80 psi, 4 scfm
Power Required: 208V / 3-Phase / 50/60 Hz / 30 kVA
Overall Dimensions: 118.45″ × 99.2″ × 118.11″ High
Weight: 18,000 lbs Approx.
No files or videos to display

Want to request a quote from the owner of this listing?
