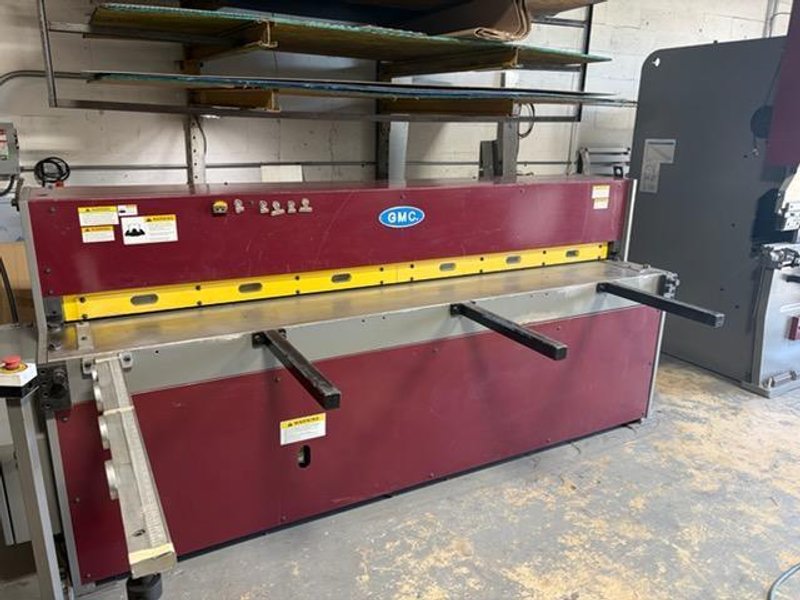

8′ x 10 Ga GMC HS-0810 MD Hydraulic Shear, 2022 – Manual Back Gauge

GMC HS-0810 MD hydraulic shear with 10 gauge capacity over 8′ length. Designed for precision sheet metal cutting with rigid construction, adjustable stroke control, and reliable hydraulic system. Ideal for fabrication shops and general sheet metal applications.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Capacity Mild Steel: 10 Gauge x 8′ Capacity Stainless Steel: 14 Gauge x 8′ Blade Length: 98″ Stroke Rate: 14–18 Strokes Per Minute Throat Depth: 16″ Back Gauge: 26″ Manual Blade Rake Angle: 1.5° Main Motor: 7.5 HP Oil Tank Capacity: 20–26 Gallon Machine Weight: 5,650 LBS Dimensions: 118″ x 35″ x 52″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manual Back Gauge Front Support Arms Side Gauges Work Light With Shadow Line Spring Hold Downs Full Length Finger Guard Foot Pedal Control Adjustable Stroke Control Heavy Duty Steel Construction

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
