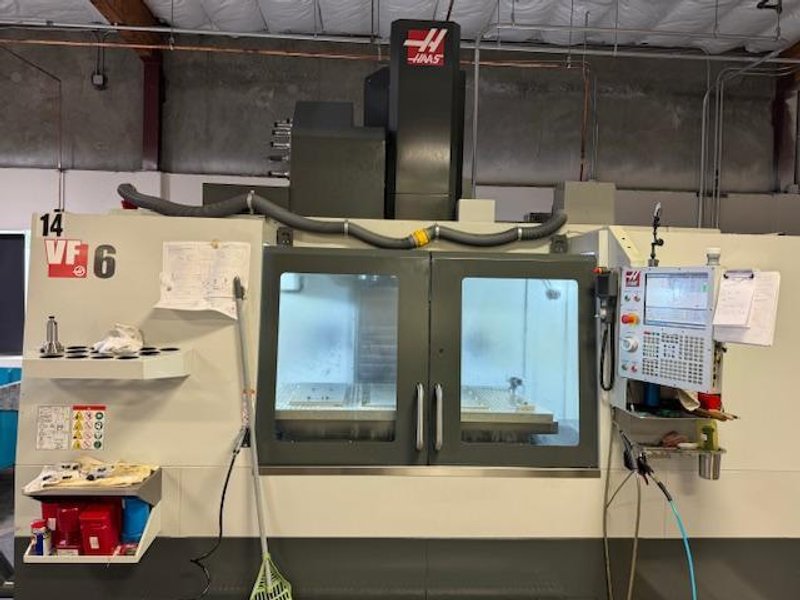

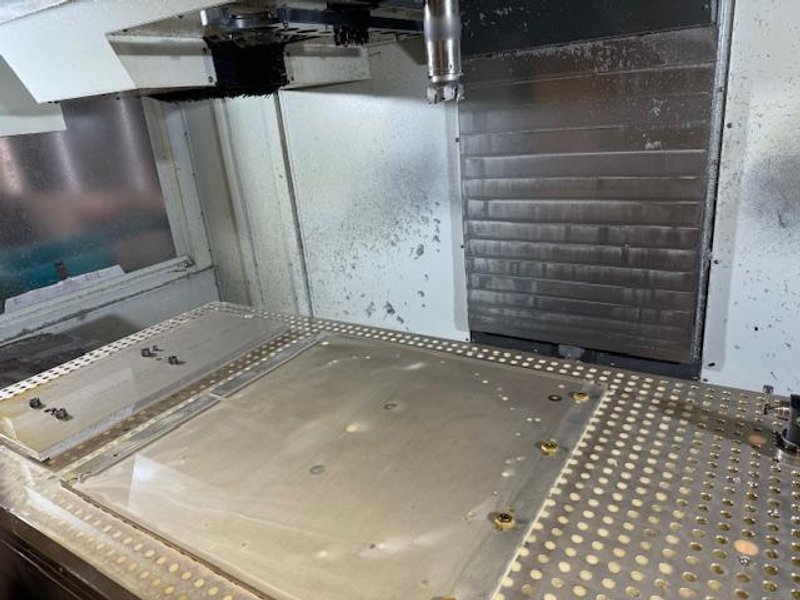

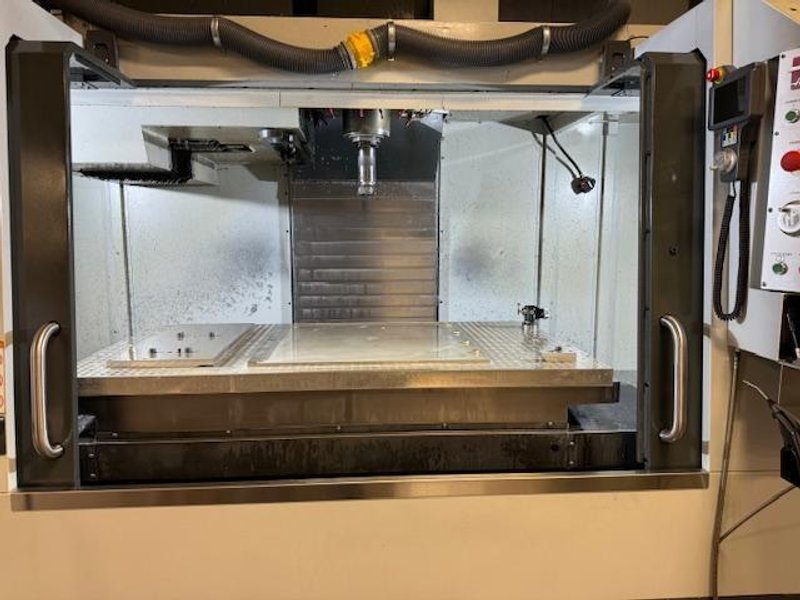

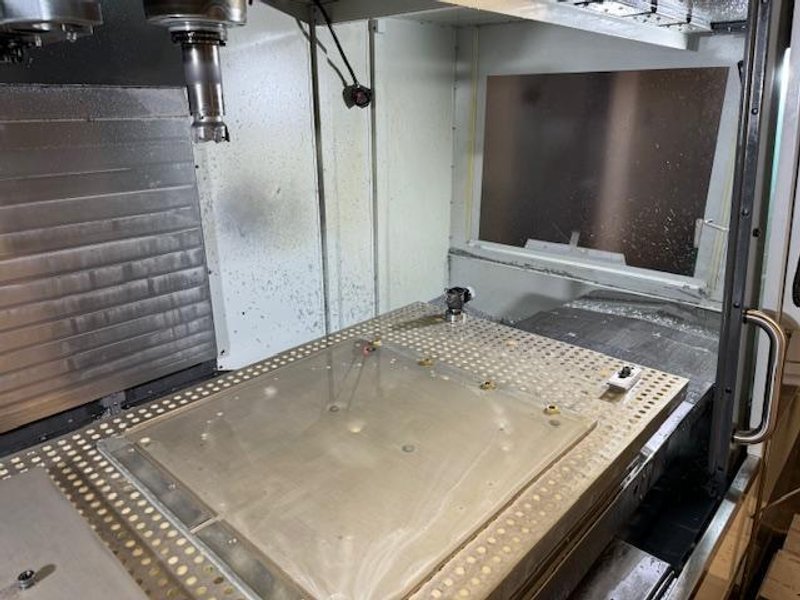

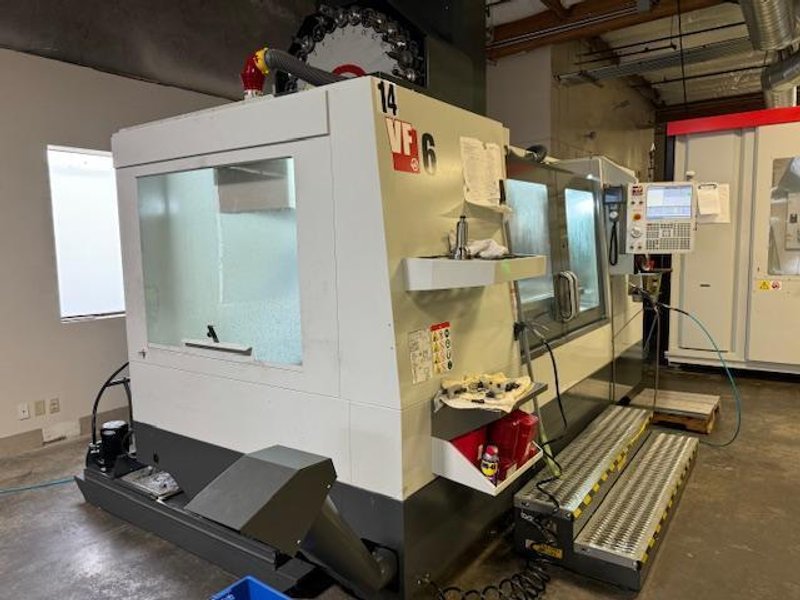

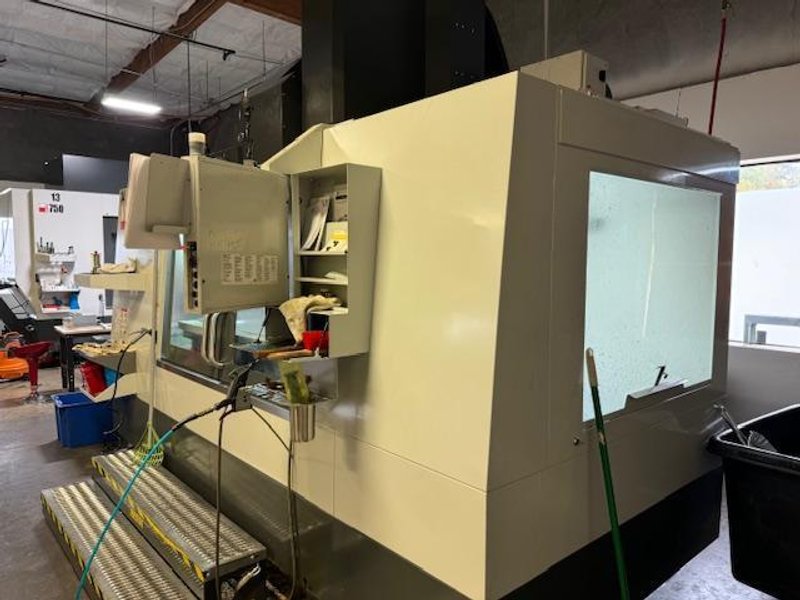

Haas VF-6/50 CNC Vertical Machining Center, 2022 – 64” x 32” x 30” Travels, 30 HP, 7,500 RPM, CAT 50

Heavy-duty 2022 Haas VF-6/50 CNC vertical machining center featuring expansive 64” x 32” x 30” travels, a powerful 30 HP geared-head CAT 50 spindle, 7,500 RPM, and a 30+1 station side-mount tool changer for machining large parts and tough materials.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer: Haas Automation Model: VF-6/50 Year: 2022 Machine Type: CNC Vertical Machining Center CNC Control: Haas Next Generation Control Travels X-Axis Travel: 64” Y-Axis Travel: 32” Z-Axis Travel: 30” Spindle Nose to Table: Approximately 5”–35” Table Table Size: 64” x 28” Number of T-Slots: 5 Maximum Table Load: 4,000 lbs. Spindle Spindle Taper: CAT 50 / CT 50 Maximum Spindle Speed: 7,500 RPM Spindle Motor: 30 HP Maximum Torque: 340 ft-lbs. at 700 RPM Spindle Drive: Two-Speed Gearbox Spindle Cooling: Liquid-Cooled Tool Changer Type: Side-Mount Automatic Tool Changer Tool Capacity: 30+1 Maximum Tool Diameter: 4” Maximum Tool Diameter with Adjacent Pockets Empty: 10” Maximum Tool Length: 16” Maximum Tool Weight: 30 lbs. Feed Rates Maximum Cutting Feed Rate: 500 IPM X-Axis Rapid Traverse: 600 IPM Y-Axis Rapid Traverse: 600 IPM Z-Axis Rapid Traverse: 600 IPM Utilities and General Coolant Tank Capacity: 95 gallons Electrical Requirement: 220 VAC, three-phase, 70 amps High-Voltage Configuration: 440 VAC, three-phase, 35 amps when factory equipped Air Requirement: 4 SCFM at 100 PSI Minimum Air Pressure: 80 PSI Approximate Shipping Weight: 25,500 lbs. Approximate Shipping Dimensions: 195” L x 102” W x 131.5” H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
