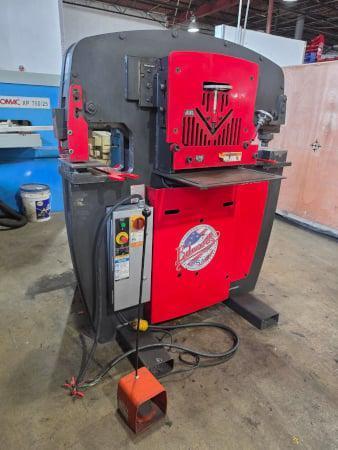

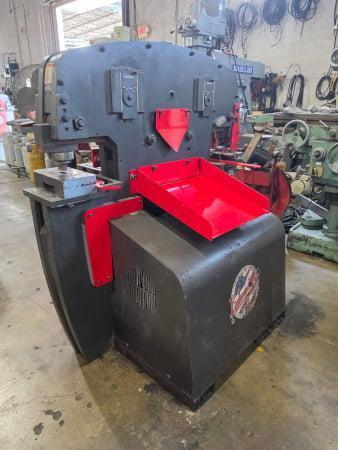

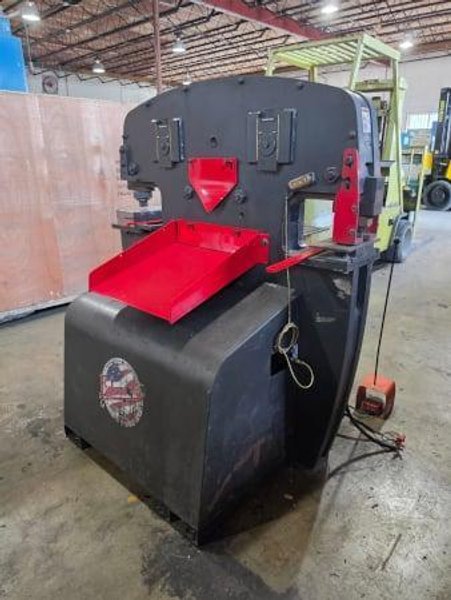

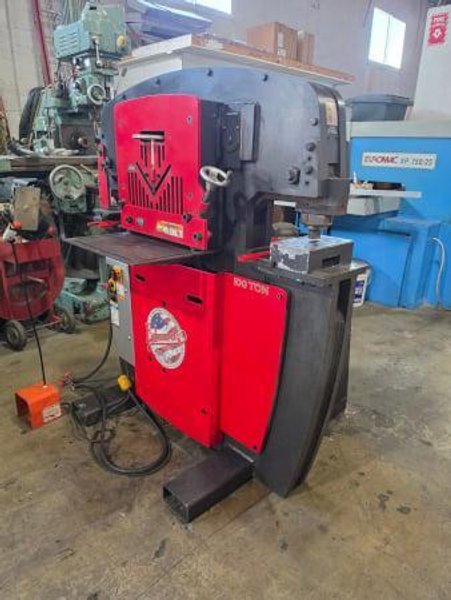

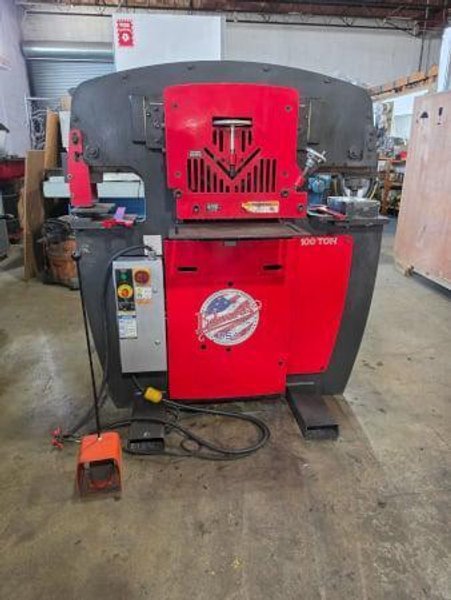

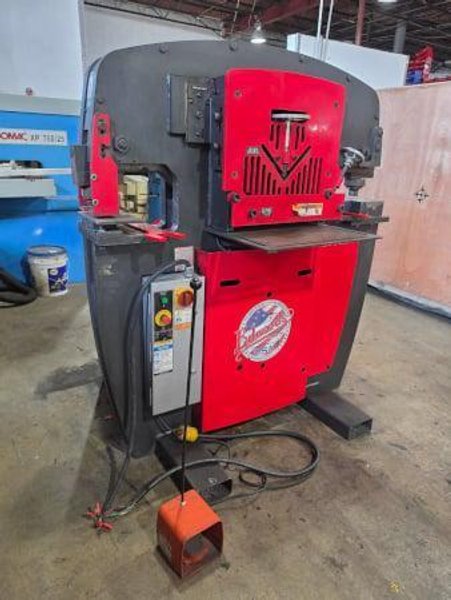

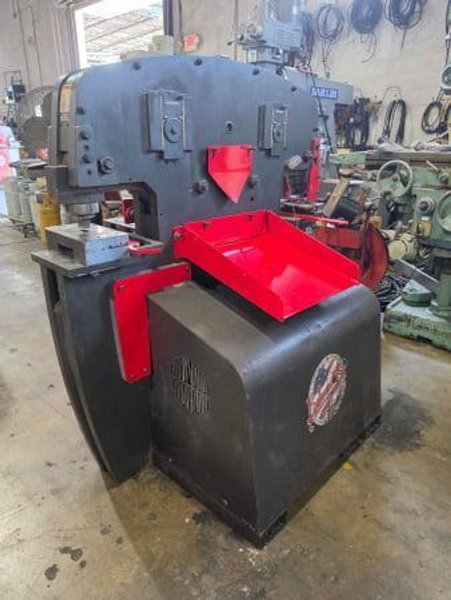

100 Ton Ironworker with Electric Foot Pedal, Electric Stroke Limiter and 241 Punch Assembly w/ ½” X 2” Punch & Die Set (Up to 4” Capacity).

GENERAL SPECIFICATIONS
Punch Station
Tonnage:                            100 Ton
Throat:                            11”
Capacity:                            1-1/16” Hole Thru 1” Plate
Largest Punch Accepted (Standard Punch Holder):    1-1/16”
Shut Height:                            6-13/16”
Stroke:                            1-15/16”

Bar Shear
Max. Cutting Length:                    14”
Cutting Capacity - Max. Width:                ¾” X 14”
Cutting Capacity - Max Thickness:                1” X 10”
Max. Bar Shearing - Round:                1”

Rod Shear
Max. Round:                            1-¼”
Max. Square:                            1-¼”

Angle Shear
Max. Angle @ 90°:                        6” X 6” X ½”

Motor & Electrics
Motor Power:                            7.5 HP
Electrics:                            230 / 3 / 60

Dimensions
Base Dimensions:                        69” X 46”
Overall Height:                        67”
Net Weight:                            4,557 Lbs



INCLUDES: Electric Foot Pedal, Electric Stroke Limiter and 241 Punch Assembly w/ ½” X 2” Punch & Die Set (Up to 4” Capacity).

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
