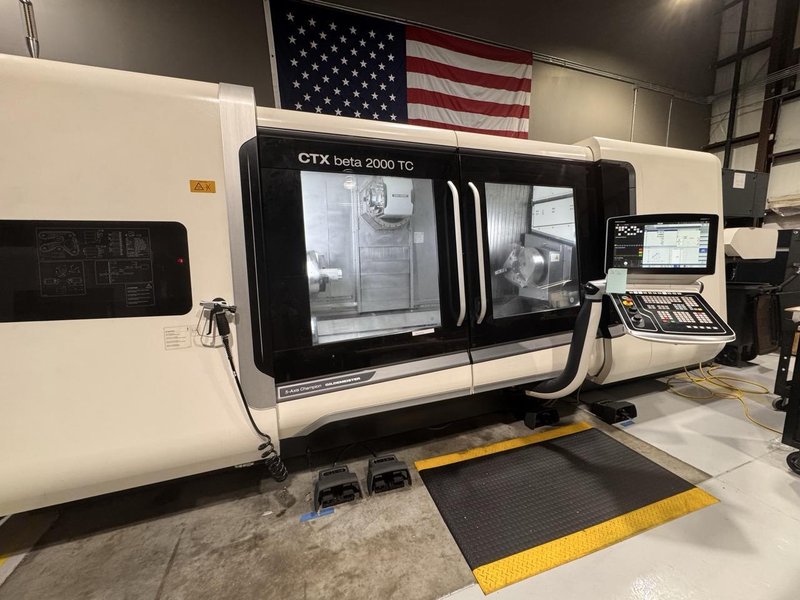

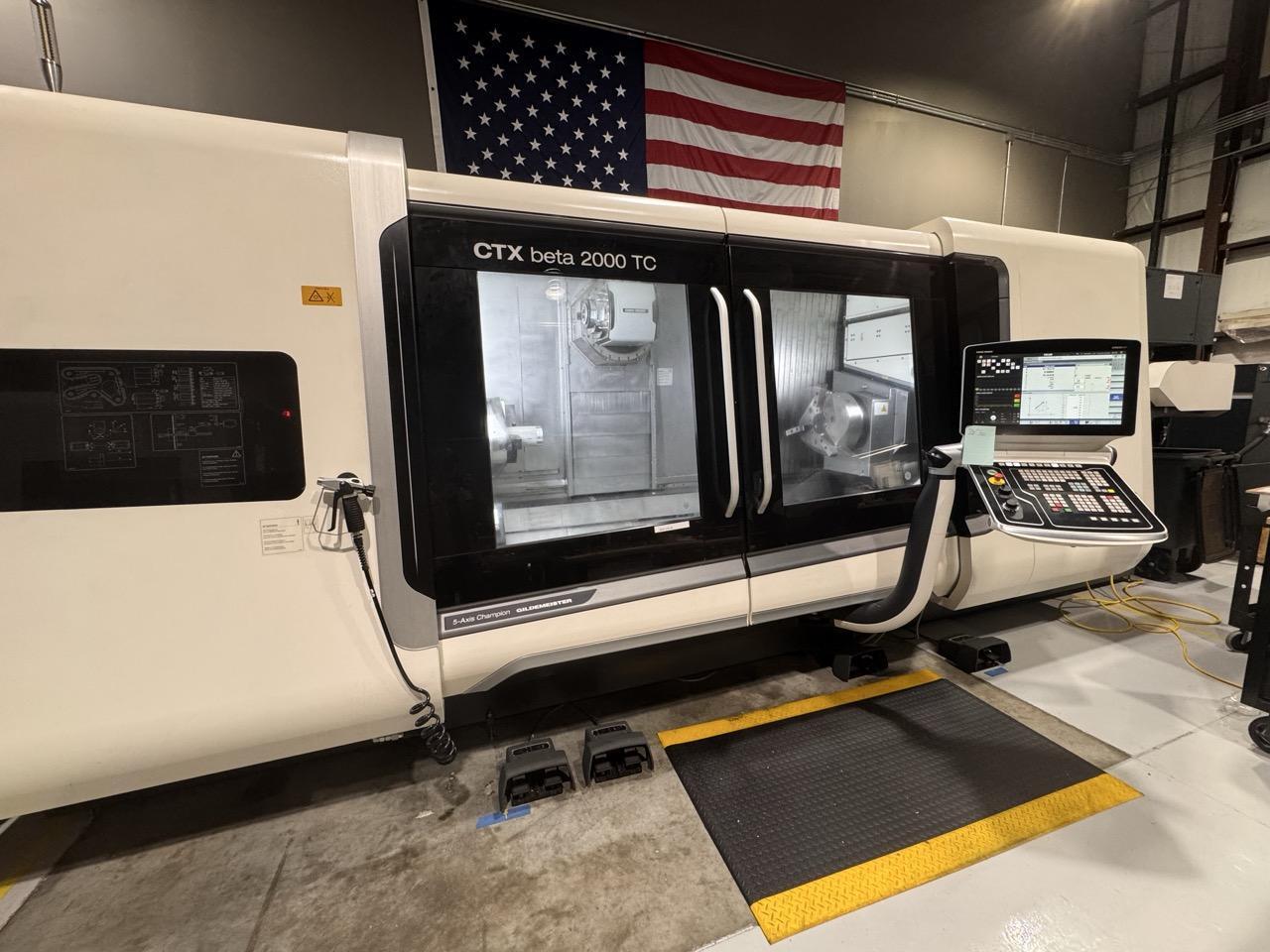

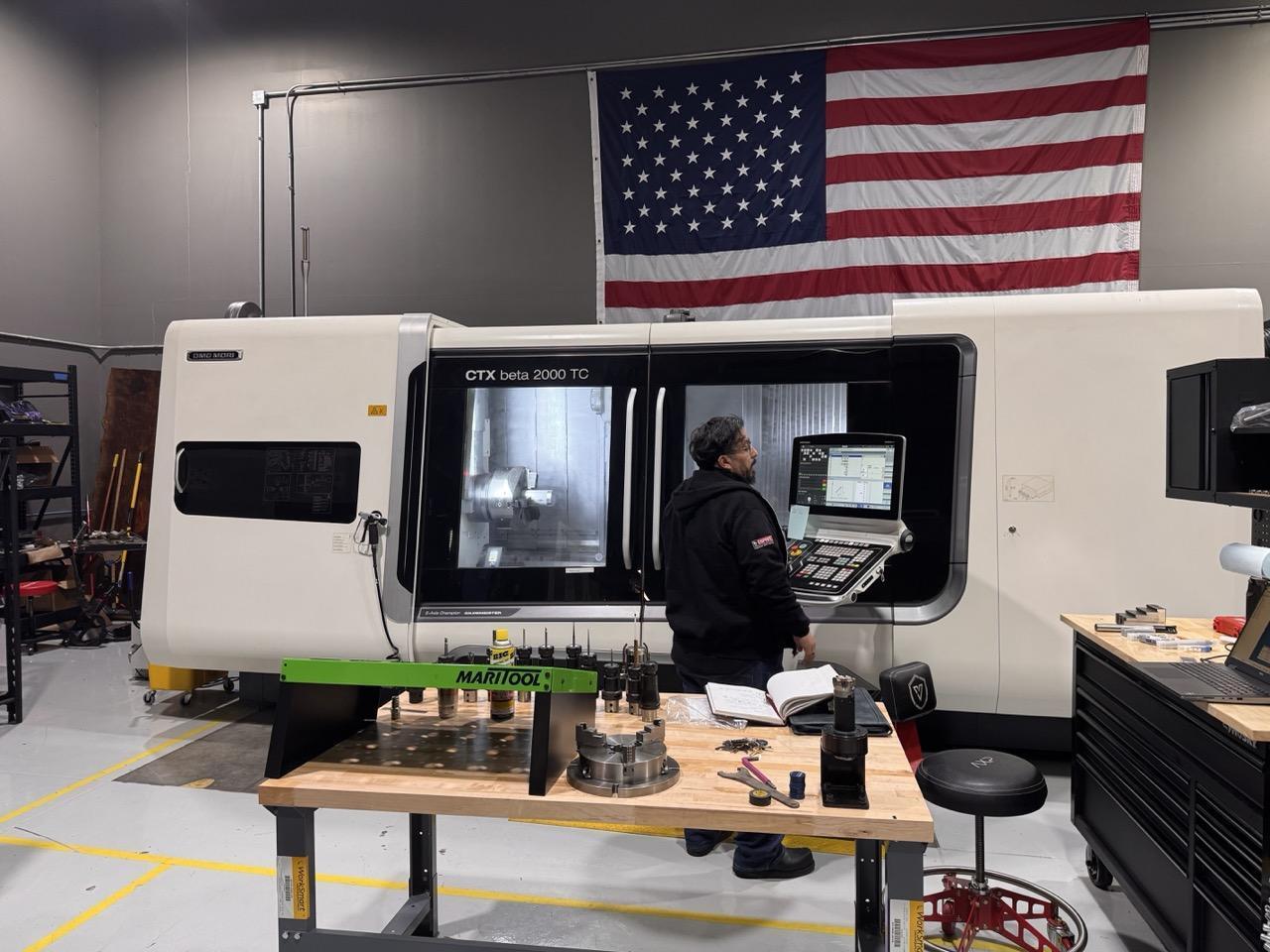

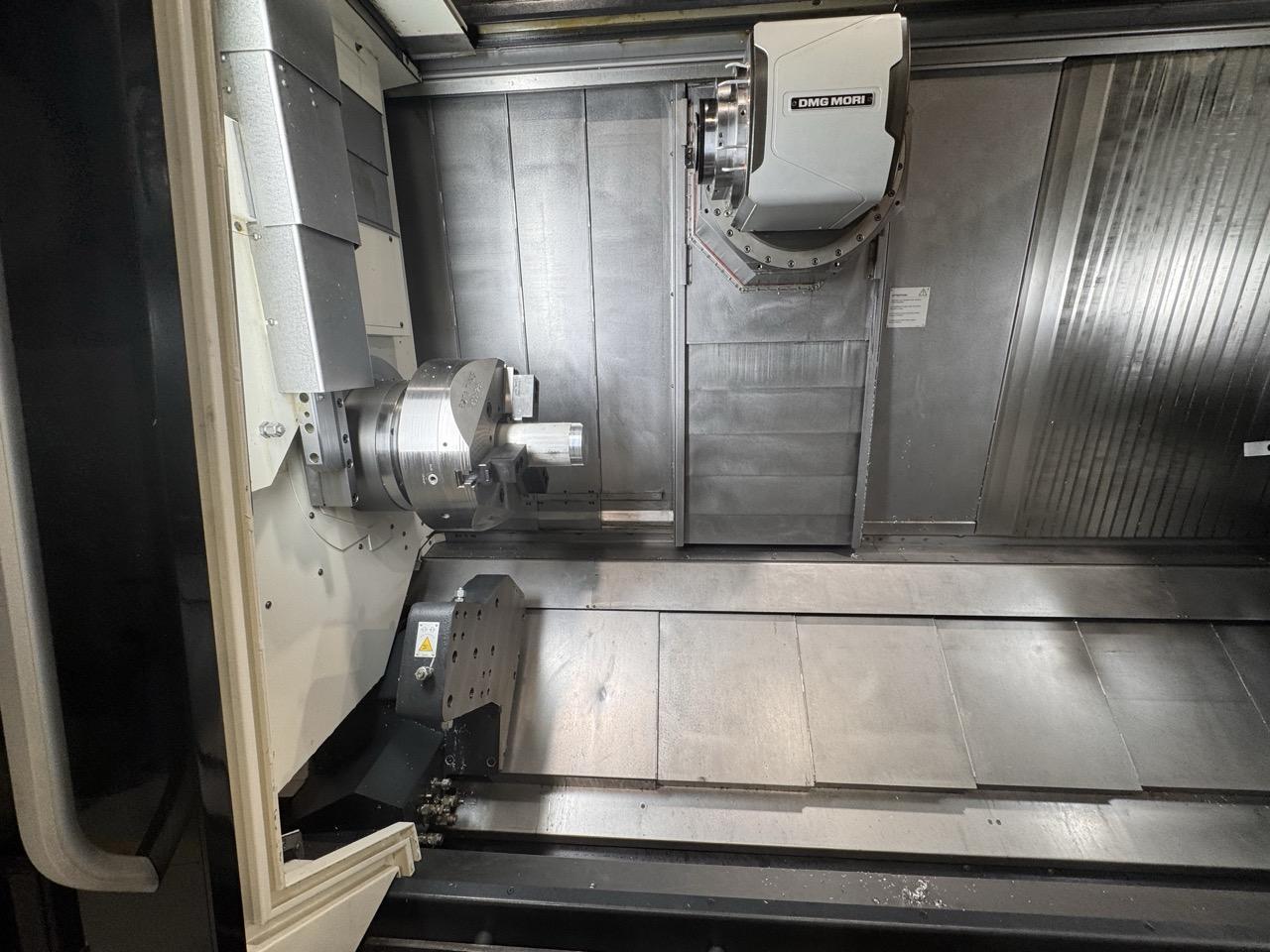

DMG Mori CTX Beta 2000 TC Multi-Axis CNC Lathe, 2021 – Through Spindle Coolant, Chip Conveyor, Tailstock, Renishaw Probe

Max Turning Length: 78.74″ Max Turning Diameter: 23.6″ Max Swing: 31.5″ Max Workpiece Diameter: 27.6″ Bar Capacity: 4.09″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spindle Power: 53.6HP Speed: 4,000 RPM Bore: ISM 102 (~4″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Counter Spindle Power: 53.6HP Speed: 4,000 RPM Bore: ISM 102 (~4″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Milling Spindle Capto 6 Speed: 12,000 RPM Power: 30 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,B-Axis: ±120º Y-Axis Travel: ±5.90″ Tool Capacity: 100 Tools

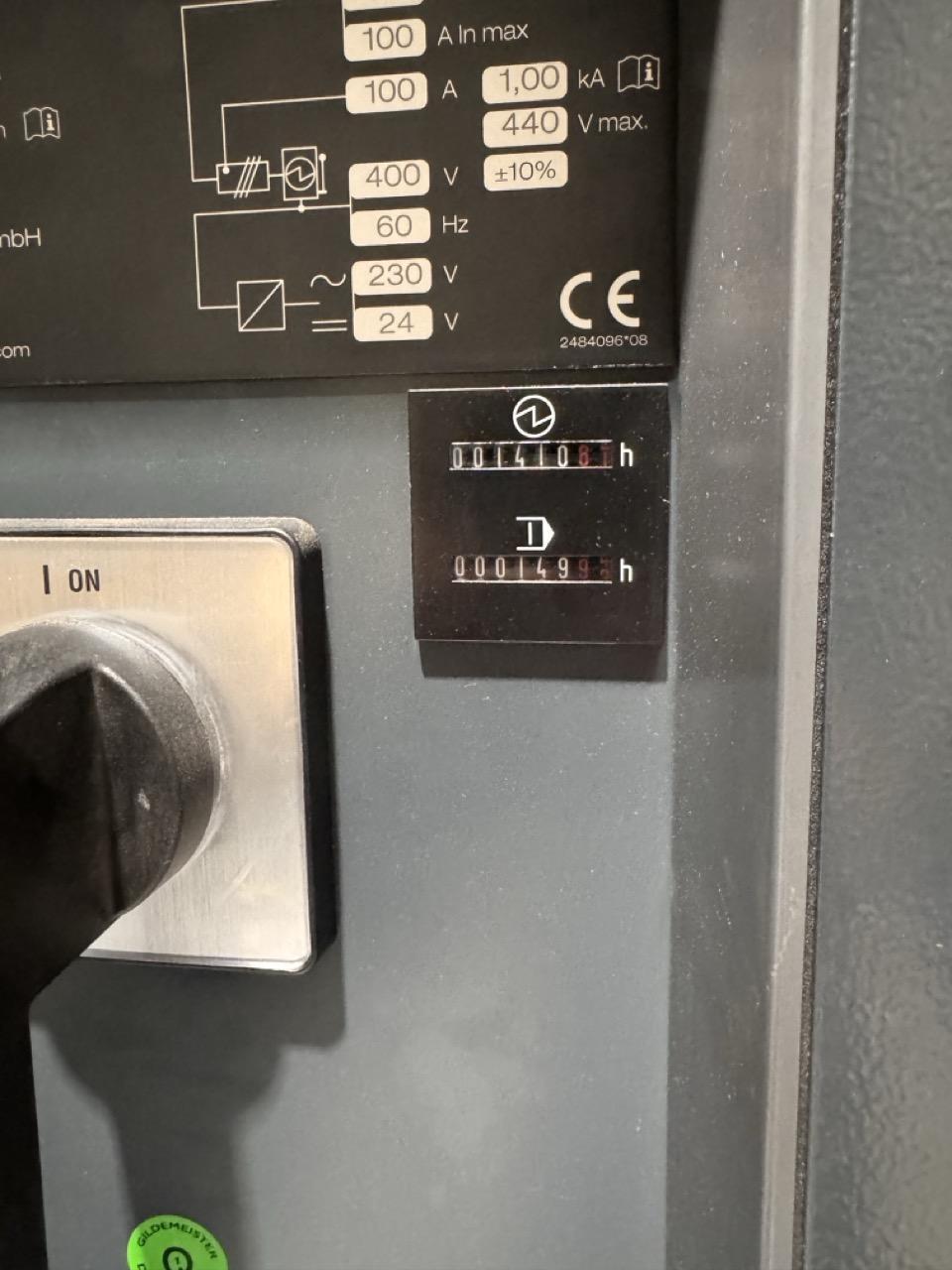

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical Capacity: 240/480V/60Hz Weight: ~46,000lbs Footprint: ~26′ x 11′

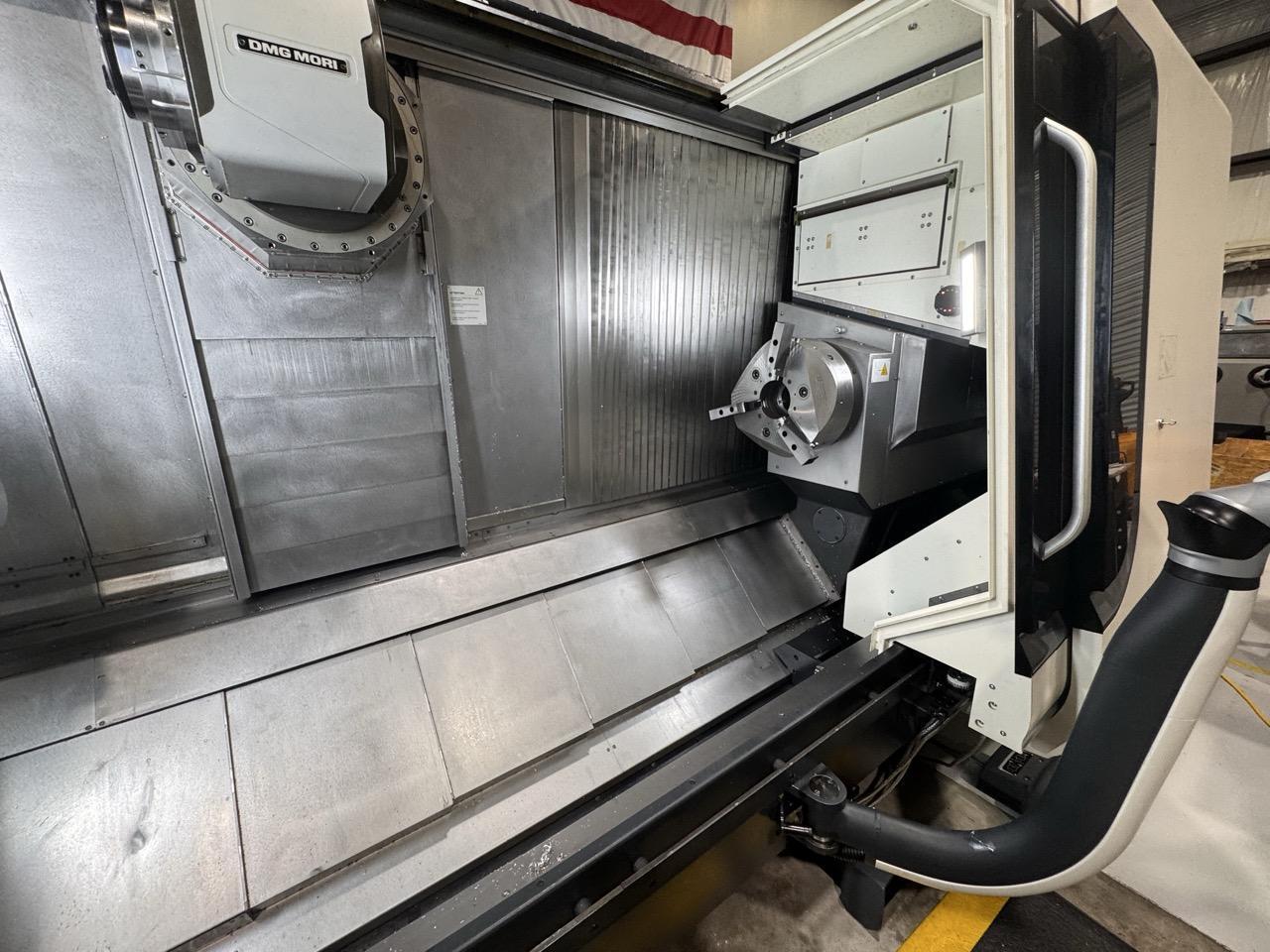

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Chuck: 12.6″ Schunk ROTA THW3-400 Power Chuck with Quick Jaw Change Counter Chuck: 12.6″ Shunk ROTA THW3-400 Power Chuck with Quick Jaw Change

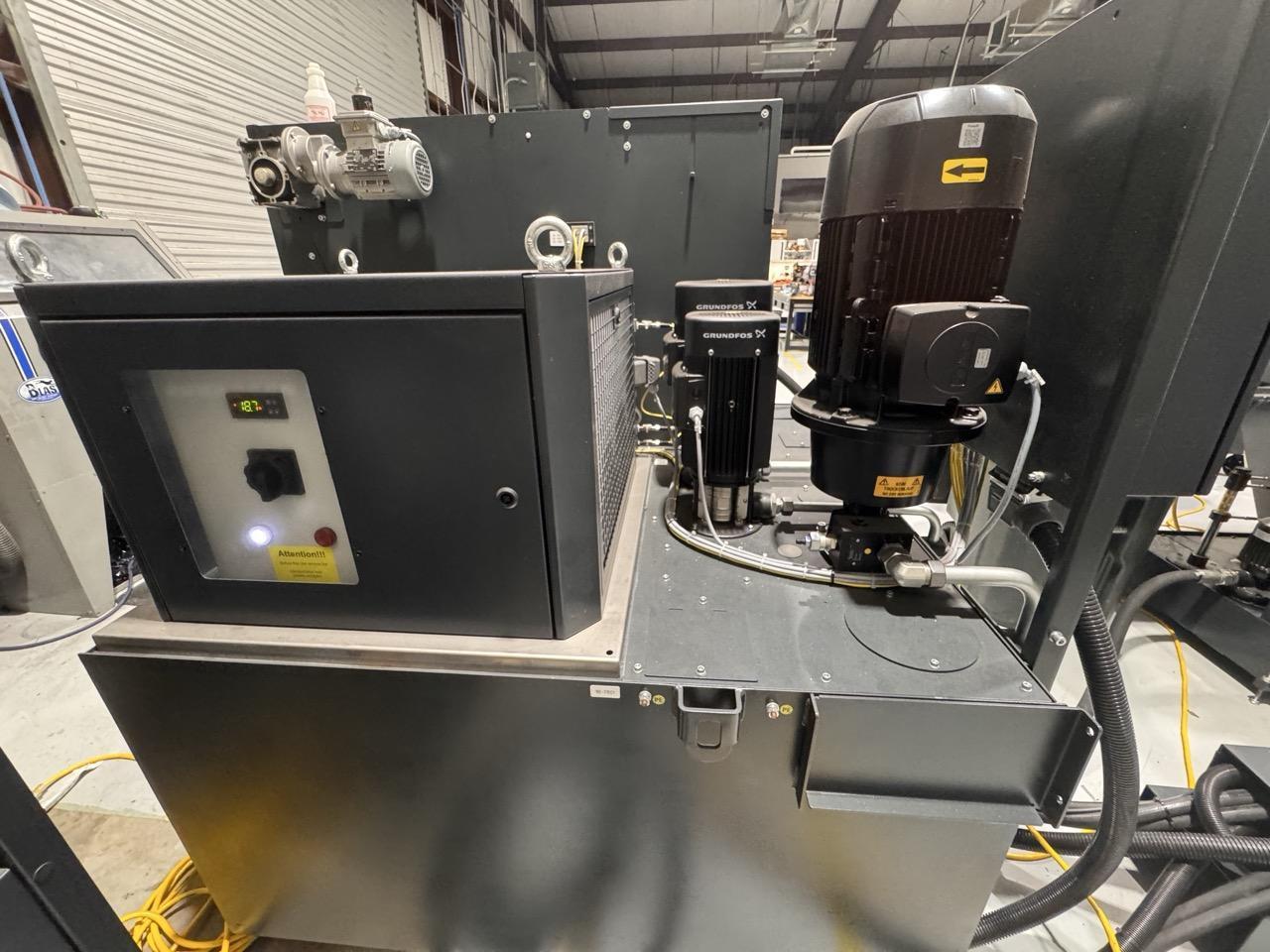

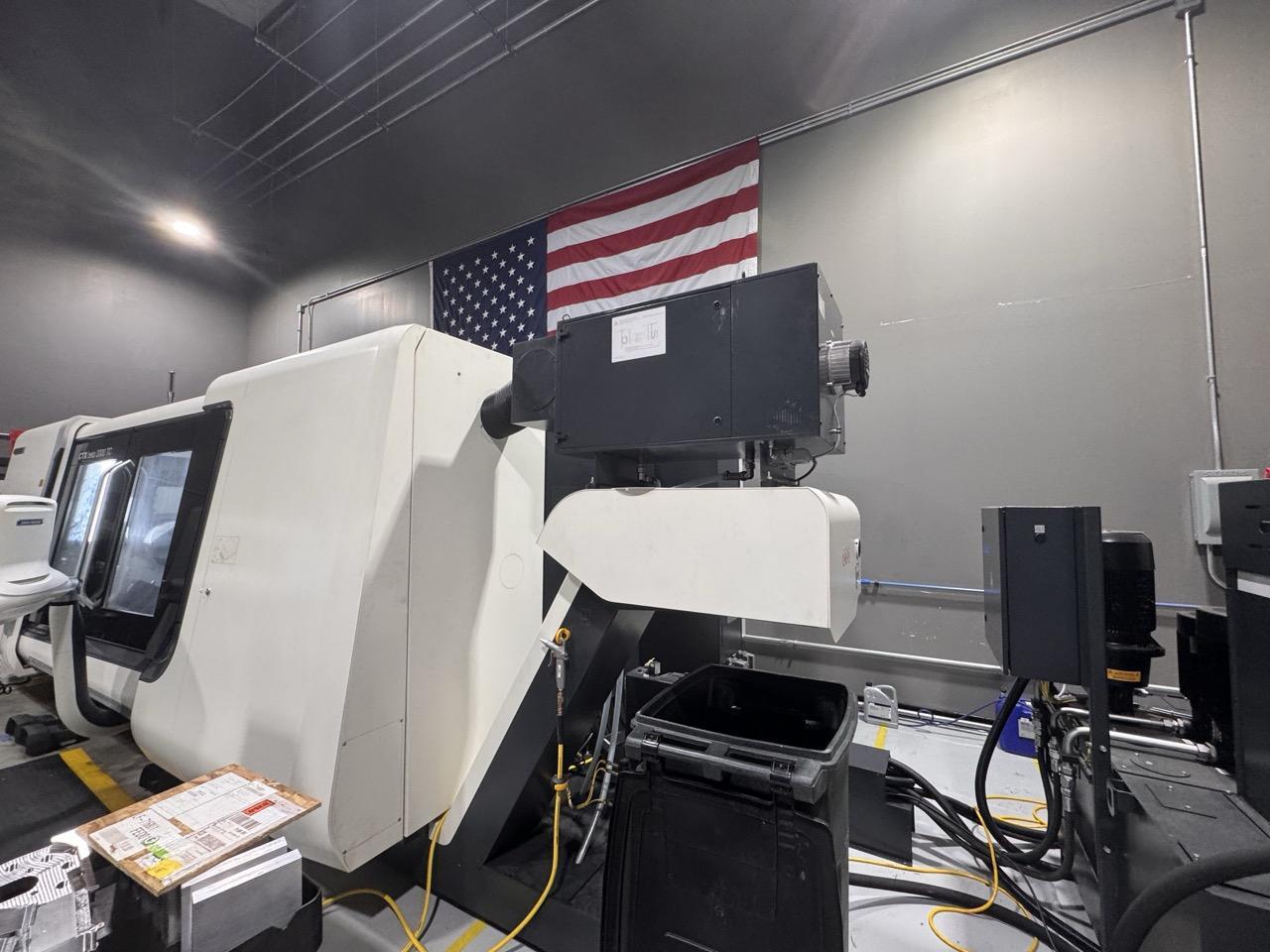

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Chip Conveyor Through Spindle Coolant Tailstock Renishaw RMP60 Probe Tool Measuring Device NT-H 3D, BLUM chain magazine Capto C6 Tool Mounting for 100 Tools Signal Lamp 4-fold Colored Electrical Automatic Door Tropical Climate Package Instable Supply Package Siemens 840D sl Operate CNC CELOS Control 5-Axis Simultaneous Machining B-Axis Milling Head Main & Counter C-Axis Simultaneous Machining and Alternating Speed

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
