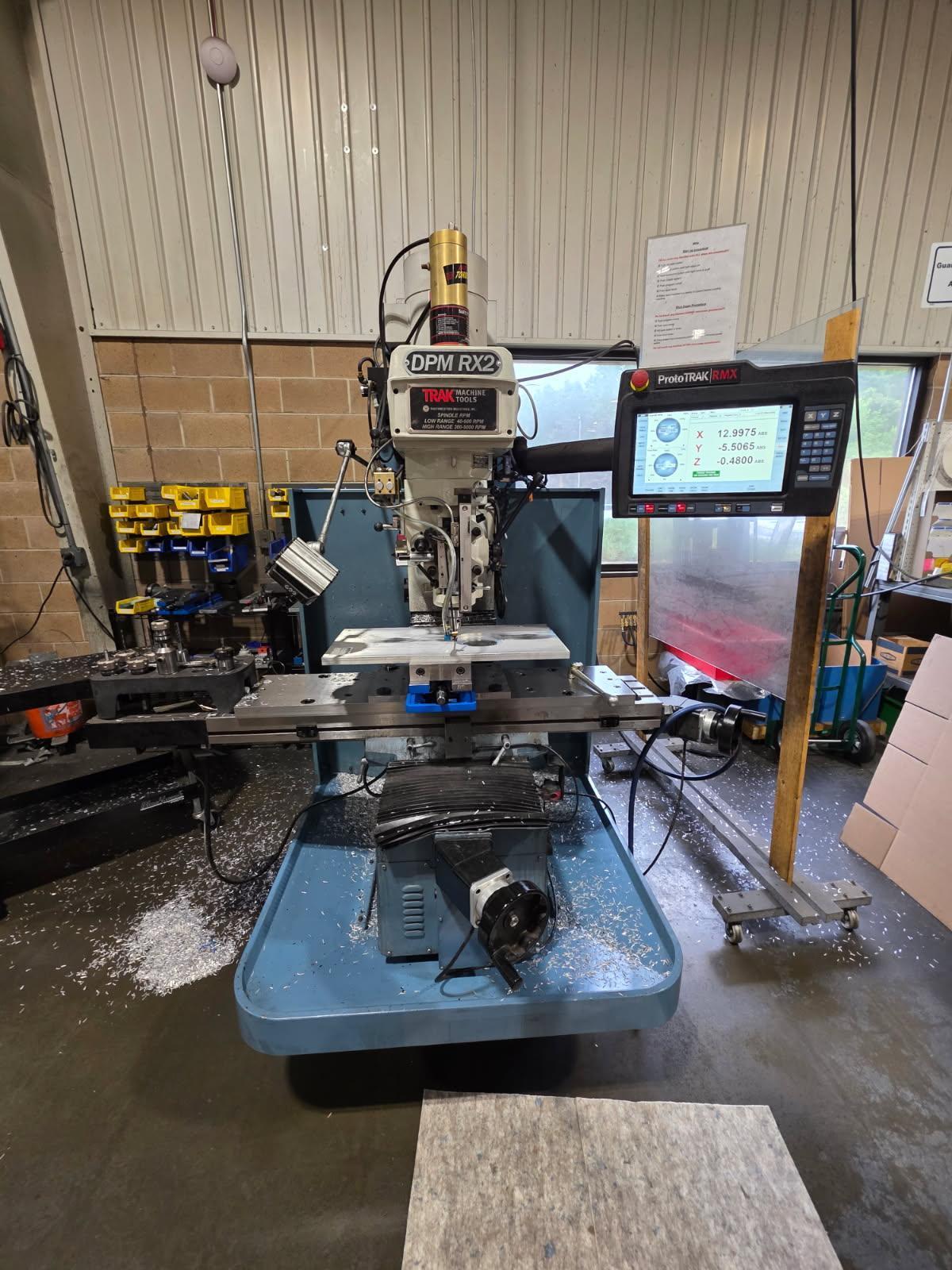

ProtoTrak DPMRX2 Toolroom Bed Mill, 2023

Table Size: 49″ x 9″ T-Slots (3): 0.63″ x 2.5″ Max Workpiece Weight: 1,320lbs Table Height from Floor: 36.75″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,X-Axis Travels: 31″ Y-Axis Travels: 16″ Z-Axis Travels: 22″ Quill Travels: 5″ Quill Diameter: 3.375″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Taper: R8 Spindle Motor: 3 HP Spindle Speed: 5000 RPM Max Spindle Nose to Table: 26.75″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approximate Machine Weight: 3,200lbs Approximate Machine Dimensions: 73.31″ x 71.25″ x 91.75″ Electrical: 200/240V, 3-Phase

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
