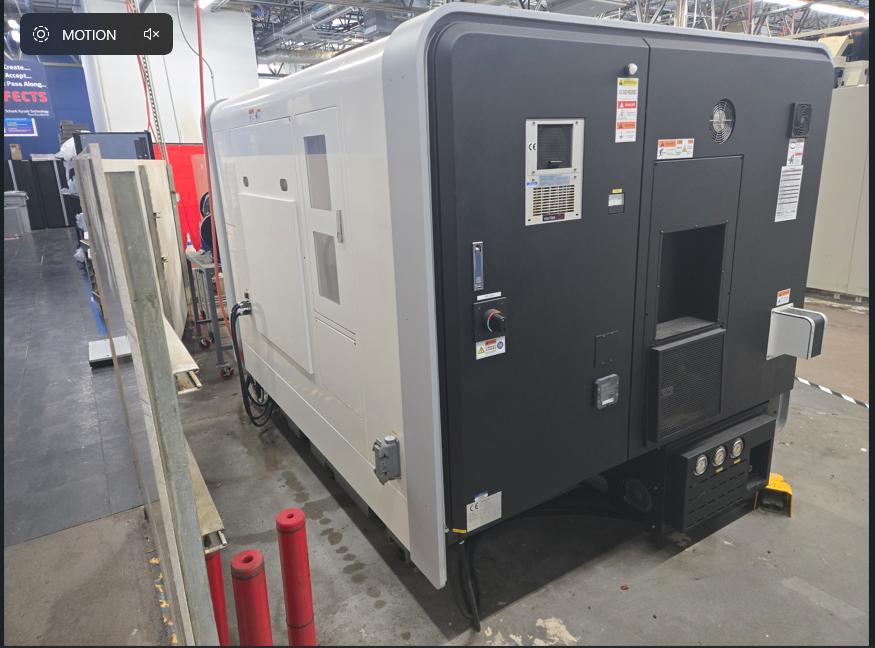

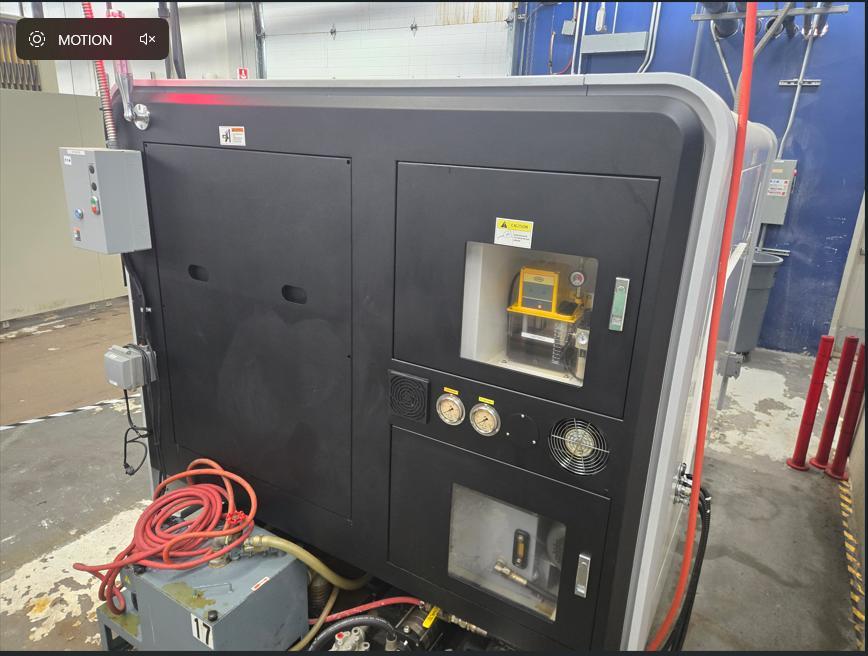

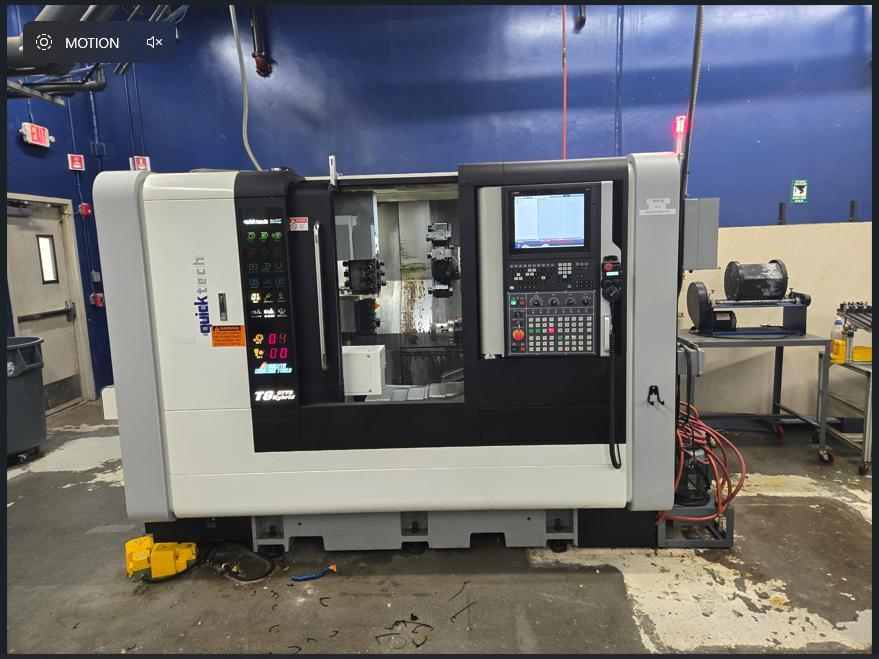

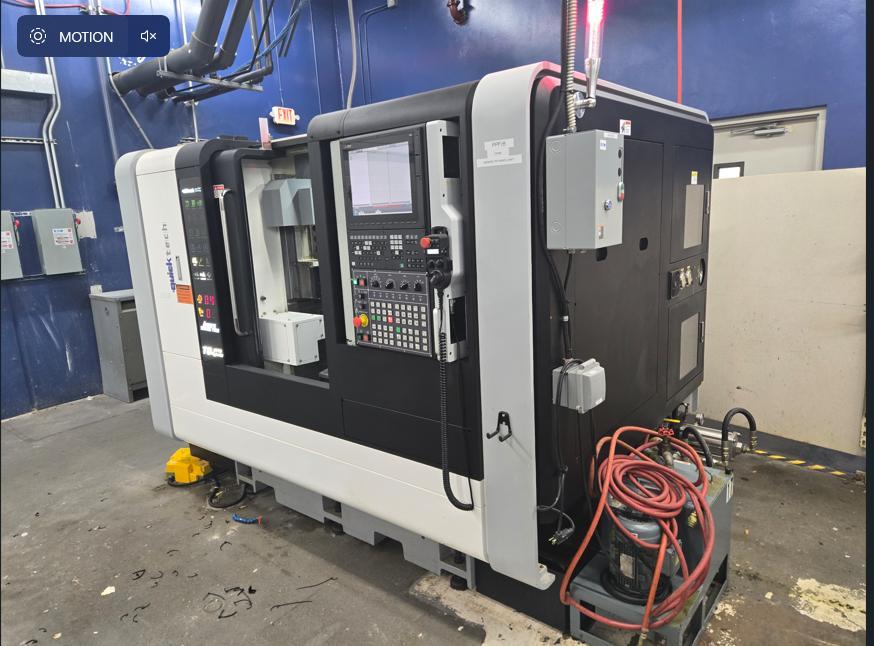

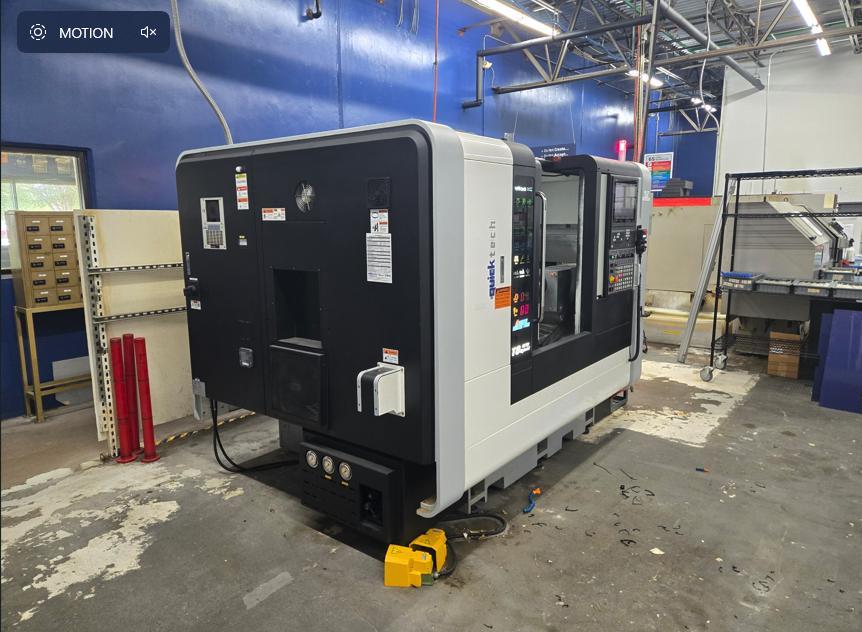

QuickTech T8 Hybrid 9-Axis Twin Spindle CNC Lathe, 2022 – Chip Conveyor, Live Tooling, Sub-Spindle

Bar Capacity: 2.56″ Chuck Size: 8″ 3-Jaw Hydraulic Chuck Chuck Type: DIN KK6-185E60B Max Turning Length: 13.8″ Max Turning Diameter: 11.8″ Max Spindle Speed: 4,000 RPM Spindle Motor: 15 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Nose: A2-6 Hole Through Draw Tube: 2.6″ C-Axis Resolution: 0.001°

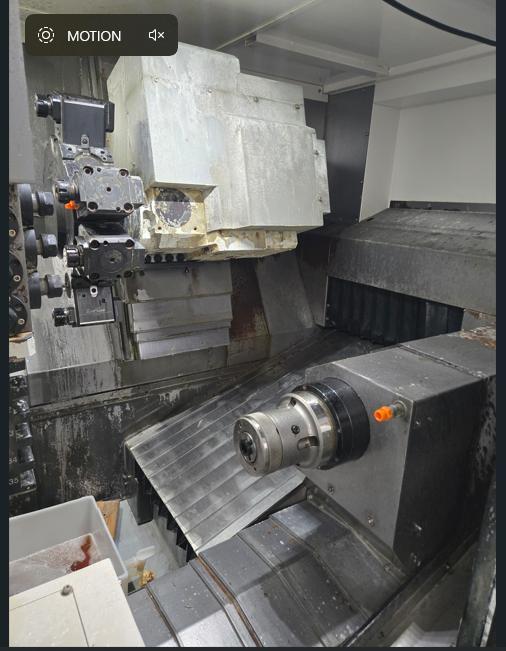

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool Station Type: 12-Station BMT-55 Servo Turret Tool Capacity: 12-Stations Live Tool Spindle Motor: 5 HP Square Shank Tool Size: 1″ Boring Bar Capacity: 1.25″ Turret Indexing Time: 0.3 seconds per station Rigid Tapping: Standard Coolant Tank Capacity: 65 gallons Hydraulic Pump Motor: 1 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approximate Machine Dimensions: 135″ x 80″ x 77″ Approximate Machine Weight: 13,420lbs Electrical: 208V/220V, 3-Phase

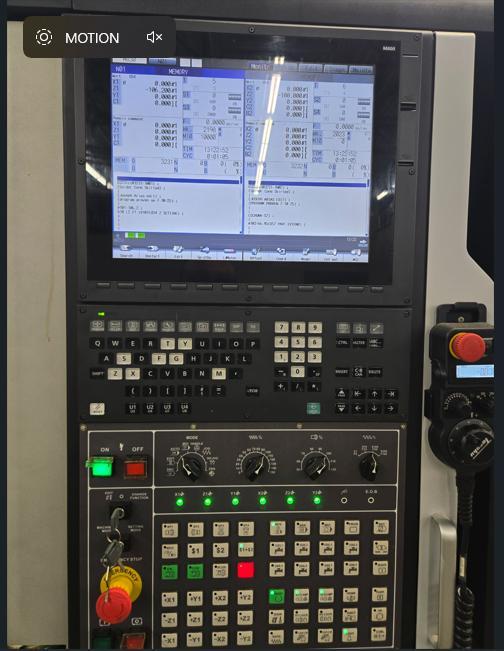

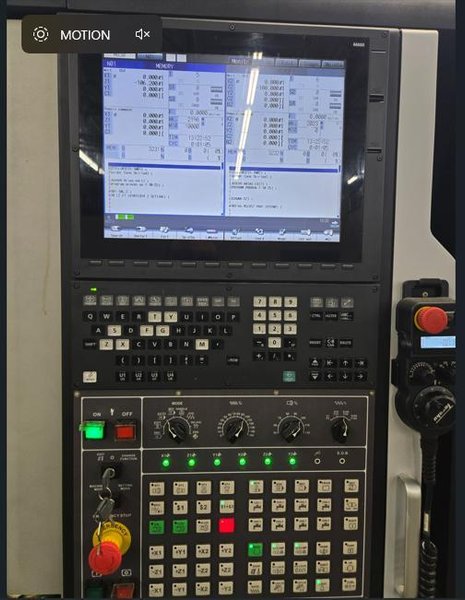

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Mitsubishi M830S High-Performance CNC Controller 15″ Color LCD Touch Screen Sub-Spindle Live Tooling 360-degree Rotary B-Axis Continuous C-Axis Dual Y-Axis Hinge-Type Chip Conveyor Integrated Bar Feeder Communication Interface

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
