SPECIFICATIONS:
Maximum Load Per Station 2,248 Lbs.
Maximum Turning Speed 120/Sec.
Positioner Face Plate Diameter 15.75" x 15.75"
Headstock/Tailstock Swing 59"
Clamping Length 137"
Robot Pay Load 22 Lbs.
Operating Range........................... 240" 240"
ROBOT SWIVEL RANGE:
AXIS-1.................................... +170°/-170° +170°/-170°
AXIS-2 +125°/-90°
AXIS-3 +80°/-210°
AXIS-4 +179°/-179°
AXIS-5 +135°/-135°
AXIS-6 +270°/-270°
AXIS-7 +120/-120°
ROBERT SWIVEL SPEED:
AXIS 1.................................... 184 Deg./Sec 184 Deg./Sec
AXIS 2.................................... 184 Deg./Sec 184 Deg./Sec
AXIS 3 177 Deg./Sec
AXIS 4 497 Deg./Sec
AXIS 5 542 Deg./Sec
AXIS 6 528 Deg./Sec
AXIS 7 90 Deg./Sec



Equipped With:
CLOOS QIROX Controller

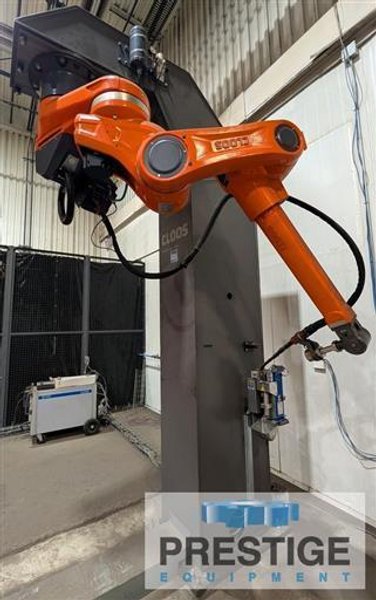

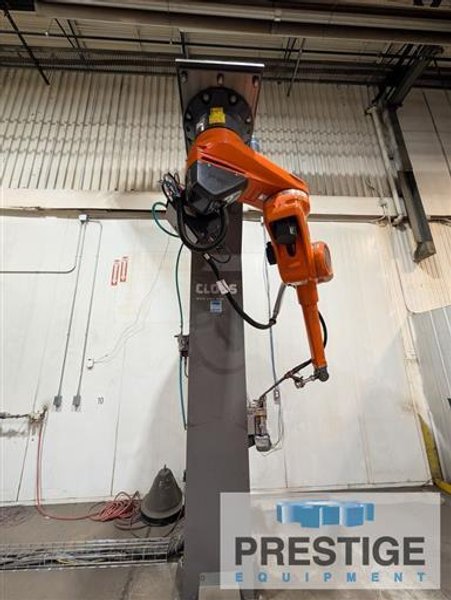

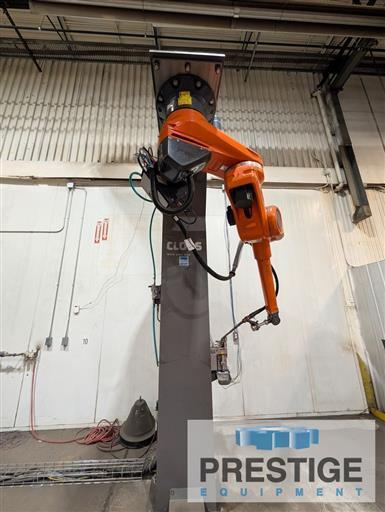

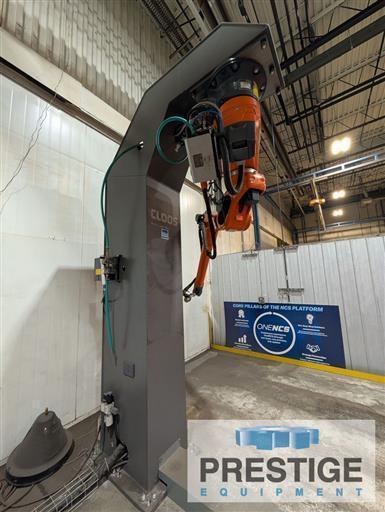

7-Axis QIROX QRC Robot
Pendant Control

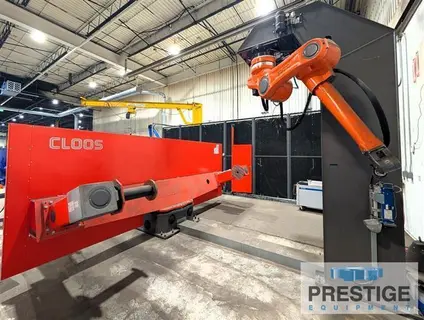

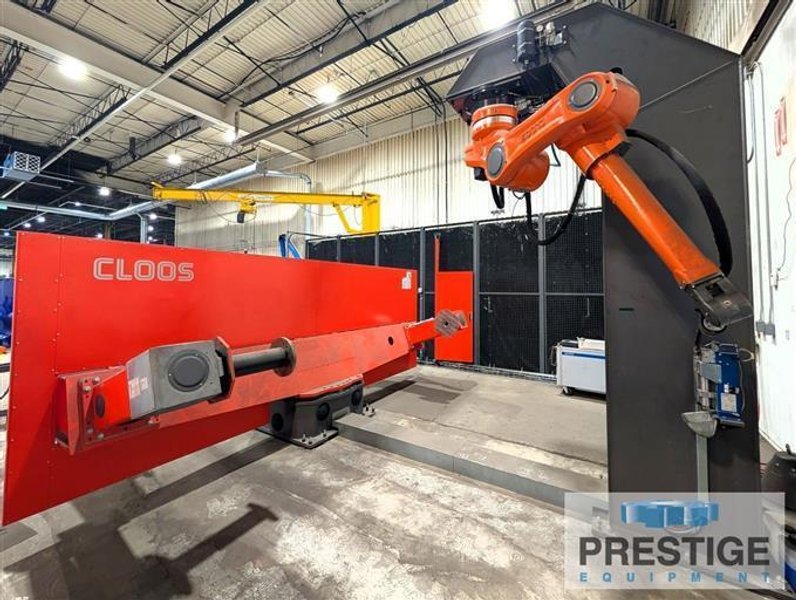

Cloos QiROX 2 Station Welding Fixture
Cloos QIROX QR-CTU-50-09 2.0 Annex Positioners
CLOOS Qineo Pulse 451 Pro Arc Welding Power Source

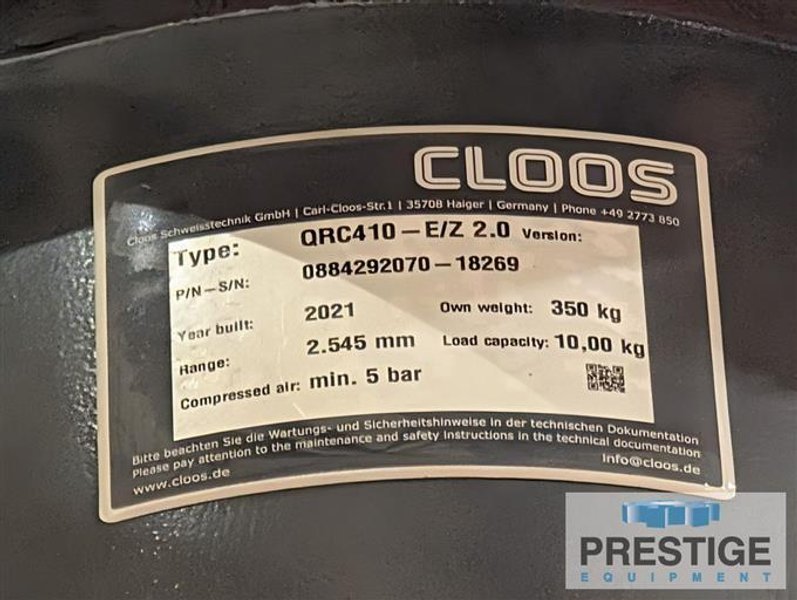

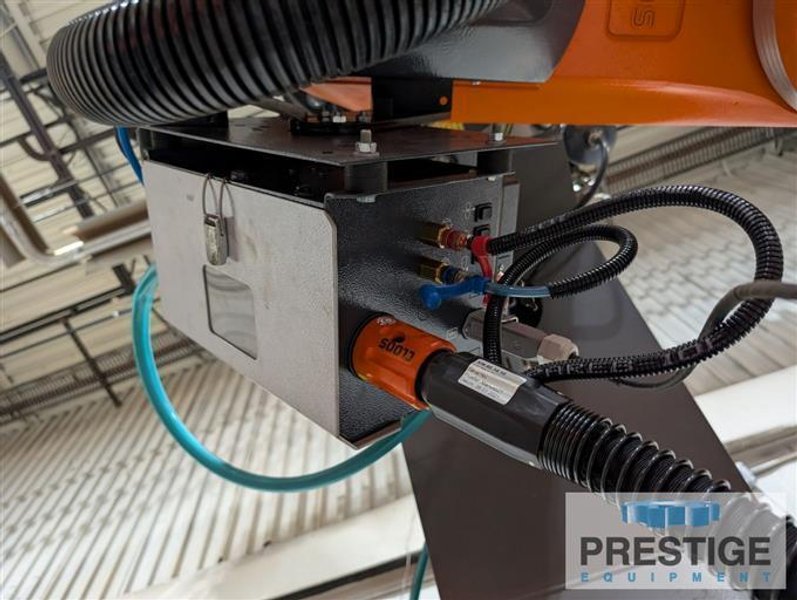

CLOOS QRC410-E/Z 2.0 Robotic Arm

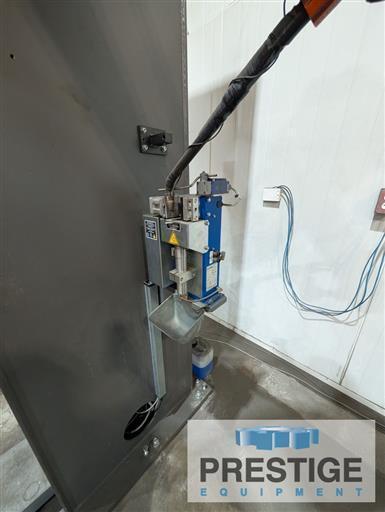

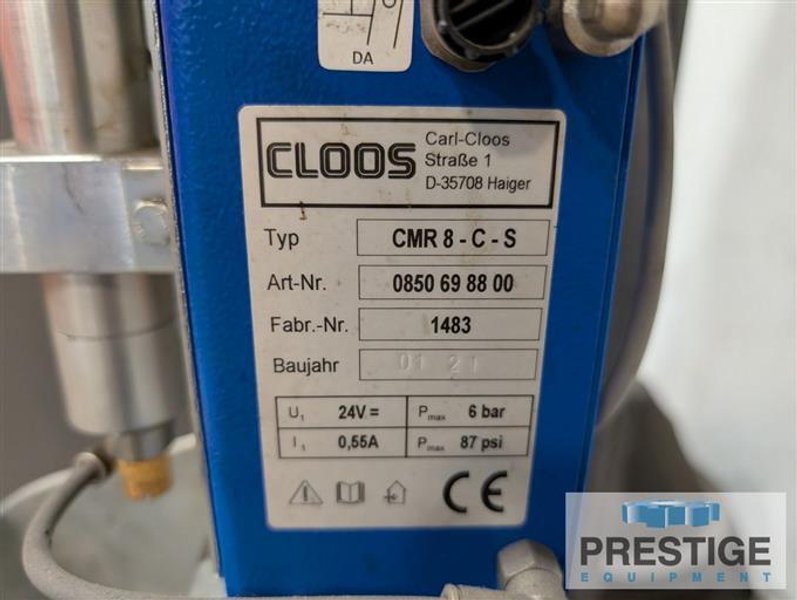

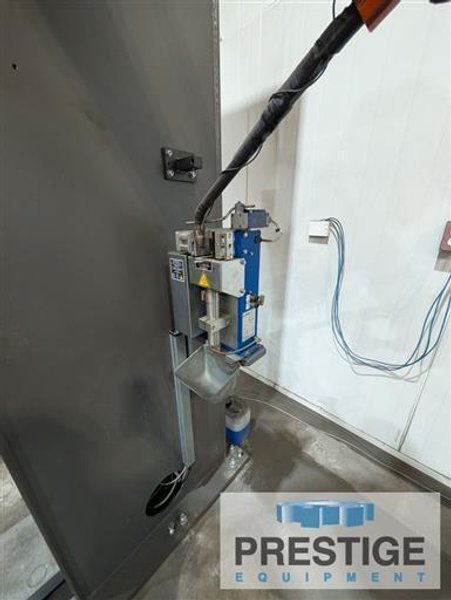

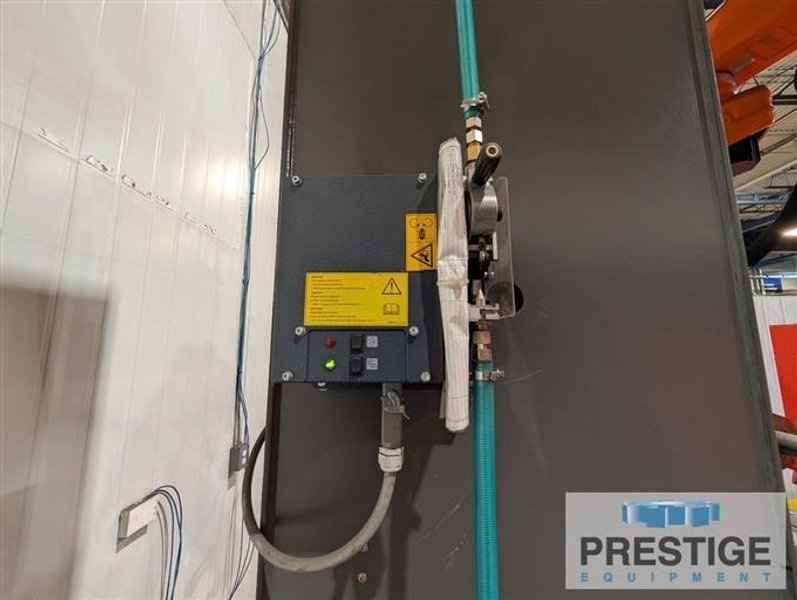

CLOOS CMR 8-C-S Torch Cleaning Unit
Light Curtains
Spare Parts
Dust Collector


HOURS: Only 2,244 Hours
