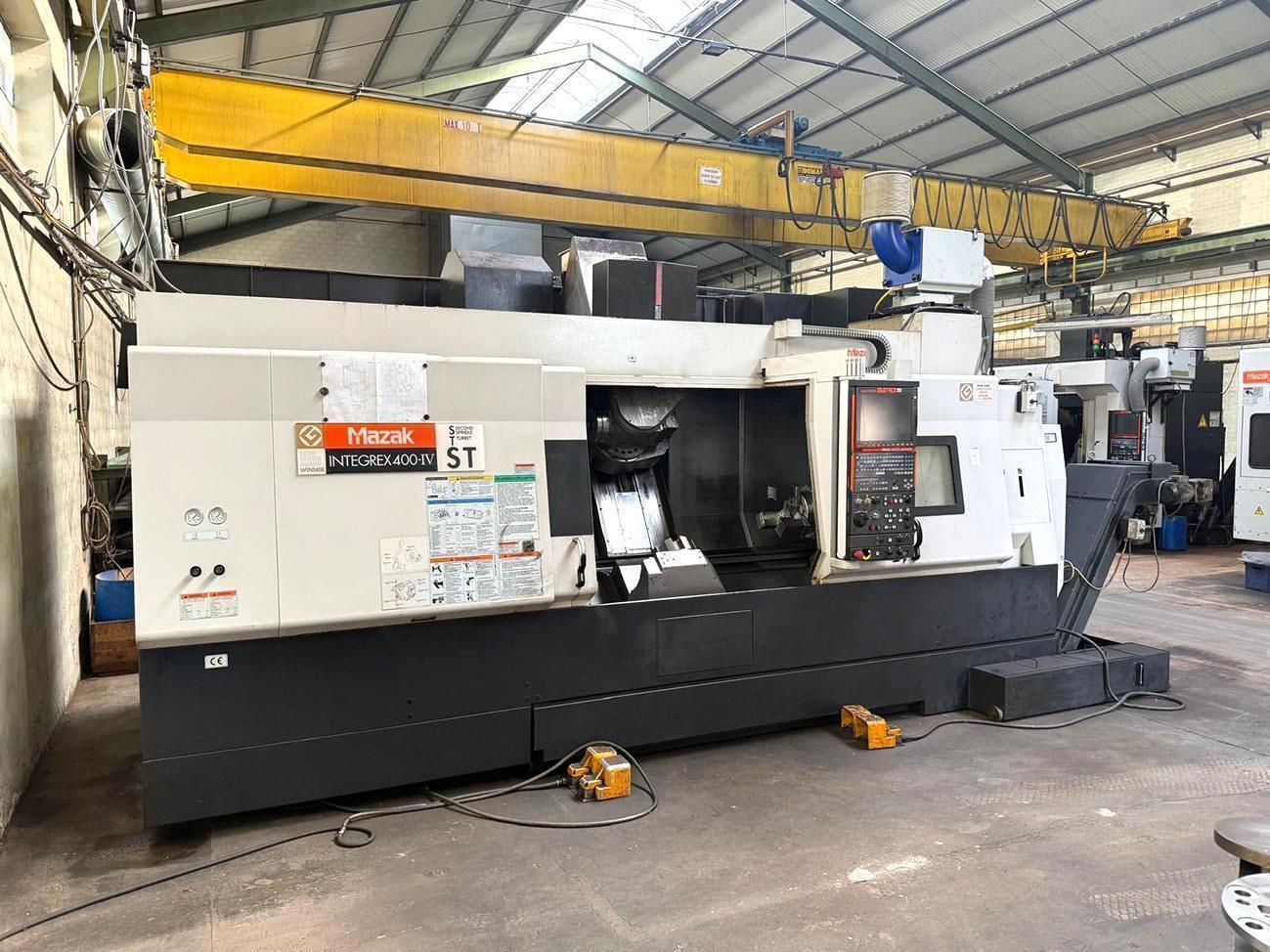

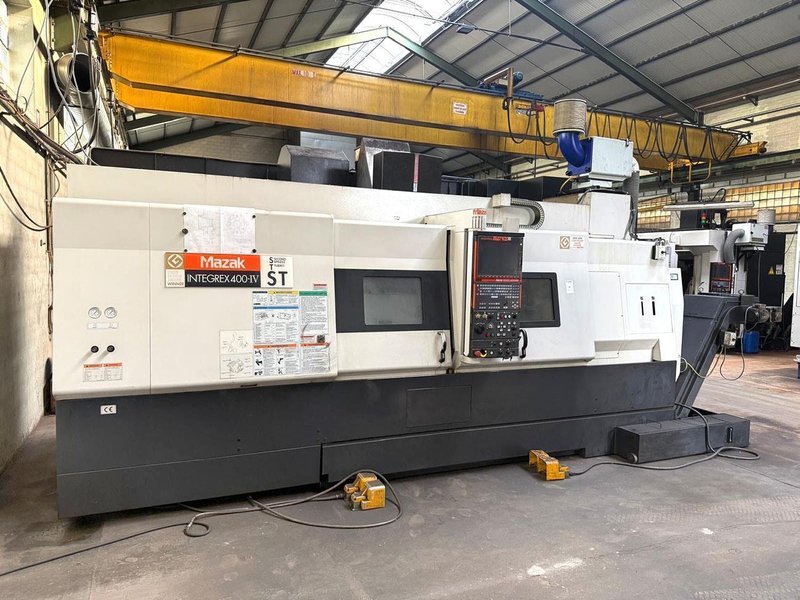

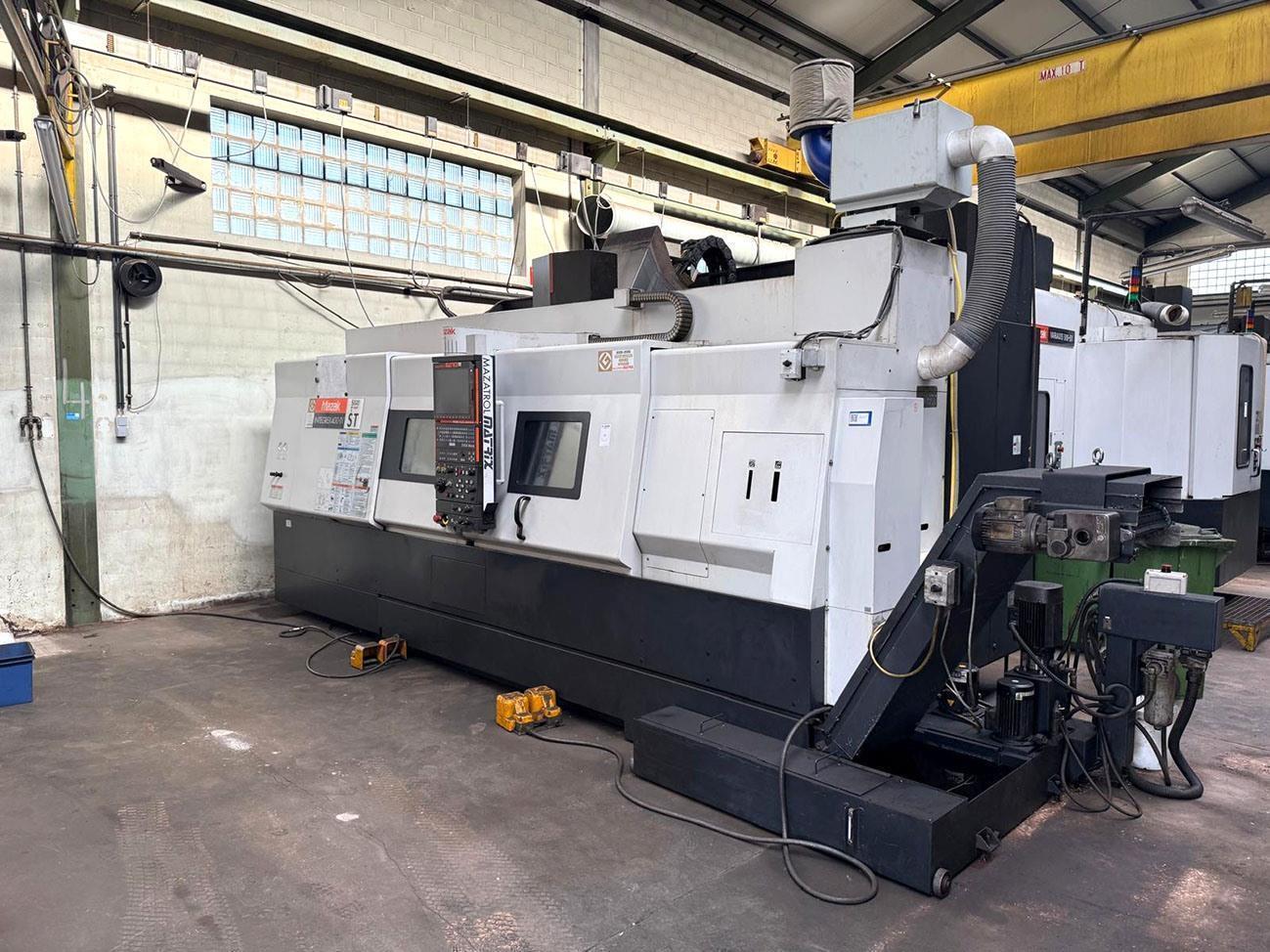

Mazak - Integrex 400-IV ST

Brand
MAZAK
Category
Lathes & Turning Machines
Type
CNC Lathes
Model
Integrex 400-IV ST
Stock #
A.07 16334
Year
Not specified
Condition
Not specified

Location

Not specified
Located in Deinze, Belgium

Technical information

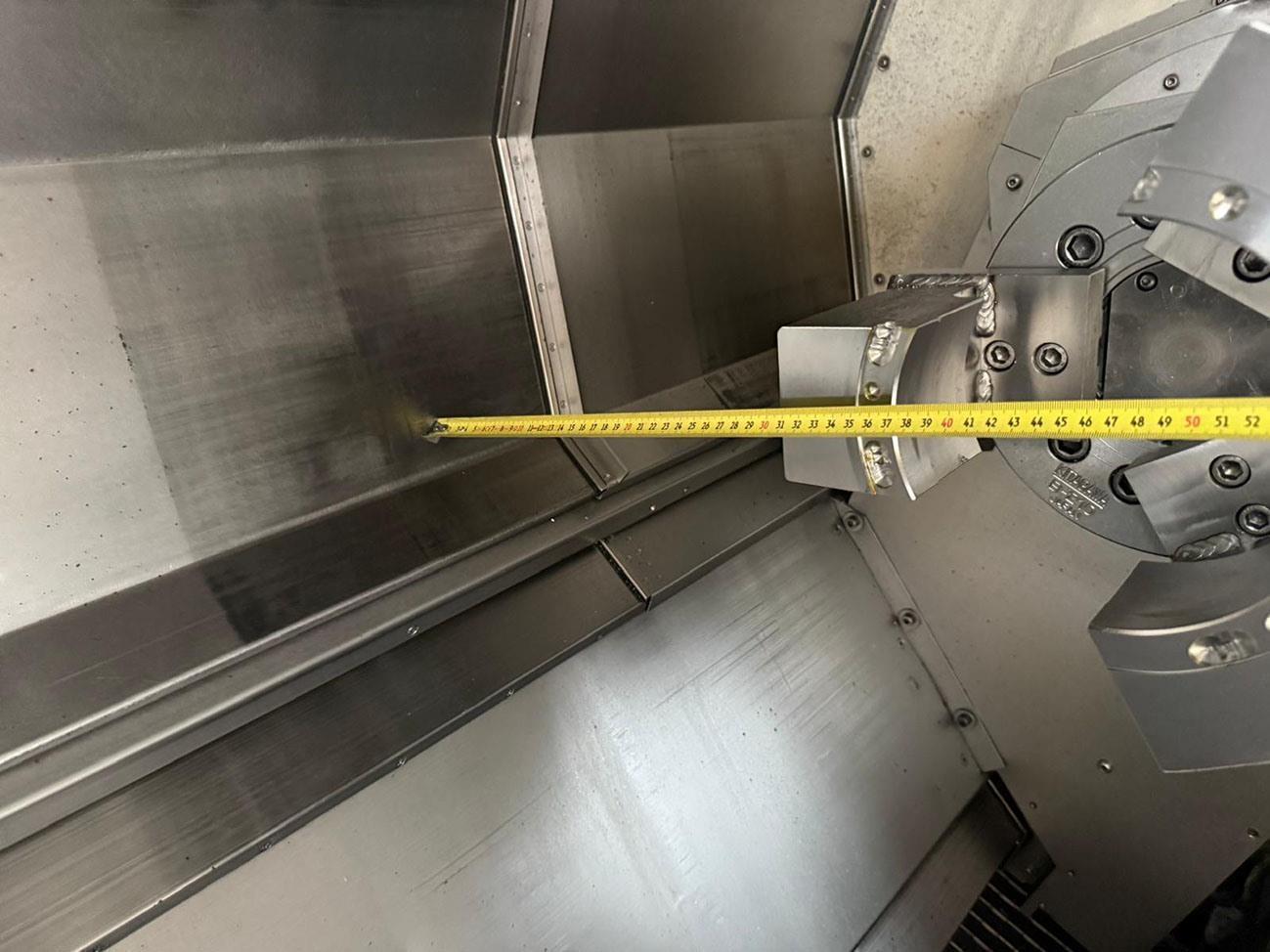

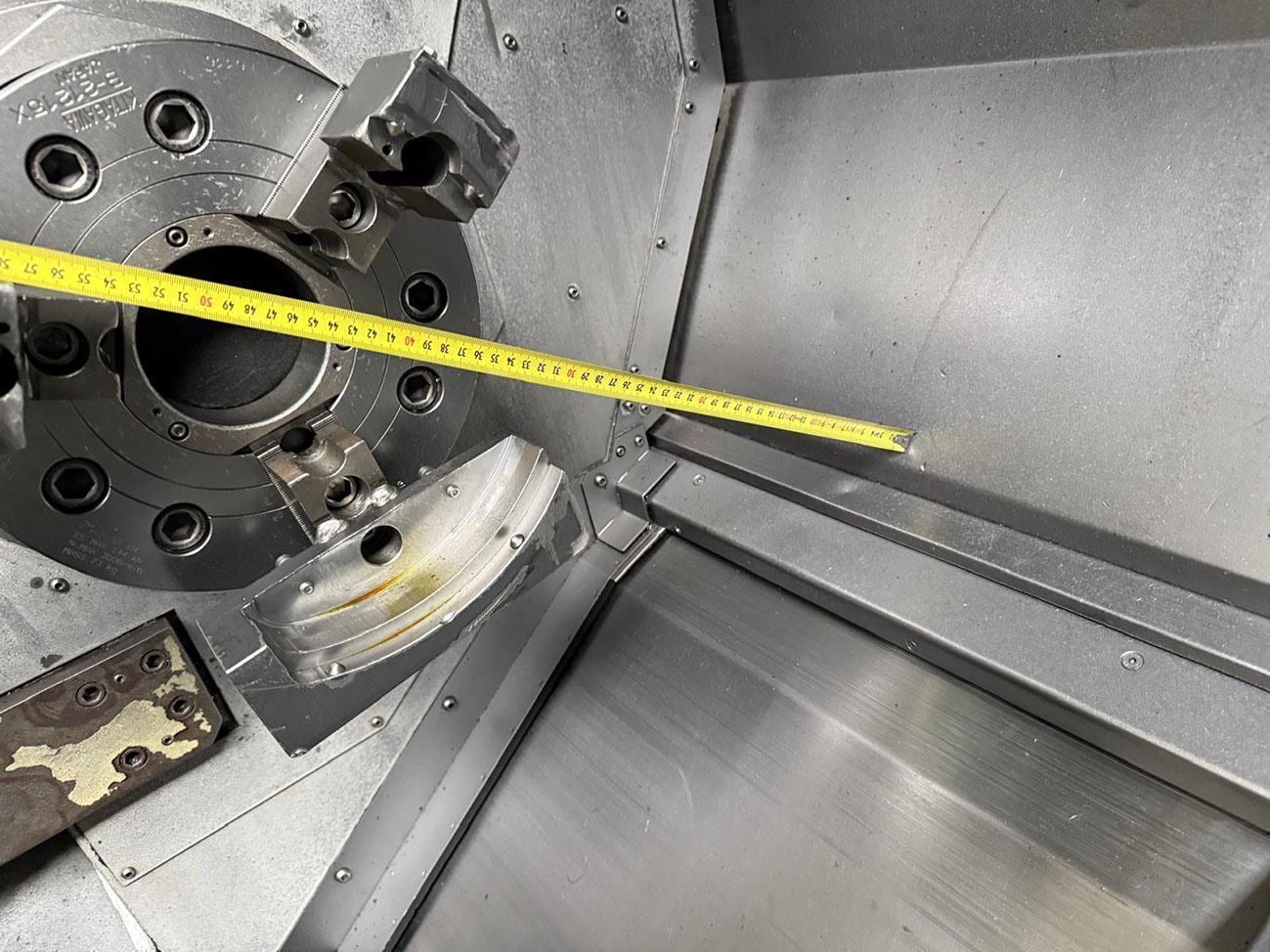

  • Swing over bed 760 mm
  • Distance centre tot centre 1519 mm
  • Max longitudinal travel Z-axis 1585 mm
  • Max cross travel X-axis 615 mm
  • Spindle cone A2-8
  • Dia of spindle bore 112 mm
  • Power on the spindle 30/22 kW
  • Number of speeds 3300 rpm

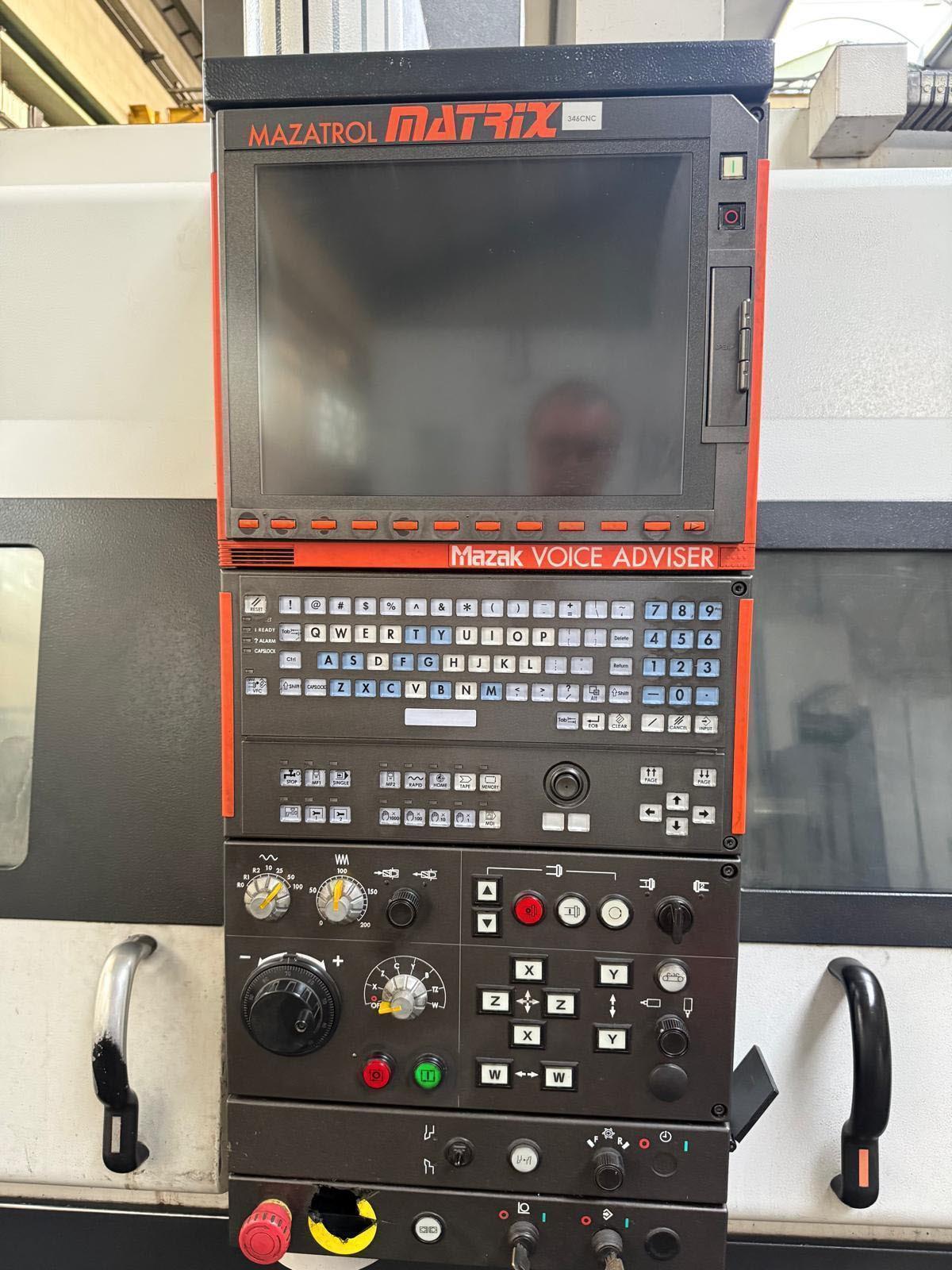

  • Command Mazatrol Matrix
  • Total power needed 91 kVa
  • Length 5200 mm
  • Width 2800 mm
  • Height 2720 mm
  • Weight 17 ton
  • Toolchanger yes
  • Number of tools 40 positions

Additional info

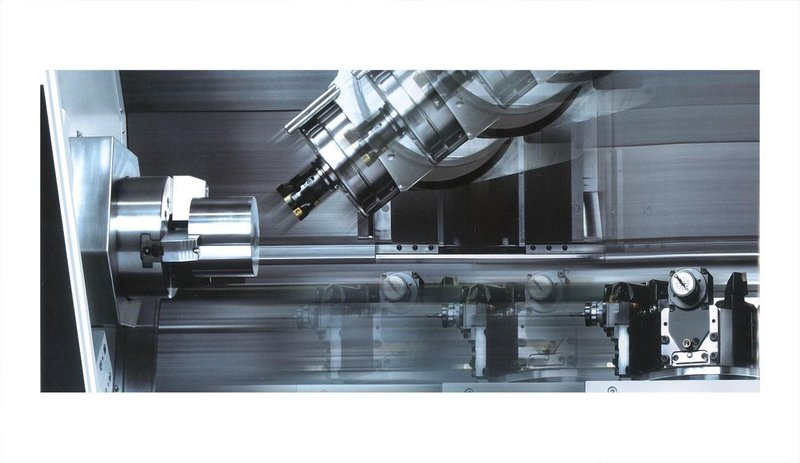

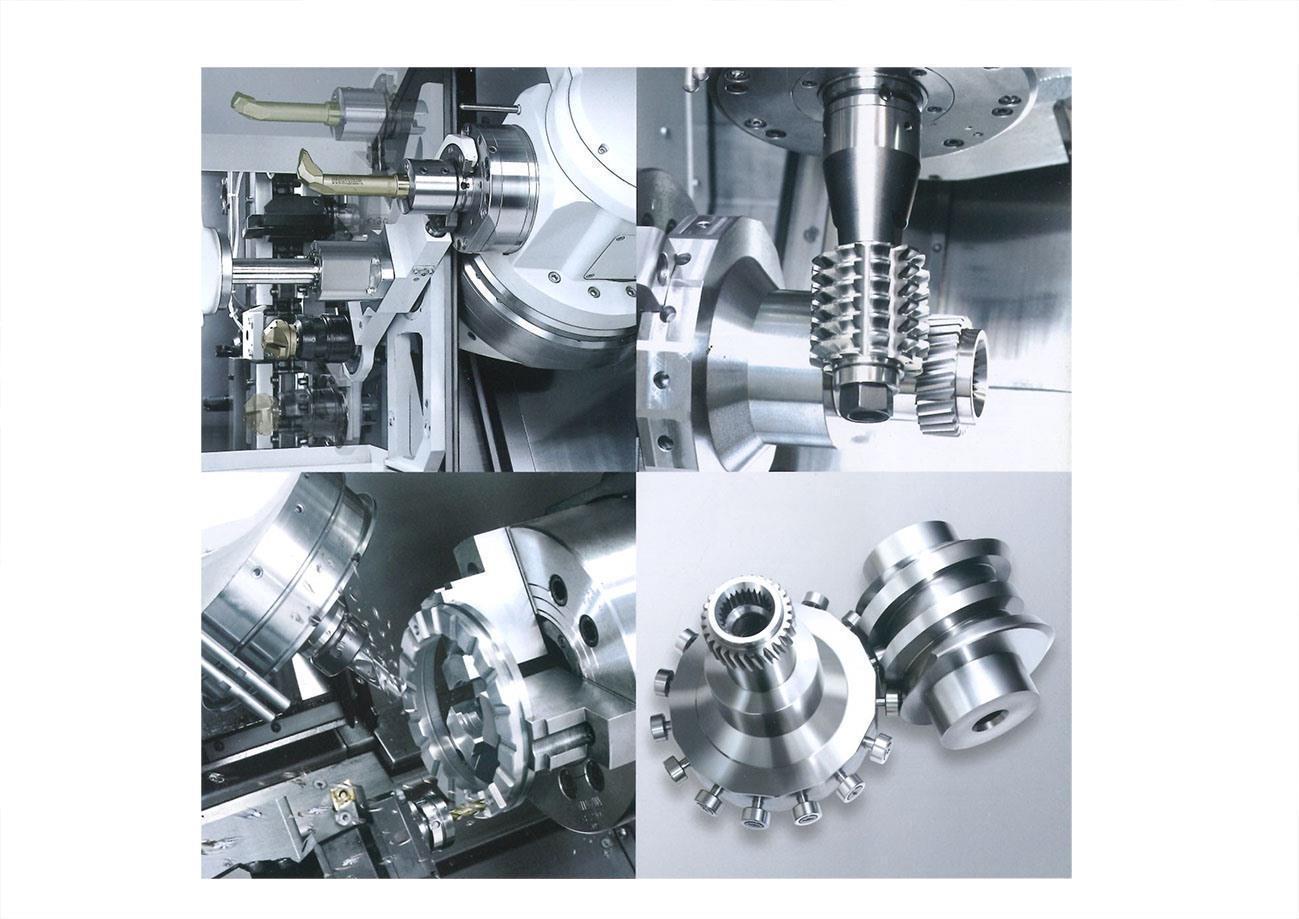

  • 5 axis simultaneous machining for complex workpieces
    - X-axis travel: 615 mm
    - Z-axis travel: 1585 mm
    - Y-axis travel: 250 mm
    - X2 axis travel (lower turret): 230 mm
    - Z2 axis travel (lower turret): 1388 mm
    - B axis travel: -30° > 210°

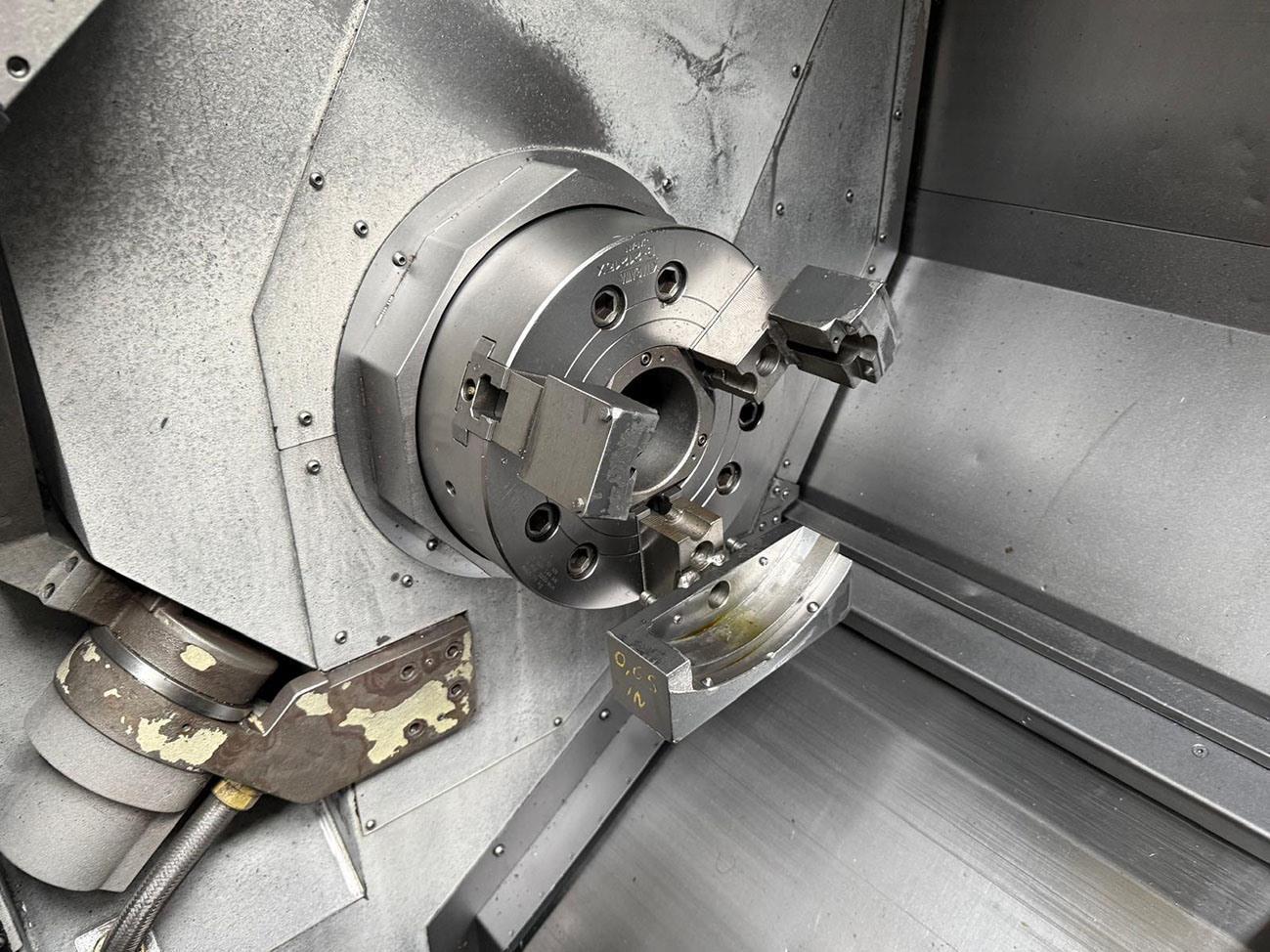

    Second spindle:
    Chuck size: 300 mm
    second spindle speed: 4000 rpm
    second spindle travel: 1574 mm
    second spindle bore: dia 91 mm
    power on second spindle: 26/22 kW

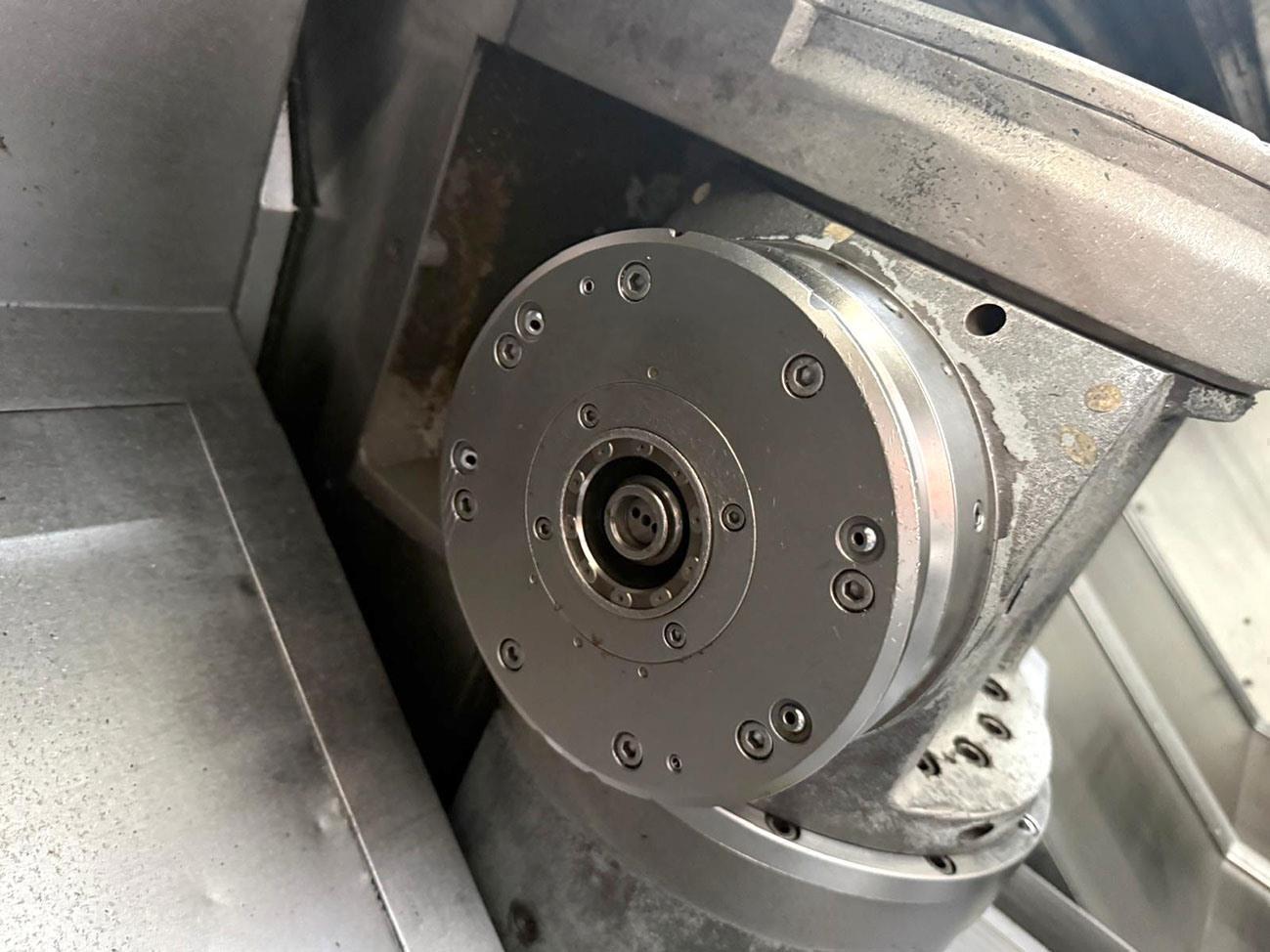

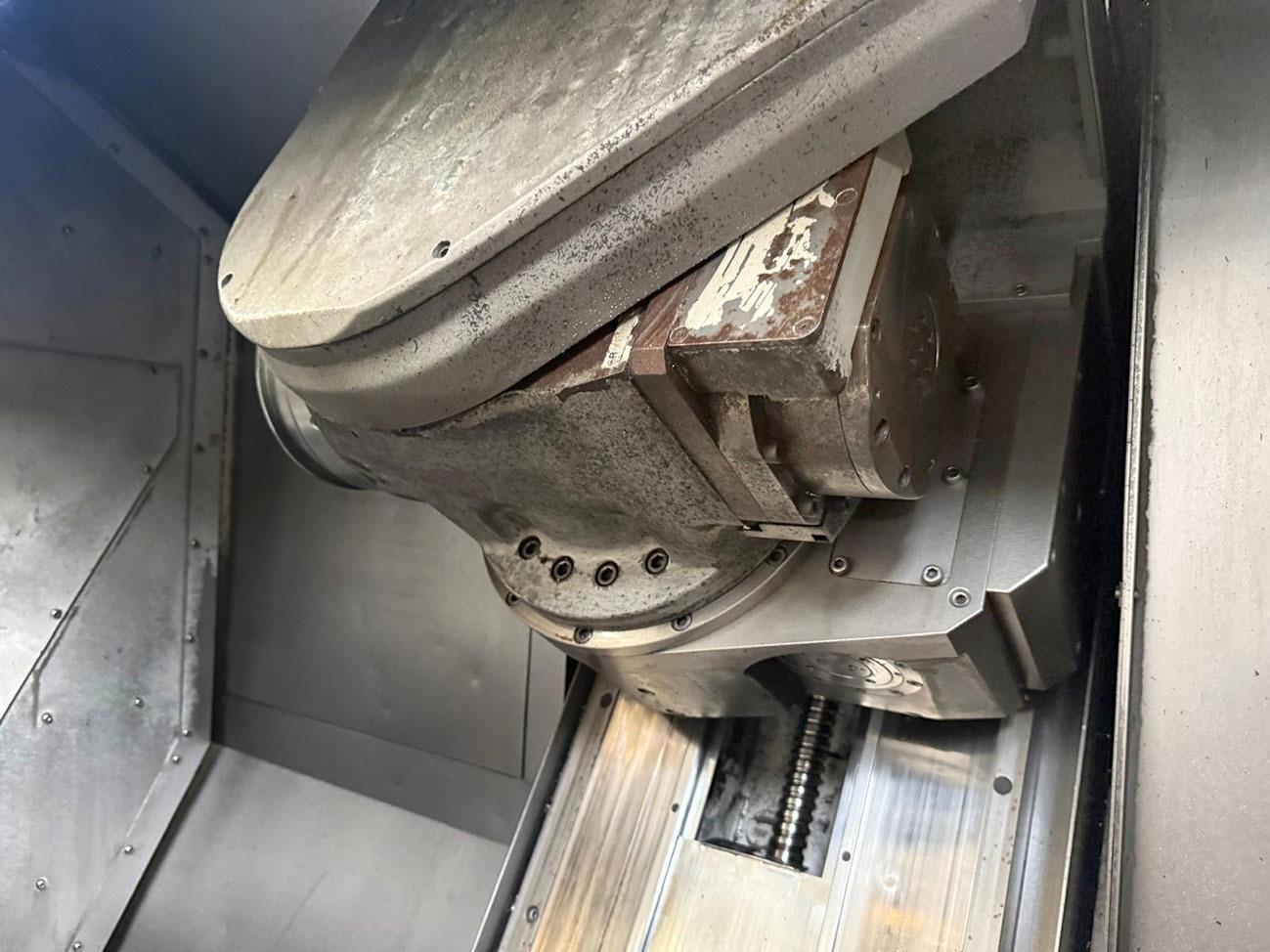

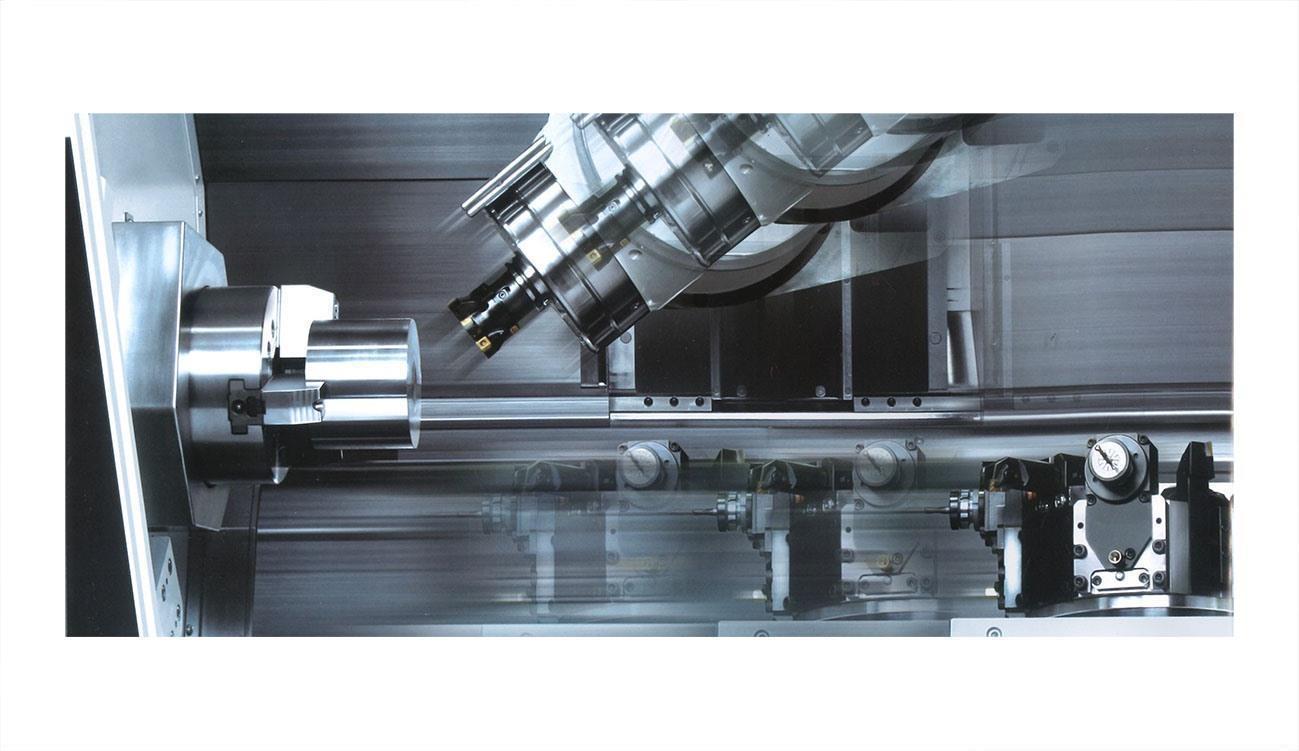

    Milling spindle:
    single spindle turret with auto toolchanger
    max spindle speed: 12,000 rpm
    max spindle torque: 120 Nm

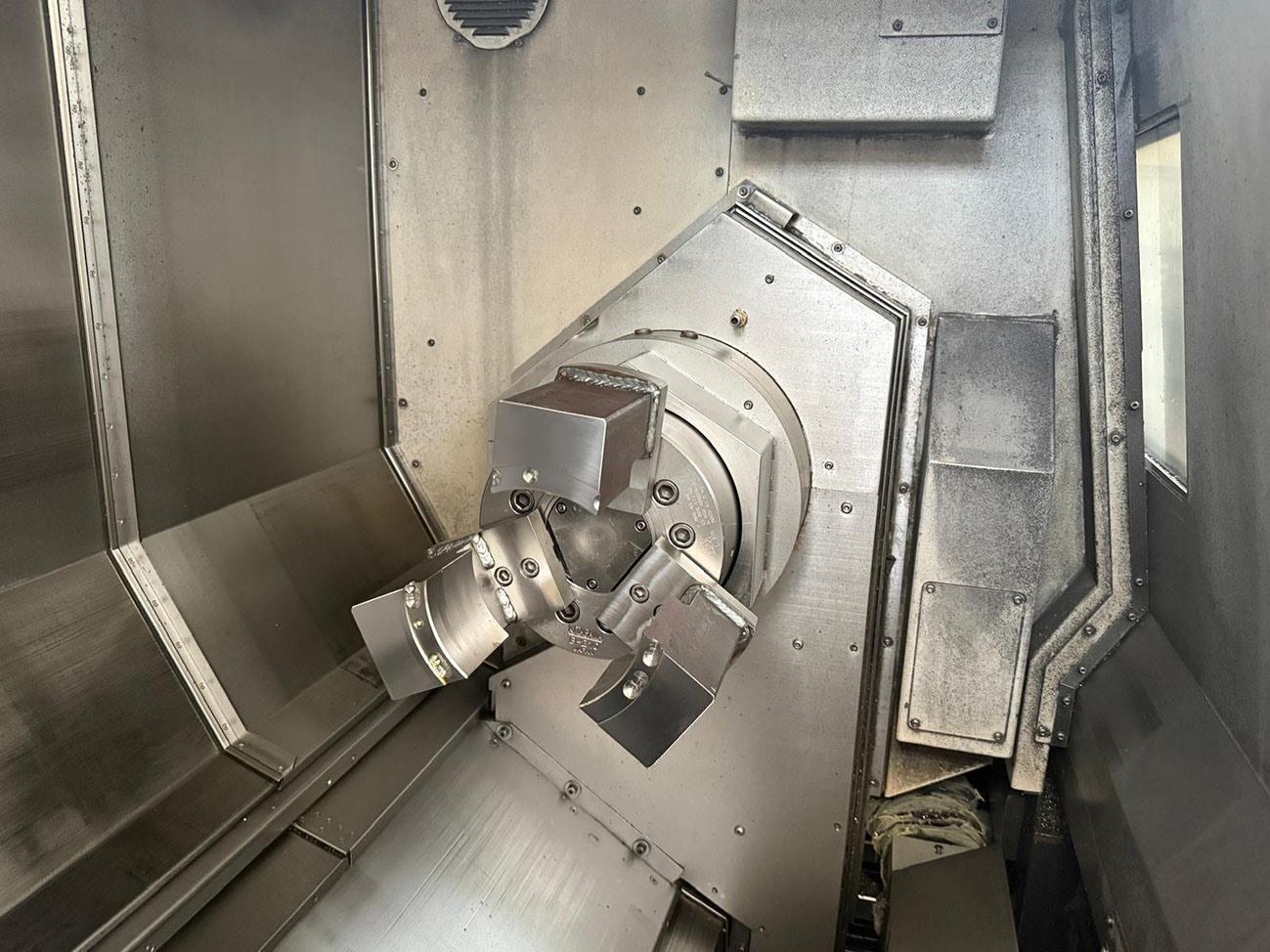

    Lower turret:
    9-position drum turret
