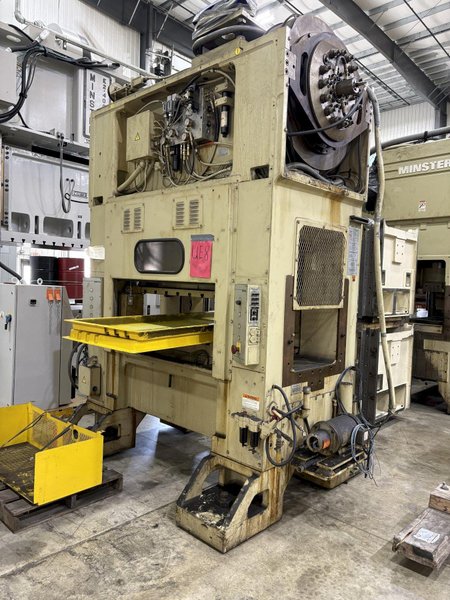

Minster P2H-100-48 Precision Straight Side Press with adjustable stroke

Press Specifications:

·         112 U.S. Tons Capacity (1000 kN)

·         1.96 / 3.94in. Stroke (50 mm / 100 mm) Dual Stroke

·         3.94 in. Shutheight Adjustment (100 mm)

·         0.50 – 4.50 in. Quick Access Slide Travel (12 – 115 mm)

·         13.94 – 14.94 in. Shutheight, SDAU, on Bolster (280 – 380  mm)

·         4.94 in. thick Cast Iron Bolster Plate (100 mm)

·         48.00 x 26.00 in. Slide Area (1220 x 660 mm)

·         48.00 x 31.50 in. Bed Area (1220 x 800 mm)

·         40.00 x 14.20 in. Bed Opening (1015 x 360 mm)

·         40.80 in. Floor to top of Bed (1035 mm)

·         22 in. Upright Opening (559 mm)

·         0 - 400 SPM 1.94 in. stroke, 0-250 SPM 3.94 in. stroke

·         25 HP, 1500/1800 RPM Drive Motor (19 kW)

·         41,000 Approximate Weight (18,600 kg)

Equipped With:

·         Flywheel Type

·         Left hand drive, extension on opposite end

·         High tensile cast iron frame w/ lube troughs cast in

·         Minster Hydraulic Clutch & Brake

·         Air Operated Flywheel Brake

·         Counterweights on Crankshaft

·         Quick Lift Slide

·         Hydraulic Motorized Slide Adjustment

·         Hydraulic Slide Lockup

·         Pressurized Monitored Recirculating Lube System

·         New Minster Management Control
