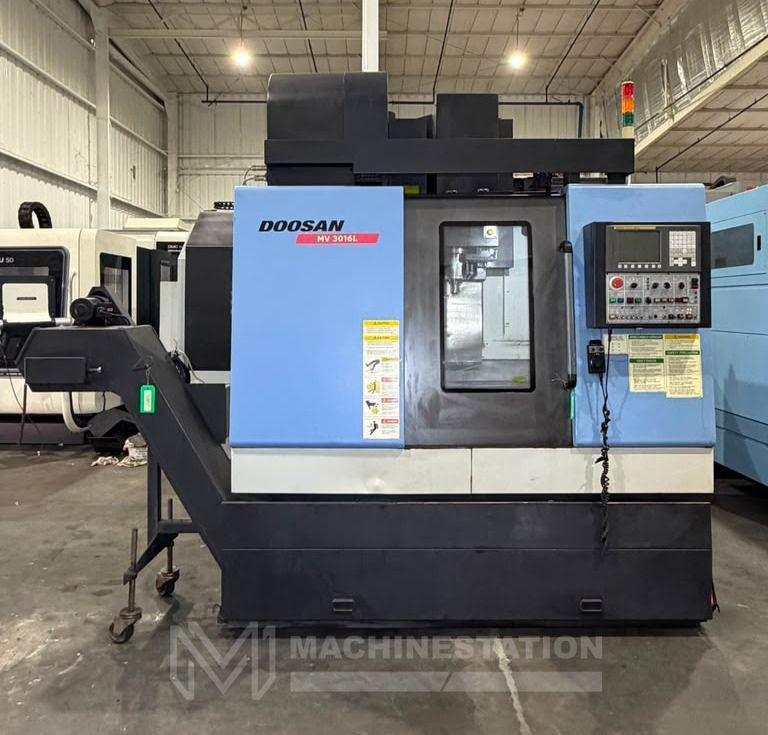

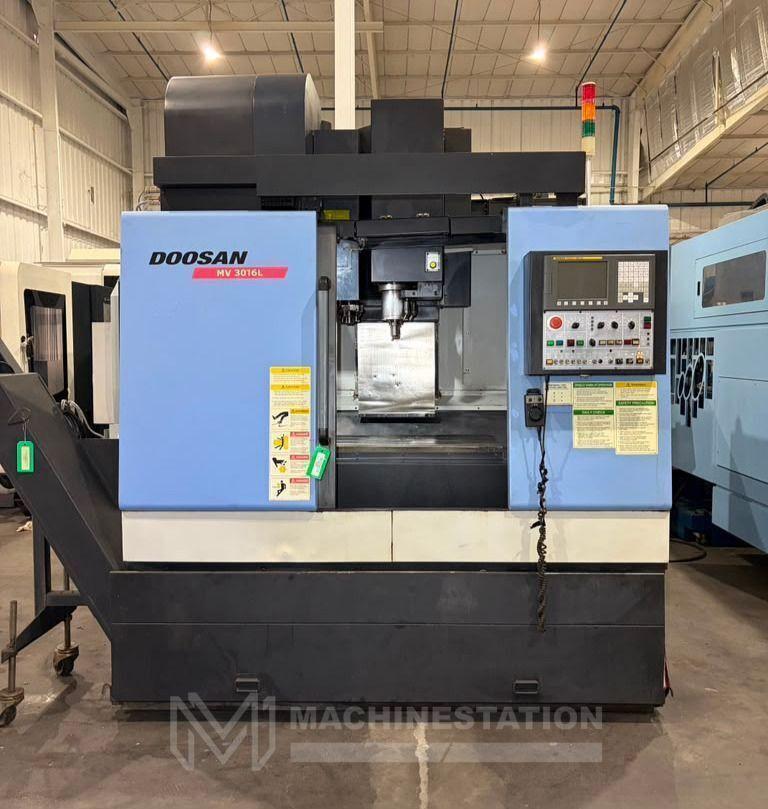

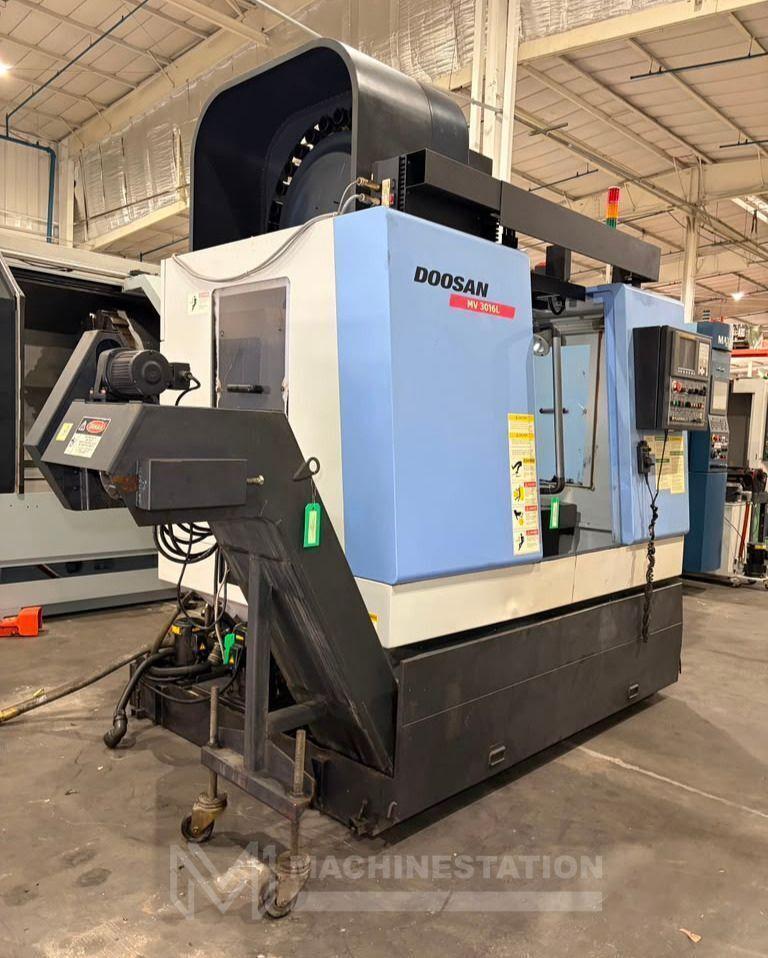

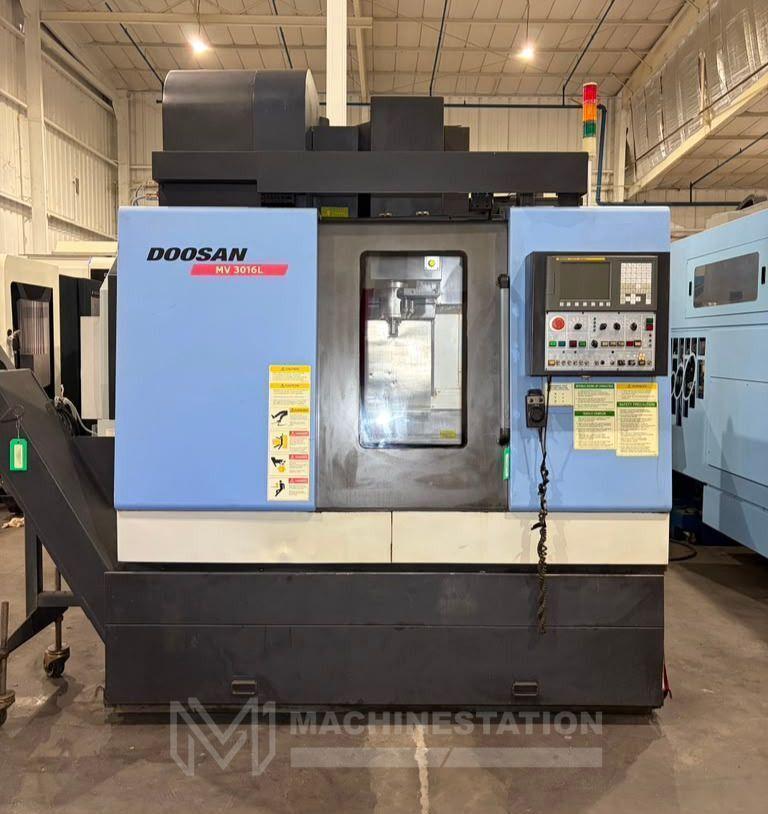

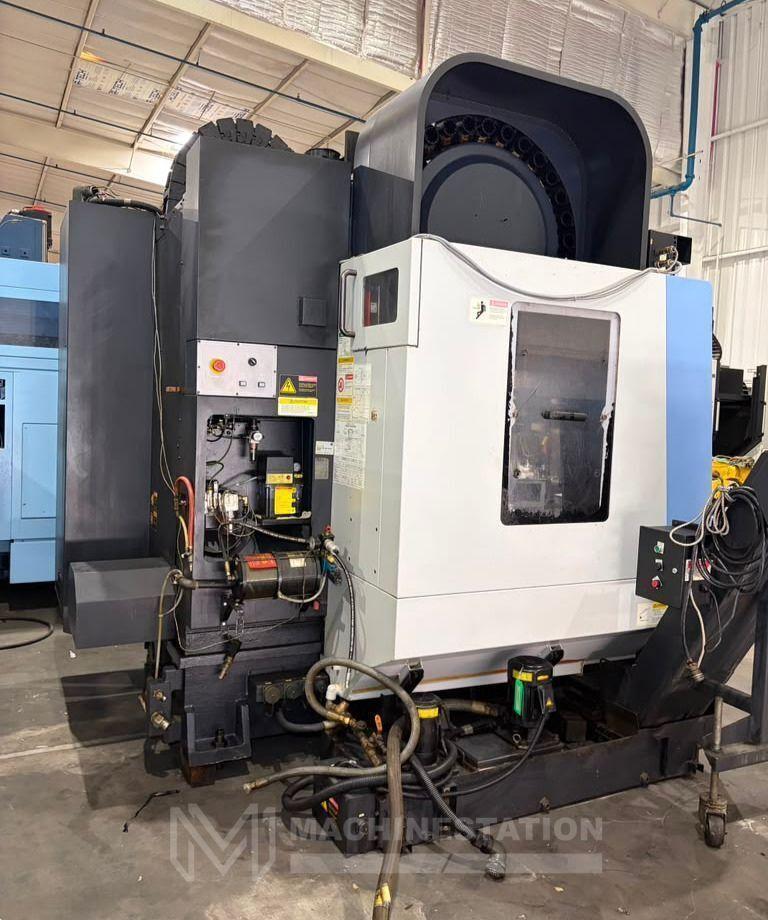

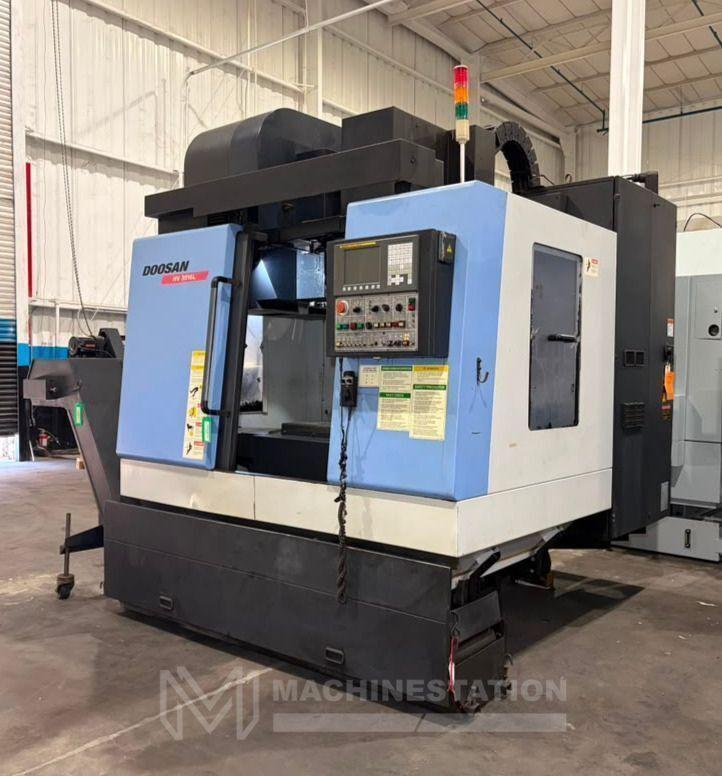

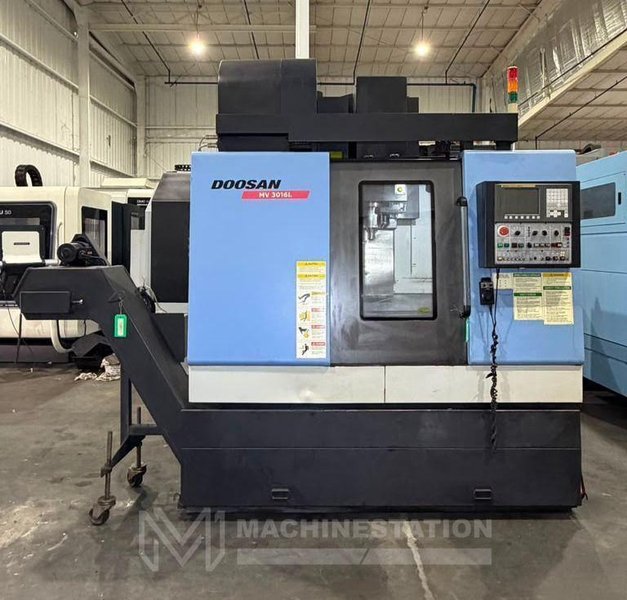

Doosan MV-3016L CNC Vertical Machining Center – Mill

Brand
DOOSAN
Category
Machining Centers
Type
Vertical Machining Centers
Model
MV 3016L
Stock #
113630
Year
2008
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Doosan
Model: MV3016L
Year: 2008
Equipped With:

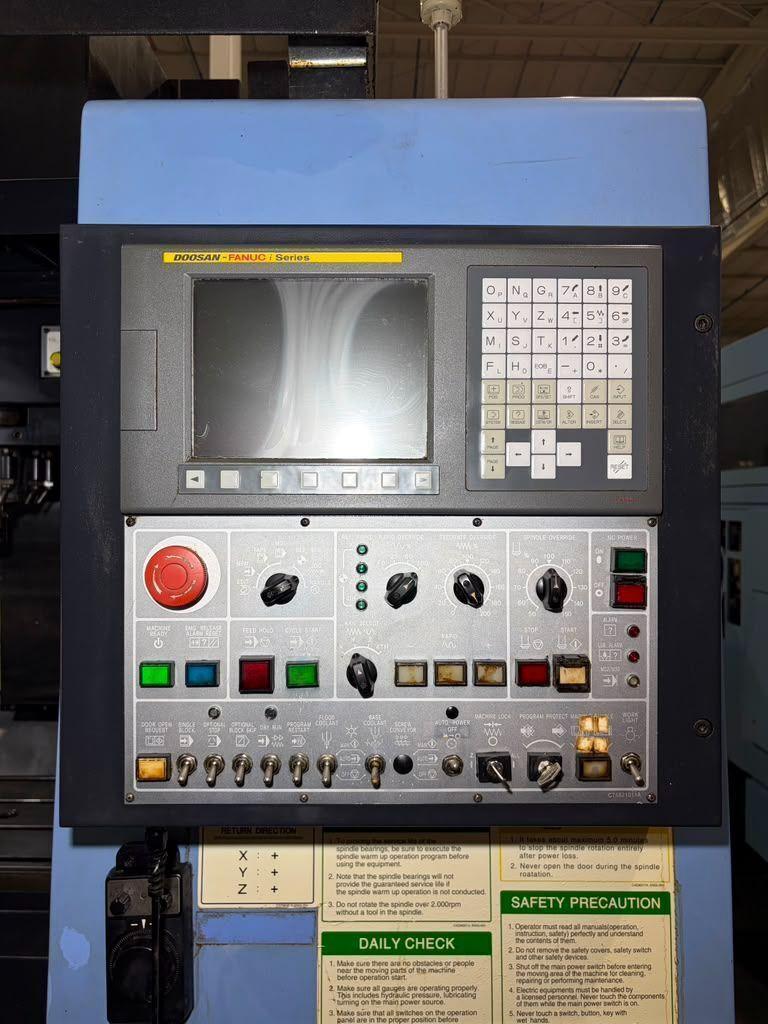

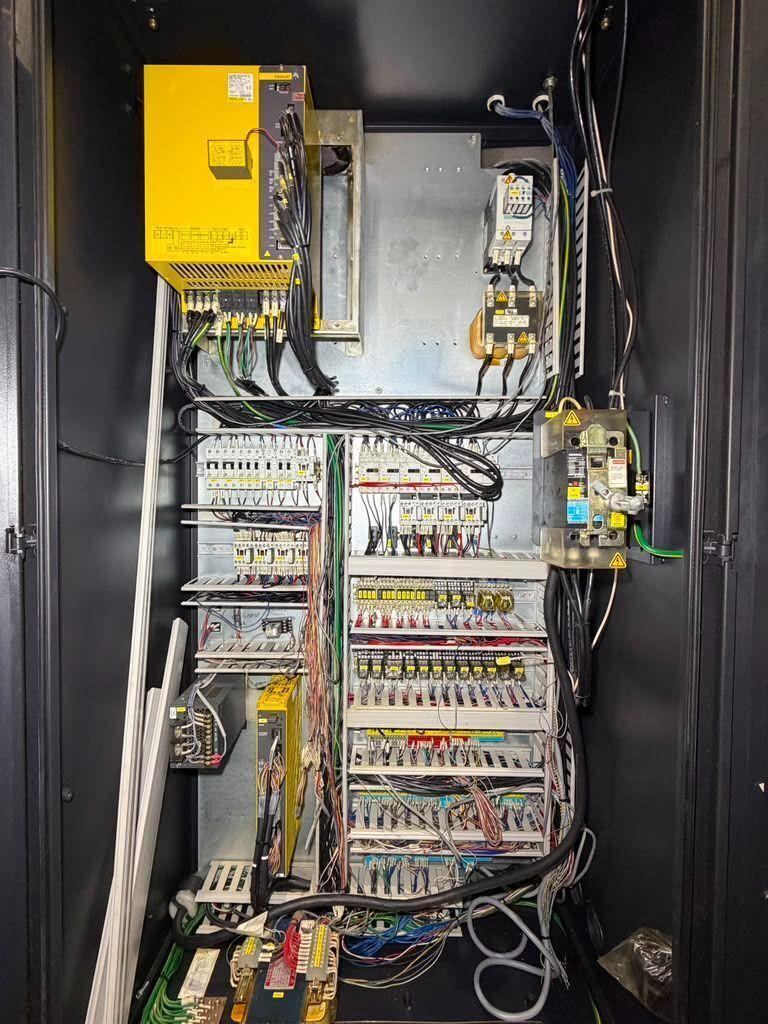

Doosan-Fanuc i-Series CNC Control
8000 RPM Precision Spindle
Through Spindle Coolant Ready
30 Automatic tool changer
Programmable Coolant
MPG Handwheel Control
Spindle Orientation

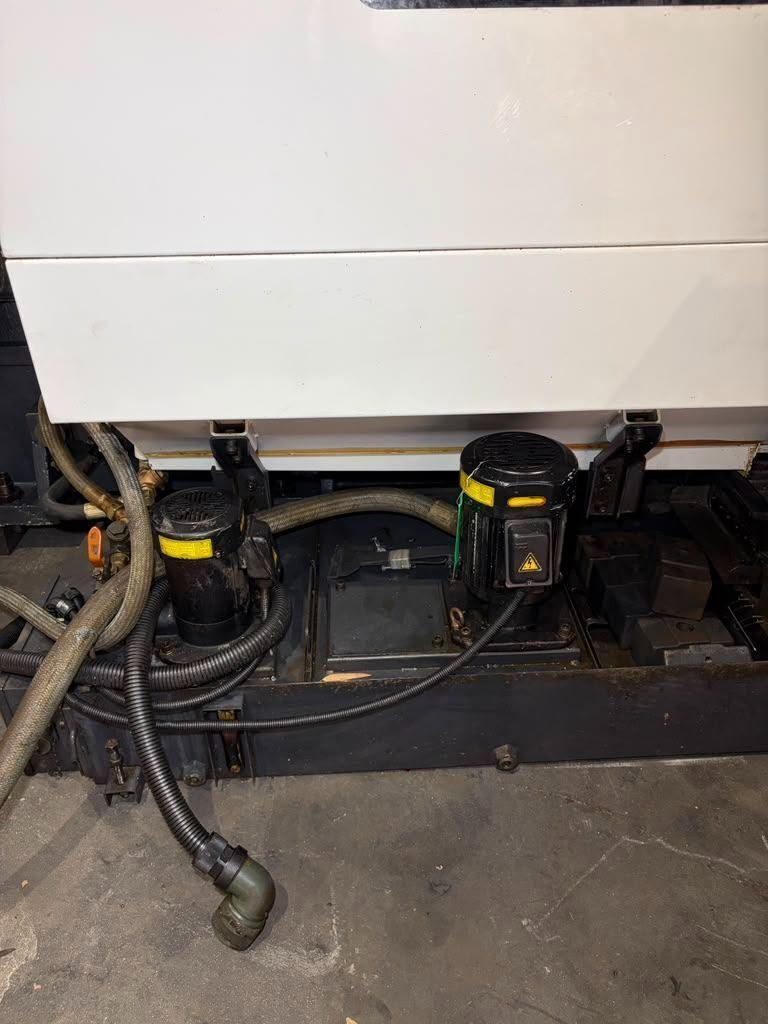

Coolant Tank

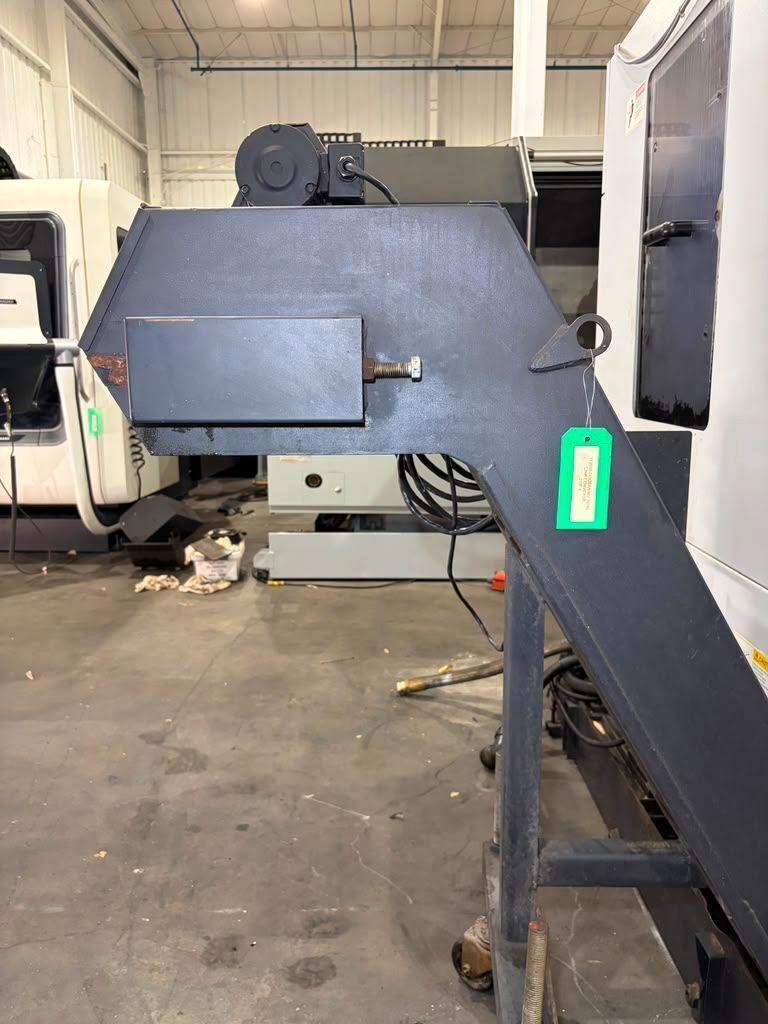

Chip Conveyor
Travels:
X-Axis: 30.2″
Y-Axis: 17.1″
Z-Axis: 20.1″
Spindle Nose to Table (Min.- Max.): 5.9″ – 24.25″
Rapid Traverse rates: 1417 IPM
Feed Rates: 590 IPM

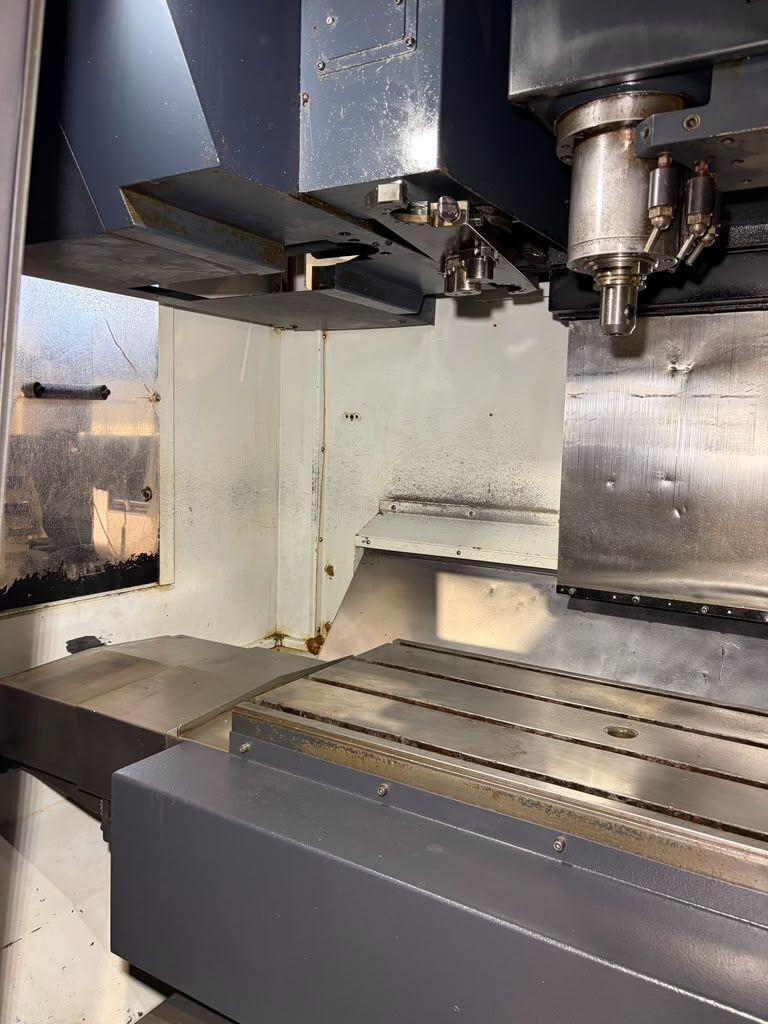

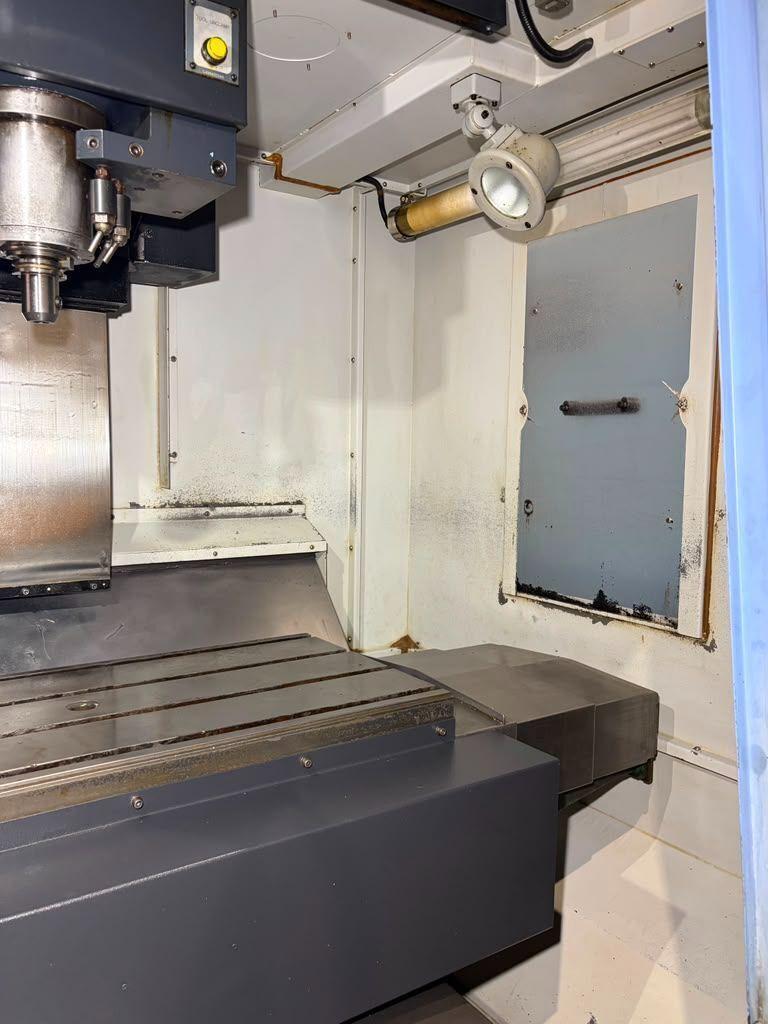

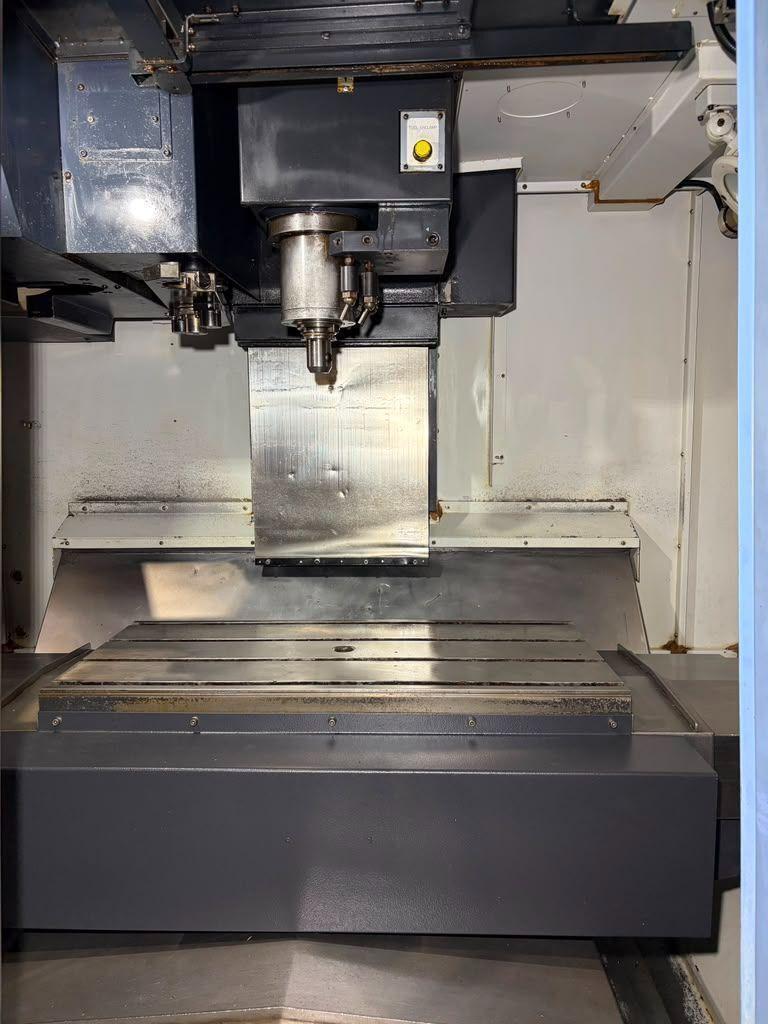

Table:
Length: 36.2″
Width: 17.1″
Number of Std T-Slots: 4
T-Slot Width: 5/8″
Max Weight on Table: 1300 lbs

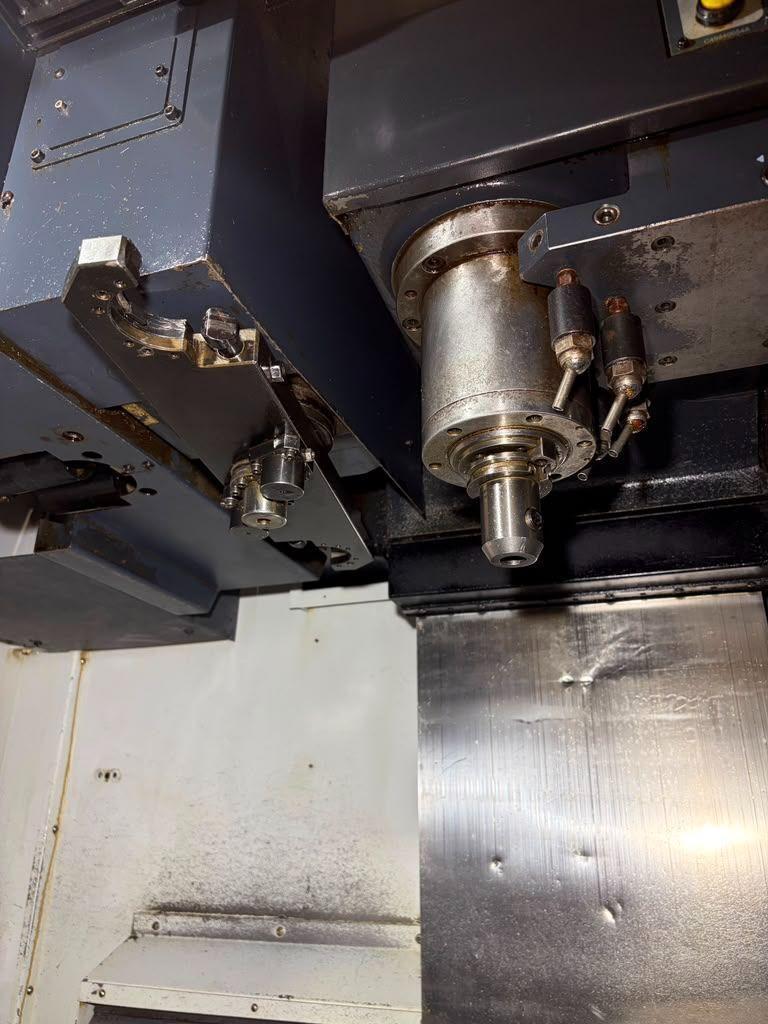

Spindle:
Taper Size: CAT-40
Speed Range: 0 – 8,000 RPM
Spindle Power: 20 HP
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Dia: 3.65″
Max Tool Length: 11.8″
Max Tool Weight: 17.6 lbs
Tool Changing Time: 1.3 Seconds
General:
Air Required: 80 psi, 4 scfm

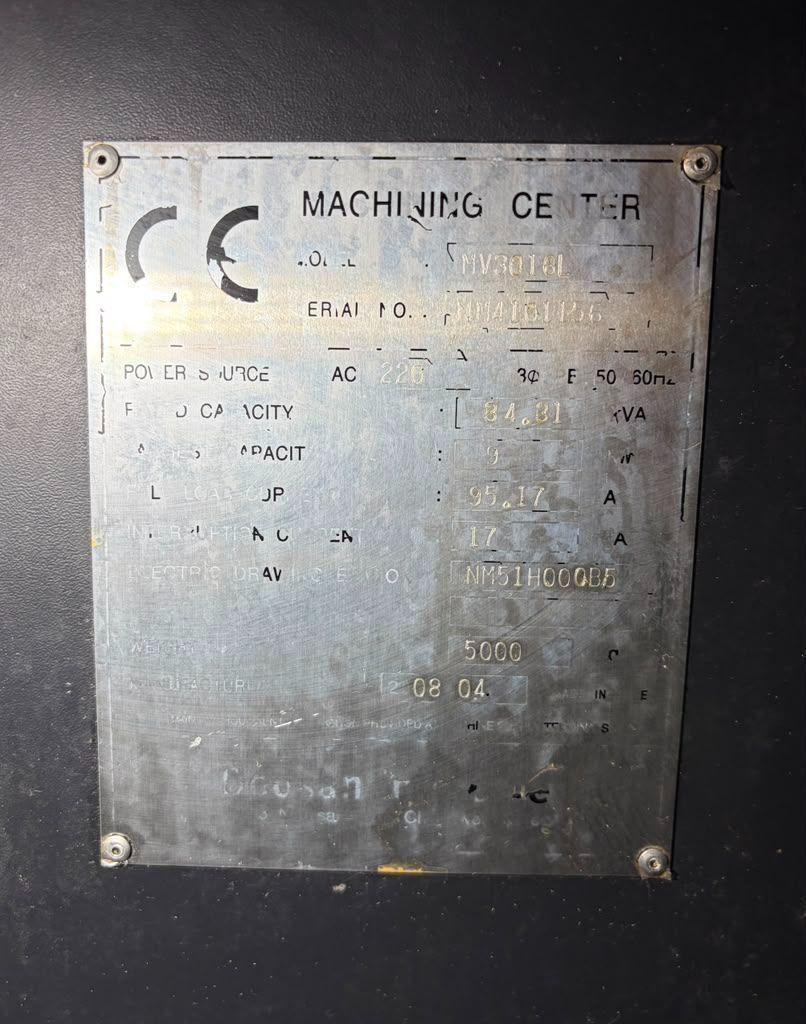

Power: 220v / 34.31 kva / 3-Phase
Overall Dimensions: 130″ x 100″ x 110″ High Approx.
Weight: 11,023 lbs Approx.
