Gleason No. 61 Angular Hypoid Tester
Brand
Category
Type
Model
Not specified
Stock #
0322-034-0002
Year
Not specified
Condition
Not specified
Location
Not specified
|

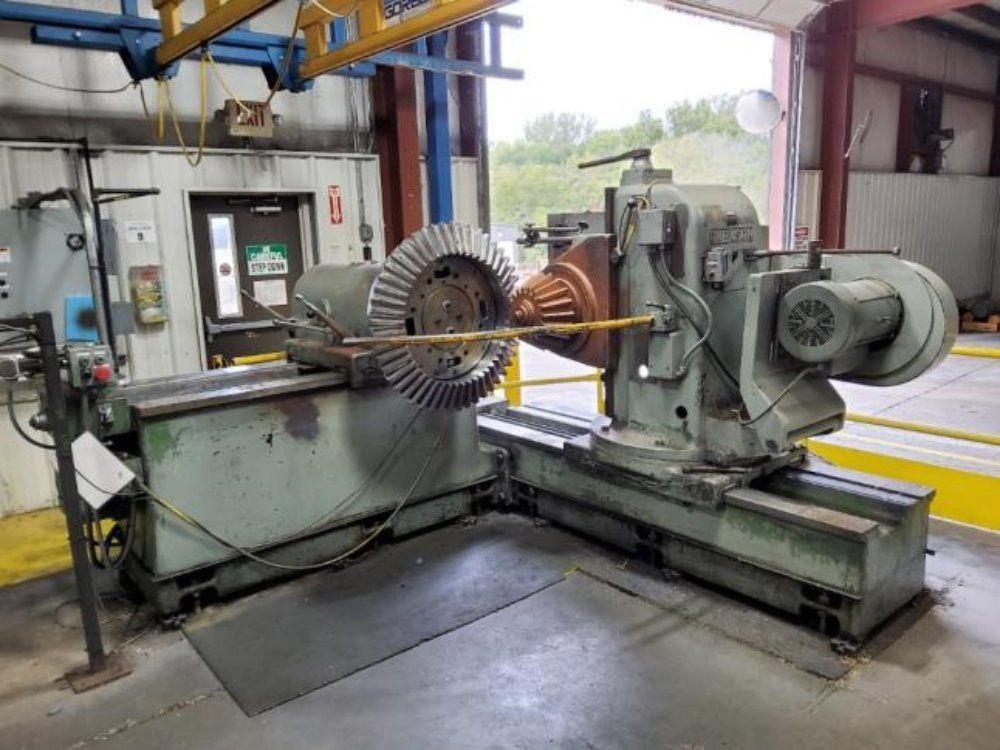

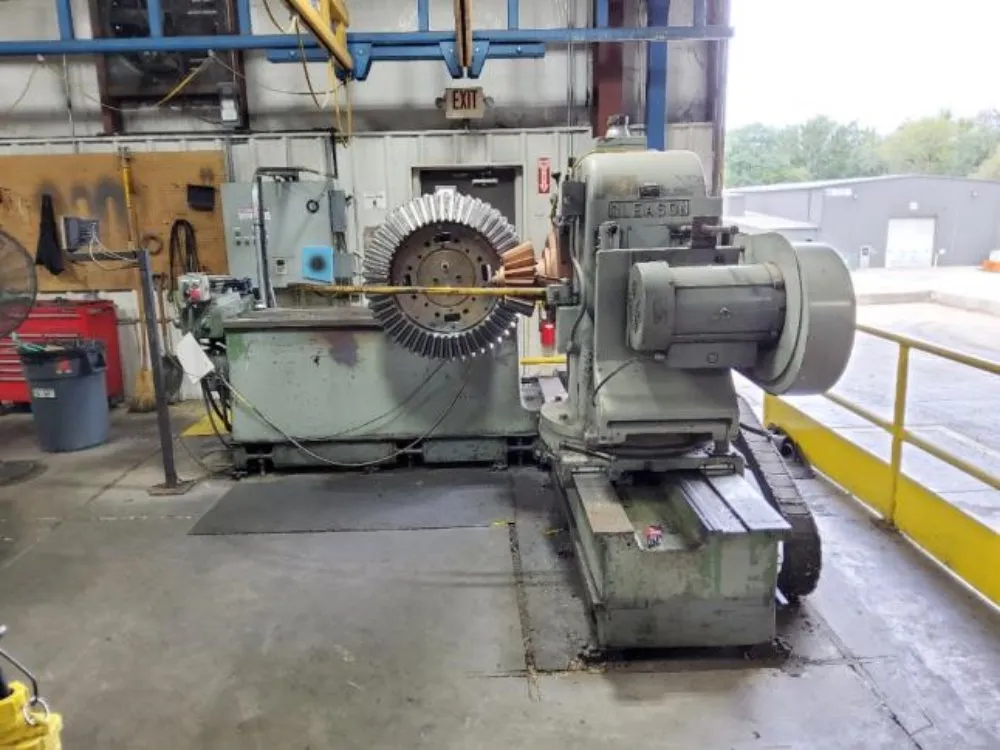

The No. 61 Angular Hypoid Tester is designed to test large bevel and hypoid gears up to 90" diameter and with shaft angles from 0 - 135 degrees. Spur, helical and internal gears can also be accommodated. The drive or pinion spindle can be rotated in either direction at a recommended spindle speed of 600 RPM. It is mounted in a head which is vertically adjustable on a column, so that the spindle can be offset either above or below the center line of the gear spindle for testing hypoid gears. The pinion head column is adjustable angularly in a horizontal plane to permit testing of gears of any shaft angle from 0 - 135 degrees. MAXIMUM WORKPIECE DIAMETER 90"
|
