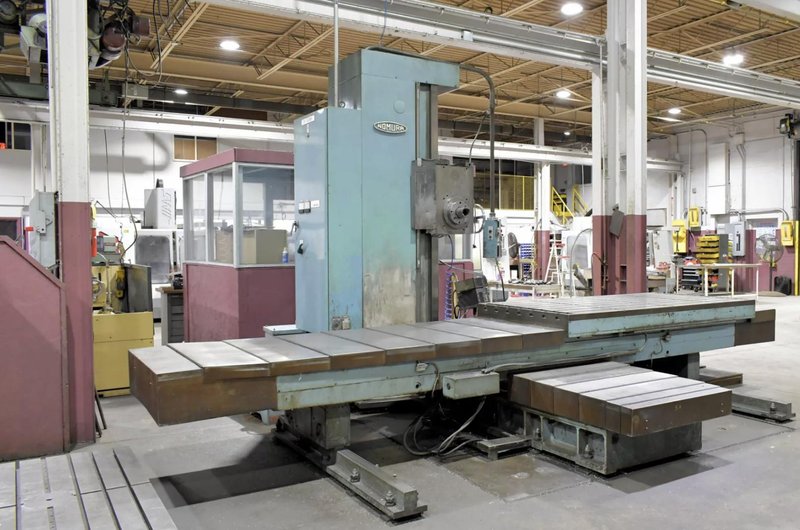

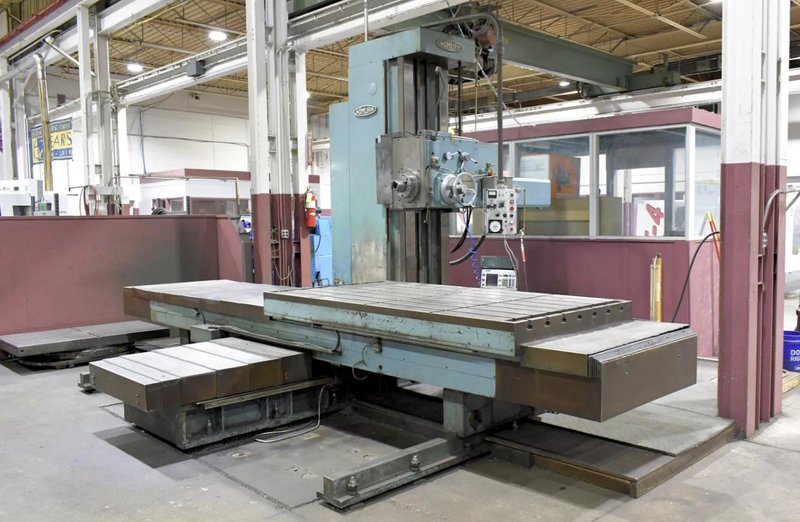

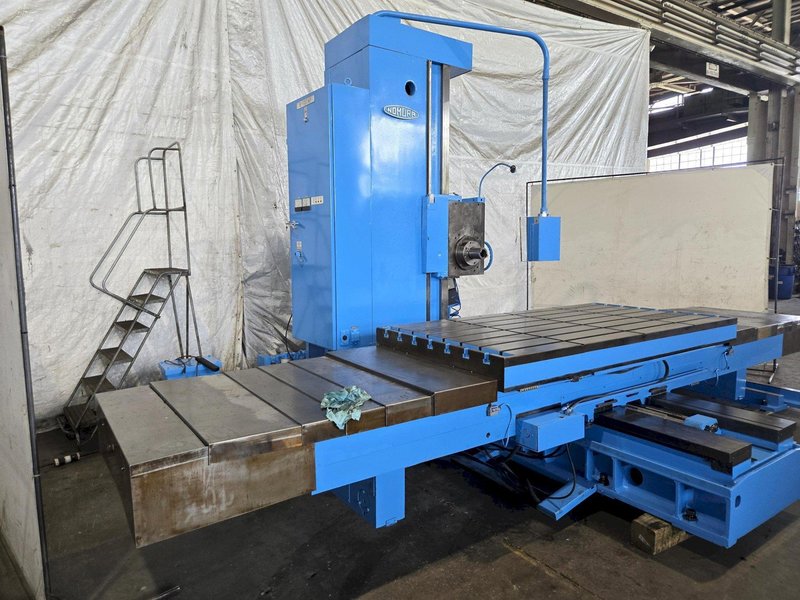

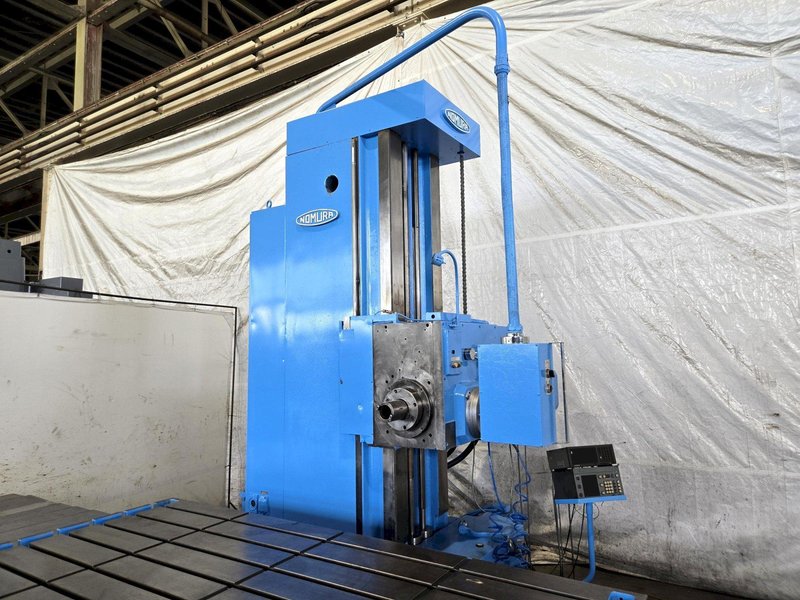

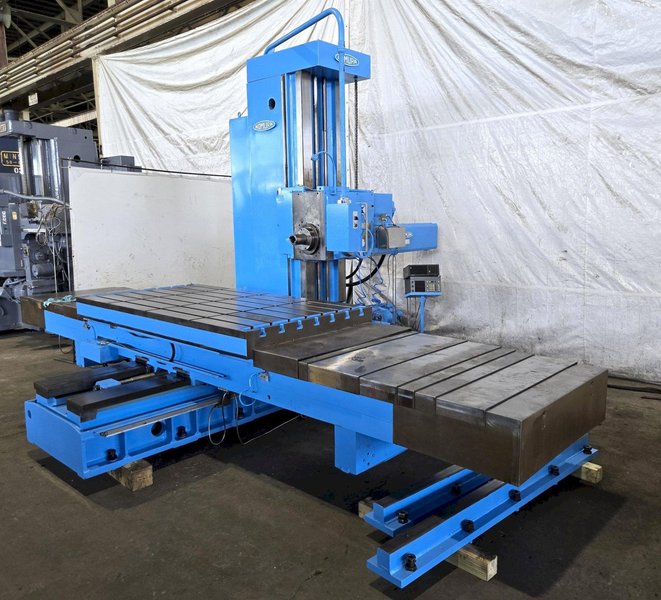

4" NOMURA P-100WP TABLE TYPE HORIZONTAL BORING MILL. STOCK # 0755926

Name: 4" NOMURA P-100WP TABLE TYPE HORIZONTAL BORING MILL. STOCK # 0755926
Brand: NOMURA
SKU: 0755926
Availability: InStock

Brand

NOMURA

Michigan

Spindle Size	3.94 inches

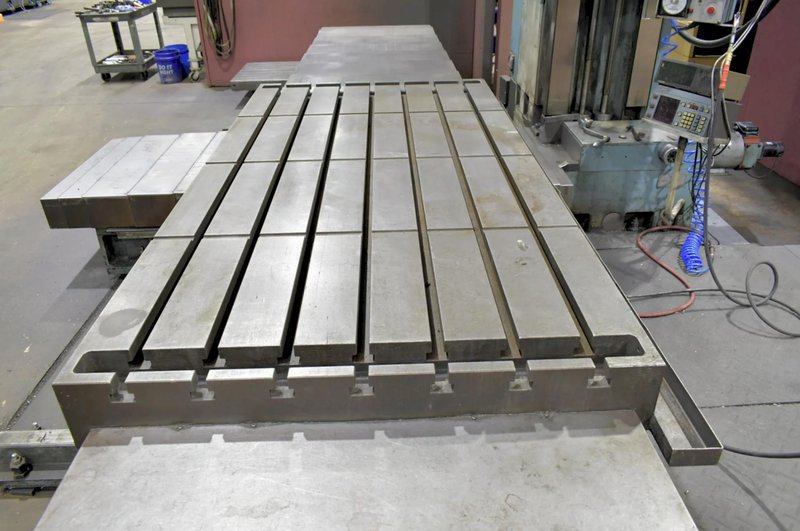

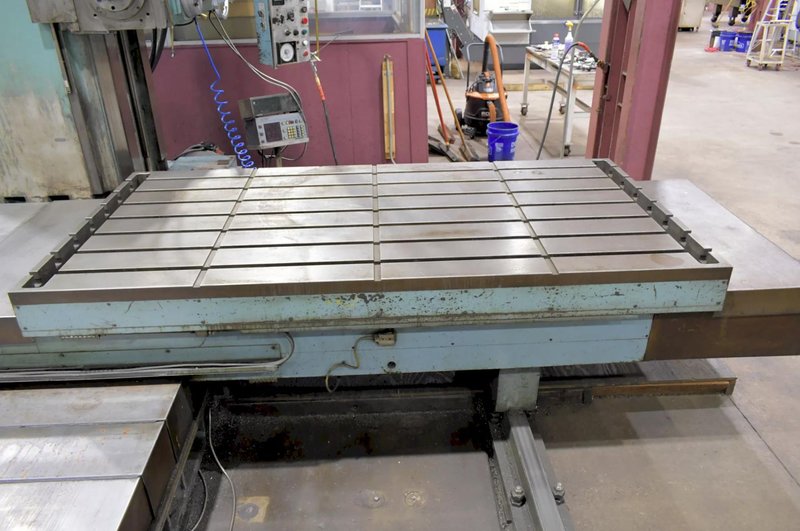

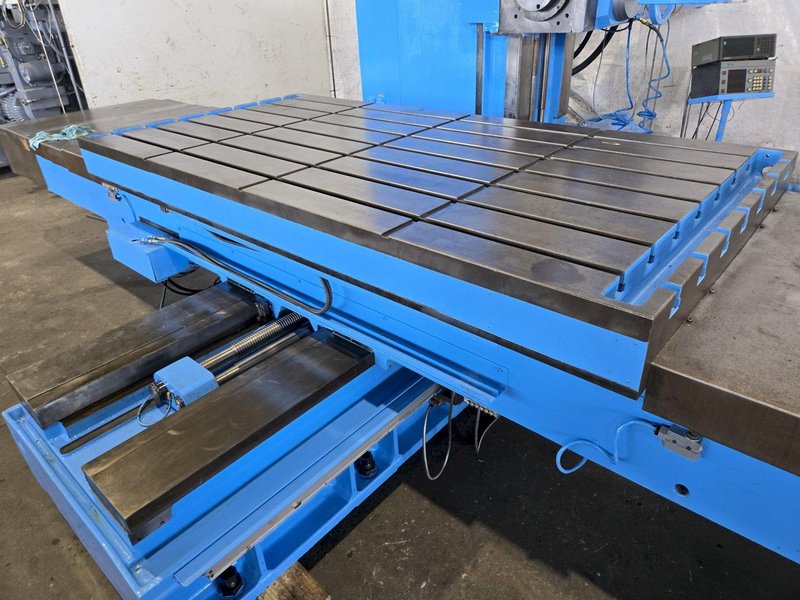

Table Size	48" x 96"
Max Weight On Table	13200 pounds
Rapid Traverse Rate (X/Y/Z)	126 IPM
Cutting Feedrates	62.5 IPM

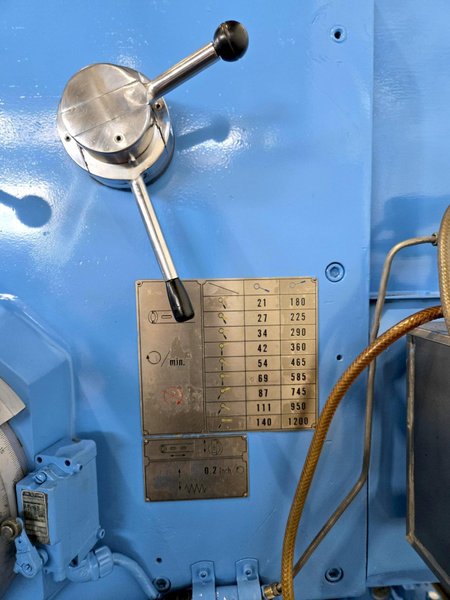

Spindle Speed	21 - 1200 RPM
Spindle Motor	20 HP
Spindle Taper	6MT or ISO-50
Coolant Thru Spindle	yes
Spindle Tvl.	26 inches

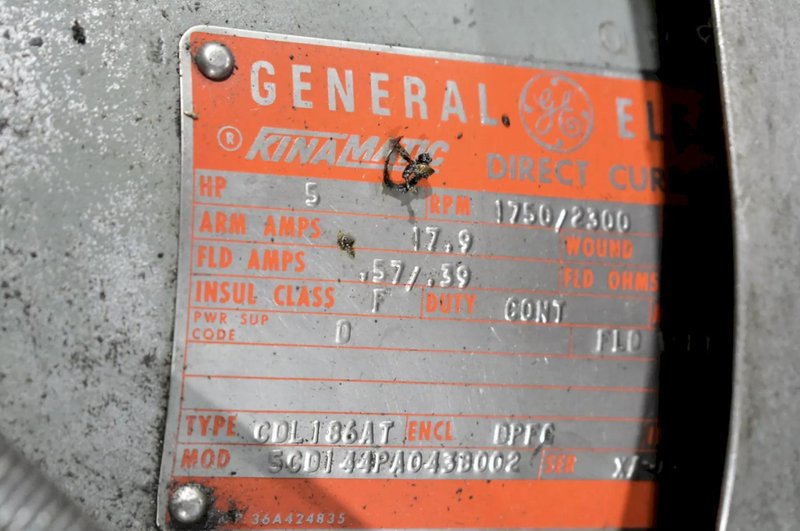

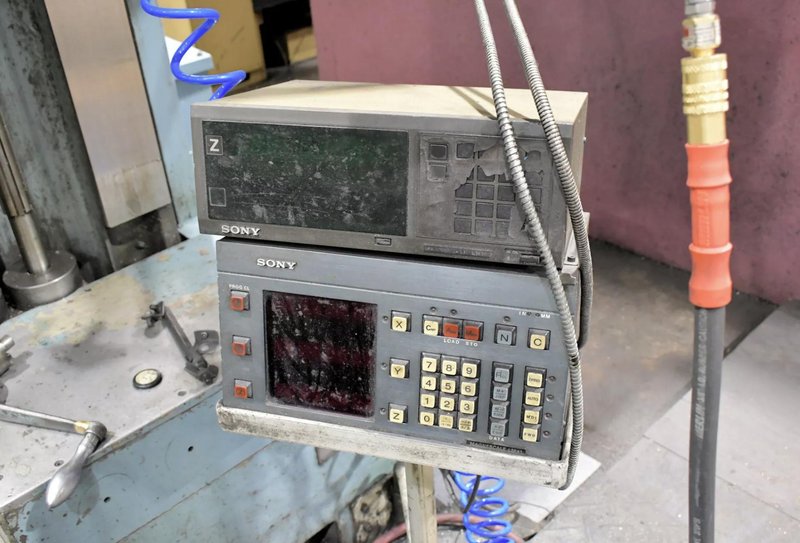

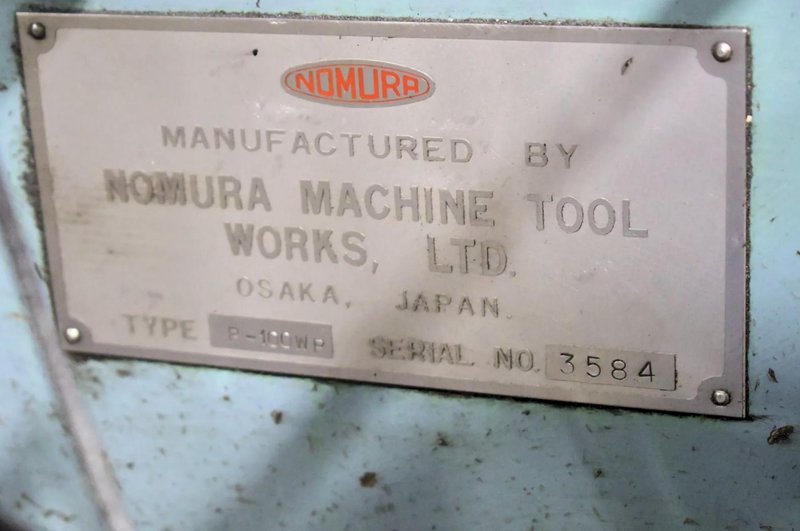

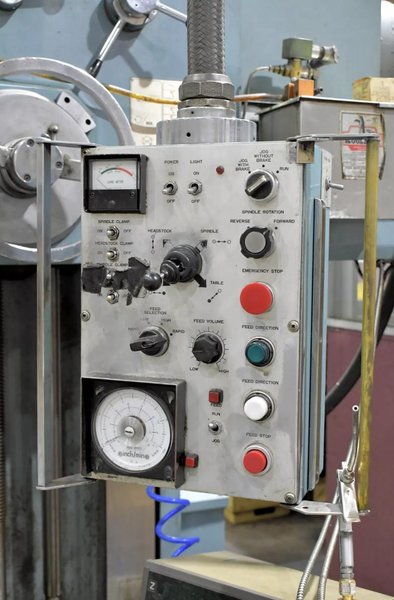

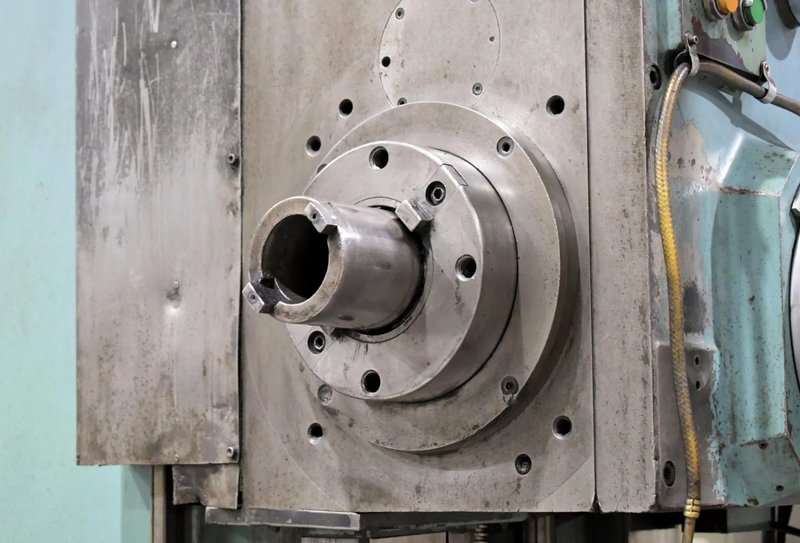

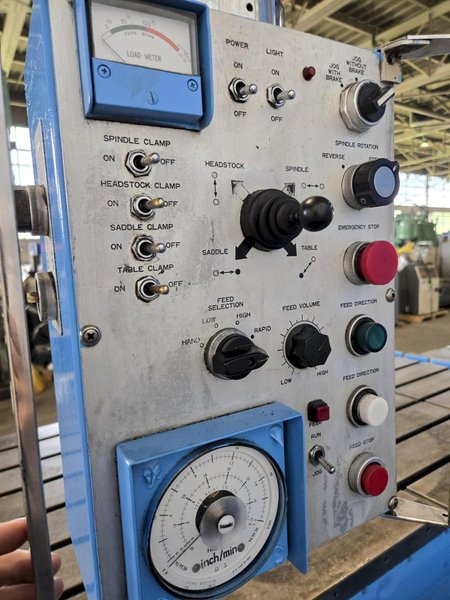

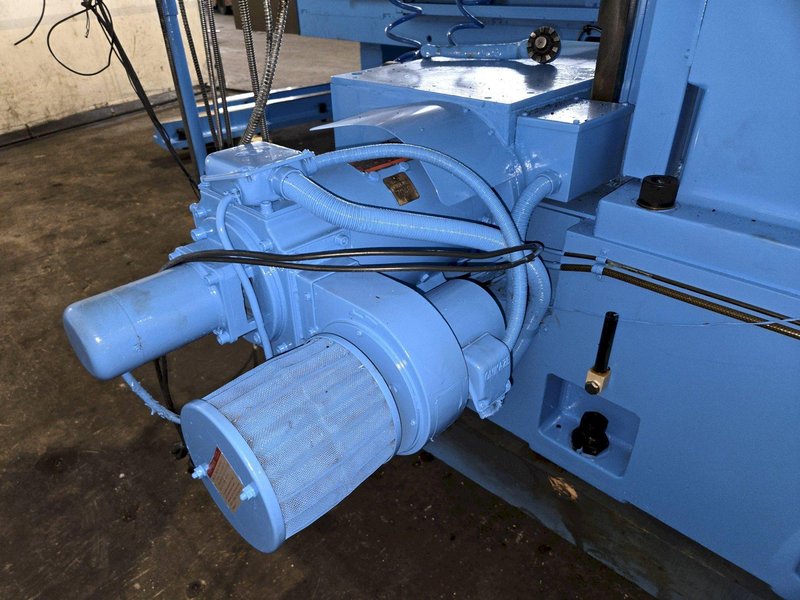

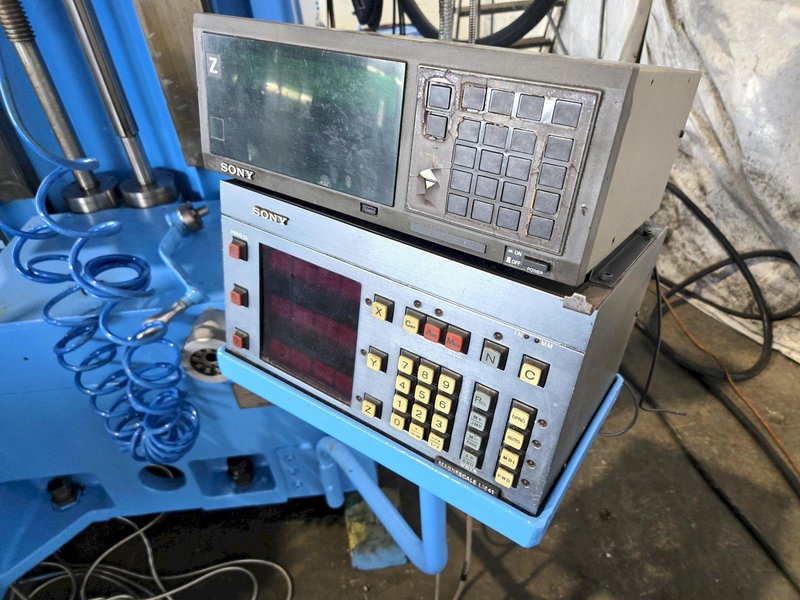

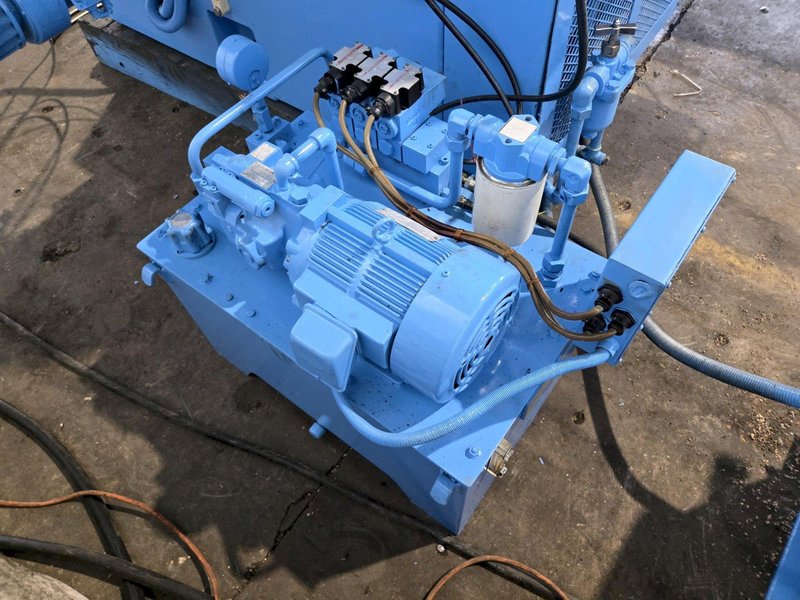

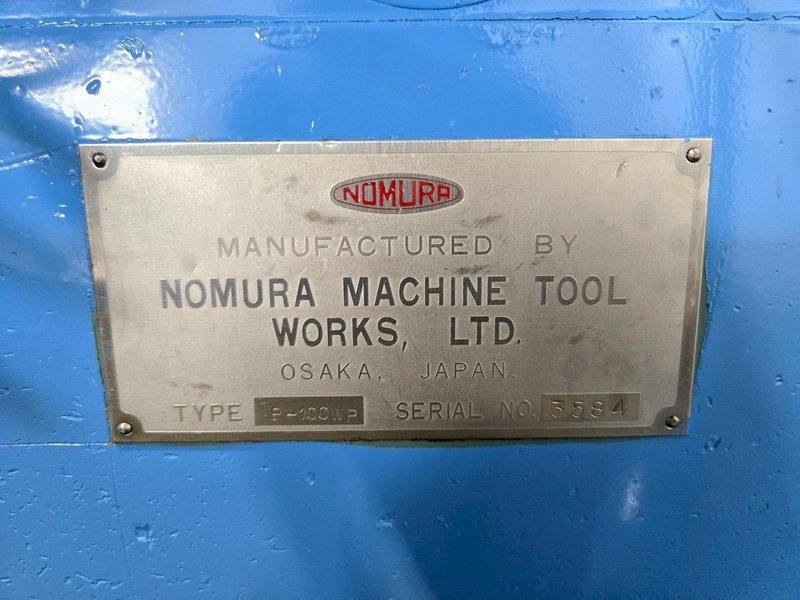

Model...........................: P-100WP 4" Table Type Horizontal Boring Mill SN#.............................: 3584 Pendant Controls................: YES - Sony Magnescale LH10 2-Axis Digital Readout - Sony Magnescale Model LM41 2-Axis Digital Readout - 3.94" Spindle Diameter - 8.46" Milling Spindle Diameter - 20 HP Spindle - 21 to 1,200 RPM Spindle Speeds - 6MT or ISO-50 Spindle Taper - 48" x 96" Table - 96" Table Cross Travel - 60" Headstock Vertical Travel - 43" Table Longitudinal Travel - 26" Spindle Travel - 13,200-lb. Max Load on Table - 126 IPM XYW Rapid Traverse - 78 IPM Spindle Rapid Feedrate - 100 IPM Headstock Feedrate - 100 IPM Table & Saddle Feedrate - 62.5 IPM Spindle Feedrate - 36" Height of Table from Bed Bottom - 5 HP Feed Motor - 0.5 HP Pump Headstock & Gearbox Lubrication Pump Motor - 0.1 HP Slideways Lubrication Pump Motor
