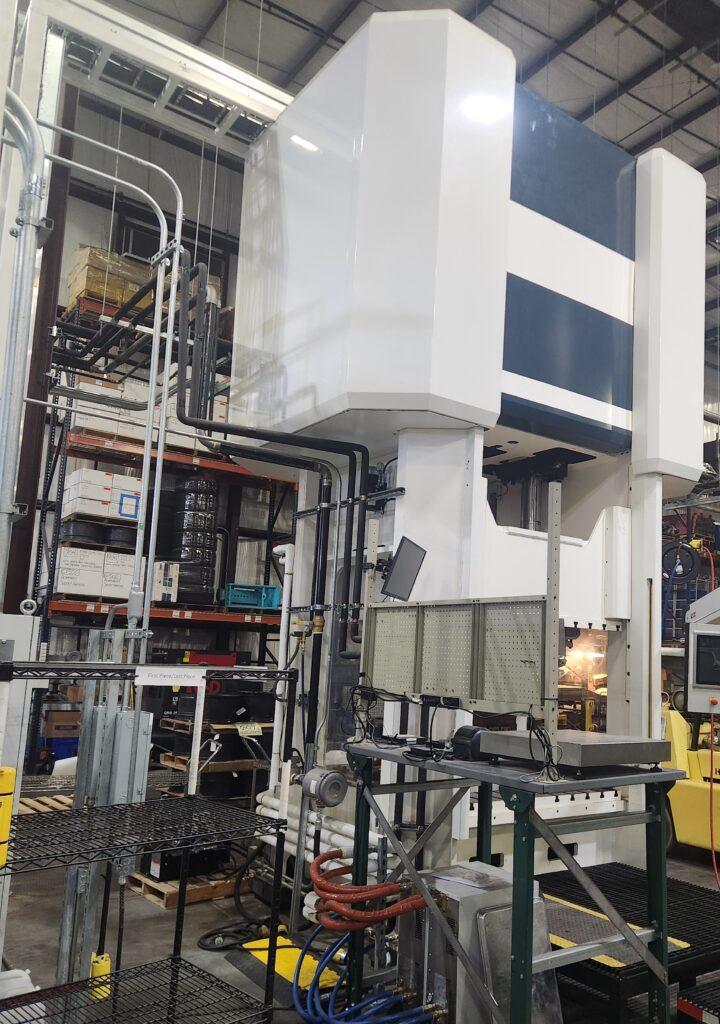

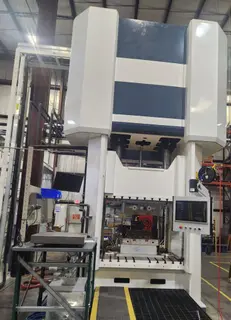

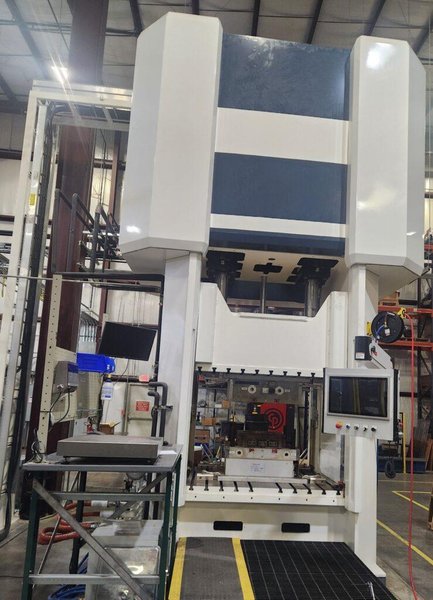

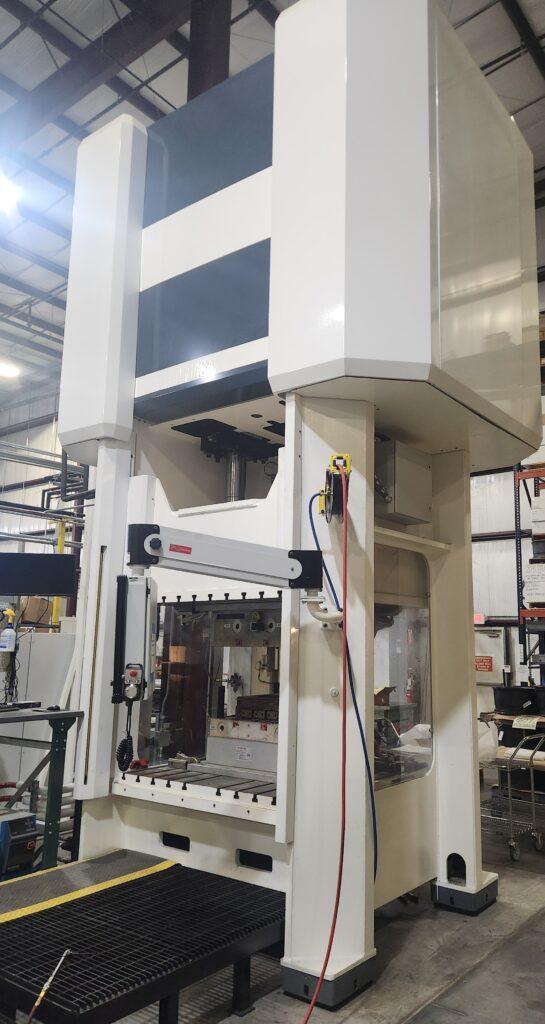

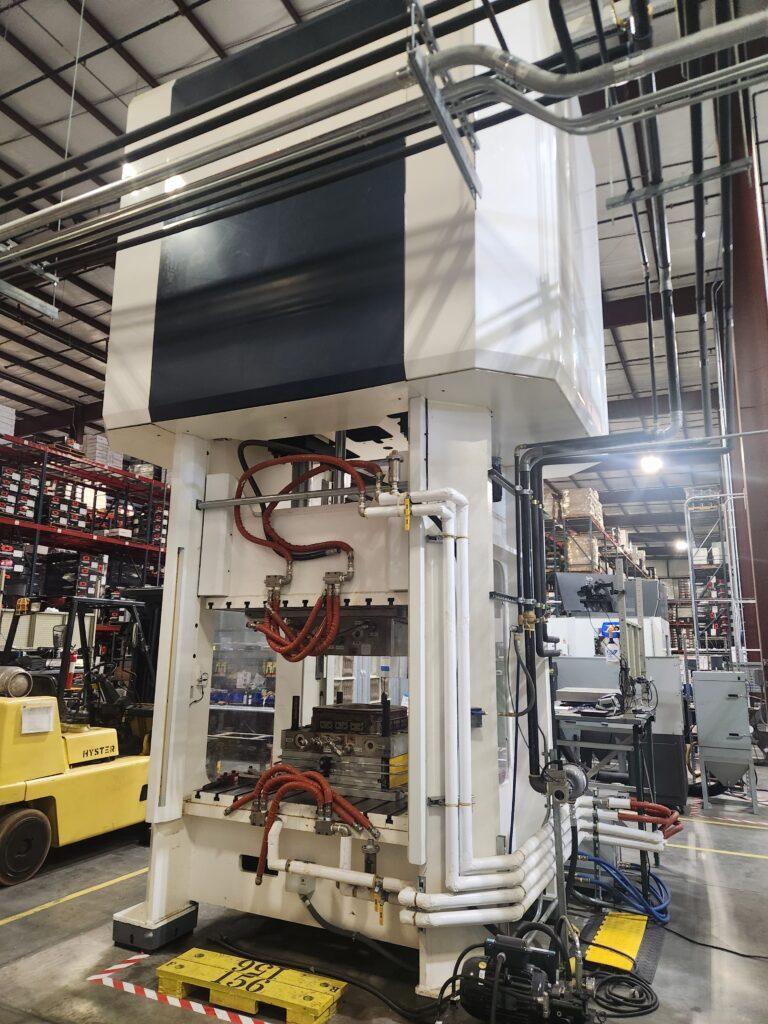

250 Ton Beckwood LSP-250-6464 Linear Servo Screw Press, 2023

– Linear Servo Press’s Nitches:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Off center loading

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Draw and Punching Work with Nitrogen Die Systems

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Heated Platen Applications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Precision Forming

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– High Cleanliness Requirements

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Capacity: 13 to 250 Tons

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Stripping Capacity: 187 Tons

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Day Light: 60″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Stroke: 36”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Shut Height: 24″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Slide Area: 64” x 64″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Bolster Area: 64” x 64”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– T-Slots: 6″ Centers – Ram and Bolster

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Fast Approach / Retract Speed: 0.01 to 6 in/sec

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Pressing Speed: 0.01 to 0.6 in/sec

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Dwell Capability: Infinite – Near zero energy drawn to maintain the dwell (brake holds tonnage)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Window: ?″ Wide x ?″ Tall – Must Confirm

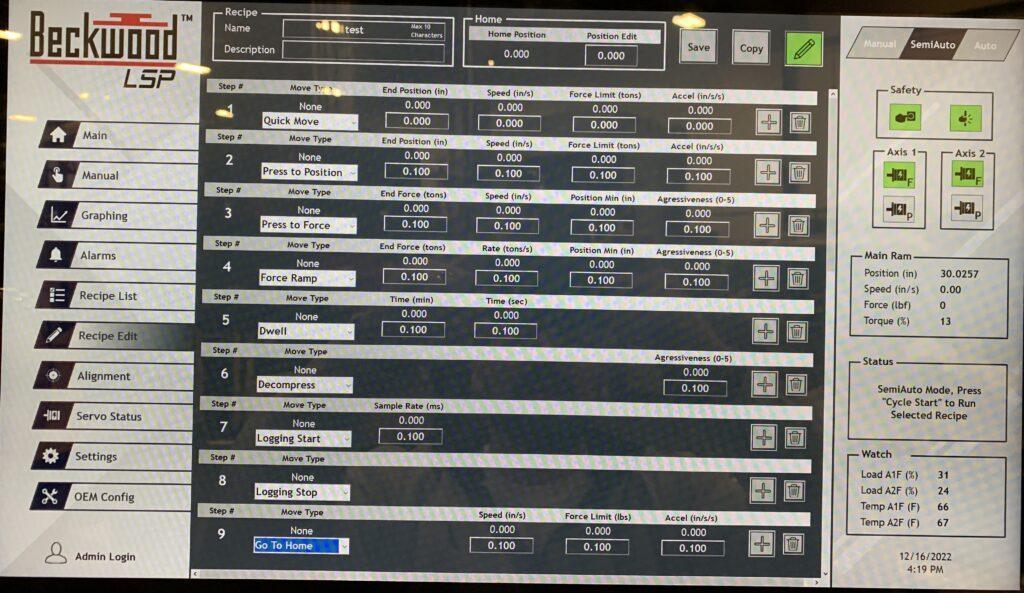

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Press Control: Allen Bradley CompactLogix 5069-L306ER – Programmed for up to 15 Steps

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Pressing Motor: Two @ 22 kW (Two @ ~30 HP)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Fast Approach Motor: Two @ 30 kW (Two @ ~40 HP)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Power: 480 Volt, 3 Phase, 60 Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Full Load Amps: 295 Amps

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Pneumatics: 90 psi minimum (estimated 2 SCFM)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Weight: 81,500 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Manufacturing Date: 6-2023

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
